y71.第四章 Prometheus大厂监控体系及实战 -- prometheus server安装(二)

    root@k8s-master1:~# docker pull prom/prometheus:latest

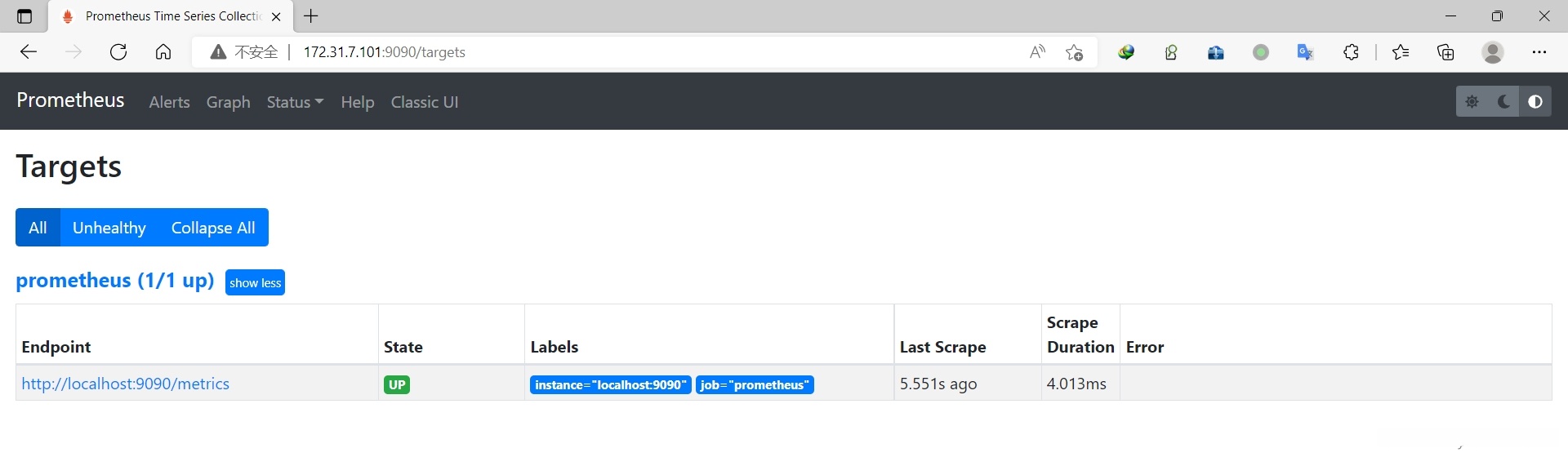

    root@k8s-master1:~# docker run \
    -p 9090:9090 \
    prom/prometheus








    AI助手

    # apt search prometheus
    # apt-cache madison prometheus
    prometheus | 2.15.2+ds-2 | http://mirrors.cloud.tencent.com/ubuntu focal/universe amd64 Packages
    prometheus | 2.15.2+ds-2 | http://mirrors.cloud.tencent.com/ubuntu focal/universe Sources

    # apt -y install prometheus









    AI助手

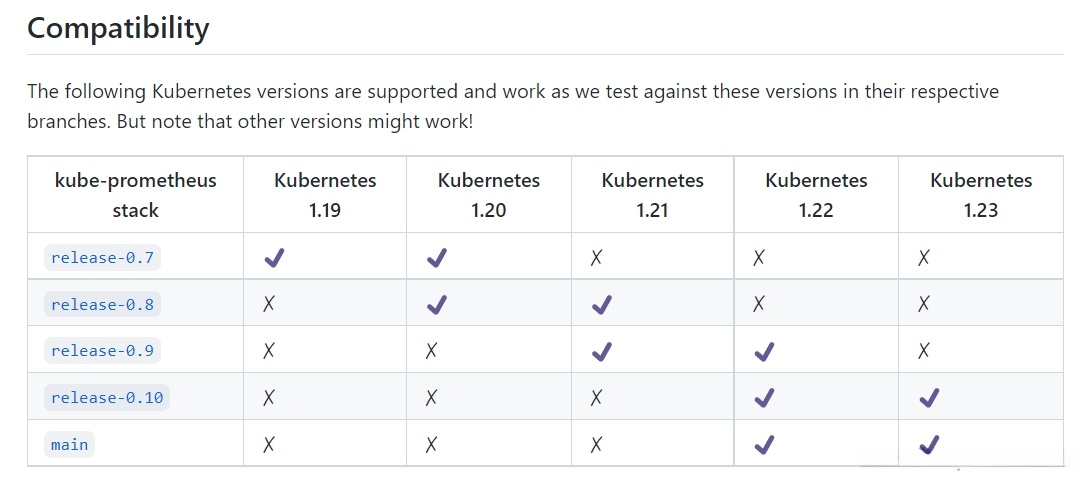

    git clone -b release-0.9 https://github.com/prometheus-operator/kube-prometheus.git

    root@k8s-master1:~# git clone -b release-0.9 https://gitee.com/raymond9/kube-prometheus.git

    root@k8s-master1:~# cd kube-prometheus/manifests
    root@k8s-master1:~/kube-prometheus/manifests# ls
    alertmanager-alertmanager.yaml                       node-exporter-clusterRole.yaml
    alertmanager-podDisruptionBudget.yaml                node-exporter-clusterRoleBinding.yaml
    alertmanager-prometheusRule.yaml                     node-exporter-daemonset.yaml
    alertmanager-secret.yaml                             node-exporter-prometheusRule.yaml
    alertmanager-service.yaml                            node-exporter-service.yaml
    alertmanager-serviceAccount.yaml                     node-exporter-serviceAccount.yaml
    alertmanager-serviceMonitor.yaml                     node-exporter-serviceMonitor.yaml
    blackbox-exporter-clusterRole.yaml                   prometheus-adapter-apiService.yaml
    blackbox-exporter-clusterRoleBinding.yaml            prometheus-adapter-clusterRole.yaml
    blackbox-exporter-configuration.yaml                 prometheus-adapter-clusterRoleAggregatedMetricsReader.yaml
    blackbox-exporter-deployment.yaml                    prometheus-adapter-clusterRoleBinding.yaml
    blackbox-exporter-service.yaml                       prometheus-adapter-clusterRoleBindingDelegator.yaml
    blackbox-exporter-serviceAccount.yaml                prometheus-adapter-clusterRoleServerResources.yaml
    blackbox-exporter-serviceMonitor.yaml                prometheus-adapter-configMap.yaml
    grafana-dashboardDatasources.yaml                    prometheus-adapter-deployment.yaml
    grafana-dashboardDefinitions.yaml                    prometheus-adapter-podDisruptionBudget.yaml
    grafana-dashboardSources.yaml                        prometheus-adapter-roleBindingAuthReader.yaml
    grafana-deployment.yaml                              prometheus-adapter-service.yaml
    grafana-service.yaml                                 prometheus-adapter-serviceAccount.yaml
    grafana-serviceAccount.yaml                          prometheus-adapter-serviceMonitor.yaml
    grafana-serviceMonitor.yaml                          prometheus-clusterRole.yaml
    kube-prometheus-prometheusRule.yaml                  prometheus-clusterRoleBinding.yaml
    kube-state-metrics-clusterRole.yaml                  prometheus-operator-prometheusRule.yaml
    kube-state-metrics-clusterRoleBinding.yaml           prometheus-operator-serviceMonitor.yaml
    kube-state-metrics-deployment.yaml                   prometheus-podDisruptionBudget.yaml
    kube-state-metrics-prometheusRule.yaml               prometheus-prometheus.yaml
    kube-state-metrics-service.yaml                      prometheus-prometheusRule.yaml
    kube-state-metrics-serviceAccount.yaml               prometheus-roleBindingConfig.yaml
    kube-state-metrics-serviceMonitor.yaml               prometheus-roleBindingSpecificNamespaces.yaml
    kubernetes-prometheusRule.yaml                       prometheus-roleConfig.yaml
    kubernetes-serviceMonitorApiserver.yaml              prometheus-roleSpecificNamespaces.yaml
    kubernetes-serviceMonitorCoreDNS.yaml                prometheus-service.yaml
    kubernetes-serviceMonitorKubeControllerManager.yaml  prometheus-serviceAccount.yaml
    kubernetes-serviceMonitorKubeScheduler.yaml          prometheus-serviceMonitor.yaml
    kubernetes-serviceMonitorKubelet.yaml                setup

    root@k8s-master1:~/kube-prometheus/manifests# grep "image:" setup/*.yaml |awk -F" " '{print $NF}' | uniq
    image:
    quay.io/prometheus-operator/prometheus-operator:v0.49.0
    quay.io/brancz/kube-rbac-proxy:v0.11.0

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/prometheus-operator:v0.49.0

    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/prometheus-operator:v0.49.0 harbor.raymonds.cc/base_images/prometheus-operator:v0.49.0
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/prometheus-operator:v0.49.0

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/kube-rbac-proxy:v0.11.0
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/kube-rbac-proxy:v0.11.0 harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0

    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#quay.io/prometheus-operator/#harbor.raymonds.cc/base_images/#g" setup/*.yaml
    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#quay.io/brancz/#harbor.raymonds.cc/base_images/#g" setup/*.yaml

    root@k8s-master1:~/kube-prometheus/manifests# grep "image:" setup/*.yaml |awk -F" " '{print $NF}' | uniq
    image:
    harbor.raymonds.cc/base_images/prometheus-operator:v0.49.0
    harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0


































































    AI助手

    root@k8s-master1:~/kube-prometheus/manifests# kubectl apply -f setup/
    namespace/monitoring created
    customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com created
    customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com created
    customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com created
    customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com created
    customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com created
    customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com created
    customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com created
    customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com created
    clusterrole.rbac.authorization.k8s.io/prometheus-operator created
    clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator created
    deployment.apps/prometheus-operator created
    service/prometheus-operator created
    serviceaccount/prometheus-operator created


















    AI助手

    root@k8s-master1:~/kube-prometheus/manifests# kubectl get pod -n monitoring
    NAME                                   READY   STATUS    RESTARTS   AGE
    prometheus-operator-6db58766b8-zhr8q   2/2     Running   0          38s






    AI助手

    root@k8s-master1:~/kube-prometheus/manifests# grep "image:" *.yaml |awk -F" " '{print $NF}' | uniq
    quay.io/prometheus/alertmanager:v0.22.2
    quay.io/prometheus/blackbox-exporter:v0.19.0
    jimmidyson/configmap-reload:v0.5.0
    quay.io/brancz/kube-rbac-proxy:v0.11.0
    grafana/grafana:8.1.1
    k8s.gcr.io/kube-state-metrics/kube-state-metrics:v2.1.1
    quay.io/prometheus/node-exporter:v1.2.2
    k8s.gcr.io/prometheus-adapter/prometheus-adapter:v0.9.0
    quay.io/prometheus/prometheus:v2.29.1

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/alertmanager:v0.22.2
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/alertmanager:v0.22.2 harbor.raymonds.cc/base_images/alertmanager:v0.22.2
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/alertmanager:v0.22.2

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/blackbox-exporter:v0.19.0
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/blackbox-exporter:v0.19.0 harbor.raymonds.cc/base_images/blackbox-exporter:v0.19.0
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/blackbox-exporter:v0.19.0

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/configmap-reload:v0.5.0
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/configmap-reload:v0.5.0 harbor.raymonds.cc/base_images/configmap-reload:v0.5.0
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/configmap-reload:v0.5.0

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/kube-rbac-proxy:v0.11.0
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/kube-rbac-proxy:v0.11.0 harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/grafana:8.1.1
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/grafana:8.1.1 harbor.raymonds.cc/base_images/grafana:8.1.1
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/grafana:8.1.1

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/kube-state-metrics:v2.1.1
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/kube-state-metrics:v2.1.1 harbor.raymonds.cc/base_images/kube-state-metrics:v2.1.1
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/kube-state-metrics:v2.1.1

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/node-exporter:v1.2.2
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/node-exporter:v1.2.2 harbor.raymonds.cc/base_images/node-exporter:v1.2.2
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/node-exporter:v1.2.2

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/prometheus-adapter:v0.9.0
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/prometheus-adapter:v0.9.0 harbor.raymonds.cc/base_images/prometheus-adapter:v0.9.0
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/prometheus-adapter:v0.9.0

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/prometheus:v2.29.1
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/prometheus:v2.29.1 harbor.raymonds.cc/base_images/prometheus:v2.29.1
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/prometheus:v2.29.1

    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#quay.io/prometheus/#harbor.raymonds.cc/base_images/#g" *.yaml
    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#jimmidyson/#harbor.raymonds.cc/base_images/#g" *.yaml
    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#quay.io/brancz/#harbor.raymonds.cc/base_images/#g" *.yaml
    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#grafana/#harbor.raymonds.cc/base_images/#g" *.yaml
    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#k8s.gcr.io/kube-state-metrics/#harbor.raymonds.cc/base_images/#g" *.yaml
    root@k8s-master1:~/kube-prometheus/manifests# sed -i "s#k8s.gcr.io/prometheus-adapter/#harbor.raymonds.cc/base_images/#g" *.yaml

    root@k8s-master1:~/kube-prometheus/manifests# grep "image:" *.yaml |awk -F" " '{print $NF}'
    harbor.raymonds.cc/base_images/alertmanager:v0.22.2
    harbor.raymonds.cc/base_images/blackbox-exporter:v0.19.0
    harbor.raymonds.cc/base_images/configmap-reload:v0.5.0
    harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0
    harbor.raymonds.cc/base_images/grafana:8.1.1
    harbor.raymonds.cc/base_images/kube-state-metrics:v2.1.1
    harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0
    harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0
    harbor.raymonds.cc/base_images/node-exporter:v1.2.2
    harbor.raymonds.cc/base_images/kube-rbac-proxy:v0.11.0
    harbor.raymonds.cc/base_images/prometheus-adapter:v0.9.0
    harbor.raymonds.cc/base_images/prometheus:v2.29.1

    root@k8s-master1:~/kube-prometheus/manifests# kubectl apply -f .








































































    AI助手

    root@k8s-master1:~/kube-prometheus/manifests# kubectl get pod -n monitoring
    NAME                                   READY   STATUS                  RESTARTS   AGE
    alertmanager-main-0                    1/2     ImagePullBackOff        0          2m55s
    alertmanager-main-1                    1/2     ImagePullBackOff        0          2m55s
    alertmanager-main-2                    1/2     ImagePullBackOff        0          2m55s
    blackbox-exporter-7f7f57cf45-llhnk     3/3     Running                 0          2m55s
    grafana-7d8fdcf57d-dkpjf               1/1     Running                 0          2m54s
    kube-state-metrics-7564f95f7d-26gjs    3/3     Running                 0          2m53s
    node-exporter-bt45t                    2/2     Running                 0          2m52s
    node-exporter-cv59k                    2/2     Running                 0          2m52s
    node-exporter-j5wst                    2/2     Running                 0          2m52s
    node-exporter-tnclt                    2/2     Running                 0          2m52s
    node-exporter-tzlc6                    2/2     Running                 0          2m52s
    node-exporter-vq8jp                    2/2     Running                 0          2m52s
    prometheus-adapter-cbcdb5cc-29ldr      1/1     Running                 0          2m51s
    prometheus-adapter-cbcdb5cc-8wdcr      1/1     Running                 0          2m51s
    prometheus-k8s-0                       0/2     Init:ImagePullBackOff   0          2m50s
    prometheus-k8s-1                       0/2     Init:ImagePullBackOff   0          2m50s
    prometheus-operator-6db58766b8-zhr8q   2/2     Running                 0          78m

    root@k8s-master1:~/kube-prometheus/manifests# docker pull registry.cn-beijing.aliyuncs.com/raymond9/prometheus-config-reloader:v0.49.0
    root@k8s-master1:~/kube-prometheus/manifests# docker tag registry.cn-beijing.aliyuncs.com/raymond9/prometheus-config-reloader:v0.49.0 harbor.raymonds.cc/base_images/prometheus-config-reloader:v0.49.0
    root@k8s-master1:~/kube-prometheus/manifests# docker push harbor.raymonds.cc/base_images/prometheus-config-reloader:v0.49.0

    root@k8s-master1:~/kube-prometheus/manifests# kubectl delete pod alertmanager-main-0 alertmanager-main-1 alertmanager-main-2 -n monitoring
    pod "alertmanager-main-0" deleted
    pod "alertmanager-main-1" deleted
    pod "alertmanager-main-2" deleted

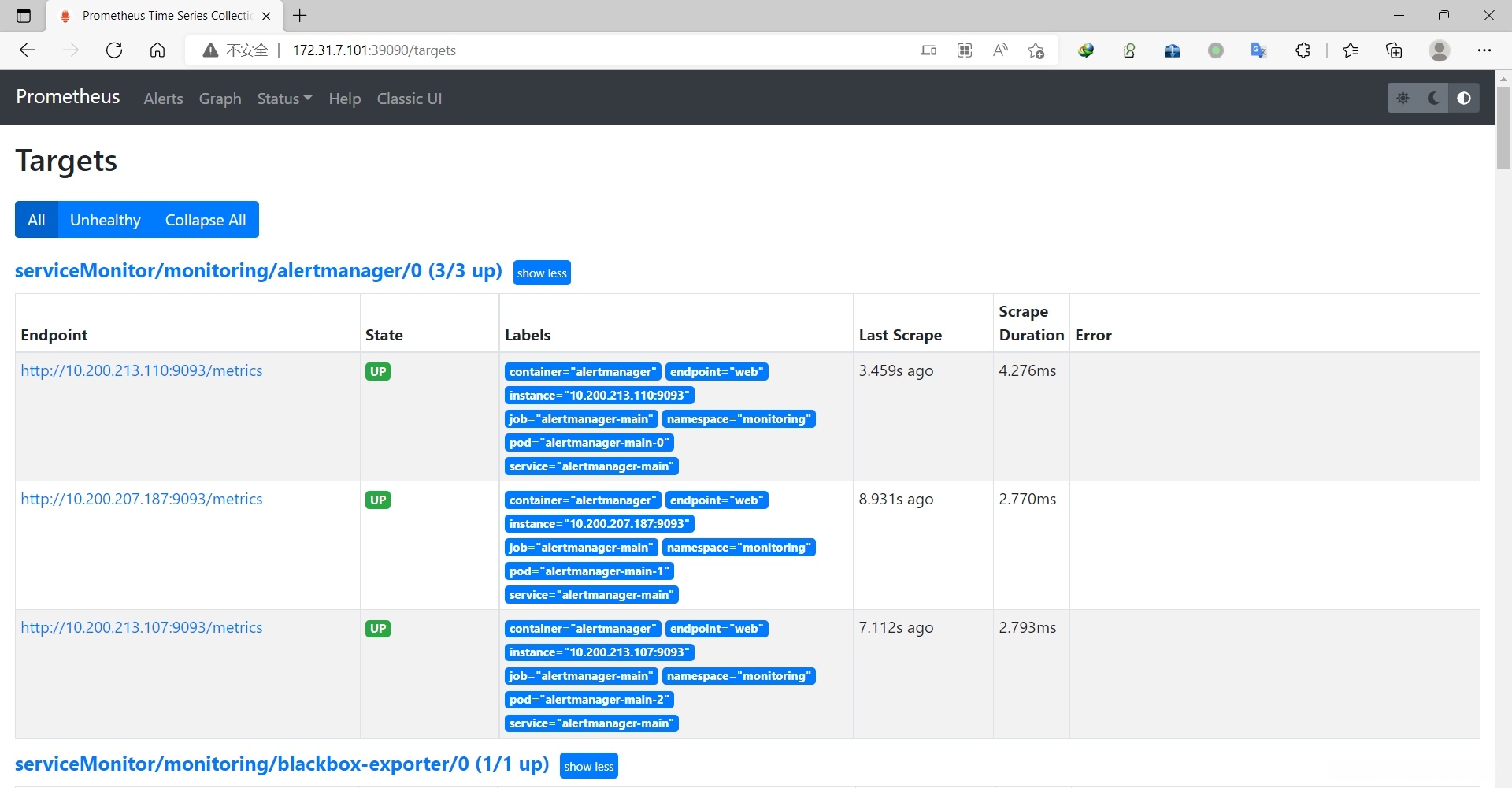

    root@k8s-master1:~/kube-prometheus/manifests# kubectl get pod -n monitoring
    NAME                                   READY   STATUS    RESTARTS   AGE
    alertmanager-main-0                    2/2     Running   0          15s
    alertmanager-main-1                    2/2     Running   0          11s
    alertmanager-main-2                    2/2     Running   0          15s
    blackbox-exporter-7f7f57cf45-llhnk     3/3     Running   0          21m
    grafana-7d8fdcf57d-dkpjf               1/1     Running   0          21m
    kube-state-metrics-7564f95f7d-26gjs    3/3     Running   0          21m
    node-exporter-bt45t                    2/2     Running   0          21m
    node-exporter-cv59k                    2/2     Running   0          21m
    node-exporter-j5wst                    2/2     Running   0          21m
    node-exporter-tnclt                    2/2     Running   0          21m
    node-exporter-tzlc6                    2/2     Running   0          21m
    node-exporter-vq8jp                    2/2     Running   0          21m
    prometheus-adapter-cbcdb5cc-29ldr      1/1     Running   0          21m
    prometheus-adapter-cbcdb5cc-8wdcr      1/1     Running   0          21m
    prometheus-k8s-0                       2/2     Running   0          21m
    prometheus-k8s-1                       2/2     Running   0          21m
    prometheus-operator-6db58766b8-zhr8q   2/2     Running   0          97m



















































    AI助手

    root@k8s-master1:~/kube-prometheus/manifests# kubectl port-forward --help
    Forward one or more local ports to a pod. This command requires the node to have 'socat' installed.

     Use resource type/name such as deployment/mydeployment to select a pod. Resource type defaults to 'pod' if omitted.

     If there are multiple pods matching the criteria, a pod will be selected automatically. The forwarding session ends
    when the selected pod terminates, and rerun of the command is needed to resume forwarding.

    Examples:
      # Listen on ports 5000 and 6000 locally, forwarding data to/from ports 5000 and 6000 in the pod
      kubectl port-forward pod/mypod 5000 6000

      # Listen on ports 5000 and 6000 locally, forwarding data to/from ports 5000 and 6000 in a pod selected by the
    deployment
      kubectl port-forward deployment/mydeployment 5000 6000

      # Listen on port 8443 locally, forwarding to the targetPort of the service's port named "https" in a pod selected by
    the service
      kubectl port-forward service/myservice 8443:https

      # Listen on port 8888 locally, forwarding to 5000 in the pod
      kubectl port-forward pod/mypod 8888:5000

      # Listen on port 8888 on all addresses, forwarding to 5000 in the pod
      kubectl port-forward --address 0.0.0.0 pod/mypod 8888:5000

      # Listen on port 8888 on localhost and selected IP, forwarding to 5000 in the pod
      kubectl port-forward --address localhost,10.19.21.23 pod/mypod 8888:5000

      # Listen on a random port locally, forwarding to 5000 in the pod
      kubectl port-forward pod/mypod :5000

    Options:
      --address=[localhost]: Addresses to listen on (comma separated). Only accepts IP addresses or localhost as a
    value. When localhost is supplied, kubectl will try to bind on both 127.0.0.1 and ::1 and will fail if neither of these
    addresses are available to bind.
      --pod-running-timeout=1m0s: The length of time (like 5s, 2m, or 3h, higher than zero) to wait until at least one
    pod is running

    Usage:
      kubectl port-forward TYPE/NAME [options] [LOCAL_PORT:]REMOTE_PORT [...[LOCAL_PORT_N:]REMOTE_PORT_N]

    Use "kubectl options" for a list of global command-line options (applies to all commands).

    root@k8s-master1:~/kube-prometheus/manifests# kubectl get svc -n monitoring
    NAME                    TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
    alertmanager-main       ClusterIP   10.100.223.119   <none>        9093/TCP                     2m4s
    alertmanager-operated   ClusterIP   None             <none>        9093/TCP,9094/TCP,9094/UDP   2m4s
    blackbox-exporter       ClusterIP   10.100.44.58     <none>        9115/TCP,19115/TCP           2m4s
    grafana                 ClusterIP   10.100.21.246    <none>        3000/TCP                     2m2s
    kube-state-metrics      ClusterIP   None             <none>        8443/TCP,9443/TCP            2m2s
    node-exporter           ClusterIP   None             <none>        9100/TCP                     2m1s
    prometheus-adapter      ClusterIP   10.100.171.117   <none>        443/TCP                      2m
    prometheus-k8s          ClusterIP   10.100.23.90     <none>        9090/TCP                     118s
    prometheus-operated     ClusterIP   None             <none>        9090/TCP                     118s
    prometheus-operator     ClusterIP   None             <none>        8443/TCP                     2m14s

    root@k8s-master1:~/kube-prometheus/manifests#  kubectl port-forward --address 0.0.0.0 svc/prometheus-k8s 9090:9090 -n monitoring
    Forwarding from 0.0.0.0:9090 -> 9090






























































    AI助手

    root@k8s-master1:~/kube-prometheus/manifests# vim prometheus-service.yaml
    ...
    spec:
      type: NodePort #添加这行
      ports:
      - name: web
    port: 9090
    nodePort: 39090 #添加这行
    targetPort: web
    ...

    root@k8s-master1:~/kube-prometheus/manifests# kubectl apply -f prometheus-service.yaml
    service/prometheus-k8s configured
















    AI助手

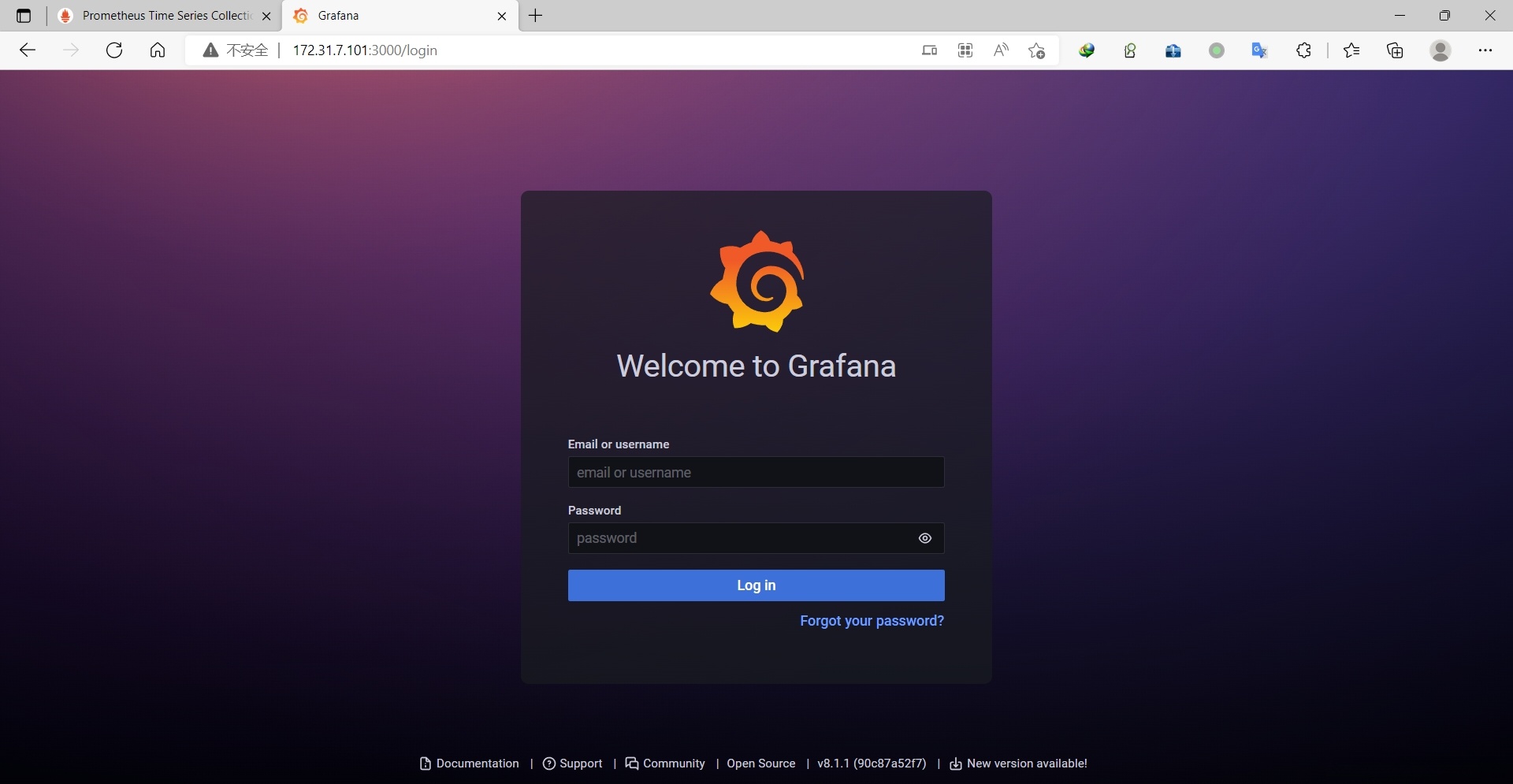

    root@k8s-master1:~/kube-prometheus/manifests# kubectl port-forward --address 0.0.0.0 svc/grafana 3000:3000 -n monitoring
    Forwarding from 0.0.0.0:3000 -> 3000





    AI助手

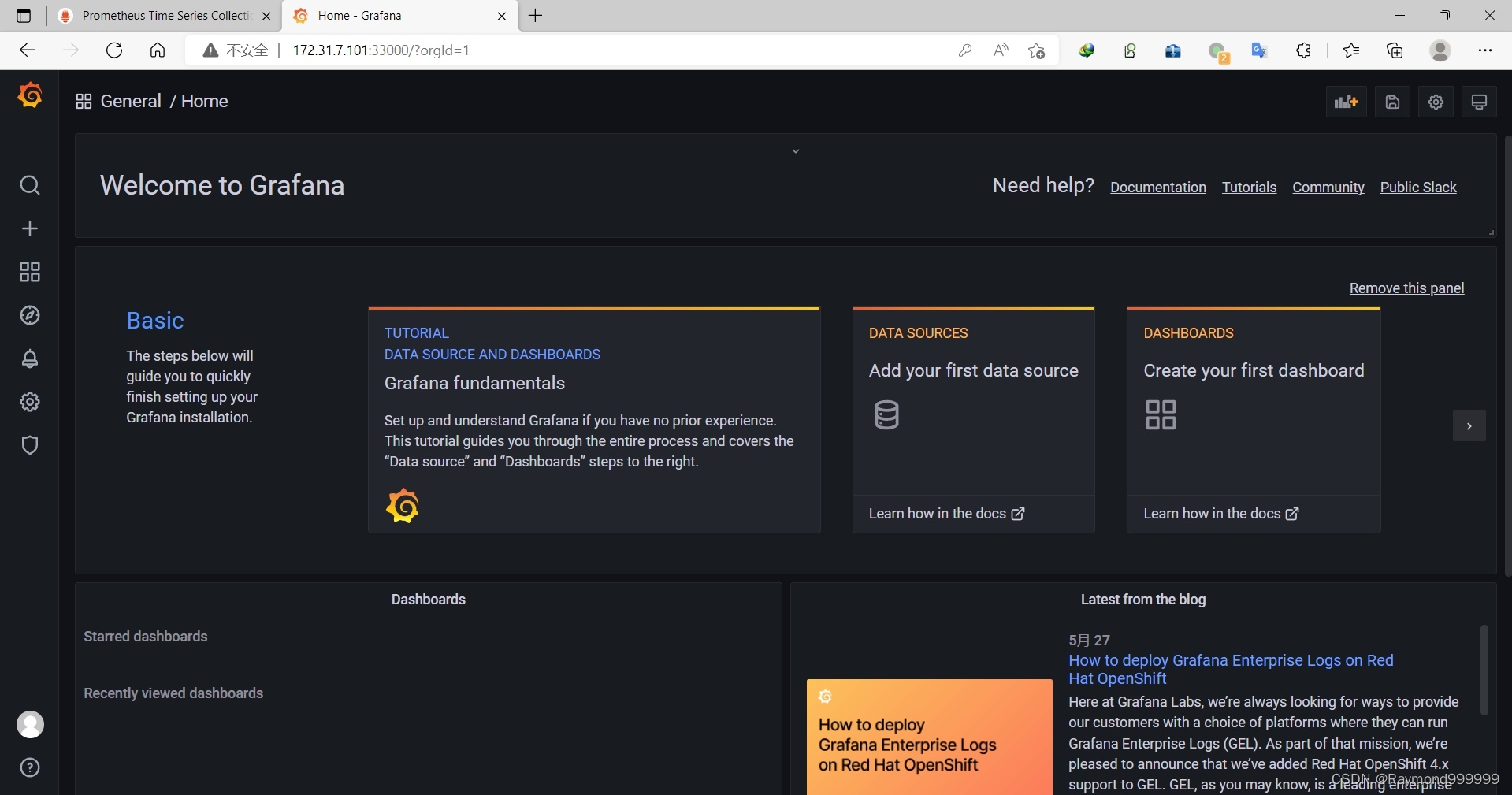

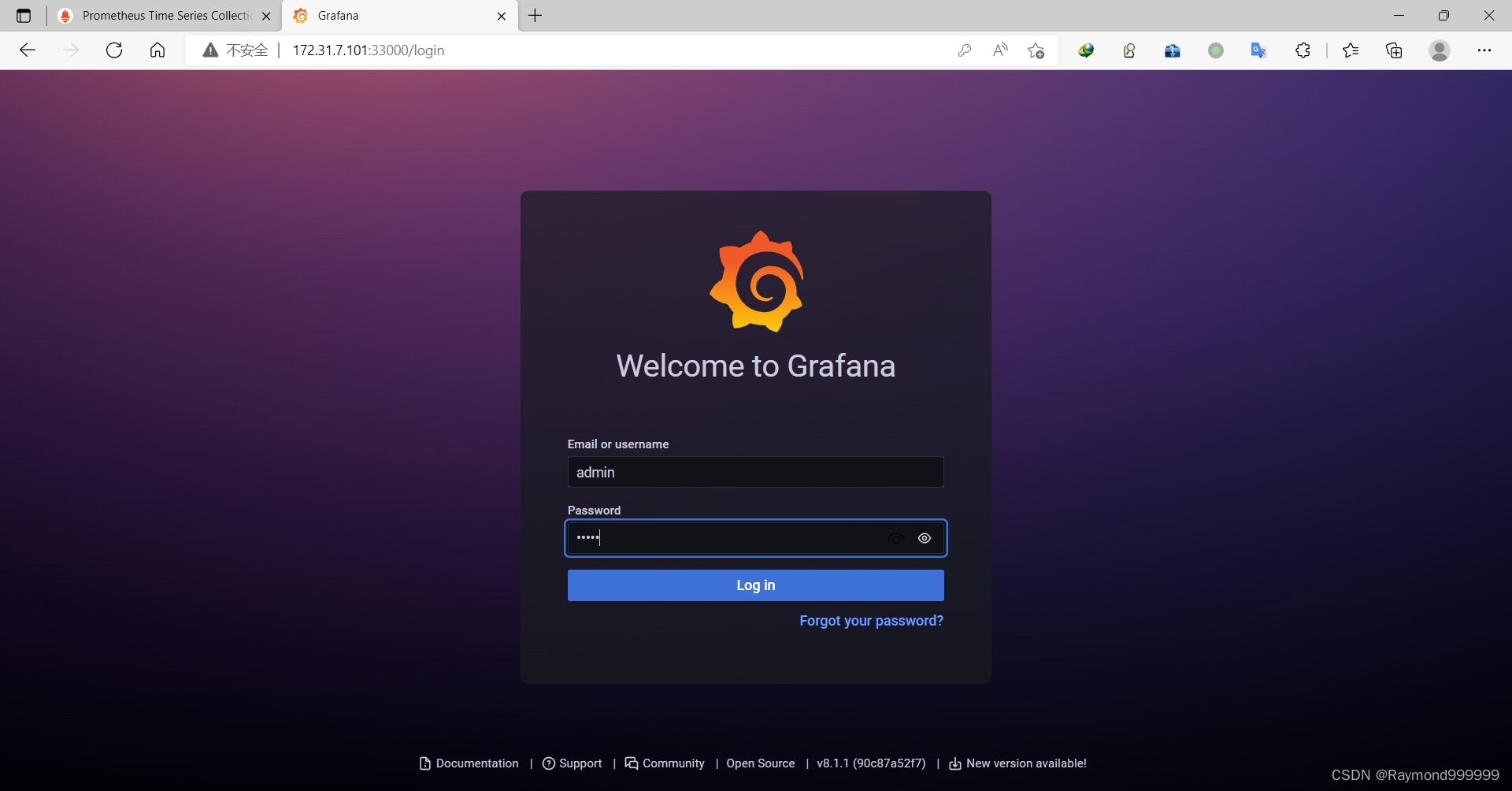

    root@k8s-master1:~/kube-prometheus/manifests# vim grafana-service.yaml
    ...
    spec:
      type: NodePort #添加这行
      ports:
      - name: http
    port: 3000
    nodePort: 33000 #添加这行
    targetPort: http
    ...

    root@k8s-master1:~/kube-prometheus/manifests# kubectl apply -f grafana-service.yaml
    service/grafana configured
















    AI助手
