y73.第四章 Prometheus大厂监控体系及实战 -- blackbox exporter安装和grafana安装(四)

    HTTP/HTTPS：URL/API可用性检测
    TCP：端口监听检测
    ICMP：主机存活检测
    DNS：域名解析







    AI助手

    root@node1:/apps# wget https://github.com/prometheus/blackbox_exporter/releases/download/v0.20.0/blackbox_exporter-0.20.0.linux-amd64.tar.gz

    root@node1:/apps# tar xf blackbox_exporter-0.20.0.linux-amd64.tar.gz
    root@node1:/apps# ln -sv /apps/blackbox_exporter-0.20.0.linux-amd64 /apps/blackbox_exporter
    '/apps/blackbox_exporter' -> '/apps/blackbox_exporter-0.20.0.linux-amd64'

    root@node1:/apps# cd blackbox_exporter

    root@node1:/apps/blackbox_exporter# cat blackbox.yml
    modules:
      http_2xx:
    prober: http
      http_post_2xx:
    prober: http
    http:
      method: POST
      tcp_connect:
    prober: tcp
      pop3s_banner:
    prober: tcp
    tcp:
      query_response:
      - expect: "^+OK"
      tls: true
      tls_config:
        insecure_skip_verify: false
      grpc:
    prober: grpc
    grpc:
      tls: true
      preferred_ip_protocol: "ip4"
      grpc_plain:
    prober: grpc
    grpc:
      tls: false
      service: "service1"
      ssh_banner:
    prober: tcp
    tcp:
      query_response:
      - expect: "^SSH-2.0-"
      - send: "SSH-2.0-blackbox-ssh-check"
      irc_banner:
    prober: tcp
    tcp:
      query_response:
      - send: "NICK prober"
      - send: "USER prober prober prober :prober"
      - expect: "PING :([^ ]+)"
        send: "PONG ${1}"
      - expect: "^:[^ ]+ 001"
      icmp:
    prober: icmp
























































    AI助手

    root@node1:/apps/blackbox_exporter# vim /etc/systemd/system/blackbox-exporter.service
    [Unit]
    Description=Prometheus Blackbox Exporter
    After=network.target

    [Service]
    Type=simple
    User=root
    Group=root
    ExecStart=/apps/blackbox_exporter/blackbox_exporter \
    --config.file=/apps/blackbox_exporter/blackbox.yml \
    --web.listen-address=":9115"
    Restart=on-failure

    [Install]
    WantedBy=multi-user.target



















    AI助手

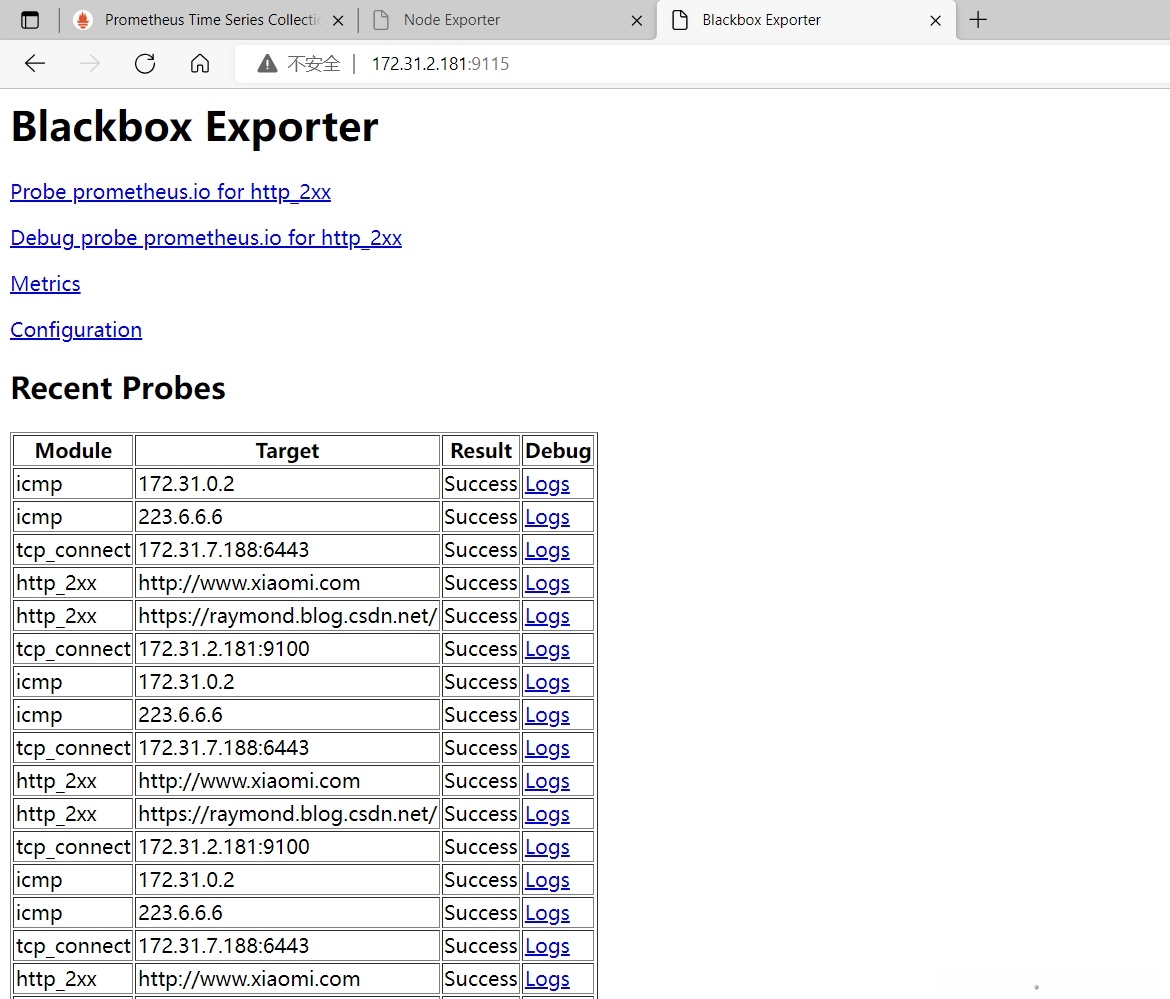

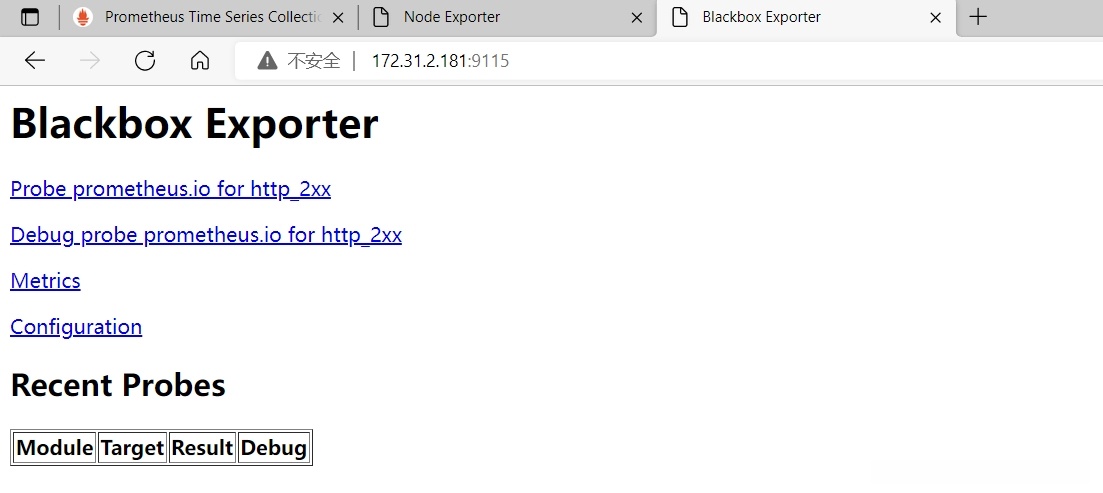

    root@node1:/apps/blackbox_exporter# systemctl enable --now blackbox-exporter




    AI助手

    root@prometheus1:/apps/prometheus# vim prometheus.yml
    ...

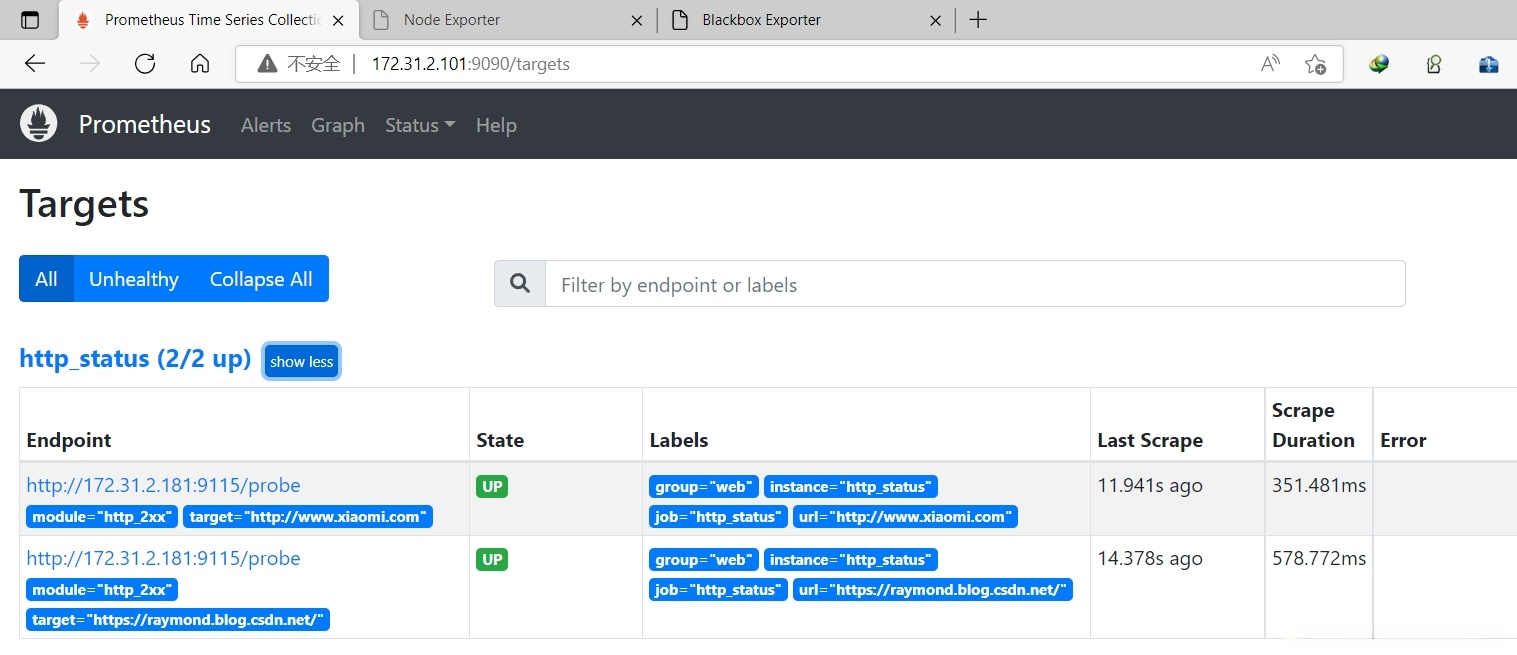

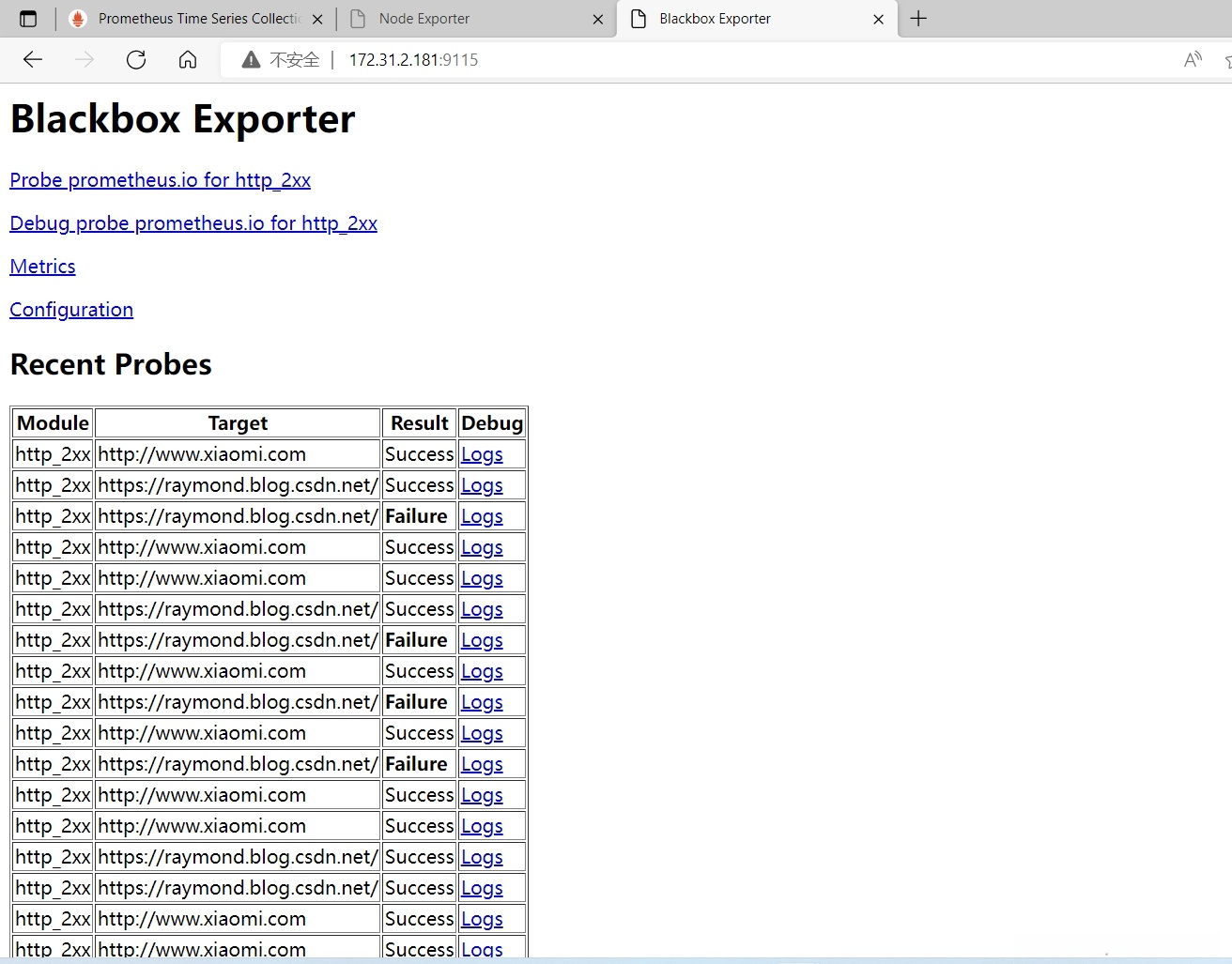

    # 网站监控
      - job_name: 'http_status'
    metrics_path: /probe
    params:
      module: [http_2xx]
    static_configs:
      - targets: ['http://www.xiaomi.com', '']
        labels:
          instance: http_status
          group: web
    relabel_configs:
      - source_labels: [__address__] #relabel通过将[__address__(当前目标地址)写入__param_target标签来创建一个label
        target_label: __param_target #监控目标www.xiaomi.com，作为__address__的value
      - source_labels: [__param_target] #监控目标
        target_label: url #将监控目标与url创建一个label
      - target_label: __address__
        replacement: 172.31.2.181:9115

    root@prometheus1:/apps/prometheus# ./promtool check config prometheus.yml
    Checking prometheus.yml
     SUCCESS: prometheus.yml is valid prometheus config file syntax

    root@prometheus1:/apps/prometheus# systemctl restart prometheus




























    AI助手

    root@prometheus1:/apps/prometheus# vim prometheus.yml
    ...

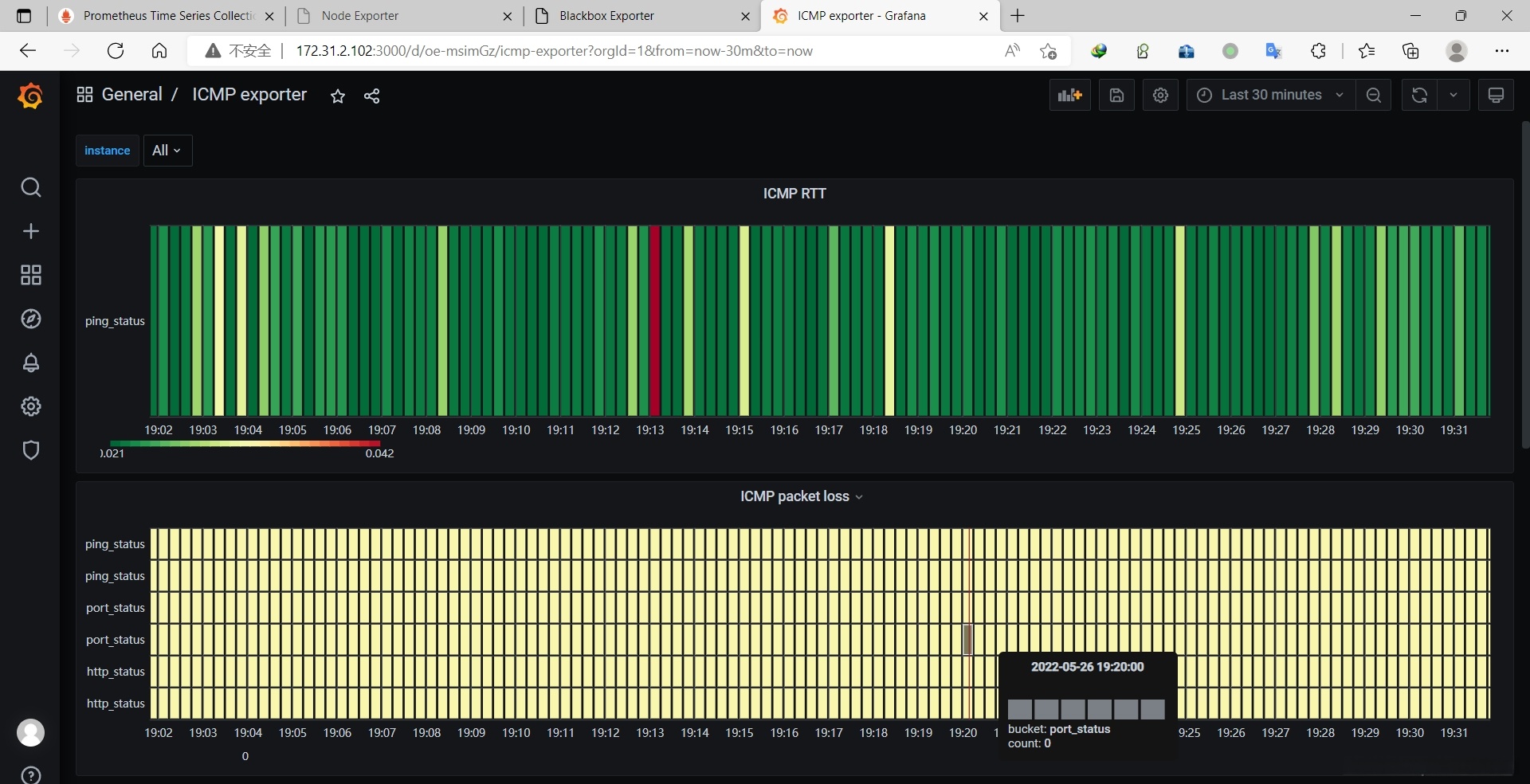

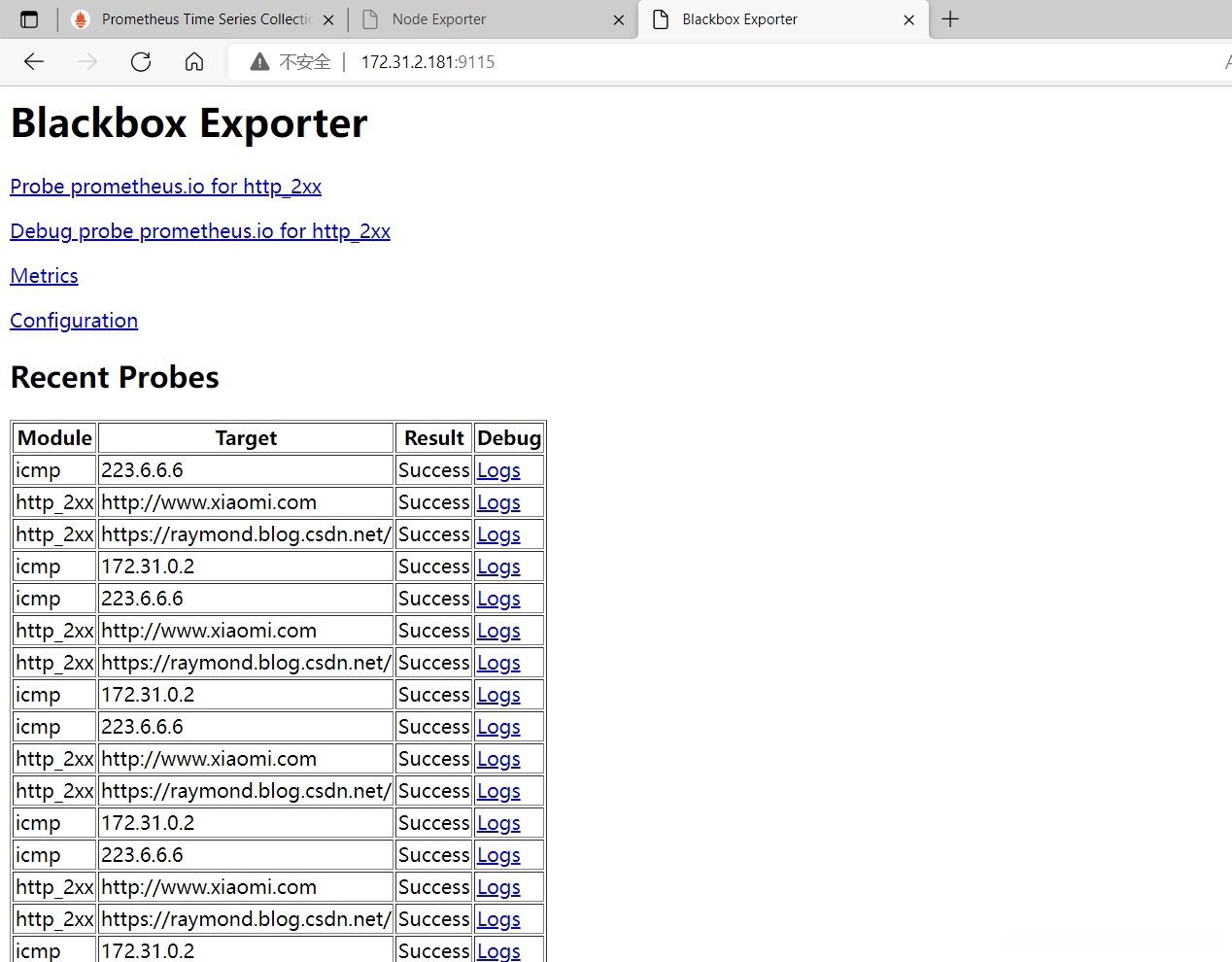

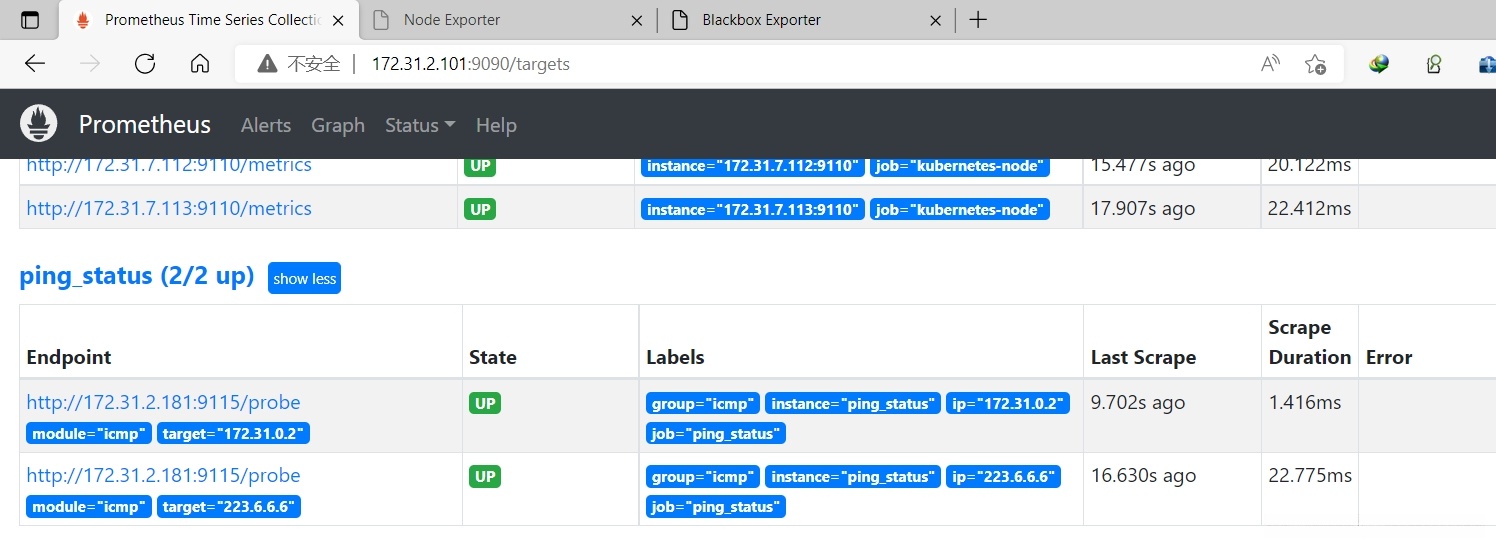

    # ICMP检测
      - job_name: 'ping_status'
    metrics_path: /probe
    params:
      module: [icmp]
    static_configs:
      - targets: ['172.31.0.2', '223.6.6.6']
        labels:
          instance: ping_status
          group: 'icmp'
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: ip #将ip与__param_target创建一个label
      - target_label: __address__
        replacement: 172.31.2.181:9115

    root@prometheus1:/apps/prometheus# ./promtool check config prometheus.yml
    Checking prometheus.yml
     SUCCESS: prometheus.yml is valid prometheus config file syntax

    root@prometheus1:/apps/prometheus# systemctl restart prometheus




























    AI助手

    root@prometheus1:/apps/prometheus# vim prometheus.yml
    ...

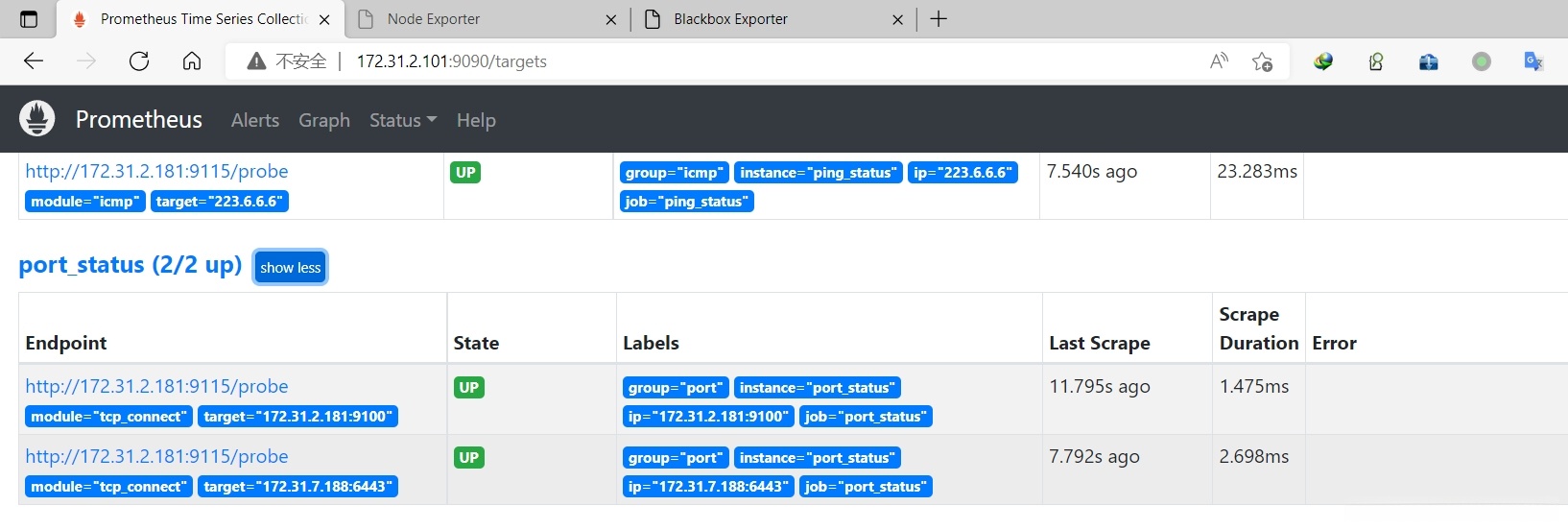

    # 端口监控
      - job_name: 'port_status'
    metrics_path: /probe
    params:
      module: [tcp_connect]
    static_configs:
      - targets: ['172.31.2.181:9100', '172.31.7.188:6443']
        labels:
          instance: port_status
          group: 'port'
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: ip
      - target_label: __address__
        replacement: 172.31.2.181:9115

    root@prometheus1:/apps/prometheus# ./promtool check config prometheus.yml
    Checking prometheus.yml
     SUCCESS: prometheus.yml is valid prometheus config file syntax

    root@prometheus1:/apps/prometheus# systemctl restart prometheus




























    AI助手

    root@prometheus2:~# sudo apt-get install -y adduser libfontconfig1

    root@prometheus2:~# wget https://mirrors.tuna.tsinghua.edu.cn/grafana/apt/pool/main/g/grafana/grafana_7.5.16_amd64.deb

    root@prometheus2:~# dpkg -i grafana_7.5.16_amd64.deb

    root@prometheus2:~# vim /etc/grafana/grafana.ini
    ...
    #################################### Paths ####################################
    [paths]
    # Path to where grafana can store temp files, sessions, and the sqlite3 db (if that is used)
    ;data = /var/lib/grafana #数据目录

    # Temporary files in `data` directory older than given duration will be removed
    ;temp_data_lifetime = 24h #临时数据

    # Directory where grafana can store logs
    ;logs = /var/log/grafana #日志目录

    # Directory where grafana will automatically scan and look for plugins
    ;plugins = /var/lib/grafana/plugins #插件目录
    ...
    # The http port  to use
    ;http_port = 3000 #端口
    ...
    #################################### Database ####################################
    [database] #数据库配置
    # You can configure the database connection by specifying type, host, name, user and password
    # as separate properties or as on string using the url properties.

    # Either "mysql", "postgres" or "sqlite3", it's your choice
    ;type = sqlite3
    ;host = 127.0.0.1:3306
    ;name = grafana
    ;user = root
    # If the password contains # or ; you have to wrap it with triple quotes. Ex """#password;"""
    ;password =
    ...

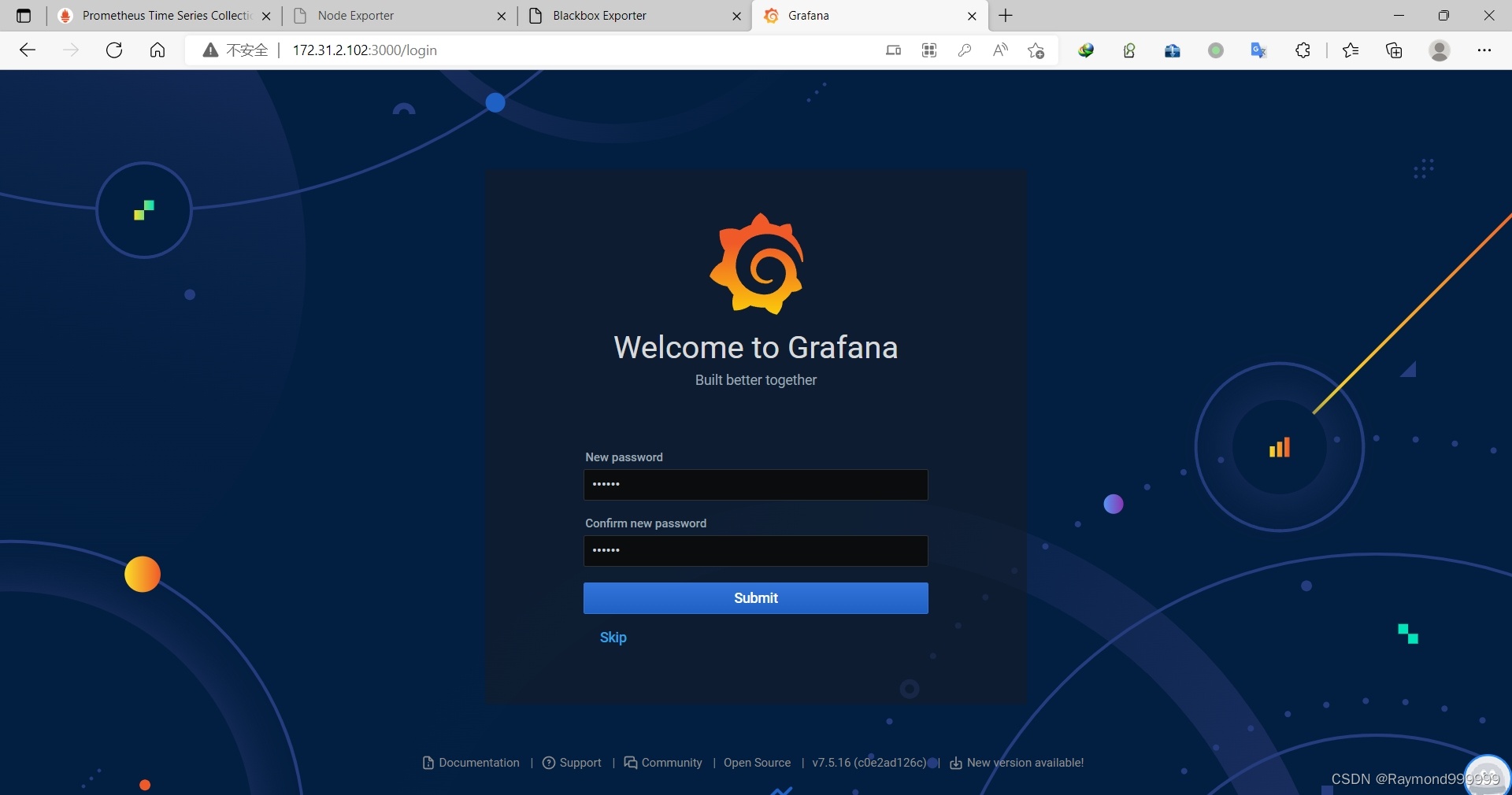

    root@prometheus2:~# systemctl enable --now grafana-server
