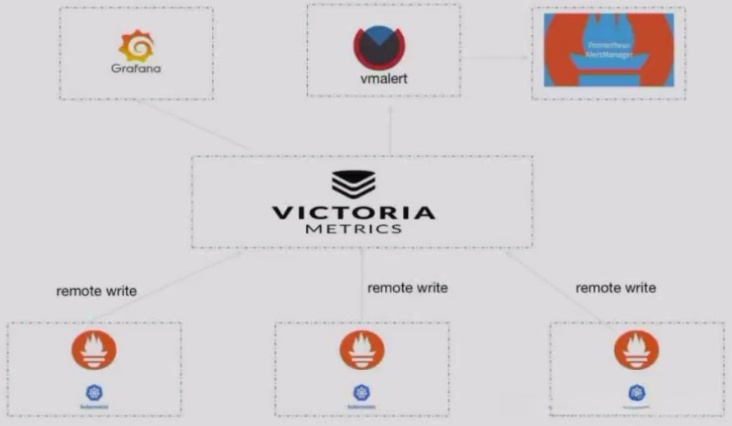

14.2 远端存储之–VictoriaMetrics
https://github.com/VictoriaMetrics/VictoriaMetrics
https://docs.victoriametrics.com/Single-server-VictoriaMetrics.html
14.2.1 单机
下载：
root@prometheus3:~# wget https://github.com/VictoriaMetrics/VictoriaMetrics/releases/download/v1.77.2/victoria-metrics-amd64-v1.77.2.tar.gz
AI助手14.2.1.1 部署单机版
root@prometheus3:~# tar xf victoria-metrics-amd64-v1.77.2.tar.gz
参数：
-httpListenAddr=0.0.0.0:8428 #监听地址及端口
-storageDataPath #VictoriaMetrics将所有数据存储在此目录，默认为执行启动Victoria的当前目录下的victoria-metrics-data目录中。
-retentionPeriod #存储数据的保留，较旧的数据会自动删除，默认保留为1个月，默认单位为m（月），支持的单位有h（hour）、d(day)、w（week）、y（year）。
root@prometheus3:~# mv victoria-metrics-prod /usr/local/bin/
service启动文件：
root@prometheus3:~# vim /etc/systemd/system/victoria-metrics-prod.service
[Unit]
Description=For Victoria-metrics-prod service
After=network.target
[Service]
ExecStart=/usr/local/bin/victoria-metrics-prod -httpListenAddr=0.0.0.0:8428 -storageDataPath=/data/victoria -retentionPeriod=3
[Install]
WantedBy=multi-user.target
root@prometheus3:~# systemctl enable --now victoria-metrics-prod

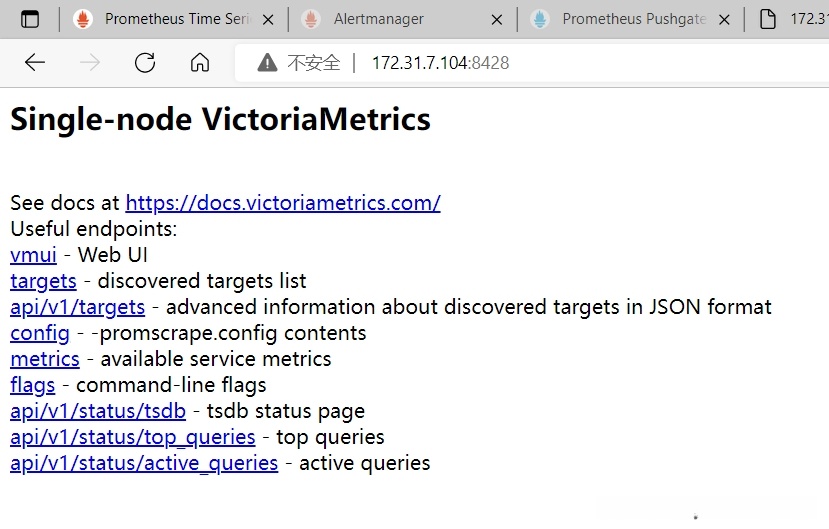

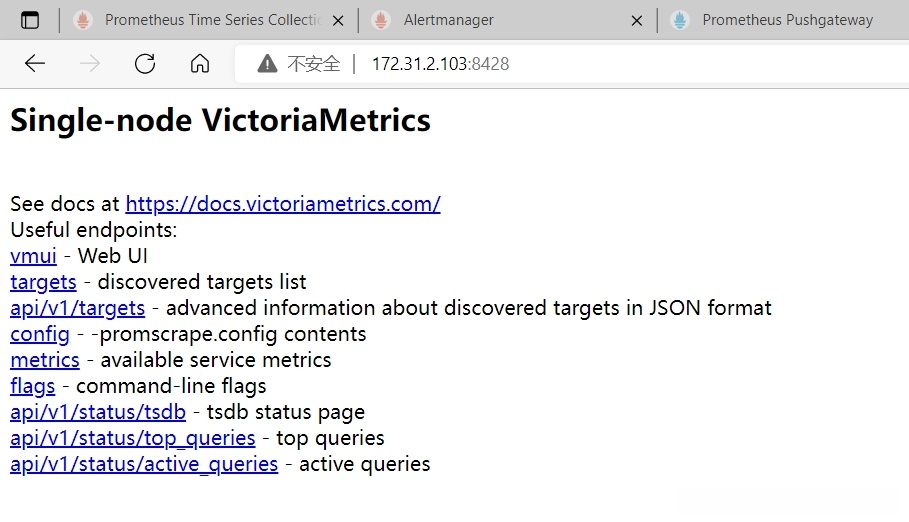

AI助手验证web页面：
14.2.1.2 prometheus设置
root@prometheus1:/apps/prometheus# vim prometheus.yml
# my global config
global:
scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
# scrape_timeout is set to the global default (10s).
remote_write:
- url: http://172.31.2.103:8428/api/v1/write
AI助手14.2.1.3 验证VictoriaMetrics数据
http://172.31.2.103:8428/vmui/
14.2.1.4 grafana设置

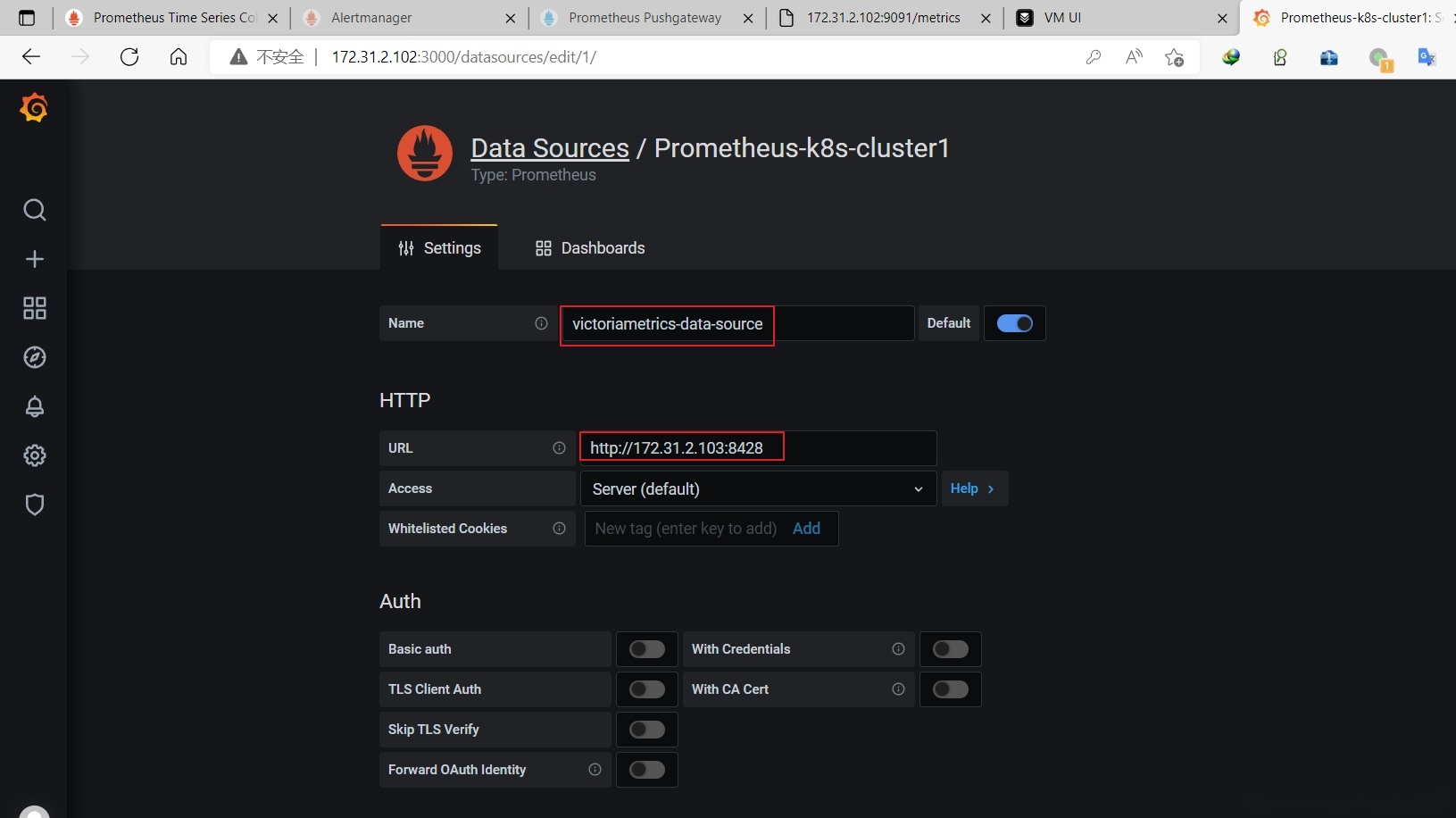

添加数据源：
类型为prometheus，地址及端口为VictoriaMetrics：
把prometheus数据源地址和端口改成VictoriaMetrics的

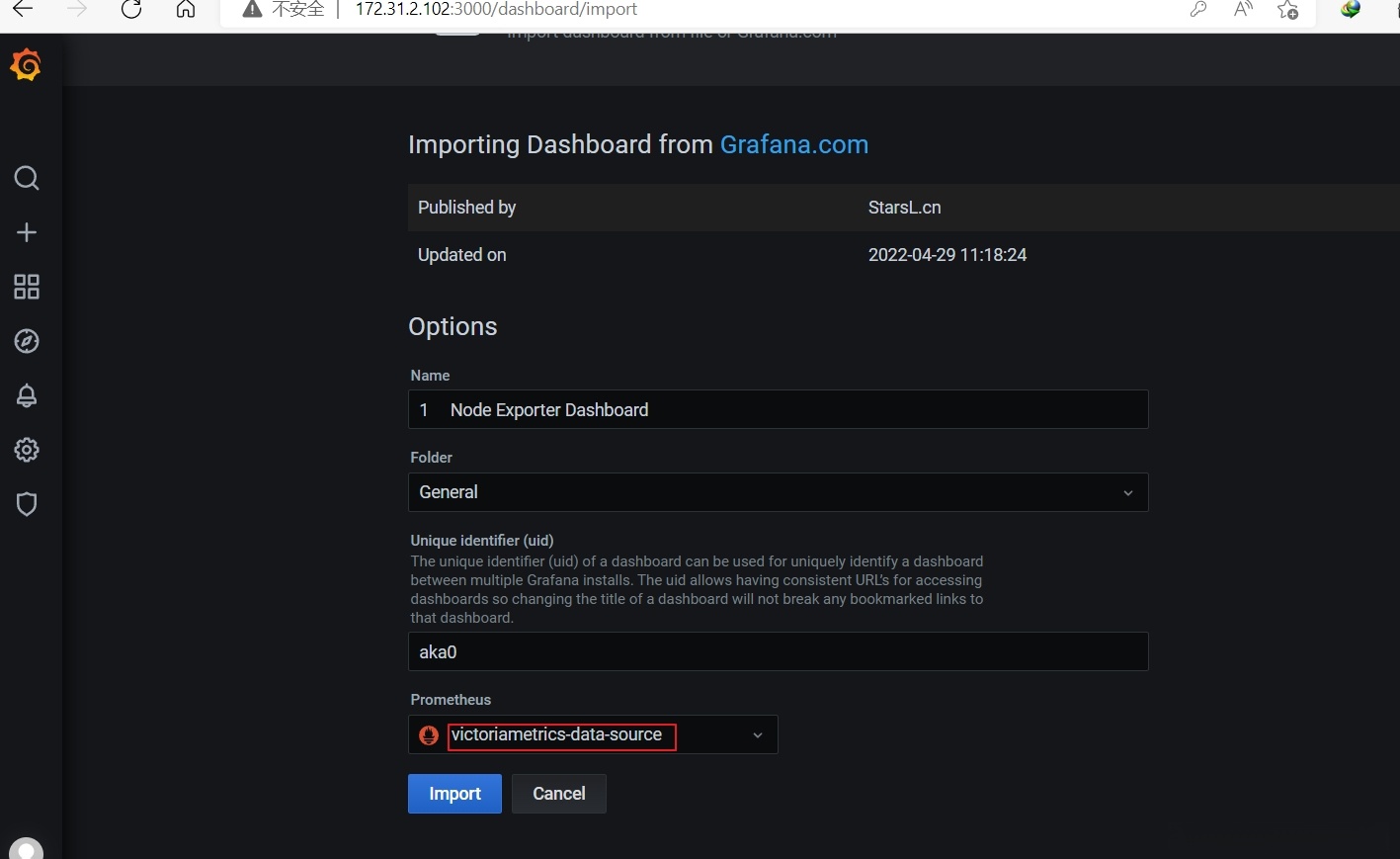

导入指定模板：
8919：

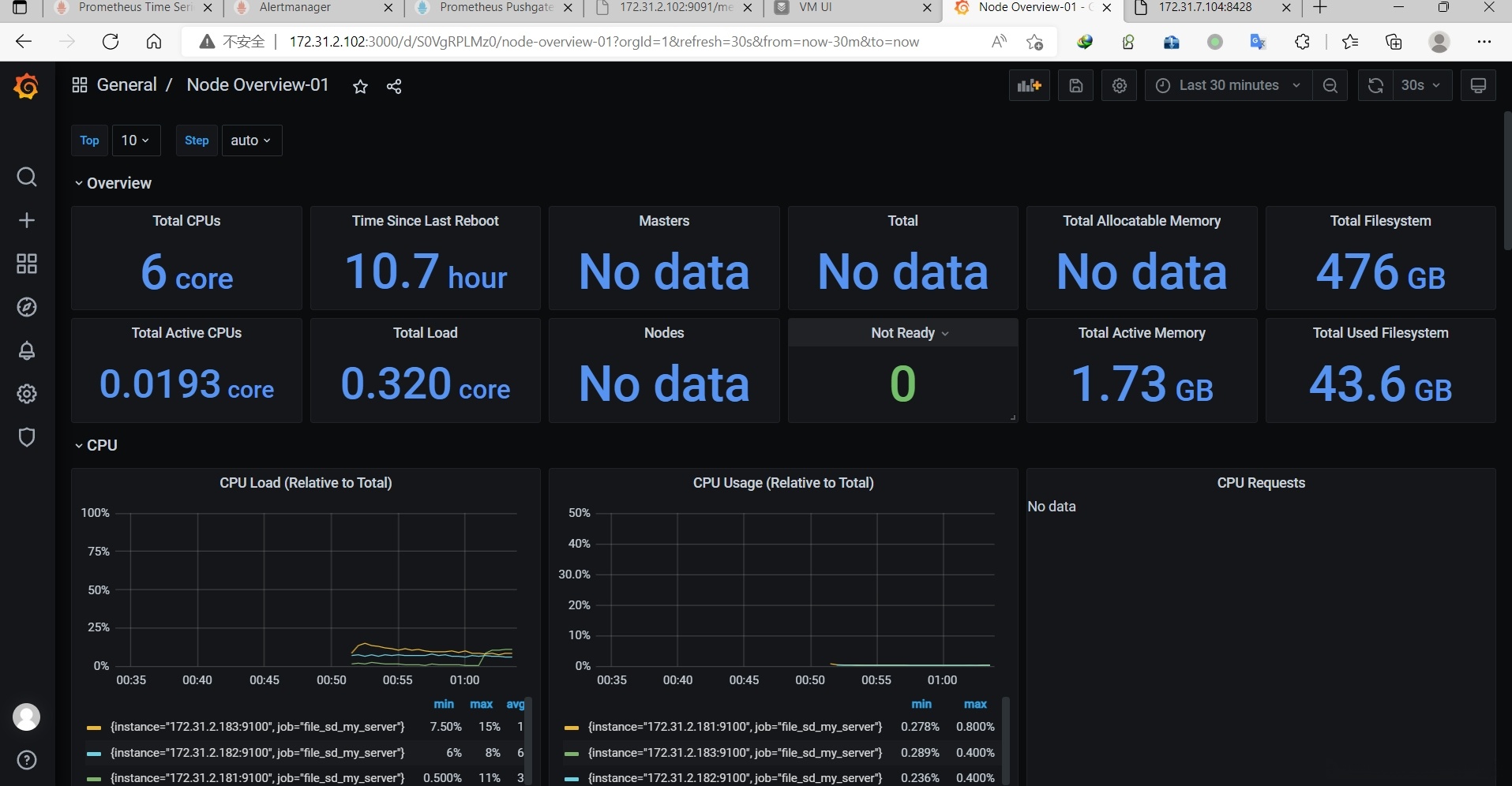

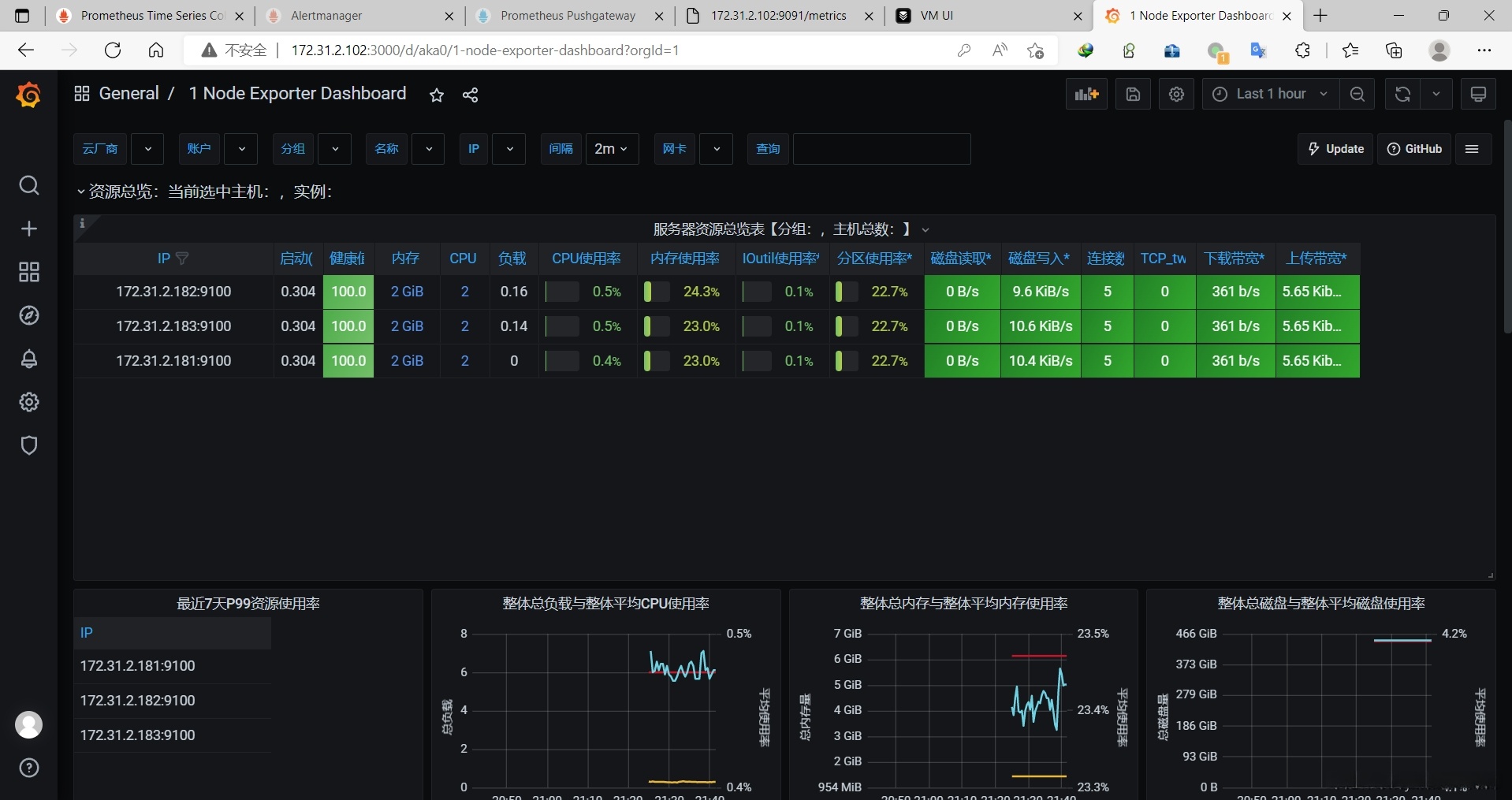

14.2.1.5 验证数据

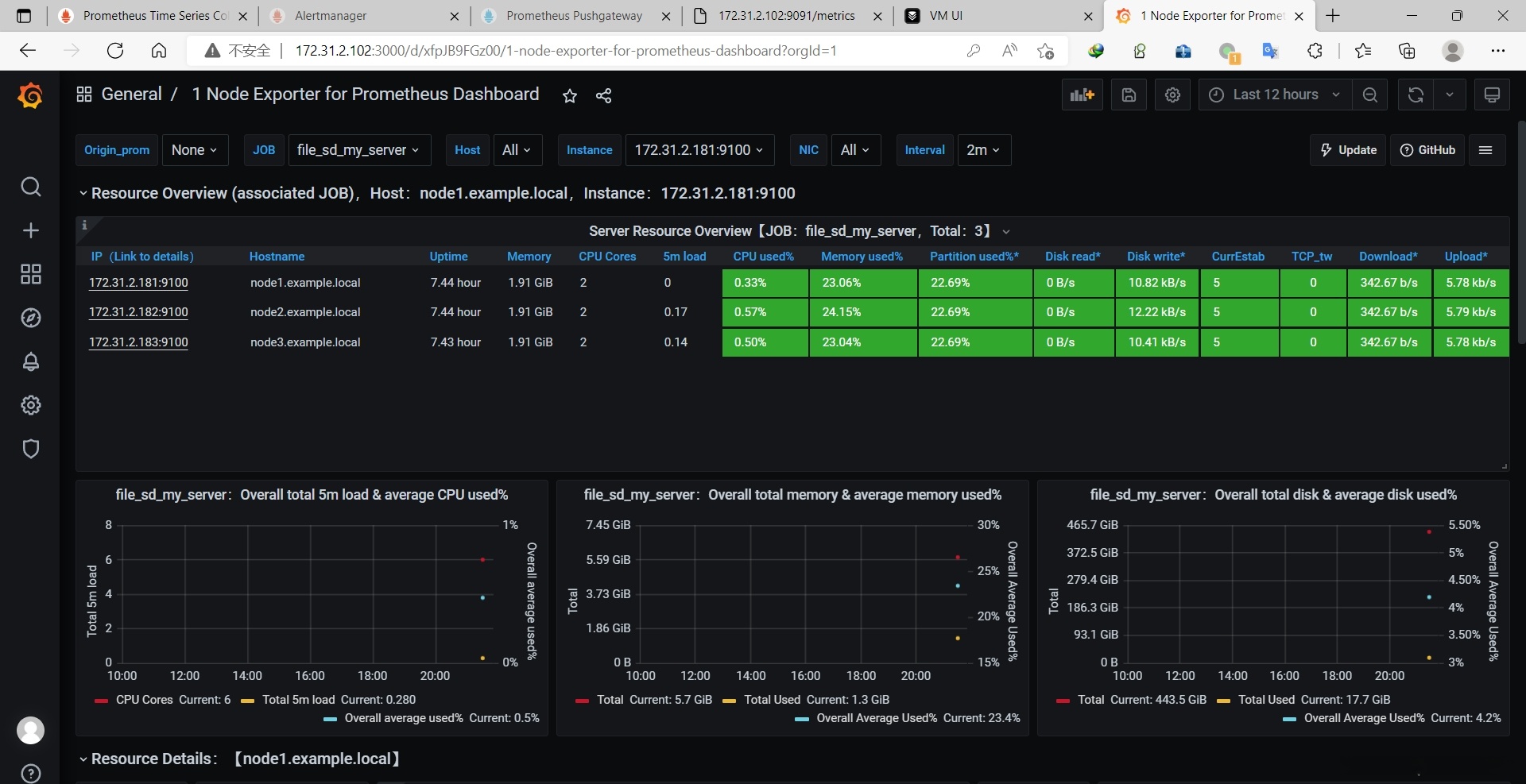

11074：
14.2.2 官方docker-compose
访问该仓库的容器部署分支：https://github.com/VictoriaMetrics/VictoriaMetrics/tree/cluster/deployment/docker
git clone https://github.com/VictoriaMetrics/VictoriaMetrics.git
root@k8s-harbor1:~# git clone https://gitee.com/raymond9/VictoriaMetrics.git
root@k8s-harbor1:~# cd VictoriaMetrics/deployment/docker/
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# ll
total 64
drwxr-xr-x 5 root root 4096 May 31 22:13 ./
drwxr-xr-x 4 root root 4096 May 31 22:13 ../
-rw-r--r-- 1 root root 6312 May 31 22:13 Makefile
-rw-r--r-- 1 root root 1495 May 31 22:13 README.md
-rw-r--r-- 1 root root 61 May 31 22:13 alertmanager.yml
-rw-r--r-- 1 root root 17025 May 31 22:13 alerts.yml
drwxr-xr-x 2 root root 4096 May 31 22:13 base/
drwxr-xr-x 2 root root 4096 May 31 22:13 builder/
-rw-r--r-- 1 root root 2843 May 31 22:13 docker-compose.yml
-rw-r--r-- 1 root root 298 May 31 22:13 prometheus.yml
drwxr-xr-x 4 root root 4096 May 31 22:13 provisioning/
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# docker-compose up -d
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# grep "image:" docker-compose.yml
image: victoriametrics/vmagent
image: victoriametrics/victoria-metrics
image: grafana/grafana:8.5.1
image: victoriametrics/vmalert
image: prom/alertmanager
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# docker pull registry.cn-beijing.aliyuncs.com/raymond9/vmagent
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# docker pull registry.cn-beijing.aliyuncs.com/raymond9/victoria-metrics
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# docker pull registry.cn-beijing.aliyuncs.com/raymond9/grafana:8.5.1
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# docker pull registry.cn-beijing.aliyuncs.com/raymond9/vmalert
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# docker pull registry.cn-beijing.aliyuncs.com/raymond9/alertmanager
root@k8s-harbor1:~/VictoriaMetrics/deployment/docker# docker-compose up -d
Creating victoriametrics ... done
Creating alertmanager ... done
Creating grafana ... done
Creating vmalert ... done
Creating vmagent ... done
AI助手
14.2.3 集群版本
14.2.3.1 组件介绍
vminsert #写入组件（写），vminsert负责接收数据写入并根据对度量名称及其所有标签的一致hash结果将数据分散写入不同的后端vmstorage节点之间vmstorage，vminsert默认端口8480。
vmstorage #存储原始数据并返回给定时间范围内给定标签过滤器的查询数据，默认端口8482。
vmselect #查询组件（读），连接vmstorage，默认端口8481.
其它可选组件：

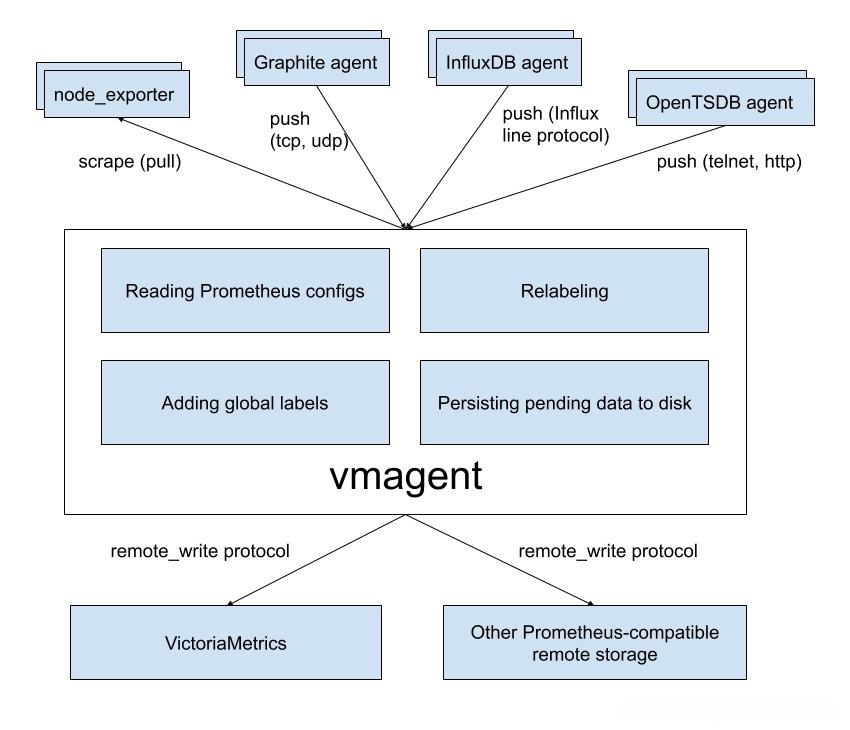

vmagent #是一个很小但功能强大的代理，它可以从node_exporter各种来源收集度量数据，并将它们存储在VictoriaMetrics或任何其它支持远程写入的与prometheus兼容的存储系统中，有替代prometheus server的意向。
AI助手
vmalert：替换prometheus server，以VictoriaMetrics为数据源，基于兼容prometheus的告警规则，判断数据是否异常，并将产生的通知发送给alertermanager。
Vmgateway：读写VictoriaMetrics数据的代理网关，可实现限速和访问控制等功能，目前为企业版组件。
vmctl： VictoriaMetrics的命令行工具，目前主要用于将prometheus、opentsdb等数据源迁移到VictoriaMetrics。
AI助手下载：
root@node1:~# wget https://github.com/VictoriaMetrics/VictoriaMetrics/releases/download/v1.77.2/victoria-metrics-amd64-v1.77.2-cluster.tar.gz
AI助手14.2.3.2 部署集群
分别在各个VictoriaMetrics服务器进行安装配置：
root@node1:~# tar xf victoria-metrics-amd64-v1.77.2-cluster.tar.gz
root@node1:~# mv vminsert-prod vmstorage-prod vmselect-prod /usr/local/bin/
主要参数：
-httpListenAddr string
Address to listen for http connections (default ":8482")
-vminsertAddr string
TCP address to accept connections from vminsert services (default ":8400")
-vmselectAddr string
TCP address to accept connections from vmselect services (default ":8401")
AI助手14.2.3.2.1 部署vmstorage-prod组件
root@node1:~# vim /etc/systemd/system/vmstorage.service
[Unit]
Description=Vmstorage Server
After=network.target
[Service]
ExecStart=/usr/local/bin/vmstorage-prod -loggerTimezone Asia/Shanghai -storageDataPath /data/vmstorage-data -httpListenAddr :8482 -vminsertAddr :8400 -vmselectAddr :8401
[Install]
WantedBy=multi-user.target
root@node1:~# systemctl enable --now vmstorage
root@node1:~# scp /etc/systemd/system/vmstorage.service 172.31.2.182:/etc/systemd/system/
root@node1:~# scp /etc/systemd/system/vmstorage.service 172.31.2.183:/etc/systemd/system/
root@node1:~# scp /usr/local/bin/vm* 172.31.2.182:/usr/local/bin
root@node1:~# scp /usr/local/bin/vm* 172.31.2.183:/usr/local/bin
root@node2:~# systemctl enable --now vmstorage
root@node3:~# systemctl enable --now vmstorage
AI助手14.2.3.2.2 部署vminsert-prod组件
root@node1:~# vim /etc/systemd/system/vminsert.service
[Unit]
Description=Vminsert Server
After=network.target
[Service]
Restart=on-failure
WorkingDirectory=/tmp
ExecStart=/usr/local/bin/vminsert-prod -httpListenAddr :8480 -storageNode=172.31.2.181:8400,172.31.2.182:8400,172.31.2.183:8400
[Install]
WantedBy=multi-user.target
root@node1:~# systemctl enable --now vminsert
root@node1:~# scp /etc/systemd/system/vminsert.service 172.31.2.182:/etc/systemd/system/
root@node1:~# scp /etc/systemd/system/vminsert.service 172.31.2.183:/etc/systemd/system/
root@node2:~# systemctl enable --now vminsert
root@node3:~# systemctl enable --now vminsert
AI助手14.2.3.2.3 部署vmselect-prod组件
root@node1:~# vim /etc/systemd/system/vmselect.service
[Unit]
Description=Vmselect Server
After=network.target
[Service]
Restart=on-failure
WorkingDirectory=/tmp
ExecStart=/usr/local/bin/vmselect-prod -httpListenAddr :8481 -storageNode=172.31.2.181:8401,172.31.2.182:8401,172.31.2.183:8401
[Install]
WantedBy=multi-user.target
root@node1:~# systemctl enable --now vmselect
root@node1:~# scp /etc/systemd/system/vmselect.service 172.31.2.182:/etc/systemd/system/
root@node1:~# scp /etc/systemd/system/vmselect.service 172.31.2.183:/etc/systemd/system/
root@node2:~# systemctl enable --now vmselect
root@node3:~# systemctl enable --now vmselect
AI助手14.2.3.2.4 验证服务端口
181：
root@node1:~# curl 172.31.2.181:8480/metrics
root@node1:~# curl 172.31.2.181:8481/metrics
root@node1:~# curl 172.31.2.181:8482/metrics
182：
root@node2:~# curl 172.31.2.182:8480/metrics
root@node2:~# curl 172.31.2.182:8481/metrics
root@node2:~# curl 172.31.2.182:8482/metrics
183：
root@node3:~# curl 172.31.2.183:8480/metrics
root@node3:~# curl 172.31.2.183:8481/metrics
root@node3:~# curl 172.31.2.183:8482/metrics
AI助手14.2.3.3 prometheus配置
root@prometheus1:/apps/prometheus# vim prometheus.yml
# my global config
global:
scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
# scrape_timeout is set to the global default (10s).
remote_write:
- url: http://172.31.2.181:8480/insert/1/prometheus
- url: http://172.31.2.182:8480/insert/1/prometheus
- url: http://172.31.2.183:8480/insert/1/prometheus
...
root@prometheus1:/apps/prometheus# systemctl restart prometheus
AI助手14.2.3.4 配置负载均衡
root@k8s-ha1:~# vim /etc/haproxy/haproxy.cfg
...
listen kubernetes-8481
bind 172.31.7.189:8481
mode tcp
log global
server 172.31.2.181 172.31.2.181:8481 check inter 3s fall 2 rise 5
server 172.31.2.182 172.31.2.182:8481 check inter 3s fall 2 rise 5
server 172.31.2.183 172.31.2.183:8481 check inter 3s fall 2 rise 5
root@k8s-ha1:~# systemctl restart haproxy
root@k8s-ha2:~# vim /etc/haproxy/haproxy.cfg
...
listen kubernetes-8481
bind 172.31.7.189:8481
mode tcp
log global
server 172.31.2.181 172.31.2.181:8481 check inter 3s fall 2 rise 5
server 172.31.2.182 172.31.2.182:8481 check inter 3s fall 2 rise 5
server 172.31.2.183 172.31.2.183:8481 check inter 3s fall 2 rise 5
root@k8s-ha2:~# systemctl restart haproxy
AI助手.14.2.3.5 grafana配置数据源
https://github.com/VictoriaMetrics/VictoriaMetrics#grafana-setup

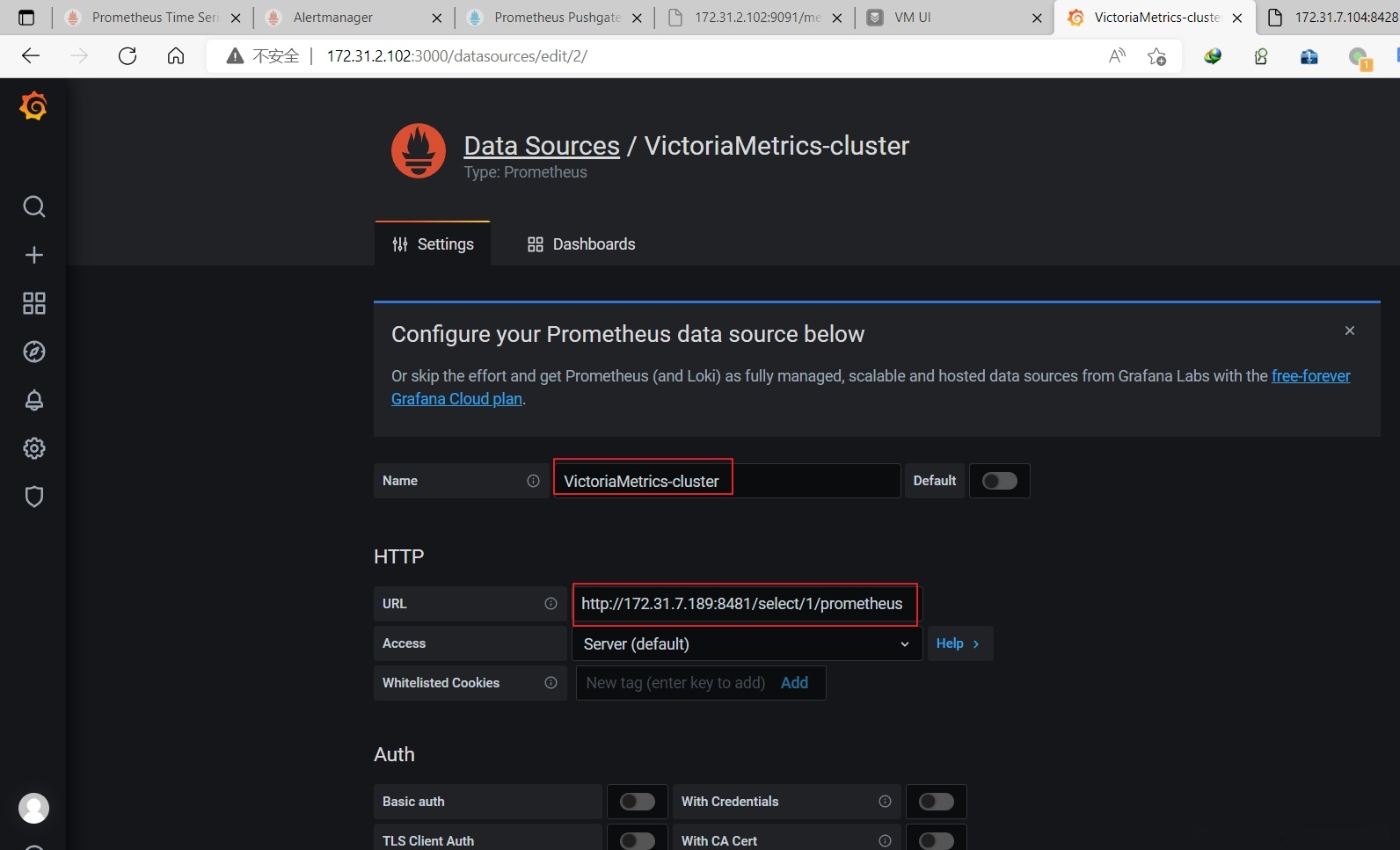

14.2.3.6 添加数据源
http://172.31.7.189:8481/select/1/prometheus

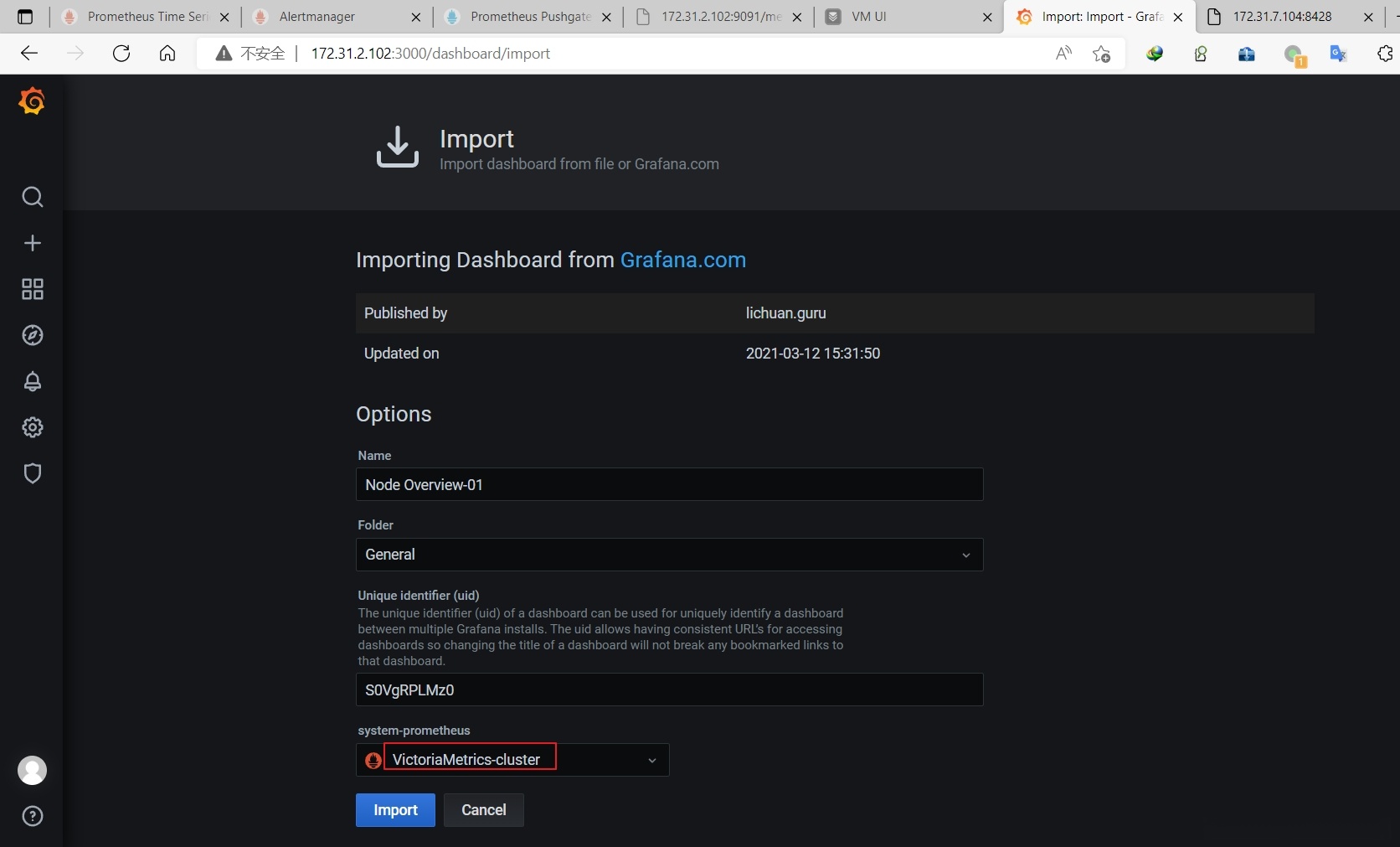

导入指定模版：
13824：

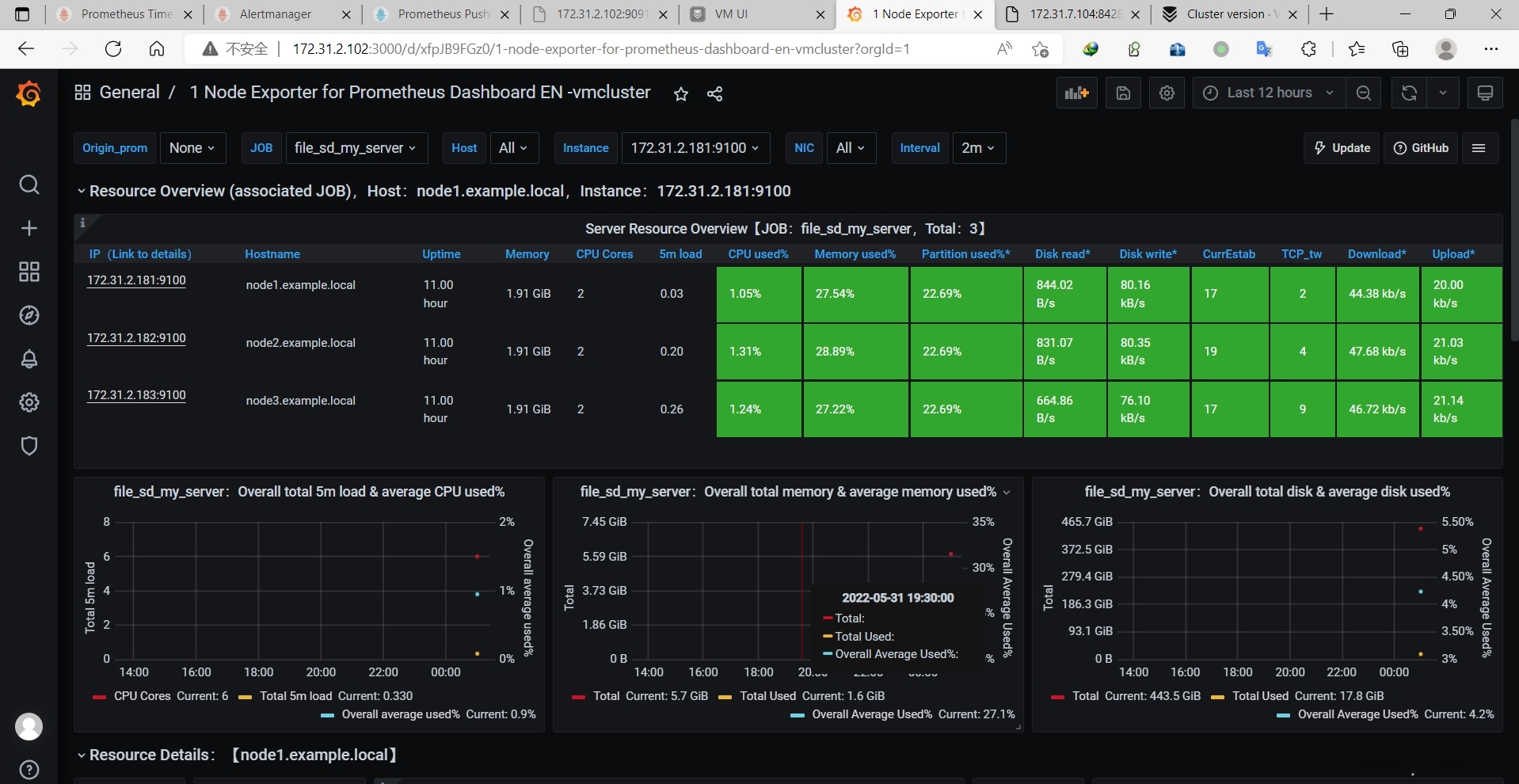

验证数据：
11074：
14.2.4 开启数据复制
https://docs.victoriametrics.com/Cluster-VictoriaMetrics.html#replication-and-data-safety
默认情况下，默认情况下，
数据通过vminsert组件采用哈希算法分别持久化到不同的vmstorage节点。
同时支持-replicationFactor=N 复制功能。
在各个节点存储完整副本的数据以保证数据的高可用性。
