y82.第四章 Prometheus大厂监控体系及实战 -- 监控扩展和prometheus 联邦(十三)

    需要在编译的时候添加nginx-module-vts模块

    github地址：https://github.com/vozlt/nginx-module-vts






    AI助手

    root@node2:~# cd /usr/local/src/
    root@node2:/usr/local/src# git clone git://github.com/vozlt/nginx-module-vts.git

    root@node2:/usr/local/src# wget http://nginx.org/download/nginx-1.22.0.tar.gz
    root@node2:/usr/local/src# tar xf nginx-1.22.0.tar.gz
    root@node2:/usr/local/src# cd nginx-1.22.0/

    root@node2:/usr/local/src# apt -y install make gcc libpcre3 libpcre3-dev openssl libssl-dev zlib1g-dev

    root@node2:/usr/local/src# ./configure --prefix=/apps/nginx \
    --with-http_ssl_module \
    --with-http_v2_module \
    --with-http_realip_module \
    --with-http_stub_status_module \
    --with-http_gzip_static_module \
    --with-pcre \
    --with-file-aio \
    --with-stream \
    --with-stream_ssl_module \
    --with-stream_realip_module \
    --add-module=/usr/local/src/nginx-module-vts/

    root@node2:/usr/local/src/nginx-1.22.0# make && make install


























    AI助手

    root@node2:/usr/local/src# /apps/nginx/conf/nginx.conf
    http {
    ...
    vhost_traffic_status_zone;

    server {
    ...

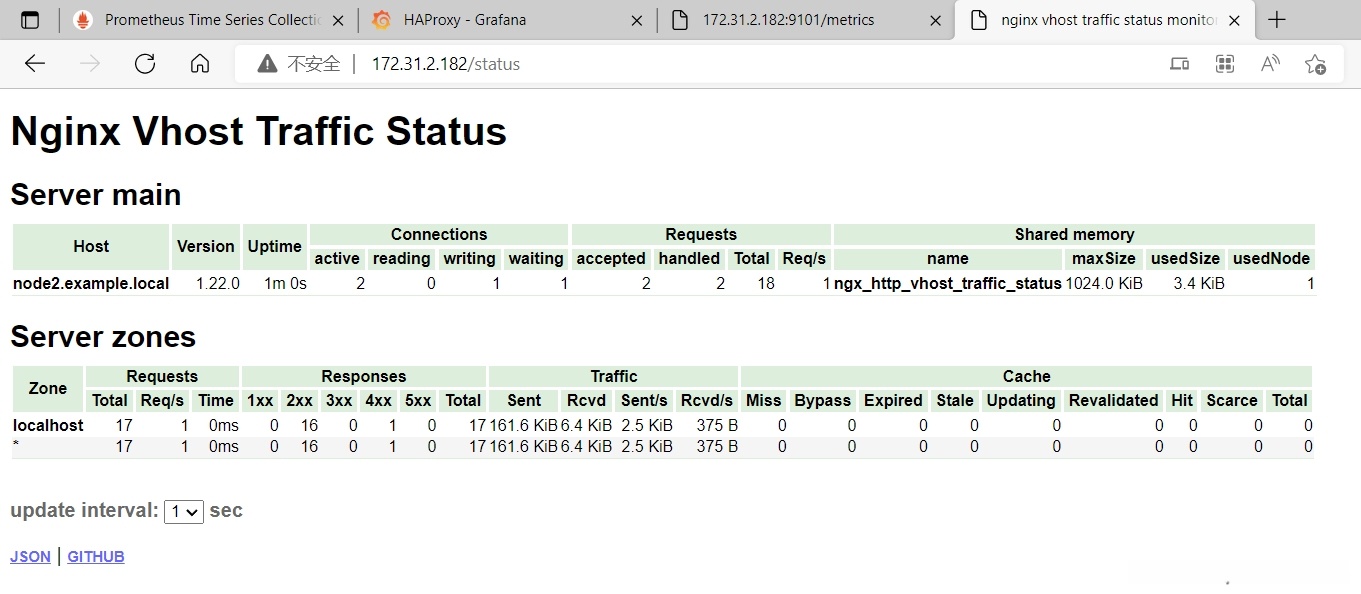

        location /status {
            vhost_traffic_status_display;
            vhost_traffic_status_display_format html;
        }
    ...
    }
    }

    root@node2:/usr/local/src/nginx-1.22.0# /apps/nginx/sbin/nginx -t
    nginx: the configuration file /apps/nginx/conf/nginx.conf syntax is ok
    nginx: configuration file /apps/nginx/conf/nginx.conf test is successful

    root@node2:/usr/local/src/nginx-1.22.0# /apps/nginx/sbin/nginx























    AI助手

    root@node2:~# wget https://github.com/hnlq715/nginx-vts-exporter/releases/download/v0.10.3/nginx-vts-exporter-0.10.3.linux-amd64.tar.gz

    root@node2:~# tar xf nginx-vts-exporter-0.10.3.linux-amd64.tar.gz

    root@node2:~# cd nginx-vts-exporter-0.10.3.linux-amd64/
    root@node2:~/nginx-vts-exporter-0.10.3.linux-amd64# ls
    LICENSE  nginx-vts-exporter
    root@node2:~/nginx-vts-exporter-0.10.3.linux-amd64# cp nginx-vts-exporter /usr/local/src/

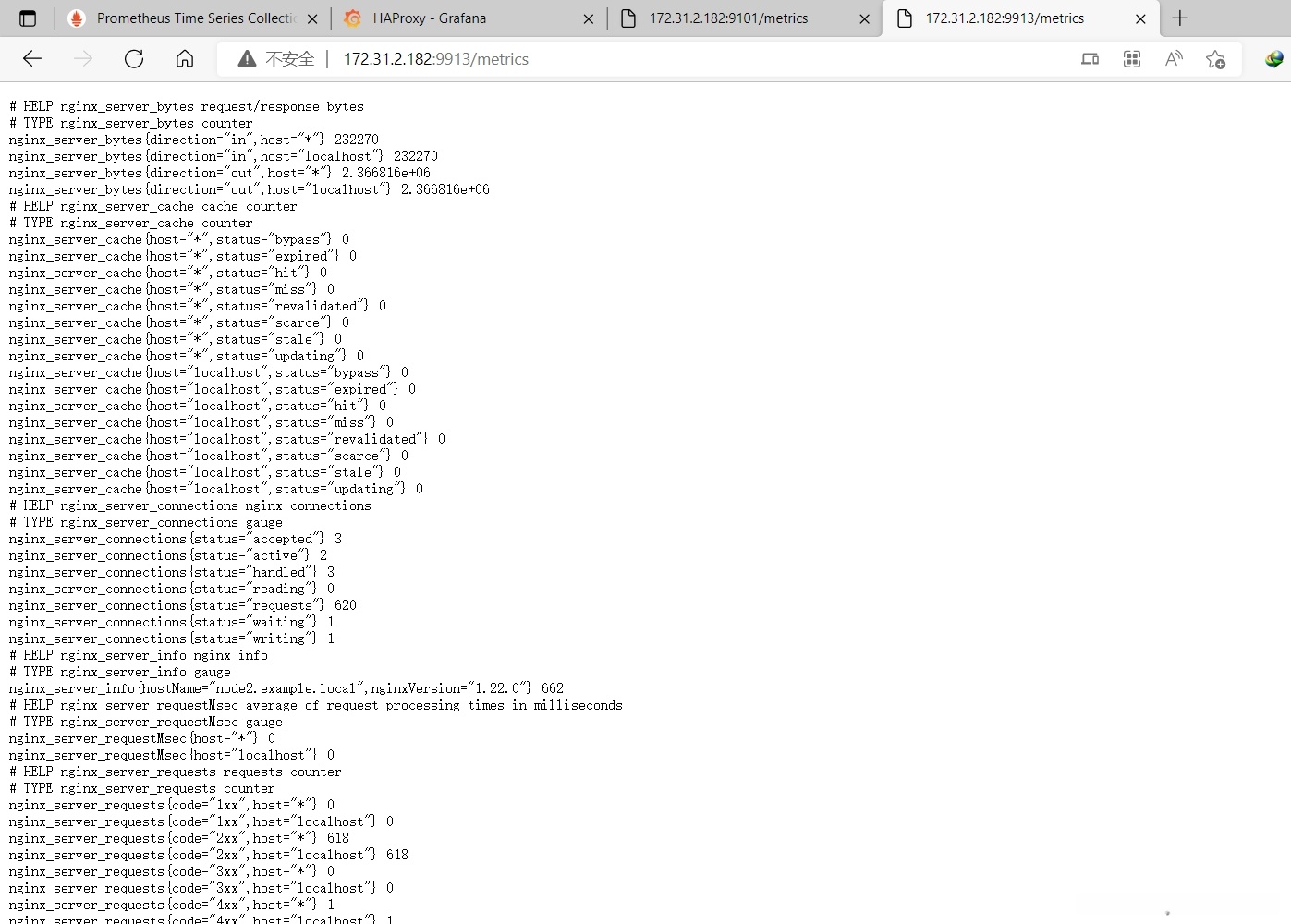

    root@node2:~/nginx-vts-exporter-0.10.3.linux-amd64# ./nginx-vts-exporter -nginx.scrape_uri http://172.31.2.182/status/format/json













    AI助手

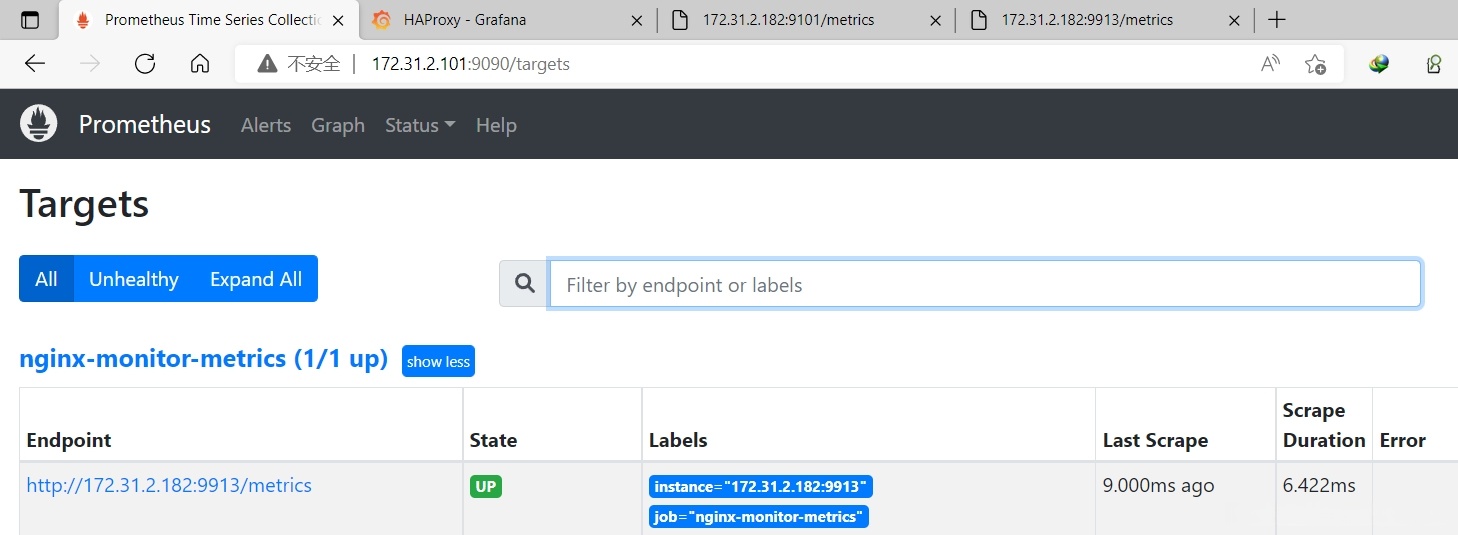

    root@prometheus1:/apps/prometheus# vim prometheus.yml
    ...
      - job_name: 'nginx-monitor-metrics'
    static_configs:
    - targets: ['172.31.2.182:9913']

    root@prometheus1:/apps/prometheus# systemctl restart prometheus










    AI助手

31.2.101 #主节点

    172.31.2.102 #联邦节点1
    172.31.2.103 #联邦节点2

    172.31.2.181 #node1，成员1的采集服务器
    172.31.2.182 #node2，成员2的采集服务器










    AI助手

    # mkdir /apps
    # cd /apps/

    # wget https://github.com/prometheus/node_exporter/releases/download/v1.3.1/node_exporter-1.3.1.linux-amd64.tar.gz

    # tar xf node_exporter-1.3.1.linux-amd64.tar.gz
    # ln -sv /apps/node_exporter-1.3.1.linux-amd64 /apps/node_exporter

    # vim /etc/systemd/system/node-exporter.service
    [Unit]
    Description=Prometheus Node Exporter
    After=network.target

    [Service]
    ExecStart=/apps/node_exporter/node_exporter

    [Install]
    WantedBy=multi-user.target

    # systemctl enable --now node-exporter.service























    AI助手

    # mkdir /apps
    # cd /apps/

    # wget https://github.com/prometheus/prometheus/releases/download/v2.35.0/prometheus-2.35.0.linux-amd64.tar.gz

    # tar xf prometheus-2.35.0.linux-amd64.tar.gz

    # ln -sv /apps/prometheus-2.35.0.linux-amd64/ /apps/prometheus

    # vim /etc/systemd/system/prometheus.service
    [Unit]
    Description=Prometheus Server
    Documentation=https://prometheus.io/docs/introduction/overview/
    After=network.target

    [Service]
    Restart=on-failure
    WorkingDirectory=/apps/prometheus/
    ExecStart=/apps/prometheus/prometheus --config.file=/apps/prometheus/prometheus.yml

    [Install]
    WantedBy=multi-user.target

    # systemctl enable --now prometheus



























    AI助手

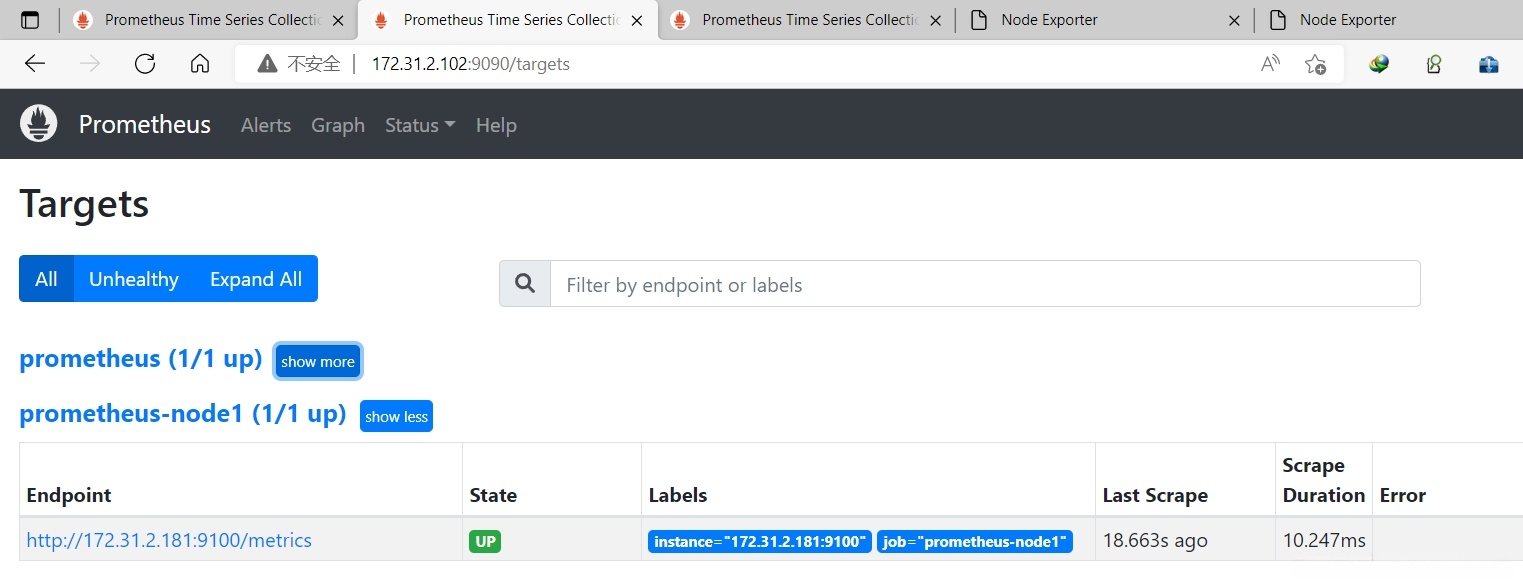

    #prometheus联邦节点1：
    root@prometheus2:/apps/prometheus# vim prometheus.yml
    ...
      - job_name: "prometheus-node1"
    static_configs:
      - targets: ["172.31.2.181:9100"]

    root@prometheus2:/apps/prometheus# systemctl restart prometheus.service











    AI助手

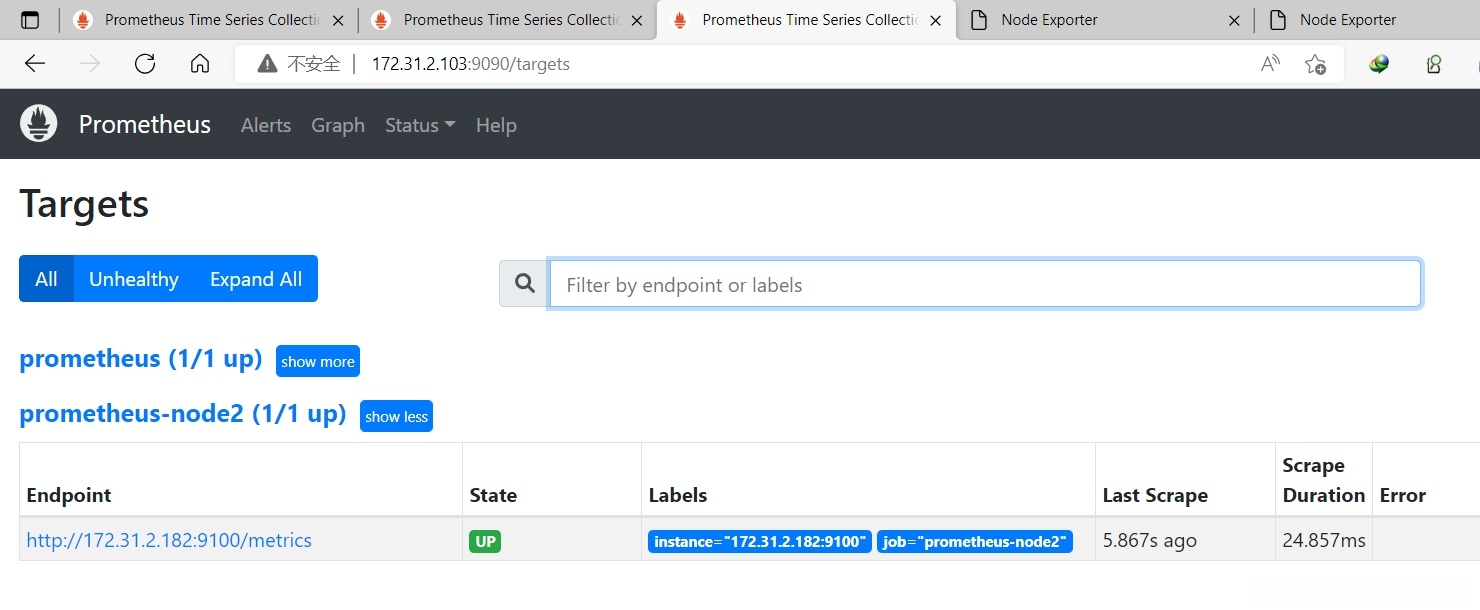

    #prometheus联邦节点2：
    root@prometheus3:/apps/prometheus# vim prometheus.yml
    ...
      - job_name: "prometheus-node2"
    static_configs:
      - targets: ["172.31.2.182:9100"]

    root@prometheus3:/apps/prometheus# systemctl restart prometheus.service











    AI助手

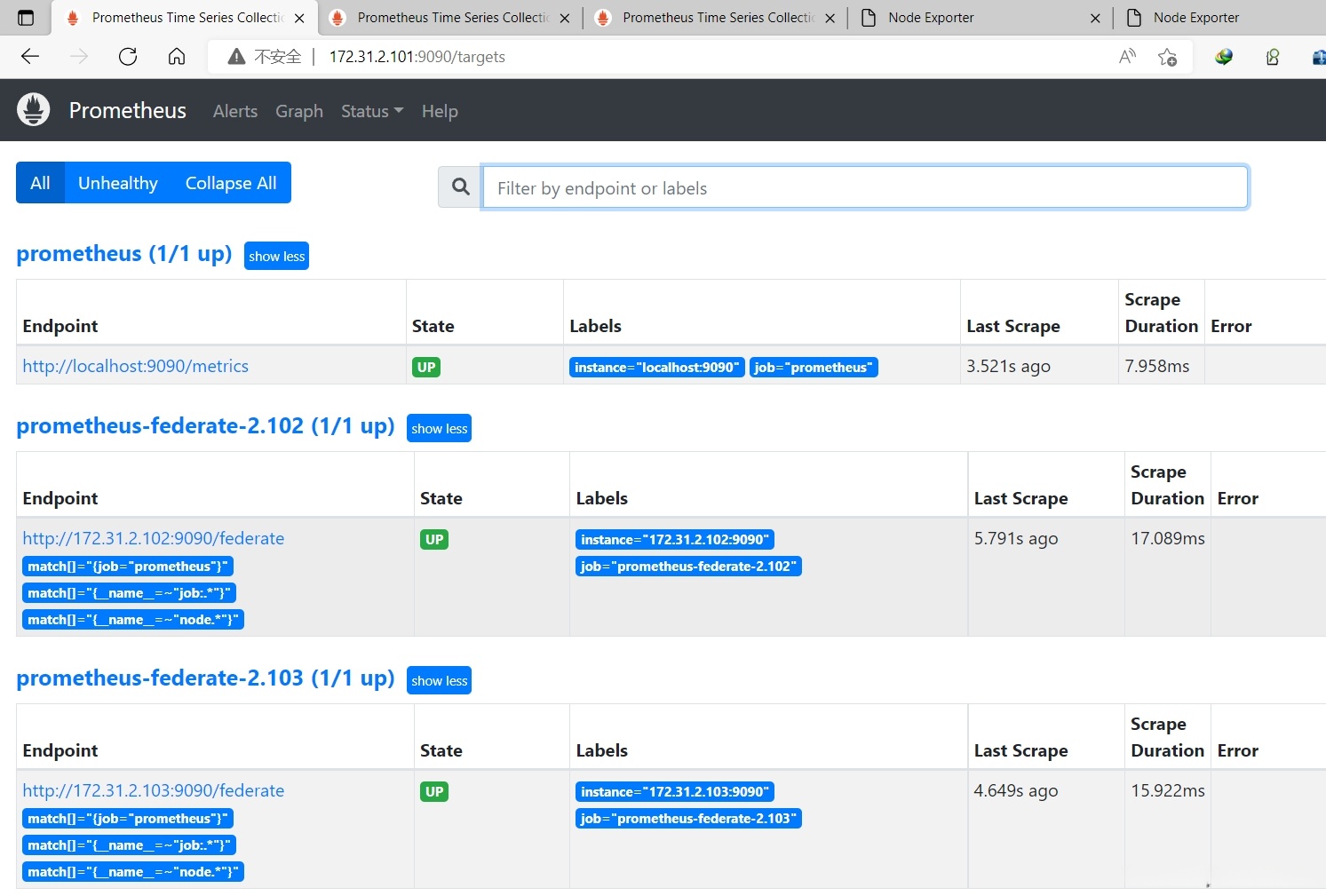

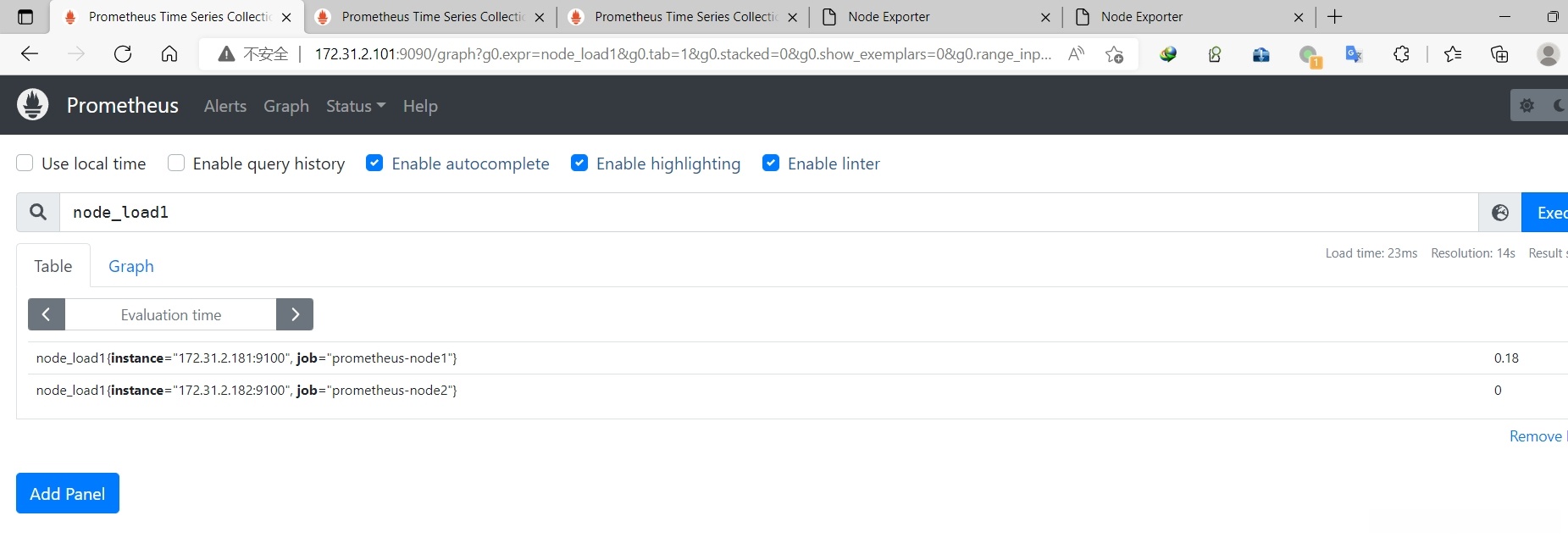

    root@prometheus1:/apps/prometheus# vim prometheus.yml
    ...
      - job_name: 'prometheus-federate-2.102'
    scrape_interval: 10s
    honor_labels: true
    metrics_path: '/federate'
    params:
      'match[]':
       - '{job="prometheus"}'
       - '{__name__=~"job:.*"}'
       - '{__name__=~"node.*"}'
    static_configs:
    - targets:
      - '172.31.2.102:9090'

      - job_name: 'prometheus-federate-2.103'
    scrape_interval: 10s
    honor_labels: true
    metrics_path: '/federate'
    params:
      'match[]':
       - '{job="prometheus"}'
       - '{__name__=~"job:.*"}'
       - '{__name__=~"node.*"}'
    static_configs:
    - targets:
      - '172.31.2.103:9090'

    root@prometheus1:/apps/prometheus# systemctl restart prometheus.service
































    AI助手

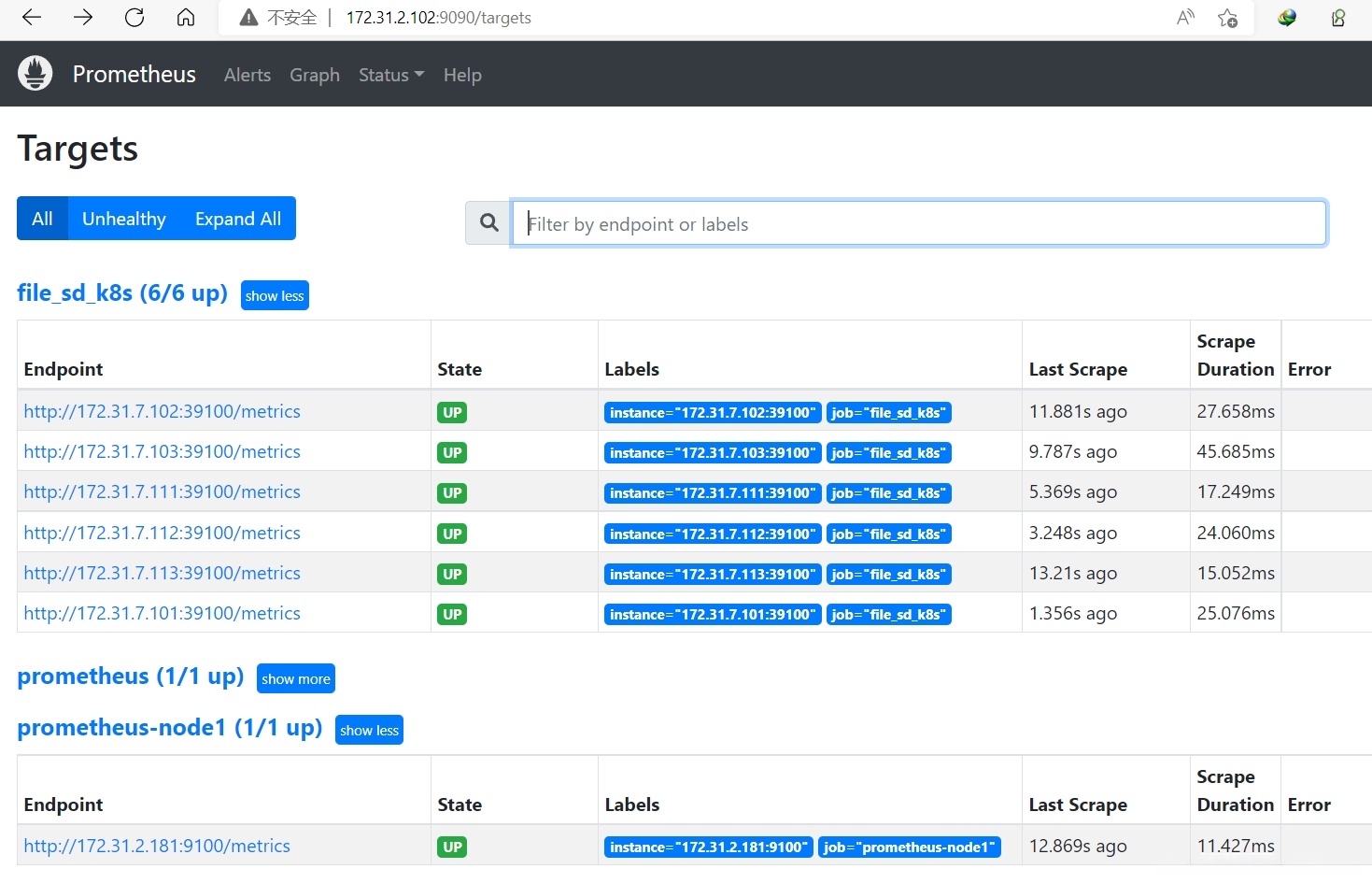

    root@prometheus2:/apps/prometheus# vim file_sd_config/k8s.json
    [
      {
    "targets": ["172.31.7.111:39100","172.31.7.112:39100","172.31.7.113:39100","172.31.7.101:39100","172.31.7.102:39100","172.31.7.103:39100"]
      }
    ]
