斯坦福cs231n课程记录——assignment1 SVM

 ​​# Preprocessing: subtract the mean image


 # first: compute the image mean based on the training data

 mean_image = np.mean(X_train, axis=0)

 print (mean_image[:10]) # print a few of the elements

 plt.figure(figsize=(4,4))

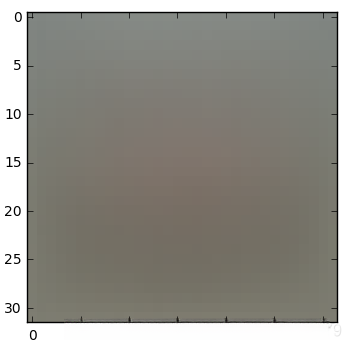

 plt.imshow(mean_image.reshape((32,32,3)).astype('uint8')) # visualize the mean image

 plt.show()





 [ 129.16667347  134.23142857  130.79826531  128.36589796  133.4004898


   129.92885714  129.62573469  134.69042857  130.9032449   129.91483673]





 # second: subtract the mean image from train and test data


 X_train -= mean_image

 X_val -= mean_image

 X_test -= mean_image

 X_dev -= mean_image





 # third: append the bias dimension of ones (i.e. bias trick) so that our SVM


 # only has to worry about optimizing a single weight matrix W.

 X_train = np.hstack([X_train, np.ones((X_train.shape[0], 1))])

 X_val = np.hstack([X_val, np.ones((X_val.shape[0], 1))])

 X_test = np.hstack([X_test, np.ones((X_test.shape[0], 1))])

 X_dev = np.hstack([X_dev, np.ones((X_dev.shape[0], 1))])



 print (X_train.shape, X_val.shape, X_test.shape, X_dev.shape)





    (49000, 3073) (1000, 3073) (1000, 3073) (500, 3073)

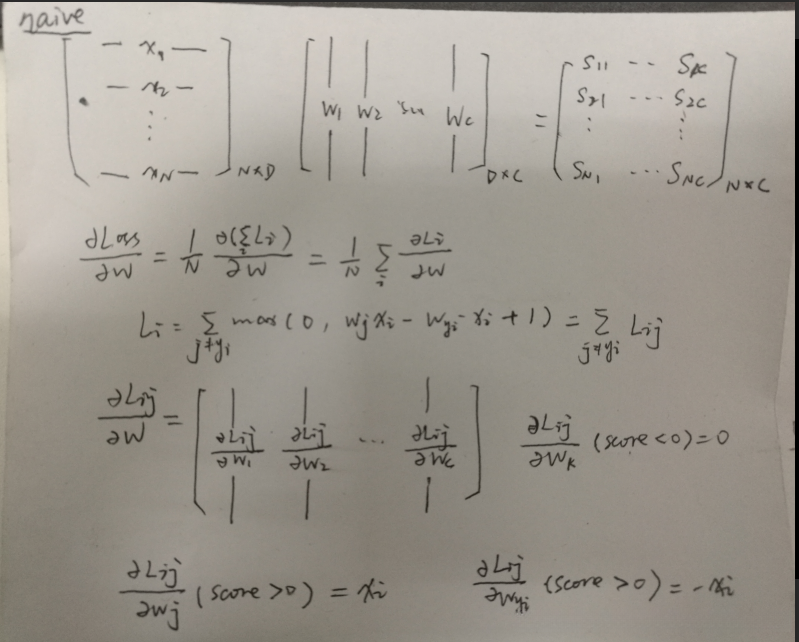

 def svm_loss_naive(W, X, y, reg):


     dW = np.zeros(W.shape)  # initialize the gradient as zero



     # compute the loss and the gradient

     num_classes = W.shape[1]

     num_train = X.shape[0]

     loss = 0.0

     for i in xrange(num_train):

     scores = X[i].dot(W)

     correct_class_score = scores[y[i]]

     for j in xrange(num_classes):

         if j == y[i]:

             continue

         margin = scores[j] - correct_class_score + 1  # note delta = 1

         if margin > 0:

             loss += margin

             # 如果 margin 大于 0，计算梯度

             dW[:, j] += X[i].T

             dW[:, y[i]] -= X[i].T



     # Right now the loss is a sum over all training examples, but we want it

     # to be an average instead so we divide by num_train.

     loss /= num_train

     # 对梯度除以 num_train 进行平均

     dW /= num_train



     # Add regularization to the loss.

     loss += reg * np.sum(W * W)

     # 对正则项求梯度

     dW += 2 * reg * W



     return loss, dW

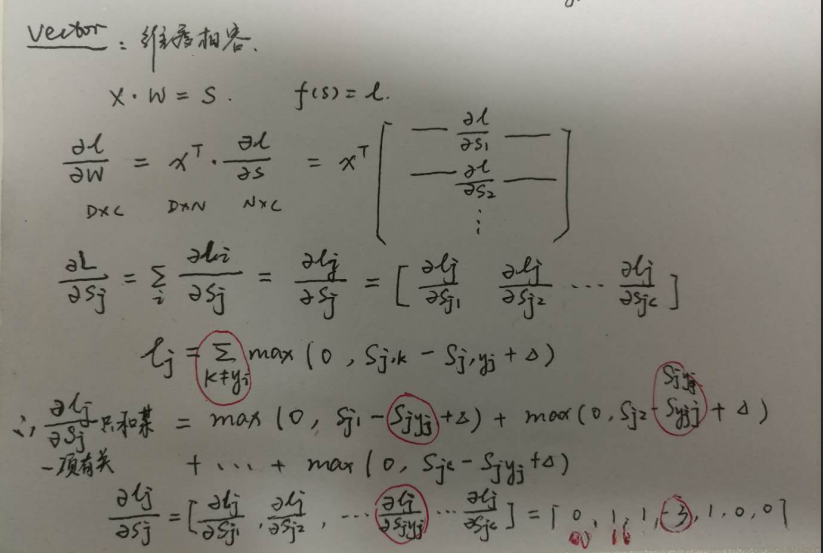

 def svm_loss_vectorized(W, X, y, reg):


     loss = 0.0

     dW = np.zeros(W.shape)  # initialize the gradient as zero



     num_train = X.shape[0]  # 得到样本的数目

     scores = np.dot(X, W)  # 计算所有的得分

     y_score = scores[np.arange(num_train), y].reshape((-1, 1))  # 得到每个样本对应label的得分

     mask = (scores - y_score + 1) > 0  # 有效的score下标，多算label

     scores = (scores - y_score + 1) * mask  # 有效的得分

     loss = (np.sum(scores) - num_train * 1) / num_train  # 去掉每个样本多加的对应label得分，然后平均

     loss += reg * np.sum(W * W)



     # dw = x.T * dl/ds

     ds = np.ones_like(scores)  # 初始化ds

     ds *= mask  # 有效的score梯度为1，无效的为0

     ds[np.arange(num_train), y] = -1 * (np.sum(mask, axis=1) - 1)  # 每个样本对应label的梯度计算了(有效的score次)，取负号

     dW = np.dot(X.T, ds) / num_train   # 平均

     dW += 2 * reg * W  # 加上正则项的梯度



     return loss, dW
