斯坦福CS224n-assignment1

 1.2.1 x_max = np.max(x, axis=1, keepdims=True) keepdims 运算后的结构保持矩阵结构


 1.2.2 x = np.exp(x - x_max) / np.sum(np.exp(x - x_max), axis=1) #axis = 1, 每一行一个样本，每一个样本的概率归一化

 1.2.3 np.allclose(test1, ans1, rtol=1e-05, atol=1e-06) #allclose方法，比较两个array是不是每一元素都相等，默认在1e-05的误差范围内

 import numpy as np

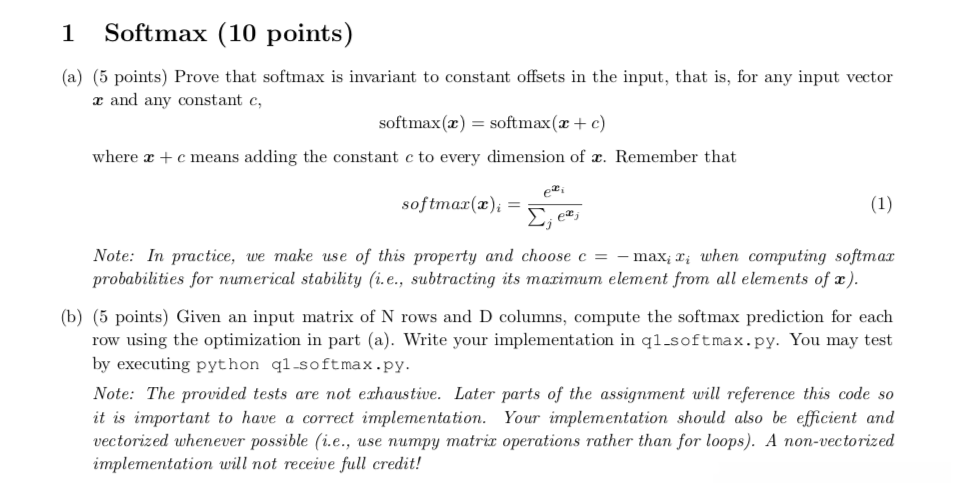

 def softmax(x):

     """Compute the softmax function for each row of the input x. #每行是一个样本，每一列是各类的评分，归一化以每一行为对象。

   7.     It is crucial that this function is optimized for speed because

     it will be used frequently in later code. You might find numpy

     functions np.exp, np.sum, np.reshape, np.max, and numpy

     broadcasting useful for this task.

   12.     Numpy broadcasting documentation:

     http://docs.scipy.org/doc/numpy/user/basics.broadcasting.html

   15.     You should also make sure that your code works for a single

     D-dimensional vector (treat the vector as a single row) and

     for N x D matrices. This may be useful for testing later. Also,

     make sure that the dimensions of the output match the input.

   20.     You must implement the optimization in problem 1(a) of the

     written assignment!

   23.     Arguments:

     x -- A D dimensional vector or N x D dimensional numpy matrix.

   26.     Return:

     x -- You are allowed to modify x in-place

     """

     orig_shape = x.shape



     if len(x.shape) > 1:

     # Matrix

     ### YOUR CODE HERE

     x_max = np.max(x, axis=1, keepdims=True) #取每行的最大值, keepdims保持二维的特性，这样在下一步相减情况下，不会出错

     x = np.exp(x - x_max) / np.sum(np.exp(x - x_max), axis=1, keepdims=True) #axis = 1, 每一行一个样本，每一个样本的概率归一化

     # raise NotImplementedError

     ### END YOUR CODE

     else:

     # Vector        列向量，只有一个样本。

     ### YOUR CODE HERE

     x_max = np.max(x)

     x = np.exp(x - x_max) / np.sum(np.exp(x - x_max))

     # raise NotImplementedError

     ### END YOUR CODE



     assert x.shape == orig_shape

     return x



 # from q1_softmax import softmax

 # return 20 if softmax(测试值) == 正确值 else 0





 def test_softmax_basic():

     """

     Some simple tests to get you started.

     Warning: these are not exhaustive.

     """

     print("Running basic tests...")

     test1 = softmax(np.array([1,2]))

     print(test1)

     ans1 = np.array([0.26894142,  0.73105858])

     assert np.allclose(test1, ans1, rtol=1e-05, atol=1e-06) #allclose方法，比较两个array是不是每一元素都相等，默认在1e-05的误差范围内



     test2 = softmax(np.array([[1001,1002],[3,4]]))

     print(test2)

     ans2 = np.array([

     [0.26894142, 0.73105858],

     [0.26894142, 0.73105858]])

     assert np.allclose(test2, ans2, rtol=1e-05, atol=1e-06)



     test3 = softmax(np.array([[-1001,-1002]]))

     print(test3)

     ans3 = np.array([0.73105858, 0.26894142])

     assert np.allclose(test3, ans3, rtol=1e-05, atol=1e-06)



     print("You should be able to verify these results by hand!\n")





 def test_softmax():

     """

     Use this space to test your softmax implementation by running:

     python q1_softmax.py

     This function will not be called by the autograder, nor will

     your tests be graded.

     """

     print("Running your tests...")

     ### YOUR CODE HERE

     # raise NotImplementedError

     ### END YOUR CODE





 if __name__ == "__main__":

     test_softmax_basic()

     test_softmax()

 #!/usr/bin/env python




 import numpy as np

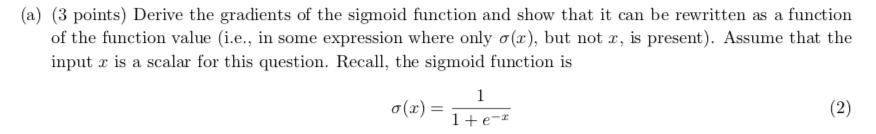

 def sigmoid(x):

     """

     Compute the sigmoid function for the input here.

   10.     Arguments:

     x -- A scalar or numpy array. x

   13.     Return:

     s -- sigmoid(x)

     """



     ### YOUR CODE HERE

     s = 1/(1+np.exp(-x))

     ### END YOUR CODE



     return s





 def sigmoid_grad(s):

     """

     Compute the gradient for the sigmoid function here. Note that

     for this implementation, the input s should be the sigmoid

     function value of your original input x.

   30.     Arguments:

     s -- A scalar or numpy array.

   33.     Return:

     ds -- Your computed gradient.

     """



     ### YOUR CODE HERE

     ds = s * (1 - s)

     ### END YOUR CODE



     return ds

 # First implement a gradient checker by filling in the following functions


 def gradcheck_naive(f, x):

     """ Gradient check for a function f.

   5.     Arguments:

     f -- a function that takes a single argument and outputs the

      cost and its gradients

     x -- the point (numpy array) to check the gradient at

     """



     rndstate = random.getstate()

     random.setstate(rndstate)

     fx, grad = f(x) # Evaluate function value at original point #fx 是平方和函数，grad 2*x函数

     h = 1e-4        # Do not change this!



     # Iterate over all indexes ix in x to check the gradient.

     it = np.nditer(x, flags=['multi_index'], op_flags=['readwrite'])

     while not it.finished:

     ix = it.multi_index



     # Try modifying x[ix] with h defined above to compute numerical

     # gradients (numgrad).



     # Use the centered difference of the gradient.

     # It has smaller asymptotic error than forward / backward difference

     # methods. If you are curious, check out here:

     # https://math.stackexchange.com/questions/2326181/when-to-use-forward-or-central-difference-approximations



     # Make sure you call random.setstate(rndstate)

     # before calling f(x) each time. This will make it possible

     # to test cost functions with built in randomness later.



     ### YOUR CODE HERE:

     x[ix] += h

     random.setstate(rndstate)

     new_f1 = f(x)[0]

     x[ix] -= 2*h

     random.setstate(rndstate)

     new_f2 = f(x)[0]

     x[ix] += h

     numgrad = (new_f1 - new_f2) / (2 * h)

     ### END YOUR CODE



     # Compare gradients

     reldiff = abs(numgrad - grad[ix]) / max(1, abs(numgrad), abs(grad[ix]))

     if reldiff > 1e-5:

         print("Gradient check failed.")

         print("First gradient error found at index %s" % str(ix))

         print("Your gradient: %f \t Numerical gradient: %f" % (

             grad[ix], numgrad))

         return



     it.iternext() # Step to next dimension



     print("Gradient check passed!")

 #!/usr/bin/env python




 import numpy as np

 import random



 from q1_softmax import softmax

 from q2_sigmoid import sigmoid, sigmoid_grad

 from q2_gradcheck import gradcheck_naive

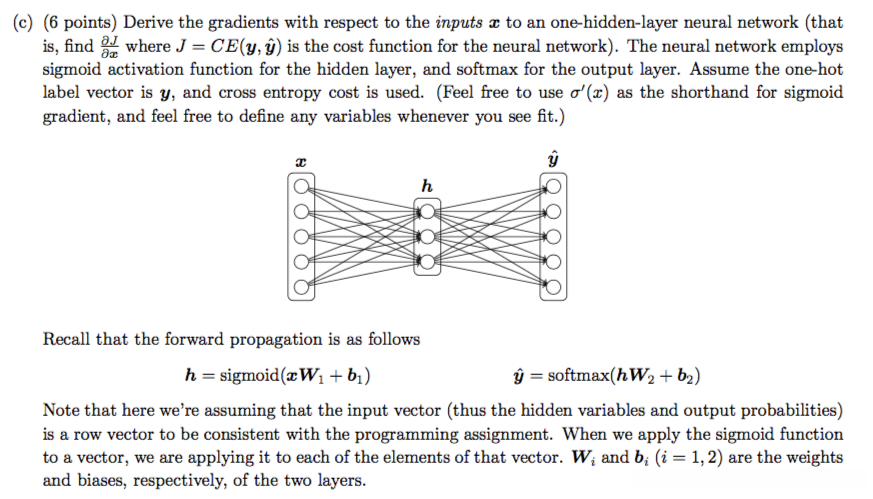

 def forward_backward_prop(X, labels, params, dimensions):

     """

     Forward and backward propagation for a two-layer sigmoidal network

   15.     Compute the forward propagation and for the cross entropy cost,

     the backward propagation for the gradients for all parameters.

   18.     Notice the gradients computed here are different from the gradients in

     the assignment sheet: they are w.r.t. weights, not inputs.

   21.     Arguments:

     X -- M x Dx matrix, where each row is a training example x.

     labels -- M x Dy matrix, where each row is a one-hot vector.

     params -- Model parameters, these are unpacked for you.

     dimensions -- A tuple of input dimension, number of hidden units

               and output dimension

     """



     ### Unpack network parameters (do not modify)

     ofs = 0

     Dx, H, Dy = (dimensions[0], dimensions[1], dimensions[2])



     W1 = np.reshape(params[ofs:ofs+ Dx * H], (Dx, H))

     ofs += Dx * H

     b1 = np.reshape(params[ofs:ofs + H], (1, H))

     ofs += H

     W2 = np.reshape(params[ofs:ofs + H * Dy], (H, Dy))

     ofs += H * Dy

     b2 = np.reshape(params[ofs:ofs + Dy], (1, Dy))



     # Note: compute cost based on `sum` not `mean`.

     ### YOUR CODE HERE: forward propagation

     h = sigmoid(np.dot(X,W1) + b1)

     yhat = softmax(np.dot(h,W2) + b2)

     ### END YOUR CODE



     ### YOUR CODE HERE: backward propagation

     cost = np.sum(-np.log(yhat[labels==1])) / X.shape[0]

     d3 = (yhat - labels) / X.shape[0]

     gradW2 = np.dot(h.T, d3)

     gradb2 = np.sum(d3,0,keepdims=True)

     dh = np.dot(d3,W2.T)

     grad_h = sigmoid_grad(h) * dh

     gradW1 = np.dot(X.T,grad_h)

     gradb1 = np.sum(grad_h,0)

     ### END YOUR CODE



     ### Stack gradients (do not modify)

     grad = np.concatenate((gradW1.flatten(), gradb1.flatten(),

     gradW2.flatten(), gradb2.flatten()))



     return cost, grad





 def sanity_check():

     """

     Set up fake data and parameters for the neural network, and test using

     gradcheck.

     """

     print("Running sanity check...")



     N = 20

     dimensions = [10, 5, 10]

     data = np.random.randn(N, dimensions[0])   # each row will be a datum

     labels = np.zeros((N, dimensions[2]))

     for i in range(N):

     labels[i, random.randint(0,dimensions[2]-1)] = 1



     params = np.random.randn((dimensions[0] + 1) * dimensions[1] + (

     dimensions[1] + 1) * dimensions[2], )



     gradcheck_naive(lambda params:

     forward_backward_prop(data, labels, params, dimensions), params)





 def your_sanity_checks():

     """

     Use this space add any additional sanity checks by running:

     python q2_neural.py

     This function will not be called by the autograder, nor will

     your additional tests be graded.

     """

     print("Running your sanity checks...")

     ### YOUR CODE HERE

     # raise NotImplementedError

     ### END YOUR CODE





 if __name__ == "__main__":

     sanity_check()

     your_sanity_checks()
