【AI】斯坦福CS231n课程练习（1）—— KNN和SVM分类

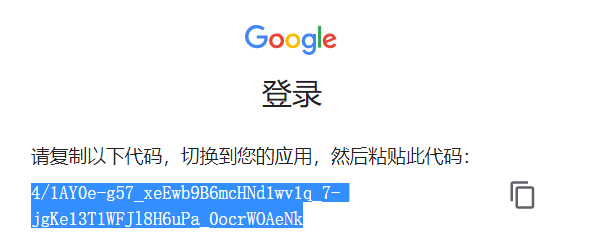

    from google.colab import drive

    drive.mount('/content/drive', force_remount=True)

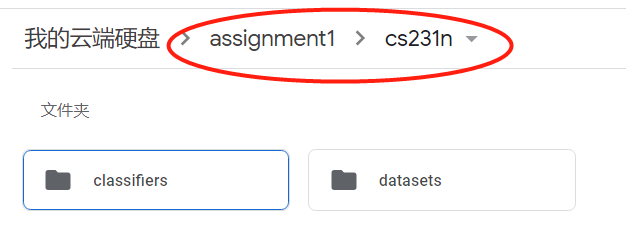

    #这一步就是切换到作业目录，没啥好说的
    # enter the foldername in your Drive where you have saved the unzipped
    # 'cs231n' folder containing the '.py', 'classifiers' and 'datasets' folders.
    # e.g. 'cs231n/assignments/assignment1/cs231n/'

    FOLDERNAME = 'assignment1/cs231n'#这里是我自己的云盘目录
    assert FOLDERNAME is not None, "[!] Enter the foldername."

    %cd drive/My\ Drive
    %cp -r $FOLDERNAME ../../
    %cd ../../

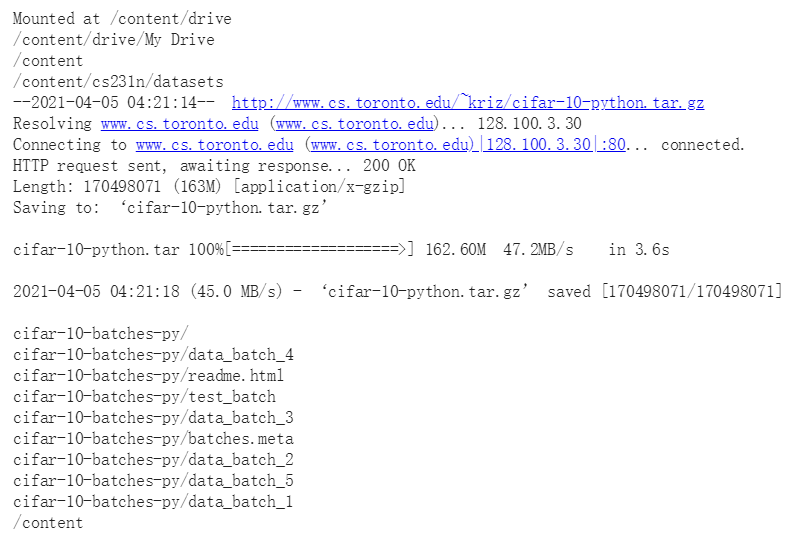

    %cd cs231n/datasets/
    !bash get_datasets.sh
    %cd ../../


    #倒入一些包和设置

    # Run some setup code for this notebook.
    import random
    import numpy as np
    from cs231n.data_utils import load_CIFAR10
    import matplotlib.pyplot as plt

    # This is a bit of magic to make matplotlib figures appear inline in the notebook rather than in a new window.
    %matplotlib inline
    plt.rcParams['figure.figsize'] = (10.0, 8.0) # set default size of plots
    plt.rcParams['image.interpolation'] = 'nearest'
    plt.rcParams['image.cmap'] = 'gray'

    # Some more magic so that the notebook will reload external python modules;
    #加载外部模块
    # see http://stackoverflow.com/questions/1907993/autoreload-of-modules-in-ipython
    %load_ext autoreload
    %autoreload 2

    # Load the raw CIFAR-10 data.
    #加载原始数据
    cifar10_dir = 'cs231n/datasets/cifar-10-batches-py'

    # Cleaning up variables to prevent loading data multiple times (which may cause memory issue)
    #清理变量以防止多次加载数据
    try:
       del X_train, y_train
       del X_test, y_test
       print('Clear previously loaded data.')
    except:
       pass

    X_train, y_train, X_test, y_test = load_CIFAR10(cifar10_dir)

    # As a sanity check, we print out the size of the training and test data.
    #作为完备性检查，我们打印出训练和测试数据的大小
    print('Training data shape: ', X_train.shape)
    print('Training labels shape: ', y_train.shape)
    print('Test data shape: ', X_test.shape)
    print('Test labels shape: ', y_test.shape)

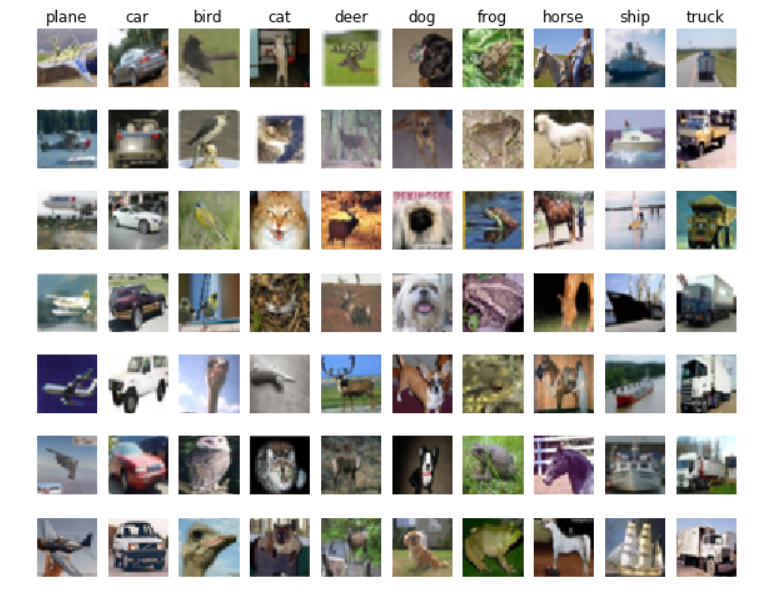

    # Visualize some examples from the dataset.
    #可视化数据集中的一些示例
    # We show a few examples of training images from each class.
    #展示每个类的一些训练图像的例子

    classes = ['plane', 'car', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']
    num_classes = len(classes)
    samples_per_class = 7
    for y, cls in enumerate(classes):
    idxs = np.flatnonzero(y_train == y)
    idxs = np.random.choice(idxs, samples_per_class, replace=False)
    for i, idx in enumerate(idxs):
        plt_idx = i * num_classes + y + 1
        plt.subplot(samples_per_class, num_classes, plt_idx)
        plt.imshow(X_train[idx].astype('uint8'))
        plt.axis('off')
        if i == 0:
            plt.title(cls)
    plt.show()

    # Subsample the data for more efficient code execution in this exercise
    #对数据进行分组
    num_training = 5000
    mask = list(range(num_training))
    X_train = X_train[mask]
    y_train = y_train[mask]

    num_test = 500
    mask = list(range(num_test))
    X_test = X_test[mask]
    y_test = y_test[mask]

    # Reshape the image data into rows
    X_train = np.reshape(X_train, (X_train.shape[0], -1))
    X_test = np.reshape(X_test, (X_test.shape[0], -1))

    #打印训练集、测试集的规模
    print(X_train.shape, X_test.shape)

    from cs231n.classifiers import KNearestNeighbor

    #创建kNN分类器
    # Create a kNN classifier instance.
    # Remember that training a kNN classifier is a noop:
    # the Classifier simply remembers the data and does no further processing

    classifier = KNearestNeighbor()
    classifier.train(X_train, y_train)

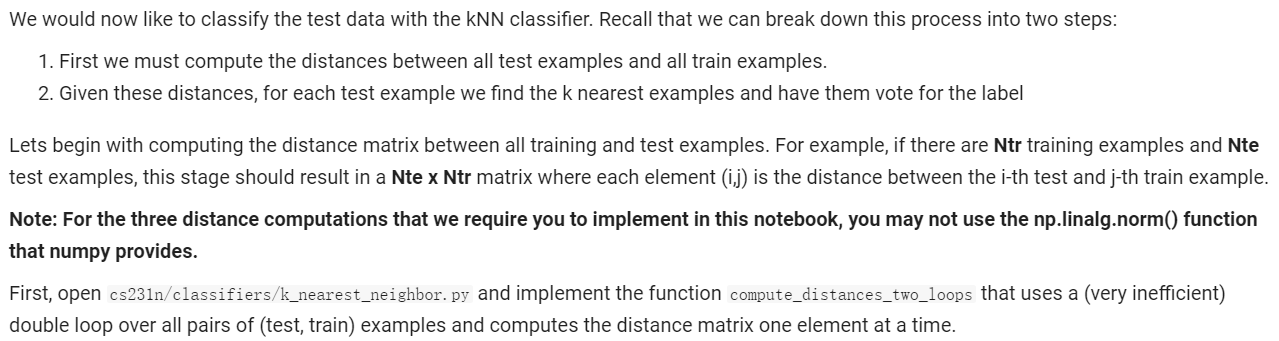

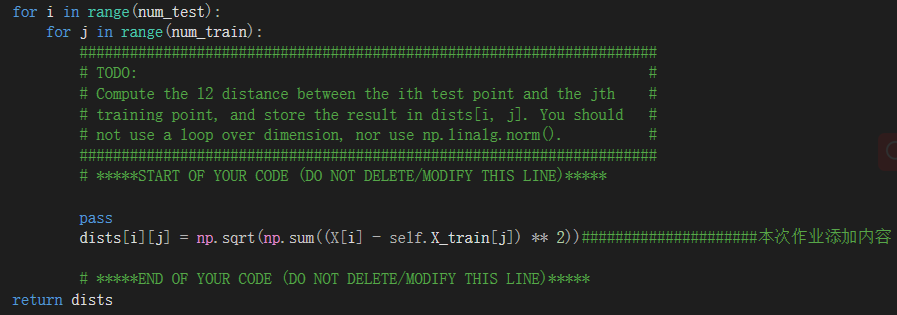

    # Open cs231n/classifiers/k_nearest_neighbor.py and implement
    # compute_distances_two_loops.

    # Test your implementation:
    dists = classifier.compute_distances_two_loops(X_test)
    print(dists.shape)

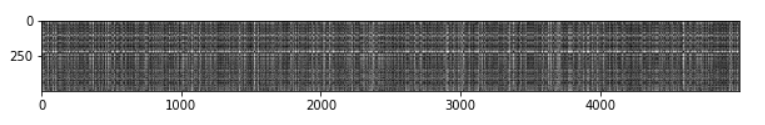

    # We can visualize the distance matrix: each row is a single test example and
    # its distances to training examples
    plt.imshow(dists, interpolation='none')
    plt.show()

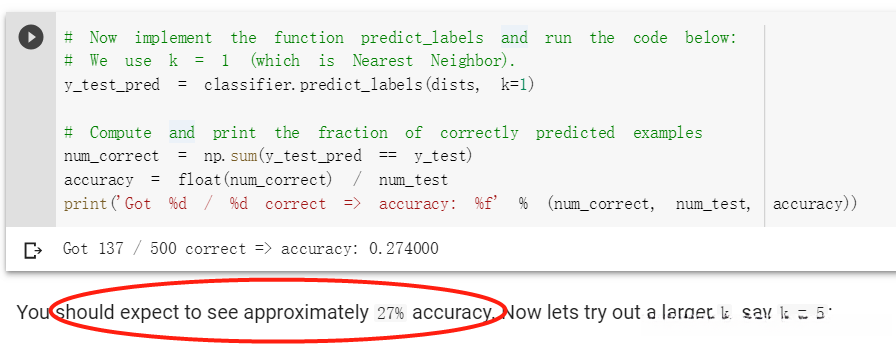

    # Now implement the function predict_labels and run the code below:
    # We use k = 1 (which is Nearest Neighbor).
    y_test_pred = classifier.predict_labels(dists, k=1)

    # Compute and print the fraction of correctly predicted examples
    num_correct = np.sum(y_test_pred == y_test)
    accuracy = float(num_correct) / num_test
    print('Got %d / %d correct => accuracy: %f' % (num_correct, num_test, accuracy))

    y_test_pred = classifier.predict_labels(dists, k=5)
    num_correct = np.sum(y_test_pred == y_test)
    accuracy = float(num_correct) / num_test
    print('Got %d / %d correct => accuracy: %f' % (num_correct, num_test, accuracy))

    # Now lets speed up distance matrix computation by using partial vectorization
    # with one loop. Implement the function compute_distances_one_loop and run the
    # code below:
    dists_one = classifier.compute_distances_one_loop(X_test)

    # To ensure that our vectorized implementation is correct, we make sure that it agrees with the naive implementation. There are many ways to decide whether two matrices are similar; one of the simplest is the Frobenius norm. In case
    # you haven't seen it before, the Frobenius norm of two matrices is the square
    # root of the squared sum of differences of all elements; in other words, reshape the matrices into vectors and compute the Euclidean distance between them.
    difference = np.linalg.norm(dists - dists_one, ord='fro')
    print('One loop difference was: %f' % (difference, ))
    if difference < 0.001:
    print('Good! The distance matrices are the same')
    else:
    print('Uh-oh! The distance matrices are different')

    # Now implement the fully vectorized version inside compute_distances_no_loops and run the code
    dists_two = classifier.compute_distances_no_loops(X_test)

    # check that the distance matrix agrees with the one we computed before:
    difference = np.linalg.norm(dists - dists_two, ord='fro')
    print('No loop difference was: %f' % (difference, ))
    if difference < 0.001:
    print('Good! The distance matrices are the same')
    else:
    print('Uh-oh! The distance matrices are different')

    # Let's compare how fast the implementations are
    def time_function(f, *args):
    """
    Call a function f with args and return the time (in seconds) that it took to execute.
    """
    import time
    tic = time.time()
    f(*args)
    toc = time.time()
    return toc - tic

    two_loop_time = time_function(classifier.compute_distances_two_loops, X_test)
    print('Two loop version took %f seconds' % two_loop_time)

    one_loop_time = time_function(classifier.compute_distances_one_loop, X_test)
    print('One loop version took %f seconds' % one_loop_time)

    no_loop_time = time_function(classifier.compute_distances_no_loops, X_test)
    print('No loop version took %f seconds' % no_loop_time)

    # You should see significantly faster performance with the fully vectorized implementation!

    # NOTE: depending on what machine you're using,
    # you might not see a speedup when you go from two loops to one loop,
    # and might even see a slow-down.

    num_folds = 5
    k_choices = [1, 3, 5, 8, 10, 12, 15, 20, 50, 100]

    X_train_folds = []
    y_train_folds = []
    ################################################################################
    # TODO:                                                                        #
    # Split up the training data into folds. After splitting, X_train_folds and    #
    # y_train_folds should each be lists of length num_folds, where                #
    # y_train_folds[i] is the label vector for the points in X_train_folds[i].     #
    # Hint: Look up the numpy array_split function.                                #
    ################################################################################
    pass
    # split self.X_train to 5 folds
    avg_size = int(X_train.shape[0] / num_folds) # will abandon the rest if not divided evenly.
    for i in range(num_folds):
    X_train_folds.append(X_train[i * avg_size : (i+1) * avg_size])
    y_train_folds.append(y_train[i * avg_size : (i+1) * avg_size])
    ################################################################################
    #                                 END OF YOUR CODE                             #
    ################################################################################

    # A dictionary holding the accuracies for different values of k that we find
    # when running cross-validation. After running cross-validation,
    # k_to_accuracies[k] should be a list of length num_folds giving the different
    # accuracy values that we found when using that value of k.
    k_to_accuracies = {}


    ################################################################################
    # TODO:                                                                        #
    # Perform k-fold cross validation to find the best value of k. For each        #
    # possible value of k, run the k-nearest-neighbor algorithm num_folds times,   #
    # where in each case you use all but one of the folds as training data and the #
    # last fold as a validation set. Store the accuracies for all fold and all     #
    # values of k in the k_to_accuracies dictionary.                               #
    ################################################################################
    pass
    for k in k_choices:
    accuracies = []
    print k
    for i in range(num_folds):
        X_train_cv = np.vstack(X_train_folds[0:i] + X_train_folds[i+1:])
        y_train_cv = np.hstack(y_train_folds[0:i] + y_train_folds[i+1:])
        X_valid_cv = X_train_folds[i]
        y_valid_cv = y_train_folds[i]

        classifier.train(X_train_cv, y_train_cv)
        dists = classifier.compute_distances_no_loops(X_valid_cv)
        accuracy = float(np.sum(classifier.predict_labels(dists, k) == y_valid_cv)) / y_valid_cv.shape[0]
        accuracies.append(accuracy)
    k_to_accuracies[k] = accuracies
    ################################################################################
    #                                 END OF YOUR CODE                             #
    ################################################################################

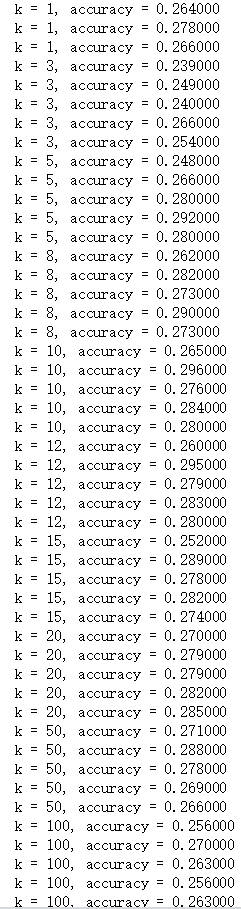

    # Print out the computed accuracies
    for k in sorted(k_to_accuracies):
    for accuracy in k_to_accuracies[k]:
        print 'k = %d, accuracy = %f' % (k, accuracy)

    # plot the raw observations
    for k in k_choices:
      accuracies = k_to_accuracies[k]
      plt.scatter([k] * len(accuracies), accuracies)

    # plot the trend line with error bars that correspond to standard deviation
    accuracies_mean = np.array([np.mean(v) for k,v in sorted(k_to_accuracies.items())])
    accuracies_std = np.array([np.std(v) for k,v in sorted(k_to_accuracies.items())])
    plt.errorbar(k_choices, accuracies_mean, yerr=accuracies_std)
    plt.title('Cross-validation on k')
    plt.xlabel('k')
    plt.ylabel('Cross-validation accuracy')
    plt.show()

    # Based on the cross-validation results above, choose the best value for k, retrain the classifier using all the training data, and test it on the test data. You should be able to get above 28% accuracy on the test data.
    best_k = 10

    classifier = KNearestNeighbor()
    classifier.train(X_train, y_train)
    y_test_pred = classifier.predict(X_test, k=best_k)

    # Compute and display the accuracy
    num_correct = np.sum(y_test_pred == y_test)
    accuracy = float(num_correct) / num_test
    print 'Got %d / %d correct => accuracy: %f' % (num_correct, num_test, accuracy)

    # Run some setup code for this notebook.notebook配置代码
    import random
    import numpy as np
    from cs231n.data_utils import load_CIFAR10
    import matplotlib.pyplot as plt

    # This is a bit of magic to make matplotlib figures appear inline in the notebook rather than in a new window.
    %matplotlib inline
    plt.rcParams['figure.figsize'] = (10.0, 8.0) # set default size of plots
    plt.rcParams['image.interpolation'] = 'nearest'
    plt.rcParams['image.cmap'] = 'gray'

    # Some more magic so that the notebook will reload external python modules;
    # see http://stackoverflow.com/questions/1907993/autoreload-of-modules-in-ipython
    %load_ext autoreload
    %autoreload 2

    # Load the raw CIFAR-10 data.
    cifar10_dir = 'cs231n/datasets/cifar-10-batches-py'

    # Cleaning up variables to prevent loading data multiple times (which may cause memory issue)
    try:
       del X_train, y_train
       del X_test, y_test
       print('Clear previously loaded data.')
    except:
       pass

    X_train, y_train, X_test, y_test = load_CIFAR10(cifar10_dir)

    # As a sanity check, we print out the size of the training and test data.
    print('Training data shape: ', X_train.shape)
    print('Training labels shape: ', y_train.shape)
    print('Test data shape: ', X_test.shape)
    print('Test labels shape: ', y_test.shape)

    # Visualize some examples from the dataset.
    # We show a few examples of training images from each class.
    classes = ['plane', 'car', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']
    num_classes = len(classes)
    samples_per_class = 7
    for y, cls in enumerate(classes):
    idxs = np.flatnonzero(y_train == y)
    idxs = np.random.choice(idxs, samples_per_class, replace=False)
    for i, idx in enumerate(idxs):
        plt_idx = i * num_classes + y + 1
        plt.subplot(samples_per_class, num_classes, plt_idx)
        plt.imshow(X_train[idx].astype('uint8'))
        plt.axis('off')
        if i == 0:
            plt.title(cls)
    plt.show()

    # Split the data into train, val, and test sets. In addition we willcreate a small development set as a subset of the training data; we can use this for development so our code runs faster.
    num_training = 49000
    num_validation = 1000
    num_test = 1000
    num_dev = 500

    # Our validation set will be num_validation points from the original training set.
    mask = range(num_training, num_training + num_validation)
    X_val = X_train[mask]
    y_val = y_train[mask]

    # Our training set will be the first num_train points from the original training set.
    mask = range(num_training)
    X_train = X_train[mask]
    y_train = y_train[mask]

    # We will also make a development set, which is a small subset of the training set.
    mask = np.random.choice(num_training, num_dev, replace=False)
    X_dev = X_train[mask]
    y_dev = y_train[mask]

    # We use the first num_test points of the original test set as our test set.
    mask = range(num_test)
    X_test = X_test[mask]
    y_test = y_test[mask]

    print 'Train data shape: ', X_train.shape
    print 'Train labels shape: ', y_train.shape
    print 'Validation data shape: ', X_val.shape
    print 'Validation labels shape: ', y_val.shape
    print 'Test data shape: ', X_test.shape
    print 'Test labels shape: ', y_test.shape

    # Preprocessing: reshape the image data into rows
    X_train = np.reshape(X_train, (X_train.shape[0], -1))
    X_val = np.reshape(X_val, (X_val.shape[0], -1))
    X_test = np.reshape(X_test, (X_test.shape[0], -1))
    X_dev = np.reshape(X_dev, (X_dev.shape[0], -1))

    # As a sanity check, print out the shapes of the data
    print 'Training data shape: ', X_train.shape
    print 'Validation data shape: ', X_val.shape
    print 'Test data shape: ', X_test.shape
    print 'dev data shape: ', X_dev.shape

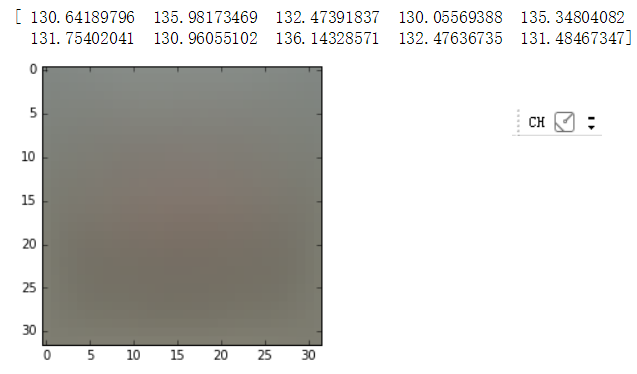

    # Preprocessing: subtract the mean image first: compute the image mean based on the training data
    mean_image = np.mean(X_train, axis=0)
    print mean_image[:10] # print a few of the elements
    plt.figure(figsize=(4,4))
    plt.imshow(mean_image.reshape((32,32,3)).astype('uint8')) # visualize the mean image
    plt.show()

    # second: subtract the mean image from train and test data
    X_train -= mean_image
    X_val -= mean_image
    X_test -= mean_image
    X_dev -= mean_image

    # third: append the bias dimension of ones (i.e. bias trick) so that our SVM only has to worry about optimizing a single weight matrix W.
    X_train = np.hstack([X_train, np.ones((X_train.shape[0], 1))])
    X_val = np.hstack([X_val, np.ones((X_val.shape[0], 1))])
    X_test = np.hstack([X_test, np.ones((X_test.shape[0], 1))])
    X_dev = np.hstack([X_dev, np.ones((X_dev.shape[0], 1))])

    print X_train.shape, X_val.shape, X_test.shape, X_dev.shape

    # Evaluate the naive implementation of the loss we provided for you:
    from cs231n.classifiers.linear_svm import svm_loss_naive
    import time

    # generate a random SVM weight matrix of small numbers
    W = np.random.randn(3073, 10) * 0.0001

    loss, grad = svm_loss_naive(W, X_dev, y_dev, 0.00001)
    print 'loss: %f' % (loss, )

    # Once you've implemented the gradient, recompute it with the code below and gradient check it with the function we provided for you Compute the loss and its gradient at W.
    loss, grad = svm_loss_naive(W, X_dev, y_dev, 0.0)

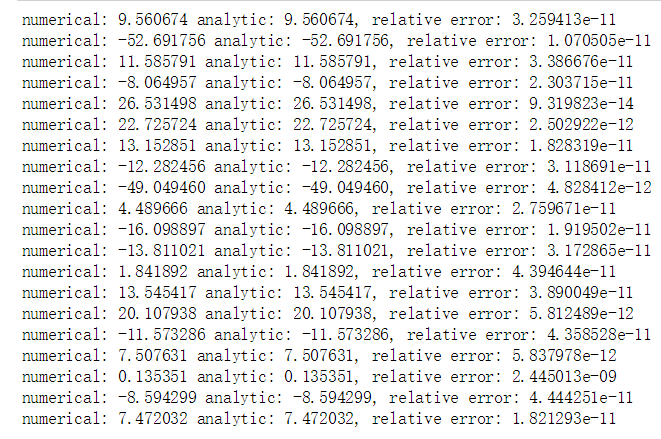

    # Numerically compute the gradient along several randomly chosen dimensions, and compare them with your analytically computed gradient. The numbers should match  almost exactly along all dimensions.
    from cs231n.gradient_check import grad_check_sparse
    f = lambda w: svm_loss_naive(w, X_dev, y_dev, 0.0)[0]
    grad_numerical = grad_check_sparse(f, W, grad)

    # do the gradient check once again with regularization turned on you didn't forget the regularization gradient did you?
    loss, grad = svm_loss_naive(W, X_dev, y_dev, 1e2)
    f = lambda w: svm_loss_naive(w, X_dev, y_dev, 1e2)[0]
    grad_numerical = grad_check_sparse(f, W, grad)

    # In the file linear_classifier.py, implement SGD in the function
    # LinearClassifier.train() and then run it with the code below.
    from cs231n.classifiers import LinearSVM
    svm = LinearSVM()

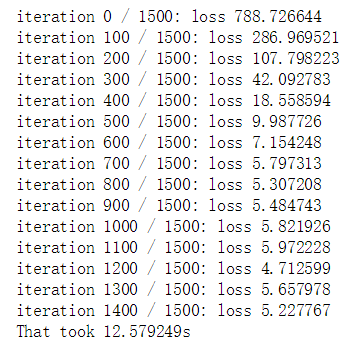

    tic = time.time()
    loss_hist = svm.train(X_train, y_train, learning_rate=1e-7, reg=5e4,
                      num_iters=1500, verbose=True)
    toc = time.time()
    print 'That took %fs' % (toc - tic)

    # A useful debugging strategy is to plot the loss as a function of iteration number:
    plt.plot(loss_hist)
    plt.xlabel('Iteration number')
    plt.ylabel('Loss value')
    plt.show()

    # Use the validation set to tune hyperparameters (regularization strength and learning rate). You should experiment with different ranges for the learning rates and regularization strengths; if you are careful you should be able to get a classification accuracy of about 0.4 on the validation set.
    learning_rates = [1e-7, 5e-6]
    regularization_strengths = [5e4, 1e5]

    # results is dictionary mapping tuples of the form (learning_rate, regularization_strength) to tuples of the form (training_accuracy, validation_accuracy). The accuracy is simply the fraction of data points that are correctly classified.
    results = {}
    best_val = -1   # The highest validation accuracy that we have seen so far.
    best_svm = None # The LinearSVM object that achieved the highest validation rate.

    ################################################################################
    # TODO:                                                                        #
    # Write code that chooses the best hyperparameters by tuning on the validation #
    # set. For each combination of hyperparameters, train a linear SVM on the      #
    # training set, compute its accuracy on the training and validation sets, and  #
    # store these numbers in the results dictionary. In addition, store the best   #
    # validation accuracy in best_val and the LinearSVM object that achieves this  #
    # accuracy in best_svm.                                                        #
    #                                                                              #
    # Hint: You should use a small value for num_iters as you develop your         #
    # validation code so that the SVMs don't take much time to train; once you are #
    # confident that your validation code works, you should rerun the validation   #
    # code with a larger value for num_iters.                                      #
    ################################################################################
    pass
    for lr in learning_rates:
    for rs in regularization_strengths:
        svm = LinearSVM()
        loss_hist = svm.train(X_train, y_train, learning_rate=lr, reg=rs,
                      num_iters=1500, verbose=True)
        y_train_pred = svm.predict(X_train)
        train_acc = np.mean(y_train == y_train_pred)
        y_val_pred = svm.predict(X_val)
        val_acc = np.mean(y_val == y_val_pred)

        results[(lr, rs)] = (train_acc, val_acc)

        if val_acc > best_val:
            best_val = val_acc
            best_svm = svm
    ################################################################################
    #                              END OF YOUR CODE                                #
    ################################################################################

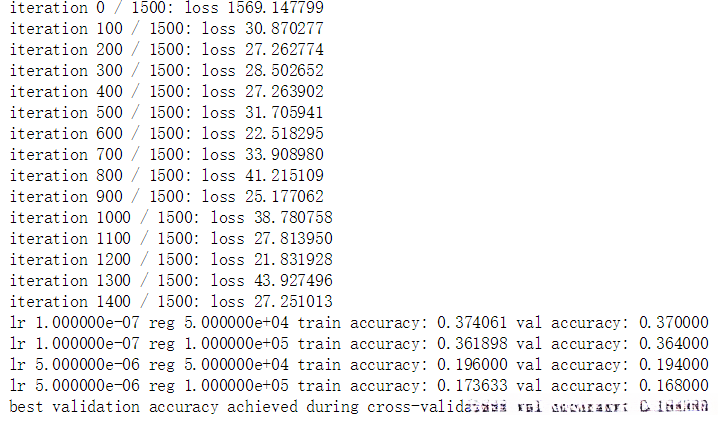

    # Print out results.
    for lr, reg in sorted(results):
    train_accuracy, val_accuracy = results[(lr, reg)]
    print 'lr %e reg %e train accuracy: %f val accuracy: %f' % (
                lr, reg, train_accuracy, val_accuracy)

    print 'best validation accuracy achieved during cross-validation: %f' % best_val

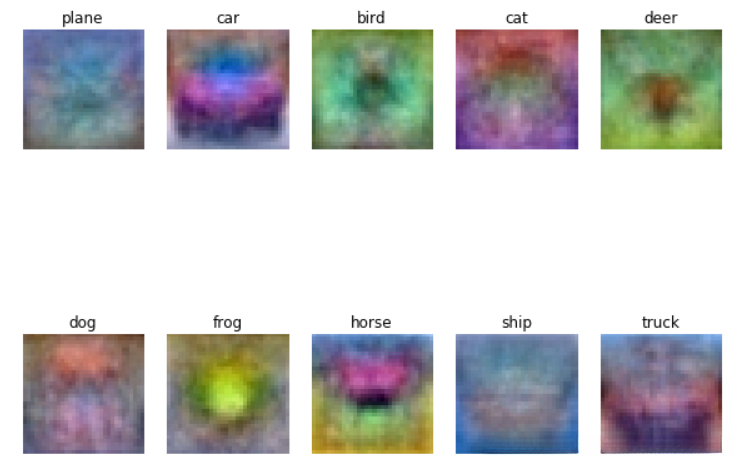

    # Visualize the learned weights for each class.
    # Depending on your choice of learning rate and regularization strength, these may or may not be nice to look at.
    w = best_svm.W[:-1,:] # strip out the bias
    w = w.reshape(32, 32, 3, 10)
    w_min, w_max = np.min(w), np.max(w)
    classes = ['plane', 'car', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']
    for i in xrange(10):
      plt.subplot(2, 5, i + 1)

      # Rescale the weights to be between 0 and 255
      wimg = 255.0 * (w[:, :, :, i].squeeze() - w_min) / (w_max - w_min)
      plt.imshow(wimg.astype('uint8'))
      plt.axis('off')
      plt.title(classes[i])
