MMDetction之配置文件：Faster RCNN resnet50 without FPN
发布时间
阅读量：
阅读量
官方提供的配置文件均遵循FPN架构；鉴于此，若尝试上传不含FPN架构的配置文件，则目前实验结果仍处于测试阶段。
# faster rcnn caffe dc5.py
# model settings
norm_cfg = dict(type='BN', requires_grad=False)
model = dict(
type='FasterRCNN',
data_preprocessor=dict(
type='DetDataPreprocessor',
mean=[103.530, 116.280, 123.675],
std=[1.0, 1.0, 1.0],
bgr_to_rgb=False,
pad_size_divisor=32),
backbone=dict(
type='ResNet',
depth=50,
num_stages=4,
strides=(1, 2, 2, 1),
dilations=(1, 1, 1, 2),
out_indices=(3, ),
frozen_stages=1,
norm_cfg=norm_cfg,
norm_eval=True,
style='caffe',
init_cfg=dict(
type='Pretrained',
checkpoint='open-mmlab://detectron2/resnet50_caffe')),
rpn_head=dict(
type='RPNHead',
in_channels=2048,
feat_channels=2048,
anchor_generator=dict(
type='AnchorGenerator',
scales=[2, 4, 8, 16, 32],
ratios=[0.5, 1.0, 2.0],
strides=[16]),
bbox_coder=dict(
type='DeltaXYWHBBoxCoder',
target_means=[.0, .0, .0, .0],
target_stds=[1.0, 1.0, 1.0, 1.0]),
loss_cls=dict(
type='CrossEntropyLoss', use_sigmoid=True, loss_weight=1.0),
loss_bbox=dict(type='L1Loss', loss_weight=1.0)),
roi_head=dict(
type='StandardRoIHead',
bbox_roi_extractor=dict(
type='SingleRoIExtractor',
roi_layer=dict(type='RoIAlign', output_size=7, sampling_ratio=0),
out_channels=2048,
featmap_strides=[16]),
bbox_head=dict(
type='Shared2FCBBoxHead',
in_channels=2048,
fc_out_channels=1024,
roi_feat_size=7,
num_classes=80,
bbox_coder=dict(
type='DeltaXYWHBBoxCoder',
target_means=[0., 0., 0., 0.],
target_stds=[0.1, 0.1, 0.2, 0.2]),
reg_class_agnostic=False,
loss_cls=dict(
type='CrossEntropyLoss', use_sigmoid=False, loss_weight=1.0),
loss_bbox=dict(type='L1Loss', loss_weight=1.0))),
# model training and testing settings
train_cfg=dict(
rpn=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.7,
neg_iou_thr=0.3,
min_pos_iou=0.3,
match_low_quality=True,
ignore_iof_thr=-1),
sampler=dict(
type='RandomSampler',
num=256,
pos_fraction=0.5,
neg_pos_ub=-1,
add_gt_as_proposals=False),
allowed_border=0,
pos_weight=-1,
debug=False),
rpn_proposal=dict(
nms_pre=12000,
max_per_img=2000,
nms=dict(type='nms', iou_threshold=0.7),
min_bbox_size=0),
rcnn=dict(
assigner=dict(
type='MaxIoUAssigner',
pos_iou_thr=0.5,
neg_iou_thr=0.5,
min_pos_iou=0.5,
match_low_quality=False,
ignore_iof_thr=-1),
sampler=dict(
type='RandomSampler',
num=512,
pos_fraction=0.25,
neg_pos_ub=-1,
add_gt_as_proposals=True),
pos_weight=-1,
debug=False)),
test_cfg=dict(
rpn=dict(
nms=dict(type='nms', iou_threshold=0.7),
nms_pre=6000,
max_per_img=1000,
min_bbox_size=0),
rcnn=dict(
score_thr=0.05,
nms=dict(type='nms', iou_threshold=0.5),

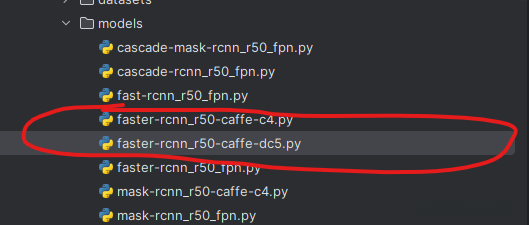

max_per_img=100)))这两个是不带fpn，找了半天。
