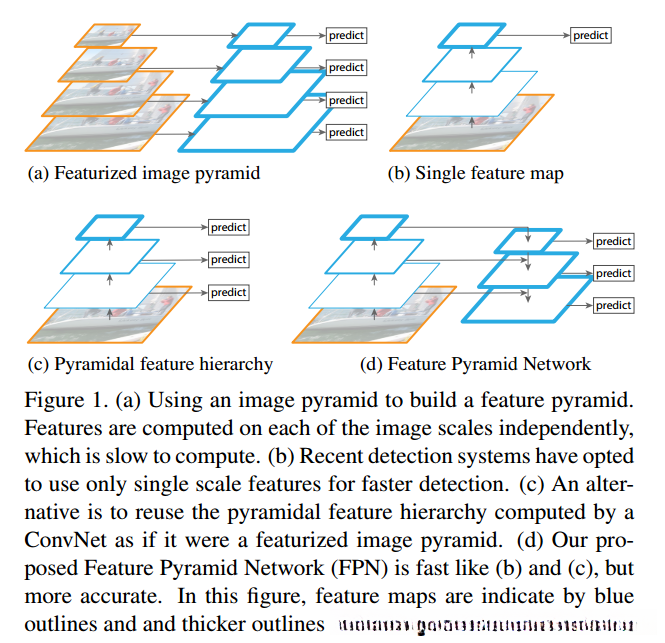

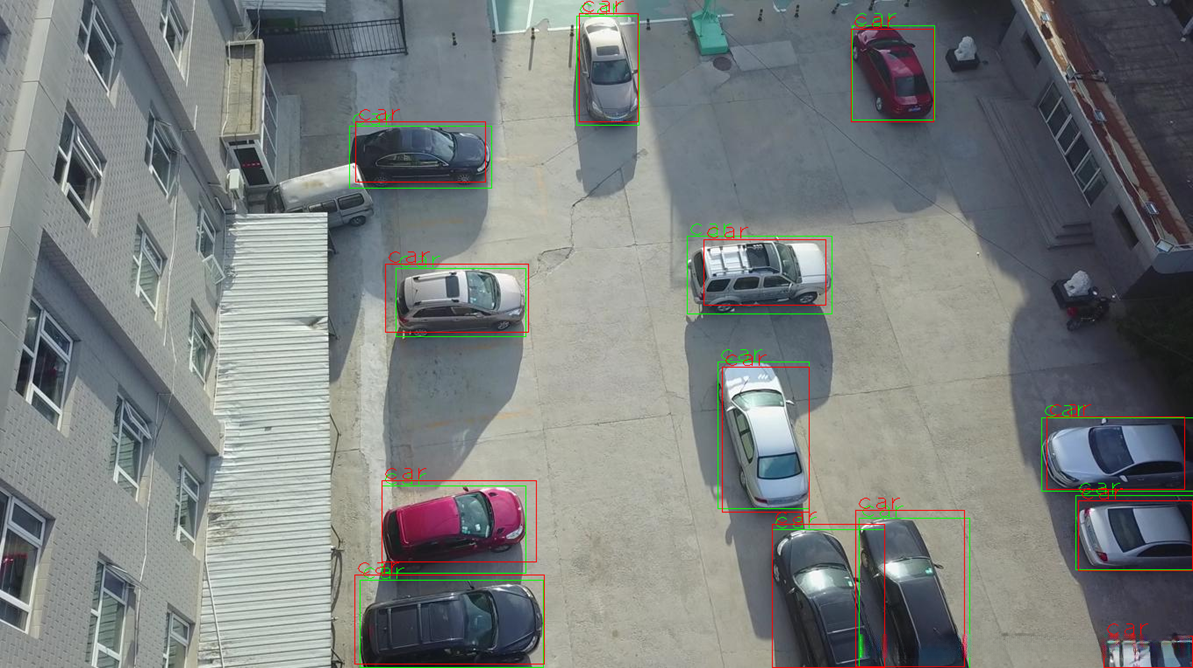

【FPN车辆目标检测】深入解读FPN及Windows7+TensorFlow+Faster-RCNN+FPN代码环境配置和运行过程

 # -*- coding: utf-8 -*-


 from __future__ import division, print_function, absolute_import

 import sys

 sys.path.append('../../')

 import xml.etree.cElementTree as ET

 import numpy as np

 import tensorflow as tf

 import glob

 import cv2

 from help_utils.tools import *

 from libs.label_name_dict.label_dict import *

 import os

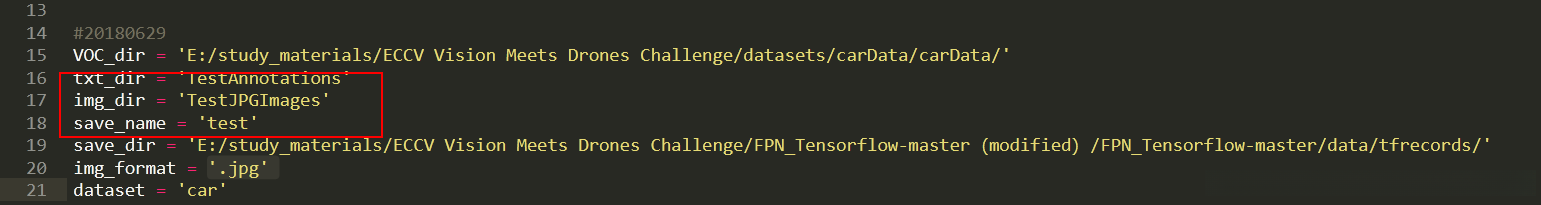

 VOC_dir = 'E:/study_materials/ECCV Vision Meets Drones Challenge/datasets/carData/carData/'

 txt_dir = 'TrainAnnotations'

 img_dir = 'TrainJPGImages'

 save_name = 'train'

 save_dir = 'E:/study_materials/ECCV Vision Meets Drones Challenge/FPN_Tensorflow-master（modified）/FPN_Tensorflow-master/data/tfrecords/'

 img_format = '.jpg'

 dataset = 'car'



 #FLAGS = tf.app.FLAGS





 def _int64_feature(value):

     return tf.train.Feature(int64_list=tf.train.Int64List(value=[value]))





 def _bytes_feature(value):

     return tf.train.Feature(bytes_list=tf.train.BytesList(value=[value]))





 def convert_pascal_to_tfrecord():



     save_path = save_dir + dataset + '_' + save_name + '.tfrecord'

     mkdir(save_dir)



     label_dir = VOC_dir + txt_dir

     image_dir = VOC_dir + img_dir



     writer = tf.python_io.TFRecordWriter(path=save_path)



     for count, fn in enumerate(os.listdir(image_dir)):

     if ((count+1)%2) != 0:

         continue

     else:

         #print(count+1)

         image_fp = os.path.join(image_dir, fn)

         image_fp = image_fp.replace('\ ', '/')

         label_fp = os.path.join(label_dir, fn.replace('.jpg', '.txt'))

         # print('label_fp:',label_fp)



         img_name = str.encode(fn)



         if not os.path.exists(label_fp):

             print('{} is not exist!'.format(label_fp))

             continue



         # img = np.array(Image.open(img_path))

         img = cv2.imread(image_fp)

         sizeImg = img.shape

         img_height = sizeImg[0]

         img_width = sizeImg[1]



         boxes = []

         with open(label_fp,'r') as f:

             for line in f.readlines():

                 line = line.strip().split(',')

                 # print('line:',line)

                 if line[4] != '0':

                     # print(line)

                     try:

                         line = [int(i) for i in line]

                     except:

                         line.pop()

                         line = [round(float(i)) for i in line]

                         # print('line',line)

                         #xmin, ymin, xmax, ymax, label

                         #原始标注，xmin,ymin,box_width,box_height,score,category,truncation,occlusion

                     if line[4] == 1 and line[5] == 4:

                         boxes.append([line[0],line[1],line[0]+line[2],line[1]+line[3],1])



         gtbox_label = np.array(boxes, dtype=np.int32)  # [x1, y1. x2, y2, label]

         xmin, ymin, xmax, ymax, label = gtbox_label[:, 0], gtbox_label[:, 1], gtbox_label[:, 2], gtbox_label[:, 3], gtbox_label[:, 4]

         gtbox_label = np.transpose(np.stack([ymin, xmin, ymax, xmax, label], axis=0))  # [ymin, xmin, ymax, xmax, label]



         feature = tf.train.Features(feature={

             # maybe do not need encode() in linux

             'img_name': _bytes_feature(img_name),

             'img_height': _int64_feature(img_height),

             'img_width': _int64_feature(img_width),

             'img': _bytes_feature(img.tostring()),

             'gtboxes_and_label': _bytes_feature(gtbox_label.tostring()),

             'num_objects': _int64_feature(gtbox_label.shape[0])

         })



         example = tf.train.Example(features=feature)



         writer.write(example.SerializeToString())

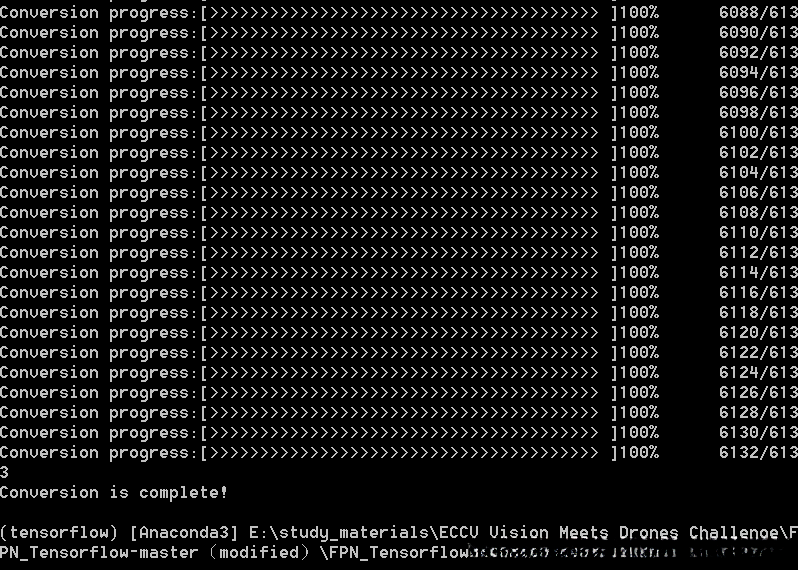

     view_bar('Conversion progress', count + 1, len(glob.glob(image_dir + '/*.jpg')))



     print('\nConversion is complete!')



 if __name__ == '__main__':

     # xml_path = '../data/dataset/VOCdevkit/VOC2007/Annotations/000005.xml'

     # read_xml_gtbox_and_label(xml_path)



     convert_pascal_to_tfrecord()
