什么是图神经网络？

 import torch


 import torch.nn as nn

 import torch.optim as optim

 import torch.nn.functional as F

 import networkx as nx

 import numpy as np

 import matplotlib.pyplot as plt



 # 生成一个小的图数据集

 def create_graph():

     # 加载 Karate Club 图数据集，这是一个社交网络图，包含 34 个节点和 78 条边。

     G = nx.karate_club_graph()

     features = np.eye(G.number_of_nodes())

     # 为每个节点生成标签（0 或 1），表示节点属于哪个社区（Mr. Hi 或 Officer）。

     labels = np.array([G.nodes[i]['club'] == 'Mr. Hi' for i in range(G.number_of_nodes())], dtype=int)

     return G, features, labels



 # 定义原始GNN模型

 class GNN(nn.Module):

     def __init__(self, input_dim, hidden_dim, output_dim):

     super(GNN, self).__init__()

     self.fc1 = nn.Linear(input_dim, hidden_dim)

     self.fc2 = nn.Linear(hidden_dim, output_dim)



     def forward(self, x, adj):

     h = F.relu(self.fc1(x))

     # 使用邻接矩阵 adj 聚合邻居节点的信息。

     h = torch.matmul(adj, h)

     h = self.fc2(h)

     return F.log_softmax(h, dim=1)



 # 训练和测试函数

 def train(model, optimizer, features, labels, adj, train_mask, epochs=10):

     model.train()

     for epoch in range(epochs):

     optimizer.zero_grad()

     output = model(features, adj)

     # 计算负对数似然损失

     loss = F.nll_loss(output[train_mask], labels[train_mask])

     loss.backward()

     optimizer.step()

     print(f'Epoch: {epoch + 1}, Loss: {loss.item():.4f}')



 def test(model, features, labels, adj, mask):

     model.eval()

     with torch.no_grad():

     output = model(features, adj)

     pred = output[mask].max(1)[1]

     acc = pred.eq(labels[mask]).sum().item() / mask.sum().item()

     return acc



 # 主函数

 # 创建图数据集

 G, features, labels = create_graph()

 adj = nx.adjacency_matrix(G).todense()

 adj = torch.FloatTensor(adj)

 features = torch.FloatTensor(features)

 labels = torch.LongTensor(labels)



 # 训练和测试掩码，前 30 个节点用于训练

 train_mask = torch.BoolTensor([True if i < 30 else False for i in range(len(labels))])

 test_mask = ~train_mask



 # 初始化模型和优化器

 model = GNN(input_dim=features.shape[1], hidden_dim=16, output_dim=2)

 optimizer = optim.Adam(model.parameters(), lr=0.01, weight_decay=5e-4)



 # 训练模型

 train(model, optimizer, features, labels, adj, train_mask)



 # 测试模型

 train_acc = test(model, features, labels, adj, train_mask)

 test_acc = test(model, features, labels, adj, test_mask)

 print(f'Train Accuracy: {train_acc:.4f}, Test Accuracy: {test_acc:.4f}')

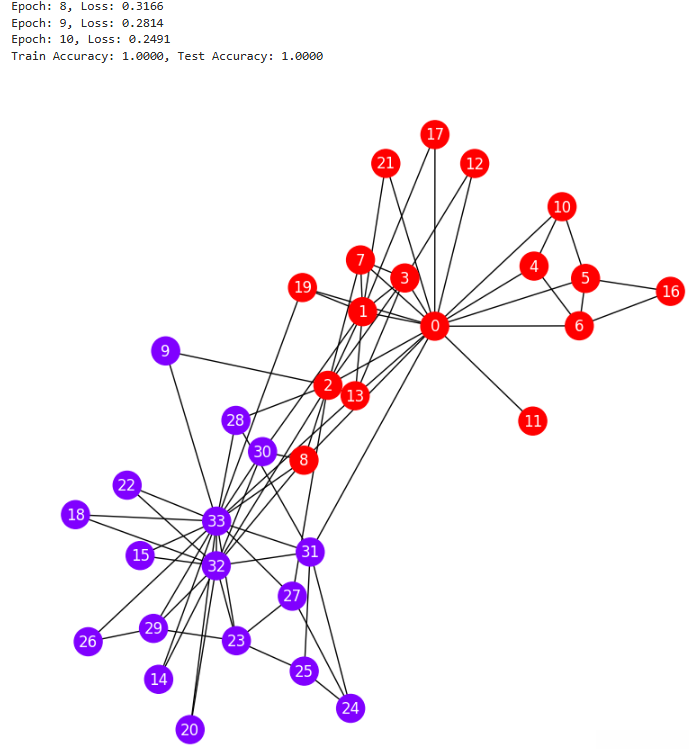

 # 可视化结果

 def plot_graph(G, labels, pred=None):

     pos = nx.spring_layout(G)

     plt.figure(figsize=(8, 8))

     nx.draw(G, pos, with_labels=True, node_color=labels, cmap=plt.cm.rainbow, node_size=500, font_color='white')

     if pred is not None:

     nx.draw_networkx_nodes(G, pos, node_color=pred, cmap=plt.cm.rainbow, node_size=200, alpha=0.5)

     plt.show()



 plot_graph(G, labels.numpy(), pred=model(features, adj).max(1)[1].numpy())
