Actor-Critic
发布时间
阅读量：
阅读量
文章目录
-
- 算法思想
- 算法实现
- 参考文章
算法思想
Actor-Critic是一种基于策略和价值的强化学习算法，原来 Actor-Critic 的 Actor 的前生是 Policy Gradients ，这能让它毫不费力地在连续动作中选取合适的动作,，而 Q-learning 做这件事会瘫痪。原来 Actor Critic 中的 Critic 的前生是 Q-learning 或者其他的以值(value)为基础的学习法 , 能进行单步更新，而传统的 Policy Gradients 则是回合更新，这降低了学习效率。

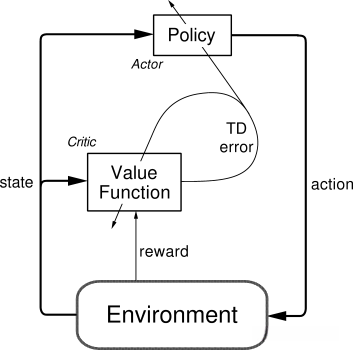

Actor 和 Critic 他们都能用不同的神经网络来代替。其中Actor基于策略函数，负责生成动作（Action）并和环境交互，Critic基于价值函数，负责评估Actor的表现，Critic通过学习环境和奖励之间的关系, 能看到现在所处状态的潜在奖励, 所以用它来指点 Actor 便能使 Actor 每一步都在更新, 如果使用单纯的 Policy Gradients，Actor 只能等到回合结束才能开始更新。即在Actor-Critic算法中，我们要做两组近似，一组是策略函数的近似，另一组是价值函数的近似。
总的来说，就是Critic通过Q网络计算状态的最优价值v_t, 而Actor利用v_t这个最优价值迭代更新策略函数的参数\theta，进而选择动作，并得到反馈和新的状态，Critic使用反馈和新的状态更新Q网络参数w, 在后面Critic会使用新的网络参数w来帮Actor计算状态的最优价值v_t。
缺点 ：
Actor-Critic 涉及到了两个神经网络，而且每次都是在连续状态中更新参数，每次参数更新前后都存在相关性，导致神经网络只能片面的看待问题，甚至导致神经网络学不到东西。
算法实现
- Actor 网络
class Actor():
def __init__(self, env):
# init some parameters
self.state_dim = env.observation_space.shape[0] # observation特征数量
self.action_dim = env.action_space.n # action特征数量
self.model = tf.keras.Sequential([
tf.keras.layers.Dense(128, activation='relu', use_bias=True),
tf.keras.layers.Dense(self.action_dim, use_bias=True)
])
actor_optimizer = tf.keras.optimizers.Adam(1e-3)
self.model.compile(
loss='categorical_crossentropy',
optimizer=actor_optimizer
)
# 选择动作
def choose_action(self, observation):
prob_weights = self.model.predict(observation[np.newaxis, :])
prob_weights = tf.nn.softmax(prob_weights)
action = np.random.choice(range(prob_weights.shape[1]), p=prob_weights.numpy().ravel())
return action
# 学习
def learn(self, state, action, td_error):
s = state[np.newaxis, :]
one_hot_action = np.zeros(self.action_dim)
one_hot_action[action] = 1
a = one_hot_action[np.newaxis, :]
self.model.fit(s, td_error * a, verbose=0)
def saveModel(self):
path = os.path.join('model', '_'.join([File, ALG_NAME, ENV_NAME]))
if not os.path.exists(path):
os.makedirs(path)
self.model.save_weights(os.path.join(path, 'actor.tf'), save_format='tf')
print('Saved weights.')
def loadModel(self):
path = os.path.join('model', '_'.join([File, ALG_NAME, ENV_NAME]))
if os.path.exists(path):
self.model.load_weights(os.path.join(path, 'actor.tf'))
print('Load weights!')
else:
print("No model file find, please train model first...")
python
- Critic 网络
class Critic():
def __init__(self, env):
self.state_dim = env.observation_space.shape[0] # observation特征数量
self.action_dim = env.action_space.n # action特征数量
self.model = tf.keras.Sequential([
tf.keras.layers.Dense(128, activation='relu', use_bias=True),
tf.keras.layers.Dense(1, use_bias=True)
])
critic_optimizer = tf.keras.optimizers.Adam(1e-3)
self.model.compile(loss='mse', optimizer=critic_optimizer)
def train_Q_network(self, state, reward, next_state, done):
s, s_ = state[np.newaxis, :], next_state[np.newaxis, :]
V = self.model(s)
V_ = self.model(s_)
td_error = reward + GAMMA * V_ - V
value_target = reward if done else reward + GAMMA * np.array(self.model(s_))[0][0]
value_target = [[value_target]]
self.model.fit(s, np.array(value_target), verbose=0)
return td_error
def saveModel(self):
path = os.path.join('model', '_'.join([File, ALG_NAME, ENV_NAME]))
if not os.path.exists(path):
os.makedirs(path)
self.model.save_weights(os.path.join(path, 'critic.tf'), save_format='tf')
print('Saved weights.')
def loadModel(self):
path = os.path.join('model', '_'.join([File, ALG_NAME, ENV_NAME]))
if os.path.exists(path):
self.model.load_weights(os.path.join(path, 'critic.tf'))
print('Load weights!')
else:
print("No model file find, please train model first...")
python
- main
# Hyper Parameters
GAMMA = 0.95 # discount factor
LEARNING_RATE = 0.01 # learning rate
File = 'ActorCritic-1.1'
ALG_NAME = 'AC'
ENV_NAME = 'CartPole-v0'
def main():
EPISODE = 200 # Episode limitation
STEP = 1000 # Step limitation in an episode
env = gym.make(ENV_NAME)
actor = Actor(env)
critic = Critic(env)
all_rewards = []
for episode in range(EPISODE):
# initialize task
state = env.reset()
total_reward = 0
# Train
for step in range(STEP):
action = actor.choose_action(state) # e-greedy action for train
next_state, reward, done, _ = env.step(action)
td_error = critic.train_Q_network(state, reward, next_state,
done) # gradient = grad[r + gamma * V(s_) - V(s)]
actor.learn(state, action, td_error) # true_gradient = grad[logPi(s,a) * td_error]
total_reward += reward
state = next_state
if done:
all_rewards.append(total_reward)
break
print("total_reward---------------", total_reward)
plt.plot(all_rewards)
plt.show()
actor.saveModel()
critic.saveModel()
python
参考文章
https://www.cnblogs.com/pinard/p/10272023.html
https://mofanpy.com/tutorials/machine-learning/reinforcement-learning/intro-AC/
