Actor Critic(直译为演员评判家算法，易理解)：
融合两个网络：Actor（演员网络）与Critic（评判家网络），其中Actor基于概率分布生成动作行为序列,Critic则通过评估Actor的行为表现来打分,最终Actor会根据Critic的评价结果不断优化自己的表现概率

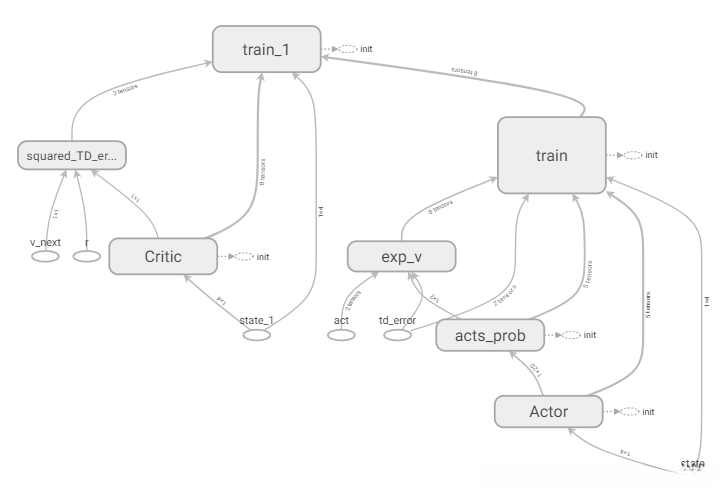

钟摆游戏的动作是一个连续值：

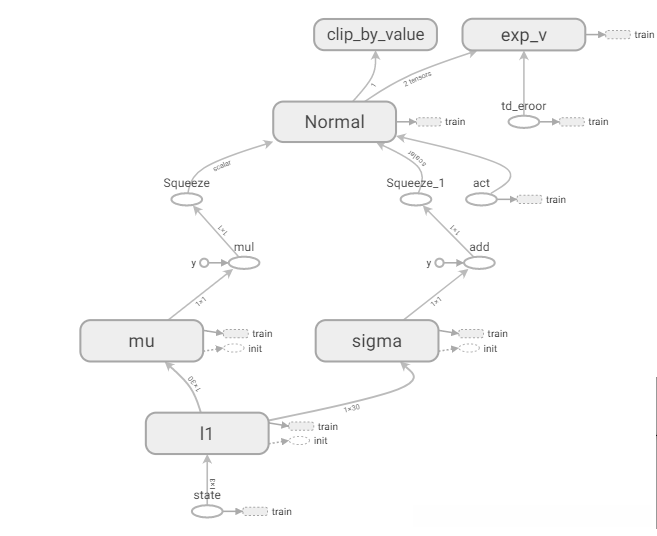

演员网络：

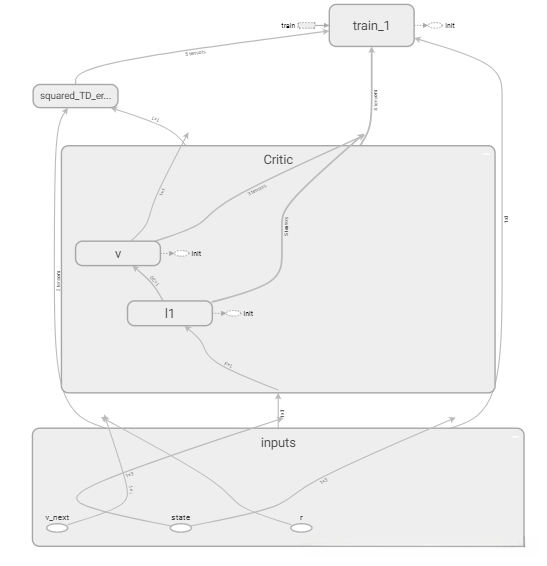

评判家网络：
import tensorflow as tf
import numpy as np
import gym
np.random.seed(2)
tf.set_random_seed(2)
class Actor(object):
def __init__(self,sess,n_features,action_bound,lr=0.0001):
self.sess =sess
self.s = tf.placeholder(tf.float32,[1,n_features],"state")
self.a =tf.placeholder(tf.float32,None,name ="act")
self.td_error =tf.placeholder(tf.float32,None,name="td_eroor")
'''
action：从当前状态s,通过演员动作网络，预测正太分布的u值，
从当前状态s,通过演员动作网络，预测正太分布的sigma值，
通过u、sigma抽样1个样本 构建action
根据Mu和sigma求出一个正太分布，这个是随机的正态分布
'''
l1 = tf.layers.dense(
inputs =self.s,
units =30,
activation = tf.nn.relu,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer =tf.constant_initializer(0.1),
name ='l1'
)
mu =tf.layers.dense(
inputs=l1,
units= 1,
activation=tf.nn.tanh,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer=tf.constant_initializer(0.1),
name ='mu'
)
sigma =tf.layers.dense(
inputs=l1,
units=1,
activation=tf.nn.softplus,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer = tf.constant_initializer(1.),
name ='sigma'
)
global_step =tf.Variable(0,trainable=False)
self.mu,self.sigma =tf.squeeze(mu*2),tf.squeeze(sigma+0.1)
self.normal_dist =tf.distributions.Normal(self.mu,self.sigma)
self.action = tf.clip_by_value(self.normal_dist.sample(1),action_bound[0],action_bound[1])
'''
用随机分布逼近选择动作action的正太分布。
最大化正太分布的概率的log， 改变mu,sigma得出一条中心点更加在a的正太分布。
动作Action不一定正确，要乘以v的误差值
加上策略的熵增加探索空间，避免过早进入局部最优
X ~ Normal(loc=0, scale=1)
`loc = mu` is the mean, `scale = sigma` is the std.
58. def _entropy(self):
scale = self.scale * array_ops.ones_like(self.loc)
return 0.5 * math.log(2. * math.pi * math.e) + math_ops.log(scale)
'''
with tf.name_scope('exp_v'):
log_prob =self.normal_dist.log_prob(self.a)
self.exp_v =log_prob*self.td_error
self.exp_v+=0.01*self.normal_dist.entropy()
with tf.name_scope('train'):
self.train_op =tf.train.AdamOptimizer(lr).minimize(-self.exp_v,global_step)
def learn(self,s,a,td):
s=s[np.newaxis,:]
feed_dict ={self.s:s,self.a:a,self.td_error:td}
_,exp_v =self.sess.run([self.train_op,self.exp_v],feed_dict)
return exp_v
def choose_action(self,s):
s=s[np.newaxis,:]
return self.sess.run(self.action,{self.s:s})
class Critic(object):
def __init__(self,sess,n_features,lr=0.01):
self.sess =sess
with tf.name_scope('inputs'):
self.s=tf.placeholder(tf.float32,[1,n_features],"state")
self.v_=tf.placeholder(tf.float32,[1,1],name="v_next")
self.r =tf.placeholder(tf.float32,name ="r")
with tf.variable_scope('Critic'):
l1 =tf.layers.dense(
inputs =self.s,
units =30,
activation=tf.nn.relu,
kernel_initializer= tf.random_normal_initializer(0.,.1),
bias_initializer = tf.constant_initializer(0.1),
name ='l1'
)
self.v = tf.layers.dense(
inputs =l1,
units =1,
activation=None,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer=tf.constant_initializer(0.1),
name ='v'
)
with tf.variable_scope('squared_TD_error'):
# v: 当前状态s, 通过评论家网络，预测v。
# v_: 下一个状态s_, 通过评论家网络，预测v_
self.td_error =tf.reduce_mean(self.r+ GAMMA*self.v_ -self.v )
self.loss =tf.square(self.td_error)
with tf.variable_scope('train'):
self.train_op = tf.train.AdamOptimizer(lr).minimize(self.loss)
def learn(self,s,r,s_):
s,s_=s[np.newaxis,:],s_[np.newaxis,:]
v_ =self.sess.run(self.v,{self.s:s_})
td_error,_=self.sess.run([self.td_error,self.train_op],
{self.s:s,self.v_:v_,self.r:r})
return td_error
OUTPUT_GRAPH =True
MAX_EPISODE =1000
MAX_EP_STEPS =200
DISPLAY_REWARD_THRESHOLD =-100
RENDER =False
GAMMA =0.9
LR_A=0.001
LR_C =0.01
env =gym.make('Pendulum-v0')
env.seed(1)
env.unwrapped
N_S =env.observation_space.shape[0]
A_BOUND =env.action_space.high
sess =tf.Session()
actor =Actor(sess,n_features=N_S,lr =LR_A,action_bound=[-A_BOUND,A_BOUND])
critic =Critic(sess,n_features=N_S,lr=LR_C)
sess.run(tf.global_variables_initializer())
if OUTPUT_GRAPH:
tf.summary.FileWriter("logs/",sess.graph)
for i_episode in range(MAX_EPISODE):
s =env.reset()
t=0
ep_rs =[]
while True:
env.reset()
a=actor.choose_action(s)
s_,r,done,info =env.step(a)
r/=10
#gradient = grad[r+gamma * v(s_) -v(s)]
td_error =critic.learn(s,r,s_)
#true_gradient =grad[logpi(s,a)*td_error]
actor.learn(s,a,td_error)
s=s_
t+=1
ep_rs.append(r)
if t> MAX_EP_STEPS:
ep_rs_sum=sum(ep_rs)
if 'running_reward' not in globals():
running_reward =ep_rs_sum
else:
running_reward =running_reward*0.9+ep_rs_sum*0.1
if running_reward > DISPLAY_REWARD_THRESHOLD:RENDER=True
print("episode:",i_episode," reward:",int(running_reward))
break
代码解读小车立杆游戏的动作是一个离散值：
import numpy as np
import tensorflow as tf
import gym
np.random.seed(2)
tf.set_random_seed(2)
OUTPUT_GRAPH =True
MAX_EPISODE =3000
DISPLAY_REWARD_THESHOLD =200
MAX_EP_STEPS =1000
RENDER =True
GAMMA =0.9
LR_A=0.001
LR_C=0.01
env =gym.make("CartPole-v0")
env.seed(1)
env =env.unwrapped
N_F=env.observation_space.shape[0]
N_A=env.action_space.n
class Actor(object):
def __init__(self,sess,n_features,n_actions,lr=0.001):
self.sess =sess
self.s=tf.placeholder(tf.float32,[1,n_features],"state")
self.a=tf.placeholder(tf.int32,None,"act")
self.td_error= tf.placeholder(tf.float32,None,"td_error")
with tf.variable_scope('Actor'):
l1= tf.layers.dense(
inputs=self.s,
units =20,
activation=tf.nn.relu,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer=tf.constant_initializer(0.1),
name='l1'
)
self.acts_prob =tf.layers.dense(
inputs =l1,
units=n_actions,
activation=tf.nn.softmax,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer=tf.constant_initializer(0.1),
name ='acts_prob'
)
with tf.variable_scope('exp_v'):
log_prob= tf.log(self.acts_prob[0,self.a])
self.exp_v =tf.reduce_mean(log_prob*self.td_error)
#minimize(-exp_v)=maxmize(exp_v)
with tf.variable_scope('train'):
self.train_optimizer=tf.train.AdamOptimizer(lr).minimize(-self.exp_v)
def learn(self,s,a,td):
s=s[np.newaxis,:]
feed_dict={self.s:s,self.a:a,self.td_error:td}
_,exp_v =self.sess.run([self.train_optimizer,self.exp_v],feed_dict)
return exp_v
def choose_action(self,s):
s=s[np.newaxis,:]
probs=self.sess.run(self.acts_prob,{self.s:s})
return np.random.choice(np.arange(probs.shape[1]), p=probs.ravel())
class Crtic(object):
def __init__(self,sess,n_features,lr=0.01):
self.sess= sess
self.s =tf.placeholder(tf.float32,[1,n_features],"state")
self.v_ =tf.placeholder(tf.float32,[1,1],"v_next")
self.r =tf.placeholder(tf.float32,None,'r')
with tf.variable_scope('Critic'):
l1 =tf.layers.dense(
inputs =self.s,
units =20,
activation=tf.nn.relu,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer=tf.constant_initializer(0.1),
name ='l1'
)
self.v =tf.layers.dense(
inputs =l1,
units =1,
activation=None,
kernel_initializer=tf.random_normal_initializer(0.,.1),
bias_initializer=tf.constant_initializer(0.1),
name='v'
)
with tf.variable_scope('squared_TD_error'):
self.td_error =self.r +GAMMA*self.v_ - self.v
self.loss =tf.square(self.td_error)
with tf.variable_scope('train'):
self.train_op =tf.train.AdamOptimizer(lr).minimize(self.loss)
def learn(self,s,r,s_):
s,s_ =s[np.newaxis,:],s_[np.newaxis,:]
v_ =self.sess.run(self.v,{self.s:s_ })
td_error,_=self.sess.run([self.td_error,self.train_op],
{self.s:s,self.v_ :v_,self.r:r})
return td_error
sess =tf.Session()
actor = Actor(sess,n_features=N_F,n_actions=N_A,lr=LR_A)
critic=Crtic(sess,n_features=N_F,lr=LR_C)
sess.run(tf.global_variables_initializer())
if OUTPUT_GRAPH:
tf.summary.FileWriter("logs/",sess.graph)
for i_episode in range(MAX_EP_STEPS):
s =env.reset()
t=0
track_r =[]
while True:
if RENDER:env.render()
a=actor.choose_action(s)
s_,r,done,info =env.step(a)
if done :r=-20
track_r.append(r)
#gradient =grad[r+gamma*V(s_)-V(s)]
td_error =critic.learn(s,r,s_)
#true_gradient =grad[logPi(s,a)*td_error]
actor.learn(s,a,td_error)
s=s_
t+=1
if done or t>=MAX_EP_STEPS:
ep_rs_sum =sum(track_r)
if 'running_reward' not in globals():
running_reward =ep_rs_sum
else:
running_reward=running_reward*0.95+ep_rs_sum*0.05
if running_reward >DISPLAY_REWARD_THESHOLD:RENDER=True
print("episode: ",i_episode," reward: ",int(running_reward))
break
