目标追踪_【MOT】详解DeepSORT多目标追踪模型

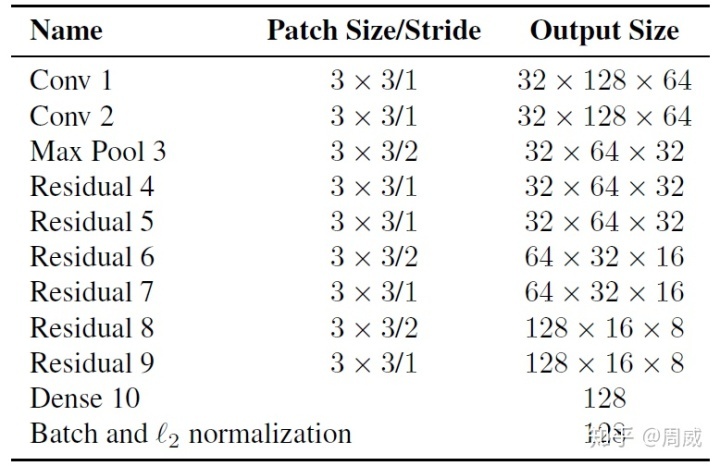

 class Net(nn.Module):


     def __init__(self, num_classes=751 ,reid=False):

     super(Net,self).__init__()

     # 3 128 64

     self.conv = nn.Sequential(

         nn.Conv2d(3,64,3,stride=1,padding=1),

         nn.BatchNorm2d(64),

         nn.ReLU(inplace=True),

         # nn.Conv2d(32,32,3,stride=1,padding=1),

         # nn.BatchNorm2d(32),

         # nn.ReLU(inplace=True),

         nn.MaxPool2d(3,2,padding=1),

     )

     # 32 64 32

     self.layer1 = make_layers(64,64,2,False)

     # 32 64 32

     self.layer2 = make_layers(64,128,2,True)

     # 64 32 16

     self.layer3 = make_layers(128,256,2,True)

     # 128 16 8

     self.layer4 = make_layers(256,512,2,True)

     # 256 8 4

     self.avgpool = nn.AvgPool2d((8,4),1)

     # 256 1 1

     self.reid = reid

     self.classifier = nn.Sequential(

         nn.Linear(512, 256),

         nn.BatchNorm1d(256),

         nn.ReLU(inplace=True),

         nn.Dropout(),

         nn.Linear(256, num_classes),

     )



     def forward(self, x):

     x = self.conv(x)

     x = self.layer1(x)

     x = self.layer2(x)

     x = self.layer3(x)

     x = self.layer4(x)

     x = self.avgpool(x)

     x = x.view(x.size(0),-1)

     # B x 128

     if self.reid:

         x = x.div(x.norm(p=2,dim=1,keepdim=True))

         return x

     # classifier

     x = self.classifier(x)

     return x

     def gating_distance(self, mean, covariance, measurements,


                     only_position=False):

     """Compute gating distance between state distribution and measurements.

   5.         A suitable distance threshold can be obtained from `chi2inv95`. If

     `only_position` is False, the chi-square distribution has 4 degrees of

     freedom, otherwise 2.

   9.         Parameters

     ----------

     mean : ndarray

         Mean vector over the state distribution (8 dimensional).

     covariance : ndarray

         Covariance of the state distribution (8x8 dimensional).

     measurements : ndarray

         An Nx4 dimensional matrix of N measurements, each in

         format (x, y, a, h) where (x, y) is the bounding box center

         position, a the aspect ratio, and h the height.

     only_position : Optional[bool]

         If True, distance computation is done with respect to the bounding

         box center position only.

   23.         Returns

     -------

     ndarray

         Returns an array of length N, where the i-th element contains the

         squared Mahalanobis distance between (mean, covariance) and

         `measurements[i]`.

   30.         """

     mean, covariance = self.project(mean, covariance)

     if only_position:

         mean, covariance = mean[:2], covariance[:2, :2]

         measurements = measurements[:, :2]



     cholesky_factor = np.linalg.cholesky(covariance)

     d = measurements - mean

     z = scipy.linalg.solve_triangular(

         cholesky_factor, d.T, lower=True, check_finite=False,

         overwrite_b=True)

     squared_maha = np.sum(z * z, axis=0)

     return squared_maha

 def min_cost_matching(


     distance_metric, max_distance, tracks, detections, track_indices=None,

     detection_indices=None):

     """Solve linear assignment problem.

   6.     Parameters

     ----------

     distance_metric : Callable[List[Track], List[Detection], List[int], List[int]) -> ndarray

     The distance metric is given a list of tracks and detections as well as

     a list of N track indices and M detection indices. The metric should

     return the NxM dimensional cost matrix, where element (i, j) is the

     association cost between the i-th track in the given track indices and

     the j-th detection in the given detection_indices.

     max_distance : float

     Gating threshold. Associations with cost larger than this value are

     disregarded.

     tracks : List[track.Track]

     A list of predicted tracks at the current time step.

     detections : List[detection.Detection]

     A list of detections at the current time step.

     track_indices : List[int]

     List of track indices that maps rows in `cost_matrix` to tracks in

     `tracks` (see description above).

     detection_indices : List[int]

     List of detection indices that maps columns in `cost_matrix` to

     detections in `detections` (see description above).

   28.     Returns

     -------

     (List[(int, int)], List[int], List[int])

     Returns a tuple with the following three entries:

     * A list of matched track and detection indices.

     * A list of unmatched track indices.

     * A list of unmatched detection indices.

   36.     """

     if track_indices is None:

     track_indices = np.arange(len(tracks))

     if detection_indices is None:

     detection_indices = np.arange(len(detections))



     if len(detection_indices) == 0 or len(track_indices) == 0:

     return [], track_indices, detection_indices  # Nothing to match.



     cost_matrix = distance_metric(

     tracks, detections, track_indices, detection_indices)

     cost_matrix[cost_matrix > max_distance] = max_distance + 1e-5



     row_indices, col_indices = linear_assignment(cost_matrix)



     matches, unmatched_tracks, unmatched_detections = [], [], []

     for col, detection_idx in enumerate(detection_indices):

     if col not in col_indices:

         unmatched_detections.append(detection_idx)

     for row, track_idx in enumerate(track_indices):

     if row not in row_indices:

         unmatched_tracks.append(track_idx)

     for row, col in zip(row_indices, col_indices):

     track_idx = track_indices[row]

     detection_idx = detection_indices[col]

     if cost_matrix[row, col] > max_distance:

         unmatched_tracks.append(track_idx)

         unmatched_detections.append(detection_idx)

     else:

         matches.append((track_idx, detection_idx))

     return matches, unmatched_tracks, unmatched_detections
