深度学习论文: TResNet: High Performance GPU-Dedicated Architecture及其PyTorch实现
TResNet: A State-of-the-Art Architecture for GPU-Accelerated Deep Learning
PDF available at https://arxiv.org/abs/2003.13630.pdf
PyTorch implementation can be found at https://github.com/shanglianlm0525/PyTorch-Networks
1 概述
TResNet架构展现了显著的计算效率与分类精度优势。基于TResNet架构及其与ResNet50类似的GPU吞吐量特性，在ImageNet数据集上该研究团队以80.7%的top-1准确率完成了这一目标任务
2 TResNet Design

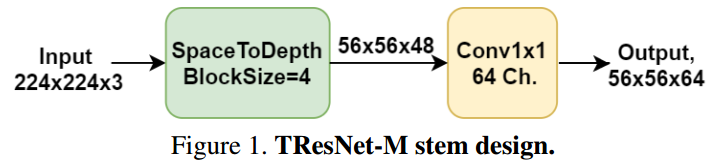

2-1 Stem Design
class SpaceToDepth(nn.Module):
def __init__(self, block_size=4):
super().__init__()
assert block_size == 4
self.bs = block_size
def forward(self, x):
N, C, H, W = x.size()
x = x.view(N, C, H // self.bs, self.bs, W // self.bs, self.bs) # (N, C, H//bs, bs, W//bs, bs)
x = x.permute(0, 3, 5, 1, 2, 4).contiguous() # (N, bs, bs, C, H//bs, W//bs)
x = x.view(N, C * (self.bs ** 2), H // self.bs, W // self.bs) # (N, C*bs^2, H//bs, W//bs)
return x
代码解读These authors explore the balance between non-discriminative data and model resolution. Their study delves into the relative importance of these factors, questioning whether non-discriminative data or a weak model holds greater significance in achieving optimal results. The research is published as a preprint on arXiv: 1909.03205, appearing in the year 2019.
2-2 Anti-Alias Downsampling (AA)
class AADownsample(nn.Module):
def __init__(self, filt_size=3, stride=2, channels=None):
super(AADownsample, self).__init__()
self.filt_size = filt_size
self.stride = stride
self.channels = channels
assert self.filt_size == 3
a = torch.tensor([1., 2., 1.])
filt = (a[:, None] * a[None, :])
filt = filt / torch.sum(filt)
# self.filt = filt[None, None, :, :].repeat((self.channels, 1, 1, 1))
self.register_buffer('filt', filt[None, None, :, :].repeat((self.channels, 1, 1, 1)))
def forward(self, input):
input_pad = F.pad(input, (1, 1, 1, 1), 'reflect')
return F.conv2d(input_pad, self.filt, stride=self.stride, padding=0, groups=input.shape[1])
代码解读Richard Zhang. Revisiting the shift-invariance of convolutional networks. In the proceedings of ICML in 2019.
2-3 In-Place Activated BatchNorm (Inplace-ABN)
采用Inplace-ABN层取代传统的BatchNorm+ReLU层配置, 这种设计能够显著降低GPU内存占用需求
另外,采用Leaky-ReLU激活函数替代ReLU激活函数不仅可以提升模型性能
而且还能保持较低的计算开销
https://github.com/mapillary/inplace_abn
The authors include Samuel Rota Bulo, Lorenzo Porzi, and Peter Kontschieder. This method is characterized by in-place activation of batchnorm for memory-optimized training of deep neural networks. It appeared in the proceedings of the IEEE Conference on Computer Vision and Pattern Recognition in 2018.
2-4 Blocks Selection

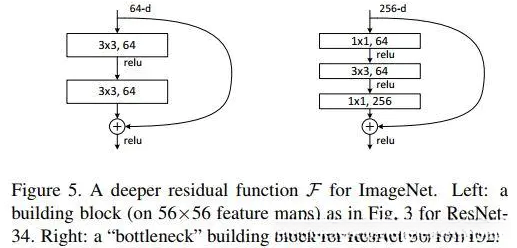

下图左侧展示了ResNet34所采用的基本残差块（BasicBlock）的架构设计，右侧则体现了ResNet50所采用的瓶颈残差块（Bottleneck）的构造特点。相比之下，在GPU资源利用方面具有显著优势的瓶颈结构，在保持较高计算效率的同时仍能实现更高的模型精度水平；另一方面，则由于其更广大的网络覆盖范围而体现出基本残差块的独特优势。基于此特性分析,TResNet主要体现在其网络架构设计上：即在前两个阶段主要采用基本残差块进行特征提取,而在后两个阶段则切换至瓶颈残差块以提升模型性能
2-5 SE Layers

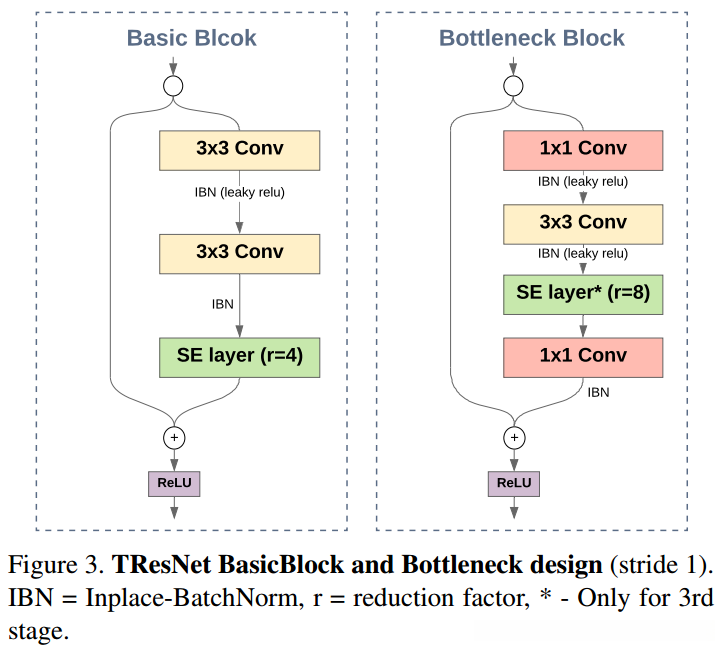

在前三阶段增加SE layers, 同时SE layers位置如下

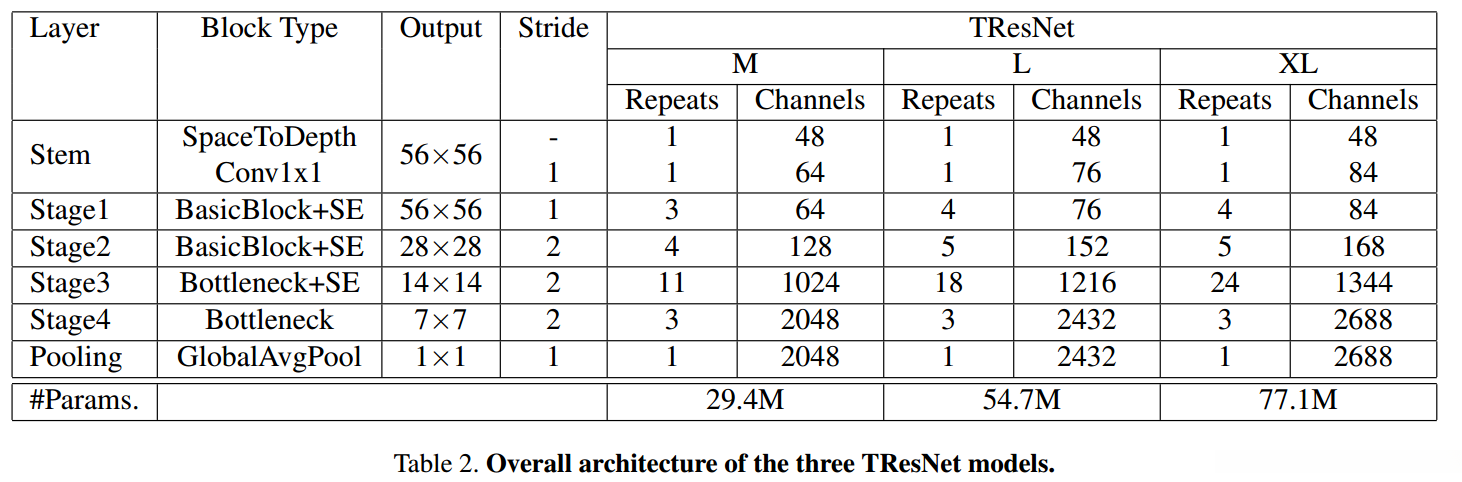

提出的结构如下
3 Code Optimizations
3-1 JIT Compilation
JIT accelerated SpaceToDepth module
@torch.jit.script
class SpaceToDepthJit(object):
def __call__(self, x: torch.Tensor):
# assuming hard-coded that block_size==4 for acceleration
N, C, H, W = x.size()
x = x.view(N, C, H // 4, 4, W // 4, 4) # (N, C, H//bs, bs, W//bs, bs)
x = x.permute(0, 3, 5, 1, 2, 4).contiguous() # (N, bs, bs, C, H//bs, W//bs)
x = x.view(N, C * 16, H // 4, W // 4) # (N, C*bs^2, H//bs, W//bs)
return x
代码解读JIT accelerated AA downsampling module
@torch.jit.script
class AADownsampleJIT(object):
def __init__(self, filt_size: int = 3, stride: int = 2, channels: int = 0):
self.stride = stride
self.filt_size = filt_size
self.channels = channels
assert self.filt_size == 3
assert stride == 2
a = torch.tensor([1., 2., 1.])
filt = (a[:, None] * a[None, :]).clone().detach()
filt = filt / torch.sum(filt)
self.filt = filt[None, None, :, :].repeat((self.channels, 1, 1, 1)).cuda().half()
def __call__(self, input: torch.Tensor):
if input.dtype != self.filt.dtype:
self.filt = self.filt.float()
input_pad = F.pad(input, (1, 1, 1, 1), 'reflect')
return F.conv2d(input_pad, self.filt, stride=2, padding=0, groups=input.shape[1])
代码解读3-2 Fixed Global Average Pooling
与自适应平均池化操作相比，AvgPool2d在速度上表现更为突出。然而，在结合View和Mean函数后，速度提升显著——达到了五倍于AvgPool2d的效果。
class FastGlobalAvgPool2d(nn.Module):
def __init__(self, flatten=False):
super(FastGlobalAvgPool2d, self).__init__()
self.flatten = flatten
def forward(self, x):
if self.flatten:
in_size = x.size()
return x.view((in_size[0], in_size[1], -1)).mean(dim=2)
else:
return x.view(x.size(0), x.size(1), -1).mean(-1).view(x.size(0), x.size(1), 1, 1)
代码解读3-3 Inplace Operations
在各个适用的位置上,广泛地采用 inplace operations 如 residual connections、SE layers 和 blocks' final activations 等
4 实验结果

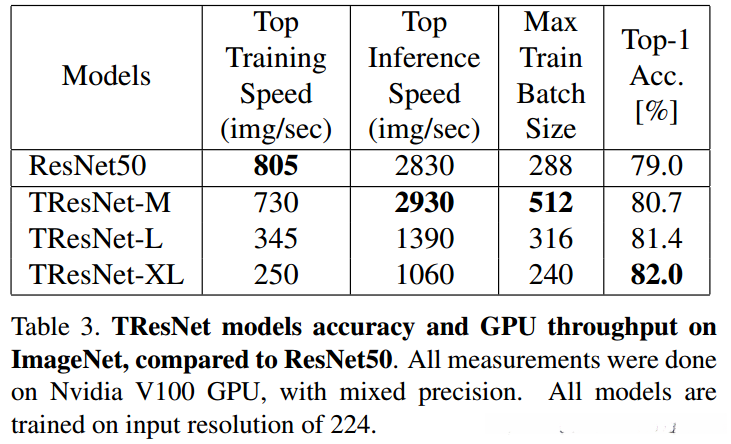

4-1 Basic

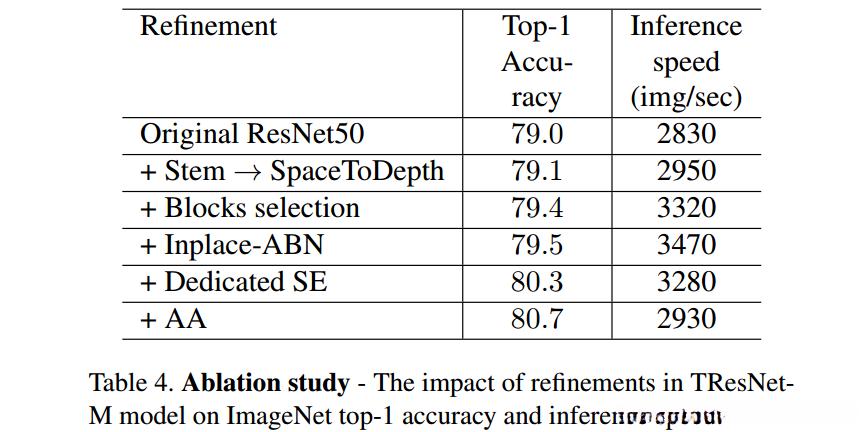

4-2 Ablation
