深度学习论文:Dynamic ReLU及其PyTorch实现
发布时间
阅读量：
阅读量
可动态调整的ReLU激活函数；PDF: https://arxiv.org/pdf/2003.10027.pdf；对应的PyTorch代码实现：https://github.com/shanglianlm0525/PyTorch-Networks

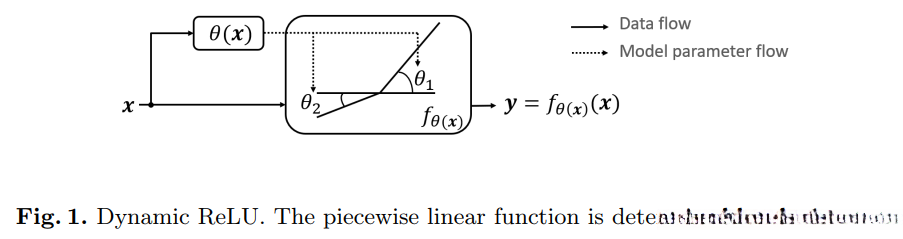

1 DY-ReLU
该动态设计实现了在不同输入下相应的分段激活函数调节，并且通过灵活调节相应的分段激活函数带来了显著的性能提升，并且所需额外计算量较小。此设计能够在现有的主流模型中自然集成。
2 DY-ReLU变种
提供了三种形态的DY-ReLU，在空间位置和维度上有不同的共享机制。
- a) DY-ReLU-A采用空间域与通道共享的方式。
- b) 在分类任务中采用空间域共享与通道分立的方式，则DY-ReLU-B可作为骨干网络使用。
- c) 在分类任务中使用空间域与通道分立的方式，则DY-ReLU-C可作为头部网络使用。
PyTorch实现：
import torch
import torch.nn as nn
import torchvision
import torch.nn.functional as F
class BatchNorm(nn.Module):
def forward(self, x):
return 2 * x - 1
class DynamicReLU_A(nn.Module):
def __init__(self, channels, K=2,ratio=6):
super(DynamicReLU_A, self).__init__()
mid_channels = 2*K
self.K = K
self.lambdas = torch.Tensor([1.]*K + [0.5]*K).float()
self.init_v = torch.Tensor([1.] + [0.]*(2*K - 1)).float()
self.avg_pool = nn.AdaptiveAvgPool2d(output_size=1)
self.dynamic = nn.Sequential(
nn.Linear(in_features=channels,out_features=channels // ratio),
nn.ReLU(inplace=True),
nn.Linear(in_features=channels // ratio, out_features=mid_channels),
nn.Sigmoid(),
BatchNorm()
)
def forward(self, x):
b, c, _, _ = x.size()
y = self.avg_pool(x).view(b, c)
z = self.dynamic(y)
relu_coefs = z.view(-1, 2 * self.K) * self.lambdas + self.init_v
x_perm = x.transpose(0, -1).unsqueeze(-1)
output = x_perm * relu_coefs[:, :self.K] + relu_coefs[:, self.K:]
output = torch.max(output, dim=-1)[0].transpose(0, -1)
return output
class DynamicReLU_B(nn.Module):
def __init__(self, channels, K=2,ratio=6):
super(DynamicReLU_B, self).__init__()
mid_channels = 2*K*channels
self.K = K
self.channels = channels
self.lambdas = torch.Tensor([1.]*K + [0.5]*K).float()
self.init_v = torch.Tensor([1.] + [0.]*(2*K - 1)).float()
self.avg_pool = nn.AdaptiveAvgPool2d(output_size=1)
self.dynamic = nn.Sequential(
nn.Linear(in_features=channels,out_features=channels // ratio),
nn.ReLU(inplace=True),
nn.Linear(in_features=channels // ratio, out_features=mid_channels),
nn.Sigmoid(),
BatchNorm()
)
def forward(self, x):
b, c, _, _ = x.size()
y = self.avg_pool(x).view(b, c)
z = self.dynamic(y)
relu_coefs = z.view(-1, self.channels, 2 * self.K) * self.lambdas + self.init_v
x_perm = x.permute(2, 3, 0, 1).unsqueeze(-1)
output = x_perm * relu_coefs[:, :, :self.K] + relu_coefs[:, :, self.K:]
output = torch.max(output, dim=-1)[0].permute(2, 3, 0, 1)
return output
if __name__=='__main__':
model = DynamicReLU_B(64)
print(model)
input = torch.randn(1, 64, 56, 56)
out = model(input)
print(out.shape)

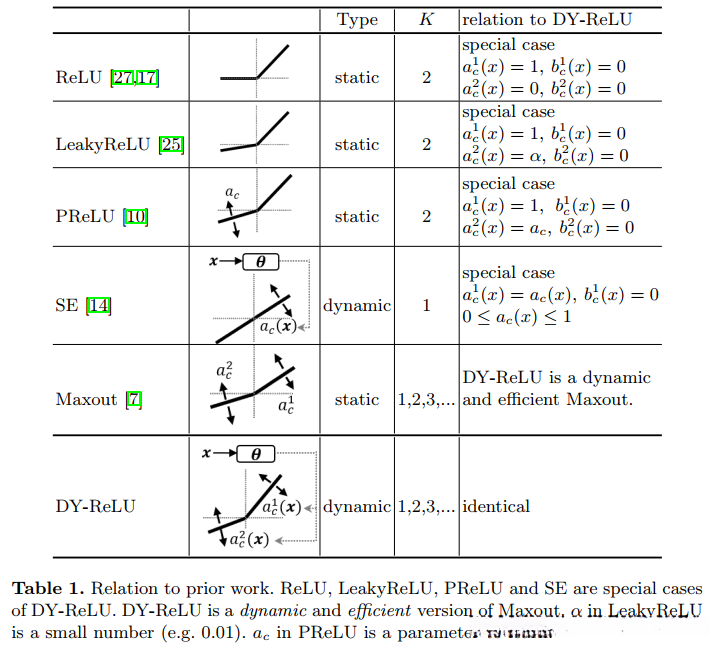

代码解读3 与其他常见激活函数对比
