OpenCV图像特征提取

    void gaussianSmoothing1()
    {
    // load image from file
    cv::Mat img;
    img = cv::imread("../images/img1gray.png");

    // create filter kernel

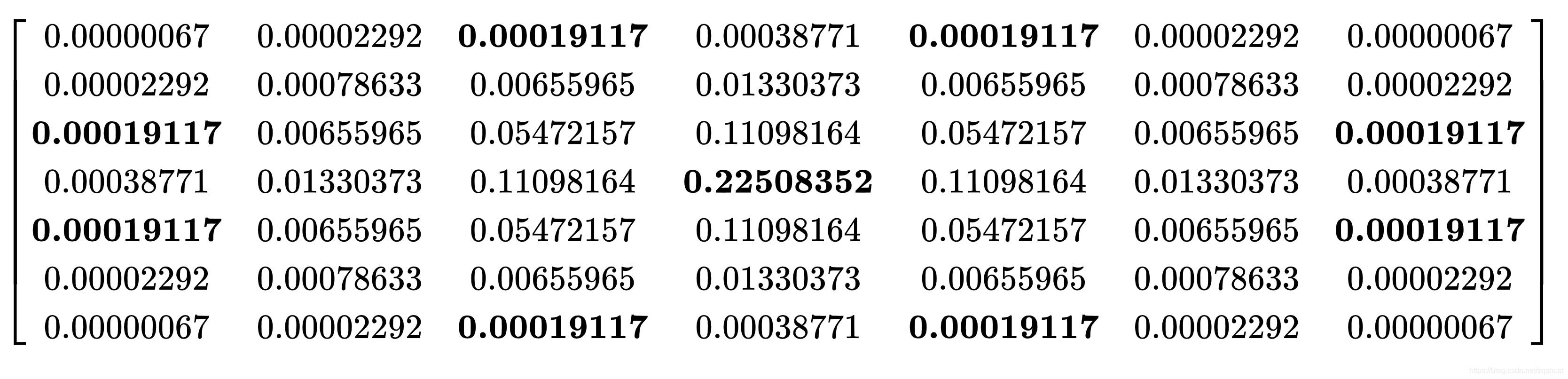

    float gauss_data[25] = {1, 4, 7, 4, 1,
                            4, 16, 26, 16, 4,
                            7, 26, 41, 26, 7,
                            4, 16, 26, 16, 4,
                            1, 4, 7, 4, 1};
    cv::Mat kernel = cv::Mat(5, 5, CV_32F, gauss_data);

    // STUDENTS NEET TO ENTER THIS CODE
    for (int i = 0; i < 25; i++)
    {
        gauss_data[i] /= 273;
    }
    // EOF STUDENT CODE

    // apply filter
    cv::Mat result;
    cv::filter2D(img, result, -1, kernel, cv::Point(-1, -1), 0, cv::BORDER_DEFAULT);

    // show result
    string windowName = "Gaussian Blurring";
    cv::namedWindow(windowName, 1); // create window
    cv::imshow(windowName, result);
    cv::waitKey(0); // wait for keyboard input before continuing
    }

    // load image from file to avoid computing the operator on each color channel.
    cv::Mat img;
    img = cv::imread("./img1.png");

    // convert image to grayscale
    cv::Mat imgGray;
    cv::cvtColor(img, imgGray, cv::COLOR_BGR2GRAY);

    // create filter kernel

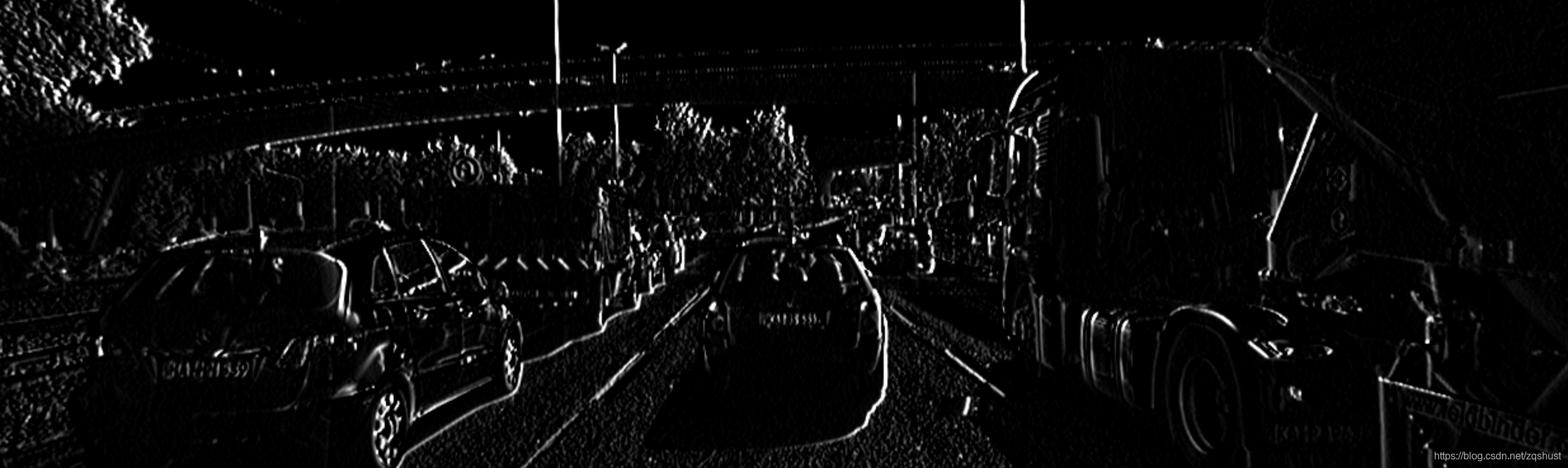

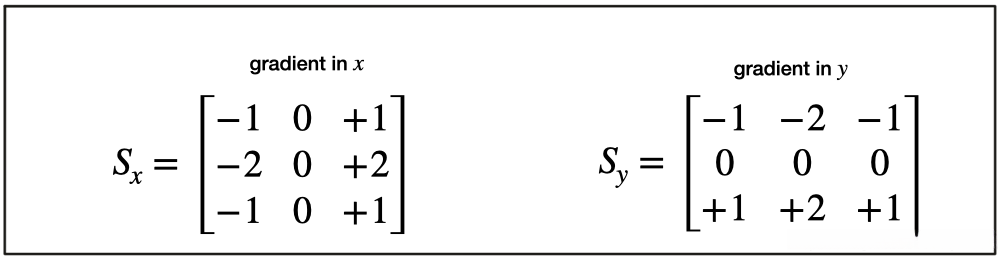

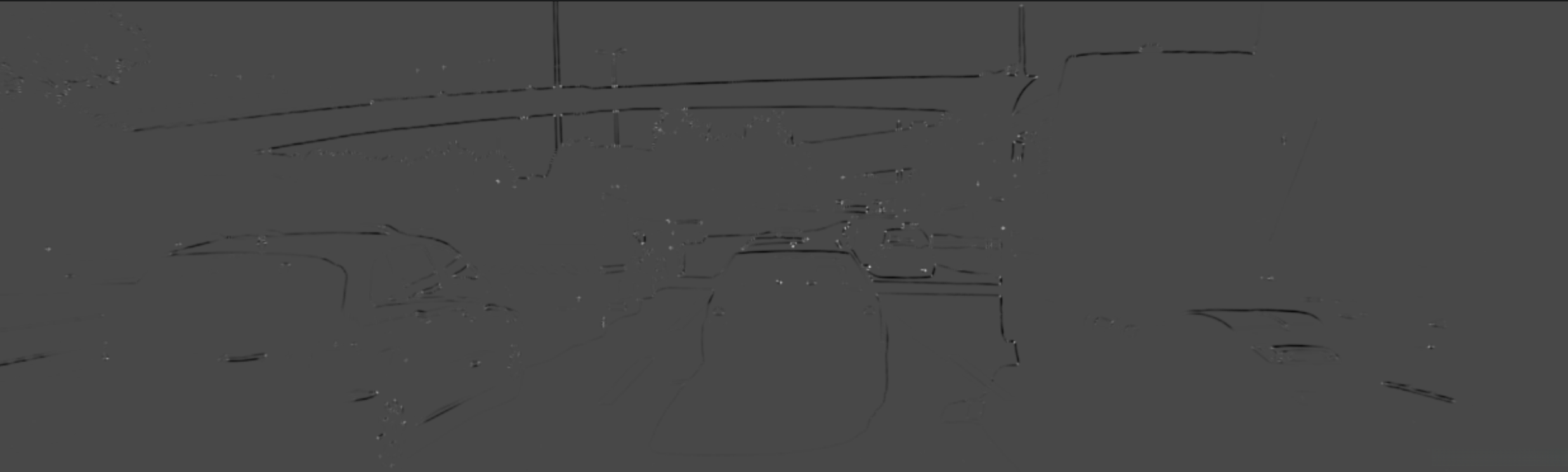

    float sobel_x[9] = {-1, 0, +1,
                        -2, 0, +2,
                        -1, 0, +1};
    cv::Mat kernel_x = cv::Mat(3, 3, CV_32F, sobel_x);

    // apply filter
    cv::Mat result_x;
    cv::filter2D(imgGray, result_x, -1, kernel_x, cv::Point(-1, -1), 0, cv::BORDER_DEFAULT);

    // show result

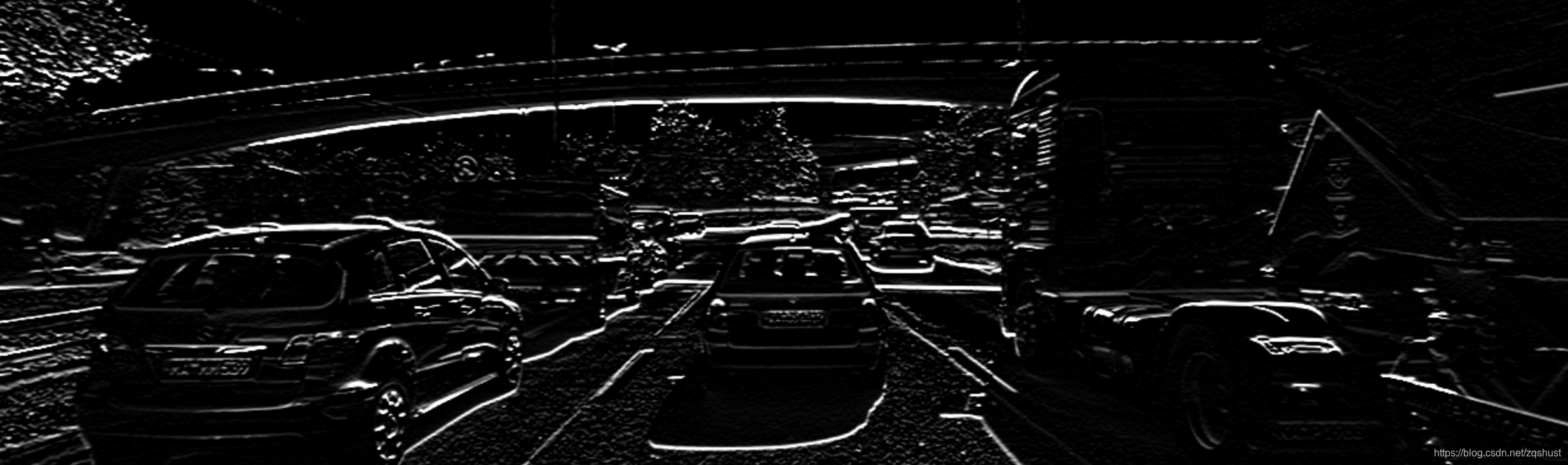

    string windowName = "Sobel operator (x-direction)";
    cv::namedWindow( windowName, 1 ); // create window
    cv::imshow(windowName, result_x);
    cv::waitKey(0); // wait for keyboard input before continuing

    // load image from file
    cv::Mat img;
    img = cv::imread("./img1.png");

    // convert image to grayscale
    cv::Mat imgGray;
    cv::cvtColor(img, imgGray, cv::COLOR_BGR2GRAY);

    // Detector parameters
    int blockSize = 2; // for every pixel, a blockSize × blockSize neighborhood is considered
    int apertureSize = 3; // aperture parameter for Sobel operator (must be odd)
    int minResponse = 100; // minimum value for a corner in the 8bit scaled response matrix

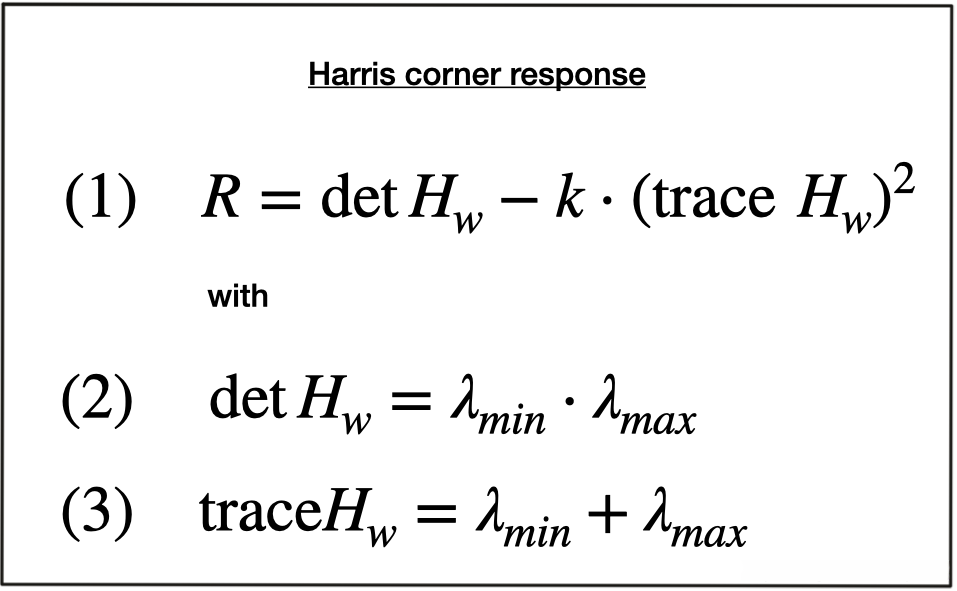

    double k = 0.04; // Harris parameter (see equation for details)

    // Detect Harris corners and normalize output
    cv::Mat dst, dst_norm, dst_norm_scaled;
    dst = cv::Mat::zeros(imgGray.size(), CV_32FC1 );
    cv::cornerHarris( imgGray, dst, blockSize, apertureSize, k, cv::BORDER_DEFAULT );
    cv::normalize( dst, dst_norm, 0, 255, cv::NORM_MINMAX, CV_32FC1, cv::Mat() );
    cv::convertScaleAbs( dst_norm, dst_norm_scaled );

    // visualize results
    string windowName = "Harris Corner Detector Response Matrix";
    cv::namedWindow( windowName, 4 );
    cv::imshow( windowName, dst_norm_scaled );
    cv::waitKey(0);

    void cornernessHarris()
    {
    // load image from file
    cv::Mat img;
    img = cv::imread("../images/img1.png");
    cv::cvtColor(img, img, cv::COLOR_BGR2GRAY); // convert to grayscale

    // Detector parameters
    int blockSize = 2;     // for every pixel, a blockSize × blockSize neighborhood is considered
    int apertureSize = 3;  // aperture parameter for Sobel operator (must be odd)
    int minResponse = 100; // minimum value for a corner in the 8bit scaled response matrix
    double k = 0.04;       // Harris parameter (see equation for details)

    // Detect Harris corners and normalize output
    cv::Mat dst, dst_norm, dst_norm_scaled;
    dst = cv::Mat::zeros(img.size(), CV_32FC1);
    cv::cornerHarris(img, dst, blockSize, apertureSize, k, cv::BORDER_DEFAULT);
    cv::normalize(dst, dst_norm, 0, 255, cv::NORM_MINMAX, CV_32FC1, cv::Mat());
    cv::convertScaleAbs(dst_norm, dst_norm_scaled);

    // visualize results
    string windowName = "Harris Corner Detector Response Matrix";
    cv::namedWindow(windowName, 4);
    cv::imshow(windowName, dst_norm_scaled);
    cv::waitKey(0);

    // STUDENTS NEET TO ENTER THIS CODE (C3.2 Atom 4)

    // Look for prominent corners and instantiate keypoints
    vector<cv::KeyPoint> keypoints;
    double maxOverlap = 0.0; // max. permissible overlap between two features in %, used during non-maxima suppression
    for (size_t j = 0; j < dst_norm.rows; j++)
    {
        for (size_t i = 0; i < dst_norm.cols; i++)
        {
            int response = (int)dst_norm.at<float>(j, i);
            if (response > minResponse)
            { // only store points above a threshold

                cv::KeyPoint newKeyPoint;
                newKeyPoint.pt = cv::Point2f(i, j);
                newKeyPoint.size = 2 * apertureSize;
                newKeyPoint.response = response;

                // perform non-maximum suppression (NMS) in local neighbourhood around new key point
                bool bOverlap = false;
                for (auto it = keypoints.begin(); it != keypoints.end(); ++it)
                {
                    double kptOverlap = cv::KeyPoint::overlap(newKeyPoint, *it);
                    if (kptOverlap > maxOverlap)
                    {
                        bOverlap = true;
                        if (newKeyPoint.response > (*it).response)
                        {                      // if overlap is >t AND response is higher for new kpt
                            *it = newKeyPoint; // replace old key point with new one
                            break;             // quit loop over keypoints
                        }
                    }
                }
                if (!bOverlap)
                {                                     // only add new key point if no overlap has been found in previous NMS
                    keypoints.push_back(newKeyPoint); // store new keypoint in dynamic list
                }
            }
        } // eof loop over cols
    }     // eof loop over rows

    // visualize keypoints
    windowName = "Harris Corner Detection Results";
    cv::namedWindow(windowName, 5);
    cv::Mat visImage = dst_norm_scaled.clone();
    cv::drawKeypoints(dst_norm_scaled, keypoints, visImage, cv::Scalar::all(-1), cv::DrawMatchesFlags::DRAW_RICH_KEYPOINTS);
    cv::imshow(windowName, visImage);
    cv::waitKey(0);
    // EOF STUDENT CODE
    }

    // this function illustrates a very simple non-maximum suppression to extract the strongest corners
    // in a local neighborhood around each pixel
    cv::Mat PerformNMS(cv::Mat corner_img)
    {
    // define size of sliding window
    int sw_size = 7;                  // should be odd so we can center it on a pixel and have symmetry in all directions
    int sw_dist = floor(sw_size / 2); // number of pixels to left/right and top/down to investigate

    // create output image
    cv::Mat result_img = cv::Mat::zeros(corner_img.rows, corner_img.cols, CV_8U);

    // loop over all pixels in the corner image
    for (int r = sw_dist; r < corner_img.rows - sw_dist - 1; r++) // rows
    {
        for (int c = sw_dist; c < corner_img.cols - sw_dist - 1; c++) // cols
        {
            // loop over all pixels within sliding window around the current pixel
            unsigned int max_val{0}; // keeps track of strongest response
            for (int rs = r - sw_dist; rs <= r + sw_dist; rs++)
            {
                for (int cs = c - sw_dist; cs <= c + sw_dist; cs++)
                {
                    // check wether max_val needs to be updated
                    unsigned int new_val = corner_img.at<unsigned int>(rs, cs);
                    max_val = max_val < new_val ? new_val : max_val;
                }
            }

            // check wether current pixel is local maximum
            if (corner_img.at<unsigned int>(r, c) == max_val)
                result_img.at<unsigned int>(r, c) = max_val;
        }
    }

    // visualize results
    std::string windowName = "NMS Result Image";
    cv::namedWindow(windowName, 5);
    cv::imshow(windowName, result_img);
    cv::waitKey(0);

    return result_img;
    }
