Chest-X-Ray-Images-Pneumonia肺炎X射线图像识别健康或肺炎患者，基于tensorflow2.0 CNN
发布时间
阅读量：
阅读量
github：https://github.com/zoe9698/Chest-X-Ray-Images-Pneumonia-
参考文献：https://tensorflow.google.cn/tutorials

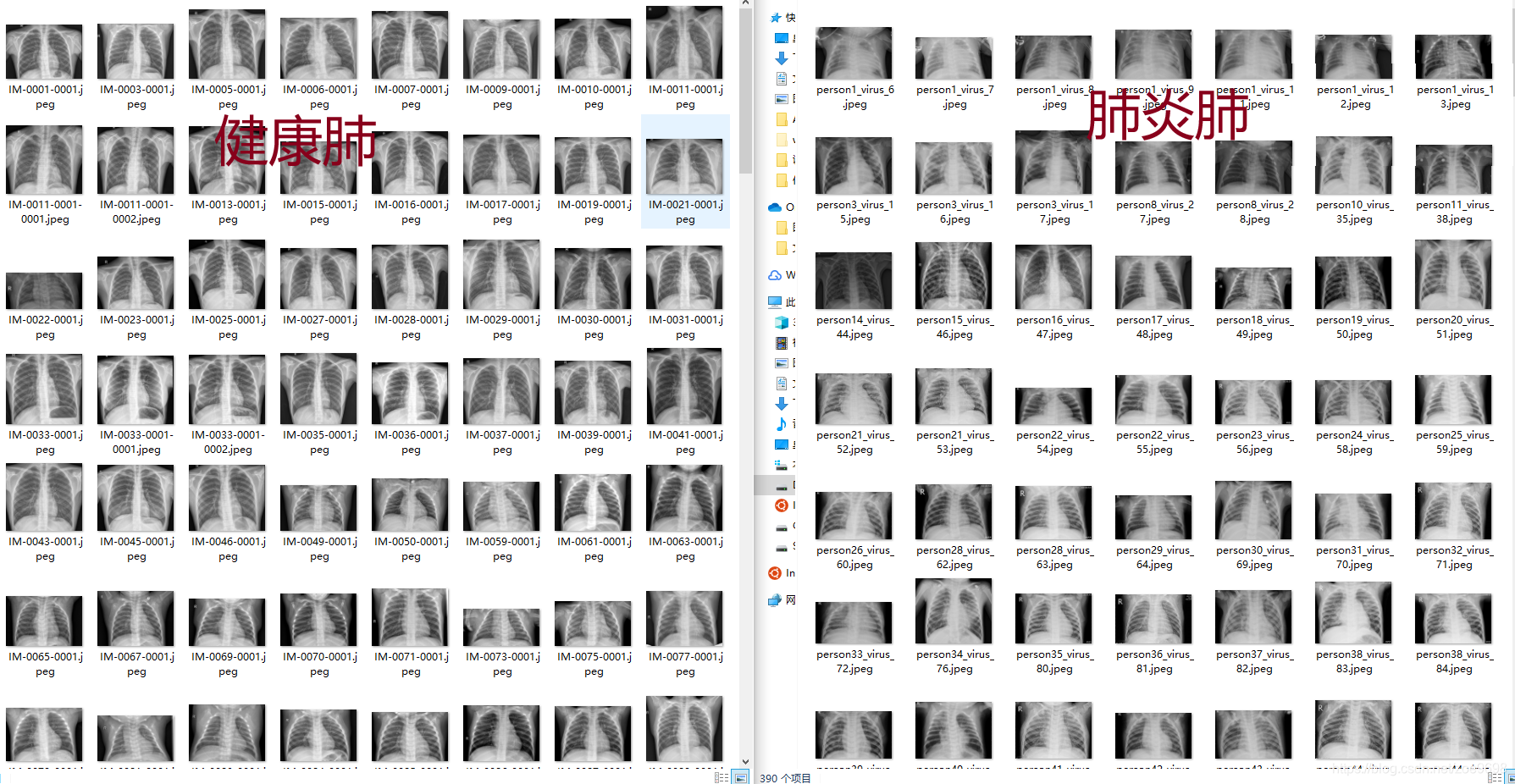

- 数据集观察：肺炎肺有雾化的阴影
- 数据预处理：
'''
图片预处理
'''
def preprocess_image(image):
'''
image=img_raw
'''
image = tf.image.decode_png(image,channels=3)
image = tf.image.resize(image,[128,128]) #裁剪大小
image /= 255.0 #归一化
return image
def load_and_preprocess_image(path):
'''
param:img_path
return:img_raw
'''
image = tf.io.gfile.GFile(img_path, 'rb').read()
return preprocess_image(image)- 从文件夹中取得所有图片的path：
'''
所有图片的path
4. list
'''
import os
all_image_paths = os.listdir('D:/kaggle/feiyan/postcrop_train/NORMAL/')
all_image_paths = all_image_paths+(os.listdir('D:/kaggle/feiyan/postcrop_train/PNEUMONIA/')) #from_tensor_slices:将字符串数组切片，得到一个字符串数据集
path_ds = tf.data.Dataset.from_tensor_slices(all_image_paths)
print(path_ds)- 调用上面的函数得到所有图片数据集----img-raw
'''
来动态加载每一个图片进入函数load_and_preprocess_image
'''
image_ds = path_ds.map(load_and_preprocess_image, num_parallel_calls=tf.data.experimental.AUTOTUNE)- 制作标签数据集
'''
添加一个标签数据集
'''
label_names = {0:'NORMAL', 1:'PNEUMONIA'}
all_image_labels = []
for i in range(1341):
all_image_labels.append(0)
for i in range(1341,5216):
all_image_labels.append(1)
print(len(all_image_labels))
# print(all_image_labels[1340],all_image_labels[1341])
label_ds = tf.data.Dataset.from_tensor_slices(tf.cast(all_image_labels,tf.int64))
print(label_ds)
for label in label_ds.take(10):
print(label_names[label.numpy()])- 整合为（img，label）
'''
image_ds 和 label_ds打包成一个(图片，标签)数据集
格式：ZipDataset
'''
image_label_ds = tf.data.Dataset.zip((image_ds,label_ds))
print(image_label_ds)- 为模型准备数据
'''
1.打乱数据
2.分割数据
3.重复数据
4.在处理当前元素时准备后面的元素
'''
BATCH_SIZE = 32
image_count = 5216
# 设置一个和数据集大小一致的 shuffle buffer size（随机缓冲区大小）以保证数据
# 被充分打乱。
ds = image_label_ds.shuffle(buffer_size=image_count)
ds = ds.repeat()
ds = ds.batch(BATCH_SIZE)
#这允许在处理当前元素时准备后面的元素
ds = ds.prefetch(buffer_size=tf.data.experimental.AUTOTUNE)

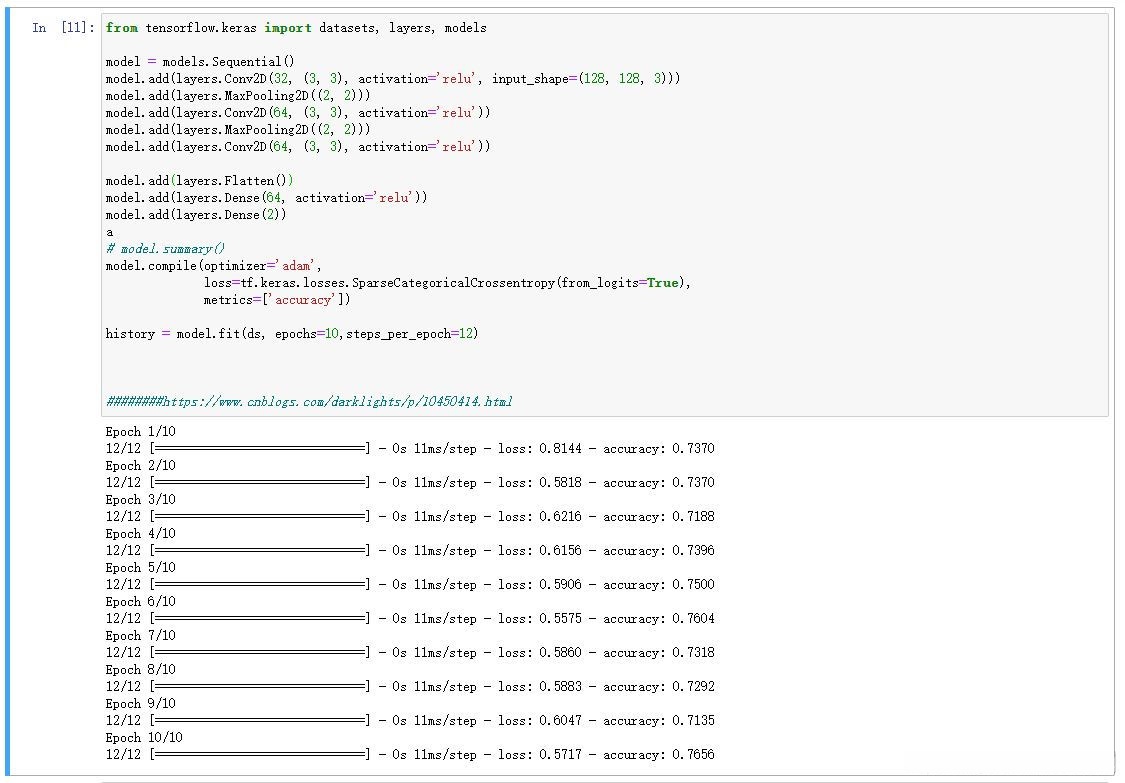

ds- CNN模型结构
from tensorflow.keras import datasets, layers, models
model = models.Sequential()
model.add(layers.Conv2D(32, (3, 3), activation='relu', input_shape=(128, 128, 3)))
model.add(layers.MaxPooling2D((2, 2)))
model.add(layers.Conv2D(64, (3, 3), activation='relu'))
model.add(layers.MaxPooling2D((2, 2)))
model.add(layers.Conv2D(64, (3, 3), activation='relu'))
model.add(layers.Flatten())
model.add(layers.Dense(64, activation='relu'))
model.add(layers.Dense(2))
a
# model.summary()
model.compile(optimizer='adam',
loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
metrics=['accuracy'])
history = model.fit(ds, epochs=10,steps_per_epoch=12)
