深度学习论文: RepVGG: Making VGG-style ConvNets Great Again及其PyTorch实现
发布时间
阅读量：
阅读量
深度学习论文: RepVGG: Rebuilding VGG-style convolutional neural networks to achieve robust performance and its PyTorch implementation. Available as a PDF document on arXiv at https://arxiv.org/pdf/2101.03697.pdf. Additionally, another implementation of the enhanced VGG-style architecture is provided via PyTorch, accessible at https://github.com/shanglianlm0525/PyTorch-Networks, alongside another variation available via PyTorch at https://github.com/shanglianlm0525/CvPytorch.
1 概述
现阶段的一些网络结构设计可以提升模型精度，但是过于复杂的结构又会影响推理速度。
如： a. 多分支结构设计单独 残差网络add，Inception系列中的concat操作，增加显存消耗和推理时间
b. 轻量化网络设计的DepthwiseConv和ShuffleNet中的channel shuffle。这些操作FLOPS较低，但是
会提高访存消耗，实际推理速度也较慢。
2 RepVGG
2-1 VGG样式的网络优点

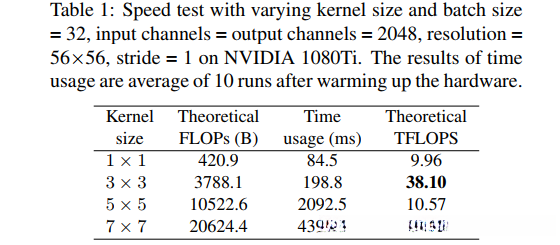

运行速度极快
如VGG16的FLOPS比EfficientNetB3大8倍，但是最终运行速度RepVGG要快1.8倍

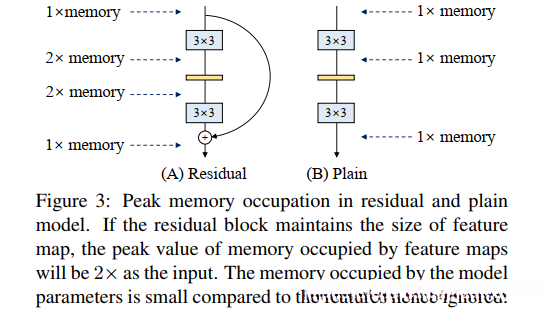

多分支结构对内存资源的占用非常大；各个子路径的计算结果必须被暂时存储下来；只有在最终整合阶段才会释放这些显存占用。
灵活
2-2 RepVGG Block
repVGG Block可以表示为
Out = F(X) + G(X) + X ， 其中F(X) 表示3 x 3 卷积 G(X)表示 1x1 卷积

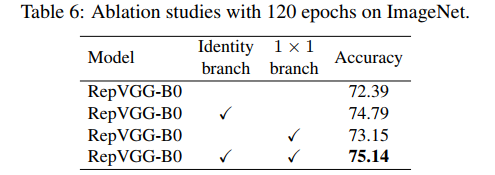

其中 3 x 3 卷积和 1x1 卷积对性能都有一定的提升。

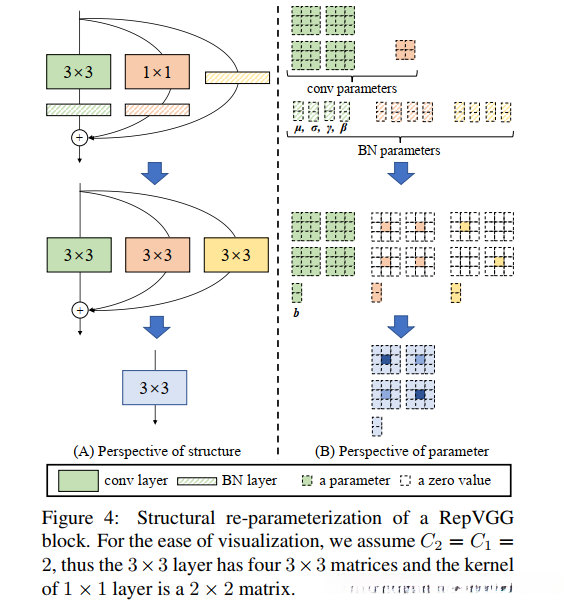

将一个RepVGG模块转换为卷积操作相对简单。这是因为RepVGG模块中的1×1卷积实际上相当于一种特殊的3×3卷积（其滤波器内核包含大量零），而恒等映射对应于一种特殊的1×1卷积（基于单位矩阵的设计），因此这也是一种特殊的3×3卷积！为了实现这一过程：第一步我们需要将identity操作转化为基于单位矩阵的设计；第二步则是通过填充零的方式将现有的1×2或2×2大小的操作转化为对应的较大尺寸的操作。
3 Architectural

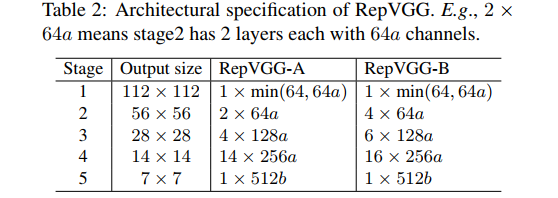

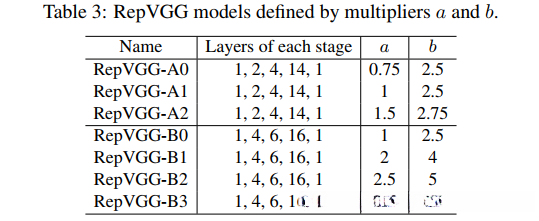

开发了A、B两类模型；它们的主要差异在于卷积层的堆叠配置；通过参数a和b调节通道数量
PyTorh代码：
# !/usr/bin/env python
# -- coding: utf-8 --
# @Time : 2021/2/25 15:45
# @Author : liumin
# @File : repVGGNet.py
import numpy as np
import torch
import torch.nn as nn
def Conv1x1BN(in_channels,out_channels, stride=1, groups=1, bias=False):
return nn.Sequential(
nn.Conv2d(in_channels=in_channels, out_channels=out_channels, kernel_size=1, stride=stride, padding=0, groups=groups, bias=bias),
nn.BatchNorm2d(out_channels)
)
def Conv3x3BN(in_channels,out_channels, stride=1, groups=1, bias=False):
return nn.Sequential(
nn.Conv2d(in_channels=in_channels,out_channels=out_channels,kernel_size=3,stride=stride,padding=1, groups=groups, bias=bias),
nn.BatchNorm2d(out_channels)
)
class RepVGGBlock(nn.Module):
def __init__(self, in_channels, out_channels, stride=1, groups=1, deploy=False):
super(RepVGGBlock, self).__init__()
self.deploy = deploy
if self.deploy:
self.conv = nn.Conv2d(in_channels=in_channels, out_channels=out_channels,
kernel_size=3, stride=stride, padding=1, dilation=1, groups=groups, bias=True)
else:
self.conv1 = Conv3x3BN(in_channels, out_channels, stride=stride, groups=groups, bias=False)
self.conv2 = Conv1x1BN(in_channels, out_channels, stride=stride, groups=groups, bias=False)
self.identity = nn.BatchNorm2d(in_channels) if out_channels == in_channels and stride == 1 else None
self.act = nn.ReLU(inplace=True)
def forward(self, x):
if self.deploy:
return self.act(self.conv(x))
if self.identity is None:
return self.act(self.conv1(x) + self.conv2(x))
else:
return self.act(self.conv1(x) + self.conv2(x) + self.identity(x))
class RepVGG(nn.Module):
def __init__(self, block_nums, width_multiplier=None, group=1, num_classes=1000, deploy=False):
super(RepVGG, self).__init__()
self.deploy = deploy
self.group = group
assert len(width_multiplier) == 4
self.stage0 = RepVGGBlock(in_channels=3,out_channels=min(64, int(64 * width_multiplier[0])), stride=2, deploy=self.deploy)
self.cur_layer_idx = 1
self.stage1 = self._make_layers(in_channels=min(64, int(64 * width_multiplier[0])), out_channels= int(64 * width_multiplier[0]), stride=2, block_num=block_nums[0])
self.stage2 = self._make_layers(in_channels=int(64 * width_multiplier[0]), out_channels=int(128 * width_multiplier[1]), stride=2, block_num=block_nums[1])
self.stage3 = self._make_layers(in_channels=int(128 * width_multiplier[1]), out_channels=int(256 * width_multiplier[2]), stride=2, block_num=block_nums[2])
self.stage4 = self._make_layers(in_channels=int(256 * width_multiplier[2]), out_channels=int(512 * width_multiplier[3]), stride=2, block_num=block_nums[3])
self.avg_pool = nn.AdaptiveAvgPool2d(output_size=1)
self.linear = nn.Linear(int(512 * width_multiplier[3]), num_classes)
self._init_params()
def _make_layers(self, in_channels, out_channels, stride, block_num):
layers = []
layers.append(RepVGGBlock(in_channels,out_channels, stride=stride, groups=self.group if self.cur_layer_idx%2==0 else 1, deploy=self.deploy))
self.cur_layer_idx += 1
for i in range(block_num):
layers.append(RepVGGBlock(out_channels,out_channels, stride=1, groups=self.group if self.cur_layer_idx%2==0 else 1, deploy=self.deploy))
self.cur_layer_idx += 1
return nn.Sequential(*layers)
def _init_params(self):
for m in self.modules():
if isinstance(m, nn.Conv2d):
nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
elif isinstance(m, nn.BatchNorm2d):
nn.init.constant_(m.weight, 1)
nn.init.constant_(m.bias, 0)
def forward(self, x):
x = self.stage0(x)
x = self.stage1(x)
x = self.stage2(x)
x = self.stage3(x)
x = self.stage4(x)
x = self.avg_pool(x)
x = x.view(x.size(0), -1)
out = self.linear(x)
return out
def RepVGG_A0(deploy=False):
return RepVGG(block_nums=[2, 4, 14, 1], num_classes=1000,
width_multiplier=[0.75, 0.75, 0.75, 2.5], group=1, deploy=deploy)
def RepVGG_A1(deploy=False):
return RepVGG(block_nums=[2, 4, 14, 1], num_classes=1000,
width_multiplier=[1, 1, 1, 2.5], group=1, deploy=deploy)
def RepVGG_A2(deploy=False):
return RepVGG(block_nums=[2, 4, 14, 1], num_classes=1000,
width_multiplier=[1.5, 1.5, 1.5, 2.75], group=1, deploy=deploy)
def RepVGG_B0(deploy=False):
return RepVGG(block_nums=[4, 6, 16, 1], num_classes=1000,
width_multiplier=[1, 1, 1, 2.5], group=1, deploy=deploy)
def RepVGG_B1(deploy=False):
return RepVGG(block_nums=[4, 6, 16, 1], num_classes=1000,
width_multiplier=[2, 2, 2, 4], group=1, deploy=deploy)
def RepVGG_B1g2(deploy=False):
return RepVGG(block_nums=[4, 6, 16, 1], num_classes=1000,
width_multiplier=[2, 2, 2, 4], group=2, deploy=deploy)
def RepVGG_B1g4(deploy=False):
return RepVGG(block_nums=[4, 6, 16, 1], num_classes=1000,
width_multiplier=[2, 2, 2, 4], group=4, deploy=deploy)
def RepVGG_B2(deploy=False):
return RepVGG(block_nums=[4, 6, 16, 1], num_classes=1000,
width_multiplier=[2.5, 2.5, 2.5, 5], group=1, deploy=deploy)
def RepVGG_B2g2(deploy=False):
return RepVGG(block_nums=[4, 6, 16, 1], num_classes=1000,
width_multiplier=[2.5, 2.5, 2.5, 5], group=2, deploy=deploy)
def RepVGG_B2g4(deploy=False):
return RepVGG(block_nums=[4, 6, 16, 1], num_classes=1000,
width_multiplier=[2.5, 2.5, 2.5, 5], group=4, deploy=deploy)
def RepVGG_B3(deploy=False):
return RepVGG(block_nums=[1, 4, 6, 16, 1], num_classes=1000,
width_multiplier=[3, 3, 3, 5], group=1, deploy=deploy)
def RepVGG_B3g2(deploy=False):
return RepVGG(block_nums=[1, 4, 6, 16, 1], num_classes=1000,
width_multiplier=[3, 3, 3, 5], group=2, deploy=deploy)
def RepVGG_B3g4(deploy=False):
return RepVGG(block_nums=[1, 4, 6, 16, 1], num_classes=1000,
width_multiplier=[3, 3, 3, 5], group=4, deploy=deploy)
if __name__ == '__main__':
model = RepVGG_A1()
print(model)
input = torch.randn(1,3,224,224)
out = model(input)
print(out.shape)
