基于MindSpore的恶性皮肤肿瘤识别

 %%capture captured_output


 # 实验环境已经预装了mindspore==2.3.0，如需更换mindspore版本，可更改下面 MINDSPORE_VERSION 变量

 !pip uninstall mindspore -y

 %env MINDSPORE_VERSION=2.3.0

 !pip install https://ms-release.obs.cn-north-4.myhuaweicloud.com/${MINDSPORE_VERSION}/MindSpore/unified/aarch64/mindspore-${MINDSPORE_VERSION}-cp39-cp39-linux_aarch64.whl --trusted-host ms-release.obs.cn-north-4.myhuaweicloud.com -i https://pypi.mirrors.ustc.edu.cn/simple

 # 查看当前 mindspore 版本


 !pip show mindspore

>     [https://www.mindspore.cn](https://www.mindspore.cn/ "https://www.mindspore.cn")

    !git clone https://source-xihe-mindspore.osinfra.cn/knoka/pifudata_Maker.git

 %%capture captured_output


 # 解压数据集pifudata_Maker/skin-cancer-detection.tar 并存储到pifudata_Maker文件夹内

 !tar -xv -f pifudata_Maker/skin-cancer-detection.tar -C pifudata_Maker/

 import os




 # 定义疾病名称和编号的映射

 diseases = {

     0: "basal_cell_carcinoma",

     1: "melanoma",

     2: "nevus",

     3: "pigmented_benign_keratosis",

 }



 # 定义目标文件夹路径

 target_directory = "pifudata_Maker/images/"  # 替换为你的文件夹路径



 # 遍历每个疾病名称和编号

 for folder in ["train", "val"]:

     folder_path = os.path.join(target_directory, folder)

     print(folder_path)

     for number,disease in diseases.items():

     # 构造完整的旧文件夹路径

     old_folder_path = os.path.join(folder_path, disease)



     # 检查旧文件夹是否存在

     if not os.path.exists(old_folder_path):

         print(f"Folder not found: {old_folder_path}")

         continue



     # 构造新的文件夹名称

     new_folder_name = f"{number}"



     # 构造完整的新文件夹路径

     new_folder_path = os.path.join(folder_path, new_folder_name)



     # 重命名文件夹

     os.rename(old_folder_path, new_folder_path)

     print(f"Renamed {old_folder_path} to {new_folder_path}")

 import os


 import matplotlib.pyplot as plt



 # 疾病编号到名称的映射

 diseases = {

     0: "basal_cell_carcinoma",

     1: "melanoma",

     2: "nevus",

     3: "pigmented_benign_keratosis",

 }



 # 数据集目录路径

 data_path_train = "pifudata_Maker/images/train"

 data_path_val = "pifudata_Maker/images/val"



 # 初始化一个字典来存储每个类别的文件数量

 file_counts_train = {}

 file_counts_val = {}



 # 遍历训练数据文件夹

 for folder_name in os.listdir(data_path_train):

     folder_path = os.path.join(data_path_train, folder_name)

     # 确保是文件夹

     if os.path.isdir(folder_path):

     # 计算文件夹内的文件数量

     count = len(os.listdir(folder_path))

     # 使用疾病编号作为字典的键

     file_counts_train[diseases.get(folder_name, folder_name)] = count



 # 遍历验证数据文件夹

 for folder_name in os.listdir(data_path_val):

     folder_path = os.path.join(data_path_val, folder_name)

     # 确保是文件夹

     if os.path.isdir(folder_path):

     # 计算文件夹内的文件数量

     count = len(os.listdir(folder_path))

     # 使用疾病编号作为字典的键

     file_counts_val[diseases.get(folder_name, folder_name)] = count



 # 获取训练集的疾病名称列表

 train_categories = list(file_counts_train.keys())

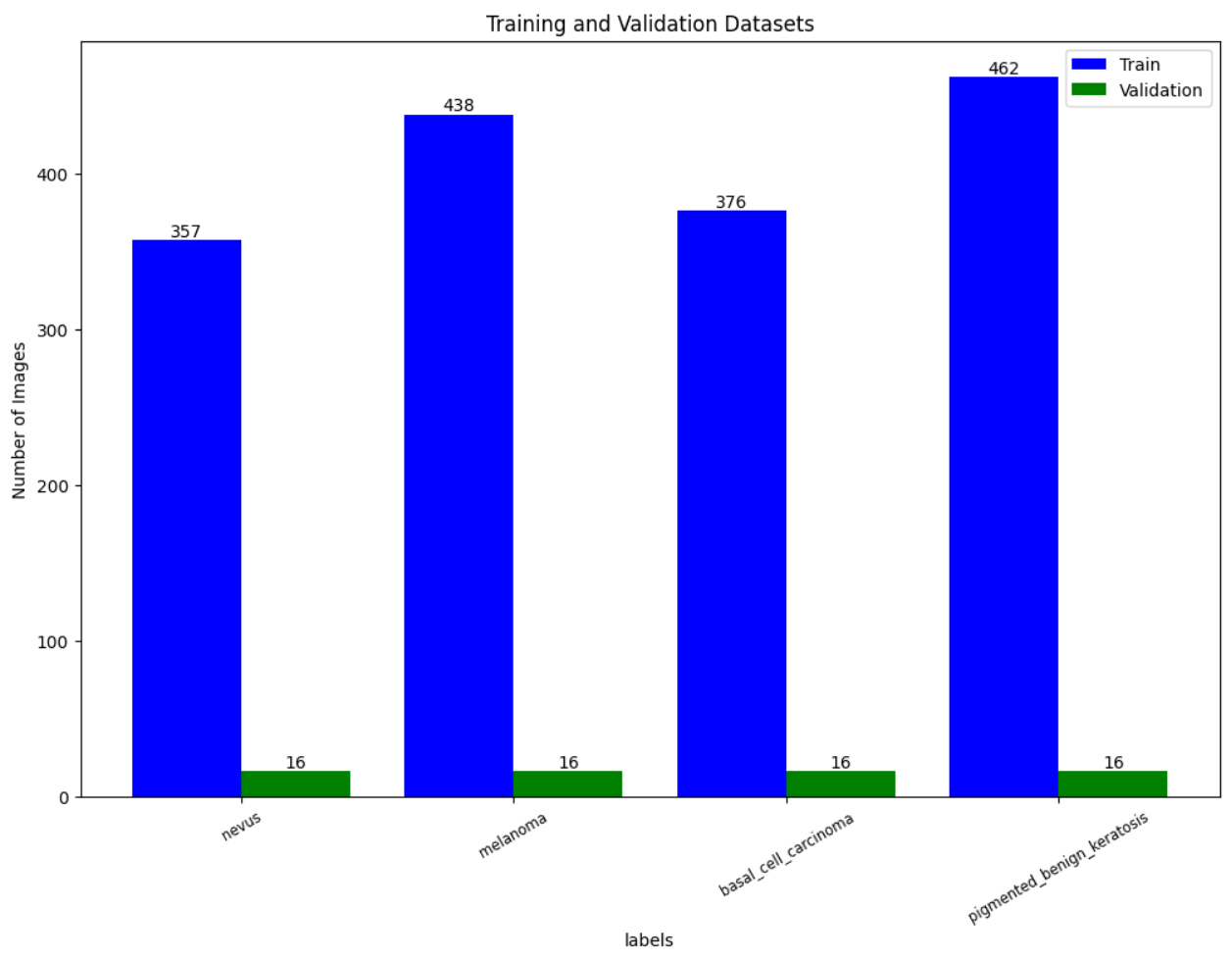

 # 使用matplotlib生成条形图

 plt.figure(figsize=(12, 8))



 # 绘制训练集的条形图

 train_bars = plt.bar(train_categories, file_counts_train.values(), width=0.4, color='blue', label='Train')



 # 绘制验证集的条形图，错开位置

 val_bars = plt.bar([train_categories.index(cat) + 0.4 for cat in train_categories], [file_counts_val.get(cat, 0) for cat in train_categories], width=0.4, color='green', label='Validation')



 # 添加图例

 plt.legend()



 # 使用疾病名称作为X轴标签

 plt.xlabel('labels')

 plt.ylabel('Number of Images')

 plt.title('Training and Validation Datasets')



 print(train_categories)



 train_list = [diseases[int(i)] for i in train_categories]

 print(train_list)



 plt.xticks([train_categories.index(cat) + 0.2 for cat in train_categories], [diseases[int(i)] for i in train_categories], rotation=30,fontsize='small')



 # 在柱形条上面显示数量

 for i, (train_bar, val_bar) in enumerate(zip(train_bars, val_bars)):

     train_height = train_bar.get_height()

     val_height = val_bar.get_height() if val_bar else 0

     plt.text(train_bar.get_x() + train_bar.get_width() / 2, train_height, '{}'.format(train_height), ha='center', va='bottom')

     plt.text(val_bar.get_x() + val_bar.get_width() / 2, val_height, '{}'.format(val_height), ha='center', va='bottom') if val_bar else None



 plt.show()

 # 超参数定义


 batch_size = 64                             # 批量大小

 image_size = 224                            # 训练图像空间大小

 num_epochs = 25                             # 训练周期数

 lr = 0.001                                  # 学习率

 momentum = 0.6                              # 动量

 workers = 4                                 # 并行线程个数

 import mindspore

 mindspore.set_context(device_target="Ascend")

 import mindspore as ms


 import mindspore.dataset as ds

 import mindspore.dataset.vision as vision



 # 数据集目录路径

 data_path_train = "pifudata_Maker/images/train"

 data_path_val = "pifudata_Maker/images/val"



 # 创建训练数据集



 def create_dataset_canidae(dataset_path, usage):

     """数据加载"""

     data_set = ds.ImageFolderDataset(dataset_path,

                                  num_parallel_workers=workers,

                                  shuffle=True,)

     # 数据增强操作

     mean = [0.485 * 255, 0.456 * 255, 0.406 * 255]

     std = [0.229 * 255, 0.224 * 255, 0.225 * 255]

     scale = 32

     if usage == "train":

     # Define map operations for training dataset

     trans = [

         vision.RandomCropDecodeResize(size=image_size, scale=(0.08, 1.0), ratio=(0.75, 1.333)),

         vision.RandomHorizontalFlip(prob=0.5),

         vision.Normalize(mean=mean, std=std),

         vision.HWC2CHW()

     ]

     else:

     # Define map operations for inference dataset

     trans = [

         vision.Decode(),

         vision.Resize(image_size + scale),

         vision.CenterCrop(image_size),

         vision.Normalize(mean=mean, std=std),

         vision.HWC2CHW()

     ]



     # 数据映射操作

     data_set = data_set.map(

     operations=trans,

     input_columns='image',

     num_parallel_workers=workers)

     # 批量操作

     data_set = data_set.batch(batch_size)

     return data_set





 dataset_train = create_dataset_canidae(data_path_train, "train")

 step_size_train = dataset_train.get_dataset_size()

 dataset_val = create_dataset_canidae(data_path_val, "val")

 step_size_val = dataset_val.get_dataset_size()

 print(step_size_train)

 print(step_size_val)

 data = next(dataset_val.create_dict_iterator())

 images = data["image"]

 labels = data["label"]

 # print(data["image"][0])

 print("Tensor of image", images.shape)

 print("Labels:", labels)

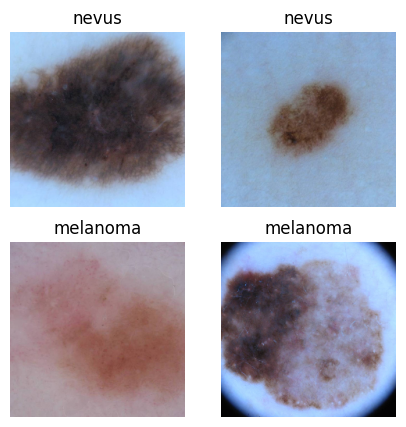

 import matplotlib.pyplot as plt


 import numpy as np



 # class_name对应label，按文件夹字符串从小到大的顺序标记label

 class_name = {

     0: "basal_cell_carcinoma",

     1: "melanoma",

     2: "nevus",

     3: "pigmented_benign_keratosis",

 }



 # print(images[0])

 plt.figure(figsize=(5, 5))

 for i in range(4):

     # 获取图像及其对应的label

     # print(images[i])

     data_image = images[i].asnumpy()

     data_label = labels[i]

     # 处理图像供展示使用

     data_image = np.transpose(data_image, (1, 2, 0))

     mean = np.array([0.485, 0.456, 0.406])

     std = np.array([0.229, 0.224, 0.225])

     data_image = std * data_image + mean

     data_image = np.clip(data_image, 0, 1)

     # 显示图像

     plt.subplot(2, 2, i+1)

     plt.imshow(data_image)

     plt.title(class_name[int(labels[i].asnumpy())])

     plt.axis("off")



 plt.show()

 from typing import Type, Union, List, Optional


 from mindspore import nn, train

 from mindspore.common.initializer import Normal





 weight_init = Normal(mean=0, sigma=0.02)

 gamma_init = Normal(mean=1, sigma=0.02)

 class ResidualBlockBase(nn.Cell):

     expansion: int = 1  # 最后一个卷积核数量与第一个卷积核数量相等



     def __init__(self, in_channel: int, out_channel: int,

              stride: int = 1, norm: Optional[nn.Cell] = None,

              down_sample: Optional[nn.Cell] = None) -> None:

     super(ResidualBlockBase, self).__init__()

     if not norm:

         self.norm = nn.BatchNorm2d(out_channel)

     else:

         self.norm = norm



     self.conv1 = nn.Conv2d(in_channel, out_channel,

                            kernel_size=3, stride=stride,

                            weight_init=weight_init)

     self.conv2 = nn.Conv2d(in_channel, out_channel,

                            kernel_size=3, weight_init=weight_init)

     self.relu = nn.ReLU()

     self.down_sample = down_sample



     def construct(self, x):

     """ResidualBlockBase construct."""

     identity = x  # shortcuts分支



     out = self.conv1(x)  # 主分支第一层：3*3卷积层

     out = self.norm(out)

     out = self.relu(out)

     out = self.conv2(out)  # 主分支第二层：3*3卷积层

     out = self.norm(out)



     if self.down_sample is not None:

         identity = self.down_sample(x)

     out += identity  # 输出为主分支与shortcuts之和

     out = self.relu(out)



     return out

 class ResidualBlock(nn.Cell):

     expansion = 4  # 最后一个卷积核的数量是第一个卷积核数量的4倍



     def __init__(self, in_channel: int, out_channel: int,

              stride: int = 1, down_sample: Optional[nn.Cell] = None) -> None:

     super(ResidualBlock, self).__init__()



     self.conv1 = nn.Conv2d(in_channel, out_channel,

                            kernel_size=1, weight_init=weight_init)

     self.norm1 = nn.BatchNorm2d(out_channel)

     self.conv2 = nn.Conv2d(out_channel, out_channel,

                            kernel_size=3, stride=stride,

                            weight_init=weight_init)

     self.norm2 = nn.BatchNorm2d(out_channel)

     self.conv3 = nn.Conv2d(out_channel, out_channel * self.expansion,

                            kernel_size=1, weight_init=weight_init)

     self.norm3 = nn.BatchNorm2d(out_channel * self.expansion)



     self.relu = nn.ReLU()

     self.down_sample = down_sample



     def construct(self, x):



     identity = x  # shortscuts分支



     out = self.conv1(x)  # 主分支第一层：1*1卷积层

     out = self.norm1(out)

     out = self.relu(out)

     out = self.conv2(out)  # 主分支第二层：3*3卷积层

     out = self.norm2(out)

     out = self.relu(out)

     out = self.conv3(out)  # 主分支第三层：1*1卷积层

     out = self.norm3(out)



     if self.down_sample is not None:

         identity = self.down_sample(x)



     out += identity  # 输出为主分支与shortcuts之和

     out = self.relu(out)



     return out

 def make_layer(last_out_channel, block: Type[Union[ResidualBlockBase, ResidualBlock]],

            channel: int, block_nums: int, stride: int = 1):

     down_sample = None  # shortcuts分支





     if stride != 1 or last_out_channel != channel * block.expansion:



     down_sample = nn.SequentialCell([

         nn.Conv2d(last_out_channel, channel * block.expansion,

                   kernel_size=1, stride=stride, weight_init=weight_init),

         nn.BatchNorm2d(channel * block.expansion, gamma_init=gamma_init)

     ])



     layers = []

     layers.append(block(last_out_channel, channel, stride=stride, down_sample=down_sample))



     in_channel = channel * block.expansion

     # 堆叠残差网络

     for _ in range(1, block_nums):



     layers.append(block(in_channel, channel))



     return nn.SequentialCell(layers)

 from mindspore import load_checkpoint, load_param_into_net





 class ResNet(nn.Cell):

     def __init__(self, block: Type[Union[ResidualBlockBase, ResidualBlock]],

              layer_nums: List[int], num_classes: int, input_channel: int) -> None:

     super(ResNet, self).__init__()



     self.relu = nn.ReLU()

     # 第一个卷积层，输入channel为3（彩色图像），输出channel为64

     self.conv1 = nn.Conv2d(3, 64, kernel_size=7, stride=2, weight_init=weight_init)

     self.norm = nn.BatchNorm2d(64)

     # 最大池化层，缩小图片的尺寸

     self.max_pool = nn.MaxPool2d(kernel_size=3, stride=2, pad_mode='same')

     # 各个残差网络结构块定义，

     self.layer1 = make_layer(64, block, 64, layer_nums[0])

     self.layer2 = make_layer(64 * block.expansion, block, 128, layer_nums[1], stride=2)

     self.layer3 = make_layer(128 * block.expansion, block, 256, layer_nums[2], stride=2)

     self.layer4 = make_layer(256 * block.expansion, block, 512, layer_nums[3], stride=2)

     # 平均池化层

     self.avg_pool = nn.AvgPool2d()

     # flattern层

     self.flatten = nn.Flatten()

     # 全连接层

     self.fc = nn.Dense(in_channels=input_channel, out_channels=num_classes)



     def construct(self, x):



     x = self.conv1(x)

     x = self.norm(x)

     x = self.relu(x)

     x = self.max_pool(x)



     x = self.layer1(x)

     x = self.layer2(x)

     x = self.layer3(x)

     x = self.layer4(x)



     x = self.avg_pool(x)

     x = self.flatten(x)

     x = self.fc(x)



     return x





 def _resnet(model_url: str, block: Type[Union[ResidualBlockBase, ResidualBlock]],

         layers: List[int], num_classes: int, pretrained: bool, pretrianed_ckpt: str,

         input_channel: int):

     model = ResNet(block, layers, num_classes, input_channel)



     if pretrained:

     # 加载预训练模型

     download(url=model_url, path=pretrianed_ckpt, replace=True)

     param_dict = load_checkpoint(pretrianed_ckpt)

     load_param_into_net(model, param_dict)



     return model





 def resnet50(num_classes: int = 1000, pretrained: bool = False):

     "ResNet50模型"

     resnet50_url = "https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/models/application/resnet50_224_new.ckpt"

     resnet50_ckpt = "./pretrainmodel/resnet50_224_new.ckpt"

     return _resnet(resnet50_url, ResidualBlock, [3, 4, 6, 3], num_classes,

                pretrained, resnet50_ckpt, 2048)

 --------------------


 Epoch: [ 23/ 25], Average Train Loss: [0.418], Accuracy: [0.734]

 epoch time: 4133.578 ms, per step time: 158.984 ms

 --------------------

 Epoch: [ 24/ 25], Average Train Loss: [0.448], Accuracy: [0.719]

 epoch time: 3491.099 ms, per step time: 134.273 ms

 --------------------

 Epoch: [ 25/ 25], Average Train Loss: [0.390], Accuracy: [0.719]

 epoch time: 3515.689 ms, per step time: 135.219 ms

 ================================================================================

 End of validation the best Accuracy is:  0.734, save the best ckpt file in ./BestCheckpoint/resnet50-best.ckpt

 # 代码中首先导入了必要的MindSpore模块和函数，并设置了运行环境。


 import mindspore

 from mindspore import nn, train

 from mindspore.nn import Loss, Accuracy

 !pip install download

 import mindspore as ms

 from download import download



 network = resnet50(pretrained=True)



 # 通过替换ResNet50的原始全连接层和平均池化层来适配新的任务

 # 全连接层输入层的大小

 in_channels = network.fc.in_channels

 # 输出通道数大小为皮肤肿瘤分类数4

 head = nn.Dense(in_channels, 4)

 # 重置全连接层

 network.fc = head



 # 平均池化层kernel size为7

 avg_pool = nn.AvgPool2d(kernel_size=7)

 # 重置平均池化层

 network.avg_pool = avg_pool



 import mindspore as ms

 import mindspore



 # 定义优化器和损失函数

 opt = nn.Momentum(params=network.trainable_params(), learning_rate=lr, momentum=momentum)

 loss_fn = nn.SoftmaxCrossEntropyWithLogits(sparse=True, reduction='mean')



 # 实例化模型

 model = train.Model(network, loss_fn, opt, metrics={"Accuracy": Accuracy()})



 def forward_fn(inputs, targets):



     logits = network(inputs)

     loss = loss_fn(logits, targets)



     return loss



 grad_fn = mindspore.ops.value_and_grad(forward_fn, None, opt.parameters)



 def train_step(inputs, targets):



     loss, grads = grad_fn(inputs, targets)

     opt(grads)



     return loss



 # 创建迭代器

 data_loader_train = dataset_train.create_tuple_iterator(num_epochs=num_epochs)

 # 最佳模型保存路径

 best_ckpt_dir = "./BestCheckpoint"

 best_ckpt_path = "./BestCheckpoint/resnet50-best.ckpt"

 import os

 import time



 # 开始循环训练

 print("Start Training Loop ...")



 best_acc = 0



 # 训练循环中，数据通过迭代器被加载，模型在每个epoch中更新权重，并计算训练损失。

 # 在每个epoch结束时，模型在验证集上评估准确率，并保存具有最高准确率的模型检查点。

 for epoch in range(num_epochs):

     losses = []

     network.set_train()



     epoch_start = time.time()



     # 为每轮训练读入数据

     for i, (images, labels) in enumerate(data_loader_train):

     labels = labels.astype(ms.int32)

     loss = train_step(images, labels)

     losses.append(loss)



     # 每个epoch结束后，验证准确率



     acc = model.eval(dataset_val)['Accuracy']



     epoch_end = time.time()

     epoch_seconds = (epoch_end - epoch_start)

     step_seconds = epoch_seconds/step_size_train



     print("-" * 20)

     print("Epoch: [%3d/%3d], Average Train Loss: [%5.3f], Accuracy: [%5.3f]" % (

     epoch+1, num_epochs, sum(losses)/len(losses), acc

     ))

     print("epoch time: %5.3f ms, per step time: %5.3f ms" % (

     epoch_seconds, step_seconds

     ))



     if acc > best_acc:

     best_acc = acc

     if not os.path.exists(best_ckpt_dir):

         os.mkdir(best_ckpt_dir)

     ms.save_checkpoint(network, best_ckpt_path)



 print("=" * 80)

 print(f"End of validation the best Accuracy is: {best_acc: 5.3f}, "

       f"save the best ckpt file in {best_ckpt_path}", flush=True)

>     [Simple Index](https://repo.huaweicloud.com/repository/pypi/simple/ "Simple Index")<https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/models/application/resnet50_224_new.ckpt>

 import matplotlib.pyplot as plt


 import mindspore as ms



 def visualize_model(best_ckpt_path, val_ds):

     net = resnet50()

     # 全连接层输入层的大小

     in_channels = net.fc.in_channels

     # 输出通道数大小为分类数4

     head = nn.Dense(in_channels, 4)

     # 重置全连接层

     net.fc = head

     # 平均池化层kernel size为7

     avg_pool = nn.AvgPool2d(kernel_size=7)

     # 重置平均池化层

     net.avg_pool = avg_pool

     # 加载模型参数

     param_dict = ms.load_checkpoint(best_ckpt_path)

     ms.load_param_into_net(net, param_dict)

     model = train.Model(net)

     # 加载验证集的数据进行验证

     data = next(val_ds.create_dict_iterator())

     images = data["image"].asnumpy()

     # print(type(images))

     # print(images.shape)

     #print(images)

     labels = data["label"].asnumpy()

     #print(labels)

     class_name = {

     0: "basal_cell_carcinoma",

     1: "melanoma",

     2: "nevus",

     3: "pigmented_benign_keratosis"

     }



     # 预测图像类别

     data_pre=ms.Tensor(data["image"])

     # print(data_pre.shape)

     # print(type(data_pre))

     output = model.predict(data_pre)



     # print(output)

     pred = np.argmax(output.asnumpy(), axis=1)

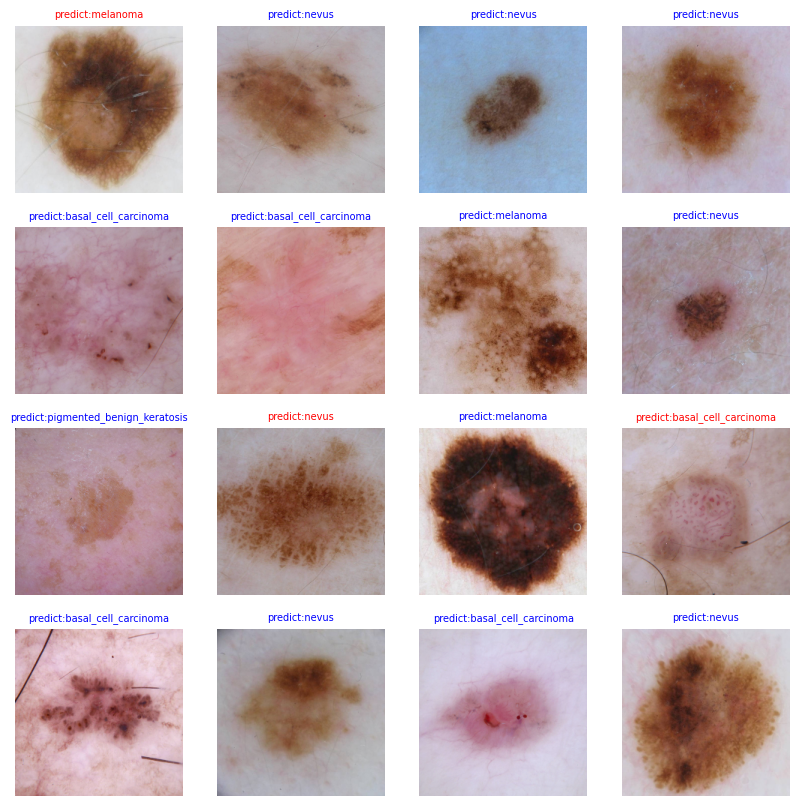

     # 显示图像及图像的预测值

     plt.figure(figsize=(10, 10))

     for i in range(16):

     plt.subplot(4, 4, i + 1)

     # 若预测正确，显示为蓝色；若预测错误，显示为红色

     color = 'blue' if pred[i] == labels[i] else 'red'

     plt.title('predict:{}'.format(class_name[pred[i]]), color=color,fontsize=7)

     picture_show = np.transpose(images[i], (1, 2, 0))

     mean = np.array([0.485, 0.456, 0.406])

     std = np.array([0.229, 0.224, 0.225])

     picture_show = std * picture_show + mean

     picture_show = np.clip(picture_show, 0, 1)

     plt.imshow(picture_show)

     plt.axis('off')



     plt.show()

 visualize_model('BestCheckpoint/resnet50-best.ckpt', dataset_val)

 import numpy as np


 import matplotlib.pyplot as plt

 import mindspore as ms

 from mindspore import nn

 from mindspore.train.serialization import load_checkpoint, load_param_into_net

 import mindspore.numpy as mnp



 def preprocess_image(image_path):

     # 使用PIL加载图像

     from PIL import Image

     image = Image.open(image_path)

     # 转换图像为RGB模式

     image = image.convert('RGB')

     # 调整图像大小以匹配模型输入

     image = image.resize((224, 224))  # 假设模型输入大小为224x224

     # 将图像转换为numpy数组

     image_array = np.array(image)

     # 归一化图像数组

     image_array = image_array / 255.0

     image_array = np.transpose(image_array, (2, 0, 1))

     # 扩展维度以匹配模型输入，例如 (1, 3, 224, 224)

     image_array = np.expand_dims(image_array, axis=0)

     return image_array.astype(np.float32)  # 确保数据类型为float32

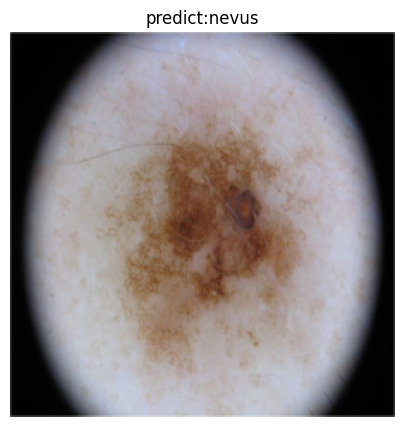

 def visualize_prediction(image_path, best_ckpt_path):

     net = resnet50()

     # 全连接层输入层的大小

     in_channels = net.fc.in_channels

     # 输出通道数大小为分类数4

     head = nn.Dense(in_channels, 4)

     # 重置全连接层

     net.fc = head

     # 平均池化层kernel size为7

     avg_pool = nn.AvgPool2d(kernel_size=7)

     # 重置平均池化层

     net.avg_pool = avg_pool

     # 加载模型参数

     param_dict = ms.load_checkpoint(best_ckpt_path)

     ms.load_param_into_net(net, param_dict)

     model = train.Model(net)

     # 预处理图像

     image = preprocess_image(image_path)

     data_pre = ms.Tensor(image)

     print(data_pre.shape)

     print(type(data_pre))

     class_name = {

     0: "basal_cell_carcinoma",

     1: "melanoma",

     2: "nevus",

     3: "pigmented_benign_keratosis"

     }

     output = model.predict(data_pre)

     print(output)

     pred = np.argmax(output.asnumpy(), axis=1)

     print(pred)



     plt.figure(figsize=(5, 5))

     plt.subplot(1, 1, 1)

     plt.title('predict:{}'.format(class_name[pred[0]]))

     picture_show = image[0]  # 已经是归一化后的图像

     picture_show = np.transpose(picture_show, (1, 2, 0))  # 转换为(224, 224, 3)

     plt.imshow(picture_show)

     plt.axis('off')

     plt.show()



 # 调用函数，传入图片路径和模型检查点路径

 visualize_prediction('pifudata_Maker/images/val/2/ISIC_0000005.jpg', 'BestCheckpoint/resnet50-best.ckpt')
