基于Pytorch深度学习的脑肿瘤分类识别

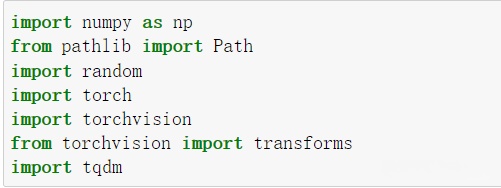

 import numpy as np


 from pathlib import Path

 import random

 import torch

 import torchvision

 from torchvision import transforms

 import tqdm

 data_dir = Path("./brain_tumor_dataset")

 list(data_dir.iterdir())

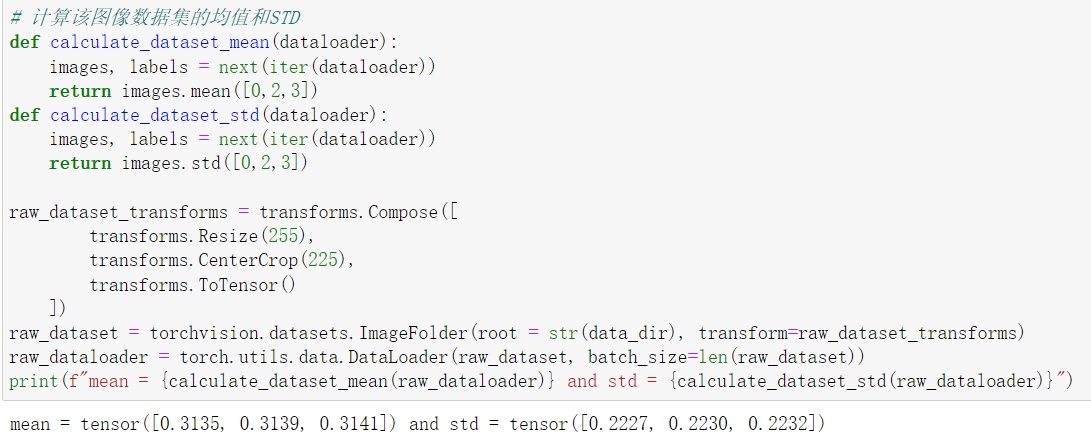

 # 计算该图像数据集的均值和STD

 def calculate_dataset_mean(dataloader):

     images, labels = next(iter(dataloader))

     return images.mean([0,2,3])

 def calculate_dataset_std(dataloader):

     images, labels = next(iter(dataloader))

     return images.std([0,2,3])



 raw_dataset_transforms = transforms.Compose([

     transforms.Resize(255),

     transforms.CenterCrop(225),

     transforms.ToTensor()

     ])

 raw_dataset = torchvision.datasets.ImageFolder(root = str(data_dir), transform=raw_dataset_transforms)

 raw_dataloader = torch.utils.data.DataLoader(raw_dataset, batch_size=len(raw_dataset))

 print(f"mean = {calculate_dataset_mean(raw_dataloader)} and std = {calculate_dataset_std(raw_dataloader)}")

 '''

 创建数据加载器

 为训练和验证数据集组合转换

 创建应用了适当转换的数据集

 使用数据集创建数据加载程序

 '''

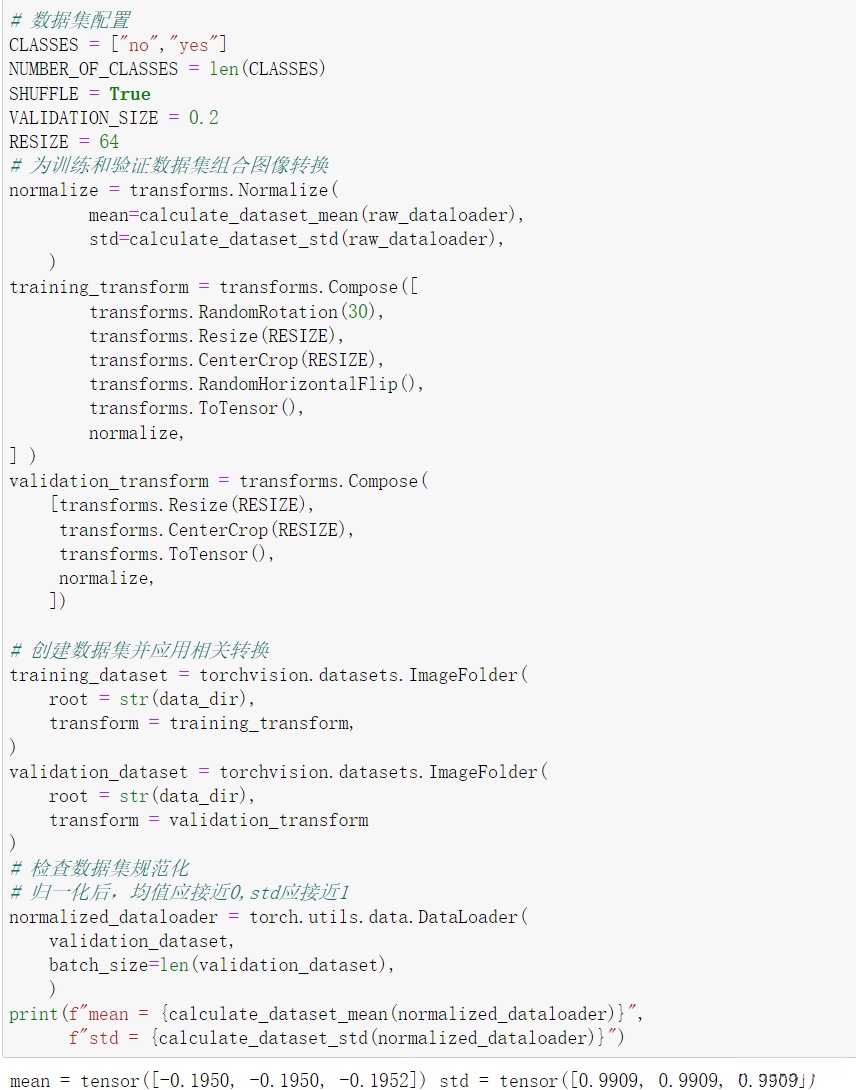

 # 数据集配置

 CLASSES = ["no","yes"]

 NUMBER_OF_CLASSES = len(CLASSES)

 SHUFFLE = True

 VALIDATION_SIZE = 0.2

 RESIZE = 64

 # 为训练和验证数据集组合图像转换

 normalize = transforms.Normalize(

     mean=calculate_dataset_mean(raw_dataloader),

     std=calculate_dataset_std(raw_dataloader),

     )

 training_transform = transforms.Compose([

     transforms.RandomRotation(30),

     transforms.Resize(RESIZE),

     transforms.CenterCrop(RESIZE),

     transforms.RandomHorizontalFlip(),

     transforms.ToTensor(),

     normalize,

 ] )

 validation_transform = transforms.Compose(

     [transforms.Resize(RESIZE),

      transforms.CenterCrop(RESIZE),

      transforms.ToTensor(),

      normalize,

     ])



 # 创建数据集并应用相关转换

 training_dataset = torchvision.datasets.ImageFolder(

     root = str(data_dir),

     transform = training_transform,

 )

 validation_dataset = torchvision.datasets.ImageFolder(

     root = str(data_dir),

     transform = validation_transform

 )

 # 检查数据集规范化

 # 归一化后，均值应接近0,std应接近1

 normalized_dataloader = torch.utils.data.DataLoader(

     validation_dataset,

     batch_size=len(validation_dataset),

     )

 print(f"mean = {calculate_dataset_mean(normalized_dataloader)}",

       f"std = {calculate_dataset_std(normalized_dataloader)}")

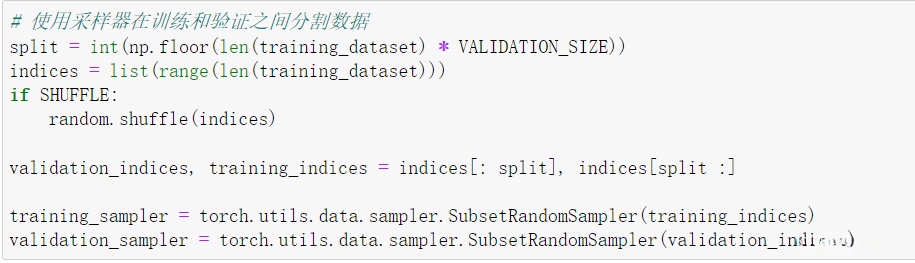

 # 使用采样器在训练和验证之间分割数据

 split = int(np.floor(len(training_dataset) * VALIDATION_SIZE))

 indices = list(range(len(training_dataset)))

 if SHUFFLE:

     random.shuffle(indices)



 validation_indices, training_indices = indices[: split], indices[split :]



 training_sampler = torch.utils.data.sampler.SubsetRandomSampler(training_indices)

 validation_sampler = torch.utils.data.sampler.SubsetRandomSampler(validation_indices)

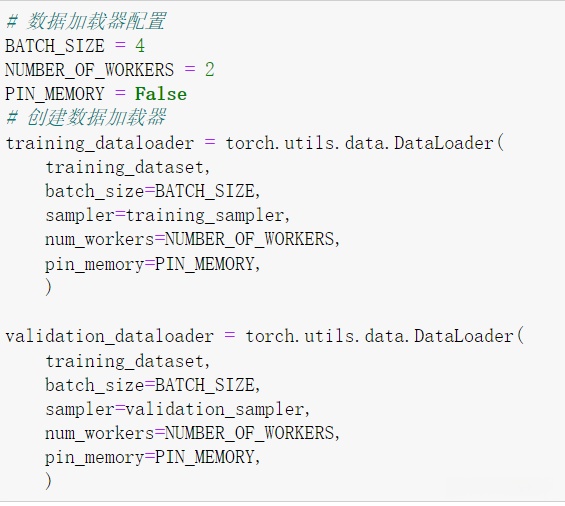

 # 数据加载器配置

 BATCH_SIZE = 4

 NUMBER_OF_WORKERS = 2

 PIN_MEMORY = False

 # 创建数据加载器

 training_dataloader = torch.utils.data.DataLoader(

     training_dataset,

     batch_size=BATCH_SIZE,

     sampler=training_sampler,

     num_workers=NUMBER_OF_WORKERS,

     pin_memory=PIN_MEMORY,

     )



 validation_dataloader = torch.utils.data.DataLoader(

     training_dataset,

     batch_size=BATCH_SIZE,

     sampler=validation_sampler,

     num_workers=NUMBER_OF_WORKERS,

     pin_memory=PIN_MEMORY,

     )

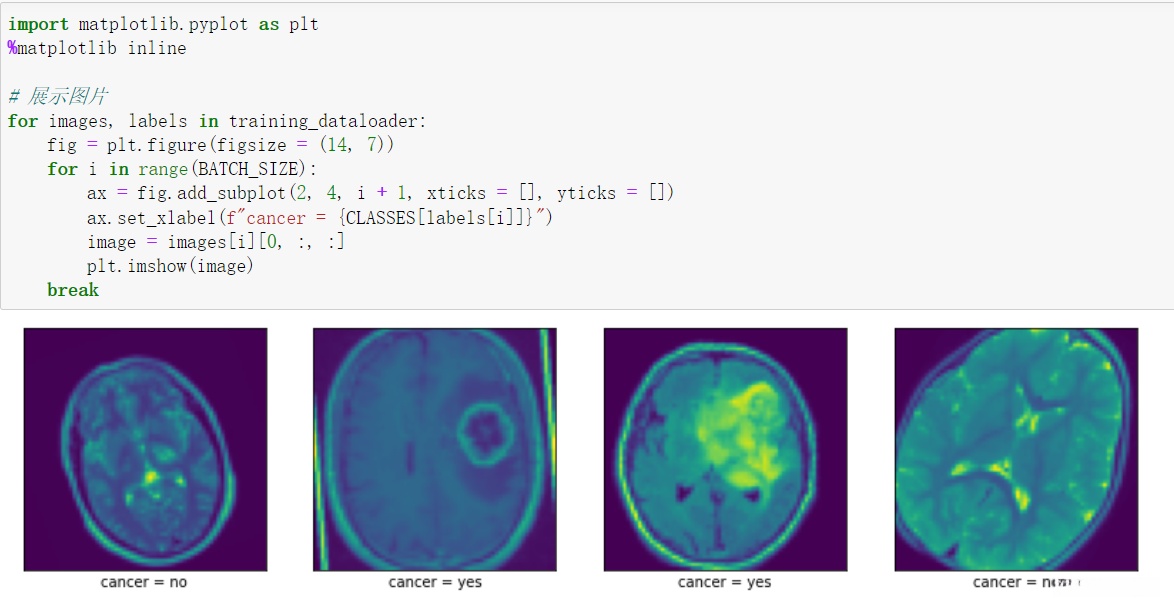

 import matplotlib.pyplot as plt

 %matplotlib inline



 # 展示图片

 for images, labels in training_dataloader:

     fig = plt.figure(figsize = (14, 7))

     for i in range(BATCH_SIZE):

     ax = fig.add_subplot(2, 4, i + 1, xticks = [], yticks = [])

     ax.set_xlabel(f"cancer = {CLASSES[labels[i]]}")

     image = images[i][0, :, :]

     plt.imshow(image)

     break

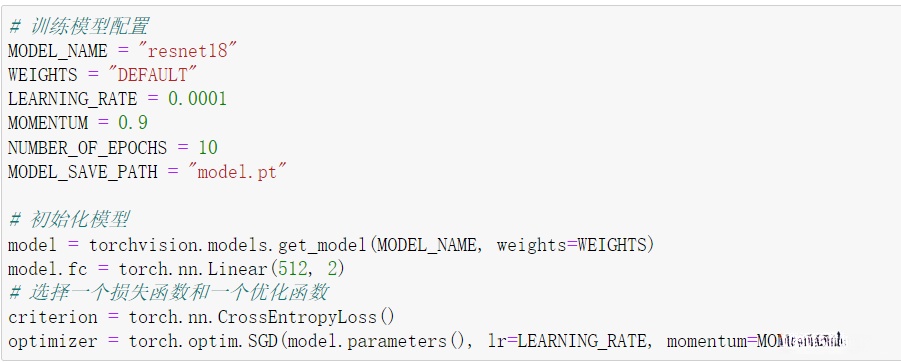

 # 训练模型配置

 MODEL_NAME = "resnet18"

 WEIGHTS = "DEFAULT"

 LEARNING_RATE = 0.0001

 MOMENTUM = 0.9

 NUMBER_OF_EPOCHS = 10

 MODEL_SAVE_PATH = "model.pt"



 # 初始化模型

 model = torchvision.models.get_model(MODEL_NAME, weights=WEIGHTS)

 model.fc = torch.nn.Linear(512, 2)

 # 选择一个损失函数和一个优化函数

 criterion = torch.nn.CrossEntropyLoss()

 optimizer = torch.optim.SGD(model.parameters(), lr=LEARNING_RATE, momentum=MOMENTUM)

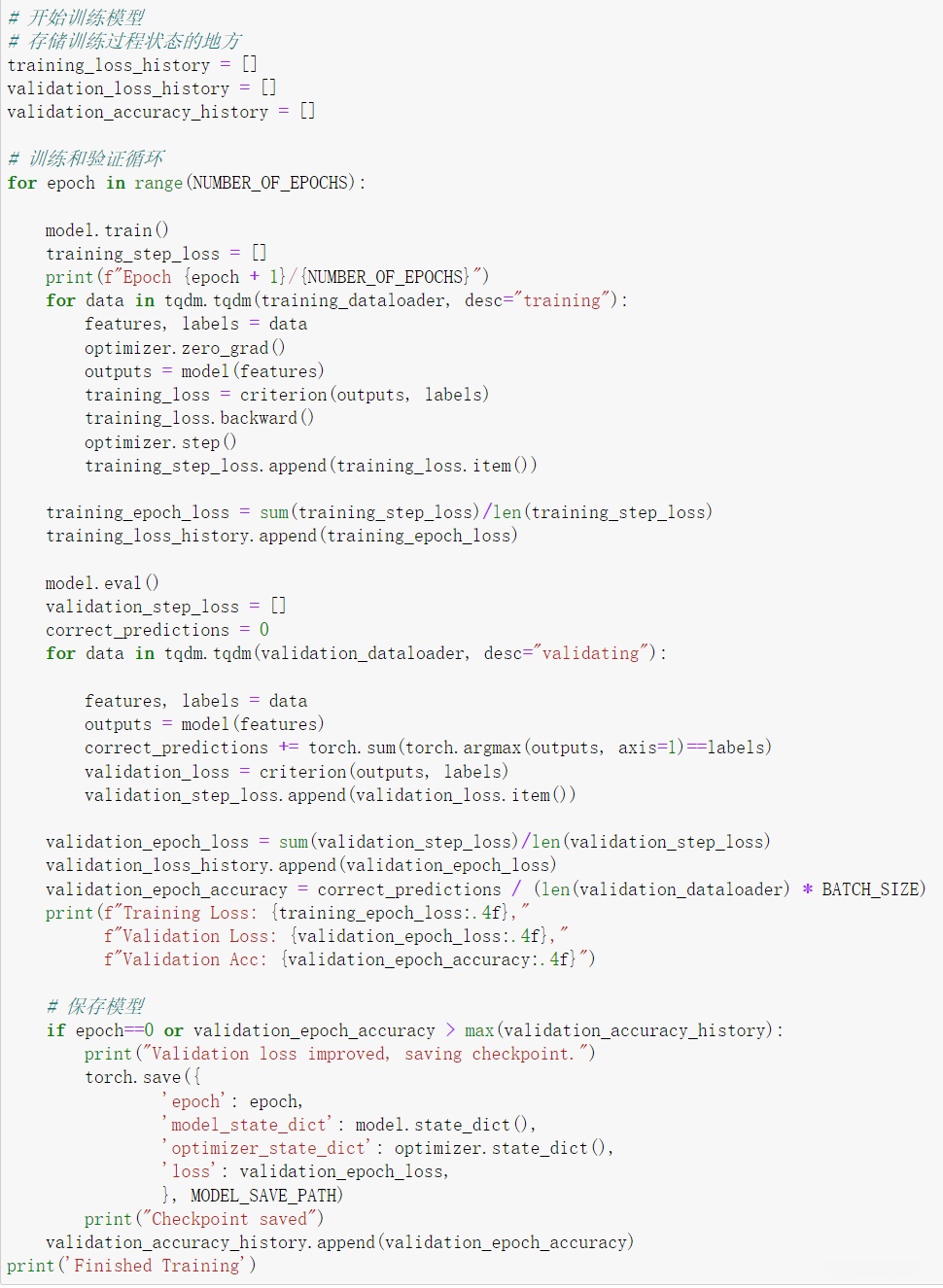

 # 开始训练模型

 # 存储训练过程状态的地方

 training_loss_history = []

 validation_loss_history = []

 validation_accuracy_history = []

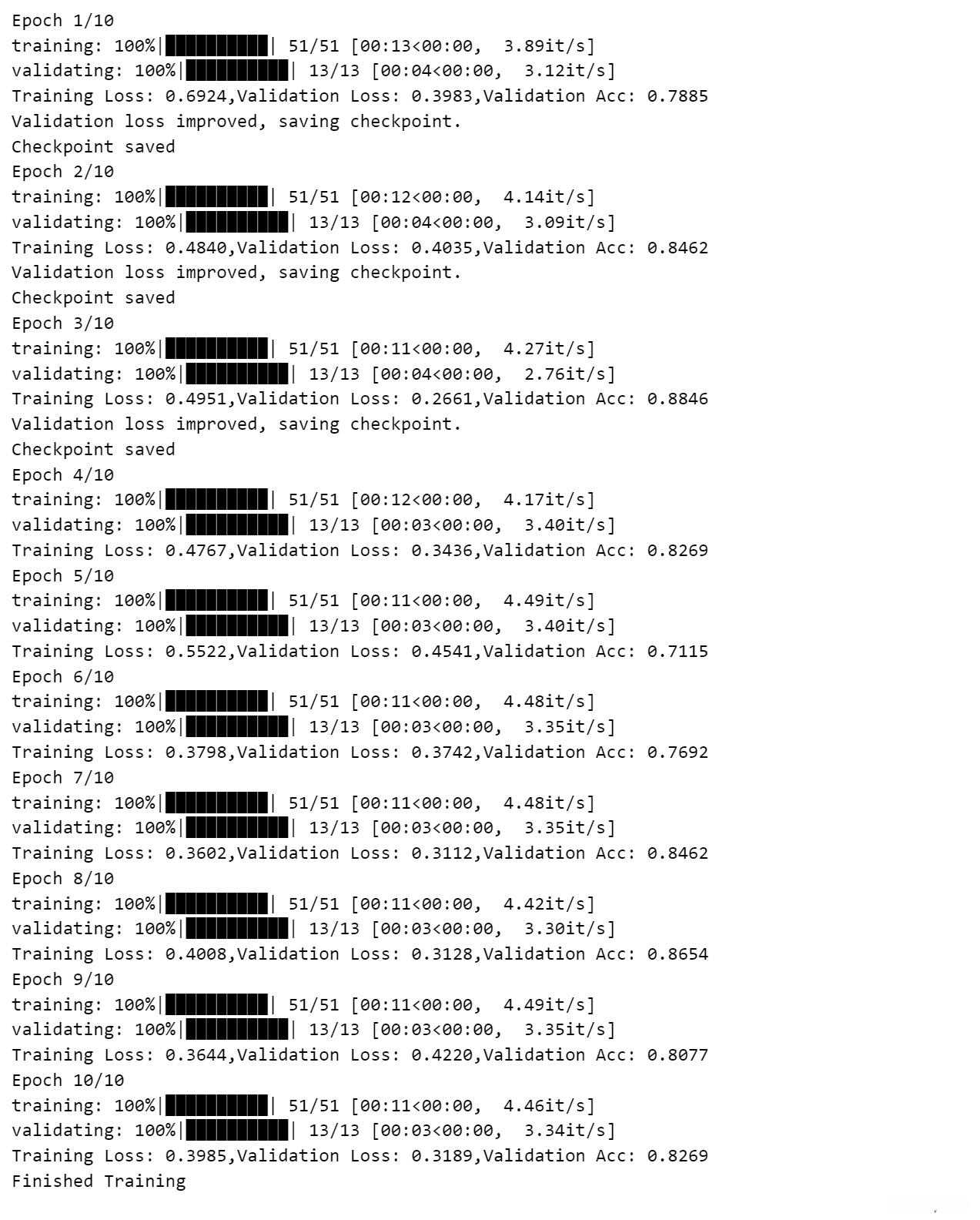

 # 训练和验证循环

 for epoch in range(NUMBER_OF_EPOCHS):



     model.train()

     training_step_loss = []

     print(f"Epoch {epoch + 1}/{NUMBER_OF_EPOCHS}")

     for data in tqdm.tqdm(training_dataloader, desc="training"):

     features, labels = data

     optimizer.zero_grad()

     outputs = model(features)

     training_loss = criterion(outputs, labels)

     training_loss.backward()

     optimizer.step()

     training_step_loss.append(training_loss.item())



     training_epoch_loss = sum(training_step_loss)/len(training_step_loss)

     training_loss_history.append(training_epoch_loss)



     model.eval()

     validation_step_loss = []

     correct_predictions = 0

     for data in tqdm.tqdm(validation_dataloader, desc="validating"):



     features, labels = data

     outputs = model(features)

     correct_predictions += torch.sum(torch.argmax(outputs, axis=1)==labels)

     validation_loss = criterion(outputs, labels)

     validation_step_loss.append(validation_loss.item())



     validation_epoch_loss = sum(validation_step_loss)/len(validation_step_loss)

     validation_loss_history.append(validation_epoch_loss)

     validation_epoch_accuracy = correct_predictions / (len(validation_dataloader) * BATCH_SIZE)

     print(f"Training Loss: {training_epoch_loss:.4f},"

       f"Validation Loss: {validation_epoch_loss:.4f},"

       f"Validation Acc: {validation_epoch_accuracy:.4f}")



     # 保存模型

     if epoch==0 or validation_epoch_accuracy > max(validation_accuracy_history):

     print("Validation loss improved, saving checkpoint.")

     torch.save({

             'epoch': epoch,

             'model_state_dict': model.state_dict(),

             'optimizer_state_dict': optimizer.state_dict(),

             'loss': validation_epoch_loss,

             }, MODEL_SAVE_PATH)

     print("Checkpoint saved")

     validation_accuracy_history.append(validation_epoch_accuracy)

 print('Finished Training')

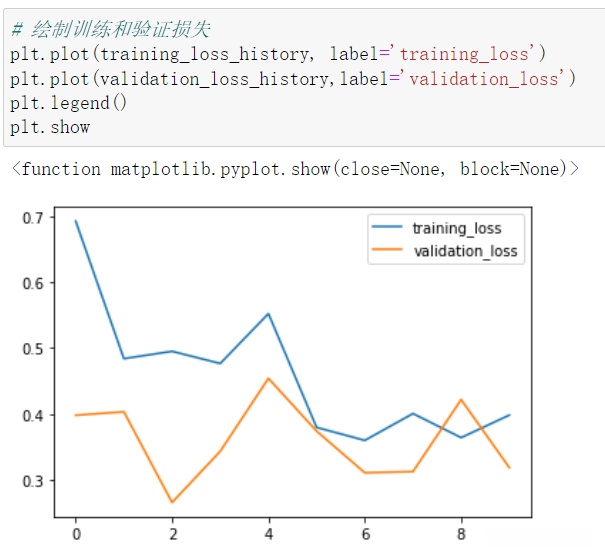

 # 绘制训练和验证损失

 plt.plot(training_loss_history, label='training_loss')

 plt.plot(validation_loss_history,label='validation_loss')

 plt.legend()

 plt.show

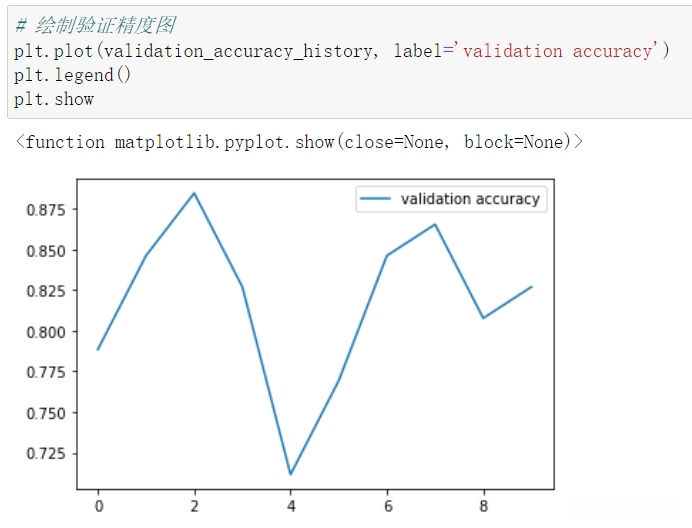

 # 绘制验证精度图

 plt.plot(validation_accuracy_history, label='validation accuracy')

 plt.legend()

 plt.show
