自动驾驶系统进阶与项目实战（四）自动驾驶高精度地图构建中的三维场景识别和闭环检测

    const double LIDAR_HEIGHT = 2.0; // lidar height : add this for simply directly using lidar scan in the lidar local coord (not robot base coord) / if you use robot-coord-transformed lidar scans, just set this as 0.

    const int    PC_NUM_RING = 20; // 20 in the original paper (IROS 18)
    const int    PC_NUM_SECTOR = 60; // 60 in the original paper (IROS 18)
    const double PC_MAX_RADIUS = 80.0; // 80 meter max in the original paper (IROS 18)
    const double PC_UNIT_SECTORANGLE = 360.0 / double(PC_NUM_SECTOR);
    const double PC_UNIT_RINGGAP = PC_MAX_RADIUS / double(PC_NUM_RING);

    // tree
    const int    NUM_EXCLUDE_RECENT = 50; // simply just keyframe gap, but node position distance-based exclusion is ok.
    const int    NUM_CANDIDATES_FROM_TREE = 10; // 10 is enough. (refer the IROS 18 paper)

    // loop thres
    const double SEARCH_RATIO = 0.1; // for fast comparison, no Brute-force, but search 10 % is okay. // but may well work for same-direction-revisits, not for reverse-revisits
    // const double SC_DIST_THRES = 0.13; // empirically 0.1-0.2 is fine (rare false-alarms) for 20x60 polar context (but for 0.15 <, DCS or ICP fit score check (e.g., in LeGO-LOAM) should be required for robustness)
    const double SC_DIST_THRES = 0.13; // 0.4-0.6 is good choice for using with robust kernel (e.g., Cauchy, DCS) + icp fitness threshold

    // config
    const int    TREE_MAKING_PERIOD_ = 50; // i.e., remaking tree frequency, to avoid non-mandatory every remaking, to save time cost






















    AI助手

    void SCManager::makeAndSaveScancontextAndKeys( pcl::PointCloud<SCPointType> & _scan_down )
    {
    Eigen::MatrixXd sc = makeScancontext(_scan_down); // v1
    Eigen::MatrixXd ringkey = makeRingkeyFromScancontext( sc );
    Eigen::MatrixXd sectorkey = makeSectorkeyFromScancontext( sc );
    std::vector<float> polarcontext_invkey_vec = eig2stdvec( ringkey );

    polarcontexts_.push_back( sc );
    polarcontext_invkeys_.push_back( ringkey );
    polarcontext_vkeys_.push_back( sectorkey );
    polarcontext_invkeys_mat_.push_back( polarcontext_invkey_vec );

    // cout <<polarcontext_vkeys_.size() << endl;

    } // SCManager::makeAndSaveScancontextAndKeys


















    AI助手

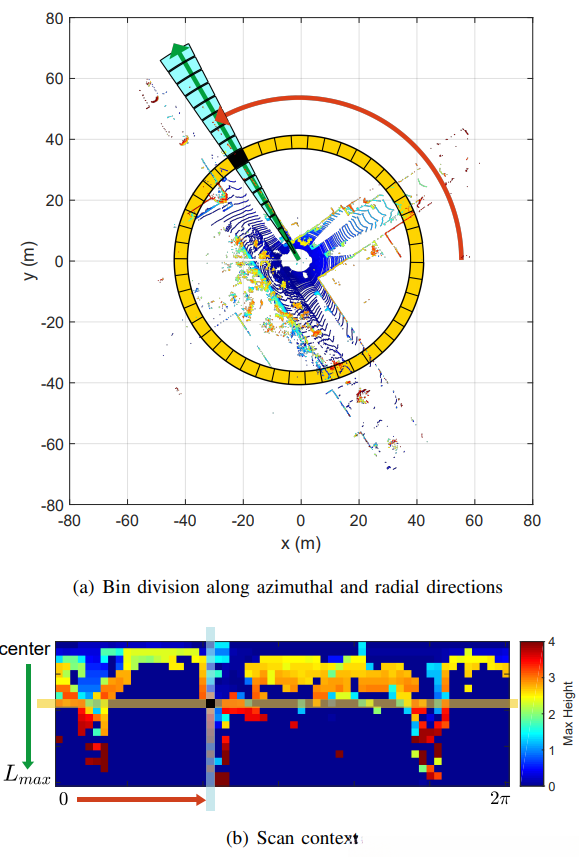

    MatrixXd SCManager::makeScancontext( pcl::PointCloud<SCPointType> & _scan_down )
    {
    TicToc t_making_desc;

    int num_pts_scan_down = _scan_down.points.size();

    // main
    const int NO_POINT = -1000;
    MatrixXd desc = NO_POINT * MatrixXd::Ones(PC_NUM_RING, PC_NUM_SECTOR);

    SCPointType pt;
    float azim_angle, azim_range; // wihtin 2d plane
    int ring_idx, sctor_idx;
    for (int pt_idx = 0; pt_idx < num_pts_scan_down; pt_idx++)
    {
        pt.x = _scan_down.points[pt_idx].x;
        pt.y = _scan_down.points[pt_idx].y;
        pt.z = _scan_down.points[pt_idx].z + LIDAR_HEIGHT; // naive adding is ok (all points should be > 0).

        // xyz to ring, sector
        azim_range = sqrt(pt.x * pt.x + pt.y * pt.y);
        azim_angle = xy2theta(pt.x, pt.y);

        // if range is out of roi, pass
        if( azim_range > PC_MAX_RADIUS )
            continue;

        ring_idx = std::max( std::min( PC_NUM_RING, int(ceil( (azim_range / PC_MAX_RADIUS) * PC_NUM_RING )) ), 1 );
        sctor_idx = std::max( std::min( PC_NUM_SECTOR, int(ceil( (azim_angle / 360.0) * PC_NUM_SECTOR )) ), 1 );

        // taking maximum z
        if ( desc(ring_idx-1, sctor_idx-1) < pt.z ) // -1 means cpp starts from 0
            desc(ring_idx-1, sctor_idx-1) = pt.z; // update for taking maximum value at that bin
    }

    // reset no points to zero (for cosine dist later)
    for ( int row_idx = 0; row_idx < desc.rows(); row_idx++ )
        for ( int col_idx = 0; col_idx < desc.cols(); col_idx++ )
            if( desc(row_idx, col_idx) == NO_POINT )
                desc(row_idx, col_idx) = 0;

    t_making_desc.toc("PolarContext making");

    return desc;
    } // SCManager::makeScancontext
















































    AI助手

    MatrixXd SCManager::makeRingkeyFromScancontext( Eigen::MatrixXd &_desc )
    {
    /* * summary: rowwise mean vector
    */
    Eigen::MatrixXd invariant_key(_desc.rows(), 1);
    for ( int row_idx = 0; row_idx < _desc.rows(); row_idx++ )
    {
        Eigen::MatrixXd curr_row = _desc.row(row_idx);
        invariant_key(row_idx, 0) = curr_row.mean();
    }

    return invariant_key;
    } // SCManager::makeRingkeyFromScancontext


















    AI助手

    MatrixXd SCManager::makeSectorkeyFromScancontext( Eigen::MatrixXd &_desc )
    {
    /* * summary: columnwise mean vector
    */
    Eigen::MatrixXd variant_key(1, _desc.cols());
    for ( int col_idx = 0; col_idx < _desc.cols(); col_idx++ )
    {
        Eigen::MatrixXd curr_col = _desc.col(col_idx);
        variant_key(0, col_idx) = curr_col.mean();
    }

    return variant_key;
    } // SCManager::makeSectorkeyFromScancontext

















    AI助手

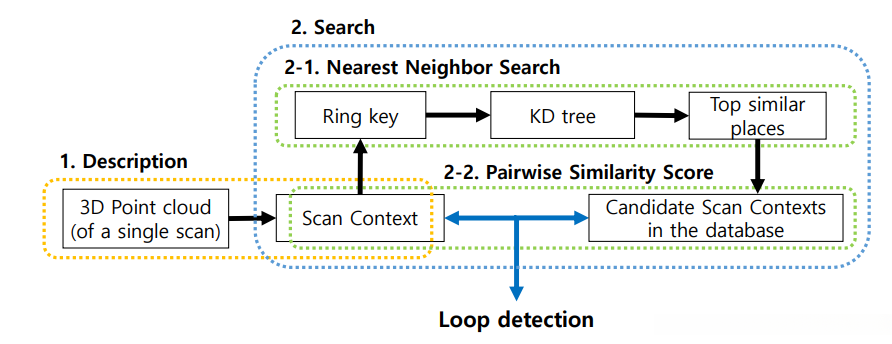

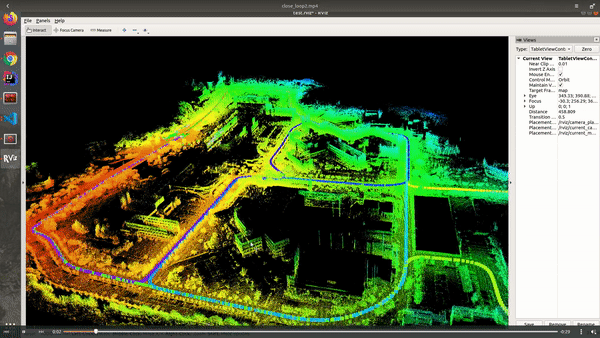

    std::pair<int, float> SCManager::detectLoopClosureID ( void )
    {
    int loop_id { -1 }; // init with -1, -1 means no loop (== LeGO-LOAM's variable "closestHistoryFrameID")

    auto curr_key = polarcontext_invkeys_mat_.back(); // current observation (query)
    auto curr_desc = polarcontexts_.back(); // current observation (query)

    /* * step 1: candidates from ringkey tree_
     */
    if( polarcontext_invkeys_mat_.size() < NUM_EXCLUDE_RECENT + 1)
    {
        std::pair<int, float> result {loop_id, 0.0};
        return result; // Early return
    }

    // tree_ reconstruction (not mandatory to make everytime)
    if( tree_making_period_conter % TREE_MAKING_PERIOD_ == 0) // to save computation cost
    {
        TicToc t_tree_construction;

        polarcontext_invkeys_to_search_.clear();
        polarcontext_invkeys_to_search_.assign( polarcontext_invkeys_mat_.begin(), polarcontext_invkeys_mat_.end() - NUM_EXCLUDE_RECENT ) ;

        polarcontext_tree_.reset();
        polarcontext_tree_ = std::make_unique<InvKeyTree>(PC_NUM_RING /* dim */, polarcontext_invkeys_to_search_, 10 /* max leaf */ );
        // tree_ptr_->index->buildIndex(); // inernally called in the constructor of InvKeyTree (for detail, refer the nanoflann and KDtreeVectorOfVectorsAdaptor)
        t_tree_construction.toc("Tree construction");
    }
    tree_making_period_conter = tree_making_period_conter + 1;

    double min_dist = 10000000; // init with somthing large
    int nn_align = 0;
    int nn_idx = 0;

    // knn search
    std::vector<size_t> candidate_indexes( NUM_CANDIDATES_FROM_TREE );
    std::vector<float> out_dists_sqr( NUM_CANDIDATES_FROM_TREE );

    TicToc t_tree_search;
    nanoflann::KNNResultSet<float> knnsearch_result( NUM_CANDIDATES_FROM_TREE );
    knnsearch_result.init( &candidate_indexes[0], &out_dists_sqr[0] );
    polarcontext_tree_->index->findNeighbors( knnsearch_result, &curr_key[0] /* query */, nanoflann::SearchParams(10) );
    t_tree_search.toc("Tree search");

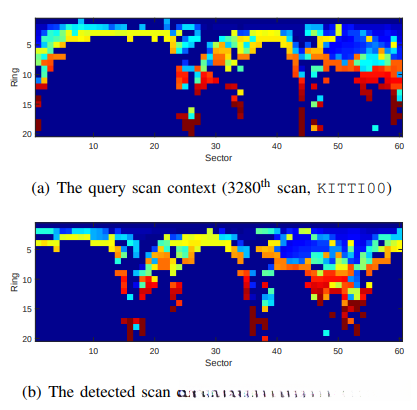

    /* *  step 2: pairwise distance (find optimal columnwise best-fit using cosine distance)
     */
    TicToc t_calc_dist;
    for ( int candidate_iter_idx = 0; candidate_iter_idx < NUM_CANDIDATES_FROM_TREE; candidate_iter_idx++ )
    {
        MatrixXd polarcontext_candidate = polarcontexts_[ candidate_indexes[candidate_iter_idx] ];
        std::pair<double, int> sc_dist_result = distanceBtnScanContext( curr_desc, polarcontext_candidate );

        double candidate_dist = sc_dist_result.first;
        int candidate_align = sc_dist_result.second;

        if( candidate_dist < min_dist )
        {
            min_dist = candidate_dist;
            nn_align = candidate_align;

            nn_idx = candidate_indexes[candidate_iter_idx];
        }
    }
    t_calc_dist.toc("Distance calc");

    /* * loop threshold check
     */
    if( min_dist < SC_DIST_THRES )
    {
        loop_id = nn_idx;

        // std::cout.precision(3);
        cout << "[Loop found] Nearest distance: " << min_dist << " btn " << polarcontexts_.size()-1 << " and " << nn_idx << "." << endl;
        cout << "[Loop found] yaw diff: " << nn_align * PC_UNIT_SECTORANGLE << " deg." << endl;
    }
    else
    {
        std::cout.precision(3);
        cout << "[Not loop] Nearest distance: " << min_dist << " btn " << polarcontexts_.size()-1 << " and " << nn_idx << "." << endl;
        cout << "[Not loop] yaw diff: " << nn_align * PC_UNIT_SECTORANGLE << " deg." << endl;
    }

    // To do: return also nn_align (i.e., yaw diff)
    float yaw_diff_rad = deg2rad(nn_align * PC_UNIT_SECTORANGLE);
    std::pair<int, float> result {loop_id, yaw_diff_rad};

    return result;

    } // SCManager::detectLoopClosureID
