[深度学习]半监督学习、无监督学习之Autoencoders自编码器(附代码)
发布时间
阅读量：
阅读量
目录
自编码器介绍
从零开始训练自编码器
验证模型训练结果
可视化结果
加载预训练模型
自编码器介绍

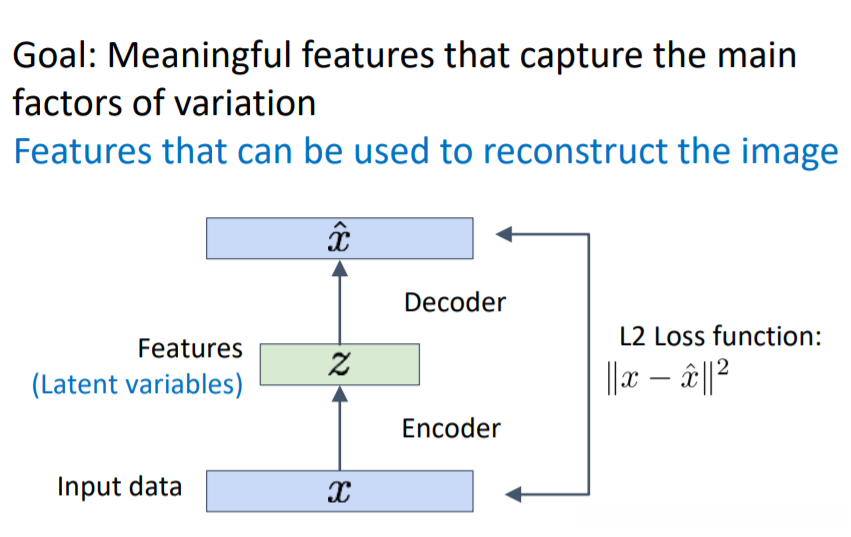

自编码器的结构简单，由Encoder和Decoder组成，Encoder产生的Latent variables是潜在变量，它是Decoder的输入。
自编码器的目标是寻找有意义的feature，用这些feature来代表输入变量，并且可以通过Decoder还原变量。

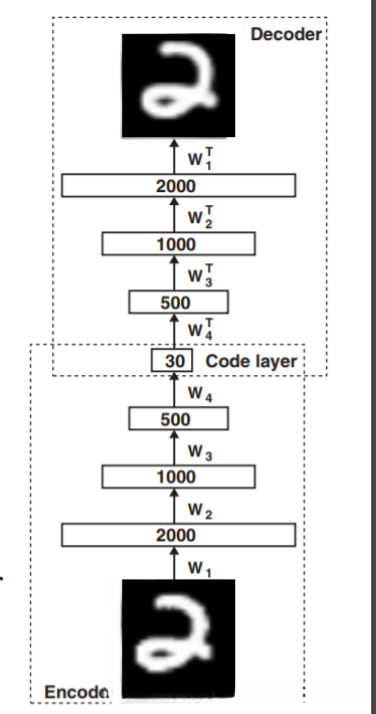

如果具体到某一个数据集MINIST，他的结构如下图所示，中间代表了卷积网络层或者全连接层。

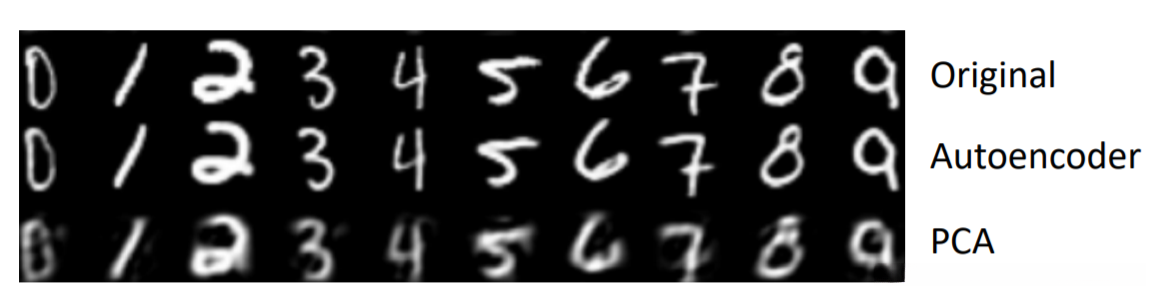

PCA与自编码器对比：
自编码器更接近真实图像，因为它可以是非线性的。

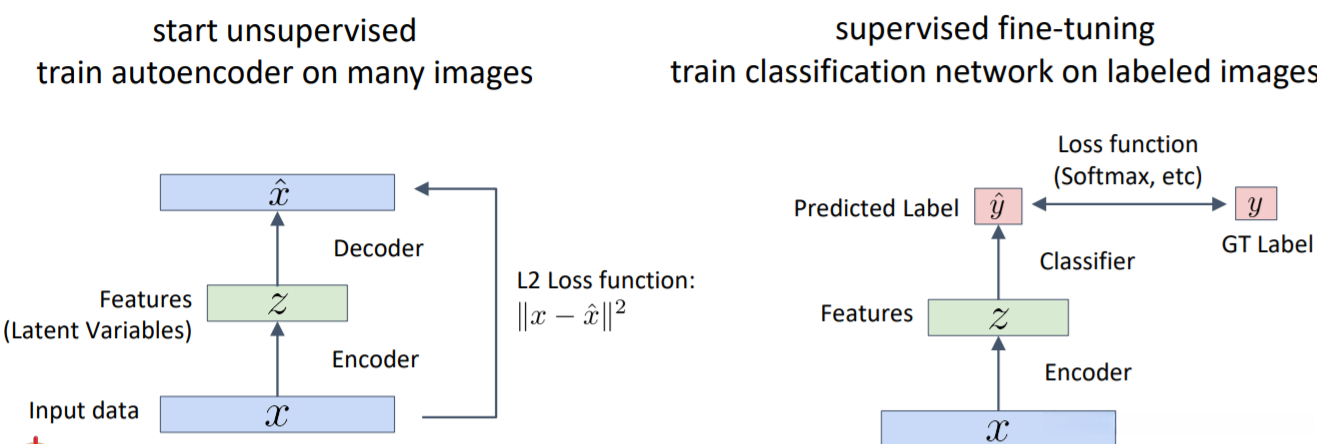

自编码器与分类网络相比：
自编码器没有额外的label，属于无监督学习，而分类网络需要label，属于监督学习。
从零开始训练自编码器
数据集是MINIST，基于python的pytorch框架。
import os
import torch
import torch.nn as nn
import torch.nn.functional as F
# Parameter Settings
latent_dims = 10
num_eopchs = 50
batch_size = 64
capacity = 64
learning_rate = 1e-3
# use_gpu = True
use_gpu = False
# MNIST Data Loading
import torchvision.transforms as tranforms
from torch.utils.data import DataLoader
from torchvision.datasets import MNIST
img_transform = tranforms.Compose([
tranforms.ToTensor(),
tranforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))
])
train_dataset = MNIST(root='./data/MINIST', download=True, train=True, transform=img_transform)
train_dataloader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
test_dataset = MNIST(root='./data/MINIST', download=True, train=False, transform=img_transform)
test_dataloader = DataLoader(test_dataset, batch_size=batch_size, shuffle=True)
# Autoencoder Definition
class Encoder(nn.Module):
def __init__(self):
super(Encoder, self).__init__()
c = capacity
self.conv1 = nn.Conv2d(in_channels=1, out_channels=c, kernel_size=4, stride=2, padding=1) # out:c*14*14
self.conv2 = nn.Conv2d(in_channels=c, out_channels=c * 2, kernel_size=4, stride=2, padding=1) # out:c*2*7*7
self.fc = nn.Linear(in_features=c * 2 * 7 * 7, out_features=latent_dims)
def forward(self, x):
x = F.relu(self.conv1(x))
x = F.relu(self.conv2(x))
x = x.view(x.size(0), -1) # flatten batch of multi-channel feature maps to a batch of feature vectors
x = self.fc(x)
return x
class Decoder(nn.Module):
def __init__(self):
super(Decoder, self).__init__()
c = capacity
self.fc = nn.Linear(in_features=latent_dims, out_features=c * 2 * 7 * 7)
self.conv2 = nn.ConvTranspose2d(in_channels=c * 2, out_channels=c, kernel_size=4, stride=2, padding=1)
self.conv1 = nn.ConvTranspose2d(in_channels=c, out_channels=1, kernel_size=4, stride=2, padding=1)
def forward(self, x):
x = self.fc(x)
x = x.view(x.size(0), capacity * 2, 7,
7) # unflatten batch of feature vectors to a batch of multi-channel feature maps
x = F.relu(self.conv2(x))
x = torch.tanh(self.conv1(x)) # last layer before output is tanh ,since the images are normalized and 0-centered
return x
class Autoencoder(nn.Module):
def __init__(self):
super(Autoencoder, self).__init__()
self.encoder = Encoder()
self.decoder = Decoder()
def forward(self, x):
latent = self.encoder(x)
x_recon = self.decoder(latent)
return x_recon
autoencoder = Autoencoder()
device = torch.device("cuda:0" if use_gpu and torch.cuda.is_available() else "cpu")
autoencoder = autoencoder.to(device)
num_params = sum(p.numel() for p in autoencoder.parameters() if p.requires_grad)
print('Number of parameters:%d' % num_params)
# Train Autoencoder
optimizer = torch.optim.Adam(params=autoencoder.parameters(), lr=learning_rate, weight_decay=1e-5)
# set to training mode
autoencoder.train()
train_loss_avg = []
print('Training...')
for epoch in range(num_eopchs):
train_loss_avg.append(0)
num_batches = 0
for img_batch, _ in train_dataloader:
img_batch = img_batch.to(device)
# autoencoder reconstruction
img_batch_recon = autoencoder(img_batch)
# reconstrcution error
loss = F.mse_loss(img_batch_recon, img_batch)
# backpropagation
optimizer.zero_grad()
loss.backward()
# one step of the optimizer(using the gradients form backpropagation)
optimizer.step()
train_loss_avg[-1] += loss.item()
num_batches += 1
train_loss_avg[-1] /= num_batches
print("Epoch [%d / %d] average reconstruction error:%f" % (epoch + 1, num_eopchs, train_loss_avg[-1]))
python
验证模型训练结果
# Evaluate on The Set
# set to evalution mode
autoencoder.eval()
test_loss_avg, num_batches = 0, 0
for img_batch, _ in train_dataloader:
img_batch = img_batch.to(device)
# autoencoder reconstruction
img_batch_recon = autoencoder(img_batch)
# reconstrcution error
loss = F.mse_loss(img_batch_recon, img_batch)
test_loss_avg += loss.item()
num_batches += 1
test_loss_avg /= num_batches
print('average reconstruction error:%f' % (test_loss_avg))
python

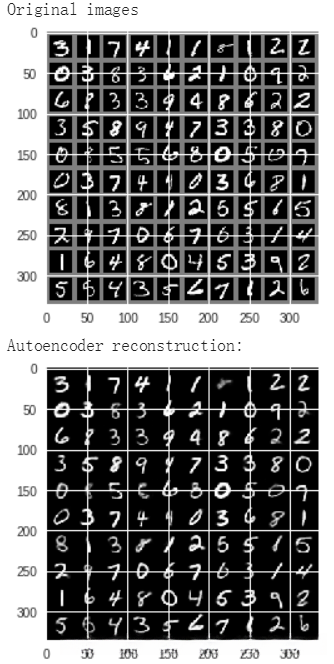

可视化结果
# Visualize Reconstructions
import numpy as np
import matplotlib.pyplot as plt
plt.ion()
import torchvision.utils
autoencoder.eval()
def to_img(x):
x = 0.5 * (x + 1)
x = x.clamp(0, 1)
return x
def show_image(img):
img = to_img(img)
npimg = img.numpy()
plt.imshow(np.transpose(npimg, (1, 2, 0)))
def visualise_output(images, model):
with torch.no_grad():
images = images.to(device)
images = model(images)
images = images.cpu()
images = to_img(images)
np_imagegrid = torchvision.utils.make_grid(images[0:100], 10, 5).numpy()
plt.imshow(np.transpose(np_imagegrid, (1, 2, 0)))
plt.show()
images, labels = iter(test_dataloader).next()
print('Original images')
show_image(torchvision.utils.make_grid(images[0:100], 10, 5))
plt.show()
print('Autoencoder reconstruction')
visualise_output(images,autoencoder)
python
加载预训练模型
如果不想从零开始训练，这里有已经训练好的模型。只要将前面的训练部分代替就行了。
# Alternatively: Load Pre-Trained Autoencoder
import urllib
if not os.path.isdir('./pretrained'):
os.makedirs('./pretrained')
print("downloading...")
urllib.request.urlretrieve("http://geometry.cs.ucl.ac.uk/creativeai/pretrained/autoencoder.pth",
"./pretrained/autoencoder.pth")
autoencoder.load_state_dict(torch.load('./pretrained/autoencoder.pth', map_location='cpu'))
print('done')
# this is how the autoencoder parameters can be saved:
# torch.save(autoencoder.state_dict(), './pretrained/my_autoencoder.pth')
python
