[深度学习]半监督学习、无监督学习之DCGAN深度卷积生成对抗网络(附代码)

 import os




 import torch

 import torch.nn as nn

 import torch.nn.functional as F



 latent_dims = 10

 num_epochs = 20

 batch_size = 128

 learning_rate = 2e-4

 use_gpu = True

 import torchvision.transforms as transforms


 from torch.utils.data import DataLoader

 from torchvision.datasets import MNIST



 img_transform = transforms.Compose([

     transforms.Resize(64),

     transforms.ToTensor(),

     transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))

 ])



 train_dataset = MNIST(root='./data/MNIST', download=True, train=True, transform=img_transform)

 train_dataloader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)



 test_dataset = MNIST(root='./data/MNIST', download=True, train=False, transform=img_transform)

 test_dataloader = DataLoader(test_dataset, batch_size=batch_size, shuffle=True)

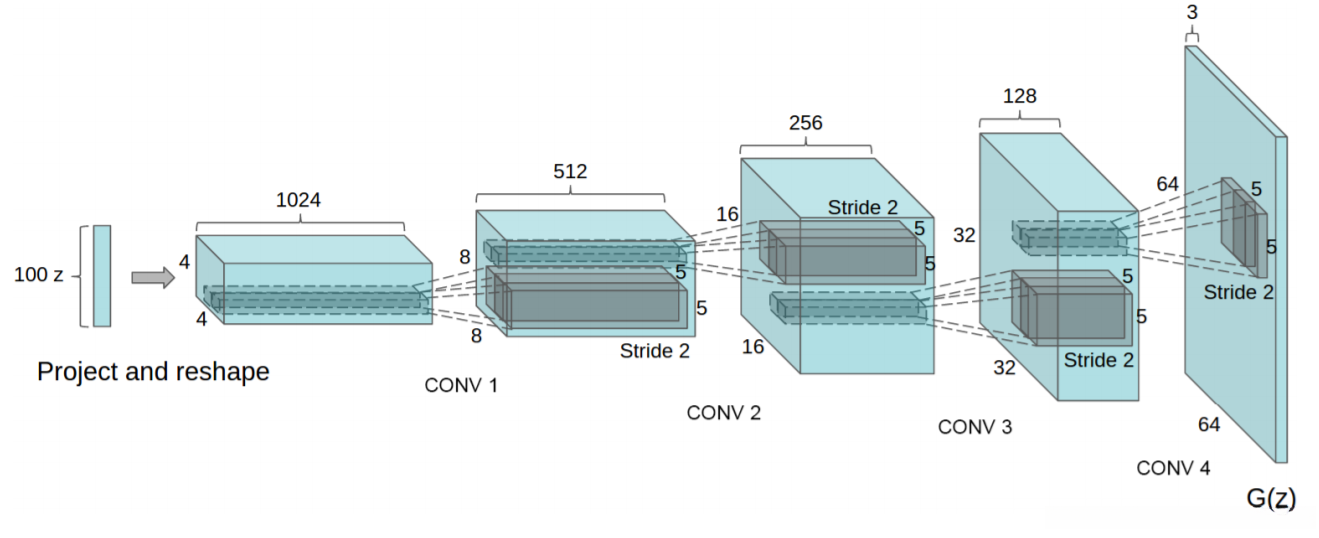

 class Generator(nn.Module):


     def __init__(self, d=128):

     super(Generator, self).__init__()

     self.deconv1 = nn.ConvTranspose2d(100, d*8, 4, 1, 0)

     self.deconv1_bn = nn.BatchNorm2d(d*8)

     self.deconv2 = nn.ConvTranspose2d(d*8, d*4, 4, 2, 1)

     self.deconv2_bn = nn.BatchNorm2d(d*4)

     self.deconv3 = nn.ConvTranspose2d(d*4, d*2, 4, 2, 1)

     self.deconv3_bn = nn.BatchNorm2d(d*2)

     self.deconv4 = nn.ConvTranspose2d(d*2, d, 4, 2, 1)

     self.deconv4_bn = nn.BatchNorm2d(d)

     self.deconv5 = nn.ConvTranspose2d(d, 1, 4, 2, 1)



     def forward(self, input):

     # x = F.relu(self.deconv1(input))

     x = F.relu(self.deconv1_bn(self.deconv1(input)))

     x = F.relu(self.deconv2_bn(self.deconv2(x)))

     x = F.relu(self.deconv3_bn(self.deconv3(x)))

     x = F.relu(self.deconv4_bn(self.deconv4(x)))

     x = torch.tanh(self.deconv5(x))



     return x

 class Discriminator(nn.Module):


     def __init__(self, d=128):

     super(Discriminator, self).__init__()

     self.conv1 = nn.Conv2d(1, d, 4, 2, 1)

     self.conv2 = nn.Conv2d(d, d*2, 4, 2, 1)

     self.conv2_bn = nn.BatchNorm2d(d*2)

     self.conv3 = nn.Conv2d(d*2, d*4, 4, 2, 1)

     self.conv3_bn = nn.BatchNorm2d(d*4)

     self.conv4 = nn.Conv2d(d*4, d*8, 4, 2, 1)

     self.conv4_bn = nn.BatchNorm2d(d*8)

     self.conv5 = nn.Conv2d(d*8, 1, 4, 1, 0)



     def forward(self, input):

     x = F.leaky_relu(self.conv1(input), 0.2)

     x = F.leaky_relu(self.conv2_bn(self.conv2(x)), 0.2)

     x = F.leaky_relu(self.conv3_bn(self.conv3(x)), 0.2)

     x = F.leaky_relu(self.conv4_bn(self.conv4(x)), 0.2)

     x = torch.sigmoid(self.conv5(x))



     return x

 generator = Generator()


 discriminator = Discriminator()



 device = torch.device("cuda:0" if use_gpu and torch.cuda.is_available() else "cpu")

 generator = generator.to(device)

 discriminator = discriminator.to(device)



 num_params_gen = sum(p.numel() for p in generator.parameters() if p.requires_grad)

 num_params_disc = sum(p.numel() for p in discriminator.parameters() if p.requires_grad)

 print('Number of parameters for generator: %d and discriminator: %d' % (num_params_gen, num_params_disc))

 # Train GAN


 # 分别定义两个优化器，作为生成器和判别器的优化器

 gen_optimizer = torch.optim.Adam(params=generator.parameters(), lr=learning_rate, betas=(0.5, 0.999))

 disc_optimizer = torch.optim.Adam(params=discriminator.parameters(), lr=learning_rate, betas=(0.5, 0.999))



 # 设置为训练模式

 generator.train()

 discriminator.train()



 gen_loss_avg = []

 disc_loss_avg = []



 print("Training...")

 for epoch in range(num_epochs):

     gen_loss_avg.append(0)

     disc_loss_avg.append(0)

     num_batches = 0



     for image_batch, _ in train_dataloader:

     image_batch = image_batch.to(device)

     label_real = torch.ones(image_batch.size(0), device=device)

     label_fake = torch.zeros(image_batch.size(0), device=device)



     # 随机生成，作为生成器的输入

     latent = torch.randn(image_batch.size(0), 100, 1, 1, device=device)

     fake_image_batch = generator(latent)



     # 生成判别器的label，1为真，0为假

     pred_real = discriminator(image_batch).squeeze()  # squeeze()是去除张量里维度为一

     pred_fake = discriminator(fake_image_batch.detach()).squeeze()  # detach是分离生成器和判别器



     # 定义判别器的loss，使他能区分真假

     disc_loss = 0.5 * (

             F.binary_cross_entropy(pred_fake, label_fake) + F.binary_cross_entropy(pred_real, label_real))



     # 判别器的反向传播和权重更新

     disc_optimizer.zero_grad()

     disc_loss.backward()

     disc_optimizer.step()



     # 用权重依旧得到更新的判别器再次判别生成器生成的图像，这时候predict的结果应该比上面更能区分真假

     pred_fake = discriminator(fake_image_batch).squeeze()



     # 定义生成器的loss 使他更接近真实值

     gen_loss = F.binary_cross_entropy(pred_fake, label_real)



     # 生成器的反向传播和权重更新

     gen_optimizer.zero_grad()

     gen_loss.backward()

     gen_optimizer.step()



     # 累加loss

     gen_loss_avg[-1] += gen_loss.item()

     disc_loss_avg[-1] += disc_loss.item()

     num_batches += 1



     # 输出loss

     gen_loss_avg[-1] /= num_batches

     disc_loss_avg[-1] /= num_batches

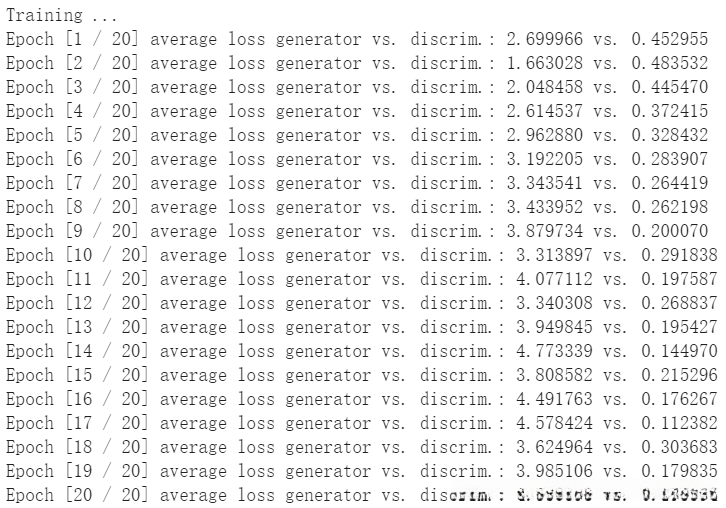

     print('Epoch [%d / %d] average loss generator vs. discrim.: %f vs. %f' %

       (epoch+1, num_epochs, gen_loss_avg[-1], disc_loss_avg[-1]))

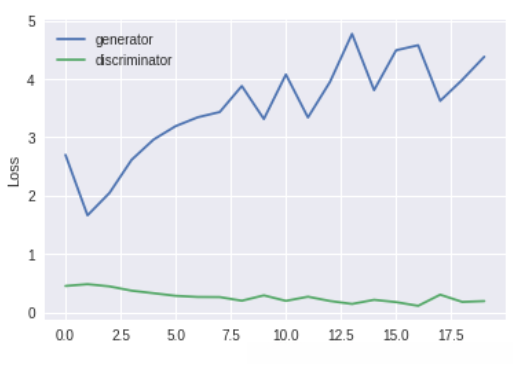

 import matplotlib.pyplot as plt


 plt.ion()



 fig = plt.figure()

 plt.plot(gen_loss_avg, label='generator')

 plt.plot(disc_loss_avg, label='discriminator')

 plt.xlabel('Epochs')

 plt.ylabel('Loss')

 plt.legend()

 plt.show()

 import numpy as np


 import matplotlib.pyplot as plt

 plt.ion()



 import torchvision.utils



 generator.eval()

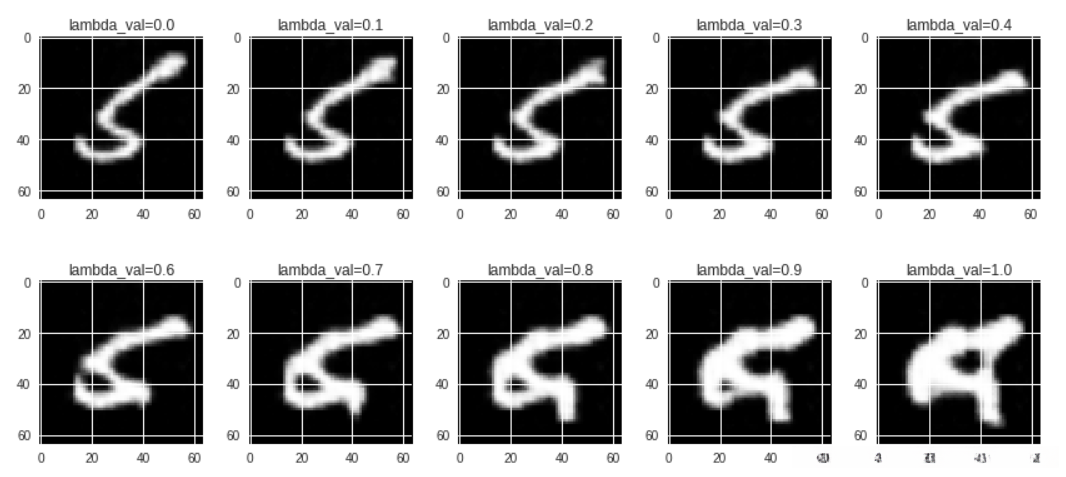

 def interpolation(lambda1, model, latent_1, latent_2):



     with torch.no_grad():



     # interpolation of the two latent vectors

     inter_latent = lambda1* latent_1 + (1- lambda1) * latent_2



     # reconstruct interpolated image

     inter_latent = inter_latent.to(device)

     inter_image = model(inter_latent)

     inter_image = inter_image.cpu()



     return inter_image



 # sample two latent vectors from the standard normal distribution

 latent_1 = torch.randn(1, 100, 1, 1, device=device)

 latent_2 = torch.randn(1, 100, 1, 1, device=device)



 # interpolation lambdas

 lambda_range=np.linspace(0,1,10)



 fig, axs = plt.subplots(2,5, figsize=(15, 6))

 fig.subplots_adjust(hspace = .5, wspace=.001)

 axs = axs.ravel()



 for ind,l in enumerate(lambda_range):

     inter_image=interpolation(float(l), generator, latent_1, latent_2)



     inter_image = to_img(inter_image)



     image = inter_image.numpy()



     axs[ind].imshow(image[0,0,:,:], cmap='gray')

     axs[ind].set_title('lambda_val='+str(round(l,1)))

 plt.show()

 import numpy as np


 import matplotlib.pyplot as plt

 plt.ion()



 import torchvision.utils



 generator.eval()



 def to_img(x):

     x = 0.5 * (x + 1)

     x = x.clamp(0, 1)

     return x



 def show_image(img):

     img = to_img(img)

     npimg = img.numpy()

     plt.imshow(np.transpose(npimg, (1, 2, 0)))

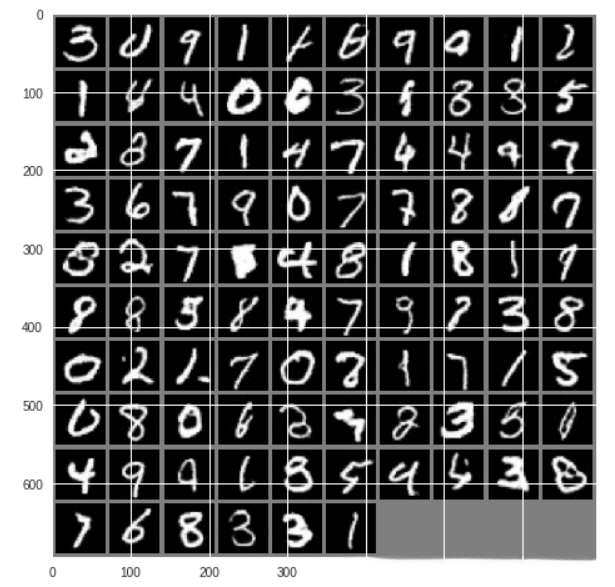

 with torch.no_grad():



     # sample latent vectors from the standard normal distribution

     latent = torch.randn(image_batch.size(0), 100, 1, 1, device=device)

     fake_image_batch = generator(latent)

     fake_image_batch = fake_image_batch.cpu()



     fig, ax = plt.subplots(figsize=(8, 8))

     show_image(torchvision.utils.make_grid(fake_image_batch.data[:100],10,5))

     plt.show()
