【区块链 | Polygon架构】万向区块链技术研究报告 | Polygon技术调研

 type CheckpointBlockHeader struct {


     // Proposer is selected based on stake

     Proposer        types.HeimdallAddress `json:"proposer"`



     // StartBlock: The block number on Bor from which this checkpoint starts

     StartBlock      uint64                `json:"startBlock"`



     // EndBlock: The block number on Bor from which this checkpoint ends

     EndBlock        uint64                `json:"endBlock"`



     // RootHash is the Merkle root of all the leaves containing the block

     // headers starting from start to the end block

     RootHash        types.HeimdallHash    `json:"rootHash"`



     // Account root hash for each validator

   // Hash of data that needs to be passed from Heimdall to Ethereum chain like slashing, withdraw topup etc.

     AccountRootHash types.HeimdallHash    `json:"accountRootHash"`



   // Timestamp when checkpoint was created on Heimdall

     TimeStamp       uint64          `json:"timestamp"`

 }

    blockHash = keccak256([number, time, tx hash, receipt hash])

 B(1) := keccak256([number, time, tx hash, receipt hash])


 B(2) := keccak256([number, time, tx hash, receipt hash])

 . . .

 B(n) := keccak256([number, time, tx hash, receipt hash])



 // checkpoint is Merkle root of all block hash

 checkpoint's root hash = Merkel[B(1), B(2), ....., B(n)]

 // id


 eachAccountHash := keccak256([validator id, withdraw fee, slash amount])

 B(1) := keccak256([validator id, withdraw fee, slash amount])


 B(2) := keccak256([validator id, withdraw fee, slash amount])

 . . .

 B(n) := keccak256([validator id, withdraw fee, slash amount])



 // account root hash is Merkle root of all block hash

 checkpoint's account root hash = Merkel[B(1), B(2), ....., B(n)]

 pragma solidity 0.6.6;




 import {SafeMath} from "@openzeppelin/contracts/math/SafeMath.sol";

 import {ICheckpointManager} from "./ICheckpointManager.sol";



 /** * @notice Mock Checkpoint Manager contract to simulate plasma checkpoints while testing

 */

 contract MockCheckpointManager is ICheckpointManager {

     using SafeMath for uint256;



     uint256 public currentCheckpointNumber = 0;



     function setCheckpoint(bytes32 rootHash, uint256 start, uint256 end) public {

     HeaderBlock memory headerBlock = HeaderBlock({

         root: rootHash,

         start: start,

         end: end,

         createdAt: now,

         proposer: msg.sender

     });



     currentCheckpointNumber = currentCheckpointNumber.add(1);

     headerBlocks[currentCheckpointNumber] = headerBlock;

     }

 }

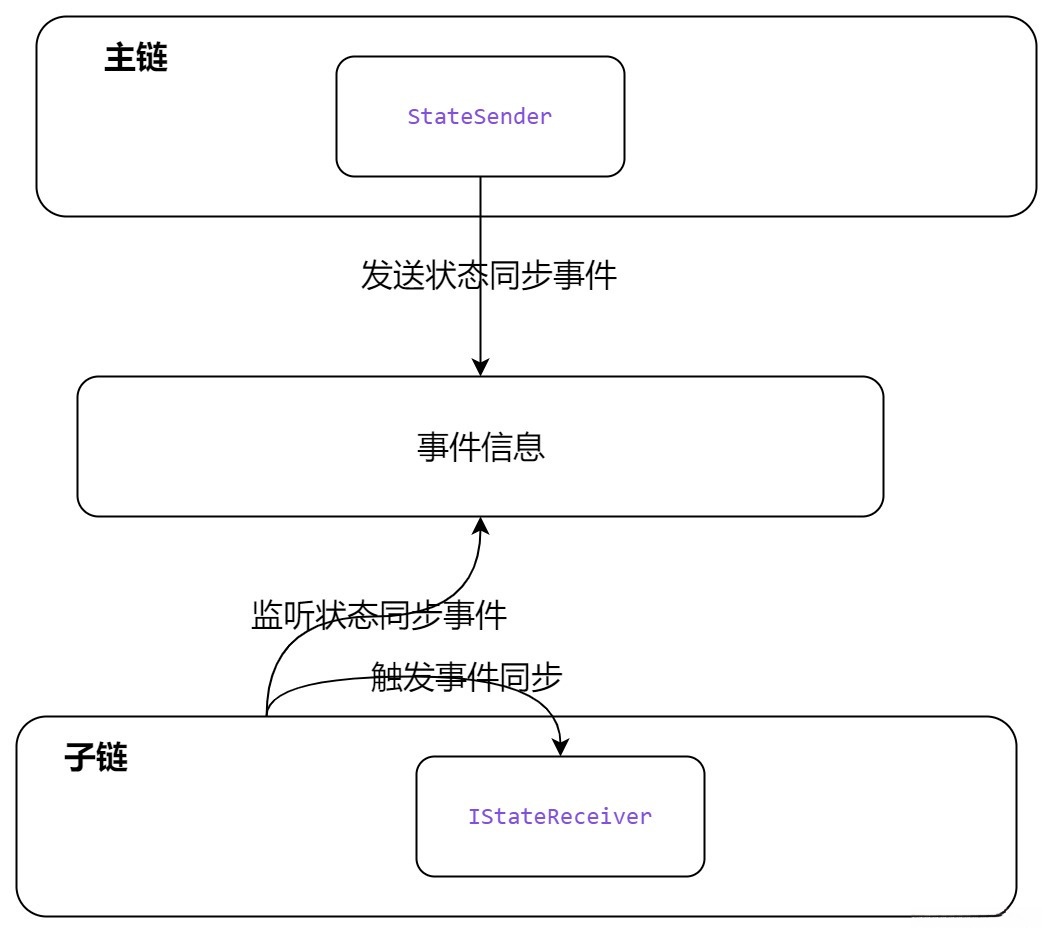

        1. pragma solidity 0.6.6;


        2.

        3. interface IStateSender {

        4.     function syncState(address receiver, bytes calldata data) external;

        5. }

        1. pragma solidity 0.6.6;


        2.

        3. interface IStateReceiver {

        4.     function onStateReceive(uint256 id, bytes calldata data) external;

        5. }

 function mapToken(


     address rootToken,

     address childToken,

     bytes32 tokenType

     ) external;

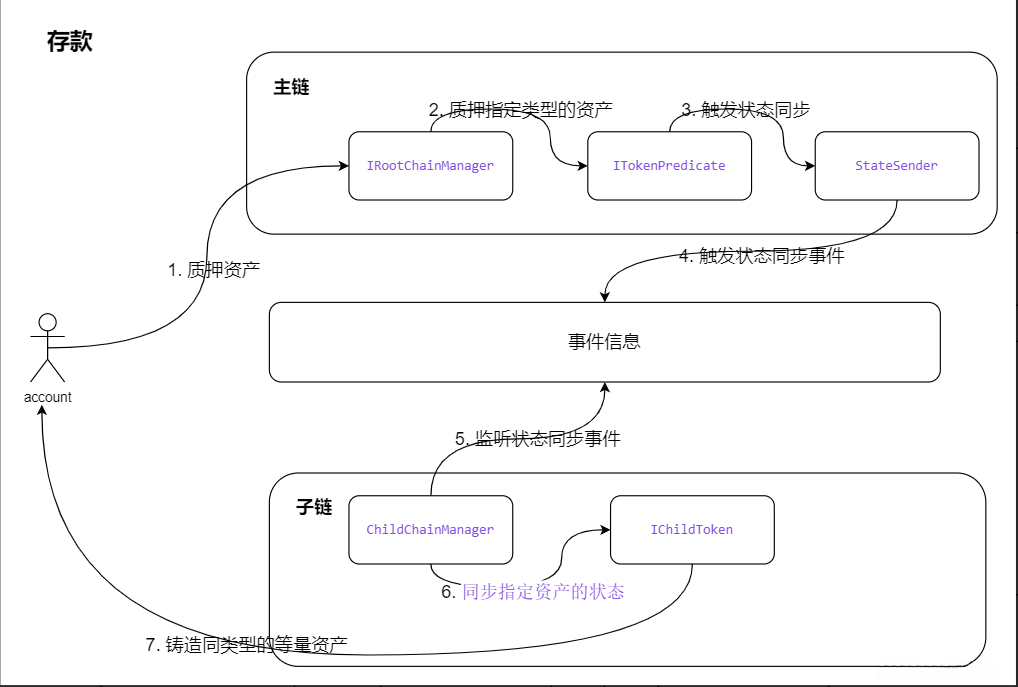

 await rootTokenContract.methods


   .approve(erc20Predicate, amount)

   .send({ from: userAddress })

 const depositData = mainWeb3.eth.abi.encodeParameter('uint256', amount)


 await rootChainManagerContract.methods

   .depositFor(userAddress, rootToken, depositData)

   .send({ from: userAddress })

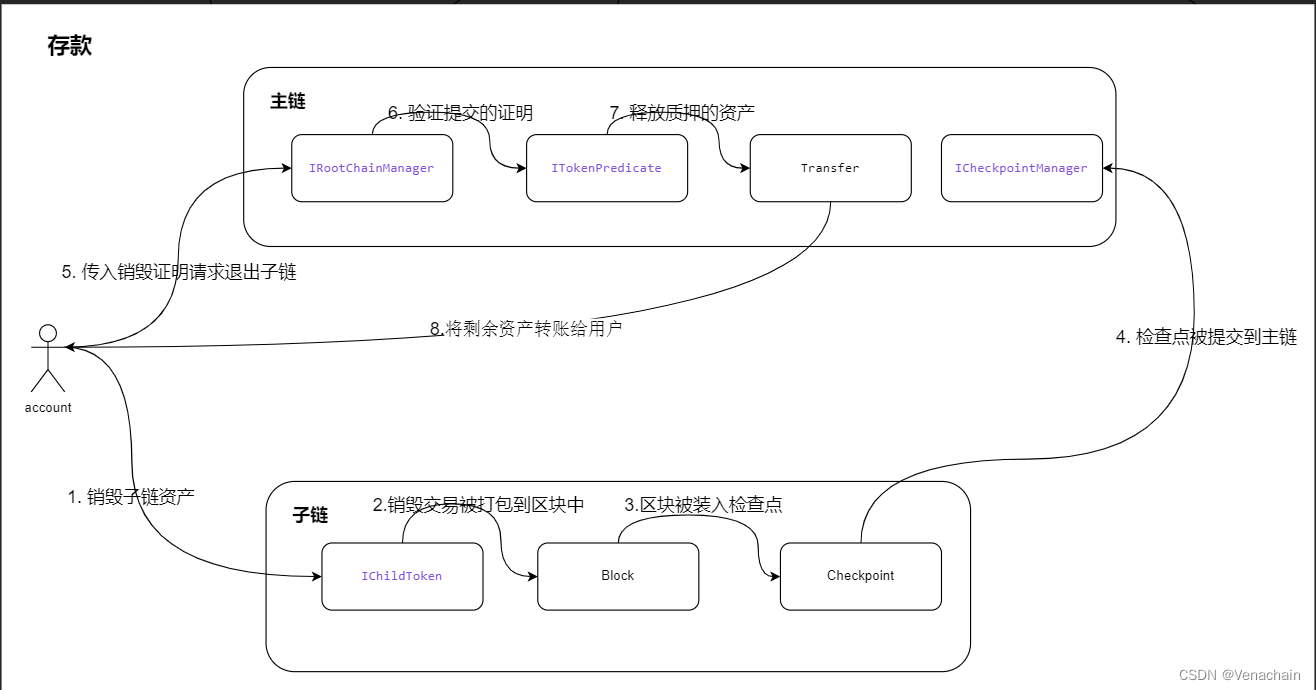

 const burnTx = await childTokenContract.methods


   .withdraw(amount)

   .send({ from: userAddress })

 const burnTxHash = burnTx.transactionHash

    function exit(bytes calldata inputData) external;

 const exitCalldata = await maticPOSClient


   .exitERC20(burnTxHash, { from, encodeAbi: true })

 await mainWeb3.eth.sendTransaction({


   from: userAddress,

   to: rootChainManagerAddress,

   data: exitCalldata.data

 })

 function exit(bytes calldata inputData) external override {


     ExitPayloadReader.ExitPayload memory payload = inputData.toExitPayload();



     bytes memory branchMaskBytes = payload.getBranchMaskAsBytes();

     // checking if exit has already been processed

     // unique exit is identified using hash of (blockNumber, branchMask, receiptLogIndex)

     bytes32 exitHash = keccak256(

     abi.encodePacked(

         payload.getBlockNumber(),

         // first 2 nibbles are dropped while generating nibble array

         // this allows branch masks that are valid but bypass exitHash check (changing first 2 nibbles only)

         // so converting to nibble array and then hashing it

         MerklePatriciaProof._getNibbleArray(branchMaskBytes),

         payload.getReceiptLogIndex()

     )

     );



     require(

     processedExits[exitHash] == false,

     "RootChainManager: EXIT_ALREADY_PROCESSED"

     );

     processedExits[exitHash] = true;



     // 解析 receipt 数据

     ExitPayloadReader.Receipt memory receipt = payload.getReceipt();

     ExitPayloadReader.Log memory log = receipt.getLog();



     // log should be emmited only by the child token

     address rootToken = childToRootToken[log.getEmitter()];

     require(

     rootToken != address(0),

     "RootChainManager: TOKEN_NOT_MAPPED"

     );



     address predicateAddress = typeToPredicate[

     tokenToType[rootToken]

     ];



     // branch mask can be maximum 32 bits

     require(

     payload.getBranchMaskAsUint() &

     0xFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF00000000 ==

     0,

     "RootChainManager: INVALID_BRANCH_MASK"

     );



     // 验证收据内容

     require(

     MerklePatriciaProof.verify(

         receipt.toBytes(),

         branchMaskBytes,

         payload.getReceiptProof(),

         payload.getReceiptRoot()

     ),

     "RootChainManager: INVALID_PROOF"

     );



     // 验证检查点内容

     _checkBlockMembershipInCheckpoint(

     payload.getBlockNumber(),

     payload.getBlockTime(),

     payload.getTxRoot(),

     payload.getReceiptRoot(),

     payload.getHeaderNumber(),

     payload.getBlockProof()

     );



     // 取款

     ITokenPredicate(predicateAddress).exitTokens(

     _msgSender(),

     rootToken,

     log.toRlpBytes()

     );

 }



 function _checkBlockMembershipInCheckpoint(

     uint256 blockNumber,

     uint256 blockTime,

     bytes32 txRoot,

     bytes32 receiptRoot,

     uint256 headerNumber,

     bytes memory blockProof

 ) private view returns (uint256) {

     (

     bytes32 headerRoot,

     uint256 startBlock,

     ,

     uint256 createdAt,



     ) = _checkpointManager.headerBlocks(headerNumber);



     require(

     keccak256(

         abi.encodePacked(blockNumber, blockTime, txRoot, receiptRoot)

     )

         .checkMembership(

         blockNumber.sub(startBlock),

         headerRoot,

         blockProof

     ),

     "RootChainManager: INVALID_HEADER"

     );

     return createdAt;

 }

     /** * @notice Validates log signature, from and to address

      * then sends the correct amount to withdrawer

      * callable only by manager

      * @param rootToken Token which gets withdrawn

      * @param log Valid ERC20 burn log from child chain

      */

     function exitTokens(

     address,

     address rootToken,

     bytes memory log

     )

     public

     override

     only(MANAGER_ROLE)

     {

     RLPReader.RLPItem[] memory logRLPList = log.toRlpItem().toList();

     RLPReader.RLPItem[] memory logTopicRLPList = logRLPList[1].toList(); // topics



     require(

         bytes32(logTopicRLPList[0].toUint()) == TRANSFER_EVENT_SIG, // topic0 is event sig

         "ERC20Predicate: INVALID_SIGNATURE"

     );



     address withdrawer = address(logTopicRLPList[1].toUint()); // topic1 is from address



     require(

         address(logTopicRLPList[2].toUint()) == address(0), // topic2 is to address

         "ERC20Predicate: INVALID_RECEIVER"

     );



     uint256 amount = logRLPList[2].toUint(); // log data field is the amount



     IERC20(rootToken).safeTransfer(

         withdrawer,

         amount

     );



     emit ExitedERC20(withdrawer, rootToken, amount);

     }
