CAPTCHA Recognition Based on Convolutional Neural Network

    !pip install captcha    # Install the CAPTCHA library and Pillow package

    import concurrent.futures
    import os
    import random
    import shutil
    from pathlib import Path

    import PIL
    import captcha
    import matplotlib
    import matplotlib.pyplot as plt
    import torch
    import torchvision
    from PIL import Image
    from captcha.image import ImageCaptcha
    from torch import nn
    from torch.utils.data import Dataset, DataLoader
    from torchvision import transforms

    %matplotlib inline

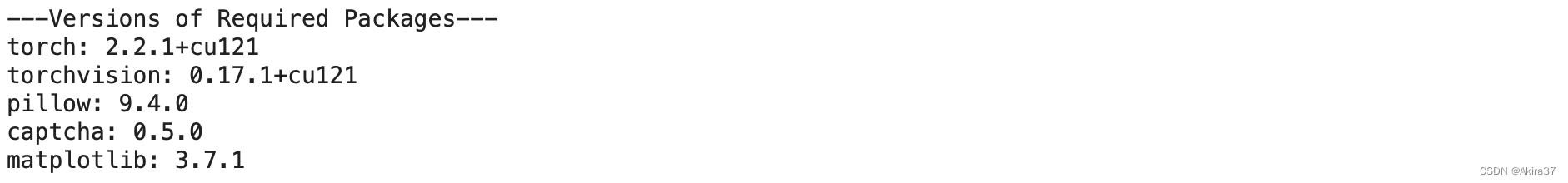

    print("---Versions of Required Packages---")
    print("torch:", torch.__version__)
    print("torchvision:", torchvision.__version__)
    print("pillow:", PIL.__version__)
    print("captcha:", captcha.__version__)
    print("matplotlib:", matplotlib.__version__)

    CHAR_NUMBER = 4                                 # Number of characters in the image CAPTCHA
    IMG_WIDTH = 160                                 # Image width
    IMG_HEIGHT = 60                                 # Image height
    SEED = "0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ"   # Character pool

    TRAIN_SIZE = 30000      # Size of train set
    VALIDATION_SIZE = 10000   # Size of validation set
    TEST_SIZE = 10000       # Size of test set

    BATCH_SIZE = 60             # Number of images in a mini-batch
    TOTAL_EPOCH = 25             # Training rounds
    LEARNING_RATE = 1e-3        # Learning rate while backward

    device = "cuda" if torch.cuda.is_available() else "cpu"     # Run this model on GPU if possible

    torch.cuda.is_available()

    # Path format: "./{folder}" (run locally) or "/content/{folder}" (run on Google Colab)

    # train_set_path = "./data/train"
    # validation_set_path = './data/validation'
    # test_set_path = "./data/test"
    # save_file_path = "./result/model.pth"

    train_set_path = "/content/data/train"
    validation_set_path = '/content/data/validation'
    test_set_path = "/content/data/test"
    save_file_path = "/content/result/model.pth"

    # Lists for visualization usage
    epoch_list = []
    train_loss_list = []
    valid_loss_list = []

    def captcha_generator(num, output_dir, thread_name=0):
    if Path(output_dir).exists():
        shutil.rmtree(output_dir)   # If the directory already exists, delete it before creating a new one.
    Path(output_dir).mkdir()

    for i in range(num):
        image_captcha = ImageCaptcha(width=IMG_WIDTH, height=IMG_HEIGHT)

        chars = "".join([random.choice(SEED) for _ in range(CHAR_NUMBER)])  # Randomly choose an element in the character pool to be attached to the CAPTCHA string.
        save_path = f"{output_dir}/{i + 1}-{chars}.png" # The default output format is png.

        image_captcha.write(chars, save_path)

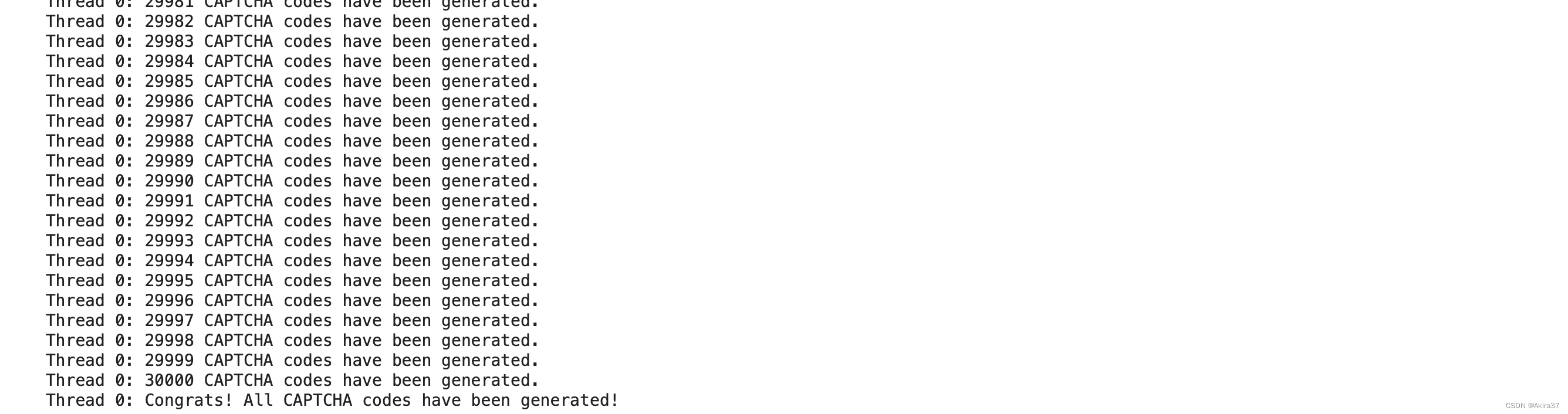

        print(f"Thread {thread_name}: {i + 1} CAPTCHA code{'s' if i > 0 else ''} ha{'ve' if i > 0 else 's'} been generated. ")

    print(f"Thread {thread_name}: Congrats! All CAPTCHA codes have been generated! ")

    with concurrent.futures.ThreadPoolExecutor(max_workers=10) as executor:     # Multithread generation.
    # executor.submit(captcha_generator, 3, "./data", 1)
    executor.submit(captcha_generator, TRAIN_SIZE, train_set_path, 0)
    executor.submit(captcha_generator, TEST_SIZE, test_set_path, 1)
    executor.submit(captcha_generator, VALIDATION_SIZE, validation_set_path, 2)

    def one_hot_encode(chars):
    """Convert Characters to One-hot Codes"""
    cols = len(SEED)
    rows = CHAR_NUMBER
    res = torch.zeros(rows, cols, dtype=torch.float32)  # Initialize the result tensor (can combine first two arguments to be a tuple for some reason)

    for i, char in enumerate(chars):
        j = SEED.index(char)    # The column index is the position of a character in the character pool string
        res[i, j] = 1.0         # Set the j-th element in the i-th row to be 1

    return res.view(1, -1)[0]   # Reshape and return the tensor as a row vector.

    def one_hot_decode(code):
    """Revert One-hot Codes to Characters"""
    code = code.view(-1, len(SEED)) # Reshape the row vector (one-hot code)
    index_list = torch.argmax(code, dim=1)  # dim=x：沿轴-x降维
    chars = "".join([SEED[i] for i in index_list])  # Restore the characters respectively.
    return chars

    class ImageDataset(Dataset):
    def __init__(self, dir_path):
        super(ImageDataset, self).__init__()
        self.img_path_list = [f"{dir_path}/{filename}" for filename in os.listdir(dir_path)]    # Load all the paths of images in the data set.
        self.transform = transforms.Compose([   # The transforms for processing images.
            transforms.ToTensor(),
            transforms.Grayscale(),
        ])

    def __getitem__(self, index):
        image = self.transform(Image.open(self.img_path_list[index]))
        label = self.img_path_list[index].split("-")[-1].replace(".png", "")    # Detach the characters from leading numbers and the file format(".png")
        label = one_hot_encode(label)
        return image, label

    def __len__(self):
        return len(self.img_path_list)

    def get_dataloader(path):
    dataset = ImageDataset(path)
    dataloader = DataLoader(dataset, batch_size=BATCH_SIZE, shuffle=True)   # Not really necessary to shuffle the data.
    return dataloader

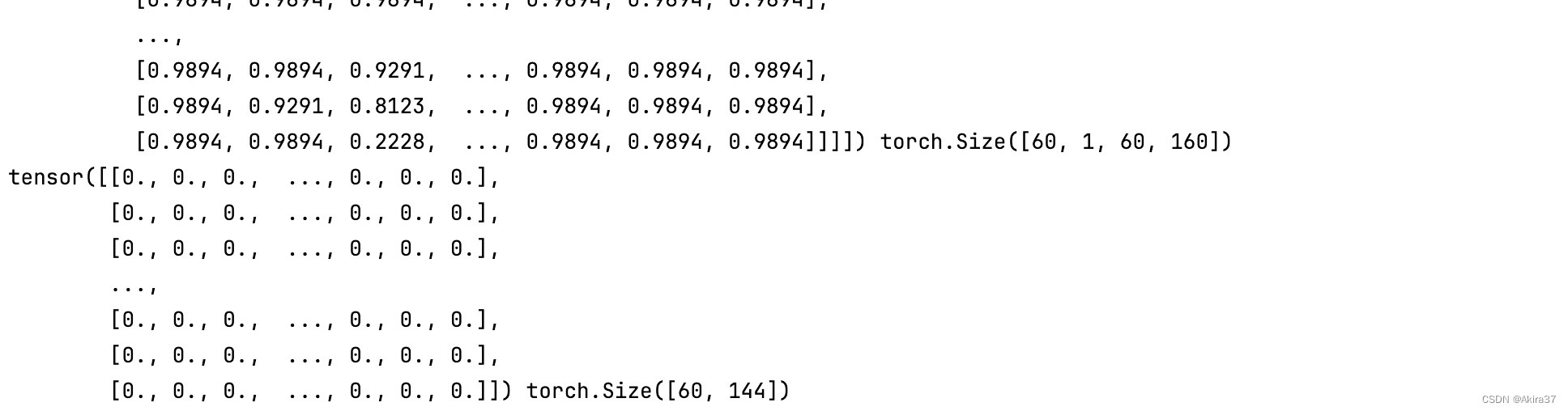

    # View the shape of tensors.
    train_dataloader = get_dataloader(train_set_path)
    test_dataloader = get_dataloader(test_set_path)
    for inputs, targets in train_dataloader:
    print(inputs, inputs.shape)
    print(targets, targets.shape)
    break

    class NeuralNetWork(nn.Module):
    """Convolutional Neural Network (VGG-16)

    Layout:
        1. Conv_1x64 -> ReLU -> MaxPool_2x2
        2. Conv_64x128 -> ReLU -> MaxPool_2x2
        3. Conv_128x256 -> ReLU -> MaxPool_2x2
        4. Conv_256x512 -> ReLU -> MaxPool_2x2
        5. FC -(drop out)-> ReLU -> FC
    """
    def __init__(self):
        super(NeuralNetWork, self).__init__()
        self.layer1 = nn.Sequential(
            nn.Conv2d(in_channels=1, out_channels=64, kernel_size=3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2)
        )
        self.layer2 = nn.Sequential(
            nn.Conv2d(in_channels=64, out_channels=128, kernel_size=3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2)
        )
        self.layer3 = nn.Sequential(
            nn.Conv2d(in_channels=128, out_channels=256, kernel_size=3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2)
        )
        self.layer4 = nn.Sequential(
            nn.Conv2d(in_channels=256, out_channels=512, kernel_size=3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2)
        )
        self.layer5 = nn.Sequential(
            nn.Flatten(),
            nn.Linear(in_features=15360, out_features=4096),
            nn.Dropout(0.5),
            nn.ReLU(),
            nn.Linear(in_features=4096, out_features=CHAR_NUMBER * len(SEED))   # The number of predictions must be the CAPTCHA character number times the length of the character pool
        )

    def forward(self, x):
        x = self.layer1(x)
        x = self.layer2(x)
        x = self.layer3(x)
        x = self.layer4(x)
        x = self.layer5(x)
        return x

    def train(dataloader, model, loss_func, optimizer):
    model.train()

    running_loss = 0.0
    for batch, (inputs, targets) in enumerate(dataloader):
        inputs, targets = inputs.to(device), targets.to(device)

        outputs = model(inputs)
        loss = loss_func(outputs, targets)
        running_loss += loss.item()

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        if batch % (BATCH_SIZE / 10) == 0:
            print(f"Batch {batch + 1}: Loss = {loss:>7f}")

    print(f"Total loss on Train Set is {running_loss:>7f}")
    return running_loss

    def validate(dataloader, model, loss_func):
    model.eval()

    running_loss = 0.0
    with torch.no_grad():
        for batch, (inputs, targets) in enumerate(dataloader):
            inputs, targets = inputs.to(device), targets.to(device)

            outputs = model(inputs)
            loss = loss_func(outputs, targets)
            running_loss += loss.item()

    print(f"Total loss on Validation Set is {running_loss:>8f}")
    return running_loss

    model = NeuralNetWork().to(device)
    loss_func = nn.MultiLabelSoftMarginLoss()
    optimizer = torch.optim.Adam(model.parameters(), lr=LEARNING_RATE)

    train_dataloader = get_dataloader(train_set_path)
    validation_dataloader = get_dataloader(validation_set_path)

    for epoch in range(TOTAL_EPOCH):
    print(f"--------------- Training Epoch {epoch + 1} ---------------")
    epoch_list.append(epoch + 1)

    train_loss = train(train_dataloader, model, loss_func, optimizer)
    train_loss_list.append(train_loss)

    valid_loss = validate(validation_dataloader, model, loss_func)
    valid_loss_list.append(valid_loss)
    print()

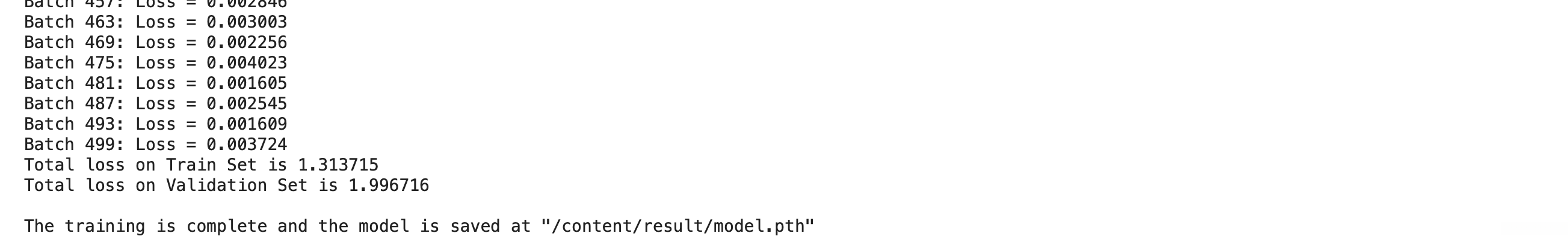

    torch.save(model.state_dict(), save_file_path)
    print(f"The training is complete and the model is saved at \"{save_file_path}\"")

    plt.plot(epoch_list, train_loss_list)
    plt.xlabel('Epoch')
    plt.ylabel('Loss on Training Set')
    plt.grid()
    plt.show()

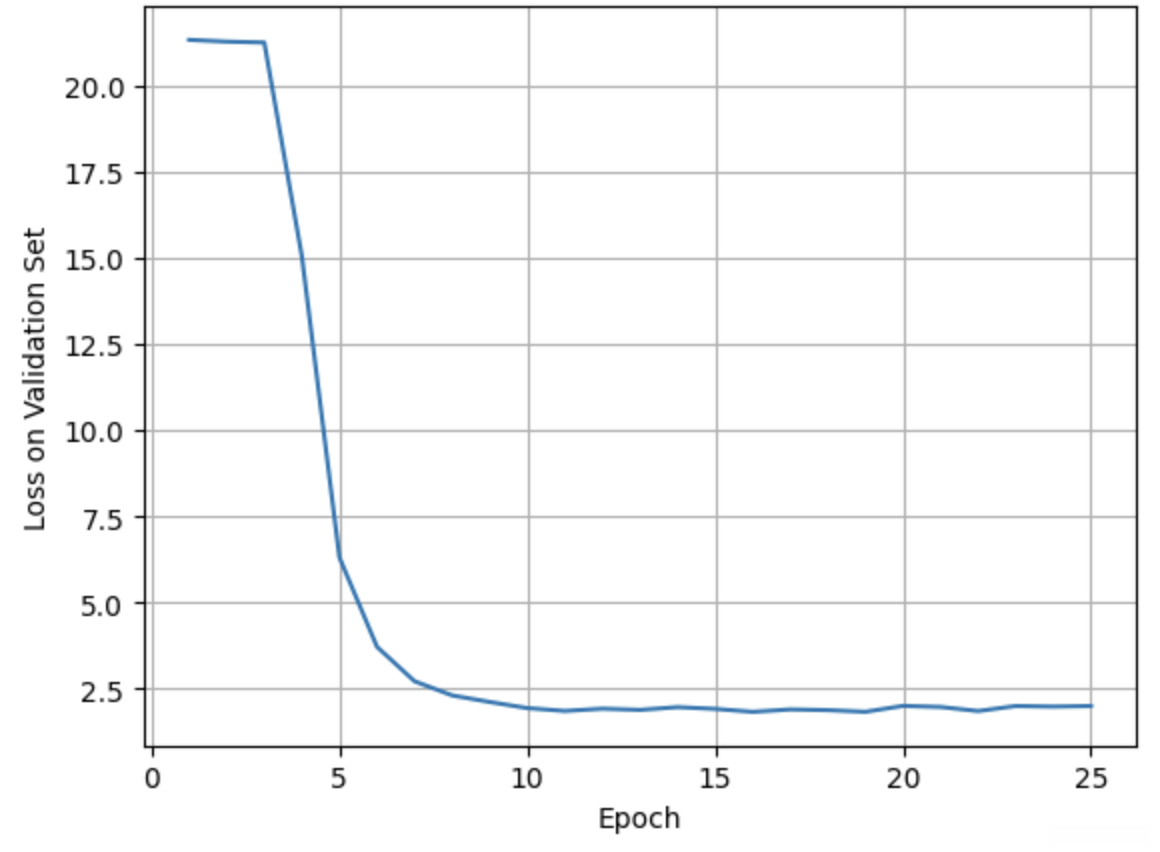

    plt.plot(epoch_list, valid_loss_list)
    plt.xlabel('Epoch')
    plt.ylabel('Loss on Validation Set')
    plt.grid()
    plt.show()

    def predict(model, file_path):
    transform = transforms.Compose([
        transforms.ToTensor(),
        transforms.Grayscale(),
    ])

    with torch.no_grad():
        inputs = transform(Image.open(file_path)).reshape(1, 1, 60, 160).to(device)     # All tensors(operators) should be on the same device.
        outputs = model(inputs)
        # print(outputs)
        chars = one_hot_decode(outputs)
        return chars


    def recognize(model, file_path):
    """Can also be used to recognize other CAPTCHA images with custom paths"""
    model.eval()
    real_captcha = file_path.split("-")[-1].replace(".png", "") # File name formation: {index}-{characters}.{file format}
    pred_captcha = predict(model, file_path)

    correct = 0
    if pred_captcha == real_captcha:
        print(f"The prediction result of \"{file_path}\" is {pred_captcha}. The prediction is CORRECT!")
        correct = 1
    else:
        print(f"The prediction result of \"{file_path}\" is {pred_captcha}. The prediction is WRONG!")
    return correct

    def model_test(model):
    correct = 0
    total = len(os.listdir(test_set_path))
    for filename in os.listdir(test_set_path):
        file_path = f"{test_set_path}/{filename}"
        correct += recognize(model, file_path)
    accuracy = f"{correct / total * 100:.8f}%"
    print("\nThe accuracy of the model is", accuracy)

    model = NeuralNetWork().to(device)
    model.load_state_dict(torch.load(save_file_path, map_location=torch.device(device)))

    model_test(model)
