深度学习实战肺部医疗图像分割【U-Net模型+肺部CT数据集+PyQt5界面】

    class encoder(nn.Module):
    def __init__(self, in_channels, out_channels):
        super(encoder, self).__init__()
        self.down_conv = nn.Sequential(
            nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(inplace=True),
            nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(inplace=True)
        )
        # ceil_mode参数取整的时候向上取整，该参数默认为False表示取整的时候向下取整
        self.pool = nn.MaxPool2d(kernel_size=2, ceil_mode=True)

    def forward(self, x):
        out = self.down_conv(x)
        out_pool = self.pool(out)
        return out, out_pool























    代码解读

    class decoder(nn.Module):
    def __init__(self, in_channels, out_channels):
        super(decoder, self).__init__()
        # 反卷积
        self.up = nn.ConvTranspose2d(in_channels, out_channels, kernel_size=2, stride=2)
        self.up_conv = nn.Sequential(
            nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(inplace=True),
            nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(inplace=True)
        )

    def forward(self, x_copy, x, interpolate=True):
        out = self.up(x)
        if interpolate:
            # 迭代代替填充， 取得更好的结果
            out = F.interpolate(out, size=(x_copy.size(2), x_copy.size(3)),
                                mode="bilinear", align_corners=True
                                )
        else:
            # 如果填充物体积大小不同
            diffY = x_copy.size()[2] - x.size()[2]
            diffX = x_copy.size()[3] - x.size()[3]
            out = F.pad(out, (diffX // 2, diffX - diffX // 2, diffY, diffY - diffY // 2))
        # 连接
        out = torch.cat([x_copy, out], dim=1)
        out_conv = self.up_conv(out)
        return out_conv



































    代码解读

    class BaseModel(nn.Module):
    def __init__(self):
        super(BaseModel, self).__init__()
        self.logger = logging.getLogger(self.__class__.__name__)

    def forward(self):
        raise NotImplementedError

    def summary(self):
        model_parameters = filter(lambda p: p.requires_grad, self.parameters())
        nbr_params = sum([np.prod(p.size()) for p in model_parameters])
        self.logger.info(f'Nbr of trainable parametersL {nbr_params}')

    def __str__(self):
        model_parameters = filter(lambda p: p.requires_grad, self.parameters())
        nbr_params = sum([np.prod(p.size()) for p in model_parameters])
        return super(BaseModel, self).__str__() + f"\nNbr of trainable parameters: {nbr_params}"

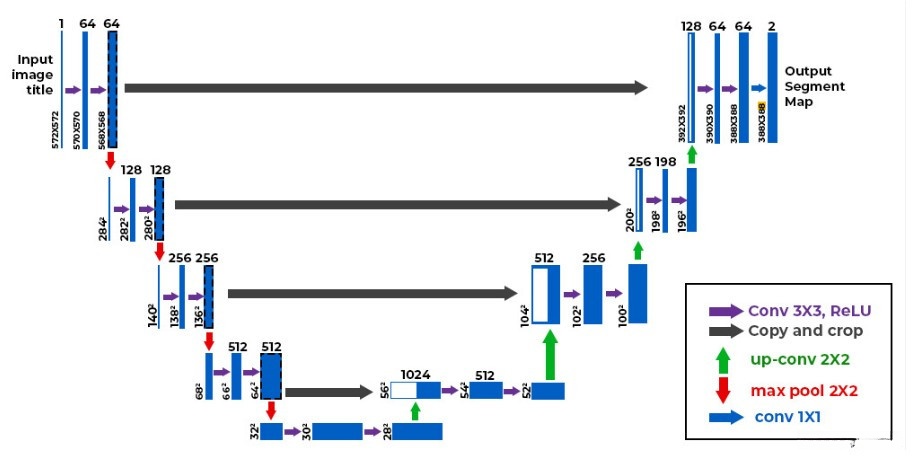

    class UNet(BaseModel):
    def __init__(self, num_classes, in_channels=1, freeze_bn=False, **_):
        super(UNet, self).__init__()
        self.down1 = encoder(in_channels, 64)
        self.down2 = encoder(64, 128)
        self.down3 = encoder(128, 256)
        self.down4 = encoder(256, 512)
        self.middle_conv = nn.Sequential(
            nn.Conv2d(512, 1024, kernel_size=3, padding=1),
            nn.BatchNorm2d(1024),
            nn.ReLU(inplace=True),
            nn.Conv2d(1024, 1024, kernel_size=3, padding=1),
            nn.ReLU(inplace=True)
        )

        self.up1 = decoder(1024, 512)
        self.up2 = decoder(512, 256)
        self.up3 = decoder(256, 128)
        self.up4 = decoder(128, 64)
        self.final_conv = nn.Conv2d(64, num_classes, kernel_size=1)
        self._initalize_weights()
        if freeze_bn:
            self.freeze_bn()

    def _initalize_weights(self):
        for module in self.modules():
            if isinstance(module, nn.Conv2d) or isinstance(module, nn.Linear):
                nn.init.kaiming_normal_(module.weight)
                if module.bias is not None:
                    module.bias.data.zero_()
            elif isinstance(module, nn.BatchNorm2d):
                module.weight.data.fill_(1)
                module.bias.data.zero_()

    def forward(self, x):
        x1, x = self.down1(x)
        x2, x = self.down2(x)
        x3, x = self.down3(x)
        x4, x = self.down4(x)
        x = self.middle_conv(x)
        x = self.up1(x4, x)
        x = self.up2(x3, x)
        x = self.up3(x2, x)
        x = self.up4(x1, x)
        x = self.final_conv(x)
        return x

    def get_backbone_params(self):
        # There is no backbone for unet, all the parameters are trained from scratch
        return []

    def get_decoder_params(self):
        return self.parameters()

    def freeze_bn(self):
        for module in self.modules():
            if isinstance(module, nn.BatchNorm2d):
                module.eval()
















































































    代码解读

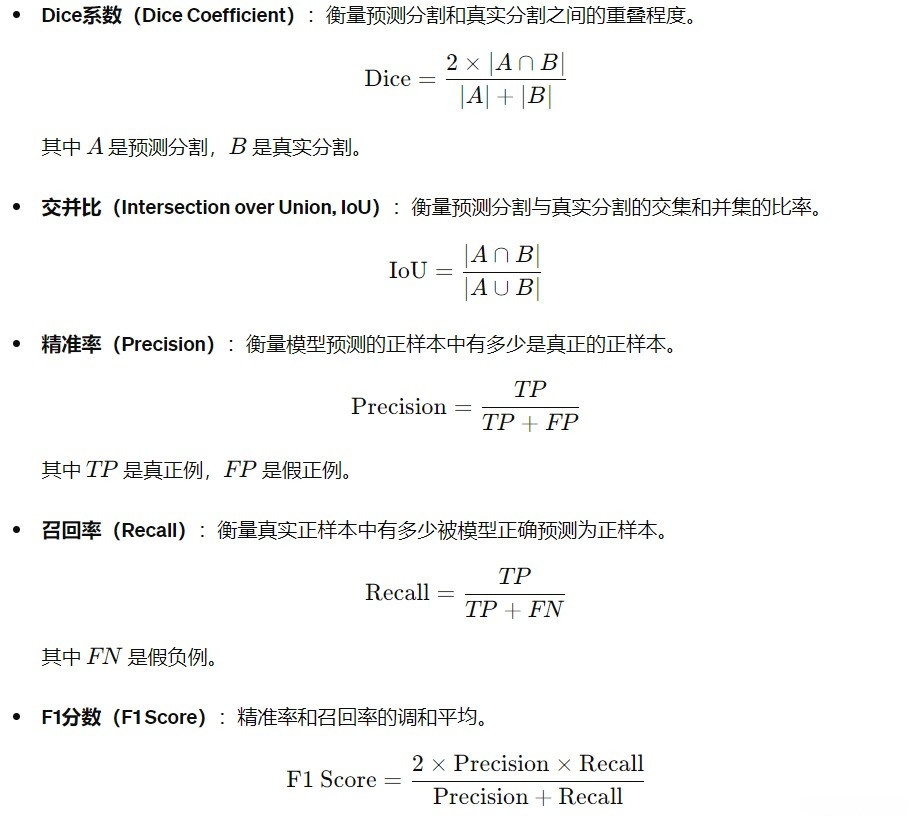

    import numpy as np
    from sklearn.metrics import f1_score, jaccard_score

    # Example function to calculate Dice coefficient
    def dice_coefficient(y_true, y_pred):
    smooth = 1e-6
    y_true_f = np.ravel(y_true)
    y_pred_f = np.ravel(y_pred)
    intersection = np.sum(y_true_f * y_pred_f)
    return (2. * intersection + smooth) / (np.sum(y_true_f) + np.sum(y_pred_f) + smooth)

    # Calculate Dice coefficient for validation set
    dice_scores = [dice_coefficient(true, pred) for true, pred in zip(val_masks, val_predictions)]
    average_dice = np.mean(dice_scores)

    # Calculate IoU for validation set
    iou_scores = [jaccard_score(true.flatten(), pred.flatten()) for true, pred in zip(val_masks, val_predictions)]
    average_iou = np.mean(iou_scores)

    # Calculate F1 score for validation set
    f1_scores = [f1_score(true.flatten(), pred.flatten()) for true, pred in zip(val_masks, val_predictions)]
    average_f1 = np.mean(f1_scores)

    print(f'Average Dice Coefficient: {average_dice}')
    print(f'Average IoU: {average_iou}')
    print(f'Average F1 Score: {average_f1}')





























    代码解读

    def predict(image_file_name):

    im = np.asarray(Image.open(image_file_name))
    im = im.reshape((Height, Width, Img_channel))
    im = transform(im).float().cuda()
    im = im.reshape((1,Img_channel,Height,Width))

    output = model(im)
    _, pred = output.max(1)
    pred = pred.view(Height, Width)
    mask_im = pred.cpu().numpy().astype(np.uint8)


    w,h = mask_im.shape
    print(w,h)

    for i in range(0, w):
        for j in range(0, h):
            if mask_im[i, j] == 1:
                # print('xxx')
                mask_im[i,j] = 255

    return mask_im



























    代码解读
