基于AidLux平台的智慧交通中对抗防御监测应用评测

 pip install scikit-image -i https://pypi.tuna.tsinghua.edu.cn/simple some-package

 pip install torch==1.8.1 -i https://pypi.tuna.tsinghua.edu.cn/simple some-package

 pip install torchvision==0.9.1 -i https://pypi.tuna.tsinghua.edu.cn/simple some-package

 import os


 import torch

 import torch.nn as nn

 from torchvision.models import mobilenet_v2

 from advertorch.utils import predict_from_logits

 from advertorch.utils import NormalizeByChannelMeanStd



 from advertorch.attacks import LinfPGDAttack

 from advertorch_examples.utils import ImageNetClassNameLookup

 from advertorch_examples.utils import bhwc2bchw

 from advertorch_examples.utils import bchw2bhwc



 device = "cuda" if torch.cuda.is_available() else "cpu"



 ### 读取图片

 def get_image():

     img_path = os.path.join("./Lesson4_code/adv_code/images", "mountain_bike.png")

     img_url = "https://farm1.static.flickr.com/230/524562325_fb0a11d1e1.jpg"



     def _load_image():

     from skimage.io import imread

     return imread(img_path) / 255.



     if os.path.exists(img_path):

     return _load_image()

     else:

     import urllib

     urllib.request.urlretrieve(img_url, img_path)

     return _load_image()



 def tensor2npimg(tensor):

     return bchw2bhwc(tensor[0].cpu().numpy())



 ### 展示攻击结果

 def show_images(model, img, advimg, enhance=127):

     np_advimg = tensor2npimg(advimg)

     np_perturb = tensor2npimg(advimg - img)



     pred = imagenet_label2classname(predict_from_logits(model(img)))

     advpred = imagenet_label2classname(predict_from_logits(model(advimg)))



     import matplotlib.pyplot as plt



     plt.figure(figsize=(10, 5))

     plt.subplot(1, 3, 1)

     plt.imshow(np_img)



     plt.axis("off")

     plt.title("original image\n prediction: {}".format(pred))

     plt.subplot(1, 3, 2)

     plt.imshow(np_perturb * enhance + 0.5)



     plt.axis("off")

     plt.title("the perturbation,\n enhanced {} times".format(enhance))

     plt.subplot(1, 3, 3)

     plt.imshow(np_advimg)

     plt.axis("off")

     plt.title("perturbed image\n prediction: {}".format(advpred))

     plt.show()





 normalize = NormalizeByChannelMeanStd(

     mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])



 ### 常规模型加载

 model = mobilenet_v2(pretrained=True)

 model.eval()

 model = nn.Sequential(normalize, model)

 model = model.to(device)



 ### 数据预处理

 np_img = get_image()

 img = torch.tensor(bhwc2bchw(np_img))[None, :, :, :].float().to(device)

 imagenet_label2classname = ImageNetClassNameLookup()



 ### 测试模型输出结果

 pred = imagenet_label2classname(predict_from_logits(model(img)))

 print("test output:", pred)



 ### 输出原label

 pred_label = predict_from_logits(model(img))



 ### 对抗攻击：PGD攻击算法

 adversary = LinfPGDAttack(

     model, eps=8 / 255, eps_iter=2 / 255, nb_iter=80,

     rand_init=True)



 ### 完成攻击，输出对抗样本

 advimg = adversary.perturb(img, pred_label)

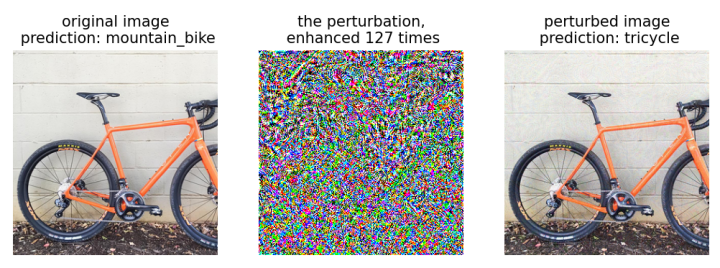

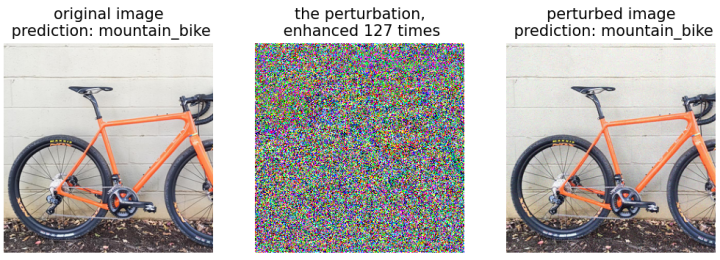

 ### 展示源图片，对抗扰动，对抗样本以及模型的输出结果

 show_images(model, img, advimg)

 ### GCM模块


 robust_mode = GradientConcealment()



 ### 常规模型+GCM模块

 class Model(nn.Module):

     def __init__(self, l=290):

     super(Model, self).__init__()



     self.l = l

     self.gcm = GradientConcealment()

     # model = resnet18(pretrained=True)

     model = mobilenet_v2(pretrained=True)



     # pth_path = "/Users/rocky/Desktop/训练营/model/mobilenet_v2-b0353104.pth"

     # print(f'Loading pth from {pth_path}')

     # state_dict = torch.load(pth_path, map_location='cpu')

     # is_strict = False

     # if 'model' in state_dict.keys():

     #    model.load_state_dict(state_dict['model'], strict=is_strict)

     # else:

     #    model.load_state_dict(state_dict, strict=is_strict)



     normalize = NormalizeByChannelMeanStd(

         mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])

     self.model = nn.Sequential(normalize, model)



     def load_params(self):

     pass



     def forward(self, x):

     x = self.gcm(x)

     # x = ResizedPaddingLayer(self.l)(x)

     out = self.model(x)

     return out



 ### 常规模型+GCM模块 加载

 model_defense = Model().eval().to(device)



 ### 数据预处理

 np_img = get_image()

 img = torch.tensor(bhwc2bchw(np_img))[None, :, :, :].float().to(device)

 imagenet_label2classname = ImageNetClassNameLookup()



 ### 测试模型输出结果

 pred_defense = imagenet_label2classname(predict_from_logits(model_defense(img)))

 print("test output:", pred_defense)



 ### 输出原label

 pre_label = predict_from_logits(model_defense(img))

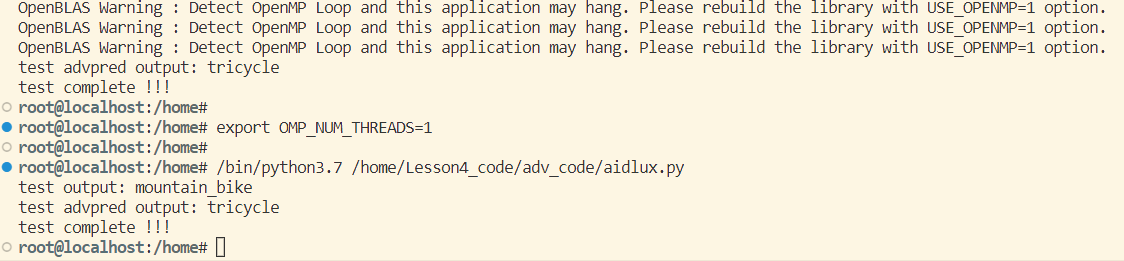

    export OMP_NUM_THREADS=1

 ### 常规模型加载


 model = mobilenet_v2(pretrained=True)

 model.eval()

 model = nn.Sequential(normalize, model)

 model = model.to(device)



 ### 替身模型加载

 model_su = resnet18(pretrained=True)

 model_su.eval()

 model_su = nn.Sequential(normalize, model_su)

 model_su = model_su.to(device)



 ### 数据预处理

 np_img = get_image()

 img = torch.tensor(bhwc2bchw(np_img))[None, :, :, :].float().to(device)

 imagenet_label2classname = ImageNetClassNameLookup()



 ### 测试模型输出结果

 pred = imagenet_label2classname(predict_from_logits(model(img)))

 print("test output:", pred)



 ### 输出原label

 pred_label = predict_from_logits(model_su(img))



 ### 对抗攻击：PGD攻击算法

 adversary = LinfPGDAttack(

    model_su, eps=8/255, eps_iter=2/255, nb_iter=80,

    rand_init=True, targeted=False)



 ### 完成攻击，输出对抗样本

 advimg = adversary.perturb(img, pred_label)

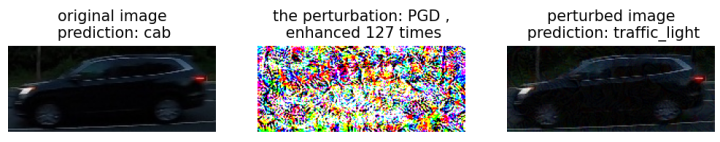

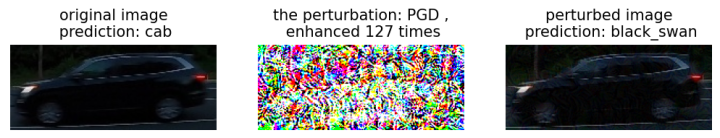

 ### 展示源图片，对抗扰动，对抗样本以及模型的输出结果

 a_type = 'PGD'

 show_images(a_type, model, img, advimg)



 ### 迁移攻击样本保存

 save_path = "./Lesson5_code/adv_code/adv_results/" + img_path.split("/")[-1]

 # save_path = r"D:\code\aidlux_Rocky\Lesson5_code\adv_code\adv_results"

 torchvision.utils.save_image(advimg.cpu().data, save_path + "_adv_image_"+a_type+".png")

 ### 对抗攻击监测模型


 class Detect_Model(nn.Module):

     def __init__(self, num_classes=2):

     super(Detect_Model, self).__init__()

     self.num_classes = num_classes

     #model = create_model('mobilenetv3_large_075', pretrained=False, num_classes=num_classes)

     model = create_model('resnet50', pretrained=False, num_classes=num_classes)





     # self.multi_PreProcess = multi_PreProcess()

     pth_path = os.path.join("./Lesson5_code/model", 'track2_resnet50_ANT_best_albation1_64_checkpoint.pth')

     #pth_path = os.path.join("./Lesson5_code/model/", "track2_tf_mobilenetv3_large_075_64_checkpoint.pth")

     state_dict = torch.load(pth_path, map_location='cpu')

     is_strict = False

     if 'model' in state_dict.keys():

         model.load_state_dict(state_dict['model'], strict=is_strict)

     else:

         model.load_state_dict(state_dict, strict=is_strict)

     normalize = NormalizeByChannelMeanStd(

         mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])

     # self.model = nn.Sequential(normalize, self.multi_PreProcess, model)

     self.model = nn.Sequential(normalize, model)



     def load_params(self):

     pass



     def forward(self, x):

     # x = x[:,:,32:193,32:193]

     # x = F.interpolate(x, size=(224,224), mode="bilinear", align_corners=True)

     # x = self.multi_PreProcess.forward(x)

     out = self.model(x)

     if self.num_classes == 2:

         out = out.softmax(1)

         #return out[:,1:]

         return out[:,1:]



 detect_model = Detect_Model().eval().to(device)

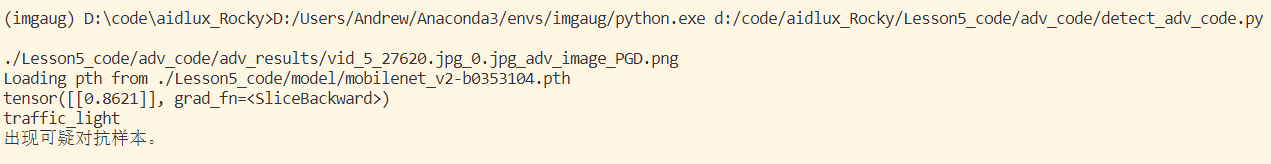

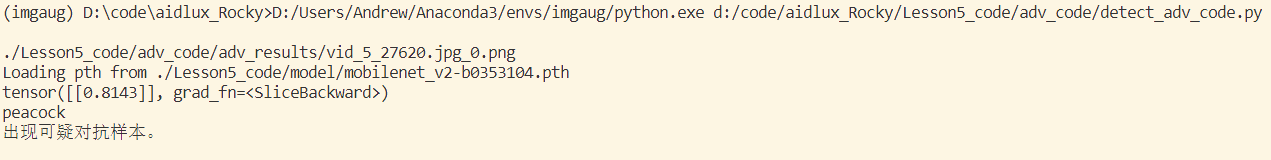

 ### 对抗攻击监测

 detect_pred = detect_model(img)

 print(detect_pred)

 if detect_pred > 0.5:


     print("出现可疑对抗样本。")

 ### 对抗攻击：PGD攻击算法


 adversary = LinfPGDAttack(

    model_su, eps=8/255, eps_iter=2/255, nb_iter=80,

    rand_init=True, targeted=False)

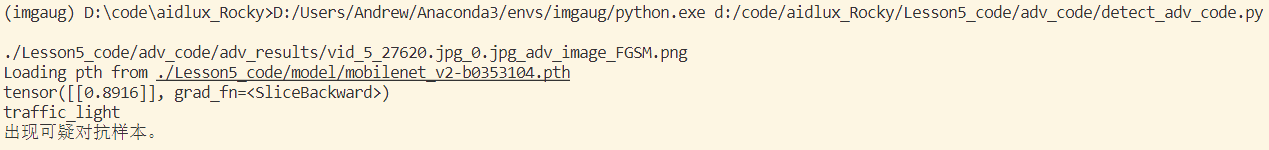

 # ### 对抗攻击：FGSM攻击算法 (eps = 0.5/255, 2/255, 8/255)S

 # adversary = FGSM(

 #    model_su, eps=8/255,

 #    targeted=False)



 # ### 对抗攻击：L1PGD攻击算法 (eps = 100, 400, 1600)

 # adversary = L1PGDAttack(

 #    model_su, eps=1600, eps_iter=2/255, nb_iter=80,

 #    rand_init=True, targeted=False)



 # ### 对抗攻击：L2PGD攻击算法 (eps = 0.5, 2, 8)

 # adversary = L2PGDAttack(

 #    model_su, eps=8, eps_iter=2/255, nb_iter=80,

 #    rand_init=True, targeted=False)



 # ### 对抗攻击：LinfMomentumIterativeAttack攻击算法 (eps = 0.5/255, 2/255, 8/255)

 # adversary = LinfMomentumIterativeAttack(

 #    model_su, eps=8/255

 img_path = "Lesson5_code/adv_code/orig_images/vid_5_27620.jpg_0.jpg"


 # img_path = "./Lesson5_code/adv_code/orig_images/vid_5_31560.jpg_0.jpg"

 #%%

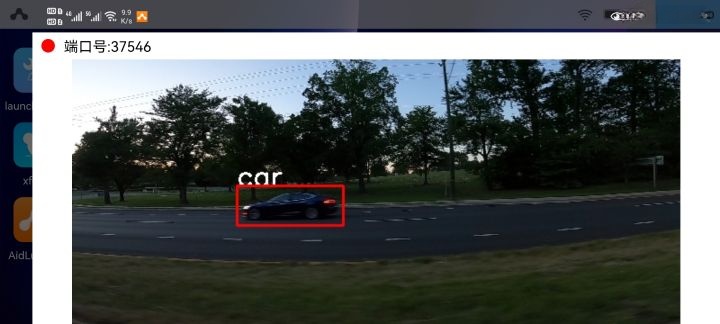

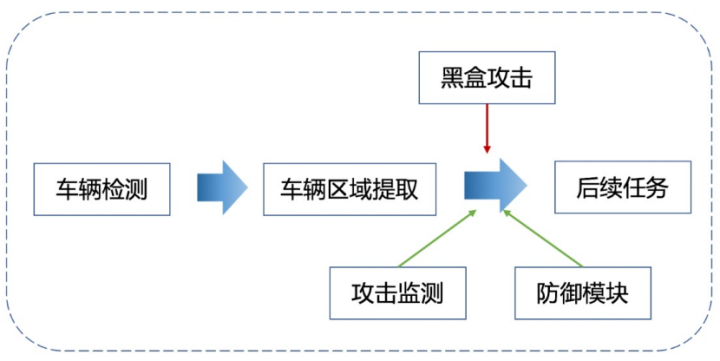

 ## 1.车辆检测+检测框小图提取。



 # aidlux相关

 from cvs import *

 import aidlite_gpu

 from utils import detect_postprocess, preprocess_img, draw_detect_res, extract_detect_res



 import time

 import cv2



 # AidLite初始化：调用AidLite进行AI模型的加载与推理，需导入aidlite

 aidlite = aidlite_gpu.aidlite()

 # Aidlite模型路径

 model_path = '/home/Lesson5_code/yolov5_code/models/yolov5_car_best-fp16.tflite'

 # 定义输入输出shape

 in_shape = [1 * 640 * 640 * 3 * 4]

 out_shape = [1 * 25200 * 6 * 4]

 # 加载Aidlite检测模型：支持tflite, tnn, mnn, ms, nb格式的模型加载

 aidlite.ANNModel(model_path, in_shape, out_shape, 4, 0)



 # 读取图片进行推理

 # 设置测试集路径

 source = "/home/Lesson5_code/yolov5_code/data/images/test1"

 images_list = os.listdir(source)

 print(images_list)

 frame_id = 0

 # 读取数据集

 for image_name in images_list:

     frame_id += 1

     print("frame_id:", frame_id)

     image_path = os.path.join(source, image_name)

     frame = cvs.imread(image_path)



     # 预处理

     img = preprocess_img(frame, target_shape=(640, 640), div_num=255, means=None, stds=None)

     # 数据转换：因为setTensor_Fp32()需要的是float32类型的数据，所以送入的input的数据需为float32,大多数的开发者都会忘记将图像的数据类型转换为float32

     aidlite.setInput_Float32(img, 640, 640)

     # 模型推理API

     aidlite.invoke()

     # 读取返回的结果

     pred = aidlite.getOutput_Float32(0)

     # 数据维度转换

     pred = pred.reshape(1, 25200, 6)[0]

     # 模型推理后处理

     pred = detect_postprocess(pred, frame.shape, [640, 640, 3], conf_thres=0.25, iou_thres=0.45)

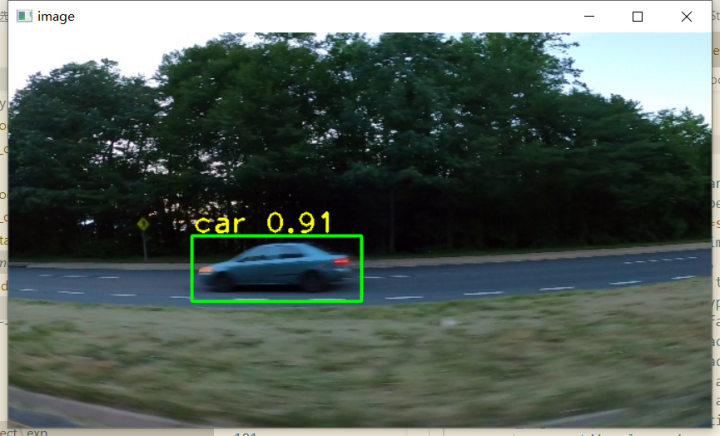

     # 绘制推理结果

     res_img = draw_detect_res(frame, pred)

     # cvs.imshow(res_img)



     # 测试结果展示停顿

     #time.sleep(5)



     # 图片裁剪，提取车辆目标区域

     extract_detect_res(frame, pred, image_name)



     # cvs.imshow(cut_img)

     # cap.release()

     # cv2.destroyAllWindows()



 #%%

 # ## 2.使用对抗样本

 # from cvs import os



 # rec_path = "/home/Lesson5_code/yolov5_code/aidlux/extract_results/"

 # recs_list = os.listdir(rec_path)

 # print(recs_list)



 # ## 使用原样本

 # img_path = os.path.join(rec_path, recs_list[1])



 # ## 替换对抗样本

 # rec_su_path = "/home/Lesson5_code/yolov5_code/aidlux/extract_results_su/"

 # recs_su_list = []

 # for rec_su in recs_list:

 #     recs_su_list.append(rec_su.split('.jpg_0.jpg')[0]+'.jpg_0.png')

 # img_path = os.path.join(rec_su_path, recs_su_list[1])





 #%%

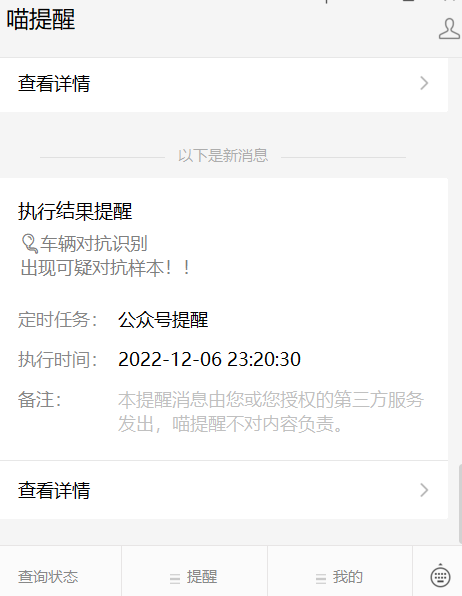

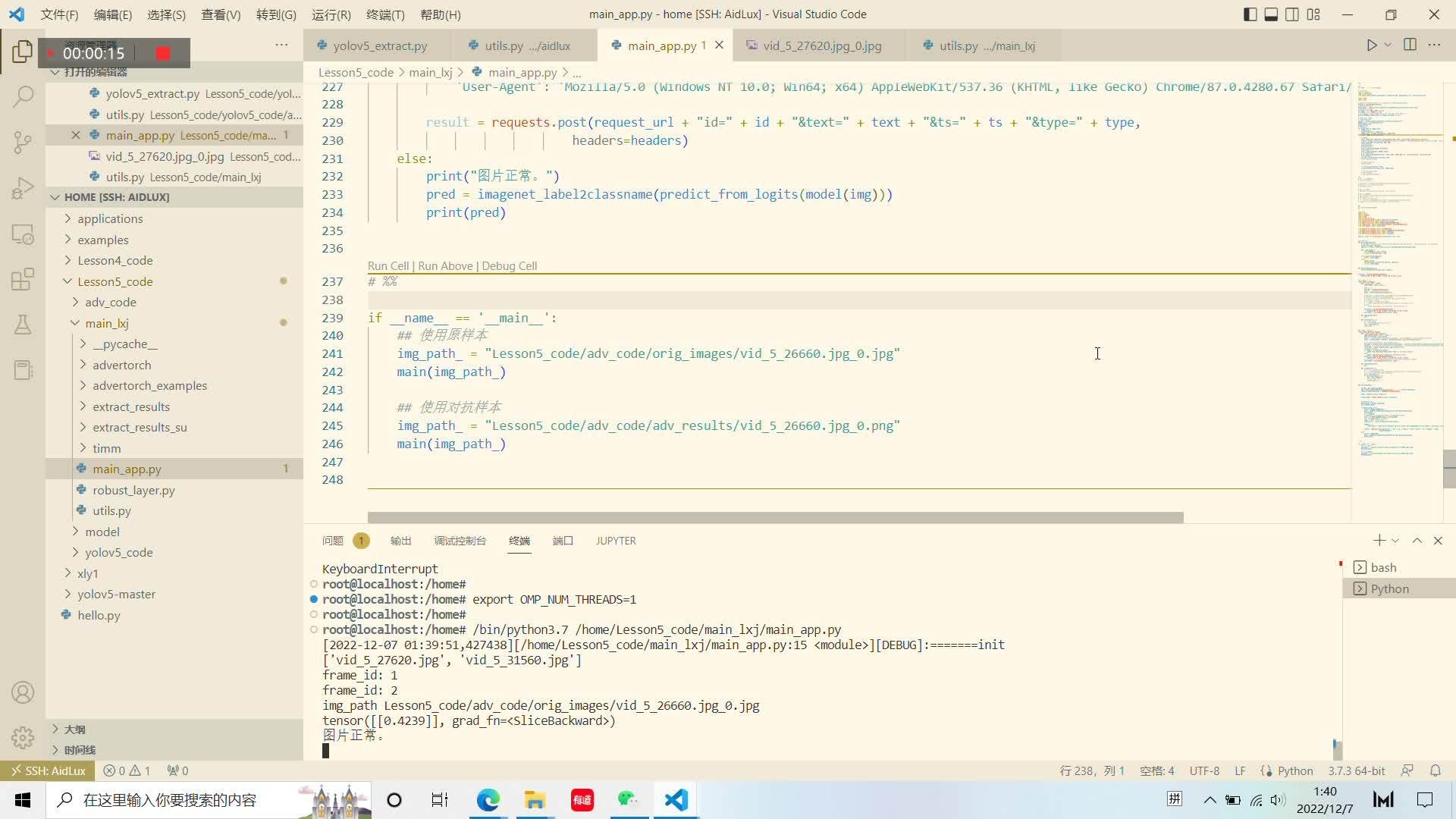

 ## 3.AI安全监测与告警功能

 ##



 import os

 import torch

 import requests

 import time

 import torch.nn as nn

 from torchvision.models import mobilenet_v2,resnet18

 from advertorch.utils import predict_from_logits

 from advertorch.utils import NormalizeByChannelMeanStd

 from robust_layer import GradientConcealment, ResizedPaddingLayer

 from timm.models import create_model



 from advertorch.attacks import LinfPGDAttack

 from advertorch_examples.utils import ImageNetClassNameLookup

 from advertorch_examples.utils import bhwc2bchw

 from advertorch_examples.utils import bchw2bhwc



 device = "cuda" if torch.cuda.is_available() else "cpu"





 ### 读取图片

 def get_image(img_path):

     # img_path = os.path.join("/home/Lesson5_code/adv_code/adv_results/", "adv_image.png")  ## Cars28.png

     print('img_path',img_path)

     img_url = "https://farm1.static.flickr.com/230/524562325_fb0a11d1e1.jpg"



     def _load_image():

     from skimage.io import imread

     return imread(img_path) / 255.



     if os.path.exists(img_path):

     return _load_image()

     else:

     import urllib

     urllib.request.urlretrieve(img_url, img_path)

     return _load_image()





 def tensor2npimg(tensor):

     return bchw2bhwc(tensor[0].cpu().numpy())





 normalize = NormalizeByChannelMeanStd(

     mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])





 ### 常规模型加载

 class Model(nn.Module):

     def __init__(self, l=290):

     super(Model, self).__init__()



     self.l = l

     self.gcm = GradientConcealment()

     #model = resnet18(pretrained=True)

     model = mobilenet_v2(pretrained=True)



     # pth_path = "/home/Lesson5_code/model/mobilenet_v2-b0353104.pth"

     # print(f'Loading pth from {pth_path}')

     # state_dict = torch.load(pth_path, map_location='cpu')

     # is_strict = False

     # if 'model' in state_dict.keys():

     #    model.load_state_dict(state_dict['model'], strict=is_strict)

     # else:

     #    model.load_state_dict(state_dict, strict=is_strict)



     normalize = NormalizeByChannelMeanStd(

         mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])

     self.model = nn.Sequential(normalize, model)



     def load_params(self):

     pass



     def forward(self, x):

     #x = self.gcm(x)

     #x = ResizedPaddingLayer(self.l)(x)

     out = self.model(x)

     return out





 ### 对抗攻击监测模型

 class Detect_Model(nn.Module):

     def __init__(self, num_classes=2):

     super(Detect_Model, self).__init__()

     self.num_classes = num_classes

     #model = create_model('mobilenetv3_large_075', pretrained=False, num_classes=num_classes)

     model = create_model('resnet50', pretrained=False, num_classes=num_classes)



     # self.multi_PreProcess = multi_PreProcess()

     pth_path = os.path.join("/home/Lesson5_code/model", 'track2_resnet50_ANT_best_albation1_64_checkpoint.pth')

     #pth_path = os.path.join("/home/Lesson5_code/model", "track2_tf_mobilenetv3_large_075_64_checkpoint.pth")

     state_dict = torch.load(pth_path, map_location='cpu')

     is_strict = False

     if 'model' in state_dict.keys():

         model.load_state_dict(state_dict['model'], strict=is_strict)

     else:

         model.load_state_dict(state_dict, strict=is_strict)

     normalize = NormalizeByChannelMeanStd(

         mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])

     # self.model = nn.Sequential(normalize, self.multi_PreProcess, model)

     self.model = nn.Sequential(normalize, model)



     def load_params(self):

     pass



     def forward(self, x):

     # x = x[:,:,32:193,32:193]

     # x = F.interpolate(x, size=(224,224), mode="bilinear", align_corners=True)

     # x = self.multi_PreProcess.forward(x)

     out = self.model(x)

     if self.num_classes == 2:

         out = out.softmax(1)

         #return out[:,1:]

         return out[:,1:]





 def main(img_path):



     np_img = get_image(img_path)

     img = torch.tensor(bhwc2bchw(np_img))[None, :, :, :].float().to(device)

     imagenet_label2classname = ImageNetClassNameLookup()



     model = Model().eval().to(device)



     detect_model = Detect_Model().eval().to(device)





     ### 对抗攻击监测

     detect_pred = detect_model(img)

     print(detect_pred)



     if detect_pred > 0.5:

     print("出现可疑对抗样本。")

     pred = imagenet_label2classname(predict_from_logits(model(img)))

     print(pred)

     id = 't5Su94C'

     # 填写喵提醒中，发送的消息，这里放上前面提到的图片外链

     text = "出现可疑对抗样本！！" +str(img_path)

     ts = str(time.time())  # 时间戳

     type = 'json'  # 返回内容格式

     request_url = "http://miaotixing.com/trigger?"



     headers = {

         'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/87.0.4280.67 Safari/537.36 Edg/87.0.664.47'}



     result = requests.post(request_url + "id=" + id + "&text=" + text + "&ts=" + ts + "&type=" + type,

                         headers=headers)

     else:

     print("图片正常。")

     pred = imagenet_label2classname(predict_from_logits(model(img)))

     print(pred)





 # %%



 if __name__ == '__main__':

     ## 使用原样本

     img_path_ = "Lesson5_code/adv_code/orig_images/vid_5_26660.jpg_0.jpg"

     main(img_path_)



     ## 替换对抗样本

     img_path_ = "Lesson5_code/adv_code/adv_results/vid_5_26660.jpg_0.png"

     main(img_path_)
