深度学习论文: Re-imagining Pyramidal Convolution: Rethinking Convolutional Neural Networks for Visual Recognition and its PyTorch implementation
PDF:https://arxiv.org/pdf/2006.11538.pdf
PyTorch: https://github.com/shanglianlm0525/PyTorch-Networks
1 概述
本文提出了一种新型的金字塔卷积（Pyramidal Convolution, PyConv）方法，在计算机视觉领域中展现出显著的应用潜力。该方法通过构建一个多层次的滤波器金字塔结构，在不同尺度的空间特征提取上实现了高度并行化处理能力。其中，每一层采用了不同类型且大小可调节的滤波器设计，在保留原始图像关键细节的同时能够有效降低计算复杂度。相比于传统标准卷积方法，在保持相同性能的前提下，其计算复杂度和参数规模并未显著增加。此外，在实际应用中发现这种设计不仅更加灵活，而且在可扩展性方面也表现出色。通过引入多级自适应滤波器组合机制，在不同应用场景中均能实现高效的特征提取与重建过程

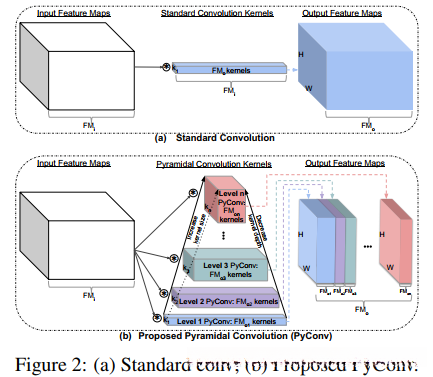

2 Pyramidal Convolution
def ConvBNReLU(in_channels,out_channels,kernel_size,stride,groups=1):
return nn.Sequential(
nn.Conv2d(in_channels=in_channels, out_channels=out_channels, kernel_size=kernel_size, stride=stride,padding=kernel_size//2,groups=groups),
nn.BatchNorm2d(out_channels),
nn.ReLU(inplace=True)
)
def Conv1x1BNReLU(in_channels,out_channels,groups=1):
return nn.Sequential(
nn.Conv2d(in_channels=in_channels, out_channels=out_channels, kernel_size=1, stride=1,groups=groups),
nn.BatchNorm2d(out_channels),
nn.ReLU6(inplace=True)
)
class PyConv(nn.Module):
def __init__(self, in_channels, out_channels, kernel_sizes, groups, stride=1):
super(PyConv, self).__init__()
if out_channels is None:
out_channels = []
assert len(out_channels) == len(kernel_sizes) == len(groups)
self.pyconv_list = nn.ModuleList()
for i in range(len(kernel_sizes)):
self.pyconv_list.append(ConvBNReLU(in_channels=in_channels,out_channels=out_channels[i],kernel_size=kernel_sizes[i],stride=stride,groups=groups[i]))
def forward(self, x):
outputs = []
for pyconv in self.pyconv_list:
outputs.append(pyconv(x))
return torch.cat(outputs, 1)
代码解读3 应用

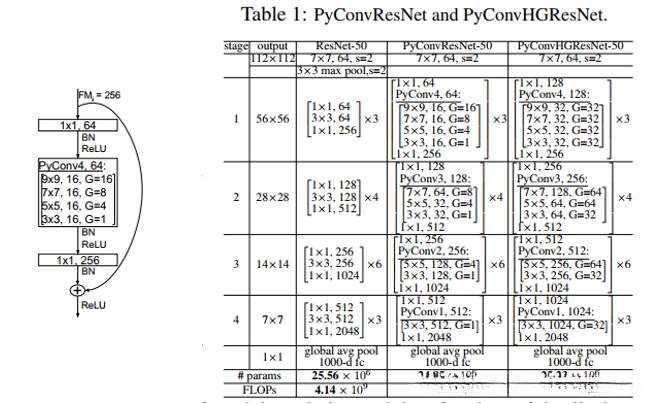

3-1 PyConv Networks for Image Classification
将PyConv集成到Bottleneck中，并构建两类结构分别命名为PyConvResNet与PyConvHGResNet

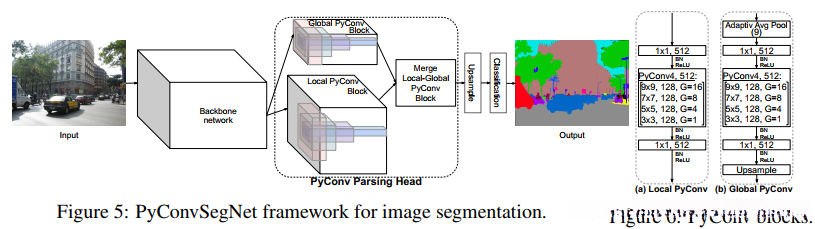

3-2 PyConv Network on Semantic Segmentation
PyConvPH。PyConvPH包含三个主要成分：
- LocalPyConv模块被设计用于提取多尺度细节特征，并聚焦于小目标。
- GlobalPyConv模块被构建以捕获场景的整体信息，并识别和处理大尺寸的目标。
- MergePyConv模块负责整合全局与局部特征。
class LocalPyConv(nn.Module):
def __init__(self, planes):
super(LocalPyConv, self).__init__()
inplanes = planes//4
self._reduce = Conv1x1BNReLU(planes, 512)
self._pyConv = PyConv(in_channels=512, out_channels=[inplanes, inplanes, inplanes, inplanes], kernel_sizes=[3, 5, 7, 9], groups=[1, 4, 8, 16])
self._combine = Conv1x1BNReLU(512, planes)
def forward(self, x):
return self._combine(self._pyConv(self._reduce(x)))
class GlobalPyConv(nn.Module):
def __init__(self, planes):
super(GlobalPyConv, self).__init__()
inplanes = planes // 4
self.global_pool = nn.AdaptiveAvgPool2d(output_size=9)
self._reduce = Conv1x1BNReLU(planes, 512)
self._pyConv = PyConv(in_channels=512, out_channels=[inplanes, inplanes, inplanes, inplanes],
kernel_sizes=[3, 5, 7, 9], groups=[1, 4, 8, 16])
self._fuse = Conv1x1BNReLU(512, 512)
def forward(self, x):
b,c,w,h = x.shape
x = self._fuse(self._pyConv(self._reduce(self.global_pool(x))))
out = F.interpolate(x,(w,h),align_corners=True,mode='bilinear')
return out
class MergePyConv(nn.Module):
def __init__(self, img_size,in_channels, num_classes):
super(MergePyConv, self).__init__()
self.img_size = img_size
self.conv3 = ConvBNReLU(in_channels=in_channels,out_channels=256,kernel_size=3,stride=1)
self.conv1 = nn.Conv2d(in_channels=256, out_channels=num_classes, kernel_size=1, stride=1,groups=1)
def forward(self, x):
x = self.conv3(x)
x = F.interpolate(x, self.img_size, align_corners=True,mode='bilinear')
out = self.conv1(x)
return out
class PyConvParsingHead(nn.Module):
def __init__(self, img_size=(473,473), planes=512,num_classes=150):
super(PyConvParsingHead, self).__init__()
self.globalPyConv = GlobalPyConv(planes=planes)
self.localPyConv = LocalPyConv(planes=planes)
self.mergePyConv = MergePyConv(img_size,1024, num_classes)
def forward(self, x):
g_x = self.globalPyConv(x)
l_x = self.localPyConv(x)
x = torch.cat([g_x,l_x],dim=1)
out = self.mergePyConv(x)
return out

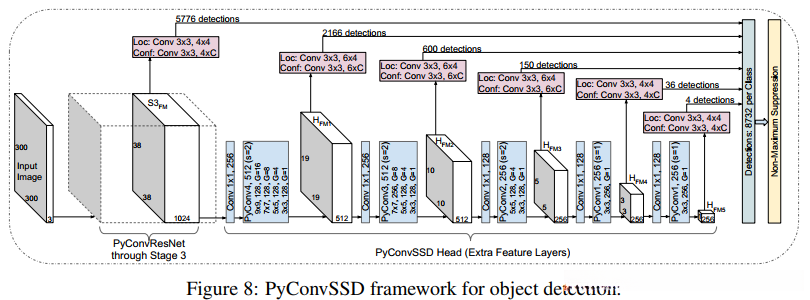

代码解读3-3 PyConv Network on Object Detection
class PyConv4(nn.Module):
def __init__(self, inplaces, places, kernel_sizes=[3, 5, 7, 9], groups=[1, 4, 8, 16], stride=2):
super(PyConv4, self).__init__()
assert len(kernel_sizes) == len(groups)
out_channels = [places//4, places//4, places//4, places//4]
self.pyconv_list = nn.ModuleList()
for i in range(len(kernel_sizes)):
self.pyconv_list.append(ConvBNReLU(in_channels=inplaces,out_channels=out_channels[i],kernel_size=kernel_sizes[i],stride=stride,groups=groups[i]))
def forward(self, x):
outputs = []
for pyconv in self.pyconv_list:
outputs.append(pyconv(x))
return torch.cat(outputs, 1)
class PyConv3(nn.Module):
def __init__(self, inplaces,places, kernel_sizes=[3, 5, 7], groups=[1, 4, 8], stride=2):
super(PyConv3, self).__init__()
assert len(kernel_sizes) == len(groups)
out_channels = [places // 4, places // 4, places // 2]
self.pyconv_list = nn.ModuleList()
for i in range(len(kernel_sizes)):
self.pyconv_list.append(ConvBNReLU(in_channels=inplaces,out_channels=out_channels[i],kernel_size=kernel_sizes[i],stride=stride,groups=groups[i]))
def forward(self, x):
outputs = []
for pyconv in self.pyconv_list:
outputs.append(pyconv(x))
return torch.cat(outputs, 1)
class PyConv2(nn.Module):
def __init__(self, inplaces,places, kernel_sizes=[3, 5], groups=[1, 4], stride=2):
super(PyConv2, self).__init__()
assert len(kernel_sizes) == len(groups)
out_channels = [places // 2, places // 2]
self.pyconv_list = nn.ModuleList()
for i in range(len(kernel_sizes)):
self.pyconv_list.append(ConvBNReLU(in_channels=inplaces,out_channels=out_channels[i],kernel_size=kernel_sizes[i],stride=stride,groups=groups[i]))
def forward(self, x):
outputs = []
for pyconv in self.pyconv_list:
outputs.append(pyconv(x))
return torch.cat(outputs, 1)
class PyConv1(nn.Module):
def __init__(self, inplaces,places, kernel_sizes, groups, stride=1):
super(PyConv1, self).__init__()
assert len(kernel_sizes) == len(groups)
self.pyconv = ConvBNReLU(in_channels=inplaces,out_channels=places,kernel_size=3,stride=stride,groups=1)
def forward(self, x):
return self.pyconv(x)

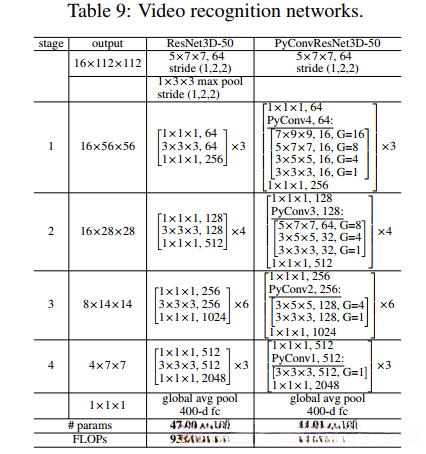

代码解读3-4 PyConv Network on Video Classification
