OpenCV中提取SIFT特征点、图像匹配、图像配准

    #include<iostream>
    #include <opencv2/core/core.hpp>
    #include <opencv2/highgui/highgui.hpp>
    #include <opencv2/features2d/features2d.hpp>
    #include <opencv2/nonfree/nonfree.hpp>
    #include "opencv2/calib3d/calib3d.hpp"
    #include <highgui.h>
    #include <cv.h>
    #include<vector>
    #include<cmath>

    #define PI 3.14159265358979323846264338327950288419716939937510582097
    using namespace std;
    using namespace cv;

    void main()
    {
    //读取原始基准图和待匹配图
    Mat srcImg1 = imread("1.JPG");      //待配准图
    Mat srcImg2 = imread("2.JPG");      //基准图

    //显示基准和待配准图
    imshow("待配准图", srcImg1);
    imshow("基准图", srcImg2);

    //定义SIFT特征检测类对象
    SiftFeatureDetector siftDetector1;
    SiftFeatureDetector siftDetector2;

    //定义KeyPoint变量
    vector<KeyPoint>keyPoints1;
    vector<KeyPoint>keyPoints2;

    //特征点检测
    siftDetector1.detect(srcImg1, keyPoints1);
    siftDetector2.detect(srcImg2, keyPoints2);

    //绘制特征点(关键点)
    Mat feature_pic1, feature_pic2;
    drawKeypoints(srcImg1, keyPoints1, feature_pic1, Scalar::all(-1));
    drawKeypoints(srcImg2, keyPoints2, feature_pic2, Scalar::all(-1));

    drawKeypoints(srcImg1, keyPoints1, feature_pic1, Scalar(0, 255, 0), DrawMatchesFlags::DRAW_RICH_KEYPOINTS);
    drawKeypoints(srcImg2, keyPoints2, feature_pic2, Scalar(0, 255, 0), DrawMatchesFlags::DRAW_RICH_KEYPOINTS);

    //显示原图

    //显示结果
    imshow("feature1", feature_pic1);
    imshow("feature2", feature_pic2);

    //计算特征点描述符 / 特征向量提取
    SiftDescriptorExtractor descriptor;
    Mat description1;
    descriptor.compute(srcImg1, keyPoints1, description1);
    Mat description2;
    descriptor.compute(srcImg2, keyPoints2, description2);

    cout << keyPoints1.size() << endl;
    cout << description1.cols << endl;      //列数
    cout << description1.rows << endl;      //行数


    //进行BFMatch暴力匹配
    //BruteForceMatcher<L2<float>>matcher;    //实例化暴力匹配器
    FlannBasedMatcher matcher;  //实例化FLANN匹配器
    vector<DMatch>matches;   //定义匹配结果变量
    matcher.match(description1, description2, matches);  //实现描述符之间的匹配

    //中间变量
    int i,j,k;double sum=0;double b;

    double max_dist = 0;
    double min_dist = 100;
    for(int i=0; i<matches.size(); i++)
    {
        double dist = matches[i].distance;
        if(dist < min_dist)
            min_dist = dist;
        if(dist > max_dist)
            max_dist = dist;
    }
    cout<<"最大距离："<<max_dist<<endl;
    cout<<"最小距离："<<min_dist<<endl;

    //筛选出较好的匹配点
    vector<DMatch> good_matches;
    double dThreshold = 0.5;    //匹配的阈值，越大匹配的点数越多
    for(int i=0; i<matches.size(); i++)
    {
        if(matches[i].distance < dThreshold * max_dist)
        {
            good_matches.push_back(matches[i]);
        }
    }

    //RANSAC 消除误匹配特征点 主要分为三个部分：
    //1）根据matches将特征点对齐,将坐标转换为float类型
    //2）使用求基础矩阵方法findFundamentalMat,得到RansacStatus
    //3）根据RansacStatus来将误匹配的点也即RansacStatus[i]=0的点删除

       //根据matches将特征点对齐,将坐标转换为float类型
    vector<KeyPoint> R_keypoint01,R_keypoint02;
    for (i=0;i<good_matches.size();i++)
    {
        R_keypoint01.push_back(keyPoints1[good_matches[i].queryIdx]);
        R_keypoint02.push_back(keyPoints2[good_matches[i].trainIdx]);
       // 这两句话的理解：R_keypoint1是要存储img01中能与img02匹配的特征点，
       // matches中存储了这些匹配点对的img01和img02的索引值
    }

    //坐标转换
    vector<Point2f>p01,p02;
    for (i=0;i<good_matches.size();i++)
    {
        p01.push_back(R_keypoint01[i].pt);
        p02.push_back(R_keypoint02[i].pt);
    }

    //计算基础矩阵并剔除误匹配点
    vector<uchar> RansacStatus;
    Mat Fundamental= findHomography(p01,p02,RansacStatus,CV_RANSAC);
    Mat dst;
    warpPerspective(srcImg1, dst, Fundamental,Size(srcImg1.cols,srcImg1.rows));

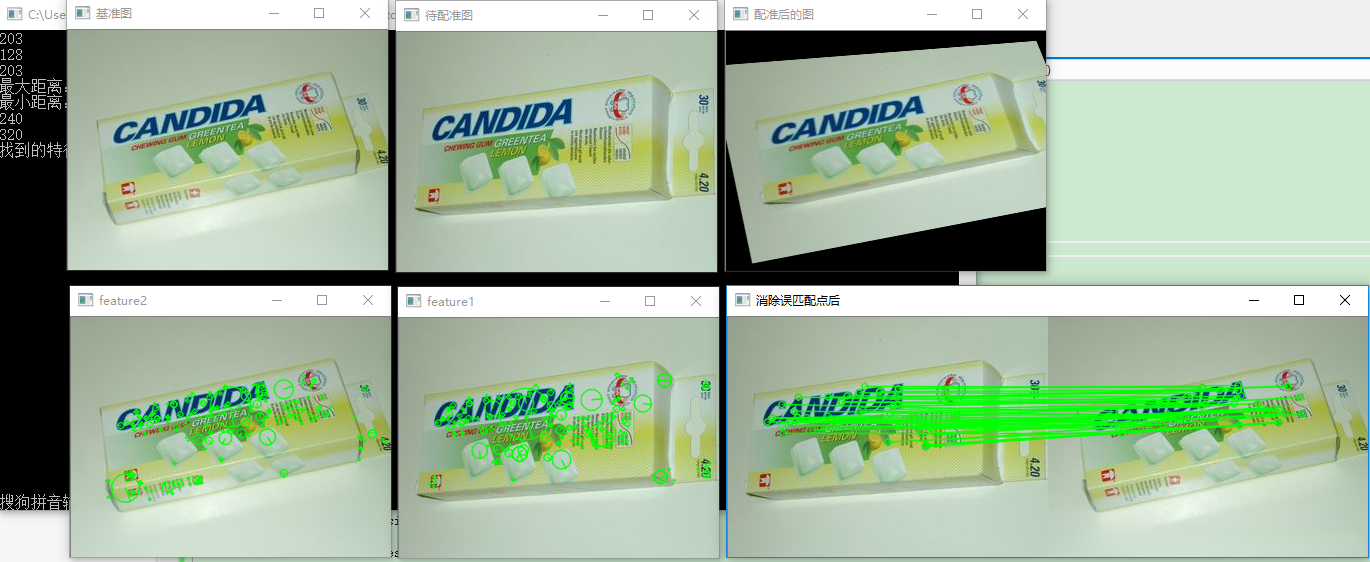

    imshow("配准后的图",dst );
    imwrite("dst.jpg", dst);

    //剔除误匹配的点对
    vector<KeyPoint> RR_keypoint01,RR_keypoint02;
    vector<DMatch> RR_matches;            //重新定义RR_keypoint 和RR_matches来存储新的关键点和匹配矩阵
    int index=0;
    for (i=0;i<good_matches.size();i++)
    {
        if (RansacStatus[i]!=0)
        {
            RR_keypoint01.push_back(R_keypoint01[i]);
            RR_keypoint02.push_back(R_keypoint02[i]);
            good_matches[i].queryIdx=index;
            good_matches[i].trainIdx=index;
            RR_matches.push_back(good_matches[i]);
            index++;
        }
    }
    cout<<"找到的特征点对："<<RR_matches.size()<<endl;

    //画出消除误匹配后的图
    Mat img_RR_matches;
    drawMatches(srcImg1,RR_keypoint01,srcImg2,RR_keypoint02,RR_matches,img_RR_matches, Scalar(0, 255, 0), Scalar::all(-1));
    imshow("消除误匹配点后",img_RR_matches);
    imwrite("匹配图.jpg", img_RR_matches);

    waitKey(0);
    }
