3d pose 学习笔记2025

    DATA_ROOT = os.environ['DATA_ROOT']



 # coding=utf-8

 import sys

 import os

 current_dir = os.path.dirname(os.path.abspath(__file__))

 os.chdir(current_dir)



 paths = [os.path.abspath(__file__).split('scripts')[0]]

 print('current_dir',current_dir)

 paths.append(os.path.abspath(os.path.join(current_dir, 'src')))



 for path in paths:

     sys.path.insert(0, path)

     os.environ['PYTHONPATH'] = (os.environ.get('PYTHONPATH', '') + ':' + path).strip(':')



 import glob

 os.environ['CUDA_VISIBLE_DEVICES'] = '2'

 import torch

 import torchvision

 from pathlib import Path

 import pickle

 import gc

 import time

 import warnings

 import os

 warnings.filterwarnings("ignore")





 # Load the TorchScript model

 model = torch.jit.load('./nlf_l_multi.torchscript').cuda().eval()

 batch_size = 1

 key_names = ['boxes', 'pose', 'betas', 'trans', 'vertices3d', 'joints3d', 'vertices2d', 'joints2d', 'vertices3d_nonparam', 'joints3d_nonparam', 'vertices2d_nonparam', 'joints2d_nonparam',

          'vertex_uncertainties', 'joint_uncertainties']



 paths=glob.glob(r"/shared_disk/users/lbg/project/inpaint/see3d/mp4s/person_big_0108.mp4")



 out_dir='output/'

 os.makedirs(out_dir, exist_ok=True)

 REMAINING_VIDEOS = True



 videos_not_processed = []

 for vi, video_path in enumerate(paths):

     try:

     frames, _, _ = torchvision.io.read_video(video_path, pts_unit="sec")



     # Convert frames to tensor and move to GPU

     frames = frames.permute(0, 3, 1, 2).cuda()  # Shape: (num_frames, C, H, W)



     # Process video frames in batches

     num_frames = frames.shape[0]

     print("frames shape: ", frames.shape, num_frames)



     results = {key: [] for key in key_names}

     # with torch.inference_mode():

     with torch.no_grad():

         for i in range(0, num_frames, batch_size):

             frame_batch = frames[i:i + batch_size]

             print("i: ", i,"i end: ", i + batch_size,frame_batch.shape)

             start=time.time()

             preds = model.detect_smpl_batched(frame_batch, model_name='smplx')

             print(i,'time',time.time()-start)

             for key in preds:

                 results[key].extend([p.cpu() for p in preds[key]])



     del frames

     torch.cuda.empty_cache()

     gc.collect()

     print("output: ", len(results['pose']))

     print("output: ", len(results['betas']))

     video_path = str(video_path).replace('.mp4', '')

     video_path = video_path.split('/')

     video_name = video_path[-1]

     subset = video_path[-2]

     save_path = out_dir  + f"{video_name}.pkl"

     with open(save_path, 'wb') as f:

         pickle.dump(results, f)

     # del results

     time.sleep(1)



     print("reading picklefile")

     with open(save_path, 'rb') as f:

         results = pickle.load(f)

     print("results: ", len(results['pose']))

     print("results: ", len(results['betas']))

     except Exception as e:

     videos_not_processed.append(str(video_path))

     print(f"Error processing video: {video_path}")

     print(e)



 print(f"Videos not processed:", len(videos_not_processed))

 output_file = out_dir+ "videos_not_processed.txt"

 with open(output_file, 'w') as f:

     f.write("\n".join(videos_not_processed))

 # coding=utf-8


 import sys

 import os



 import imageio

 current_dir = os.path.dirname(os.path.abspath(__file__))

 os.chdir(current_dir)



 paths = [os.path.abspath(__file__).split('scripts')[0]]

 print('current_dir',current_dir)

 paths.append(os.path.abspath(os.path.join(current_dir, 'src')))



 for path in paths:

     sys.path.insert(0, path)

     os.environ['PYTHONPATH'] = (os.environ.get('PYTHONPATH', '') + ':' + path).strip(':')



 import pickle

 import numpy as np

 import torch

 import numpy as np

 import cv2

 import pyrender

 from smplx import SMPLX

 from tqdm import tqdm

 import trimesh

 import os

 os.environ["PYOPENGL_PLATFORM"] = "egl"

 os.environ['EGL_DEVICE_ID'] = '0'



 video_path = fr"/shared_disk/users/lbg/project/inpaint/see3d/mp4s/person_big_0108.mp4"

 pred_pkl = f"/shared_disk/users/lbg/project/human_4d/nlf_pose/output/person_big_0108.pkl"





 with open(pred_pkl, 'rb') as f:

     pred = pickle.load(f)



 pose = pred['pose']



 target_shape = pose[0].shape  # 以第一个张量的形状为基准

 inconsistent_frames = []



 for i, tensor in enumerate(pose):

     if tensor.shape != target_shape:

     inconsistent_frames.append(i)

     pose[i] = torch.zeros(1, 165)

     print(f"Frame {i} has inconsistent shape: {tensor.shape} (expected {target_shape})")





 pose = torch.cat(pose, dim=0)

 # print("pred: ", pred.shape)

 # pred = pred[:, :3+63].reshape(-1, 22, 3)

 motion = pose[:-1]





 # Load SMPL-X model

 model_path = './SMPLX_NEUTRAL.npz'

 model = SMPLX(model_path, gender='neutral', use_pca=False)



 num_frames = len(pred)

 os.makedirs("out",exist_ok=True)

 renderer = pyrender.OffscreenRenderer(viewport_width=1080, viewport_height=1920)

 import gc

 frames = []

 for i in tqdm(range(num_frames)):



     # if i>3:

     # break

     # Extract parameters

     root_orient = pose[i][ :3].unsqueeze(0)

     pose_body = pose[i][ 3:22*3].unsqueeze(0)

     trans = pred['trans'][i]

     betas = pred['betas'][i]



     # Generate SMPL-X model output

     output = model(global_orient=root_orient, body_pose=pose_body,

                betas=betas, transl=trans)

     vertices = output.vertices.detach().cpu().numpy().squeeze()

     faces = model.faces



     mesh = trimesh.Trimesh(vertices=vertices, faces=faces)

     # Create a pyrender scene

     scene = pyrender.Scene()

     mesh = pyrender.Mesh.from_trimesh(mesh)

     scene.add(mesh)



     # Set up the camera and light

     camera = pyrender.PerspectiveCamera(yfov=np.pi / 3.0, aspectRatio=1.0)

     camera_pose = np.eye(4)

     camera_pose[:3, 3] = np.array([0, 0, 3])  # Move camera further away



     scene.add(camera, pose=camera_pose)

     light = pyrender.DirectionalLight(color=[1.0, 1.0, 1.0], intensity=2.0)

     scene.add(light, pose=camera_pose)



     # Render the scene

     # renderer = pyrender.OffscreenRenderer(viewport_width=800, viewport_height=800)

     color, depth = renderer.render(scene)



     cv2.imwrite(f"out/{i}.jpg",cv2.cvtColor(color, cv2.COLOR_RGB2BGR))

     frames.append(color)

     scene.clear()  # 清除场景，释放资源

     gc.collect()  # 强制垃圾回收

 print("here")

 # Save as video



 imageio.mimsave( 'output.mp4', frames, fps=25,macro_block_size=None)



 if 0:

     video_path = 'output.mp4'

     out = cv2.VideoWriter(video_path, cv2.VideoWriter_fourcc(*'mp4v'), 1, (800, 800))

     for frame in frames:

     out.write(cv2.cvtColor(frame, cv2.COLOR_RGB2BGR))



     cv2.imwrite("111.jpg",cv2.cvtColor(frame, cv2.COLOR_RGB2BGR))

     out.release()

     print(f'Video saved at {video_path}')

 # coding=utf-8


 import sys

 import os

 current_dir = os.path.dirname(os.path.abspath(__file__))

 os.chdir(current_dir)



 paths = [os.path.abspath(__file__).split('scripts')[0]]

 print('current_dir',current_dir)

 paths.append(os.path.abspath(os.path.join(current_dir, '../')))



 for path in paths:

     sys.path.insert(0, path)

     os.environ['PYTHONPATH'] = (os.environ.get('PYTHONPATH', '') + ':' + path).strip(':')



 import cv2

 import torch



 import cv2

 import torch

 import pytorch_lightning as pl

 import numpy as np

 import argparse

 from hmr4d.utils.pylogger import Log

 import hydra

 from hydra import initialize_config_module, compose

 from pathlib import Path

 from pytorch3d.transforms import quaternion_to_matrix



 from hmr4d.configs import register_store_gvhmr

 from hmr4d.utils.video_io_utils import (

     get_video_lwh,

     read_video_np,

     save_video,

     merge_videos_horizontal,

     get_writer,

     get_video_reader,

 )

 from hmr4d.utils.vis.cv2_utils import draw_bbx_xyxy_on_image_batch, draw_coco17_skeleton_batch



 from hmr4d.utils.preproc import Tracker, Extractor, VitPoseExtractor, SLAMModel



 from hmr4d.utils.geo.hmr_cam import get_bbx_xys_from_xyxy, estimate_K, convert_K_to_K4, create_camera_sensor

 from hmr4d.utils.geo_transform import compute_cam_angvel

 from hmr4d.model.gvhmr.gvhmr_pl_demo import DemoPL

 from hmr4d.utils.net_utils import detach_to_cpu, to_cuda

 from hmr4d.utils.smplx_utils import make_smplx

 from hmr4d.utils.vis.renderer import Renderer, get_global_cameras_static, get_ground_params_from_points

 from tqdm import tqdm

 from hmr4d.utils.geo_transform import apply_T_on_points, compute_T_ayfz2ay

 from einops import einsum, rearrange





 CRF = 23  # 17 is lossless, every +6 halves the mp4 size





 def parse_args_to_cfg():

     # Put all args to cfg

     parser = argparse.ArgumentParser()

     parser.add_argument("--video", type=str, default=r"/shared_disk/users/lbg/project/inpaint/see3d/mp4s/person_big_0108.mp4")

     parser.add_argument("--output_root", type=str, default='output', help="by default to outputs/demo")

     parser.add_argument("-s", "--static_cam", default=True, action="store_true", help="If true, skip DPVO")

     parser.add_argument("--verbose", action="store_true", help="If true, draw intermediate results")

     args = parser.parse_args()



     # Input

     video_path = Path(args.video)

     assert video_path.exists(), f"Video not found at {video_path}"

     length, width, height = get_video_lwh(video_path)

     Log.info(f"[Input]: {video_path}")

     Log.info(f"(L, W, H) = ({length}, {width}, {height})")

     # Cfg

     with initialize_config_module(version_base="1.3", config_module=f"hmr4d.configs"):

     overrides = [

         f"video_name={video_path.stem}",

         f"static_cam={args.static_cam}",

         f"verbose={args.verbose}",

     ]



     # Allow to change output root

     if args.output_root is not None:

         overrides.append(f"output_root={args.output_root}")

     register_store_gvhmr()

     cfg = compose(config_name="demo", overrides=overrides)



     # Output

     Log.info(f"[Output Dir]: {cfg.output_dir}")

     Path(cfg.output_dir).mkdir(parents=True, exist_ok=True)

     Path(cfg.preprocess_dir).mkdir(parents=True, exist_ok=True)



     # Copy raw-input-video to video_path

     Log.info(f"[Copy Video] {video_path} -> {cfg.video_path}")

     if not Path(cfg.video_path).exists() or get_video_lwh(video_path)[0] != get_video_lwh(cfg.video_path)[0]:

     reader = get_video_reader(video_path)

     writer = get_writer(cfg.video_path, fps=30, crf=CRF)

     for img in tqdm(reader, total=get_video_lwh(video_path)[0], desc=f"Copy"):

         writer.write_frame(img)

     writer.close()

     reader.close()



     return cfg





 @torch.no_grad()

 def run_preprocess(cfg):

     Log.info(f"[Preprocess] Start!")

     tic = Log.time()

     video_path = cfg.video_path

     paths = cfg.paths

     static_cam = cfg.static_cam

     verbose = cfg.verbose



     # Get bbx tracking result

     if not Path(paths.bbx).exists():

     tracker = Tracker()

     bbx_xyxy = tracker.get_one_track(video_path).float()  # (L, 4)

     bbx_xys = get_bbx_xys_from_xyxy(bbx_xyxy, base_enlarge=1.2).float()  # (L, 3) apply aspect ratio and enlarge

     torch.save({"bbx_xyxy": bbx_xyxy, "bbx_xys": bbx_xys}, paths.bbx)

     del tracker

     else:

     bbx_xys = torch.load(paths.bbx)["bbx_xys"]

     Log.info(f"[Preprocess] bbx (xyxy, xys) from {paths.bbx}")

     if verbose:

     video = read_video_np(video_path)

     bbx_xyxy = torch.load(paths.bbx)["bbx_xyxy"]

     video_overlay = draw_bbx_xyxy_on_image_batch(bbx_xyxy, video)

     save_video(video_overlay, cfg.paths.bbx_xyxy_video_overlay)



     # Get VitPose

     if not Path(paths.vitpose).exists():

     vitpose_extractor = VitPoseExtractor()

     vitpose = vitpose_extractor.extract(video_path, bbx_xys)

     torch.save(vitpose, paths.vitpose)

     del vitpose_extractor

     else:

     vitpose = torch.load(paths.vitpose)

     Log.info(f"[Preprocess] vitpose from {paths.vitpose}")

     if verbose:

     video = read_video_np(video_path)

     video_overlay = draw_coco17_skeleton_batch(video, vitpose, 0.5)

     save_video(video_overlay, paths.vitpose_video_overlay)



     # Get vit features

     if not Path(paths.vit_features).exists():

     extractor = Extractor()

     vit_features = extractor.extract_video_features(video_path, bbx_xys)

     torch.save(vit_features, paths.vit_features)

     del extractor

     else:

     Log.info(f"[Preprocess] vit_features from {paths.vit_features}")



     # Get DPVO results

     if not static_cam:  # use slam to get cam rotation

     if not Path(paths.slam).exists():

         length, width, height = get_video_lwh(cfg.video_path)

         K_fullimg = estimate_K(width, height)

         intrinsics = convert_K_to_K4(K_fullimg)

         slam = SLAMModel(video_path, width, height, intrinsics, buffer=4000, resize=0.5)

         bar = tqdm(total=length, desc="DPVO")

         while True:

             ret = slam.track()

             if ret:

                 bar.update()

             else:

                 break

         slam_results = slam.process()  # (L, 7), numpy

         torch.save(slam_results, paths.slam)

     else:

         Log.info(f"[Preprocess] slam results from {paths.slam}")



     Log.info(f"[Preprocess] End. Time elapsed: {Log.time()-tic:.2f}s")





 def load_data_dict(cfg):

     paths = cfg.paths

     length, width, height = get_video_lwh(cfg.video_path)

     if cfg.static_cam:

     R_w2c = torch.eye(3).repeat(length, 1, 1)

     else:

     traj = torch.load(cfg.paths.slam)

     traj_quat = torch.from_numpy(traj[:, [6, 3, 4, 5]])

     R_w2c = quaternion_to_matrix(traj_quat).mT

     K_fullimg = estimate_K(width, height).repeat(length, 1, 1)

     # K_fullimg = create_camera_sensor(width, height, 26)[2].repeat(length, 1, 1)



     data = {

     "length": torch.tensor(length),

     "bbx_xys": torch.load(paths.bbx)["bbx_xys"],

     "kp2d": torch.load(paths.vitpose),

     "K_fullimg": K_fullimg,

     "cam_angvel": compute_cam_angvel(R_w2c),

     "f_imgseq": torch.load(paths.vit_features),

     }

     return data

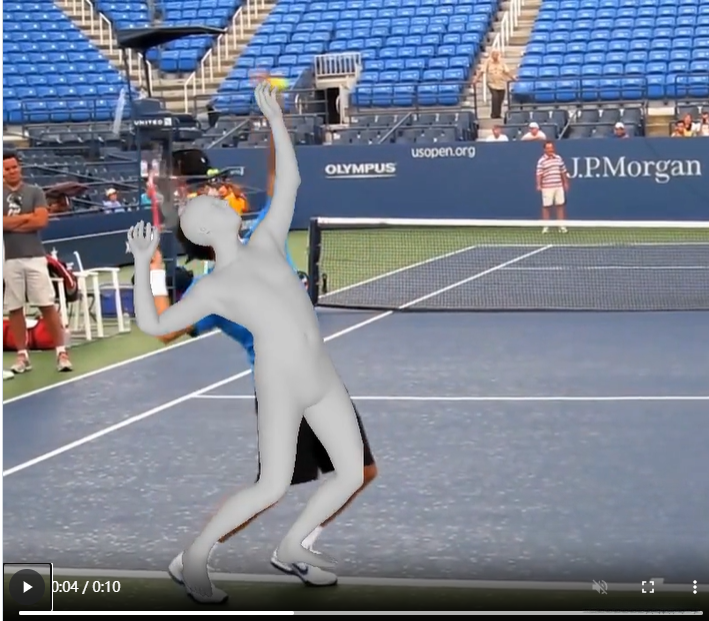

 def render_incam(cfg):

     incam_video_path = Path(cfg.paths.incam_video)

     if incam_video_path.exists():

     Log.info(f"[Render Incam] Video already exists at {incam_video_path}")

     return



     pred = torch.load(cfg.paths.hmr4d_results)

     smplx = make_smplx("supermotion").cuda()

     smplx2smpl = torch.load("hmr4d/utils/body_model/smplx2smpl_sparse.pt").cuda()

     faces_smpl = make_smplx("smpl").faces



     # smpl

     smplx_out = smplx(**to_cuda(pred["smpl_params_incam"]))

     pred_c_verts = torch.stack([torch.matmul(smplx2smpl, v_) for v_ in smplx_out.vertices])



     # -- rendering code -- #

     video_path = cfg.video_path

     length, width, height = get_video_lwh(video_path)

     K = pred["K_fullimg"][0]



     # renderer

     renderer = Renderer(width, height, device="cuda", faces=faces_smpl, K=K)

     reader = get_video_reader(video_path)  # (F, H, W, 3), uint8, numpy

     bbx_xys_render = torch.load(cfg.paths.bbx)["bbx_xys"]



     # -- render mesh -- #

     verts_incam = pred_c_verts

     writer = get_writer(incam_video_path, fps=30, crf=CRF)

     for i, img_raw in tqdm(enumerate(reader), total=get_video_lwh(video_path)[0], desc=f"Rendering Incam"):

     img = renderer.render_mesh(verts_incam[i].cuda(), img_raw, [0.8, 0.8, 0.8])



     # # bbx

     # bbx_xys_ = bbx_xys_render[i].cpu().numpy()

     # lu_point = (bbx_xys_[:2] - bbx_xys_[2:] / 2).astype(int)

     # rd_point = (bbx_xys_[:2] + bbx_xys_[2:] / 2).astype(int)

     # img = cv2.rectangle(img, lu_point, rd_point, (255, 178, 102), 2)



     writer.write_frame(img)

     writer.close()

     reader.close()





 def render_global(cfg):

     global_video_path = Path(cfg.paths.global_video)

     if global_video_path.exists():

     Log.info(f"[Render Global] Video already exists at {global_video_path}")

     return



     debug_cam = False

     pred = torch.load(cfg.paths.hmr4d_results)

     smplx = make_smplx("supermotion").cuda()

     smplx2smpl = torch.load("hmr4d/utils/body_model/smplx2smpl_sparse.pt").cuda()

     faces_smpl = make_smplx("smpl").faces

     J_regressor = torch.load("hmr4d/utils/body_model/smpl_neutral_J_regressor.pt").cuda()



     # smpl

     smplx_out = smplx(**to_cuda(pred["smpl_params_global"]))

     pred_ay_verts = torch.stack([torch.matmul(smplx2smpl, v_) for v_ in smplx_out.vertices])



     def move_to_start_point_face_z(verts):

     "XZ to origin, Start from the ground, Face-Z"

     # position

     verts = verts.clone()  # (L, V, 3)

     offset = einsum(J_regressor, verts[0], "j v, v i -> j i")[0]  # (3)

     offset[1] = verts[:, :, [1]].min()

     verts = verts - offset

     # face direction

     T_ay2ayfz = compute_T_ayfz2ay(einsum(J_regressor, verts[[0]], "j v, l v i -> l j i"), inverse=True)

     verts = apply_T_on_points(verts, T_ay2ayfz)

     return verts



     verts_glob = move_to_start_point_face_z(pred_ay_verts)

     joints_glob = einsum(J_regressor, verts_glob, "j v, l v i -> l j i")  # (L, J, 3)

     global_R, global_T, global_lights = get_global_cameras_static(

     verts_glob.cpu(),

     beta=2.0,

     cam_height_degree=20,

     target_center_height=1.0,

     )



     # -- rendering code -- #

     video_path = cfg.video_path

     length, width, height = get_video_lwh(video_path)

     _, _, K = create_camera_sensor(width, height, 24)  # render as 24mm lens



     # renderer

     renderer = Renderer(width, height, device="cuda", faces=faces_smpl, K=K)

     # renderer = Renderer(width, height, device="cuda", faces=faces_smpl, K=K, bin_size=0)



     # -- render mesh -- #

     scale, cx, cz = get_ground_params_from_points(joints_glob[:, 0], verts_glob)

     renderer.set_ground(scale * 1.5, cx, cz)

     color = torch.ones(3).float().cuda() * 0.8



     render_length = length if not debug_cam else 8

     writer = get_writer(global_video_path, fps=30, crf=CRF)

     for i in tqdm(range(render_length), desc=f"Rendering Global"):

     cameras = renderer.create_camera(global_R[i], global_T[i])

     img = renderer.render_with_ground(verts_glob[[i]], color[None], cameras, global_lights)

     writer.write_frame(img)

     writer.close()





 if __name__ == "__main__":

     cfg = parse_args_to_cfg()

     paths = cfg.paths

     Log.info(f"[GPU]: {torch.cuda.get_device_name()}")

     Log.info(f'[GPU]: {torch.cuda.get_device_properties("cuda")}')



     # ===== Preprocess and save to disk ===== #

     run_preprocess(cfg)

     data = load_data_dict(cfg)



     # ===== HMR4D ===== #

     if not Path(paths.hmr4d_results).exists():

     Log.info("[HMR4D] Predicting")

     model: DemoPL = hydra.utils.instantiate(cfg.model, _recursive_=False)

     model.load_pretrained_model(cfg.ckpt_path)

     model = model.eval().cuda()

     tic = Log.sync_time()

     pred = model.predict(data, static_cam=cfg.static_cam)

     pred = detach_to_cpu(pred)

     data_time = data["length"] / 30

     Log.info(f"[HMR4D] Elapsed: {Log.sync_time() - tic:.2f}s for data-length={data_time:.1f}s")

     torch.save(pred, paths.hmr4d_results)



     # ===== Render ===== #

     render_incam(cfg)

     render_global(cfg)

     if not Path(paths.incam_global_horiz_video).exists():

     Log.info("[Merge Videos]")

     merge_videos_horizontal([paths.incam_video, paths.global_video], paths.incam_global_horiz_video)
