（2-3）目标检测和识别：基于深度学习的YOLO算法

 def run(


     weights=ROOT / 'yolov5s.pt',  # model path or triton URL

     source=ROOT / 'data/images',  # file/dir/URL/glob/screen/0(webcam)

     data=ROOT / 'data/coco128.yaml',  # dataset.yaml path

     imgsz=(640, 640),  # inference size (height, width)

     conf_thres=0.25,  # confidence threshold

     iou_thres=0.45,  # NMS IOU threshold

     max_det=1000,  # maximum detections per image

     device='',  # cuda device, i.e. 0 or 0,1,2,3 or cpu

     view_img=False,  # show results

     save_txt=False,  # save results to *.txt

     save_conf=False,  # save confidences in --save-txt labels

     save_crop=False,  # save cropped prediction boxes

     nosave=False,  # do not save images/videos

     classes=None,  # filter by class: --class 0, or --class 0 2 3

     agnostic_nms=False,  # class-agnostic NMS

     augment=False,  # augmented inference

     visualize=False,  # visualize features

     update=False,  # update all models

     project=ROOT / 'runs/detect',  # save results to project/name

     name='exp',  # save results to project/name

     exist_ok=False,  # existing project/name ok, do not increment

     line_thickness=3,  # bounding box thickness (pixels)

     hide_labels=False,  # hide labels

     hide_conf=False,  # hide confidences

     half=False,  # use FP16 half-precision inference

     dnn=False,  # use OpenCV DNN for ONNX inference

     vid_stride=1,  # video frame-rate stride

 ):

    source = str(source)


     save_img = not nosave and not source.endswith('.txt')  # save inference images

     is_file = Path(source).suffix[1:] in (IMG_FORMATS + VID_FORMATS)

     is_url = source.lower().startswith(('rtsp://', 'rtmp://', 'http://', 'https://'))

     webcam = source.isnumeric() or source.endswith('.streams') or (is_url and not is_file)

     screenshot = source.lower().startswith('screen')

     if is_url and is_file:

     source = check_file(source)  # download



     save_dir = increment_path(Path(project) / name, exist_ok=exist_ok)  # increment run

     (save_dir / 'labels' if save_txt else save_dir).mkdir(parents=True, exist_ok=True)  # make dir



     # 加载模型

     device = select_device(device)

     model = DetectMultiBackend(weights, device=device, dnn=dnn, data=data, fp16=half)

     stride, names, pt = model.stride, model.names, model.pt

     imgsz = check_img_size(imgsz, s=stride)  # check image size



     # Dataloader

     bs = 1  # batch_size

     if webcam:

     view_img = check_imshow(warn=True)

     dataset = LoadStreams(source, img_size=imgsz, stride=stride, auto=pt, vid_stride=vid_stride)

     bs = len(dataset)

     elif screenshot:

     dataset = LoadScreenshots(source, img_size=imgsz, stride=stride, auto=pt)

     else:

     dataset = LoadImages(source, img_size=imgsz, stride=stride, auto=pt, vid_stride=vid_stride)

     vid_path, vid_writer = [None] * bs, [None] * bs



     # Run inference

     model.warmup(imgsz=(1 if pt or model.triton else bs, 3, *imgsz))  # warmup

     seen, windows, dt = 0, [], (Profile(), Profile(), Profile())

     for path, im, im0s, vid_cap, s in dataset:

     with dt[0]:

         im = torch.from_numpy(im).to(model.device)

         im = im.half() if model.fp16 else im.float()  # uint8 to fp16/32

         im /= 255  # 0 - 255 to 0.0 - 1.0

         if len(im.shape) == 3:

             im = im[None]  # expand for batch dim



     # Inference

     with dt[1]:

         visualize = increment_path(save_dir / Path(path).stem, mkdir=True) if visualize else False

         pred = model(im, augment=augment, visualize=visualize)



     # NMS

     with dt[2]:

         pred = non_max_suppression(pred, conf_thres, iou_thres, classes, agnostic_nms, max_det=max_

 def train(hyp, opt, device, callbacks):  # hyp is path/to/hyp.yaml or hyp dictionary


     save_dir, epochs, batch_size, weights, single_cls, evolve, data, cfg, resume, noval, nosave, workers, freeze = \

     Path(opt.save_dir), opt.epochs, opt.batch_size, opt.weights, opt.single_cls, opt.evolve, opt.data, opt.cfg, \

     opt.resume, opt.noval, opt.nosave, opt.workers, opt.freeze

     callbacks.run('on_pretrain_routine_start')



     # Directories

     w = save_dir / 'weights'  # weights dir

     (w.parent if evolve else w).mkdir(parents=True, exist_ok=True)  # make dir

     last, best = w / 'last.pt', w / 'best.pt'



     # Hyperparameters

     if isinstance(hyp, str):

     with open(hyp, errors='ignore') as f:

         hyp = yaml.safe_load(f)  # load hyps dict

     LOGGER.info(colorstr('hyperparameters: ') + ', '.join(f'{k}={v}' for k, v in hyp.items()))

     opt.hyp = hyp.copy()  # for saving hyps to checkpoints



     # Save run settings

     if not evolve:

     yaml_save(save_dir / 'hyp.yaml', hyp)

     yaml_save(save_dir / 'opt.yaml', vars(opt))



     # Loggers

     data_dict = None

     if RANK in {-1, 0}:

     loggers = Loggers(save_dir, weights, opt, hyp, LOGGER)  # loggers instance



     # Register actions

     for k in methods(loggers):

         callbacks.register_action(k, callback=getattr(loggers, k))



     # Process custom dataset artifact link

     data_dict = loggers.remote_dataset

     if resume:  # If resuming runs from remote artifact

         weights, epochs, hyp, batch_size = opt.weights, opt.epochs, opt.hyp, opt.batch_size

     plots = not evolve and not opt.noplots  # create plots


     cuda = device.type != 'cpu'

     init_seeds(opt.seed + 1 + RANK, deterministic=True)

     with torch_distributed_zero_first(LOCAL_RANK):

     data_dict = data_dict or check_dataset(data)  # check if None

     train_path, val_path = data_dict['train'], data_dict['val']

     nc = 1 if single_cls else int(data_dict['nc'])  # number of classes

     names = {0: 'item'} if single_cls and len(data_dict['names']) != 1 else data_dict['names']  # class names

     is_coco = isinstance(val_path, str) and val_path.endswith('coco/val2017.txt')  # COCO dataset



     # Model

     check_suffix(weights, '.pt')  # check weights

     pretrained = weights.endswith('.pt')

     if pretrained:

     with torch_distributed_zero_first(LOCAL_RANK):

         weights = attempt_download(weights)  # download if not found locally

     ckpt = torch.load(weights, map_location='cpu')  # load checkpoint to CPU to avoid CUDA memory leak

     model = Model(cfg or ckpt['model'].yaml, ch=3, nc=nc, anchors=hyp.get('anchors')).to(device)  # create

     exclude = ['anchor'] if (cfg or hyp.get('anchors')) and not resume else []  # exclude keys

     csd = ckpt['model'].float().state_dict()  # checkpoint state_dict as FP32

     csd = intersect_dicts(csd, model.state_dict(), exclude=exclude)  # intersect

     model.load_state_dict(csd, strict=False)  # load

     LOGGER.info(f'Transferred {len(csd)}/{len(model.state_dict())} items from {weights}')  # report

     else:

     model = Model(cfg, ch=3, nc=nc, anchors=hyp.get('anchors')).to(device)  # create

     amp = check_amp(model)  # check AMP



     # Freeze

     freeze = [f'model.{x}.' for x in (freeze if len(freeze) > 1 else range(freeze[0]))]  # layers to freeze

     for k, v in model.named_parameters():

     v.requires_grad = True  # train all layers

     # v.register_hook(lambda x: torch.nan_to_num(x))  # NaN to 0 (commented for erratic training results)

     if any(x in k for x in freeze):

         LOGGER.info(f'freezing {k}')

         v.requires_grad = False



     # Image size

     gs = max(int(model.stride.max()), 32)  # grid size (max stride)

     imgsz = check_img_size(opt.imgsz, gs, floor=gs * 2)  # verify imgsz is gs-multiple



     # Batch size

     if RANK == -1 and batch_size == -1:  # single-GPU only, estimate best batch size

     batch_size = check_train_batch_size(model, imgsz, amp)

     loggers.on_params_update({'batch_size': batch_size})



     # Optimizer

     nbs = 64  # nominal batch size

     accumulate = max(round(nbs / batch_size), 1)  # accumulate loss before optimizing

     hyp['weight_decay'] *= batch_size * accumulate / nbs  # scale weight_decay

     optimizer = smart_optimizer(model, opt.optimizer, hyp['lr0'], hyp['momentum'], hyp['weight_decay'])



     # Scheduler

     if opt.cos_lr:

     lf = one_cycle(1, hyp['lrf'], epochs)  # cosine 1->hyp['lrf']

     else:

     lf = lambda x: (1 - x / epochs) * (1.0 - hyp['lrf']) + hyp['lrf']  # linear

     scheduler = lr_scheduler.LambdaLR(optimizer, lr_lambda=lf)  # plot_lr_scheduler(optimizer, scheduler, epochs)



     # EMA

     ema = ModelEMA(model) if RANK in {-1, 0} else None



     # Resume

     best_fitness, start_epoch = 0.0, 0

     if pretrained:

     if resume:

         best_fitness, start_epoch, epochs = smart_resume(ckpt, optimizer, ema, weights, epochs, resume)

     del ckpt, csd

     train_loader, dataset = create_dataloader(train_path,


                                           imgsz,

                                           batch_size // WORLD_SIZE,

                                           gs,

                                           single_cls,

                                           hyp=hyp,

                                           augment=True,

                                           cache=None if opt.cache == 'val' else opt.cache,

                                           rect=opt.rect,

                                           rank=LOCAL_RANK,

                                           workers=workers,

                                           image_weights=opt.image_weights,

                                           quad=opt.quad,

                                           prefix=colorstr('train: '),

                                           shuffle=True,

                                           seed=opt.seed)

     labels = np.concatenate(dataset.labels, 0)

     mlc = int(labels[:, 0].max())  # max label class

     assert mlc < nc, f'Label class {mlc} exceeds nc={nc} in {data}. Possible class labels are 0-{nc - 1}'



     # Process 0

     if RANK in {-1, 0}:

     val_loader = create_dataloader(val_path,

                                    imgsz,

                                    batch_size // WORLD_SIZE * 2,

                                    gs,

                                    single_cls,

                                    hyp=hyp,

                                    cache=None if noval else opt.cache,

                                    rect=True,

                                    rank=-1,

                                    workers=workers * 2,

                                    pad=0.5,

                                    prefix=colorstr('val: '))[0]



     if not resume:

         if not opt.noautoanchor:

             check_anchors(dataset, model=model, thr=hyp['anchor_t'], imgsz=imgsz)  # run AutoAnchor

         model.half().float()  # pre-reduce anchor precision



     callbacks.run('on_pretrain_routine_end', labels, names)



     # DDP mode

     if cuda and RANK != -1:

     model = smart_DDP(model)



     # Model attributes

     nl = de_parallel(model).model[-1].nl  # number of detection layers (to scale hyps)

     hyp['box'] *= 3 / nl  # scale to layers

     hyp['cls'] *= nc / 80 * 3 / nl  # scale to classes and layers

     hyp['obj'] *= (imgsz / 640) ** 2 * 3 / nl  # scale to image size and layers

     hyp['label_smoothing'] = opt.label_smoothing

     model.nc = nc  # attach number of classes to model

     model.hyp = hyp  # attach hyperparameters to model

     model.class_weights = labels_to_class_weights(dataset.labels, nc).to(device) * nc  # attach class weights

     model.names = names



     # Start training

     t0 = time.time()

     nb = len(train_loader)  # number of batches

     nw = max(round(hyp['warmup_epochs'] * nb), 100)  # number of warmup iterations, max(3 epochs, 100 iterations)

     # nw = min(nw, (epochs - start_epoch) / 2 * nb)  # limit warmup to < 1/2 of training

     last_opt_step = -1

     maps = np.zeros(nc)  # mAP per class

     results = (0, 0, 0, 0, 0, 0, 0)  # P, R, mAP@.5, mAP@.5-.95, val_loss(box, obj, cls)

     scheduler.last_epoch = start_epoch - 1  # do not move

     scaler = torch.cuda.amp.GradScaler(enabled=amp)

     stopper, stop = EarlyStopping(patience=opt.patience), False

     compute_loss = ComputeLoss(model)  # init loss class

     callbacks.run('on_train_start')

     LOGGER.info(f'Image sizes {imgsz} train, {imgsz} val\n'

             f'Using {train_loader.num_workers * WORLD_SIZE} dataloader workers\n'

             f"Logging results to {colorstr('bold', save_dir)}\n"

             f'Starting training for {epochs} epochs...')

     for epoch in range(start_epoch, epochs):  # epoch ------------------------------------------------------------------

     callbacks.run('on_train_epoch_start')

     model.train()



     # Update image weights (optional, single-GPU only)

     if opt.image_weights:

         cw = model.class_weights.cpu().numpy() * (1 - maps) ** 2 / nc  # class weights

         iw = labels_to_image_weights(dataset.labels, nc=nc, class_weights=cw)  # image weights

         dataset.indices = random.choices(range(dataset.n), weights=iw, k=dataset.n)  # rand weighted idx



     # Update mosaic border (optional)

     # b = int(random.uniform(0.25 * imgsz, 0.75 * imgsz + gs) // gs * gs)

     # dataset.mosaic_border = [b - imgsz, -b]  # height, width borders



     mloss = torch.zeros(3, device=device)  # mean losses

     if RANK != -1:

         train_loader.sampler.set_epoch(epoch)

     pbar = enumerate(train_loader)

     LOGGER.info(('\n' + '%11s' * 7) % ('Epoch', 'GPU_mem', 'box_loss', 'obj_loss', 'cls_loss', 'Instances', 'Size'))

     if RANK in {-1, 0}:

         pbar = tqdm(pbar, total=nb, bar_format=TQDM_BAR_FORMAT)  # progress bar

     optimizer.zero_grad()

     for i, (imgs, targets, paths, _) in pbar:  # batch -------------------------------------------------------------

         callbacks.run('on_train_batch_start')

         ni = i + nb * epoch  # number integrated batches (since train start)

         imgs = imgs.to(device, non_blocking=True).float() / 255  # uint8 to float32, 0-255 to 0.0-1.0



         # Warmup

         if ni <= nw:

             xi = [0, nw]  # x interp

             # compute_loss.gr = np.interp(ni, xi, [0.0, 1.0])  # iou loss ratio (obj_loss = 1.0 or iou)

             accumulate = max(1, np.interp(ni, xi, [1, nbs / batch_size]).round())

             for j, x in enumerate(optimizer.param_groups):

                 # bias lr falls from 0.1 to lr0, all other lrs rise from 0.0 to lr0

                 x['lr'] = np.interp(ni, xi, [hyp['warmup_bias_lr'] if j == 0 else 0.0, x['initial_lr'] * lf(epoch)])

                 if 'momentum' in x:

                     x['momentum'] = np.interp(ni, xi, [hyp['warmup_momentum'], hyp['momentum']])



         # Multi-scale

         if opt.multi_scale:

             sz = random.randrange(int(imgsz * 0.5), int(imgsz * 1.5) + gs) // gs * gs  # size

             sf = sz / max(imgs.shape[2:])  # scale factor

             if sf != 1:

                 ns = [math.ceil(x * sf / gs) * gs for x in imgs.shape[2:]]  # new shape (stretched to gs-multiple)

                 imgs = nn.functional.interpolate(imgs, size=ns, mode='bilinear', align_corners=False)



         # Forward

         with torch.cuda.amp.autocast(amp):

             pred = model(imgs)  # forward

             loss, loss_items = compute_loss(pred, targets.to(device))  # loss scaled by batch_size

             if RANK != -1:

                 loss *= WORLD_SIZE  # gradient averaged between devices in DDP mode

             if opt.quad:

                 loss *= 4.



         # Backward

         scaler.scale(loss).backward()



         # Optimize - https://pytorch.org/docs/master/notes/amp_examples.html

         if ni - last_opt_step >= accumulate:

             scaler.unscale_(optimizer)  # unscale gradients

             torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=10.0)  # clip gradients

             scaler.step(optimizer)  # optimizer.step

             scaler.update()

             optimizer.zero_grad()

             if ema:

                 ema.update(model)

             last_opt_step = ni



         # Log

         if RANK in {-1, 0}:

             mloss = (mloss * i + loss_items) / (i + 1)  # update mean losses

             mem = f'{torch.cuda.memory_reserved() / 1E9 if torch.cuda.is_available() else 0:.3g}G'  # (GB)

             pbar.set_description(('%11s' * 2 + '%11.4g' * 5) %

                                  (f'{epoch}/{epochs - 1}', mem, *mloss, targets.shape[0], imgs.shape[-1]))

             callbacks.run('on_train_batch_end', model, ni, imgs, targets, paths, list(mloss))

             if callbacks.stop_training:

                 return

         # end batch -------------------------------

         fi = fitness(np.array(results).reshape(1, -1))  # weighted combination of [P, R, mAP@.5, mAP@.5-.95]


         stop = stopper(epoch=epoch, fitness=fi)  # early stop check

         if fi > best_fitness:

             best_fitness = fi

         log_vals = list(mloss) + list(results) + lr

         callbacks.run('on_fit_epoch_end', log_vals, epoch, best_fitness, fi)



         # Save model

         if (not nosave) or (final_epoch and not evolve):  # if save

             ckpt = {

                 'epoch': epoch,

                 'best_fitness': best_fitness,

                 'model': deepcopy(de_parallel(model)).half(),

                 'ema': deepcopy(ema.ema).half(),

                 'updates': ema.updates,

                 'optimizer': optimizer.state_dict(),

                 'opt': vars(opt),

                 'git': GIT_INFO,  # {remote, branch, commit} if a git repo

                 'date': datetime.now().isoformat()}



             # Save last, best and delete

             torch.save(ckpt, last)

             if best_fitness == fi:

                 torch.save(ckpt, best)

             if opt.save_period > 0 and epoch % opt.save_period == 0:

                 torch.save(ckpt, w / f'epoch{epoch}.pt')

             del ckpt

             callbacks.run('on_model_save', last, epoch, final_epoch, best_fitness, fi)



     # EarlyStopping

     if RANK != -1:  # if DDP training

         broadcast_list = [stop if RANK == 0 else None]

         dist.broadcast_object_list(broadcast_list, 0)  # broadcast 'stop' to all ranks

         if RANK != 0:

             stop = broadcast_list[0]

     if stop:

         break  # must break all DDP ranks



     # end epoch ----------------------------------------------------------------------------------------------------

     # end training -----------------------------------------------------------------------------------------------------

     if RANK in {-1, 0}:

     LOGGER.info(f'\n{epoch - start_epoch + 1} epochs completed in {(time.time() - t0) / 3600:.3f} hours.')

     for f in last, best:

         if f.exists():

             strip_optimizer(f)  # strip optimizers

             if f is best:

                 LOGGER.info(f'\nValidating {f}...')

                 results, _, _ = validate.run(

                     data_dict,

                     batch_size=batch_size // WORLD_SIZE * 2,

                     imgsz=imgsz,

                     model=attempt_load(f, device).half(),

                     iou_thres=0.65 if is_coco else 0.60,  # best pycocotools at iou 0.65

                     single_cls=single_cls,

                     dataloader=val_loader,

                     save_dir=save_dir,

                     save_json=is_coco,

                     verbose=True,

                     plots=plots,

                     callbacks=callbacks,

                     compute_loss=compute_loss)  # val best model with plots

                 if is_coco:

                     callbacks.run('on_fit_epoch_end', list(mloss) + list(results) + lr, epoch, best_fitness, fi)



     callbacks.run('on_train_end', last, best, epoch, results)



     torch.cuda.empty_cache()

     return results

 def save_one_txt(predn, save_conf, shape, file):


     # Save one txt result

     gn = torch.tensor(shape)[[1, 0, 1, 0]]  # normalization gain whwh

     for *xyxy, conf, cls in predn.tolist():

     xywh = (xyxy2xywh(torch.tensor(xyxy).view(1, 4)) / gn).view(-1).tolist()  # normalized xywh

     line = (cls, *xywh, conf) if save_conf else (cls, *xywh)  # label format

     with open(file, 'a') as f:

         f.write(('%g ' * len(line)).rstrip() % line + '\n')

 def save_one_json(predn, jdict, path, class_map):


     # Save one JSON result {"image_id": 42, "category_id": 18, "bbox": [258.15, 41.29, 348.26, 243.78], "score": 0.236}

     image_id = int(path.stem) if path.stem.isnumeric() else path.stem

     box = xyxy2xywh(predn[:, :4])  # xywh

     box[:, :2] -= box[:, 2:] / 2  # xy center to top-left corner

     for p, b in zip(predn.tolist(), box.tolist()):

     jdict.append({

         'image_id': image_id,

         'category_id': class_map[int(p[5])],

         'bbox': [round(x, 3) for x in b],

         'score': round(p[4], 5)})

 def process_batch(detections, labels, iouv):


     correct = np.zeros((detections.shape[0], iouv.shape[0])).astype(bool)

     iou = box_iou(labels[:, 1:], detections[:, :4])

     correct_class = labels[:, 0:1] == detections[:, 5]

     for i in range(len(iouv)):

     x = torch.where((iou >= iouv[i]) & correct_class)  # IoU > threshold and classes match

     if x[0].shape[0]:

         matches = torch.cat((torch.stack(x, 1), iou[x[0], x[1]][:, None]), 1).cpu().numpy()  # [label, detect, iou]

         if x[0].shape[0] > 1:

             matches = matches[matches[:, 2].argsort()[::-1]]

             matches = matches[np.unique(matches[:, 1], return_index=True)[1]]

             # matches = matches[matches[:, 2].argsort()[::-1]]

             matches = matches[np.unique(matches[:, 0], return_index=True)[1]]

         correct[matches[:, 1].astype(int), i] = True

     return torch.tensor(correct, dtype=torch.bool, device=iouv.device)

    python detect.py --weights yolov5s.pt --img 640 --conf 0.25 --source data/images

 import cv2




 # 加载预训练的模型和标签

 model = cv2.dnn.readNetFromCaffe('deploy.prototxt', 'model.caffemodel')

 with open('labels.txt', 'r') as f:

     labels = f.read().splitlines()



 # 读取图像

 image = cv2.imread('999.jpg')



 # 创建一个blob（二进制大对象）从图像进行前处理

 blob = cv2.dnn.blobFromImage(image, 0.007843, (300, 300), (127.5, 127.5, 127.5), swapRB=True, crop=False)



 # 将blob输入到模型中进行推理

 model.setInput(blob)

 detections = model.forward()



 # 处理检测结果

 for i in range(detections.shape[2]):

     confidence = detections[0, 0, i, 2]

     if confidence > 0.1:  # 设定置信度阈值为0.5

     class_id = int(detections[0, 0, i, 1])

     label = labels[class_id]

     x1 = int(detections[0, 0, i, 3] * image.shape[1])

     y1 = int(detections[0, 0, i, 4] * image.shape[0])

     x2 = int(detections[0, 0, i, 5] * image.shape[1])

     y2 = int(detections[0, 0, i, 6] * image.shape[0])



     # 在图像上绘制检测结果

     cv2.rectangle(image, (x1, y1), (x2, y2), (0, 255, 0), 2)

     cv2.putText(image, label, (x1, y1 - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.9, (0, 255, 0), 2)



 # 显示图像

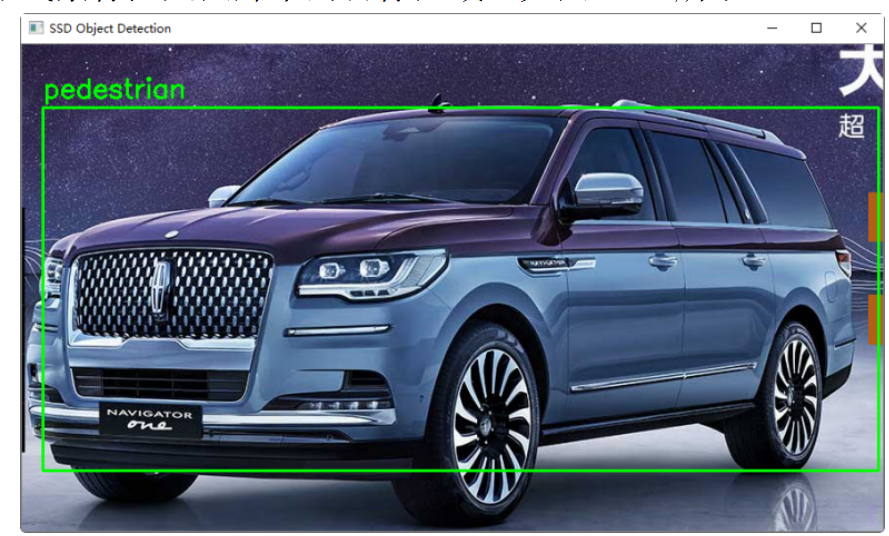

 cv2.imshow('SSD Object Detection', image)

 cv2.waitKey(0)

 cv2.destroyAllWindows()
