javaAPI爬取全国高校录取情况以及院校图片
首先，为了能够能够爬取全国所有高校的录取情况以及其他信息，需要做到以下步骤：
1找到要爬取的所有大学的url
2开始爬取院校的cid、院校主页url、cname存入数据库，便于后面进一步利用这些关系爬取其他信息
3利用数据库中cid拼接url的方式爬取院校录取批次信息
4利用数据库中cid拼接url找到所有图片再发送httpclient下载图片
爬取全国院校以及cid存入数据库

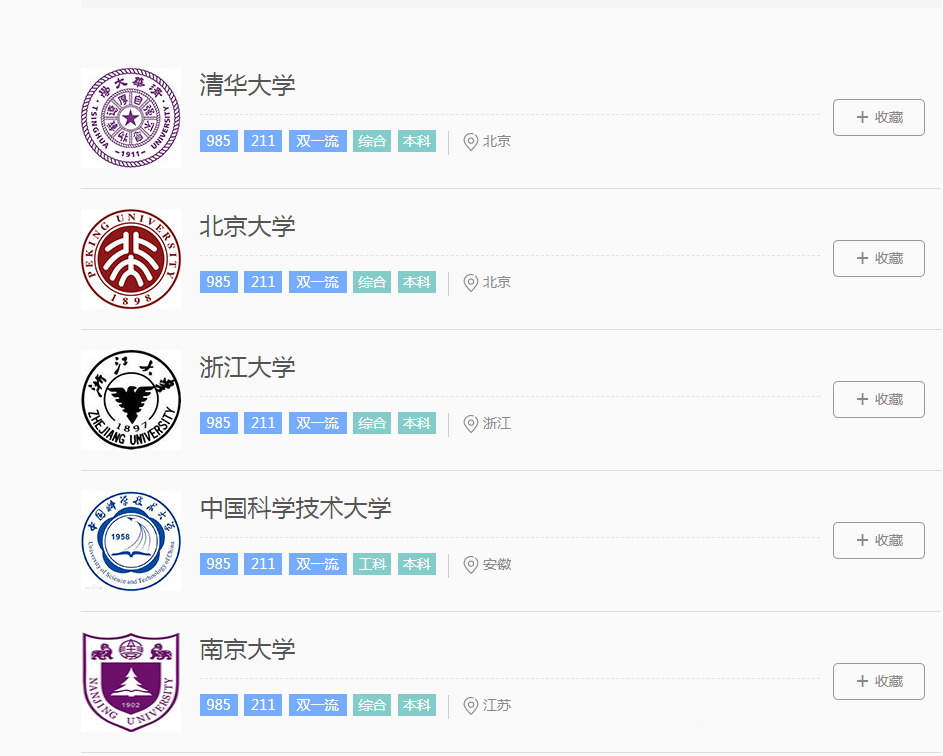

该页面是全国高校的主页：https://www.baokaodaxue.com/bkdx/search/college
进入该页面之后可以利用谷歌的开发者工具，找到这个块标签，然后提取出其中想要的元素
主要代码如下
//线程池
private static final ExecutorService executorService = Executors.newCachedThreadPool();
//阻塞队列,用于存放商品盒子li
private static final BlockingQueue<Element> queueLi = new ArrayBlockingQueue<Element>(100);
//阻塞队列,用于存放university
private static final BlockingQueue<University> queuePhone = new ArrayBlockingQueue<University>(100);
//爬取的首页
private String url ="https://www.baokaodaxue.com/bkdx/search/college?dq=&type=&bz=&kp=&keywd=&page=1";
//开始爬取
public void start() throws IOException {
final String sql = "insert into university(name,url,cid) values(?,?,?)";
for (int i = 0; i < 10; i++) {
executorService.execute(new Runnable() {
public void run() {
QueryRunner queryRunner = new QueryRunner(JdbcUtils.getDataSource());
while (true) {
try {
University university = queuePhone.take();
queryRunner.update(sql,university.getName(),university.getUrl(),university.getCid());
} catch (InterruptedException e) {
e.printStackTrace();
} catch (SQLException e) {
e.printStackTrace();
}
}
}
});
}
//创建10个消费者(解析队列中存放的li)
for (int i = 0; i < 10; i++) {
executorService.execute(new Runnable() {
public void run() {
//从队列中取出li进行解析
while (true) {
Element li = null;
try {
li = queueLi.take();
} catch (InterruptedException e) {
e.printStackTrace();
}
University university = parseLi(li);
if (university != null) {
queuePhone.offer(university);
}
}
}
});
}
//获取首页
CloseableHttpResponse indexRes = sendGet(url);
//解析结果
parseIndex(indexRes, 1);
}
//发送get请求,获取响应结果
public CloseableHttpResponse sendGet(String url) throws IOException {
//创建httpClient客户端
CloseableHttpClient httpClient = HttpClients.createDefault();
//创建请求对象,发送请求
HttpGet httpGet = new HttpGet(url);
httpGet.setHeader("User-Agent", "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3514.0 Safari/537.36");
CloseableHttpResponse response = httpClient.execute(httpGet);
return response;
}
//解析首页
public void parseIndex(CloseableHttpResponse indexRes, int page) throws IOException {
System.out.println("---第" + page + "页抓取完毕---");
//得到document对象
String indexHtml = EntityUtils.toString(indexRes.getEntity(), "UTF-8");
Document document = Jsoup.parse(indexHtml);
Elements lis= document.getElementsByClass("college-name");
//取出每个盒子置于队列中
for (Element li : lis) {
queueLi.offer(li);
}
if (++page <= 137) {
int index = 1+page-1;
String url ="https://www.baokaodaxue.com/bkdx/search/college?dq=&type=&bz=&kp=&keywd=&page=" + index ;
CloseableHttpResponse nextRes = sendGet(url);
parseIndex(nextRes, page);
}
}
//解析每个盒子,封装到phone并返回
public University parseLi(Element li) {
try {
University university = new University();
String url = li.select("a").attr("href");
String name = li.text();
// System.out.println(url);
int start=url.indexOf("=");
int end=url.length();
String cid=url.substring(start+1,end);
university.setName(name);
university.setUrl(url);
university.setCid(cid);
return university;
} catch (Exception e) {
//System.out.println("错误数据");
}
return null;
AI写代码爬取各个院校的录取批次情况
根据之前的代码已经将name、url、cid存入数据库中了，此时只需要从数据库中取出每一个cid，拼接url进行解析，取出想要的录取批次情况,稍稍改造后代码如下
import utils.HttpClientUtils;
import utils.JdbcUtils;
import utils.MysqlUtils;
import java.beans.PropertyVetoException;
import java.io.IOException;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
public class SpiderBatach{
private static final ExecutorService executorService = Executors.newCachedThreadPool();
private static final BlockingQueue<UniversityInfo> queuePhone = new ArrayBlockingQueue<UniversityInfo>(100);
public void start() throws IOException, SQLException, PropertyVetoException {
String sql1 = "select cid from university";
QueryRunner queryRunner = new QueryRunner(JdbcUtils.getDataSource());
List<Map<String, Object>> list = queryRunner.query(sql1, new MapListHandler());
for (Map<String, Object> stringObjectMap : list) {
String res = stringObjectMap.toString();
int start = res.indexOf("=");
int end=res.indexOf("}");
String result = res.substring(start + 1, end);
String url1="https://www.baokaodaxue.com/bkdx/college/fenshu?wl=1&cid="+result+"&type=0&special=0&limit=3";
String json = HttpClientUtils.doGet(url1);
parseJson(json,result);
}
}
public void parseJson(String json,String result) throws PropertyVetoException {
List<UniversityInfo> universityList = new ArrayList<>();
Gson gson = new Gson();
Map map = gson.fromJson(json, Map.class);
ArrayList<Map> dataList = (ArrayList<Map>) map.get("extraData");
for (Map obj : dataList) {
String cid = result;
String year = (String) obj.get("year");
String batch = (String) obj.get("pici");
String up = (String) obj.get("gaofen");
String low = (String) obj.get("difen");
String avg = (String) obj.get("pjfen");
Double difvalue = (Double) obj.get("xc");
String lowlevel = (String) obj.get("zdwc");
UniversityInfo universityInfo = new UniversityInfo();
universityInfo.setCid(cid);
universityInfo.setYear(year);
universityInfo.setBatch(batch);
universityInfo.setUp(up);
universityInfo.setLow(low);
universityInfo.setAvg(avg);
universityInfo.setDifvalue(difvalue);
universityInfo.setLowlevel(lowlevel);
universityList.add(universityInfo);
}
MysqlUtils.SaveData(universityList);
}
}
AI写代码爬取各个院校的校园风光图片
跟爬取批次相似，也是通过读取数据库中的cid，拼接url的方式，访问到各个院校的校园风光页面，找到图片所在的li，进行遍历写到本地磁盘，再讲保存信息写入数据库，详细代码如下
import bean.UniversityPicture;
import org.apache.commons.dbutils.QueryRunner;
import org.apache.commons.dbutils.handlers.MapListHandler;
import org.apache.commons.io.FileUtils;
import org.apache.http.HttpEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;
import org.jsoup.select.Elements;
import utils.HttpClientUtils;
import utils.JdbcUtils;
import utils.Picture2Mysql;
import java.beans.PropertyVetoException;
import java.io.*;
import java.sql.SQLException;
import java.util.List;
import java.util.Map;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
public class SpiderPhoto {
private static final ExecutorService executorService = Executors.newCachedThreadPool();
public void start() throws IOException, SQLException, PropertyVetoException {
int x=0;
CloseableHttpClient httpclient = HttpClients.createDefault();
String sql1 = "select name,cid from university";
QueryRunner queryRunner = new QueryRunner(JdbcUtils.getDataSource());
List<Map<String, Object>> list = queryRunner.query(sql1, new MapListHandler());
for (Map<String, Object> stringObjectMap : list) {
x+=1;
System.out.println("第"+x+"所学校");
String name= (String) stringObjectMap.get("name");
String cid= (String) stringObjectMap.get("cid");
String url="https://www.baokaodaxue.com/bkdx/college/photos?cid="+cid;
String html = HttpClientUtils.doGet(url);
Document document = Jsoup.parse(html);
Elements elements = document.select(".view-picture-wrap>ul>li");
for(int i=1;i<elements.size();i++){
UniversityPicture pic=new UniversityPicture();
Element li = elements.get(i);
String url1 = li.select("a").attr("href");
HttpGet PicturehttpGet = new HttpGet(url1);
CloseableHttpResponse pictureResponse = httpclient.execute(PicturehttpGet);
HttpEntity pictureEntity = pictureResponse.getEntity();
InputStream inputStream = pictureEntity.getContent();
// 使用 common-io 下载图片到本地，注意图片名不能重复 ✔
FileUtils.copyToFile(inputStream, new File("F://img//" +cid+"//"+ cid + "_" + i + ".jpg"));
pictureResponse.close(); // pictureResponse关闭
pic.setCid(cid);
pic.setPicture("F://img//" +cid+"//"+ cid + "_" + i + ".jpg");
Picture2Mysql.SaveData(pic);
}
}
httpclient.close(); // httpClient关闭
}
}
AI写代码以下是数据库的操作
public static void SaveData(List<UniversityInfo> universityList) throws PropertyVetoException {
ComboPooledDataSource comboPooledDataSource = new ComboPooledDataSource();
comboPooledDataSource.setDriverClass("com.mysql.jdbc.Driver");
comboPooledDataSource.setJdbcUrl("jdbc:mysql://localhost:3306/spider?characterEncoding=utf8");
comboPooledDataSource.setUser("root");
comboPooledDataSource.setPassword("123456");
JdbcTemplate jdbcTemplate = new JdbcTemplate(comboPooledDataSource);
String sql = "insert into universityinfo(cid,year,batch,up,low,avg,difvalue,lowlevel) values(?,?,?,?,?,?,?,?)";
if (universityList != null && universityList.size() > 0) {
for (int i = 0; i < universityList.size(); i++) {
UniversityInfo info = universityList.get(i);
// 保存数据库
jdbcTemplate.update(sql,info.getCid(),info.getYear(),info.getUp(),info.getLow(),info.getAvg(),info.getDifvalue(),info.getLowlevel());
}
}
}
}
public class JdbcUtils {
private static String driver;
private static String url;
private static String username;
private static String password;
private static DruidDataSource dataSource = new DruidDataSource();;
static {
try {
InputStream is = new FileInputStream("F:\ spiderWorkspace\ Spider\ src\ main\ resources\ jdbcconfig.properties");
Properties properties = new Properties();
properties.load(is);
driver = properties.getProperty("jdbc.driver");
url = properties.getProperty("jdbc.url");
username = properties.getProperty("jdbc.username");
password = properties.getProperty("jdbc.password");
} catch (FileNotFoundException e) {
System.out.println("配置文件不存在");
System.exit(0);
} catch (IOException e) {
System.out.println("配置文件有误");
System.exit(0);
}
}
public static DataSource getDataSource(){
dataSource.setDriverClassName(driver);
dataSource.setUrl(url);
dataSource.setUsername(username);
dataSource.setPassword(password);
return dataSource;
}
}
public class Picture2Mysql {
public static void SaveData(UniversityPicture pic) throws PropertyVetoException {
ComboPooledDataSource comboPooledDataSource = new ComboPooledDataSource();
comboPooledDataSource.setDriverClass("com.mysql.jdbc.Driver");
comboPooledDataSource.setJdbcUrl("jdbc:mysql://localhost:3306/spider?characterEncoding=utf8");
comboPooledDataSource.setUser("root");
comboPooledDataSource.setPassword("123456");
JdbcTemplate jdbcTemplate = new JdbcTemplate(comboPooledDataSource);
String sql = "insert into picture(cid,picture) values(?,?)";
// 保存数据库
jdbcTemplate.update(sql,pic.getCid(),pic.getPicture());
comboPooledDataSource.close();
}
}
AI写代码这样就可以实现对全国高校录取批次的爬取以及院校内的图片爬取，可以在git上查看详细代码：java爬虫
