[CS231n@Stanford] Assignment1-Q4 (python) Two layer neural network实现

 import numpy as np


 import matplotlib.pyplot as plt





 class TwoLayerNet(object):

   """

   A two-layer fully-connected neural network. The net has an input dimension of

   N, a hidden layer dimension of H, and performs classification over C classes.

   We train the network with a softmax loss function and L2 regularization on the

   weight matrices. The network uses a ReLU nonlinearity after the first fully

   connected layer.

   13.   In other words, the network has the following architecture:

   15.   input - fully connected layer - ReLU - fully connected layer - softmax

   17.   The outputs of the second fully-connected layer are the scores for each class.

   """



   def __init__(self, input_size, hidden_size, output_size, std=1e-4):

     """

     Initialize the model. Weights are initialized to small random values and

     biases are initialized to zero. Weights and biases are stored in the

     variable self.params, which is a dictionary with the following keys:

   26.     W1: First layer weights; has shape (D, H)

     b1: First layer biases; has shape (H,)

     W2: Second layer weights; has shape (H, C)

     b2: Second layer biases; has shape (C,)

   31.     Inputs:

     - input_size: The dimension D of the input data.

     - hidden_size: The number of neurons H in the hidden layer.

     - output_size: The number of classes C.

     """

     self.params = {}

     self.params['W1'] = std * np.random.randn(input_size, hidden_size)

     self.params['b1'] = np.zeros(hidden_size)

     self.params['W2'] = std * np.random.randn(hidden_size, output_size)

     self.params['b2'] = np.zeros(output_size)



   def loss(self, X, y=None, reg=0.0):

     """

     Compute the loss and gradients for a two layer fully connected neural

     network.

   47.     Inputs:

     - X: Input data of shape (N, D). Each X[i] is a training sample.

     - y: Vector of training labels. y[i] is the label for X[i], and each y[i] is

       an integer in the range 0 <= y[i] < C. This parameter is optional; if it

       is not passed then we only return scores, and if it is passed then we

       instead return the loss and gradients.

     - reg: Regularization strength.

   55.     Returns:

     If y is None, return a matrix scores of shape (N, C) where scores[i, c] is

     the score for class c on input X[i].

   59.     If y is not None, instead return a tuple of:

     - loss: Loss (data loss and regularization loss) for this batch of training

       samples.

     - grads: Dictionary mapping parameter names to gradients of those parameters

       with respect to the loss function; has the same keys as self.params.

     """

     # Unpack variables from the params dictionary

     W1, b1 = self.params['W1'], self.params['b1']

     W2, b2 = self.params['W2'], self.params['b2']

     N, D = X.shape



     # Compute the forward pass

     scores = None

     #############################################################################

     # TODO: Perform the forward pass, computing the class scores for the input. #

     # Store the result in the scores variable, which should be an array of      #

     # shape (N, C).                                                             #

     #############################################################################



     f = lambda x: np.maximum(0,x)

     h1 = f(np.dot(X, W1)+b1)

     h2 = np.dot(h1,W2)+b2



     scores = h2





     pass

     #############################################################################

     #                              END OF YOUR CODE                             #

     #############################################################################



     # If the targets are not given then jump out, we're done

     if y is None:

       return scores



     # Compute the loss

     loss = None

     #############################################################################

     # TODO: Finish the forward pass, and compute the loss. This should include  #

     # both the data loss and L2 regularization for W1 and W2. Store the result  #

     # in the variable loss, which should be a scalar. Use the Softmax           #

     # classifiers loss. So that your results match ours, multiply the            #

     # regularization loss by 0.5                                                #

     #############################################################################





     shift_scores = scores - np.max(scores, axis = 1).reshape(-1,1)

     softmax_output = np.exp(shift_scores)/np.sum(np.exp(shift_scores), axis = 1).reshape(-1,1)

     loss = -np.sum(np.log(softmax_output[np.arange(N), y]))

     loss /= N

     loss +=  reg * 0.5* (np.sum(W1 * W1)+np.sum(W2 * W2))







     pass

     #############################################################################

     #                              END OF YOUR CODE                             #

     #############################################################################



     # Backward pass: compute gradients

     grads = {}

     #############################################################################

     # TODO: Compute the backward pass, computing the derivatives of the weights #

     # and biases. Store the results in the grads dictionary. For example,       #

     # grads['W1'] should store the gradient on W1, and be a matrix of same size #

     #############################################################################



     softmax_output[np.arange(N), y] += -1

     grads['W2'] =  1.0/N * h1.T.dot(softmax_output) + reg* W2

     grads['b2'] =  1.0/N * np.sum(softmax_output, axis = 0)



     dh1 = softmax_output.dot(W2.T)

     dh1_ReLU = (X.dot(W1)+b1 >0)*dh1



     grads['W1'] = 1.0/N * X.T.dot(dh1_ReLU) + reg* W1

     grads['b1'] = 1.0/N * np.sum(dh1_ReLU, axis = 0)





     pass

     #############################################################################

     #                              END OF YOUR CODE                             #

     #############################################################################



     return loss, grads



   def train(self, X, y, X_val, y_val,

         learning_rate=1e-3, learning_rate_decay=0.95,

         reg=1e-5, num_iters=100,

         batch_size=200, verbose=False):

     """

     Train this neural network using stochastic gradient descent.

   151.     Inputs:

     - X: A numpy array of shape (N, D) giving training data.

     - y: A numpy array f shape (N,) giving training labels; y[i] = c means that

       X[i] has label c, where 0 <= c < C.

     - X_val: A numpy array of shape (N_val, D) giving validation data.

     - y_val: A numpy array of shape (N_val,) giving validation labels.

     - learning_rate: Scalar giving learning rate for optimization.

     - learning_rate_decay: Scalar giving factor used to decay the learning rate

       after each epoch.

     - reg: Scalar giving regularization strength.

     - num_iters: Number of steps to take when optimizing.

     - batch_size: Number of training examples to use per step.

     - verbose: boolean; if true print progress during optimization.

     """

     num_train = X.shape[0]

     iterations_per_epoch = max(num_train / batch_size, 1)



     # Use SGD to optimize the parameters in self.model

     loss_history = []

     train_acc_history = []

     val_acc_history = []



     for it in xrange(num_iters):

       X_batch = None

       y_batch = None



       #########################################################################

       # TODO: Create a random minibatch of training data and labels, storing  #

       # them in X_batch and y_batch respectively.                             #

       #########################################################################



       sample_index = np.random.choice(num_train, batch_size ,replace = True)

       X_batch = X[sample_index,:]

       y_batch = y[sample_index]



       pass

       #########################################################################

       #                             END OF YOUR CODE                          #

       #########################################################################



       # Compute loss and gradients using the current minibatch

       loss, grads = self.loss(X_batch, y=y_batch, reg=reg)

       loss_history.append(loss)



       #########################################################################

       # TODO: Use the gradients in the grads dictionary to update the         #

       # parameters of the network (stored in the dictionary self.params)      #

       # using stochastic gradient descent. You'll need to use the gradients   #

       # stored in the grads dictionary defined above.                         #

       #########################################################################





       self.params['W1'] = self.params['W1'] -learning_rate*grads['W1']

       self.params['W2'] = self.params['W2'] -learning_rate*grads['W2']

       self.params['b1'] = self.params['b1'] -learning_rate*grads['b1']

       self.params['b2'] = self.params['b2'] -learning_rate*grads['b2']



       pass

       #########################################################################

       #                             END OF YOUR CODE                          #

       #########################################################################



       if verbose and it % 100 == 0:

     print 'iteration %d / %d: loss %f' % (it, num_iters, loss)



       # Every epoch, check train and val accuracy and decay learning rate.

       if it % iterations_per_epoch == 0:

     # Check accuracy

     train_acc = (self.predict(X_batch) == y_batch).mean()

     val_acc = (self.predict(X_val) == y_val).mean()

     train_acc_history.append(train_acc)

     val_acc_history.append(val_acc)



     # Decay learning rate

     learning_rate *= learning_rate_decay



     return {

       'loss_history': loss_history,

       'train_acc_history': train_acc_history,

       'val_acc_history': val_acc_history,

     }



   def predict(self, X):

     """

     Use the trained weights of this two-layer network to predict labels for

     data points. For each data point we predict scores for each of the C

     classes, and assign each data point to the class with the highest score.

   239.     Inputs:

     - X: A numpy array of shape (N, D) giving N D-dimensional data points to

       classify.

   243.     Returns:

     - y_pred: A numpy array of shape (N,) giving predicted labels for each of

       the elements of X. For all i, y_pred[i] = c means that X[i] is predicted

       to have class c, where 0 <= c < C.

     """

     y_pred = None



     ###########################################################################

     # TODO: Implement this function; it should be VERY simple!                #

     ###########################################################################



     f = lambda x: np.maximum(0,x)

     h1 = f(np.dot(X, self.params['W1'])+self.params['b1'])

     h2 = np.dot(h1,self.params['W2'])+self.params['b2']

     scores = h2



     y_pred = np.argmax(scores, axis = 1)





     pass

     ###########################################################################

     #                              END OF YOUR CODE                           #

     ###########################################################################



     return y_pred






    AI写代码

 from vis_utils import visualize_grid




 # Visualize the weights of the network



 def show_net_weights(net):

   W1 = net.params['W1']

   W1 = W1.reshape(32, 32, 3, -1).transpose(3, 0, 1, 2)

   plt.imshow(visualize_grid(W1, padding=3).astype('uint8'))

   plt.gca().axis('off')

   plt.show()





 best_net = None # store the best model into this



 results = {}

 best_val = -1

 learning_rate = [8e-4, 9e-4]

 regularization_strengths = [0.01, 0.005]

 learning_rate_decay= [0.97, 0.95]



 #################################################################################

 # TODO: Tune hyperparameters using the validation set. Store your best trained  #

 # model in best_net.                                                            #

 #                                                                               #

 # To help debug your network, it may help to use visualizations similar to the  #

 # ones we used above; these visualizations will have significant qualitative    #

 # differences from the ones we saw above for the poorly tuned network.          #

 #                                                                               #

 # Tweaking hyperparameters by hand can be fun, but you might find it useful to  #

 # write code to sweep through possible combinations of hyperparameters          #

 # automatically like we did on the previous exercises.                          #

 #################################################################################



 iters = 2000

 for lr in learning_rate:

     for reg in regularization_strengths:

     for lrd in learning_rate_decay:

         print lr,reg,lrd

         net = TwoLayerNet(input_size, hidden_size, num_classes)

         net.train(X_train, y_train, X_val, y_val, learning_rate=lr, reg=reg, learning_rate_decay=lrd, num_iters=iters, verbose=False)



         y_train_pred = net.predict(X_train)

         acc_train = np.mean(y_train == y_train_pred)



         y_val_pred = net.predict(X_val)

         acc_val = np.mean(y_val == y_val_pred)



         results[(lr, reg, lrd)] = (acc_train, acc_val)



         if best_val < acc_val:

             best_val = acc_val

             best_net = net





 pass

 #################################################################################

 #                               END OF YOUR CODE                                #

 #################################################################################

 # Print out results.

 for lr, reg, lrd in sorted(results):

     train_accuracy, val_accuracy = results[(lr, reg, lrd)]

     print 'lr %e reg %e lrd %e train accuracy: %f val accuracy: %f' % (

             lr, reg, lrd, train_accuracy, val_accuracy)



 print 'best validation accuracy achieved during cross-validation: %f' % best_val

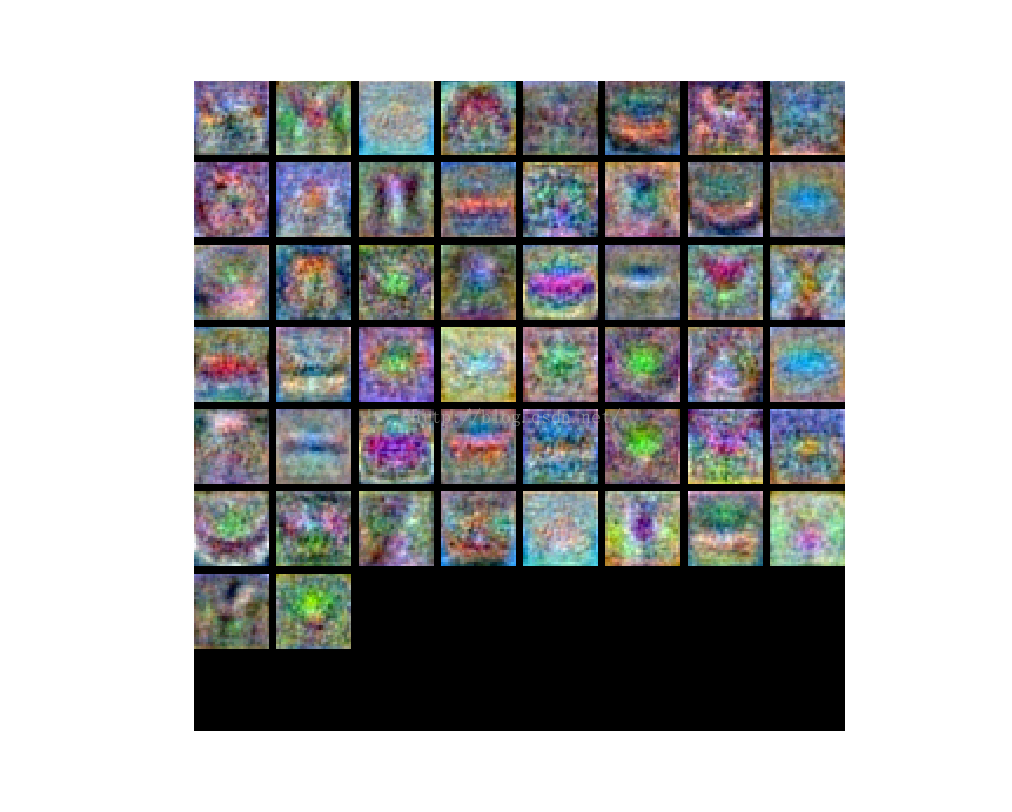

 # visualize the weights of the best network

 show_net_weights(best_net)



 test_acc = (best_net.predict(X_test) == y_test).mean()

 print 'Test accuracy: ', test_acc
