数据可视化之利用Python制作词云图

    pip  install  wordcloud
    pip  install  wordcloud





    AI写代码

    import matplotlib.pyplot as plt #数据可视化
    import jieba #词语切割
    import wordcloud #分词
    from wordcloud import WordCloud,ImageColorGenerator,STOPWORDS #词云，颜色生成器，停止词
    import numpy as np #科学计算
    from PIL import Image #处理图片

    def ciyun():
    with open('少年中国说.txt','r',encoding='gbk') as f:  #打开新的文本转码为gbk
        textfile= f.read()  #读取文本内容
    wordlist = jieba.lcut(textfile)#切割词语
    space_list = ' '.join(wordlist) #空格链接词语
    #print(space_list)

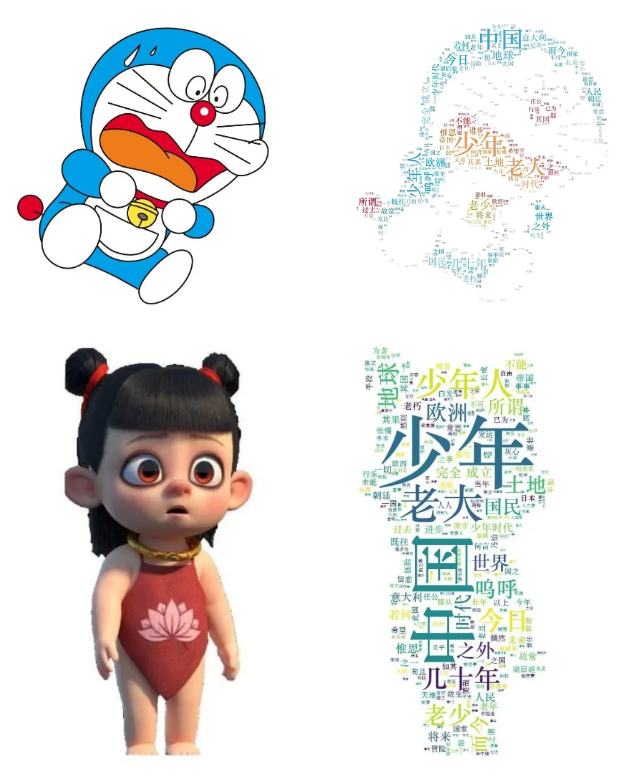

    backgroud = np.array(Image.open('test1.jpg'))

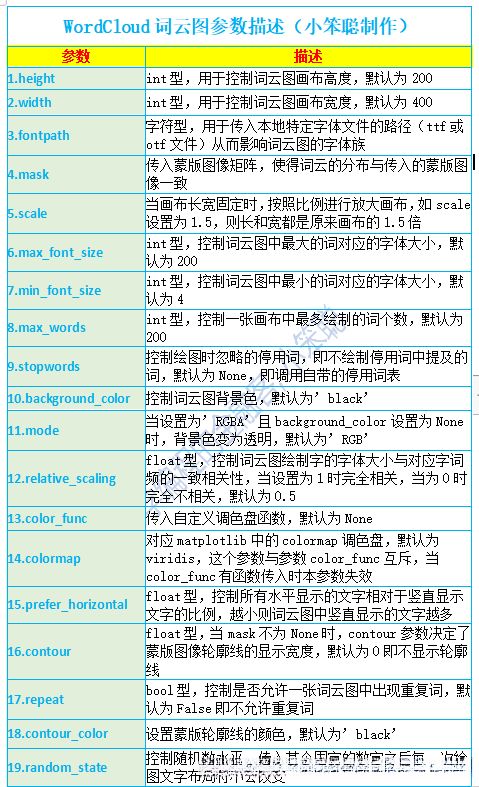

    wc = WordCloud(width=1400, height=2200,
    			background_color='white',
    	        mode='RGB',
    			mask=backgroud, #添加蒙版，生成指定形状的词云，并且词云图的颜色可从蒙版里提取
    			max_words=500,
    			stopwords=STOPWORDS.add('老年人'),#内置的屏蔽词,并添加自己设置的词语
    			font_path='C:\Windows\Fonts\STZHONGS.ttf',
    			max_font_size=150,
    			relative_scaling=0.6, #设置字体大小与词频的关联程度为0.4
    			random_state=50,
    			scale=2
    			).generate(space_list)

    image_color = ImageColorGenerator(backgroud)#设置生成词云的颜色，如去掉这两行则字体为默认颜色
    wc.recolor(color_func=image_color)

    plt.imshow(wc) #显示词云
    plt.axis('off') #关闭x,y轴
    plt.show()#显示
    wc.to_file('test1_ciyun.jpg') #保存词云图

    def main():
    ciyun()
    if __name__ == '__main__':
    main()











































    AI写代码

    def read_stopword(fpath):
    # 读取中文停用词表
    with open(fpath, 'r', encoding='utf-8') as file:
        stopword = file.readlines()
    return [word.replace('\n', '') for word in stopword]
    #加载多个停用词表
    path = 'E:\WeChatPublicNumber\python\词云图\stopwords'
    # 前两个停用词表是网上下载的，第三个是自己设置的
    name_list = ['中文停用词.txt', '哈工大停用词.txt', 'stopword.txt']
    stop_word = []
    for fname in name_list:
    stop_word += read_stopword(os.path.join(path, fname))
    stop_word = set(stop_word)
















    AI写代码

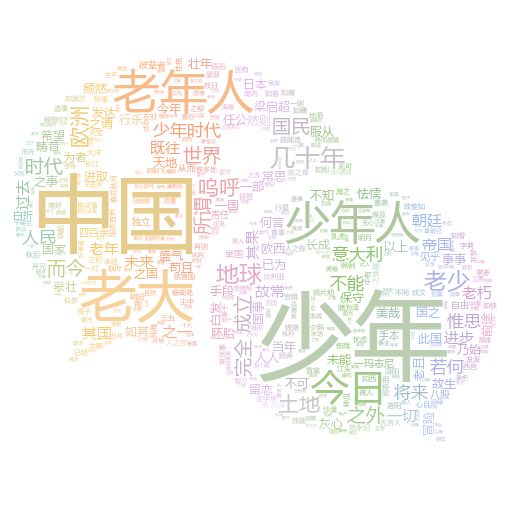

    import jieba
    import stylecloud
    def ciyun():
    with open('少年中国说.txt','r',encoding='gbk') as f:
        word_list = jieba.cut(f.read())
        result = " ".join(word_list) #分词用空格隔开

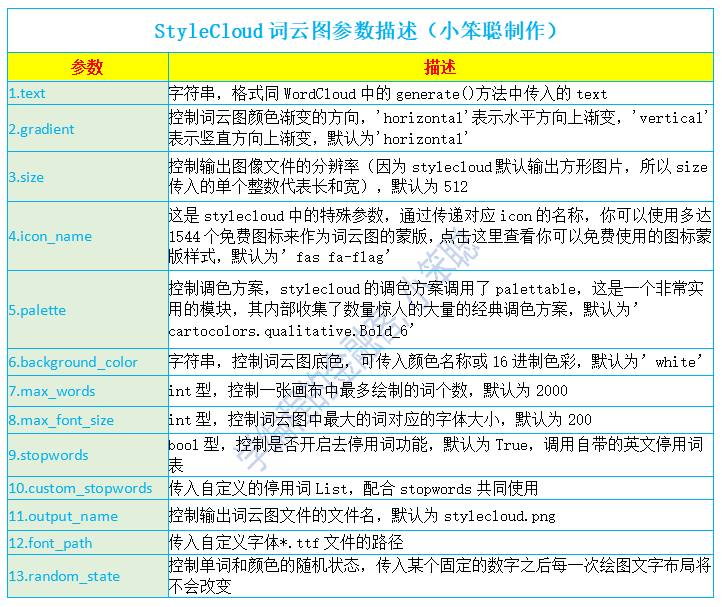

    stylecloud.gen_stylecloud(
        text=result, # 上面分词的结果作为文本传给text参数
        size=512,
        font_path='msyh.ttc', # 字体设置
        palette='cartocolors.qualitative.Pastel_7', # 调色方案选取，从palettable里选择
        gradient='horizontal', # 渐变色方向选了垂直方向
        icon_name='fab fa-weixin',  # 蒙版选取，从Font Awesome里选
        output_name='test_ciyun.png') # 输出词云图
    def main():
    ciyun()
    if __name__ == '__main__':
    main()





















    AI写代码
