ECE550 Fundamentals of Computer Systems and Engineering final review

ECE550 final review

• 1 datapath

• • 1.1 single-cycle datapath
  • 1.2 multi-cycle datapath

• 2 pipelining

• • 2.1 pipelined control
  • 2.2 dependences and hazards
  • 2.3 bypass
  • 2.4 control hazards

• 3 memory hierarchy

• • 3.1 SRAM
  • 3.2 Main memory 抽取到cache
  • 3.3 DRAM

• 4 virtual memory

• 5 interrupts

• 6 io

• 7 os

• • 7.1 filesystem
  • 7.2 processes
  • 7.3 booting

1 datapath

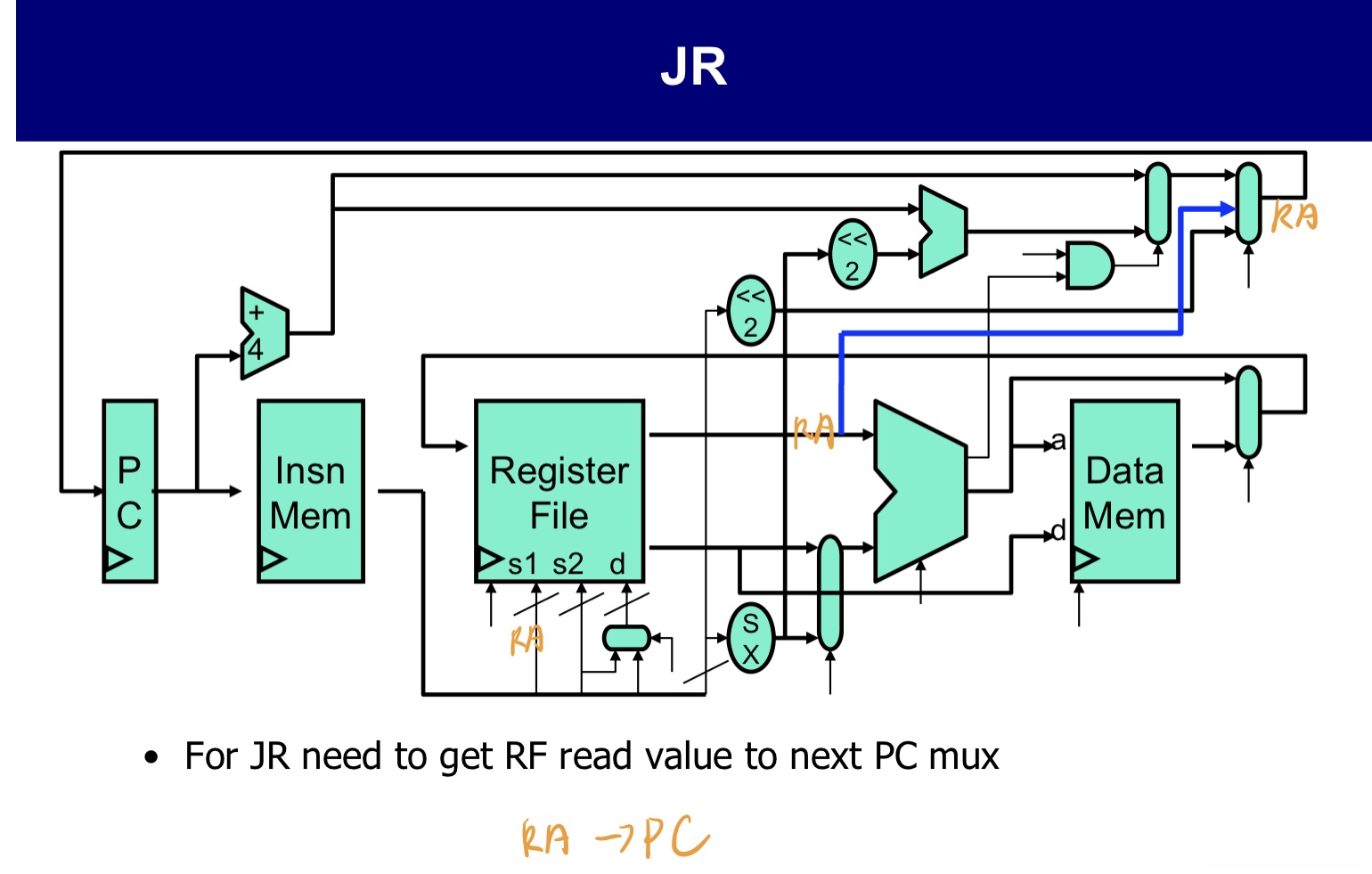

1.1 single-cycle datapath

• ALU的output不一定是32位，如overflow



• 3个读依次（IMEM、reg[control ROM/random logic]、DMEM），3个写同时（DMEM、reg、PC）

• 没有读在写的后面

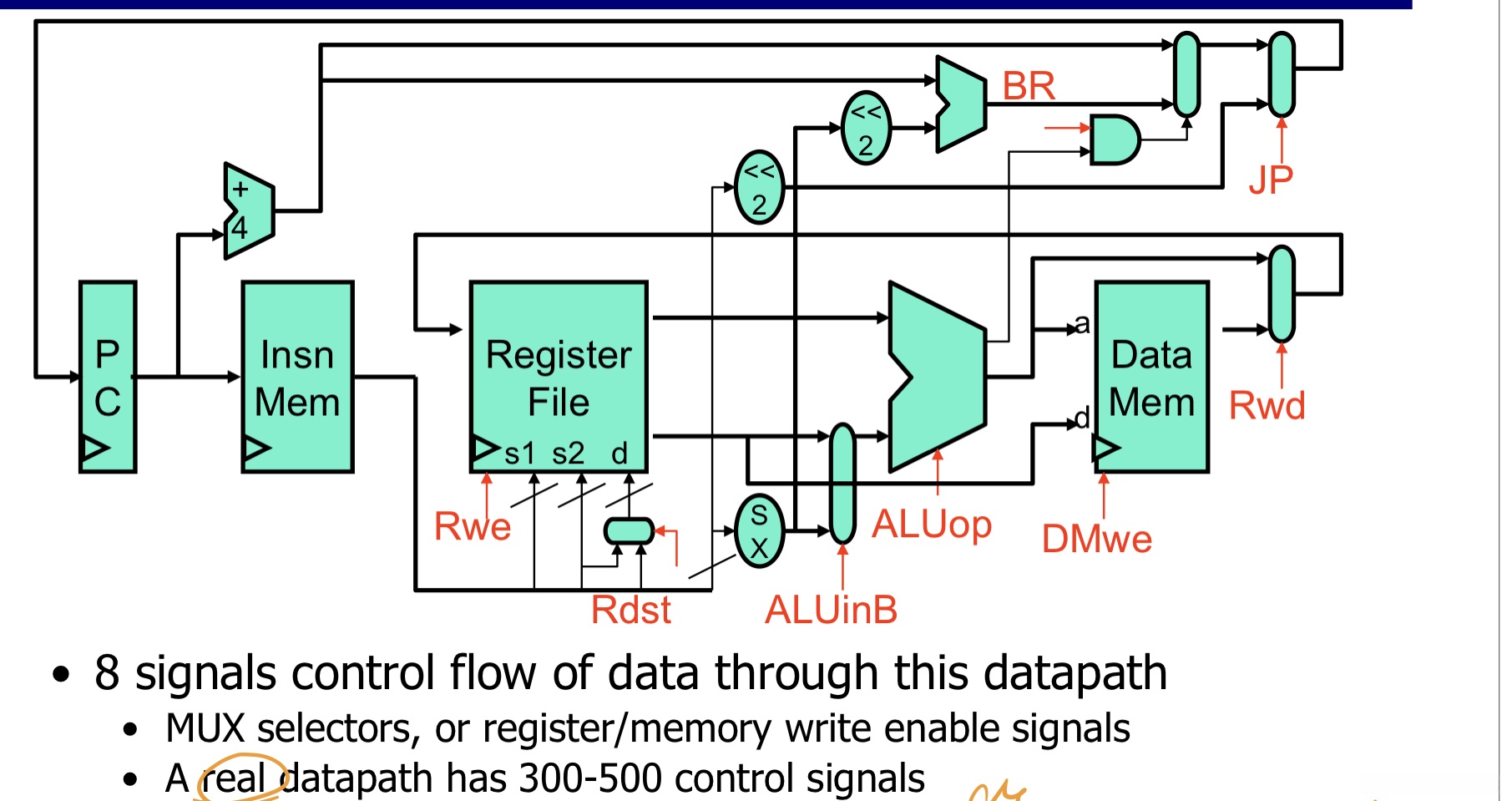

• 控制信号生成：根据opcode生成所有control signal（不同insn的opcode不同）

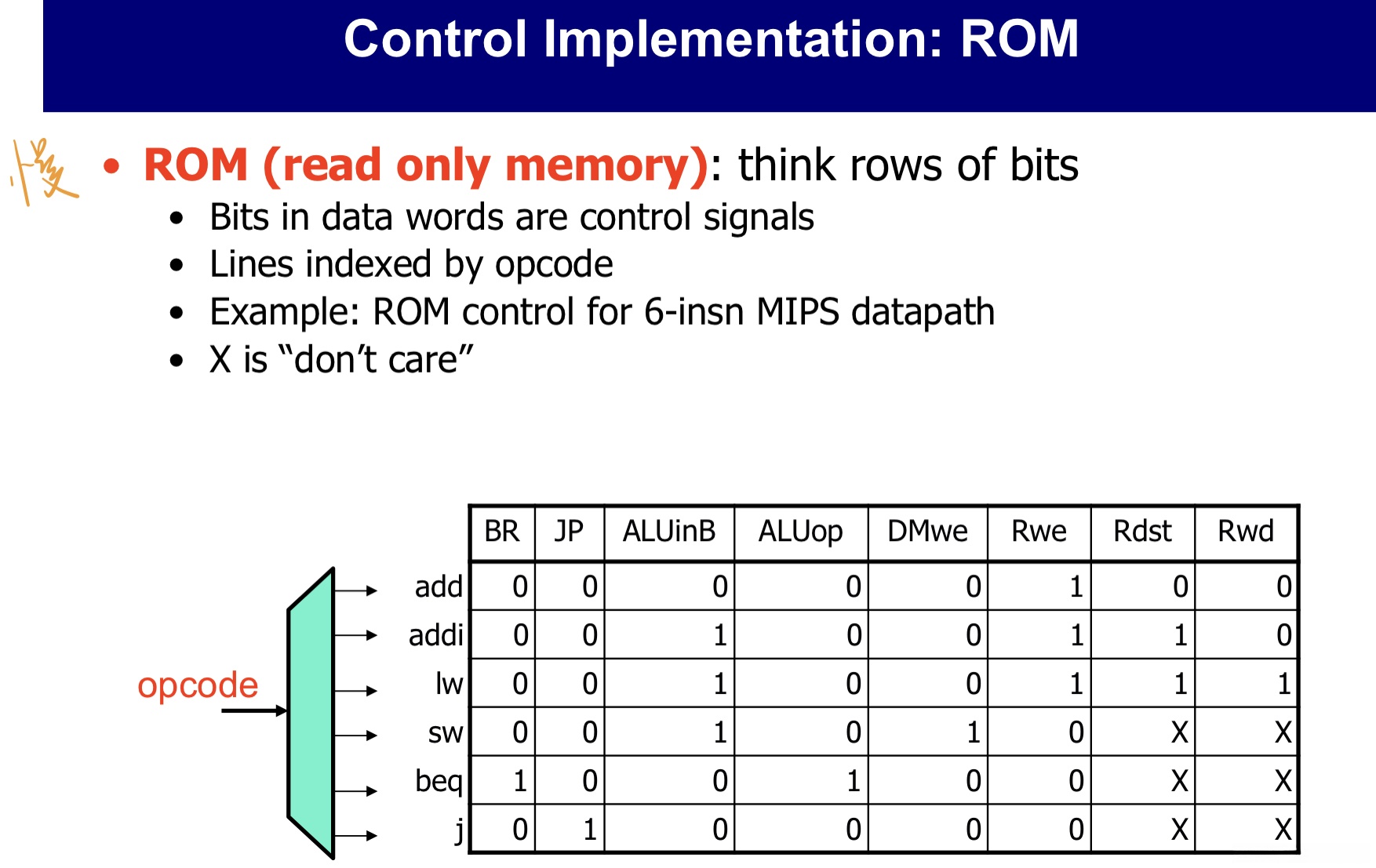

  1. ROM

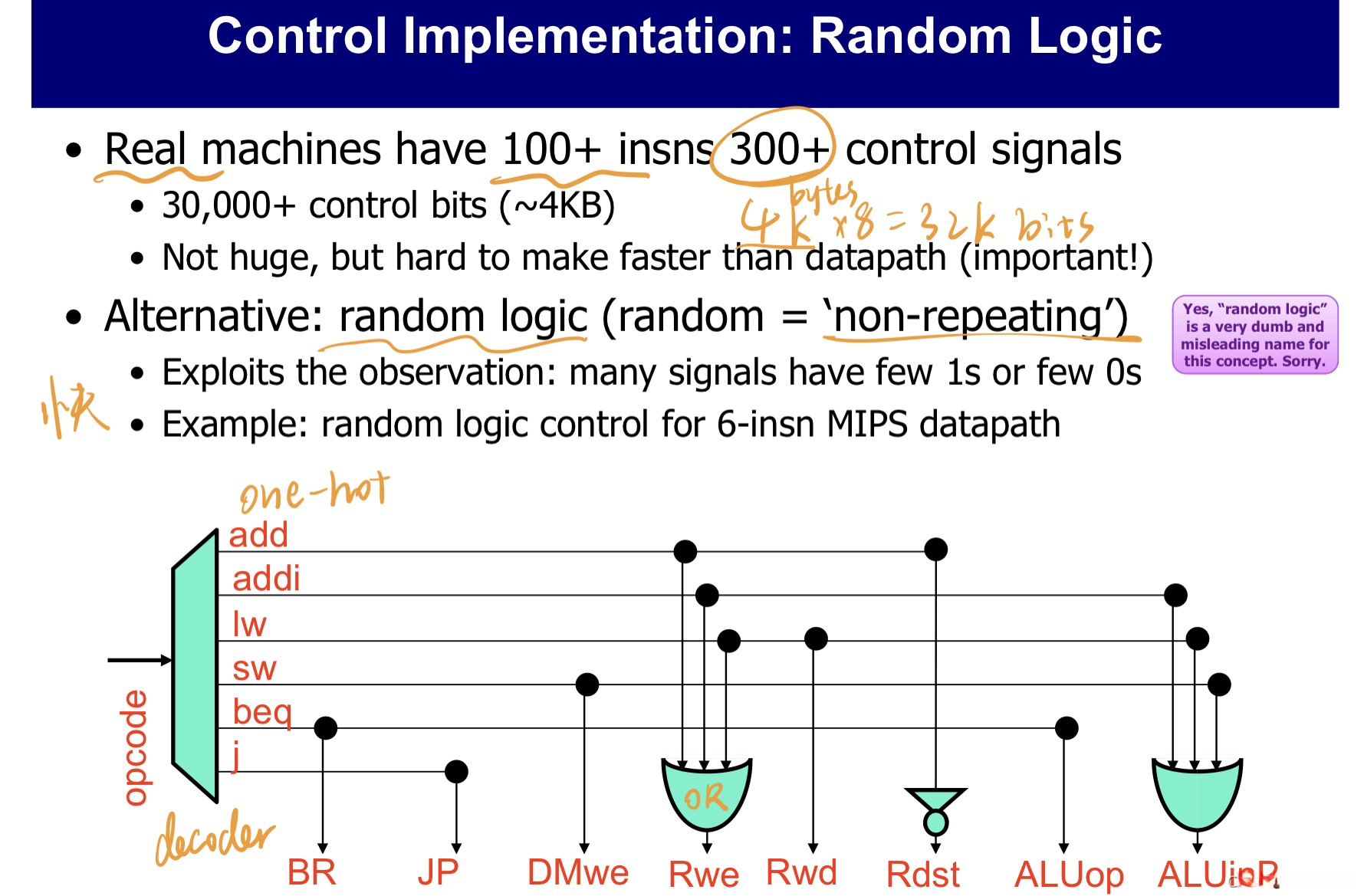

  2. Random logic（‘non-repeating’）

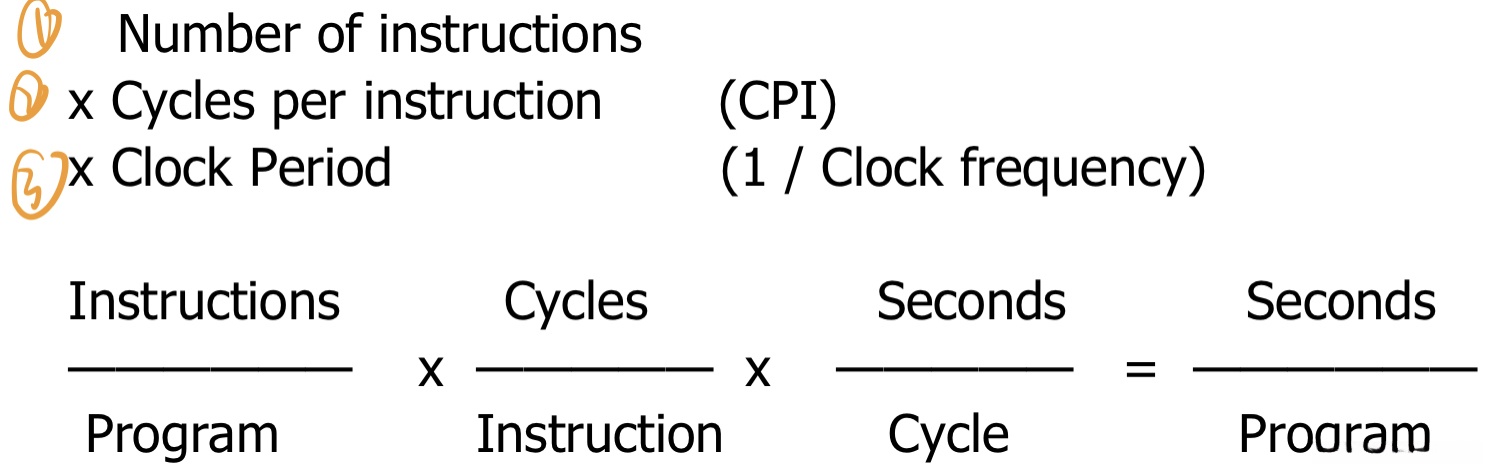

• MCCF (make common case fast) principle

  1. CPI(cycle/insn) = 1 (low)
  2. clock period (short) 长

• performance


• MIPS(million insns per second) = IPC * Frequency(MHz) 越大越好 --> throughput 吞吐量

• Performance/Watt瓦特 --> today

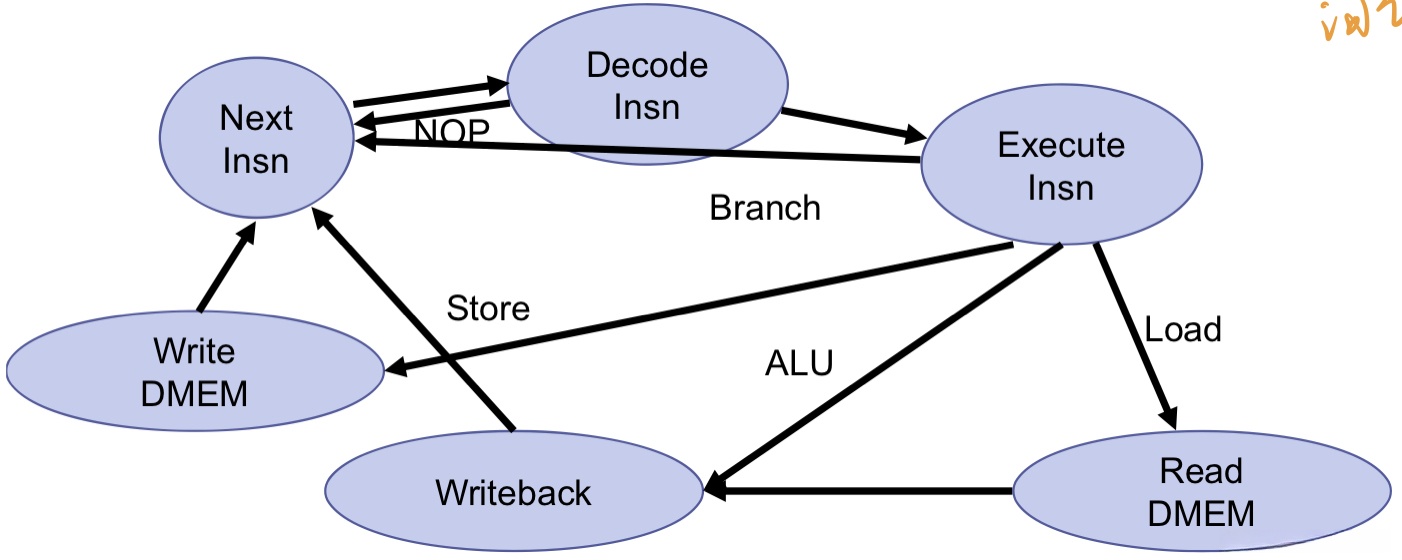

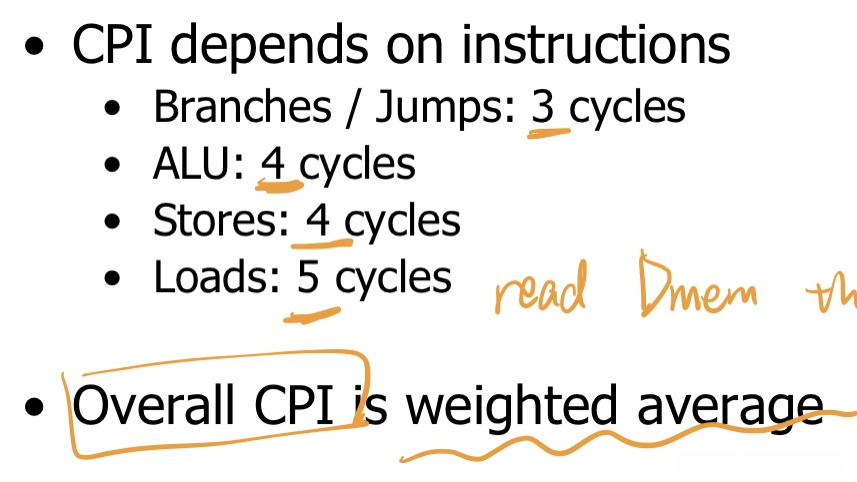

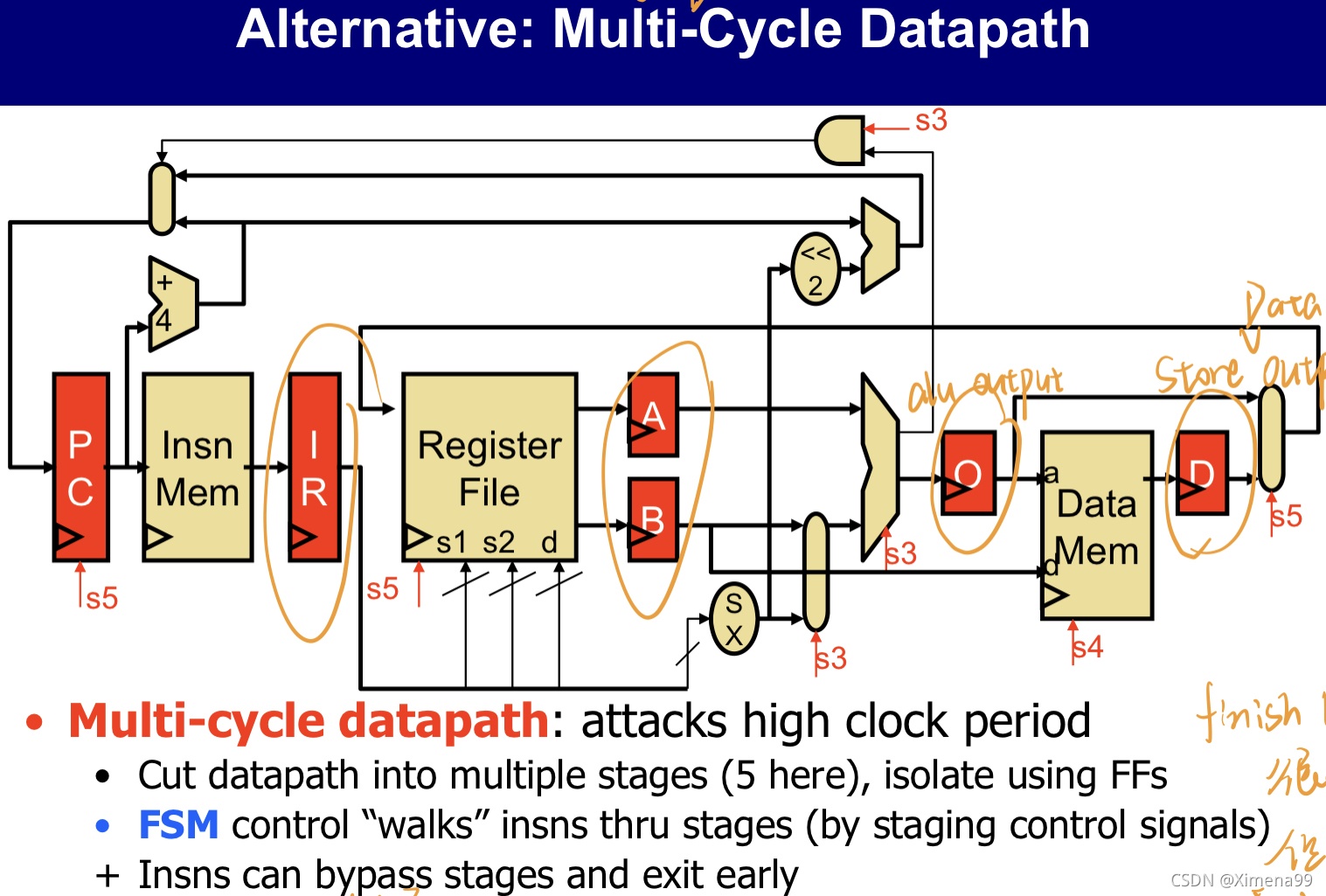

1.2 multi-cycle datapath

1. CPI(cycle/insn) 大
2. clock period 短



2 pipelining

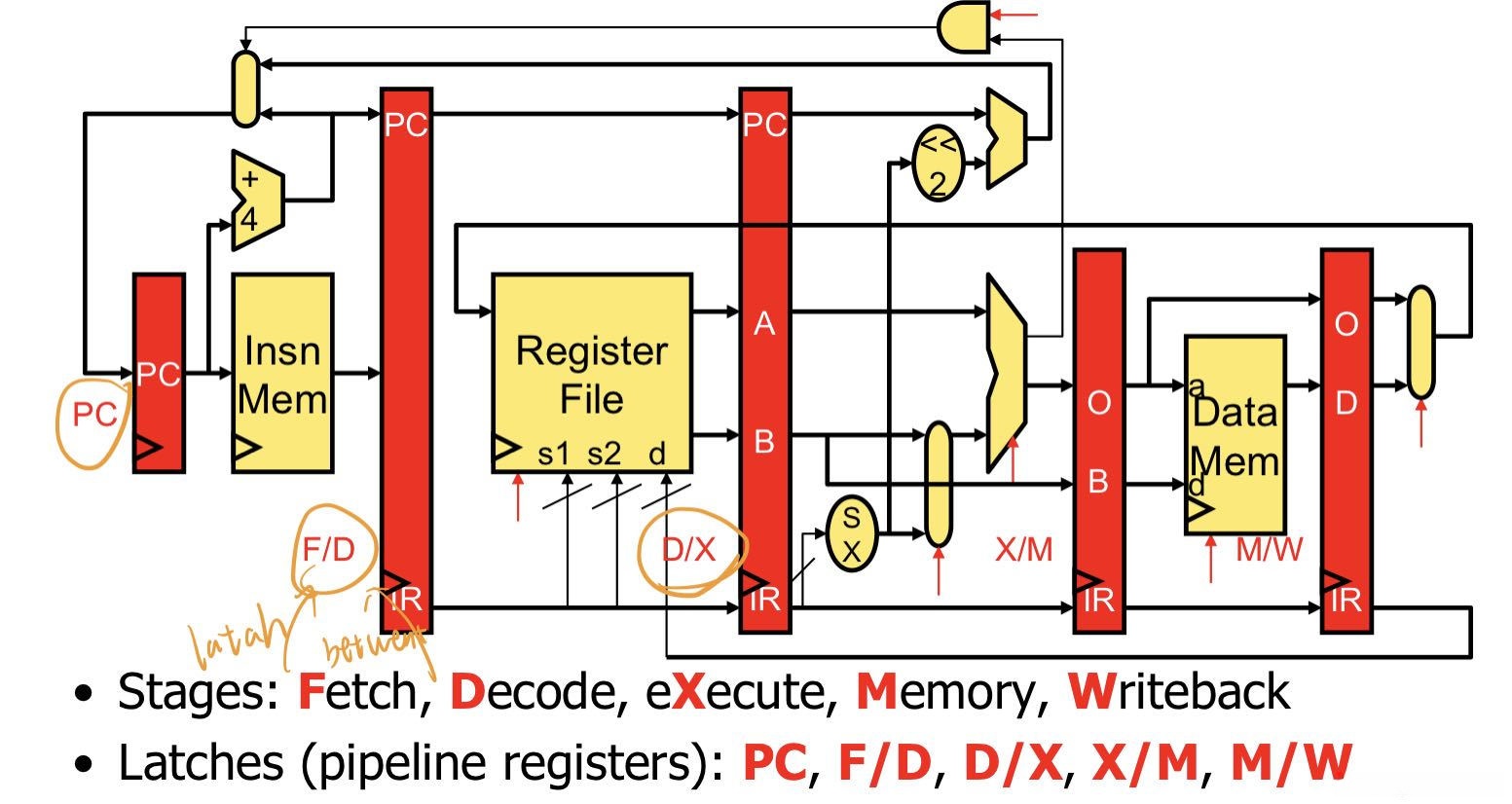

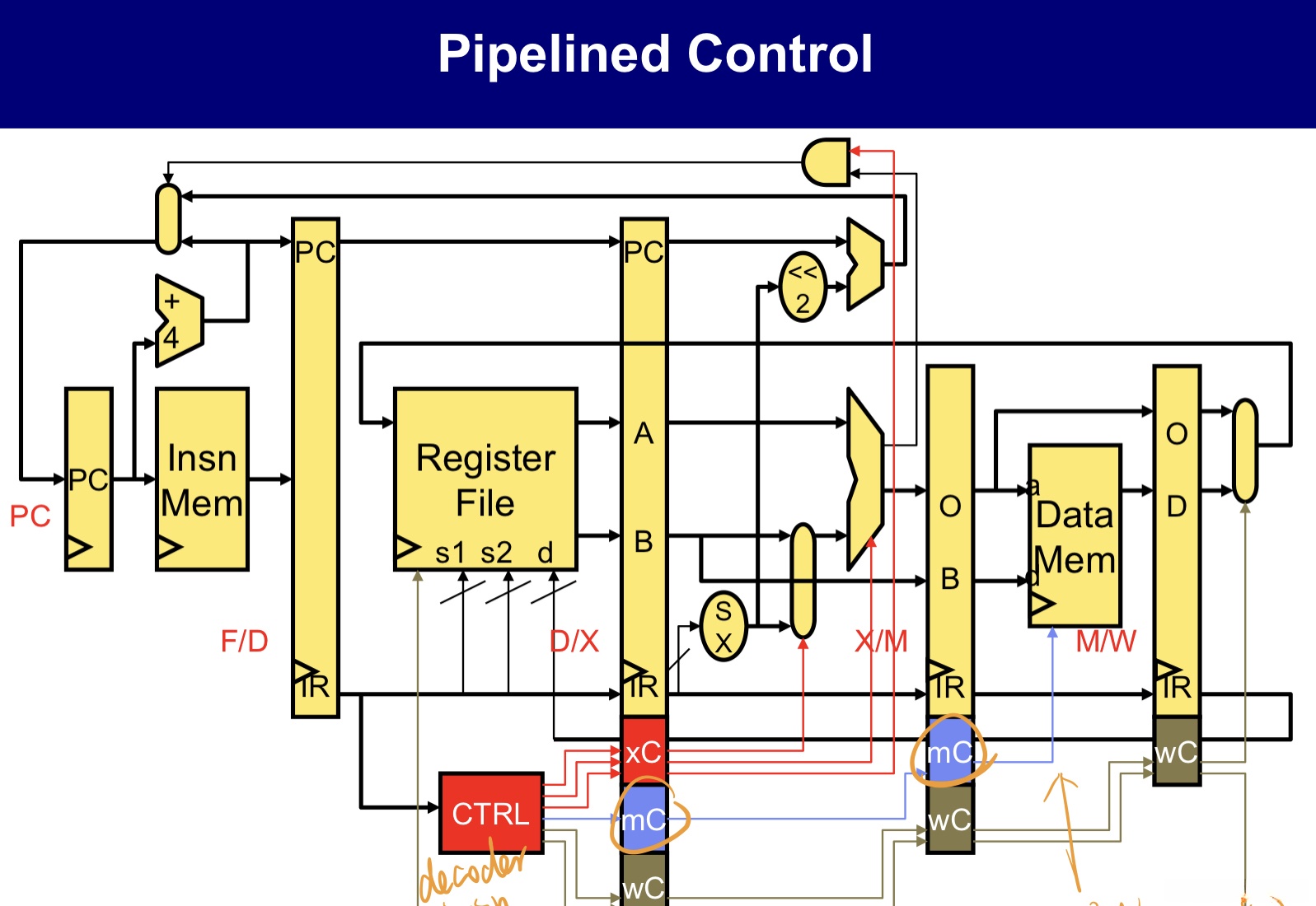

2.1 pipelined control

• PC从ALU stage开始就不存了，因为PC已经经计算并return back

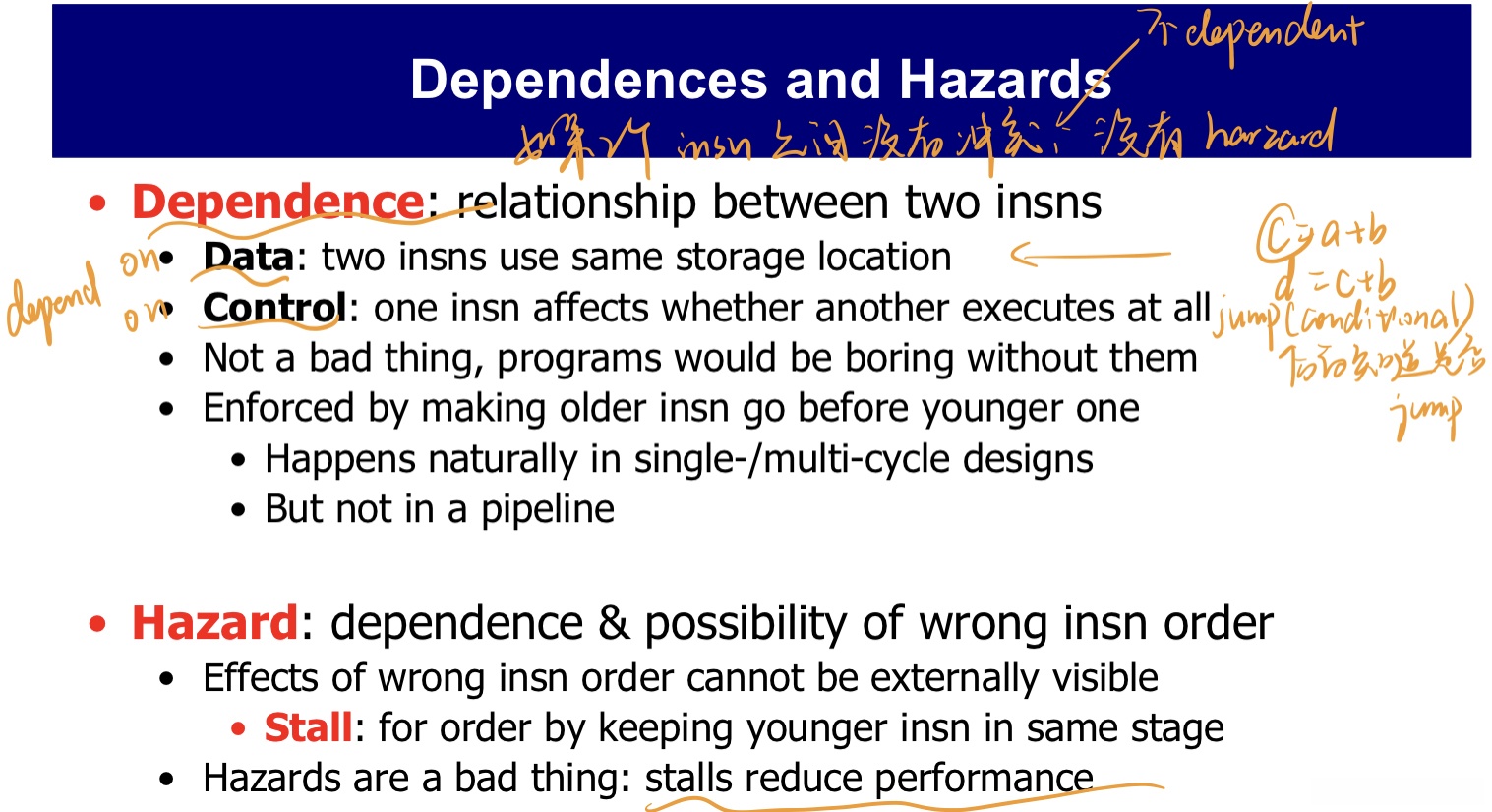

2.2 dependences and hazards

• Hazard分为structural hazards和data hazards --> 还有control hazards

  1. Structural hazards --> Two insns trying to use same circuit at same time
  2. Data hazards --> 由data dependence产生，要加nop等待 --> 不发生在Dmem，发生在reg
  3. Control hazards --> 在branch insns结果知道前先默认不jump，fetch下一个insn --> nop

• reg（同时）先write再load（默认）

• for 5 stage，Can only read register value 3 cycles after writing it

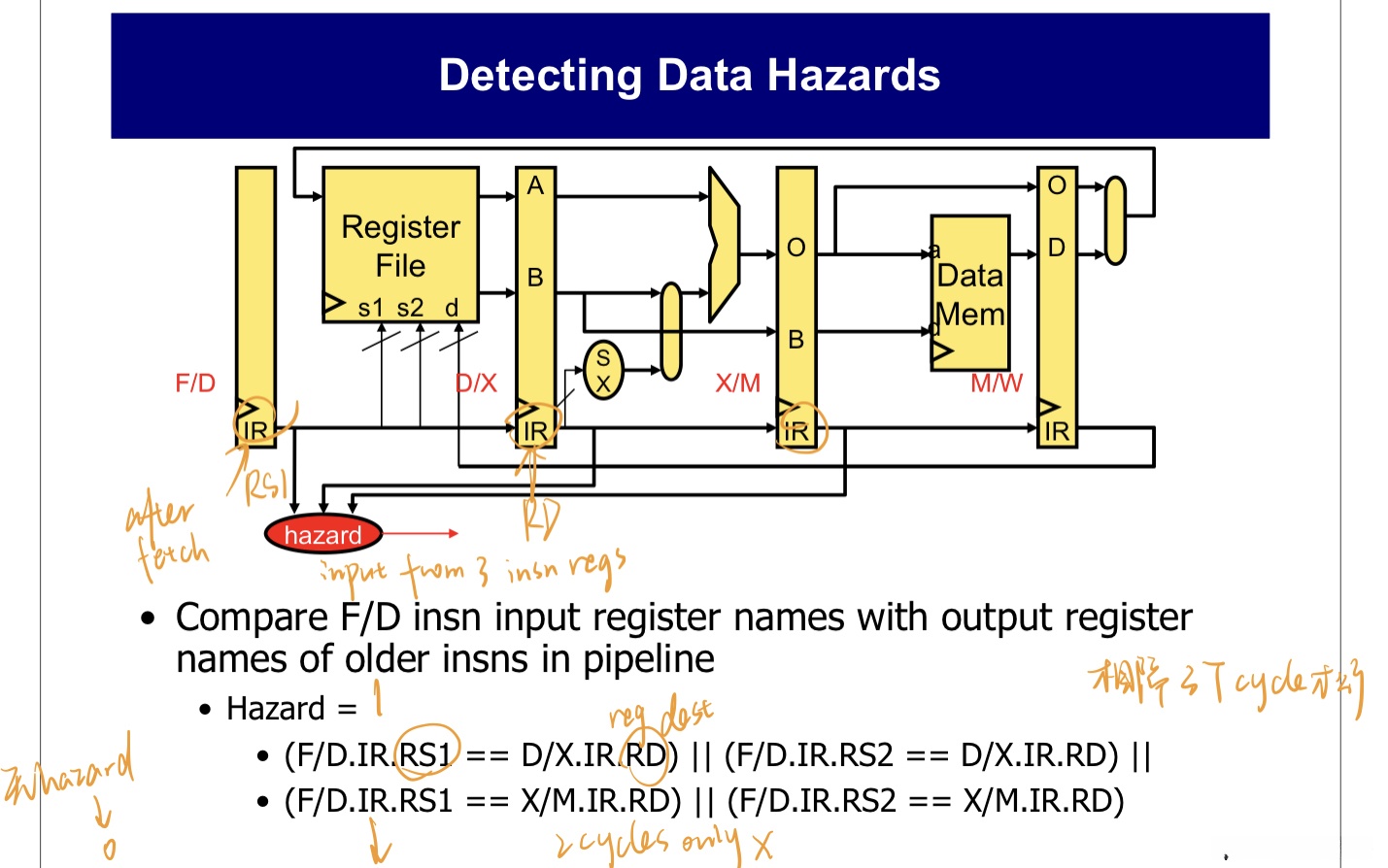

• 解决Reg data hazards（两者结果相同）

  1. Software Interlock --> 上移，加nop --> CPI = 1, #insns增加

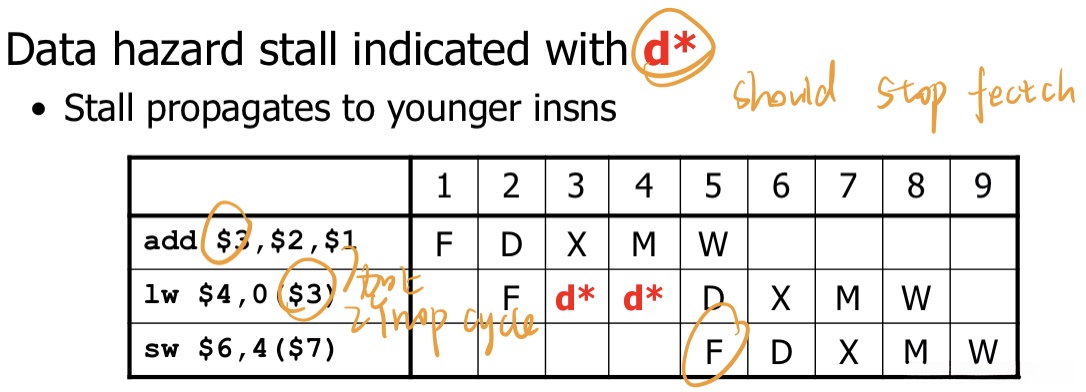

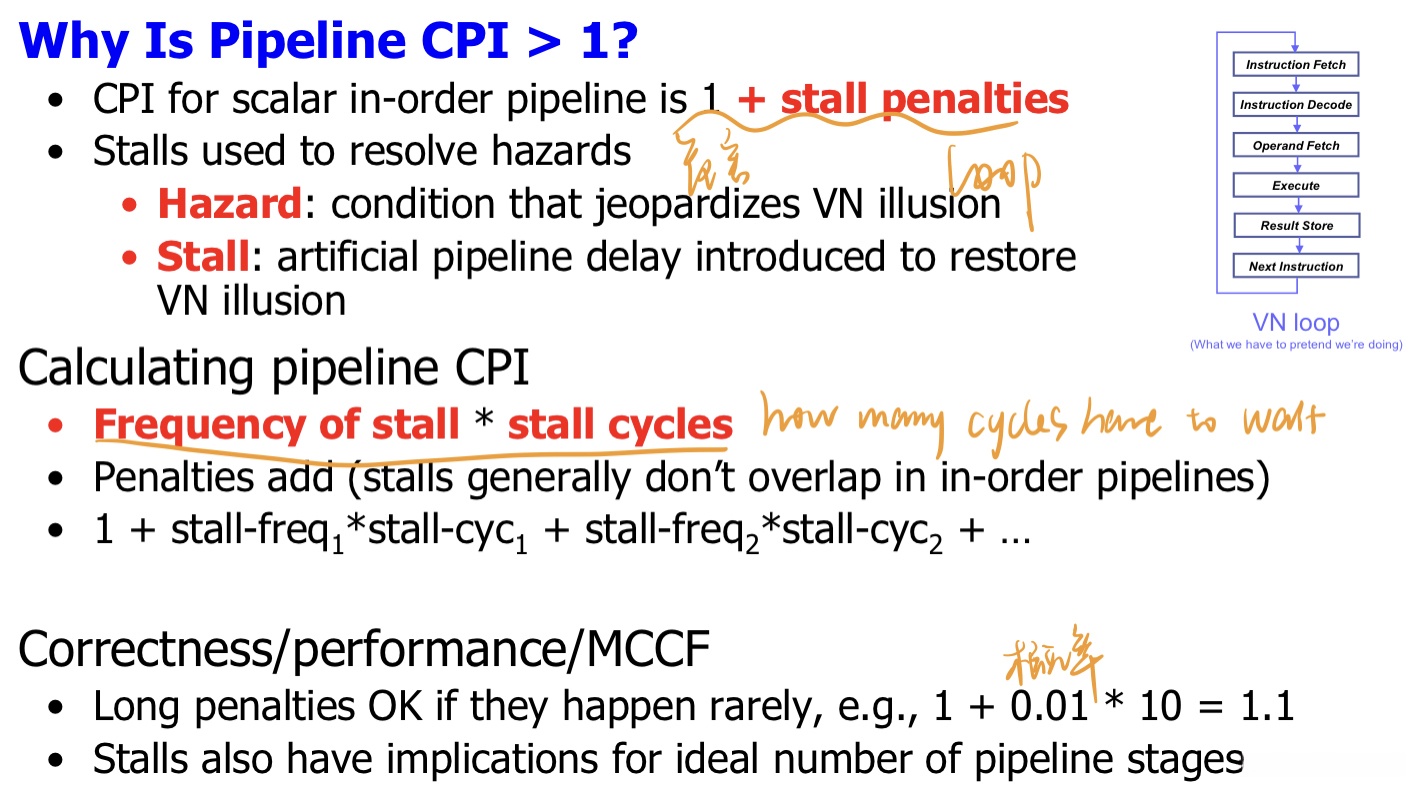

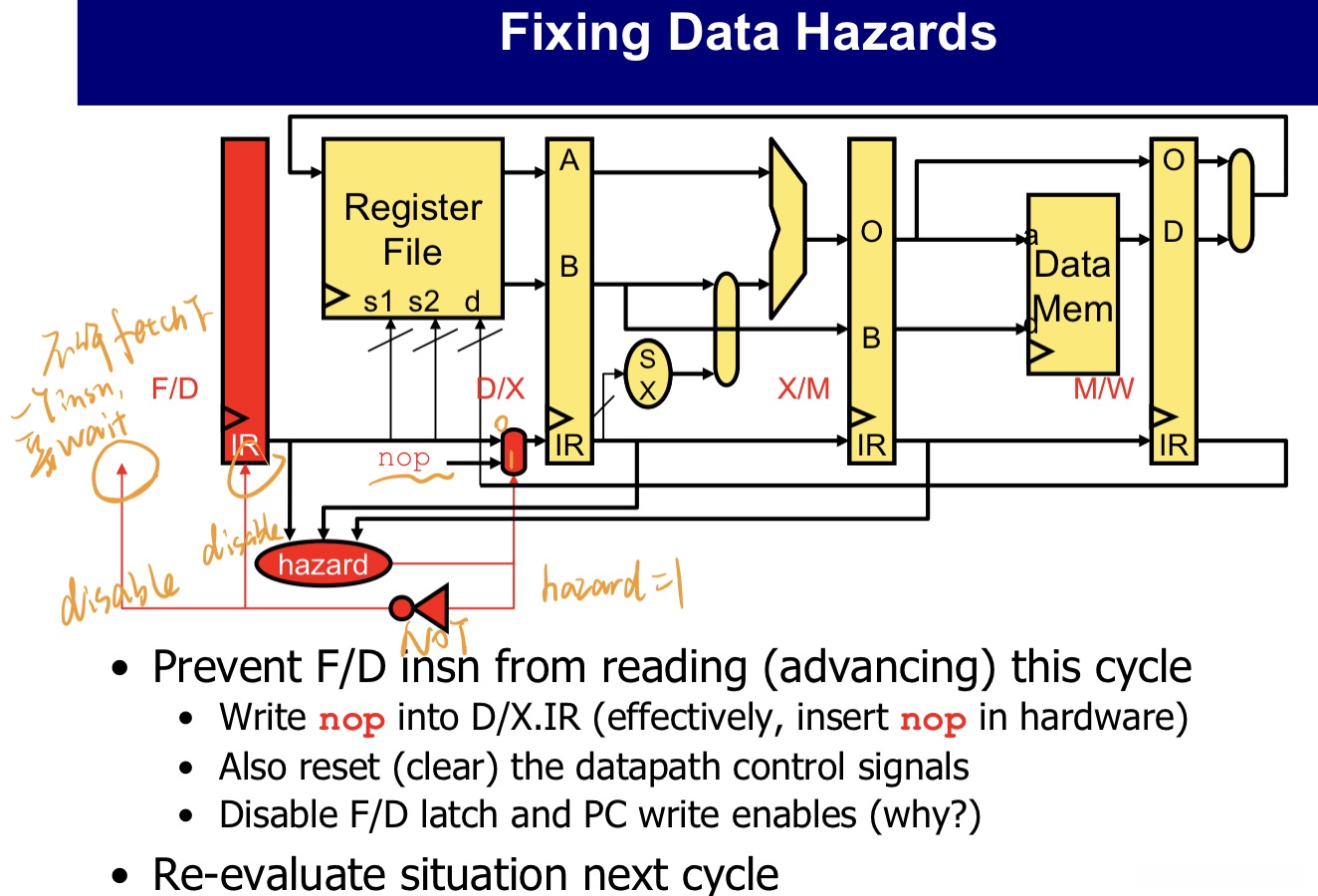

  2. Hardware Interlock --> processor detect and fix (stall or bubble) --> CPI增加, #insn不变



• 区分pipeline control和pipelined datapath control

  1. pipeline control是how to detect and fix hazard
  2. pipelied datapath control是控制controlling signal for datapath
  3. pipeline control推进datapath control

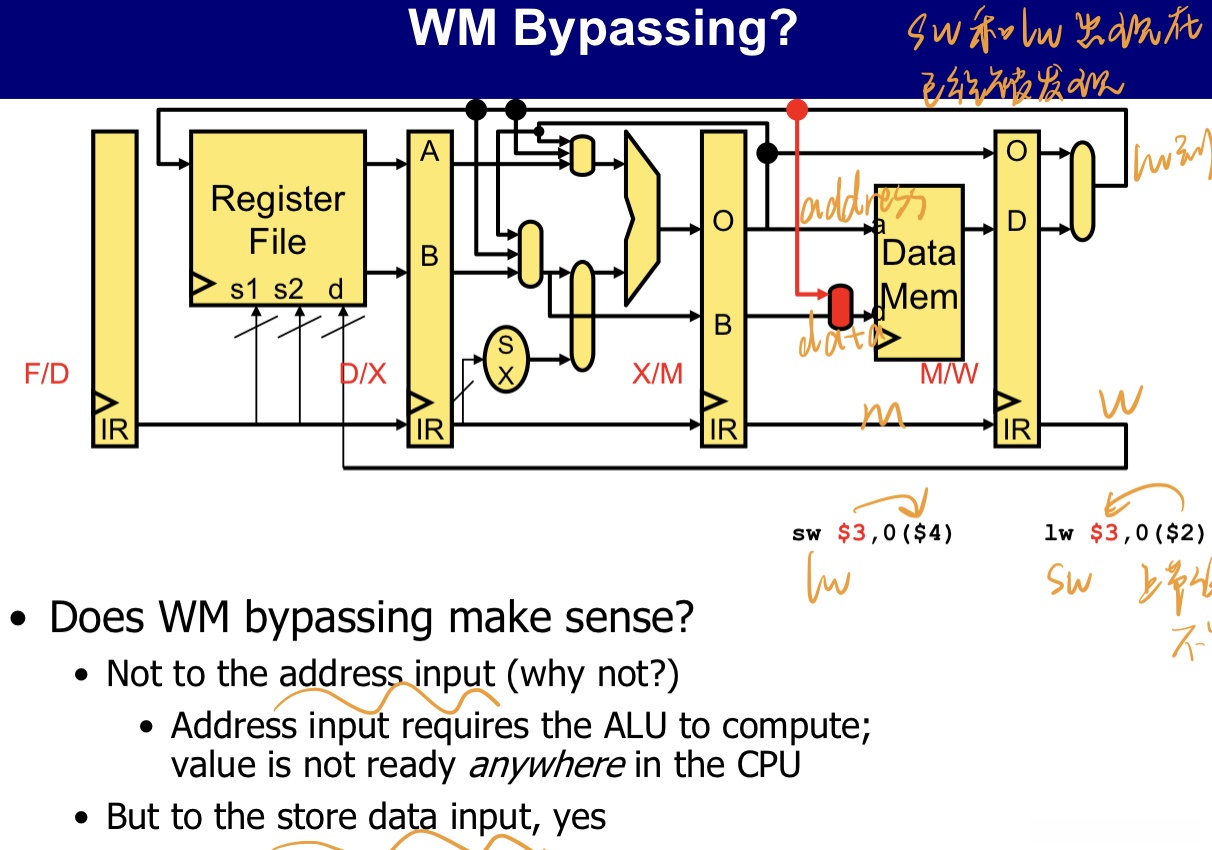

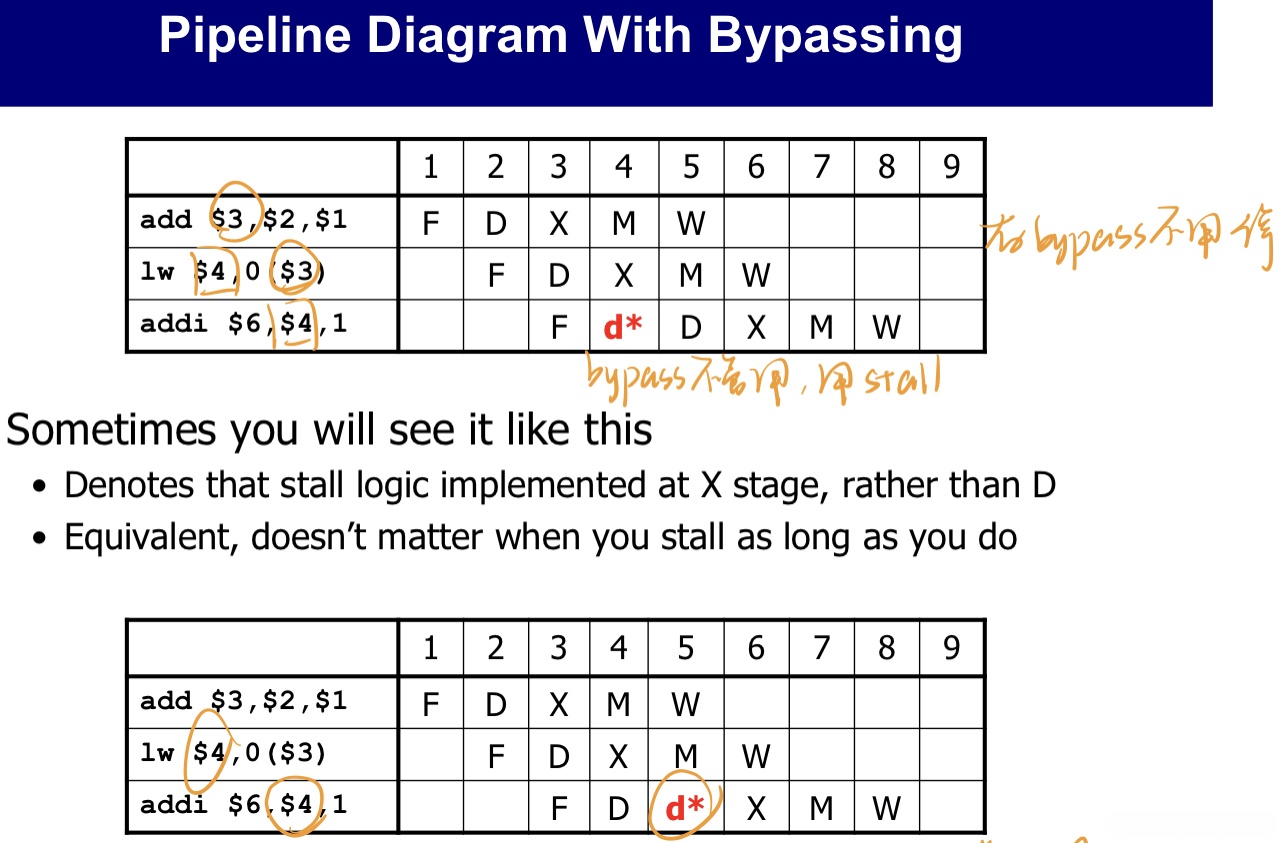

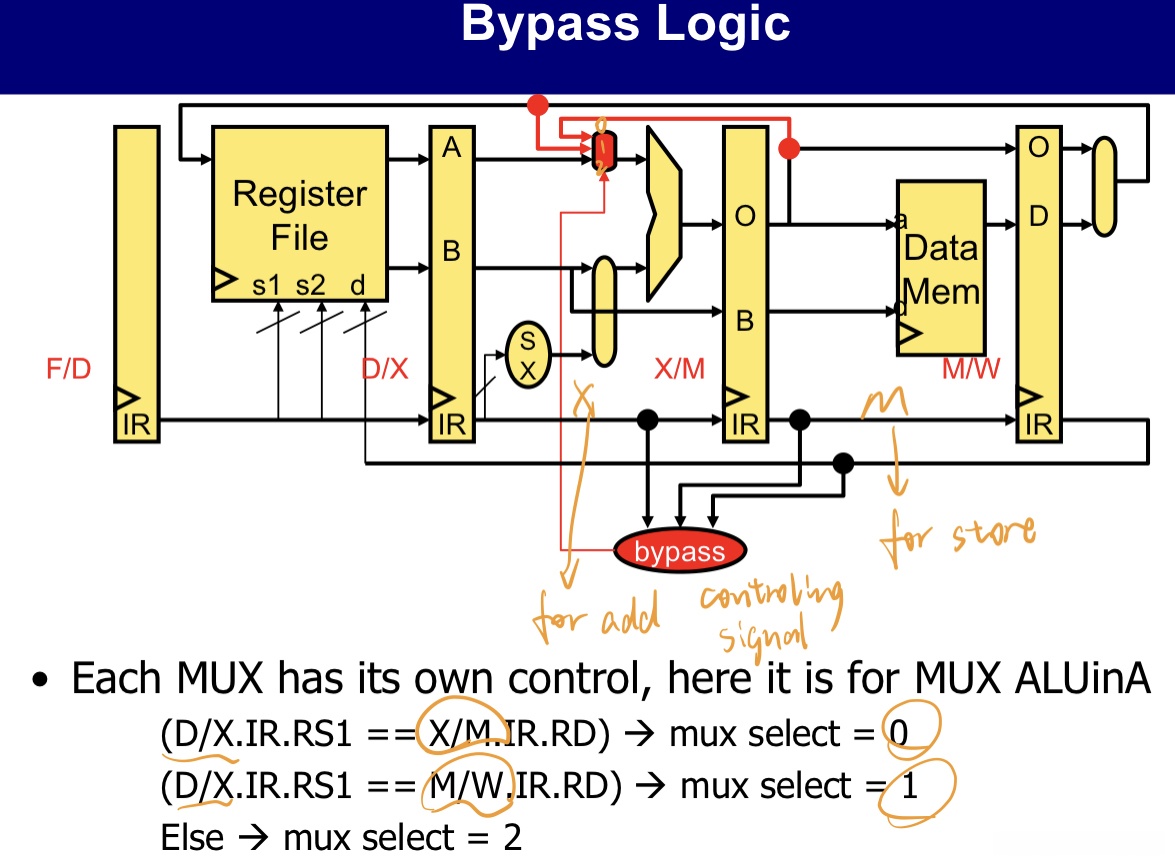

2.3 bypass

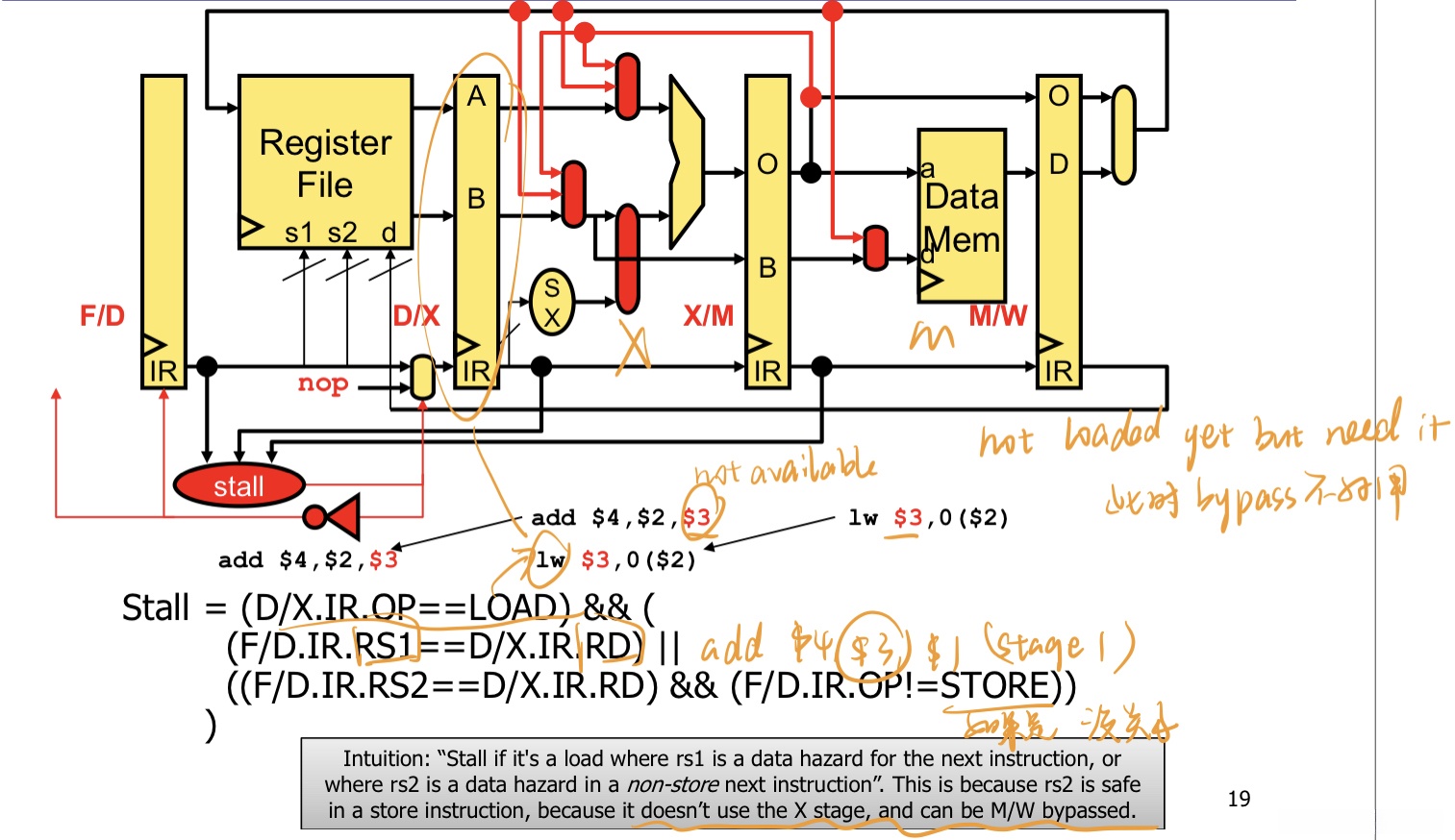

• 如果不能bypass，就要stall
• 同时由bypass和stall

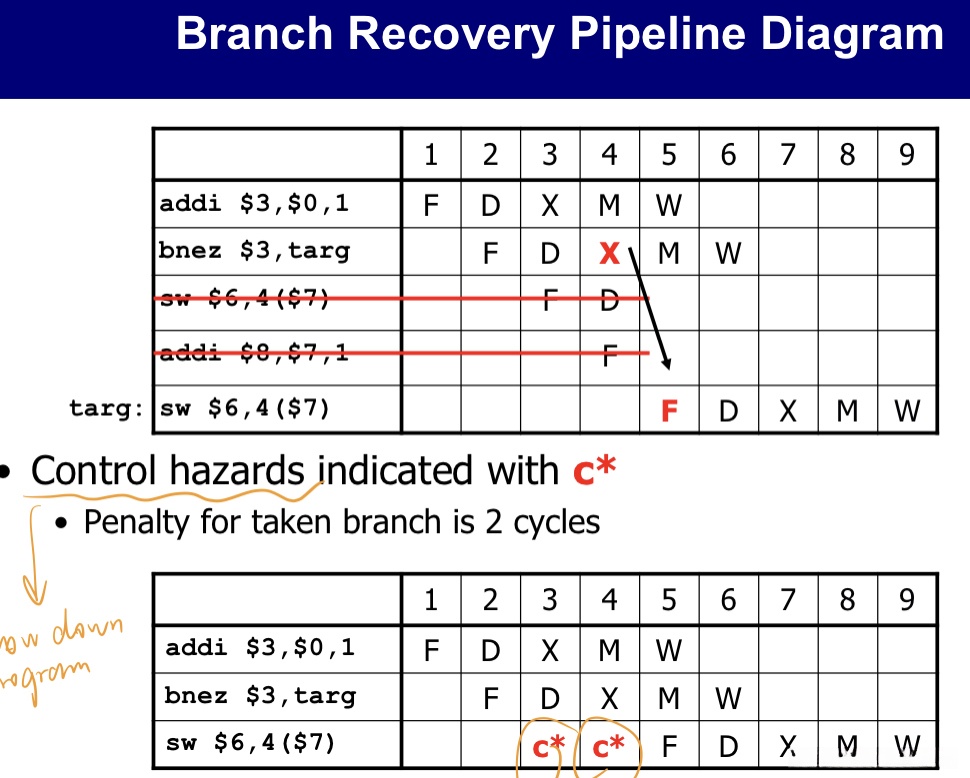

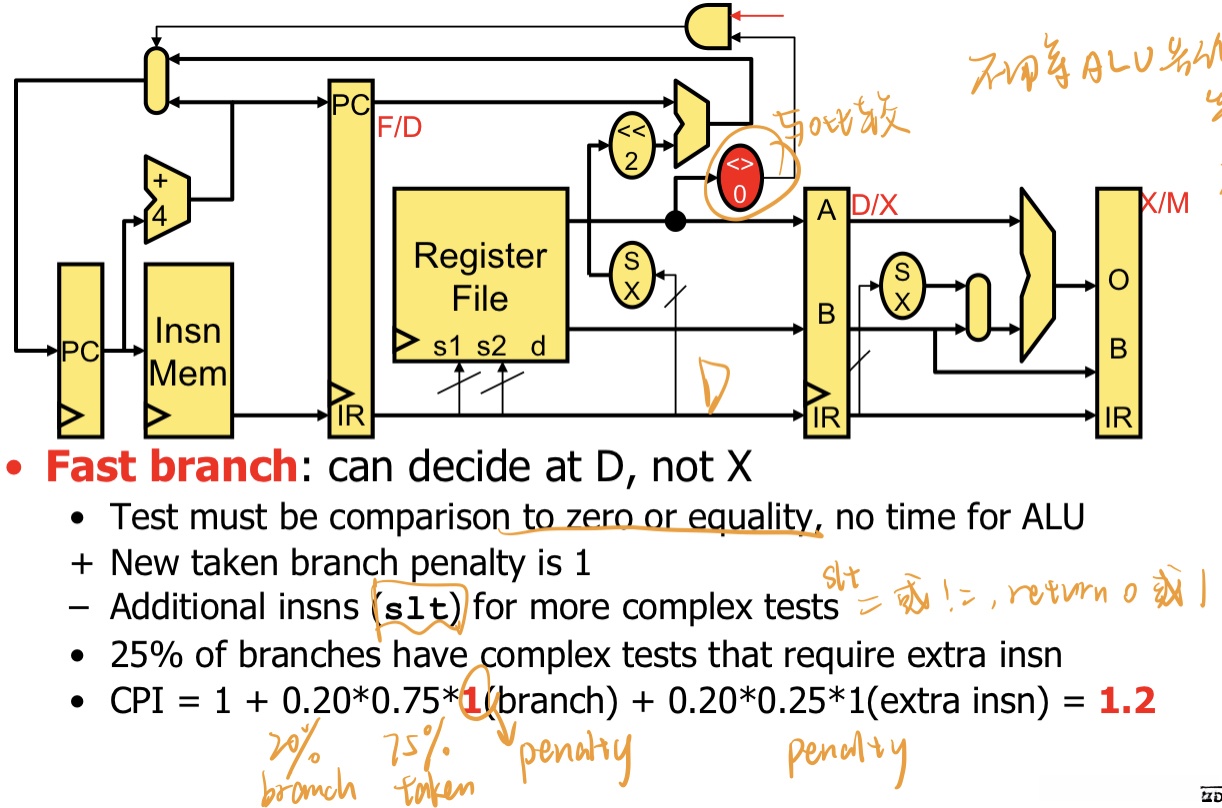

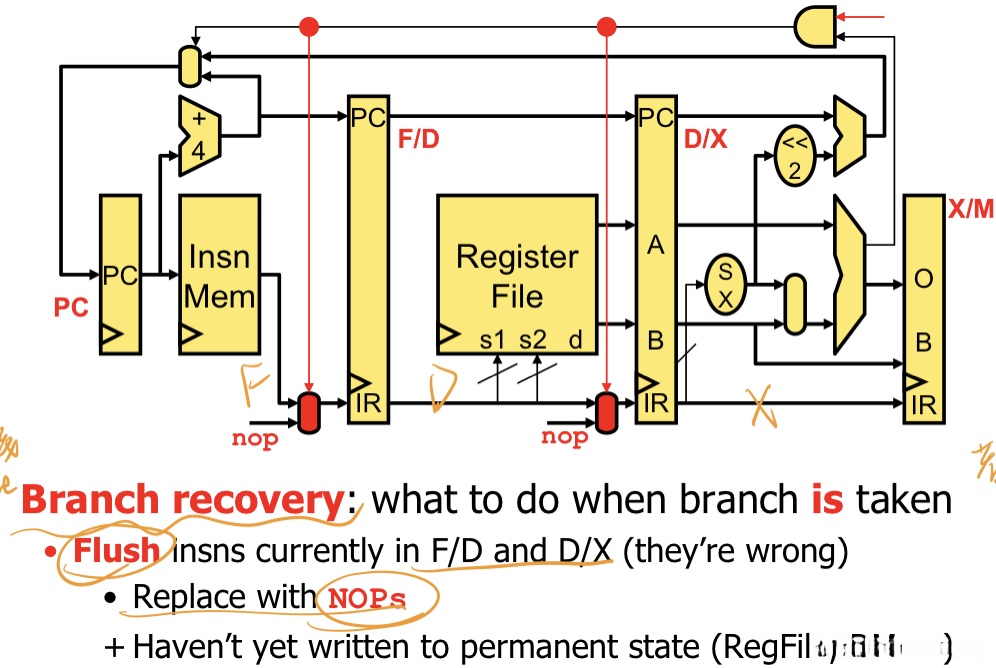

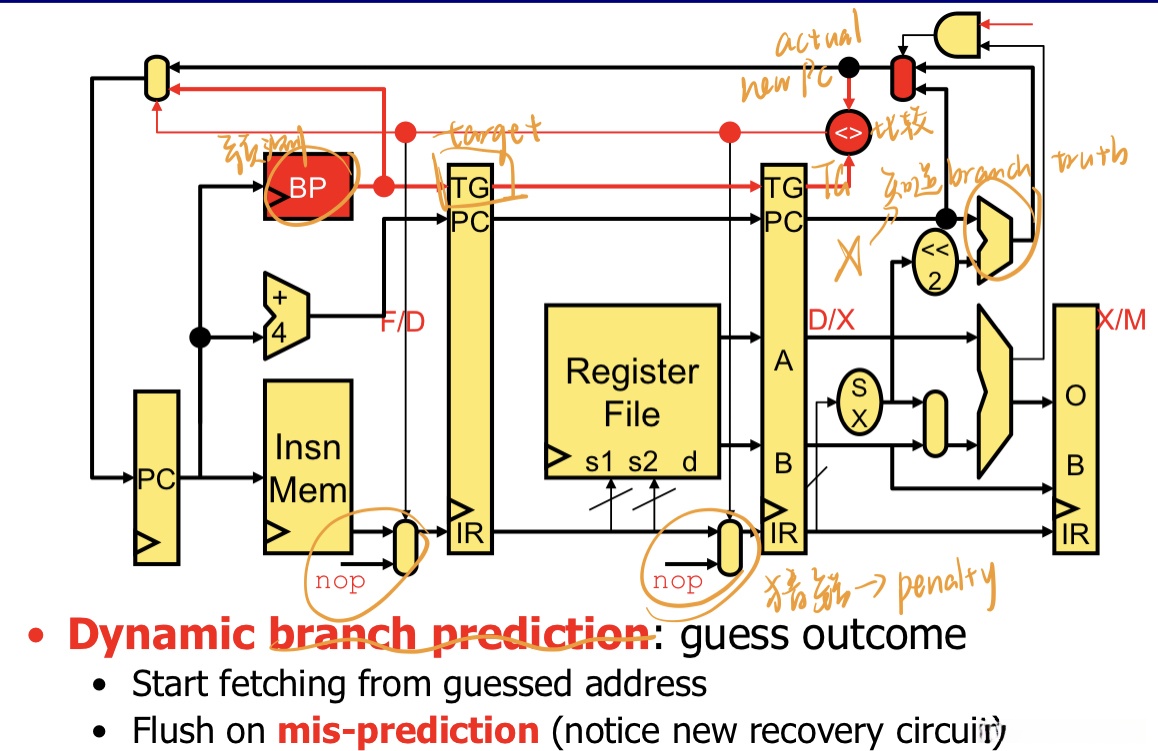

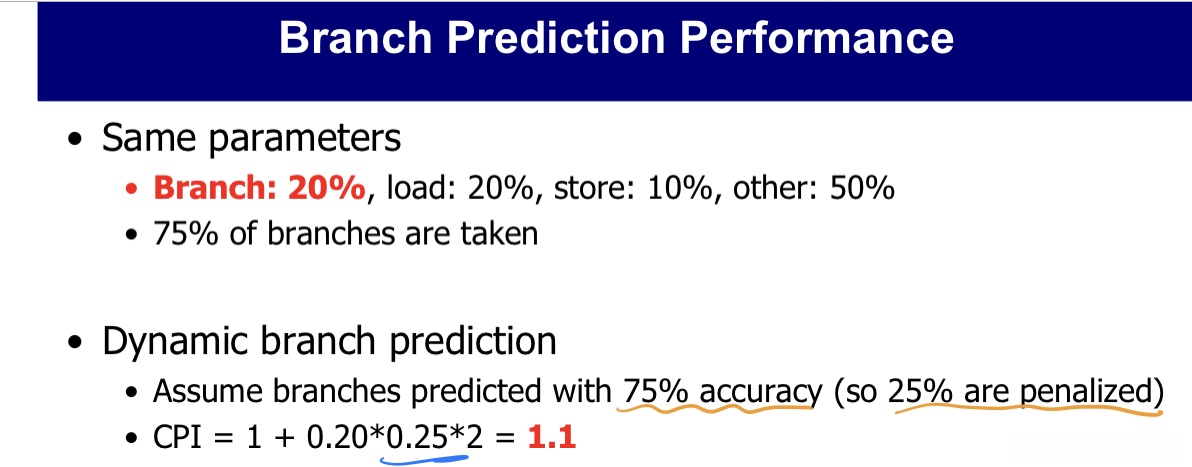

2.4 control hazards

3 memory hierarchy

• SRAM --> static random-access memory --> regfile是多端口的SRAM --> Imem和Dmem是single-ported SRAM

• 1B（Byte）=8b（bit） --> 1 KB = 1024 B --> 1 MB = 1024 KB --> 1 GB = 1024 MB --> 1TB = 1024GB

• average access time --> tavg = thit + %miss* tmiss

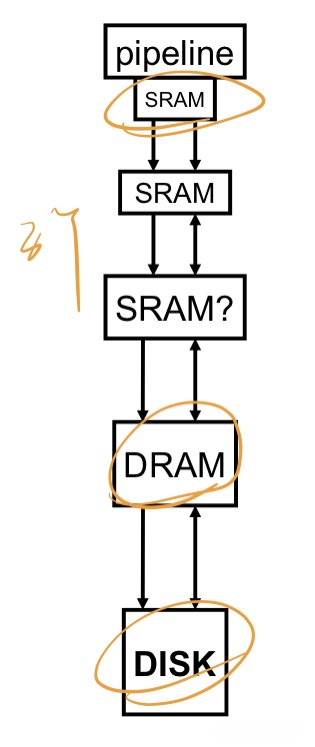

• SRAM大的太贵，换DRAM和DISK（比SRAM慢）


• 上到下Bandwith B/sec越来越小，latency越来越大

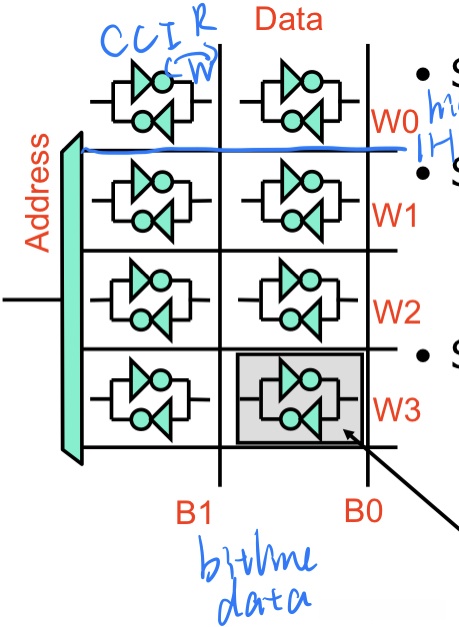

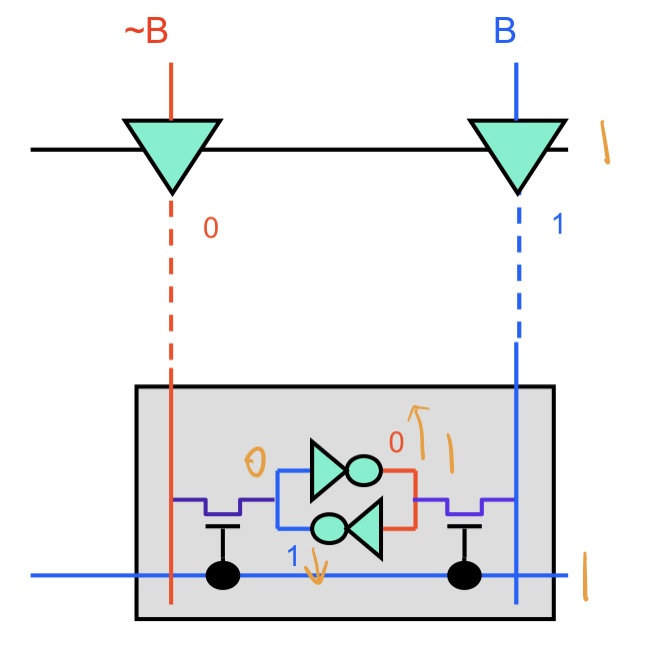

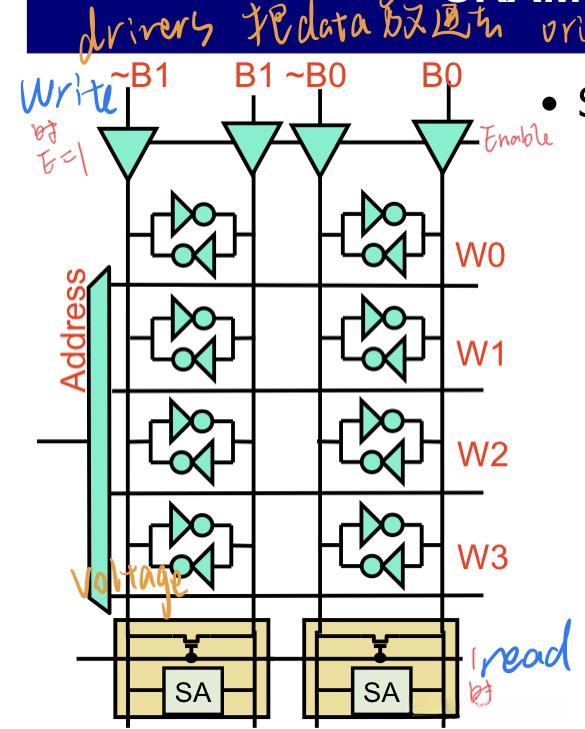

3.1 SRAM

• delay成正比于wire length^2
  SRAM latency = (cp)^2 + (rp)^2 --化简–> ports^2 * numBits

3.2 Main memory 抽取到cache

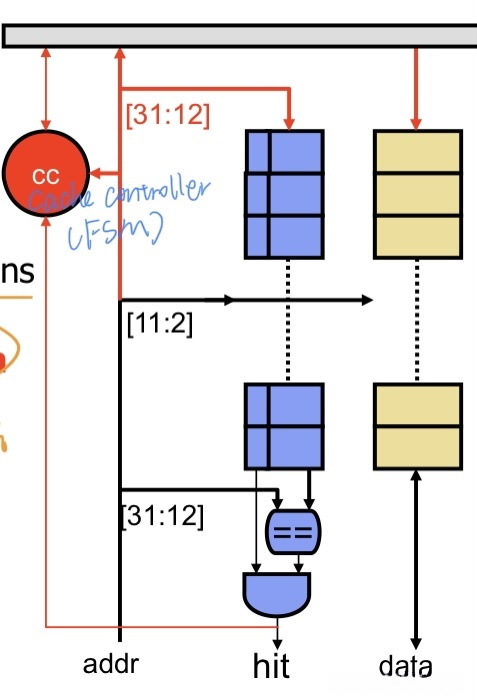

解决cache miss

从下（00）到上（11）：1b --> 1B; 1h --> 2B; 1w --> 4B 可能map到不同block

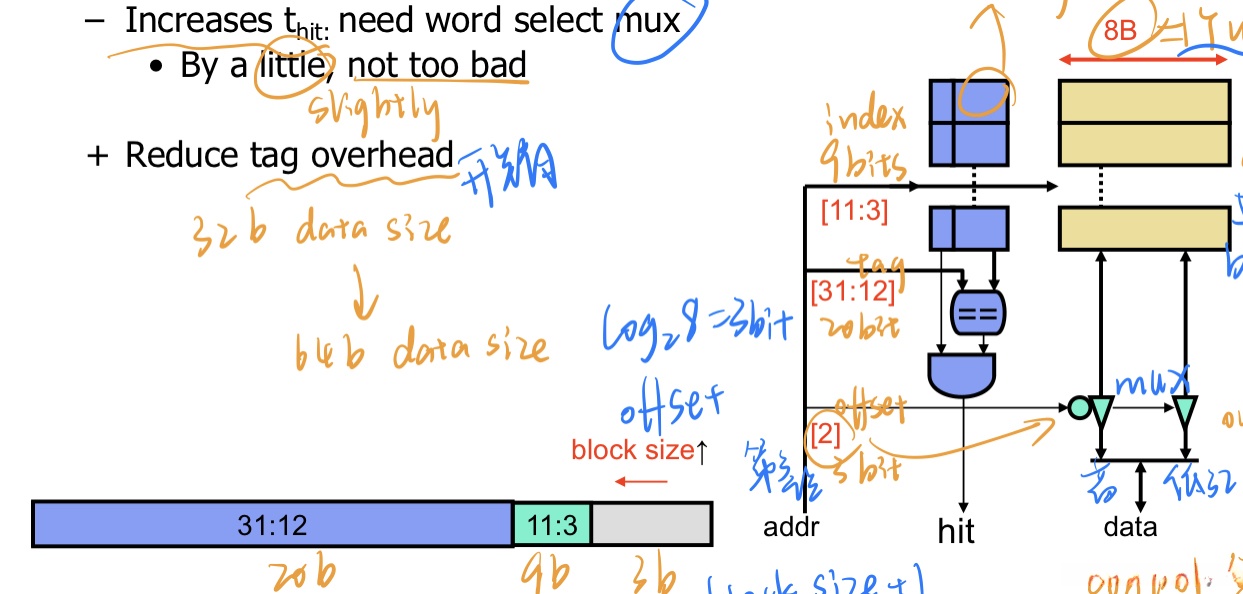

• 为了减少%miss，增大block size --> 512个block

  spatial locality增加（同index，同tag --> adjacent address），但increase conflicts（同index，不同tag --> adjacent frames but non-adjacent addresses）

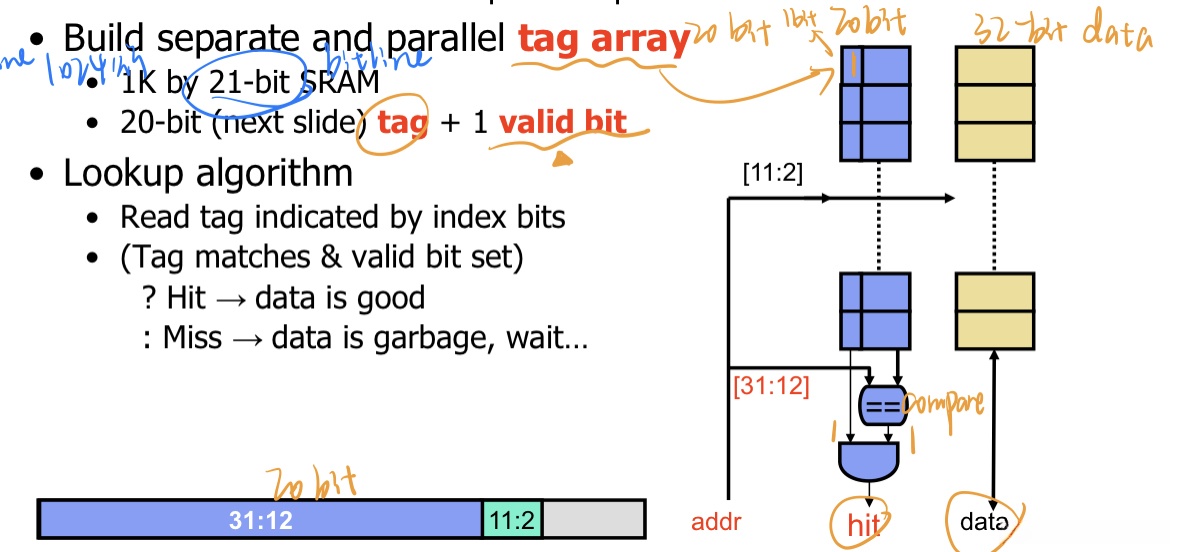

  tag overhead = tag size/data size （tag的位数/block中可存的位数 --> original 20/32）

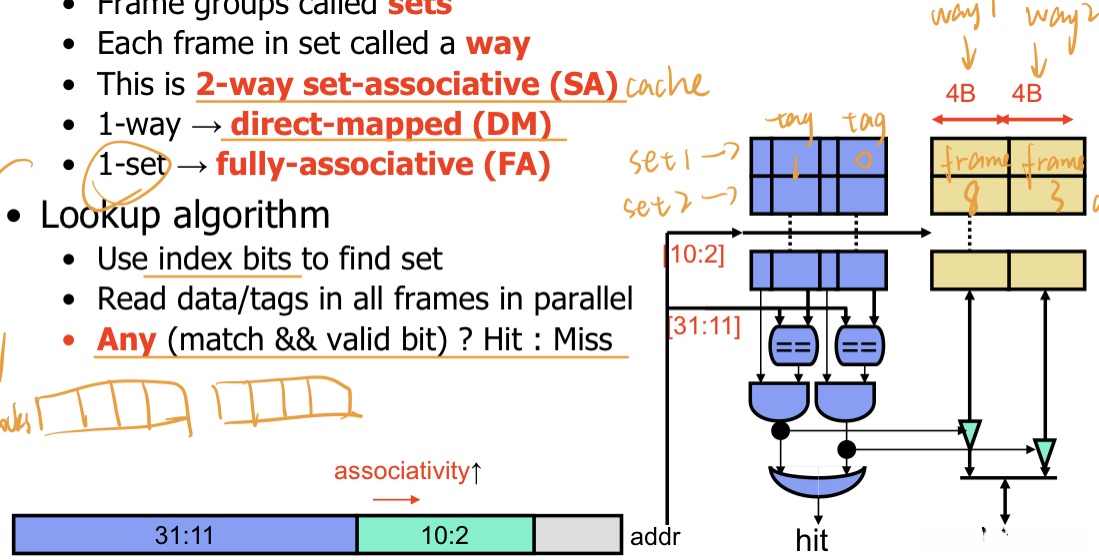

• associativity

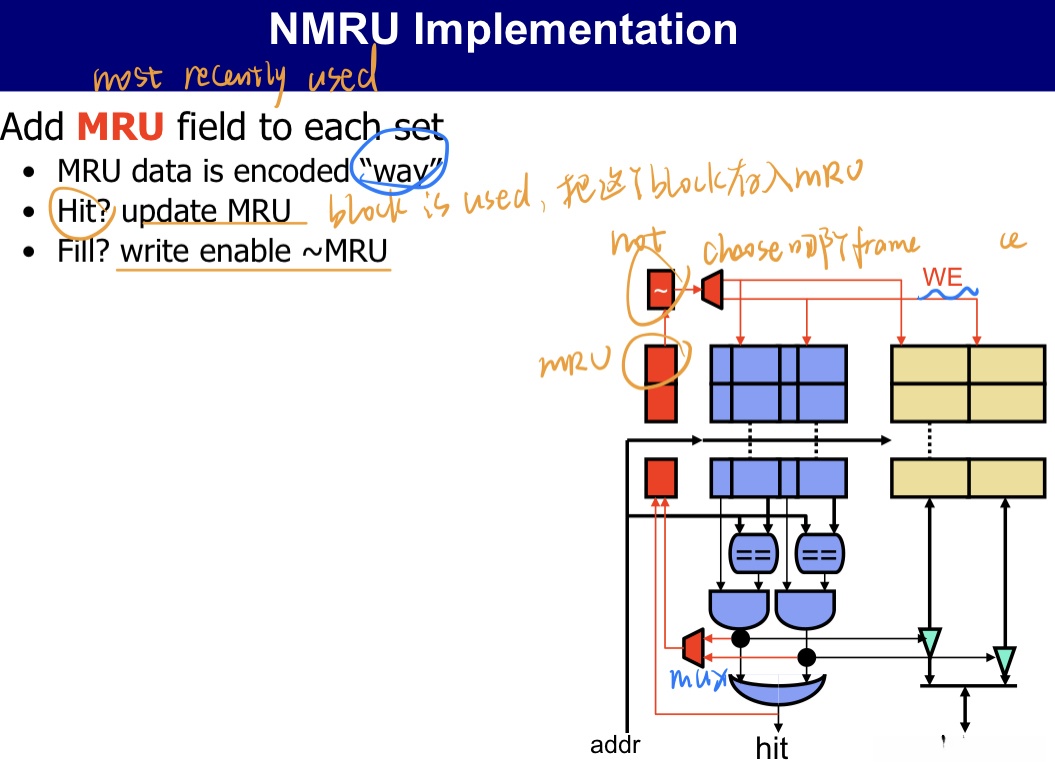

  选哪个way来替换

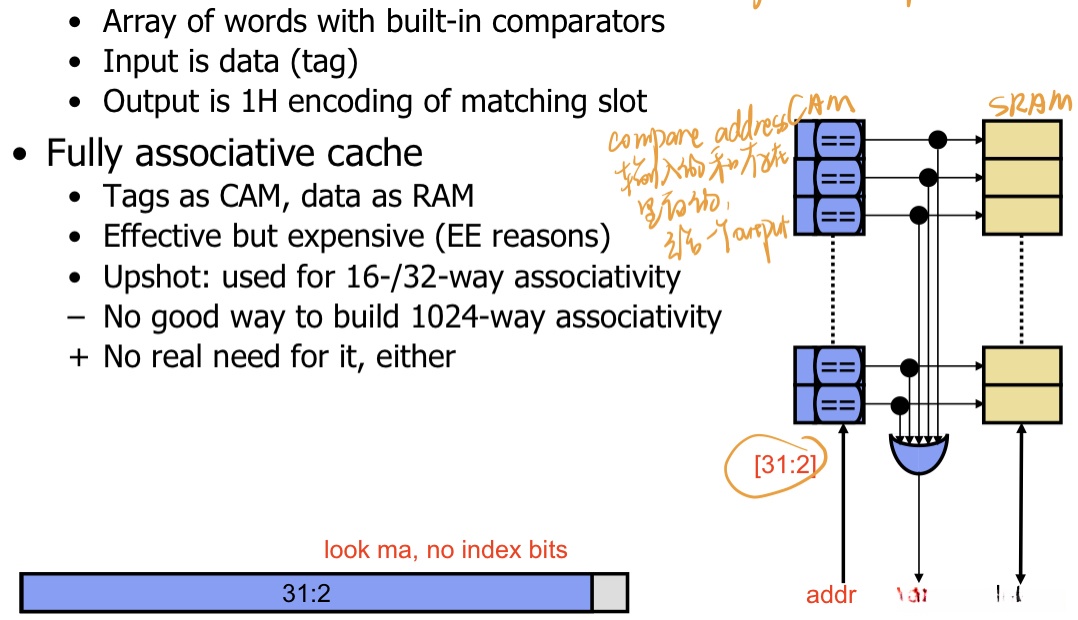

• CAM（content-addressable memory）

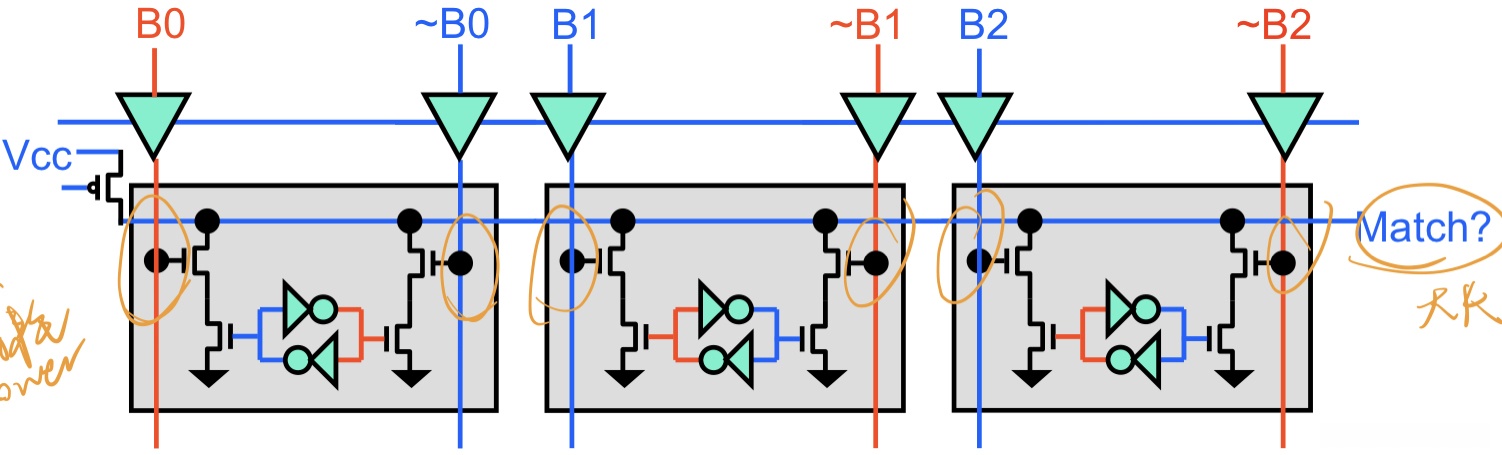

  CAM内部结构



1. precharge Vcc
2. enable tri-buffer
   若match，则与Gnd断开，match的voltage始终是1；否则Match连接Gnd，放电，match为0
   slow and high power，但仍然比SRAM好

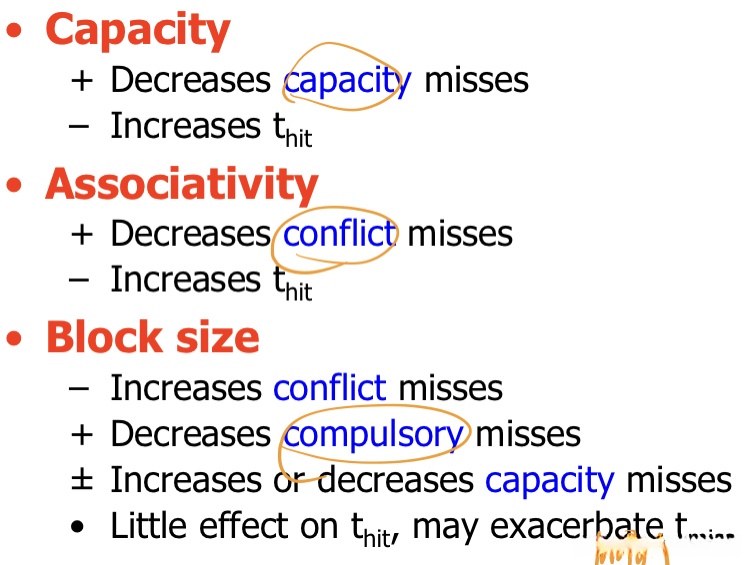

• ABC

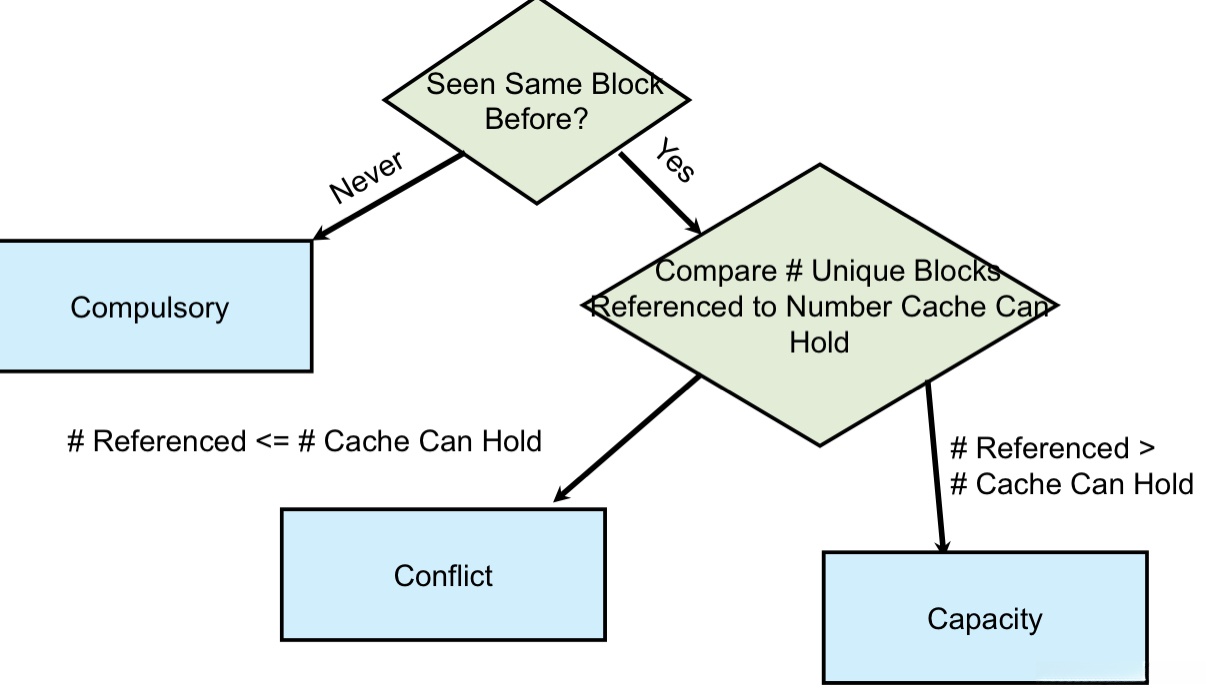

• 3种cache miss的原因

  1. compulsory --> block size太小 --> for misses, have not accessed that block yet 太多block
  2. capacity --> capacity太小
  3. conflict --> associativity too low


• 2种优化方式

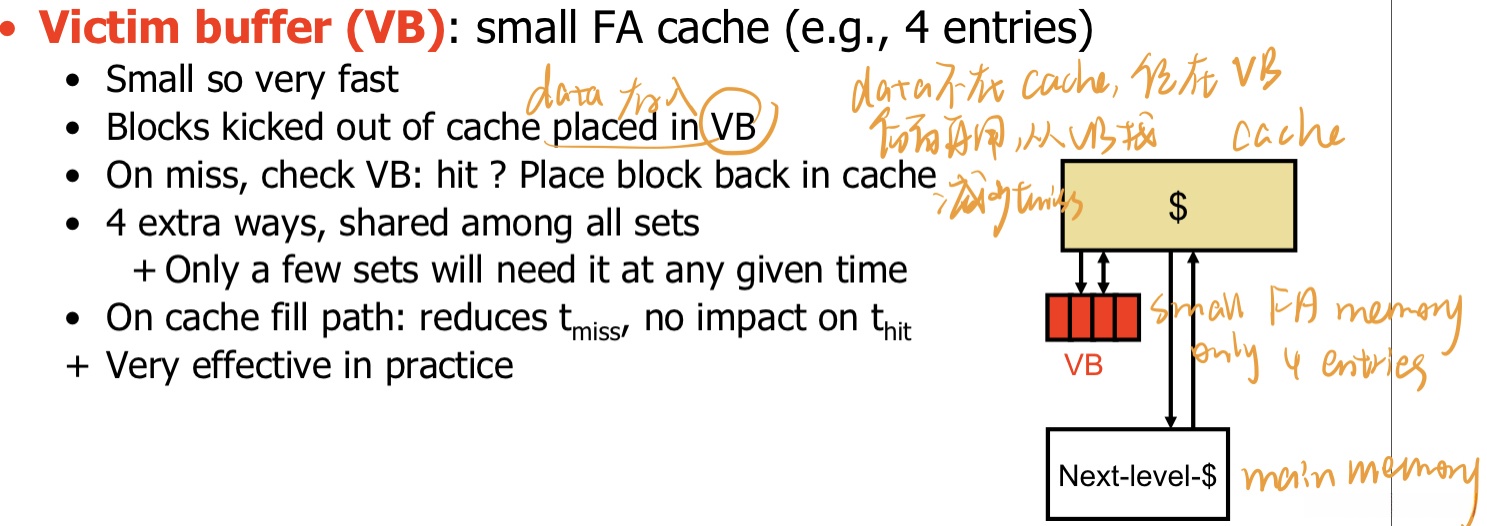

  1. victim buffer --> conflict --> 减少tmiss

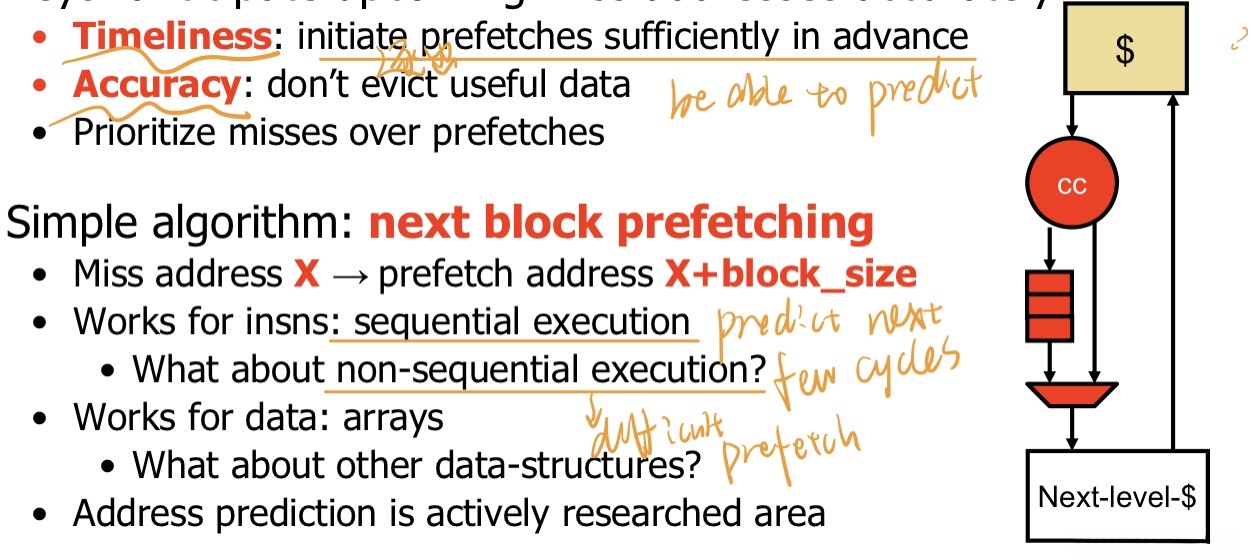

  2. prefetching --> capacity/compulsory



• write D-cache

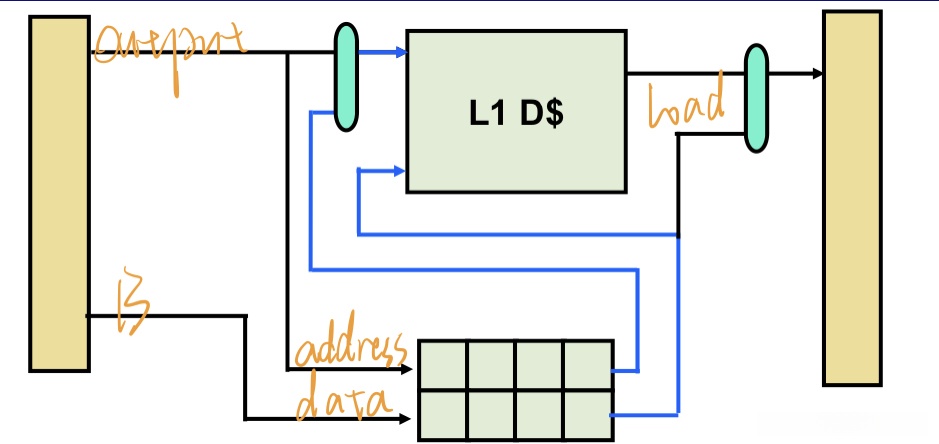

• store buffer


  1. store时不进D cache，address和data进store buffer，如果miss，先run下一个insn，等后面cycle时tag hit了，再存入D cache，所有不需要wait
  2. load时先在store buffer里找，因为D cache可能还没更新，buffer没找到再进D cache找，如果store buffer里找到则forward data from the store --> address是CAM，可以search for match

• write back buffer

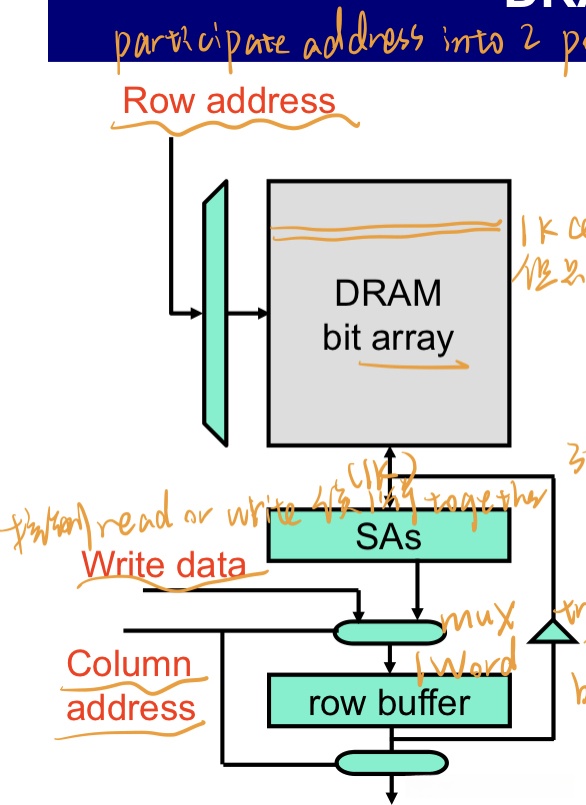

3.3 DRAM

• Dynamic Random Access Memory (DRAM) 比SRAM慢但便宜

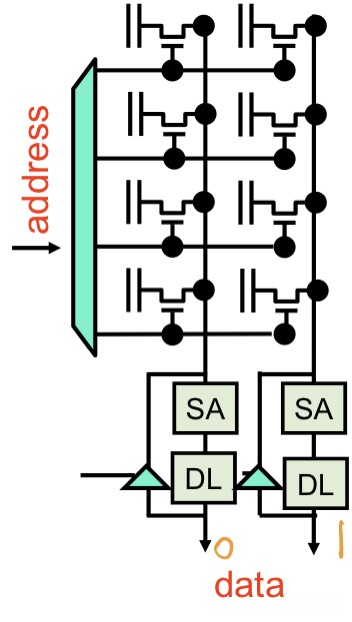

  Read：bit line pre-charged to 0.5 --> address接通 --> bit line voltage波动 --> SA
  D-latch（row buffer）可以，DFF不行

  flash --> 只能写有限次数，no leakage不需要定期refrash而DRAM需要，non-volatile非易失性断电也保持state，更慢
  memory bus --> 连接CPU package和main memory --> 与cpu不一个clock
  SRAM和DRAM不在一个chip，main memory是DRAM

4 virtual memory

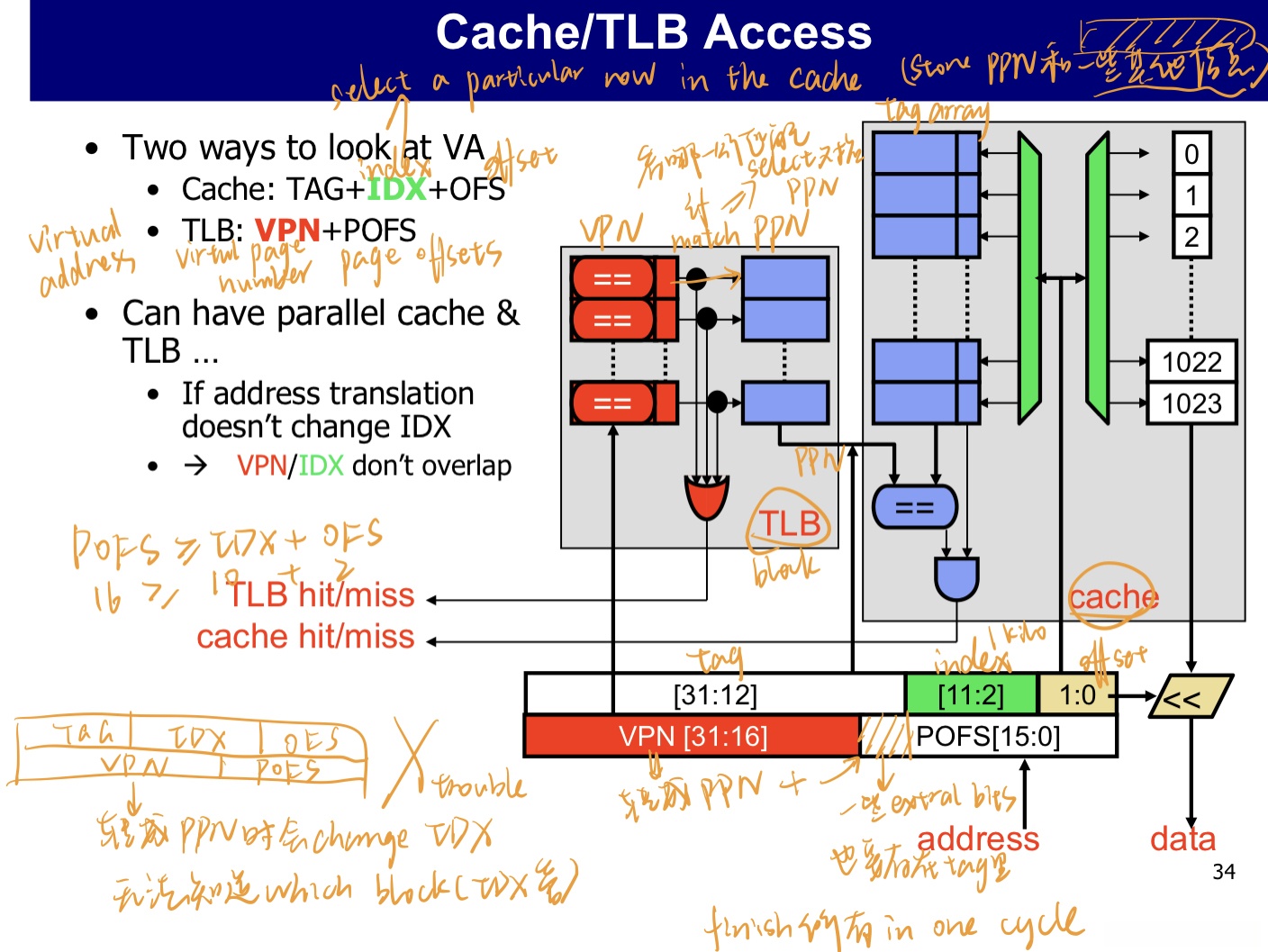

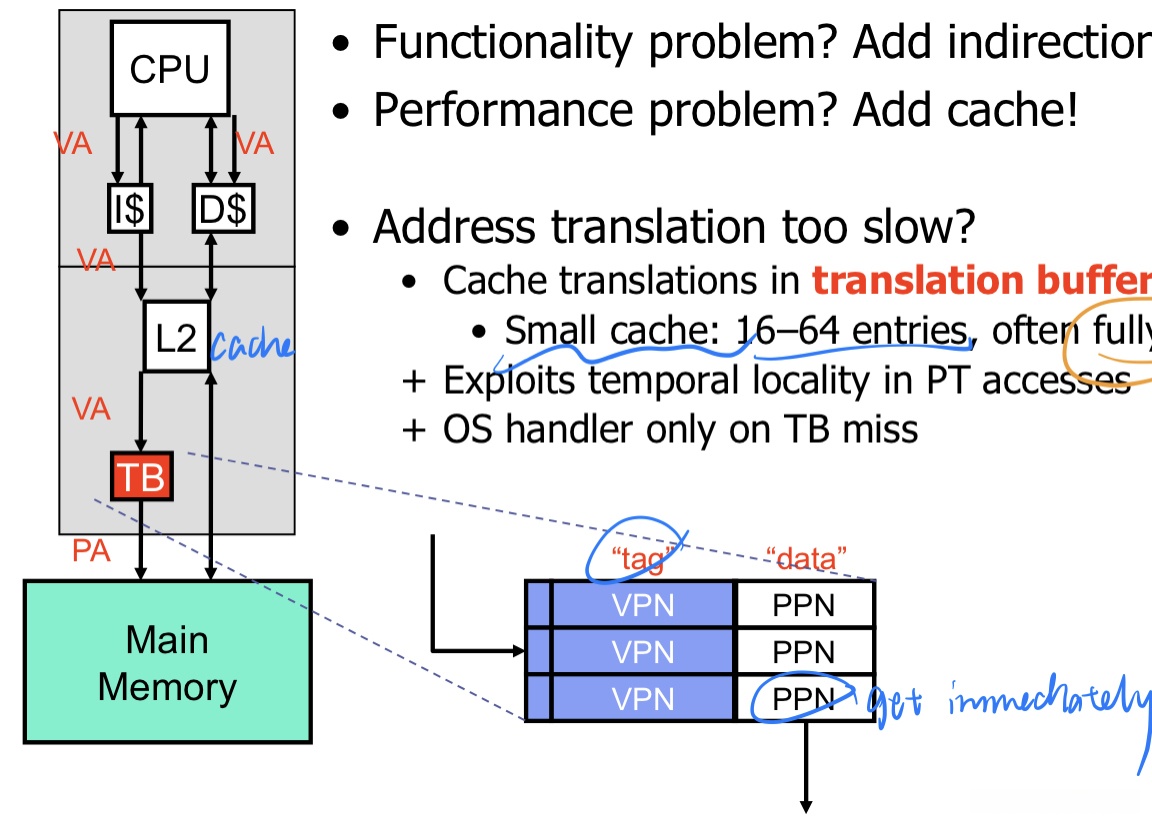

• translation buffer often fully associative --> miss是interrupt

• virtual cache

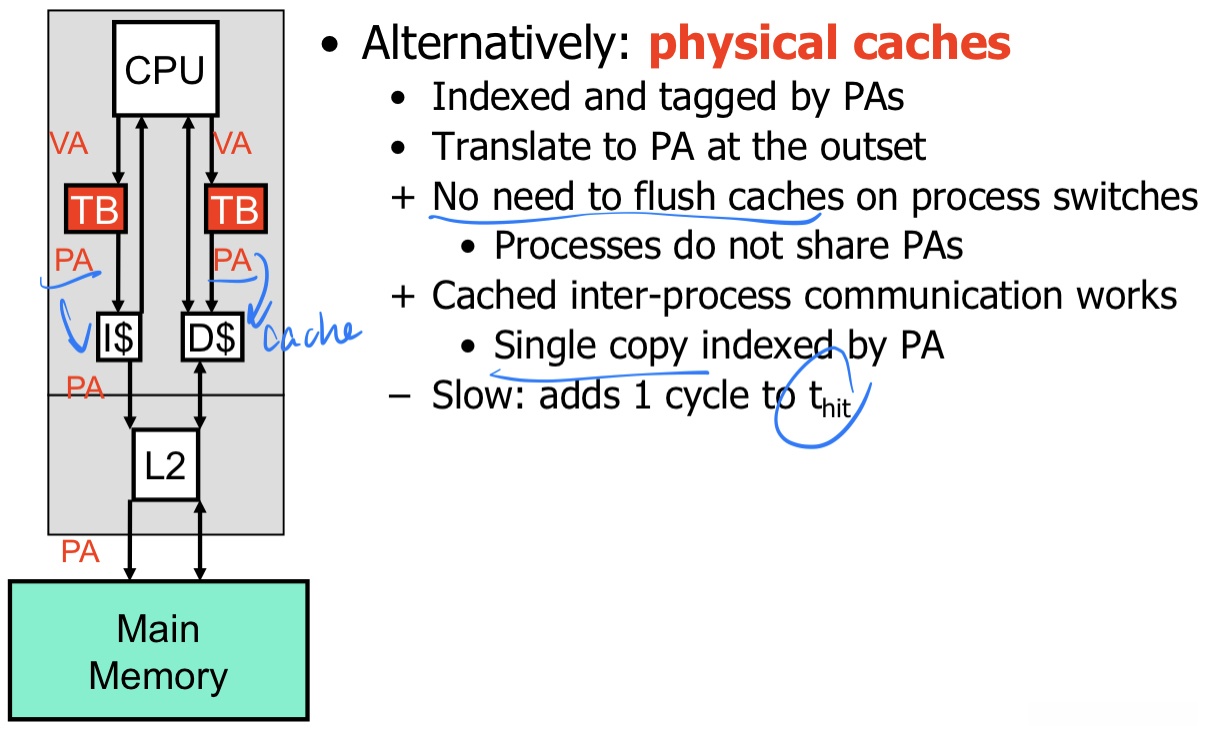

• physical caches




• thrashing --> access disk --> slow

• DRAM errors detection and correction
  –> checksum-style redundancy --> f(data)比较
  –> parity --> f(data) XOR

5 interrupts

• Interrupts --> notification of外部事件
• exceptions --> program引起，unusual circumstances for an instruction，requiring OS，如page fault，1/0
• 判断外部事件是否完成：polling（ask it periodically）或interrupts（外部device signals to processor）
• Interrupts4步：external device raises an interrupt --> CPU transfers control to OS interrupt handler --> OS runs interrupt handler --> OS returns from interrupt
• interrupt vector --> processor知道where to jump
• OS code在memory里（stack上面），privileged mode才mapping valid
• timer interrupt --> multitasking
• exception --> OS restart from same insn(page fault) or kill program
• interrupt --> OS解决完继续运行
• precise state --> done/not done --> Instructions before exception, all done; Instructions after (and including) exception, no effect
• interrupts --> precise state but division can be anywhere
• system call 慢 – > exception --> faster: userspace libraries(malloc), vsyscalls(当前时间) --> 不用system call

6 io

• memory mapped to IO device (每个IO device有对应address)

• IO device不能用cache，因为不停在变

• Hard disks drive–> Tseek ; Trotate; Tread --> 所有head必须move together

• 如果是读很长的连续sector，Tseek 和 Trotate可以被摊销忽略，因此将same file的内容放在相邻的block，提高disk performance

• hard disk有caches，OS also buffer disk in memory

• SSD(solid state drive)固态硬盘无机械部件,seek更快，写小clock但只能erase大block，IO表现更好，贵

• data从disk读到memory （OS ask）

  1. IO device --> CPU --> memory

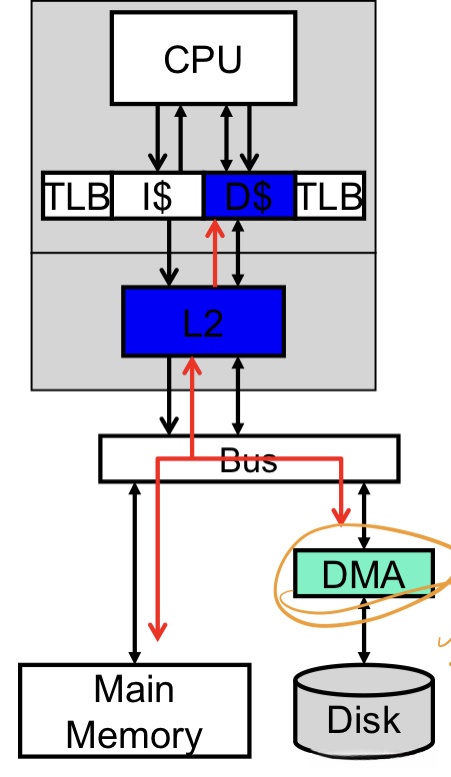

  2. IO device --> memory 使用DMA(direct memory access),CPU可以不用等，work on sth else

• cache coherence一致性：disk和CPU同时写入main memory，D-cache和L2 snoop bus，如果DMA要用，让这几个block self-invalidate


• 提高hard disk reliability
  RAID(redundant array of inexpensive disks) 复制

• 不同IO device有不同protocol

7 os

7.1 filesystem

• superblock每个file system只有1个但replicated，存key info about filesystem，superblock后面是block groups
• block group descriptor table在superblock之后，描述每个block group start的位置
• block groups中一个block track unused data blocks，另一个block trace没用过的inode blocks
• file name不在inode里, name不是unique
• directories --> a list of (name, node #) pair
• hard links与symlinks不同，delete一个name，另一个仍然存在；inode track指向它的links
• disk不只用于filesystem，用于virtual memory --> swap space

7.2 processes

• pid，同一个program同时进行不同process
• process scheduling --> basic: circular queue
• context switch 换program–> reg save, change page table, load reg, return from interrupt
• process creation --> fork() 复制existing processes --> return 0: child; return > 0的child’d pid: parent
• fork()后跟exec()运行a particular program --> never return因为parent‘s routine被destroy
• exec只复制page tables，使page只读，write时copy the page
• 一个process多个threads线程，share相同virtual address，同时require不行，等待
• 如果parent exits before child，child被system process adopted --> init

7.3 booting

• Init --> first normal program, OS loads as pid 1
• init read configuration file, 生成other programs(fork,exec), periodically reaps orphaned processes
