ORB-SLAM2源码解读（1）：系统入口System

阅读量：

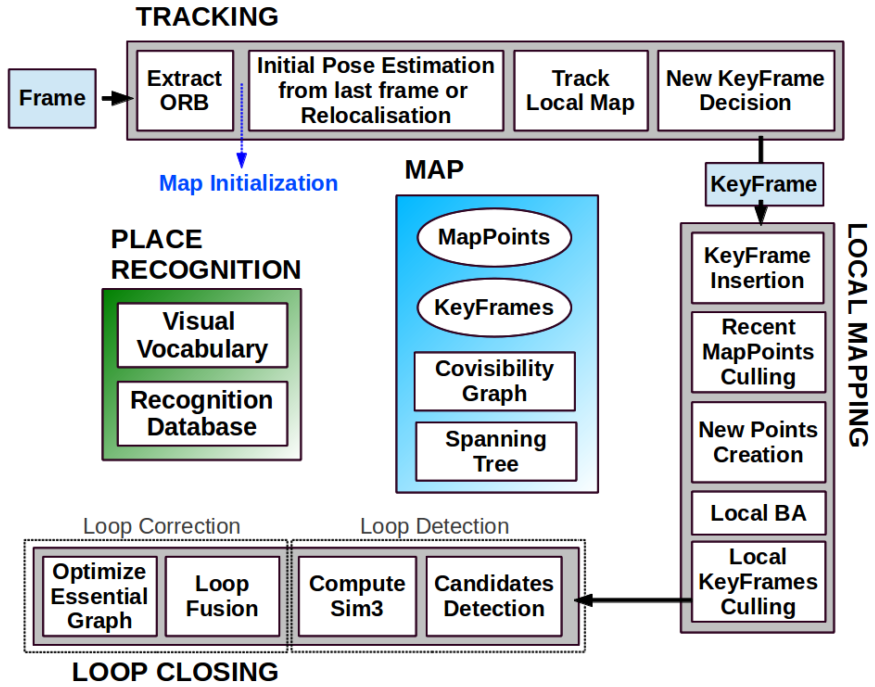

先要拿大名鼎鼎的ORB-SLAM系统框图镇楼，看着这张图能够完美的串起来整个流程。

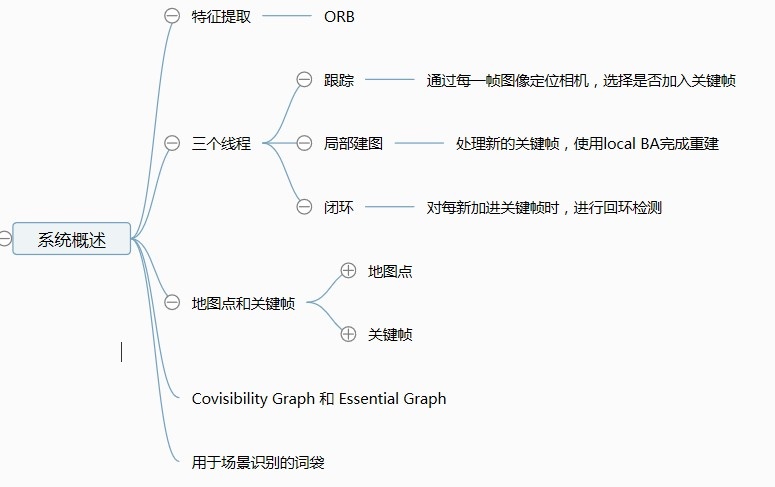

ORB-SLAM分三个线程，分别是Tracking、LocalMapping和LoopClosing。

（1）Tracking：在主线程上，输入视频流，输出相机位姿并跟踪局部地图。提取ORB特征子，根据上一帧进行位姿估计或全局重定位，然后跟踪局部地图优化位姿，确定新的关键帧。

（2）LocalMapping：维护优化局部地图。输入关键帧，输出修正的关键帧和地图点。插入关键帧，生成新的地图点，使用BA优化，去除冗余的关键帧

（3）LoopClosing：闭环检测和闭环矫正。BOW检测，再用Sim3计算相似变换；闭环融合与优化Essential Graph的图优化。
è¿éåå¾çæè¿°

复制代码

 #ifndef SYSTEM_H


 #define SYSTEM_H



 #include<string>

 #include<thread>

 #include<opencv2/core/core.hpp>



 #include "Tracking.h"

 #include "FrameDrawer.h"

 #include "MapDrawer.h"

 #include "Map.h"

 #include "LocalMapping.h"

 #include "LoopClosing.h"

 #include "KeyFrameDatabase.h"

 #include "ORBVocabulary.h"

 #include "Viewer.h"



 namespace ORB_SLAM2

 {



 class Viewer;

 class FrameDrawer;

 class Map;

 class Tracking;

 class LocalMapping;

 class LoopClosing;



 class System

 {

 public:

     // 三种传感器选择

     enum eSensor{

     MONOCULAR=0,

     STEREO=1,

     RGBD=2

     };

 	//成员函数

 public:

     // 声明

     System(const string &strVocFile, const string &strSettingsFile, const eSensor sensor, const bool bUseViewer = true);



     // Tracking函数:输出相机位姿

     cv::Mat TrackStereo(const cv::Mat &imLeft, const cv::Mat &imRight, const double &timestamp);

     cv::Mat TrackRGBD(const cv::Mat &im, const cv::Mat &depthmap, const double &timestamp);

     cv::Mat TrackMonocular(const cv::Mat &im, const double &timestamp);



     // 激活定位模块；停止Local Mapping，只相机追踪？？？

     void ActivateLocalizationMode();

     // 失效定位模块；恢复Local Mapping,再次执行SLAM？？？

     void DeactivateLocalizationMode();

     // 清空地图，重启系统

     void Reset();

     // 保存轨迹之前执行

     void Shutdown();

     // 保存相机轨迹 Only stereo and RGB-D.

     // Call first Shutdown()

     // See format details at: http://vision.in.tum.de/data/datasets/rgbd-dataset

     void SaveTrajectoryTUM(const string &filename);

 	// See format details at: http://www.cvlibs.net/datasets/kitti/eval_odometry.php

 	void SaveTrajectoryKITTI(const string &filename);

     // 保存关键帧位姿

     // Call first Shutdown()

     // See format details at: http://vision.in.tum.de/data/datasets/rgbd-dataset

     void SaveKeyFrameTrajectoryTUM(const string &filename);



 	//成员变量

 private:

     // Input sensor

     eSensor mSensor;



     // ORB词汇表用于场景识别和特征匹配

     ORBVocabulary* mpVocabulary;



     // 关键帧数据库用于位置识别 (重定位和回环检测).

     KeyFrameDatabase* mpKeyFrameDatabase;



     // 存储关键帧和地图特征子

     Map* mpMap;



     // Tracker. 接受帧计算相机位姿

     // 决定何时插入新的关键帧，创建新的地图特征子

     // 重定位

     Tracking* mpTracker;

     // Local Mapper.管理本地地图，执行BA

     LocalMapping* mpLocalMapper;

     // Loop Closer. 搜索每个新的关键帧的循环

     LoopClosing* mpLoopCloser;

     // Pangolin.绘制地图和当前相机位姿

     Viewer* mpViewer;

 	// 画图用的

     FrameDrawer* mpFrameDrawer;

     MapDrawer* mpMapDrawer;



     // 3个线程: Local Mapping, Loop Closing, Viewer.

     // Tracking线程在System主程序线程中

     std::thread* mptLocalMapping;

     std::thread* mptLoopClosing;

     std::thread* mptViewer;



     // 重置Flag？？？

     std::mutex mMutexReset;

     bool mbReset;



     //更改模型flags

     std::mutex mMutexMode;

     bool mbActivateLocalizationMode;

     bool mbDeactivateLocalizationMode;

 };



 }// namespace ORB_SLAM



 #endif // SYSTEM_H

复制代码

 #include "System.h"


 #include "Converter.h"

 #include <thread>

 #include <pangolin/pangolin.h>

 #include <iostream>     // std::cout, std::fixed

 #include <iomanip>		// std::setprecision

 bool has_suffix(const std::string &str, const std::string &suffix) {

   std::size_t index = str.find(suffix, str.size() - suffix.size());

   return (index != std::string::npos);

 }



 namespace ORB_SLAM2

 {

 	//列表初始化构造函数：词袋文件、参数文件、传感器类型、是否用Viewer

 System::System(const string &strVocFile, const string &strSettingsFile, const eSensor sensor,

            const bool bUseViewer):mSensor(sensor),mbReset(false),mbActivateLocalizationMode(false),

            mbDeactivateLocalizationMode(false)

 {

     // Output welcome message

     cout << endl <<

     "ORB-SLAM2 Copyright (C) 2014-2016 Raul Mur-Artal, University of Zaragoza." << endl <<

     "This program comes with ABSOLUTELY NO WARRANTY;" << endl  <<

     "This is free software, and you are welcome to redistribute it" << endl <<

     "under certain conditions. See LICENSE.txt." << endl << endl;



     cout << "Input sensor was set to: ";



     if(mSensor==MONOCULAR)

     cout << "Monocular" << endl;

     else if(mSensor==STEREO)

     cout << "Stereo" << endl;

     else if(mSensor==RGBD)

     cout << "RGB-D" << endl;



     //1.读取参数文件，内参、帧率、基线、深度, XXX.yaml

     cv::FileStorage fsSettings(strSettingsFile.c_str(), cv::FileStorage::READ);

     if(!fsSettings.isOpened())

     {

    cerr << "Failed to open settings file at: " << strSettingsFile << endl;

    exit(-1);

     }



     //2.下载ORB词袋  .txt

     cout << endl << "Loading ORB Vocabulary. This could take a while..." << endl;

     mpVocabulary = new ORBVocabulary();//这个词袋类在哪里定义的？？？

     bool bVocLoad = false; // 基于扩展名加载

     if (has_suffix(strVocFile, ".txt"))

 	  bVocLoad = mpVocabulary->loadFromTextFile(strVocFile);

 	else if(has_suffix(strVocFile, ".bin"))

 	  bVocLoad = mpVocabulary->loadFromBinaryFile(strVocFile);

 	else

 	  bVocLoad = false;

     if(!bVocLoad)

     {

     cerr << "Wrong path to vocabulary. " << endl;

     cerr << "Failed to open at: " << strVocFile << endl;

     exit(-1);

     }

     cout << "Vocabulary loaded!" << endl << endl;

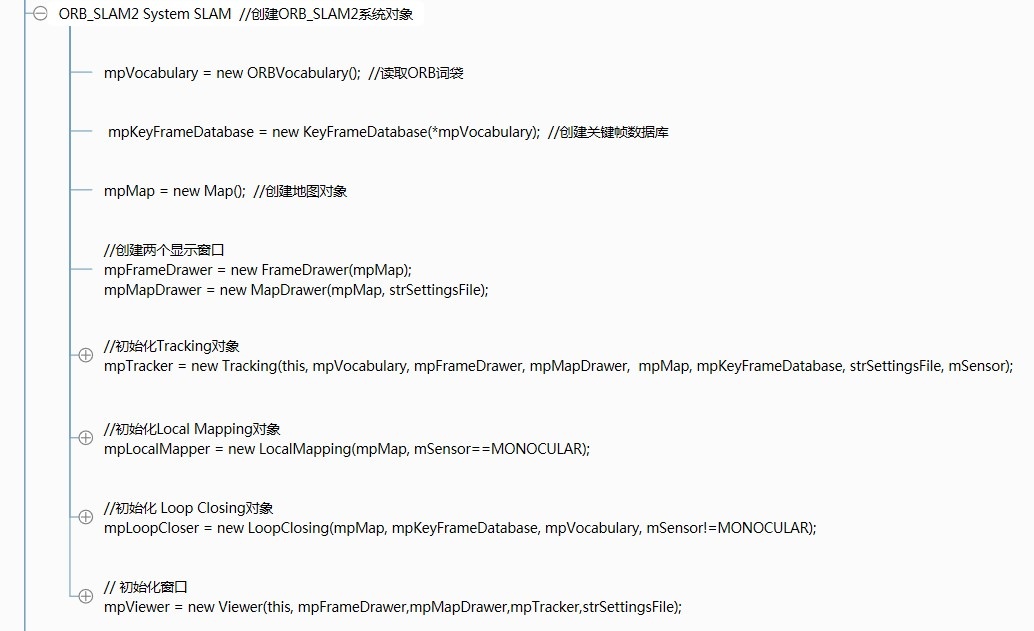

     //3.创建关键帧数据库

     mpKeyFrameDatabase = new KeyFrameDatabase(*mpVocabulary);



     //4.创建地图

     mpMap = new Map();



     //Create Drawers.

     mpFrameDrawer = new FrameDrawer(mpMap);

     mpMapDrawer = new MapDrawer(mpMap, strSettingsFile);



     //5.1初始化 Tracking

     //(it will live in the main thread of execution, the one that called this constructor)

     mpTracker = new Tracking(this, mpVocabulary, mpFrameDrawer, mpMapDrawer,

                          mpMap, mpKeyFrameDatabase, strSettingsFile, mSensor);



     //5.2初始化并发布 Local Mapping 线程

     mpLocalMapper = new LocalMapping(mpMap, mSensor==MONOCULAR);

     mptLocalMapping = new thread(&ORB_SLAM2::LocalMapping::Run,mpLocalMapper);



     //5.3初始化并发布 Loop Closing 线程

     mpLoopCloser = new LoopClosing(mpMap, mpKeyFrameDatabase, mpVocabulary, mSensor!=MONOCULAR);

     mptLoopClosing = new thread(&ORB_SLAM2::LoopClosing::Run, mpLoopCloser);



     //5.4初始化并发布 Viewer 线程

     mpViewer = new Viewer(this, mpFrameDrawer,mpMapDrawer,mpTracker,strSettingsFile);

     if(bUseViewer)

     mptViewer = new thread(&Viewer::Run, mpViewer);



     mpTracker->SetViewer(mpViewer);



     //5.5线程之间相互设置指针？？？

     mpTracker->SetLocalMapper(mpLocalMapper);

     mpTracker->SetLoopClosing(mpLoopCloser);



     mpLocalMapper->SetTracker(mpTracker);

     mpLocalMapper->SetLoopCloser(mpLoopCloser);



     mpLoopCloser->SetTracker(mpTracker);

     mpLoopCloser->SetLocalMapper(mpLocalMapper);

 }



 cv::Mat System::TrackStereo(const cv::Mat &imLeft, const cv::Mat &imRight, const double &timestamp)

 {

     if(mSensor!=STEREO)

     {

     cerr << "ERROR: you called TrackStereo but input sensor was not set to STEREO." << endl;

     exit(-1);

     }



     // Check mode change

     {

     unique_lock<mutex> lock(mMutexMode);

     if(mbActivateLocalizationMode)

     {

         mpLocalMapper->RequestStop();



         // Wait until Local Mapping has effectively stopped

         while(!mpLocalMapper->isStopped())

         {

             //usleep(1000);

 				std::this_thread::sleep_for(std::chrono::milliseconds(1));

         }



         mpTracker->InformOnlyTracking(true);// 定位时，只跟踪

         mbActivateLocalizationMode = false;

     }

     if(mbDeactivateLocalizationMode)

     {

         mpTracker->InformOnlyTracking(false);

         mpLocalMapper->Release();

         mbDeactivateLocalizationMode = false;

     }

     }



     // Check reset

     {

     unique_lock<mutex> lock(mMutexReset);

     if(mbReset)

     {

     mpTracker->Reset();

     mbReset = false;

     }

     }



     return mpTracker->GrabImageStereo(imLeft,imRight,timestamp);

 }



 cv::Mat System::TrackRGBD(const cv::Mat &im, const cv::Mat &depthmap, const double &timestamp)

 {

     if(mSensor!=RGBD)

     {

     cerr << "ERROR: you called TrackRGBD but input sensor was not set to RGBD." << endl;

     exit(-1);

     }



     // Check mode change

     {

     unique_lock<mutex> lock(mMutexMode);

     if(mbActivateLocalizationMode)

     {

         mpLocalMapper->RequestStop();



         // Wait until Local Mapping has effectively stopped

         while(!mpLocalMapper->isStopped())

         {

             //usleep(1000);

 				std::this_thread::sleep_for(std::chrono::milliseconds(1));

 			}



         mpTracker->InformOnlyTracking(true);// 定位时，只跟踪

         mbActivateLocalizationMode = false;

     }

     if(mbDeactivateLocalizationMode)

     {

         mpTracker->InformOnlyTracking(false);

         mpLocalMapper->Release();

         mbDeactivateLocalizationMode = false;

     }

     }



     // Check reset

     {

     unique_lock<mutex> lock(mMutexReset);

     if(mbReset)

     {

     mpTracker->Reset();

     mbReset = false;

     }

     }



     return mpTracker->GrabImageRGBD(im,depthmap,timestamp);

 }

 //定义跟踪单目函数

 cv::Mat System::TrackMonocular(const cv::Mat &im, const double &timestamp)

 {

     if(mSensor!=MONOCULAR)

     {

     cerr << "ERROR: you called TrackMonocular but input sensor was not set to Monocular." << endl;

     exit(-1);

     }



     // 检查模型

     {

     unique_lock<mutex> lock(mMutexMode);

 		//如果激活定位模块，休眠1000ms直到停止建图

     if(mbActivateLocalizationMode)

     {

         mpLocalMapper->RequestStop();

         // Wait until Local Mapping has effectively stopped

         while(!mpLocalMapper->isStopped())

         {

             //usleep(1000);

             std::this_thread::sleep_for(std::chrono::milliseconds(1));

         }



         mpTracker->InformOnlyTracking(true);// 定位时，只跟踪

         mbActivateLocalizationMode = false;// 防止重复执行

     }

 		//如果定位模块失效，重启建图

     if(mbDeactivateLocalizationMode)

     {

         mpTracker->InformOnlyTracking(false);

         mpLocalMapper->Release();

         mbDeactivateLocalizationMode = false;// 防止重复执行

     }

     }



     // 检查重启

     {

     unique_lock<mutex> lock(mMutexReset);

     if(mbReset)

     {

         mpTracker->Reset();

         mbReset = false;

     }

     }

 	//这个Grab函数哪里来的？？？

     return mpTracker->GrabImageMonocular(im,timestamp);

 }

 //激活定位模块

 void System::ActivateLocalizationMode()

 {

     unique_lock<mutex> lock(mMutexMode);

     mbActivateLocalizationMode = true;

 }

 //失效定位模块

 void System::DeactivateLocalizationMode()

 {

 	//加锁

     unique_lock<mutex> lock(mMutexMode);

     mbDeactivateLocalizationMode = true;

 }

 //重置系统

 void System::Reset()

 {

     unique_lock<mutex> lock(mMutexReset);

     mbReset = true;

 }

 //关闭整个系统

 void System::Shutdown()

 {

     mpLocalMapper->RequestFinish();

     mpLoopCloser->RequestFinish();

     if(mpViewer)

     {

     mpViewer->RequestFinish();

     while(!mpViewer->isFinished())

         std::this_thread::sleep_for(std::chrono::milliseconds(5));

     }



     // Wait until all thread have effectively stopped

     while(!mpLocalMapper->isFinished() || !mpLoopCloser->isFinished() || mpLoopCloser->isRunningGBA())

     {

     //usleep(5000);

 		std::this_thread::sleep_for(std::chrono::milliseconds(5));

 	}



     if(mpViewer)

     pangolin::BindToContext("ORB-SLAM2: Map Viewer");

 }

 //保存轨迹

 void System::SaveTrajectoryTUM(const string &filename)

 {

     cout << endl << "Saving camera trajectory to " << filename << " ..." << endl;

     if(mSensor==MONOCULAR)

     {

     cerr << "ERROR: SaveTrajectoryTUM cannot be used for monocular." << endl;

     return;

     }

 	//得到所有关键帧，重新排序第一帧位于原点

     vector<KeyFrame*> vpKFs = mpMap->GetAllKeyFrames();

     sort(vpKFs.begin(),vpKFs.end(),KeyFrame::lId);

     cv::Mat Two = vpKFs[0]->GetPoseInverse();



     ofstream f;

     f.open(filename.c_str());

     f << fixed;



     // 先获得关键帧，当前帧相对于关键帧

 	//每一帧都有引用关键帧、时间戳和标志

     list<ORB_SLAM2::KeyFrame*>::iterator lRit = mpTracker->mlpReferences.begin();

     list<double>::iterator lT = mpTracker->mlFrameTimes.begin();

     list<bool>::iterator lbL = mpTracker->mlbLost.begin();

     for(list<cv::Mat>::iterator lit=mpTracker->mlRelativeFramePoses.begin(),

     lend=mpTracker->mlRelativeFramePoses.end();lit!=lend;lit++, lRit++, lT++, lbL++)

     {

     if(*lbL)

         continue;



     KeyFrame* pKF = *lRit;



     cv::Mat Trw = cv::Mat::eye(4,4,CV_32F);



     // 如果参考关键帧被剔除，遍历生成树获得合适关键帧

     while(pKF->isBad())

     {

         Trw = Trw*pKF->mTcp;

         pKF = pKF->GetParent();

     }



     Trw = Trw*pKF->GetPose()*Two;



     cv::Mat Tcw = (*lit)*Trw;

     cv::Mat Rwc = Tcw.rowRange(0,3).colRange(0,3).t();

     cv::Mat twc = -Rwc*Tcw.rowRange(0,3).col(3);



     vector<float> q = Converter::toQuaternion(Rwc);



     f << setprecision(6) << *lT << " " <<  setprecision(9) << twc.at<float>(0) << " " << twc.at<float>(1) << " " << twc.at<float>(2) << " " << q[0] << " " << q[1] << " " << q[2] << " " << q[3] << endl;

     }

     f.close();

     cout << endl << "trajectory saved!" << endl;

 }





 void System::SaveKeyFrameTrajectoryTUM(const string &filename)

 {

     cout << endl << "Saving keyframe trajectory to " << filename << " ..." << endl;



     vector<KeyFrame*> vpKFs = mpMap->GetAllKeyFrames();

     sort(vpKFs.begin(),vpKFs.end(),KeyFrame::lId);



     // Transform all keyframes so that the first keyframe is at the origin.

     // After a loop closure the first keyframe might not be at the origin.

     //cv::Mat Two = vpKFs[0]->GetPoseInverse();



     ofstream f;

     f.open(filename.c_str());

     f << fixed;



     for(size_t i=0; i<vpKFs.size(); i++)

     {

     KeyFrame* pKF = vpKFs[i];



    // pKF->SetPose(pKF->GetPose()*Two);



     if(pKF->isBad())

         continue;



     cv::Mat R = pKF->GetRotation().t();

     vector<float> q = Converter::toQuaternion(R);

     cv::Mat t = pKF->GetCameraCenter();

     f << setprecision(6) << pKF->mTimeStamp << setprecision(7) << " " << t.at<float>(0) << " " << t.at<float>(1) << " " << t.at<float>(2)

       << " " << q[0] << " " << q[1] << " " << q[2] << " " << q[3] << endl;



     }



     f.close();

     cout << endl << "trajectory saved!" << endl;

 }



 void System::SaveTrajectoryKITTI(const string &filename)

 {

     cout << endl << "Saving camera trajectory to " << filename << " ..." << endl;

     if(mSensor==MONOCULAR)

     {

     cerr << "ERROR: SaveTrajectoryKITTI cannot be used for monocular." << endl;

     return;

     }



     vector<KeyFrame*> vpKFs = mpMap->GetAllKeyFrames();

     sort(vpKFs.begin(),vpKFs.end(),KeyFrame::lId);



     // Transform all keyframes so that the first keyframe is at the origin.

     // After a loop closure the first keyframe might not be at the origin.

     cv::Mat Two = vpKFs[0]->GetPoseInverse();



     ofstream f;

     f.open(filename.c_str());

     f << fixed;



     // Frame pose is stored relative to its reference keyframe (which is optimized by BA and pose graph).

     // We need to get first the keyframe pose and then concatenate the relative transformation.

     // Frames not localized (tracking failure) are not saved.



     // For each frame we have a reference keyframe (lRit), the timestamp (lT) and a flag

     // which is true when tracking failed (lbL).

     list<ORB_SLAM2::KeyFrame*>::iterator lRit = mpTracker->mlpReferences.begin();

     list<double>::iterator lT = mpTracker->mlFrameTimes.begin();

     for(list<cv::Mat>::iterator lit=mpTracker->mlRelativeFramePoses.begin(), lend=mpTracker->mlRelativeFramePoses.end();lit!=lend;lit++, lRit++, lT++)

     {

     ORB_SLAM2::KeyFrame* pKF = *lRit;



     cv::Mat Trw = cv::Mat::eye(4,4,CV_32F);



     while(pKF->isBad())

     {

       //  cout << "bad parent" << endl;

         Trw = Trw*pKF->mTcp;

         pKF = pKF->GetParent();

     }



     Trw = Trw*pKF->GetPose()*Two;



     cv::Mat Tcw = (*lit)*Trw;

     cv::Mat Rwc = Tcw.rowRange(0,3).colRange(0,3).t();

     cv::Mat twc = -Rwc*Tcw.rowRange(0,3).col(3);



     f << setprecision(9) << Rwc.at<float>(0,0) << " " << Rwc.at<float>(0,1)  << " " << Rwc.at<float>(0,2) << " "  << twc.at<float>(0) << " " <<

          Rwc.at<float>(1,0) << " " << Rwc.at<float>(1,1)  << " " << Rwc.at<float>(1,2) << " "  << twc.at<float>(1) << " " <<

          Rwc.at<float>(2,0) << " " << Rwc.at<float>(2,1)  << " " << Rwc.at<float>(2,2) << " "  << twc.at<float>(2) << endl;

     }

     f.close();

     cout << endl << "trajectory saved!" << endl;

 }



 } //namespace ORB_SLAM

总结：

我们可以看到在这个对象的实例化过程中，我们创建了以下对象：
（1）创建了ORB词袋的对象
（2）创建了关键帧的数据库
（3）创建地图对象
（4）创建两个显示窗口
（5）初始化Tracking对象
（6）初始化Local Mapping对象，并开启线程运行
（7）初始化Loop Closing对象，并开启线程运行
（8）初始化窗口，开启线程显示图像和地图点

全部评论 (0)

还没有任何评论哟~

ORB-SLAM2源码解读（1）：系统入口System

先要拿大名鼎鼎的ORBSLAM系统框图镇楼，看着这张图能够完美的串起来整个流程。 ORBSLAM分三个线程，分别是Tracking、LocalMapping和LoopClosing。（1）Track...

ORB-SLAM2 （单目）源码解读（1）

ORBSLAM2源码解读流程图初始流程系统流程 1、System构造函数介绍 2、TrackMonocular介绍流程图初始流程首先调用monotum.cc运行程序有以下几块内容 1.L...

orb-slam2代码详解之system

目录 system在orbslam2中的作用 system程序基本结构 system类的基本介绍 system.h system类 system构造函数传入参数读取传进来的文件路径初始化各种线程...

ORB-SLAM2源码解读（3）：LocalMapping

ORBSLAM2的前端VO部分分为：Tracking和LocalMapping， Tracking线程负责根据输入的Frame恢复出相机位姿T并跟踪局部地图，最后生成关键帧传给LocalMapping...

ORB-SLAM2源码解读（4）：LocalClosing

VO总是会有累计误差，而LoopClosing通过检测是否曾经来过此处，进行后端优化，可以将这个累计误差缩小到一个可接受的范围内。闭环是一个比BA更加强烈、更加准确的约束，从而使得Slam系统应对大范...

ORB-SLAM2源码解读（2.1）：Tracking

Tracking是SLAM的灵魂，更像是前端里程计VO，这里Tracking的主要任务两方面：（1）完成相机位姿估计（2）跟踪局部地图思路：TrackLocalMap（）在当前帧和局部地图之间找到尽...

ORB-SLAM2源码阅读(2)

ORBSLAM2源码阅读2 LocalMapping线程我们是以monotim.cc示例程序为例的，在该例中首先需要构建ORBSLAM系统 //CreateSLAMsystem.Itinitiali...

ORB-SLAM2源码学习：System.cc：System::System SLAM系统的构造函数

前言 ORBSLAM2源码学习：rgbdtum.cc源文件博客之前我们在具体的实例的代码中初始化了一个SLAM的系统，现在让我们来看看这个SLAM的构造函数具体进行了什么操作。

【ORB-SLAM2源码解读】论文公式

文章目录 ORBSLAM2论文翻译 robustHubercostfunction 协方差矩阵 SpanningGraphCovisibilityGraphEssentialGraph 非线性优化 O...

ORB-SLAM2解读

以下皆以单目为主（一）输入图像+时间戳（用于传感器融合）相机内参：zoom不可改变，否则影响焦距和成像：内参跟图像大小有关（图像缩放，内参也要相应功缩放）特征检测描述子类型，及对应描述子DBO...

是否确定退出登录?

ORB-SLAM2源码解读（1）：系统入口System

总结：

全部评论 (0)

相关文章推荐

ORB-SLAM2源码解读（1）：系统入口System

ORB-SLAM2 （单目）源码解读（1）

orb-slam2代码详解之system

ORB-SLAM2源码解读（3）：LocalMapping

ORB-SLAM2源码解读（4）：LocalClosing

ORB-SLAM2源码解读（2.1）：Tracking

ORB-SLAM2源码阅读(2)

ORB-SLAM2源码学习：System.cc：System::System SLAM系统的构造函数

【ORB-SLAM2源码解读】论文公式

ORB-SLAM2解读
