操作系统ucore lab5实验报告

    //LAB4:EXERCISE1 YOUR CODE
    /* * below fields in proc_struct need to be initialized
     *       enum proc_state state;                      // Process state
     *       int pid;                                    // Process ID
     *       int runs;                                   // the running times of Proces
     *       uintptr_t kstack;                           // Process kernel stack
     *       volatile bool need_resched;                 // bool value: need to be rescheduled to release CPU?
     *       struct proc_struct *parent;                 // the parent process
     *       struct mm_struct *mm;                       // Process's memory management field
     *       struct context context;                     // Switch here to run process
     *       struct trapframe *tf;                       // Trap frame for current interrupt
     *       uintptr_t cr3;                              // CR3 register: the base addr of Page Directroy Table(PDT)
     *       uint32_t flags;                             // Process flag
     *       char name[PROC_NAME_LEN + 1];               // Process name
     */
     //LAB5 YOUR CODE : (update LAB4 steps)
    /* * below fields(add in LAB5) in proc_struct need to be initialized
     *       uint32_t wait_state;                        // waiting state
     *       struct proc_struct *cptr, *yptr, *optr;     // relations between processes
     */

    // alloc_proc - alloc a proc_struct and init all fields of proc_struct
    static struct proc_struct *
    alloc_proc(void) {
    struct proc_struct *proc = kmalloc(sizeof(struct proc_struct));
    if (proc != NULL) {
    //LAB4:EXERCISE1 YOUR CODE
    /* * below fields in proc_struct need to be initialized
     *       enum proc_state state;                      // Process state
     *       int pid;                                    // Process ID
     *       int runs;                                   // the running times of Proces
     *       uintptr_t kstack;                           // Process kernel stack
     *       volatile bool need_resched;                 // bool value: need to be rescheduled to release CPU?
     *       struct proc_struct *parent;                 // the parent process
     *       struct mm_struct *mm;                       // Process's memory management field
     *       struct context context;                     // Switch here to run process
     *       struct trapframe *tf;                       // Trap frame for current interrupt
     *       uintptr_t cr3;                              // CR3 register: the base addr of Page Directroy Table(PDT)
     *       uint32_t flags;                             // Process flag
     *       char name[PROC_NAME_LEN + 1];               // Process name
     */
     //LAB5 YOUR CODE : (update LAB4 steps)
    /* * below fields(add in LAB5) in proc_struct need to be initialized
     *       uint32_t wait_state;                        // waiting state
     *       struct proc_struct *cptr, *yptr, *optr;     // relations between processes
     */
        proc->state = PROC_UNINIT;//设置进程为未初始化状态
        proc->pid = -1;          //未初始化的进程id=-1
        proc->runs = 0;          //初始化时间片
        proc->kstack = 0;      //初始化内存栈的地址
        proc->need_resched = 0;   //是否需要调度设为不需要
        proc->parent = NULL;      //置空父节点
        proc->mm = NULL;      //置空虚拟内存
        memset(&(proc->context), 0, sizeof(struct context));//初始化上下文
        proc->tf = NULL;      //中断帧指针设置为空
        proc->cr3 = boot_cr3;      //页目录设为内核页目录表的基址
        proc->flags = 0;      //初始化标志位
        memset(proc->name, 0, PROC_NAME_LEN);//置空进程名
        proc->wait_state = 0;  //初始化进程等待状态
        proc->cptr = proc->optr = proc->yptr = NULL;//进程相关指针初始化
        //*cptr-->children | *yptr-->younger | *optr-->older
    }
    return proc;
    }

    //LAB4:EXERCISE2 YOUR CODE
    /* * Some Useful MACROs, Functions and DEFINEs, you can use them in below implementation.
     * MACROs or Functions:
     *   alloc_proc:   create a proc struct and init fields (lab4:exercise1)
     *   setup_kstack: alloc pages with size KSTACKPAGE as process kernel stack
     *   copy_mm:      process "proc" duplicate OR share process "current"'s mm according clone_flags
     *                 if clone_flags & CLONE_VM, then "share" ; else "duplicate"
     *   copy_thread:  setup the trapframe on the  process's kernel stack top and
     *                 setup the kernel entry point and stack of process
     *   hash_proc:    add proc into proc hash_list
     *   get_pid:      alloc a unique pid for process
     *   wakup_proc:   set proc->state = PROC_RUNNABLE
     * VARIABLES:
     *   proc_list:    the process set's list
     *   nr_process:   the number of process set
     */

    //    1. call alloc_proc to allocate a proc_struct
    //    2. call setup_kstack to allocate a kernel stack for child process
    //    3. call copy_mm to dup OR share mm according clone_flag
    //    4. call copy_thread to setup tf & context in proc_struct
    //    5. insert proc_struct into hash_list && proc_list
    //    6. call wakup_proc to make the new child process RUNNABLE
    //    7. set ret vaule using child proc's pid

    //LAB5 YOUR CODE : (update LAB4 steps)
       /* Some Functions
    *    set_links:  set the relation links of process.  ALSO SEE: remove_links:  lean the relation links of process
    *    -------------------
    *    update step 1: set child proc's parent to current process, make sure current process's wait_state is 0
    *    update step 5: insert proc_struct into hash_list && proc_list, set the relation links of process
    */

    /* do_fork -     parent process for a new child process
     * @clone_flags: used to guide how to clone the child process
     * @stack:       the parent's user stack pointer. if stack==0, It means to fork a kernel thread.
     * @tf:          the trapframe info, which will be copied to child process's proc->tf
     */
    int
    do_fork(uint32_t clone_flags, uintptr_t stack, struct trapframe *tf) {
    int ret = -E_NO_FREE_PROC;
    struct proc_struct *proc;
    if (nr_process >= MAX_PROCESS) {
        goto fork_out;
    }
    ret = -E_NO_MEM;
    //LAB4:EXERCISE2 YOUR CODE
    /* * Some Useful MACROs, Functions and DEFINEs, you can use them in below implementation.
     * MACROs or Functions:
     *   alloc_proc:   create a proc struct and init fields (lab4:exercise1)
     *   setup_kstack: alloc pages with size KSTACKPAGE as process kernel stack
     *   copy_mm:      process "proc" duplicate OR share process "current"'s mm according clone_flags
     *                 if clone_flags & CLONE_VM, then "share" ; else "duplicate"
     *   copy_thread:  setup the trapframe on the  process's kernel stack top and
     *                 setup the kernel entry point and stack of process
     *   hash_proc:    add proc into proc hash_list
     *   get_pid:      alloc a unique pid for process
     *   wakup_proc:   set proc->state = PROC_RUNNABLE
     * VARIABLES:
     *   proc_list:    the process set's list
     *   nr_process:   the number of process set
     */

    //    1. call alloc_proc to allocate a proc_struct
    //    2. call setup_kstack to allocate a kernel stack for child process
    //    3. call copy_mm to dup OR share mm according clone_flag
    //    4. call copy_thread to setup tf & context in proc_struct
    //    5. insert proc_struct into hash_list && proc_list
    //    6. call wakup_proc to make the new child process RUNNABLE
    //    7. set ret vaule using child proc's pid

    //LAB5 YOUR CODE : (update LAB4 steps)
       /* Some Functions
    *    set_links:  set the relation links of process.  ALSO SEE: remove_links:  lean the relation links of process
    *    -------------------
    *    update step 1: set child proc's parent to current process, make sure current process's wait_state is 0
    *    update step 5: insert proc_struct into hash_list && proc_list, set the relation links of process
    */
    if ((proc = alloc_proc()) == NULL)
    {
        goto fork_out;
    }
    //设置父节点为当前进程
    proc->parent = current;
    assert(current->wait_state == 0);//确保当前进程正在等待
    //分配内核栈
    if (setup_kstack(proc) != 0) {
        goto bad_fork_cleanup_proc;
    }
    //调用copy_mm()函数复制父进程的内存信息到子进程
    if (copy_mm(clone_flags, proc) != 0) {
        goto bad_fork_cleanup_kstack;
    }
    //调用copy_thread()函数复制父进程的中断帧和上下文信息
    copy_thread(proc, stack, tf);

    bool intr_flag;
    local_intr_save(intr_flag);
    {
        proc->pid = get_pid();
        hash_proc(proc);//将新进程加入hash_list
        set_links(proc);//执行set_links函数，实现设置相关进程链接
    }
    local_intr_restore(intr_flag);
    //唤醒进程，等待调度
    wakeup_proc(proc);
    //返回子进程的pid
    ret = proc->pid;
    fork_out:
    return ret;

    bad_fork_cleanup_kstack:
    put_kstack(proc);
    bad_fork_cleanup_proc:
    kfree(proc);
    goto fork_out;
    }

    /* idt_init - initialize IDT to each of the entry points in kern/trap/vectors.S */
    void
    idt_init(void) {
     /* LAB1 YOUR CODE : STEP 2 */
     /* (1) Where are the entry addrs of each Interrupt Service Routine (ISR)?
      *     All ISR's entry addrs are stored in __vectors. where is uintptr_t __vectors[] ?
      *     __vectors[] is in kern/trap/vector.S which is produced by tools/vector.c
      *     (try "make" command in lab1, then you will find vector.S in kern/trap DIR)
      *     You can use  "extern uintptr_t __vectors[];" to define this extern variable which will be used later.
      * (2) Now you should setup the entries of ISR in Interrupt Description Table (IDT).
      *     Can you see idt[256] in this file? Yes, it's IDT! you can use SETGATE macro to setup each item of IDT
      * (3) After setup the contents of IDT, you will let CPU know where is the IDT by using 'lidt' instruction.
      *     You don't know the meaning of this instruction? just google it! and check the libs/x86.h to know more.
      *     Notice: the argument of lidt is idt_pd. try to find it!
      */
     /* LAB5 YOUR CODE */
     //you should update your lab1 code (just add ONE or TWO lines of code), let user app to use syscall to get the service of ucore
     //so you should setup the syscall interrupt gate in here
    extern uintptr_t __vectors[];
    int i;
    for (i = 0; i < sizeof(idt)  sizeof(struct gatedesc); i ++) {
        SETGATE(idt[i], 0, GD_KTEXT, __vectors[i], DPL_KERNEL);
    }
    SETGATE(idt[T_SYSCALL], 1, GD_KTEXT, __vectors[T_SYSCALL], DPL_USER);//设置相应的中断门
    lidt(&idt_pd);
    }

    vector128(vectors.S)--\>
    \_\_alltraps(trapentry.S)--\>trap(trap.c)--\>trap\_dispatch(trap.c)----\>syscall(syscall.c)-

    ticks ++;
        if (ticks % TICK_NUM == 0) {
            assert(current != NULL);
            current->need_resched = 1;//时间片用完设置为需要调度
        }

    /* LAB5:EXERCISE1 YOUR CODE
     * should set tf_cs,tf_ds,tf_es,tf_ss,tf_esp,tf_eip,tf_eflags
     * NOTICE: If we set trapframe correctly, then the user level process can return to USER MODE from kernel. So
     *          tf_cs should be USER_CS segment (see memlayout.h)
     *          tf_ds=tf_es=tf_ss should be USER_DS segment
     *          tf_esp should be the top addr of user stack (USTACKTOP)
     *          tf_eip should be the entry point of this binary program (elf->e_entry)
     *          tf_eflags should be set to enable computer to produce Interrupt
     */

    vectors.S::vector128起始处:
      pushl $0
      pushl $128
    ......
    trapentry.S::__alltraps起始处:
    pushl %ds
      pushl %es
      pushal
    ……

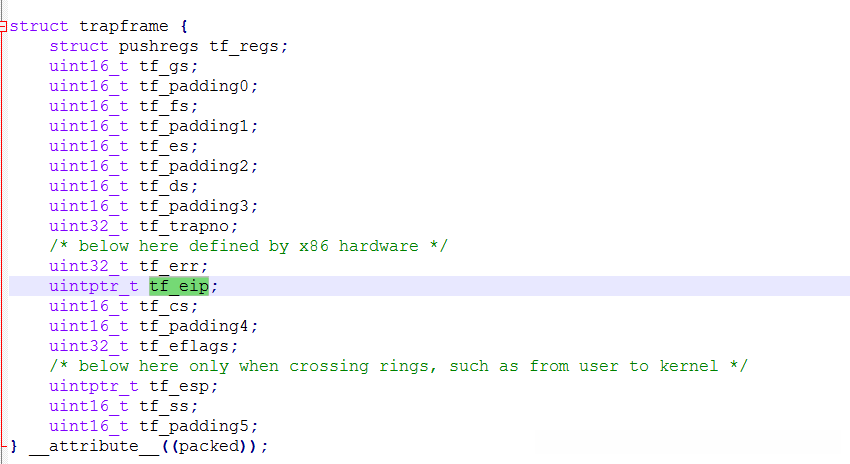

    /* below here defined by x86 hardware */
    uintptr_t tf_eip;
    uint16_t tf_cs;
    uint16_t tf_padding3;
    uint32_t tf_eflags;
    /* below here only when crossing rings */
    uintptr_t tf_esp;
    uint16_t tf_ss;
    uint16_t tf_padding4;

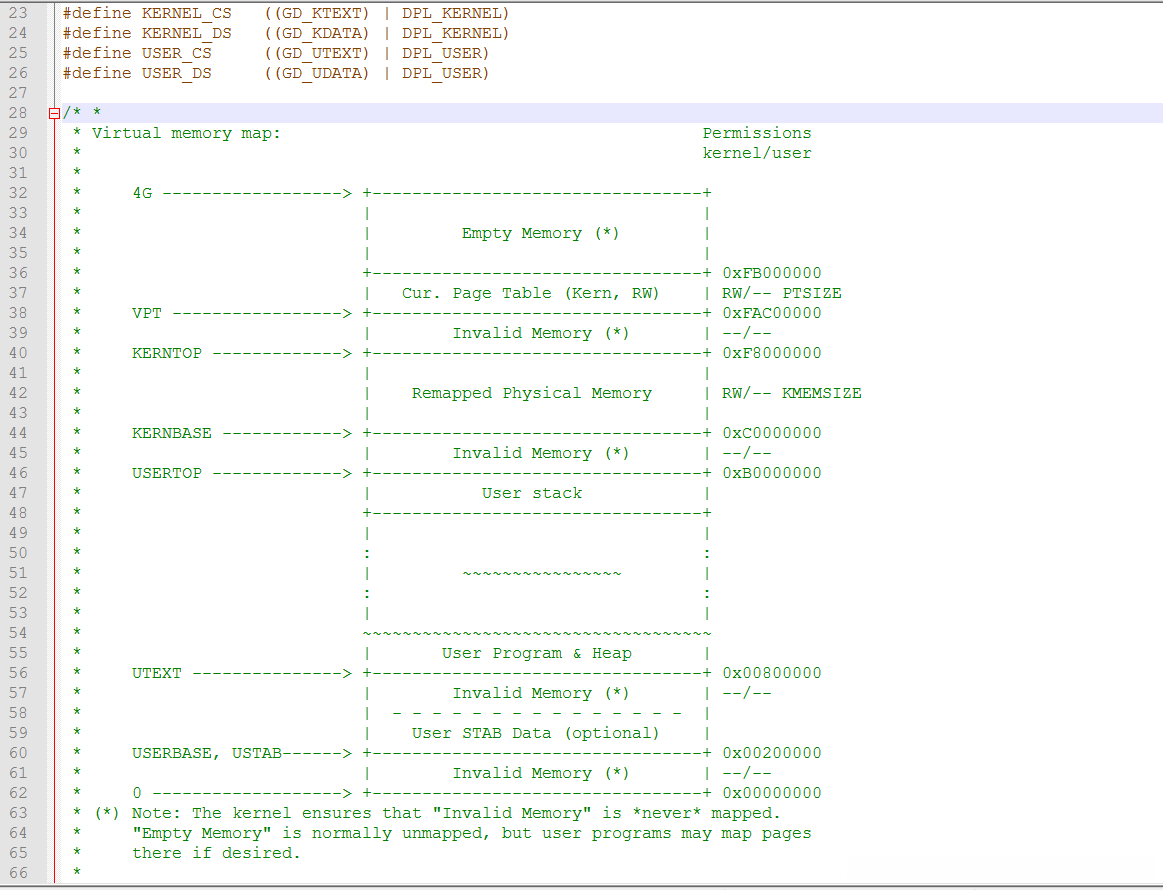

    tf->tf_cs = USER_CS;
    tf->tf_ds = tf->tf_es = tf->tf_ss = USER_DS;
    tf->tf_esp = USTACKTOP;//0xB0000000
    tf->tf_eip = elf->e_entry;
    tf->tf_eflags = FL_IF;//FL_IF为中断打开状态
    ret = 0;

    /* LAB5:EXERCISE2 YOUR CODE
         * replicate content of page to npage, build the map of phy addr of nage with the linear addr start
         * * Some Useful MACROs and DEFINEs, you can use them in below implementation.
         * MACROs or Functions:
         *    page2kva(struct Page *page): return the kernel vritual addr of memory which page managed (SEE pmm.h)
         *    page_insert: build the map of phy addr of an Page with the linear addr la
         *    memcpy: typical memory copy function
         * * (1) find src_kvaddr: the kernel virtual address of page
         * (2) find dst_kvaddr: the kernel virtual address of npage
         * (3) memory copy from src_kvaddr to dst_kvaddr, size is PGSIZE
         * (4) build the map of phy addr of  nage with the linear addr start
         */

    void * src_kvaddr = page2kva(page);//找寻父进程的内核虚拟页地址
    void * dst_kvaddr = page2kva(npage);//找寻子进程的内核虚拟页地址

    memcpy(dst_kvaddr, src_kvaddr, PGSIZE);//复制父进程到子进程

    ret = page_insert(to, npage, start, perm);//建立物理地址与子进程的页地址起始位置的映射关系
    //perm是权限
