自动驾驶---打造自动驾驶系统之导航模块开发（三）

   git clone https://github.com/ramunasd/osmctools.git


   cd osmctools

   autoreconf --install

   ./configure

   make install

    sudo apt install osmctools

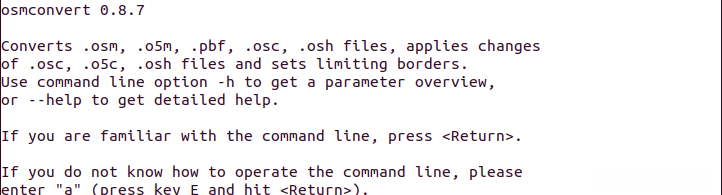

    osmctools

    osmconvert map.osm --out-statistics

 osmconvert map.osm -o=map.pbf




 osmconvert map.pbf -o=map.osm

 std::string osm_data_file = "";


 osm_data_file = "./map.osm";

 std::vector<std::byte> osm_data;



 if( osm_data.empty() && !osm_data_file.empty() ) {

    AINFO << "Reading data from the file: " <<  osm_data_file << std::endl;



    auto data = ReadFile(osm_data_file);

    if( !data )

    AINFO << "Failed to read." << std::endl;

    else

    osm_data = std::move(*data);

 }

 if(osm_data.empty()){

    AINFO << "Reading data error!!!" << std::endl;

      return -1;

 }



 // Build routing Model.

 RoutingModel model{osm_data};

 void Model::LoadXmlData(const std::vector<std::byte> &xml) {


     using namespace pugi;



     xml_document doc;

     if( !doc.load_buffer(xml.data(), xml.size()) )

     AERROR << "Failed to parse the xml file!";



     if( auto bounds = doc.select_nodes("/osm/bounds"); !bounds.empty() ) {

     auto node = bounds.first().node();

     m_MinLat = atof(node.attribute("minlat").as_string());

     m_MaxLat = atof(node.attribute("maxlat").as_string());

     m_MinLon = atof(node.attribute("minlon").as_string());

     m_MaxLon = atof(node.attribute("maxlon").as_string());

     } else {

     AERROR << "Map's bounds are not defined!";

     }



     std::unordered_map<std::string, int> node_id_to_num;

     for( const auto &node: doc.select_nodes("/osm/node") ) {

     node_id_to_num[node.node().attribute("id").as_string()] = (int)m_Nodes.size();

     m_Nodes.emplace_back();

     m_Nodes.back().y = atof(node.node().attribute("lat").as_string());

     m_Nodes.back().x = atof(node.node().attribute("lon").as_string());

     }

 }

 void RoutingModel::CreateNodeToRoadHashmap() {


     for (const Model::Road &road : Roads()) {

     if (road.type != Model::Road::Type::Footway) {

         for (int node_idx : Ways()[road.way].nodes) {

             if (node_to_road.find(node_idx) == node_to_road.end()) {

                 node_to_road[node_idx] = std::vector<const Model::Road *> ();

             }

             node_to_road[node_idx].push_back(&road);

         }

     }

     }

 }

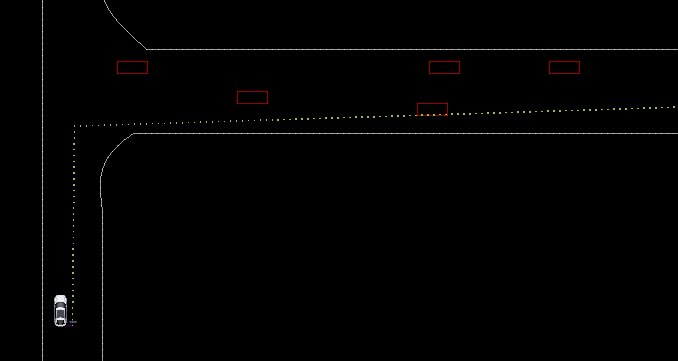

 void Route::AStarSearch() {


     /** * Implementation of the A* Search algorithm.

      */

     RoutingModel::Node *current_node = nullptr;



     start_node->visited = true;

     open_list.push_back(start_node);



     while(open_list.size() > 0) {

     current_node = NextNode();



     float distance_current_node_and_end_node = current_node->distance(*end_node);

     if(std::fabs(distance_current_node_and_end_node) < 0.001) {

         // The final path is stored in the m_Model.path attribute

         m_Model.path = ConstructFinalPath(current_node);

         return;

     } else {

         // Otherwise, we have to repeat the loop adding the neighbors of that node until we find

         // the end node.

         AddNeighbors(current_node);

     }

     }

 }

 // for coordinate transform


 const auto pi = 3.14159265358979323846264338327950288;

 const auto deg_to_rad = 2. * pi / 360.;

 const auto earth_radius = 6378137.;

 const auto latToym = [&](double lat) { return log(tan(lat * deg_to_rad / 2 +  pi/4)) / 2 * earth_radius; };

 const auto lonToxm = [&](double lon) { return lon * deg_to_rad / 2 * earth_radius; };

 const auto ymTolat = [&](double ym) { return (2 * std::atan(std::exp(ym / earth_radius)) - pi / 2) * 180.0 / pi; };

 const auto xmTolon = [&](double xm) { return (2 * xm / (earth_radius * deg_to_rad)); };
