案例：逻辑回归Logistic Regression做乳腺癌预测
发布时间
阅读量：
阅读量
该文本描述了使用逻辑回归算法对乳腺癌数据集进行分类的完整过程。首先，从sklearn.datasets加载了乳腺癌数据集，并展示了数据的前两行特征值和目标标签分布。接着，通过多项式特征工程和L1正则化优化模型，提升了模型的准确性和特征选择能力。优化后，模型在测试集上的准确率达到96.49%，并且通过学习曲线分析显示，L1正则化在二阶多项式模型中表现最佳。最终，模型在测试集上实现了较高的准确率，尽管所有预测样本的正确率较高，但测试准确率未达到1，说明模型在复杂数据上仍有提升空间。
采用逻辑回归算法来实现乳腺癌检测问题的分析，基于sk-learn库提供的乳腺癌数据集进行训练。
1 导入数据
from sklearn.datasets import load_breast_cancer
cancer=load_breast_cancer()
X=cancer.data
y=cancer.target
print('data shape:{0};positive:{1},negative:{2}'.format(X.shape,y[y==1].shape,y[y==0].shape))
print('腺癌数据的前两行为：')
print(cancer.data[0:2]) data shape:(569, 30);positive:(357,),negative:(212,)
腺癌数据的前两行为：
[[ 1.79900000e+01 1.03800000e+01 1.22800000e+02 1.00100000e+03
1.18400000e-01 2.77600000e-01 3.00100000e-01 1.47100000e-01
2.41900000e-01 7.87100000e-02 1.09500000e+00 9.05300000e-01
8.58900000e+00 1.53400000e+02 6.39900000e-03 4.90400000e-02
5.37300000e-02 1.58700000e-02 3.00300000e-02 6.19300000e-03
2.53800000e+01 1.73300000e+01 1.84600000e+02 2.01900000e+03
1.62200000e-01 6.65600000e-01 7.11900000e-01 2.65400000e-01
4.60100000e-01 1.18900000e-01]
[ 2.05700000e+01 1.77700000e+01 1.32900000e+02 1.32600000e+03
8.47400000e-02 7.86400000e-02 8.69000000e-02 7.01700000e-02
1.81200000e-01 5.66700000e-02 5.43500000e-01 7.33900000e-01
3.39800000e+00 7.40800000e+01 5.22500000e-03 1.30800000e-02
1.86000000e-02 1.34000000e-02 1.38900000e-02 3.53200000e-03
2.49900000e+01 2.34100000e+01 1.58800000e+02 1.95600000e+03
1.23800000e-01 1.86600000e-01 2.41600000e-01 1.86000000e-01
2.75000000e-01 8.90200000e-02]] print('腺癌特征有：')
cancer.feature_names乳腺癌特征有：
array(['mean radius', 'mean texture', 'mean perimeter', 'mean area',
'mean smoothness', 'mean compactness', 'mean concavity',
'mean concave points', 'mean symmetry', 'mean fractal dimension',
'radius error', 'texture error', 'perimeter error', 'area error',
'smoothness error', 'compactness error', 'concavity error',
'concave points error', 'symmetry error', 'fractal dimension error',
'worst radius', 'worst texture', 'worst perimeter', 'worst area',
'worst smoothness', 'worst compactness', 'worst concavity',
'worst concave points', 'worst symmetry', 'worst fractal dimension'],
dtype='<U23')2 模型训练
from sklearn.model_selection import train_test_split
X_train,X_test,y_train,y_test=train_test_split(X,y,test_size=0.2) #模型训练
from sklearn.linear_model import LogisticRegression
model=LogisticRegression()
model.fit(X_train,y_train)
train_score=model.score(X_train,y_train)
test_score=model.score(X_test,y_test)
print('train score:{0};test score{1}'.format(train_score,test_score)) train score:0.9538461538461539;test score0.9649122807017544 #样本预测
import numpy as np
y_pred=model.predict(X_test)
print('预测正确的样本数/测试集总数')
print('match:{}/{}'.format(np.equal(y_pred,y_test).shape[0],y_test.shape[0])) 预测正确的样本数/测试集总数
match:114/114基于结果114/114的计算，全部预测均正确。然而，test\_score≠1，因为test\_score是基于预测y率计算得分，而非基于预测正确个数。
#预测概率：找出预测概率低于0.9的样本
print('预测概率输出形式')
y_pred_proba=model.predict_proba(X_test)#计算每个测试样本的预测概率
#打印出第一个样本的数据,了解数据形式
print('sample of predict probability:{0}'.format(y_pred_proba[0]))
#打印出第一列：预测为阴性的概率大于0.1的样本，保存于result
result=y_pred_proba[y_pred_proba[:,0]>0.1]
#在result中找到第二列：预测为阳性的概率大于0.1的样本
result=result[result[:,1]>0.1]
print('所有预测概率低于0.9的样本:')
result 预测概率输出形式
sample of predict probability:[ 9.99999994e-01 6.07363434e-09]
所有预测概率低于0.9的样本:
array([[ 0.1247275 , 0.8752725 ],
[ 0.81486957, 0.18513043],
[ 0.80170649, 0.19829351],
[ 0.8841406 , 0.1158594 ],
[ 0.20235829, 0.79764171],
[ 0.74137791, 0.25862209],
[ 0.70031446, 0.29968554],
[ 0.10240006, 0.89759994],
[ 0.76374429, 0.23625571],
[ 0.10171958, 0.89828042],
[ 0.19183231, 0.80816769],
[ 0.13520306, 0.86479694],
[ 0.25013441, 0.74986559],
[ 0.24004072, 0.75995928],
[ 0.65056509, 0.34943491],
[ 0.62913915, 0.37086085]])可以说是非常低了
3 模型优化
旨在通过引入多项式特征项，结合L1和L2范数的正则化技术，来提升模型的预测准确性。
from sklearn.linear_model import LogisticRegression
from sklearn.preprocessing import PolynomialFeatures
from sklearn.pipeline import Pipeline
def polynomial_model(degree=1,**kwarg):
"""增加多项式特征"""
polynomial_features=PolynomialFeatures(degree=degree,include_bias=False)
logistic_regression=LogisticRegression(**kwarg)
pipeline=Pipeline([(' polynomial_features', polynomial_features),( 'logistic_regression', logistic_regression)])
return pipeline
import time
model=polynomial_model(degree=2,penalty='l1')#二阶多项式，l1范数正则化
start=time.clock()
model.fit(X_train,y_train)
train_score=model.score(X_train,y_train)
test_score=model.score(X_test,y_test)
print('polynomial_model(degree=2),elaspe:{0:.6f};train_score:{1:.6f}:test_score:{2:.6f}'.format(time.clock()-start,train_score,test_score)) polynomial_model(degree=2),elaspe:0.550339;train_score:1.000000:test_score:0.982456实验结果表明，通过二阶多项式结合L1范数正则化方法，不仅能够有效提升训练数据集的评分，同时也显著提高了测试数据集的评分水平。L1范数正则化通过引入L1范数约束，使得特征参数趋于稀疏，同时模型能够自动识别出对模型性能有显著关联的特征。
#查看特征
logistic_regression=model.named_steps['logistic_regression']
print('model_parameter_shape:{0};count of non_zero element:{1}'.format(logistic_regression.coef_.shape,np.count_nonzero(logistic_regression.coef_))) model_parameter_shape:(1, 495);count of non_zero element:91引入二阶多项式特征后，输入特征数量从30个增加至495个。通过l1正则化处理，许多特征被剔除，最终仅留下113个具有显著价值的特征。
4 学习曲线
from sklearn.model_selection import learning_curve
from sklearn.model_selection import ShuffleSplit
from matplotlib import pyplot as plt
%matplotlib inline
def plot_learning_curve(estimator,title,X,y,ylim=None,cv=None,n_jobs=1,train_sizes=np.linspace(.1,1.0,5)):
"""生成学习曲线"""
plt.title(title)
if ylim is not None:
plt.ylim(*ylim)
plt.xlabel('Training examples')
plt.ylabel('Score')
train_sizes,train_scores,test_scores=learning_curve(estimator,X,y,cv=cv,n_jobs=n_jobs,train_sizes=train_sizes)
train_scores_mean=np.mean(train_scores,axis=1)
train_scores_std=np.std(train_scores,axis=1)
test_scores_mean=np.mean(test_scores,axis=1)
test_scores_std=np.std(test_scores,axis=1)
plt.grid()
plt.fill_between(train_sizes,train_scores_mean-train_scores_std,train_scores_mean+train_scores_std,alpha=0.1,color='r')
plt.fill_between(train_sizes,test_scores_mean-test_scores_std,test_scores_mean+test_scores_std,alpha=0.1,color='g')
plt.plot(train_sizes,train_scores_mean,'o--',color='r',label='Test score')
plt.plot(train_sizes,test_scores_mean,'o-',color='g',label='Cross_validation score')
plt.legend(loc='best')
return plt

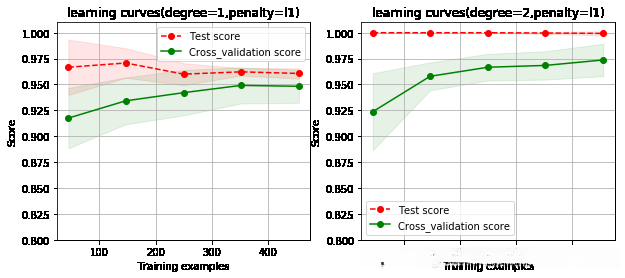

#使用L1范数作为正则项所对应的一阶二阶多项式学习曲线
cv=ShuffleSplit(n_splits=10,test_size=0.2,random_state=0)
title='learning curves(degree={0},penalty={1})'
degrees=[1,2]
penalty='l1'
start=time.clock()
plt.figure(figsize=(10,4))
for i in range(len(degrees)):
plt.subplot(1,len(degrees),i+1)
plot_learning_curve(polynomial_model(degree=degrees[i],penalty=penalty),
title.format(degrees[i],penalty),X,y,ylim=(0.8,1.01),cv=cv)
print('elaspe:{0:.6}s'.format(time.clock()-start)) elaspe:31.1267s

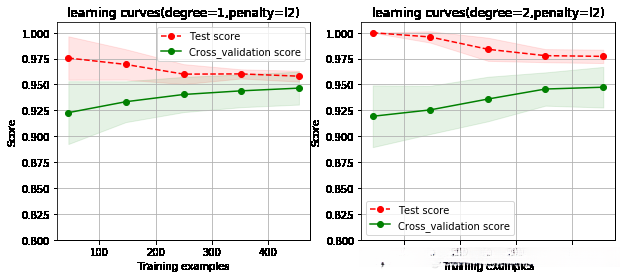

#使用L2范数作为正则项所对应的一阶二阶多项式学习曲线
penalty='l2'
start=time.clock()
plt.figure(figsize=(10,4))
for i in range(len(degrees)):
plt.subplot(1,len(degrees),i+1)
plot_learning_curve(polynomial_model(degree=degrees[i],penalty=penalty),
title.format(degrees[i],penalty),X,y,ylim=(0.8,1.01),cv=cv)
print('elaspe:{0:.6f}s'.format(time.clock()-start)) elaspe:7.630889s
由学习曲线可以看出，采用二阶多项式结合L1范数正则化的模型表现最佳，其在训练集上的评分最高，测试集上的评分也最高。
