SLAM：即时定位与地图构建的入门指南

 import numpy as npfrom helpers import make_data


 #slam的实现应该使用以下输入

 #请随意更改这些输入值并查看其响应方式！

 # 世界参数num_landmarks      = 5        # number of landmarksN                  = 20       # time stepsworld_size         = 100.0    # size of world (square)

 # 机器人参数measurement_range  = 50.0     # range at which we can sense landmarksmotion_noise       = 2.0      # noise in robot motionmeasurement_noise  = 2.0      # noise in the measurementsdistance           = 20.0     # distance by which robot (intends to) move each iteratation



 # make_data实例化一个机器人，并为给定的世界大小和给定数量生成的随机地标data = make_data(N, num_landmarks, world_size, measurement_range, motion_noise, measurement_noise, distance)

 class robot:


     #move function    def move(self, dx, dy):

     x = self.x + dx + self.rand() * self.motion_noise        y = self.y + dy + self.rand() * self.motion_noise

     if x < 0.0 or x > self.world_size or y < 0.0 or y > self.world_size:            return False        else:            self.x = x            self.y = y            return True



     #sense function    def sense(self):        measurements = []

     for landmark_index, landmark in enumerate(self.landmarks):            landmark_distance_x = landmark[0]            landmark_distance_y = landmark[1]            random_noise = self.rand()            cal_dx = self.x - landmark_distance_x + random_noise * self.measurement_noise            cal_dy = self.y - landmark_distance_y + random_noise * self.measurement_noise            is_not_in_measurement_range = self.measurement_range == -1            if(is_not_in_measurement_range) or ((abs(cal_dx) <= self.measurement_range) and (abs(cal_dy) <= self.measurement_range)):                measurements.append([landmark_index, cal_dx, cal_dy])        return measurements

 def initialize_constraints(N, num_landmarks, world_size):    ''' This function takes in a number of time steps N, number of landmarks, and a world_size,        and returns initialized constraint matrices, omega and xi.'''


     middle_of_the_world = world_size / 2

     ## 建议：在变量中定义和存储约束矩阵的大小（行/列）    rows, cols = 2*(N + num_landmarks), 2*(N + num_landmarks)    ## TODO: 用两个初始“strength”值定义约束矩阵Omega    omega = np.zeros(shape = (rows, cols))    ## 我们机器人最初的x，y位置    #omega = [0]

     omega[0][0], omega[1][1] = 1,1

     ## TODO: Define the constraint *vector*, xi    ## 假设机器人以100％的置信度在世界的正中间开始。    #xi = [0]    xi = np.zeros(shape = (rows, 1))    xi[0][0] = middle_of_the_world    xi[1][0] = middle_of_the_world

     return omega, xi

 ## slam接受6个参数并返回mu，## mu是机器人穿过的整个路径（所有x，y姿势）和所有地标位置def slam(data, N, num_landmarks, world_size, motion_noise, measurement_noise):


     ## TODO: 使用你的初始化创建约束矩阵    omega, xi = initialize_constraints(N, num_landmarks, world_size)    ## TODO:遍历数据中的每个时间步骤    for time_step in range(len(data)):

     ## 每次迭代时获取所有的运动和测量数据        measurement = data[time_step][0]        motion = data[time_step][1]        x        dx = motion[0]         # 本次沿x移动的距离        dy = motion[1]         # 本次沿y移动的距离

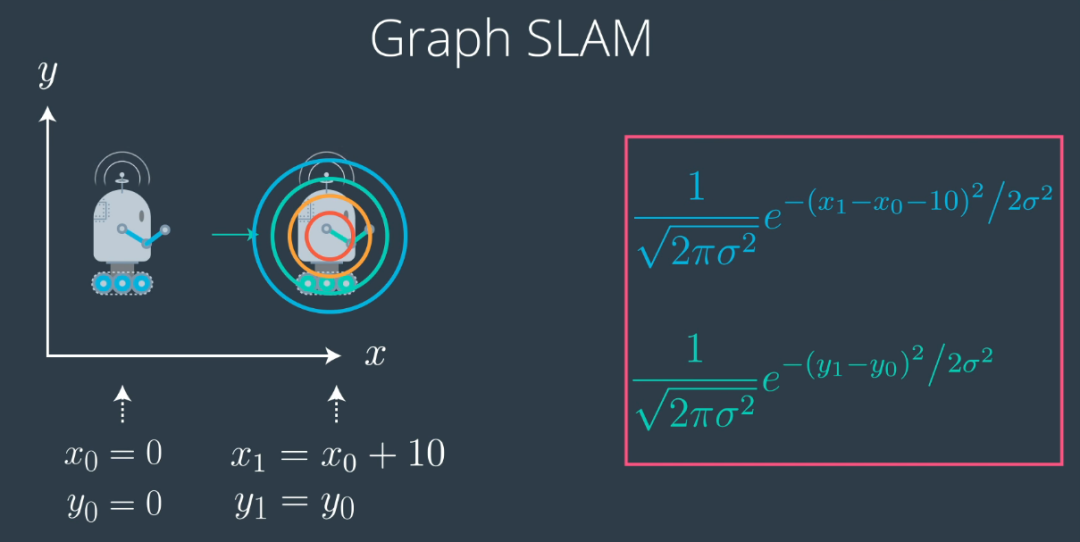

     #假设机器人在这个时间从（x0，y0）移动到（x1，y1）

     #omega的偶数列对应于x值        x0 = (time_step * 2)   #x0 = 0,2,4,...        x1 = x0 + 2            #x1 = 2,4,6,...

     # omega 的奇数列对应于y值        y0 = x0 + 1            #y0 = 1,3,5,...        y1 = y0 + 2            #y1 = 3,5,7,...

     actual_m_noise = 1.0/measurement_noise        actual_n_noise = 1.0/motion_noise    ## TODO: 更新约束矩阵/向量（Omega/xi）以解释所有*measurements*    ## 这应该是一系列考虑测量噪声的附加值        for landmark in measurement:            lM = landmark[0]            # 地标 id            dx_lM = landmark[1]         # 沿x与当前位置分离            dy_lM = landmark[2]         # 沿y与当前位置分离

         L_x0 = (N*2) + (lM*2)       # 偶数列有x个地标值            L_y0 = L_x0 + 1             # 奇数列有y个地标值

         # 更新对应于x0和Lx0之间测量值的omega值            omega[x0][x0] += actual_m_noise            omega[L_x0][L_x0] += actual_m_noise            omega[x0][L_x0] += -actual_m_noise            omega[L_x0][x0] += -actual_m_noise

         # 更新对应于y0和Ly0之间测量值的omega值            omega[y0][y0] += actual_m_noise            omega[L_y0][L_y0] += actual_m_noise            omega[y0][L_y0] += -actual_m_noise            omega[L_y0][y0] += -actual_m_noise

         # 更新X0和LX0之间的测量值对应的xi值            xi[x0]  -= dx_lM/measurement_noise            xi[L_x0]  += dx_lM/measurement_noise

         # 更新y0和Ly0之间的测量值对应的xi值            xi[y0]  -= dy_lM/measurement_noise            xi[L_y0] += dy_lM/measurement_noise



     ## TODO: 更新约束矩阵/向量（omega/XI），以解释从（x0，y0）到（x1，y1）和运动噪声的所有*运动*。        omega[x0][x0] += actual_n_noise        omega[x1][x1] += actual_n_noise        omega[x0][x1] += -actual_n_noise        omega[x1][x0] += -actual_n_noise

     omega[y0][y0] += actual_n_noise        omega[y1][y1] += actual_n_noise        omega[y0][y1] += -actual_n_noise        omega[y1][y0] += -actual_n_noise

     xi[x0] -= dx/motion_noise        xi[y0] -= dy/motion_noise

     xi[x1] += dx/motion_noise        xi[y1] += dy/motion_noise

     ## TODO: 在遍历所有数据之后    ## 计算姿势和地标位置的最佳估计值    ##使用公式，omega_inverse * Xi    inverse_of_omega = np.linalg.inv(np.matrix(omega))    mu = inverse_of_omega * xi

     return mu

 def get_poses_landmarks(mu, N):    # 创建一个姿势列表    poses = []    for i in range(N):        poses.append((mu[2*i].item(), mu[2*i+1].item()))


     # 创建一个地标列表    landmarks = []    for i in range(num_landmarks):        landmarks.append((mu[2*(N+i)].item(), mu[2*(N+i)+1].item()))

     # 返回完成的列表    return poses, landmarks

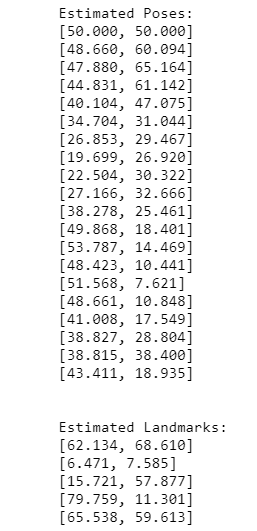

 def print_all(poses, landmarks):    print('\n')    print('Estimated Poses:')    for i in range(len(poses)):        print('['+', '.join('%.3f'%p for p in poses[i])+']')    print('\n')    print('Estimated Landmarks:')    for i in range(len(landmarks)):        print('['+', '.join('%.3f'%l for l in landmarks[i])+']')

 # 调用你的slam实现，并传入必要的参数mu = slam(data, N, num_landmarks, world_size, motion_noise, measurement_noise)

 # 打印出地标和姿势结果if(mu is not None):    # 获取姿势和地标列表    # 并打印出来    poses, landmarks = get_poses_landmarks(mu, N)    print_all(poses, landmarks)

 # 导入函数from helpers import display_world

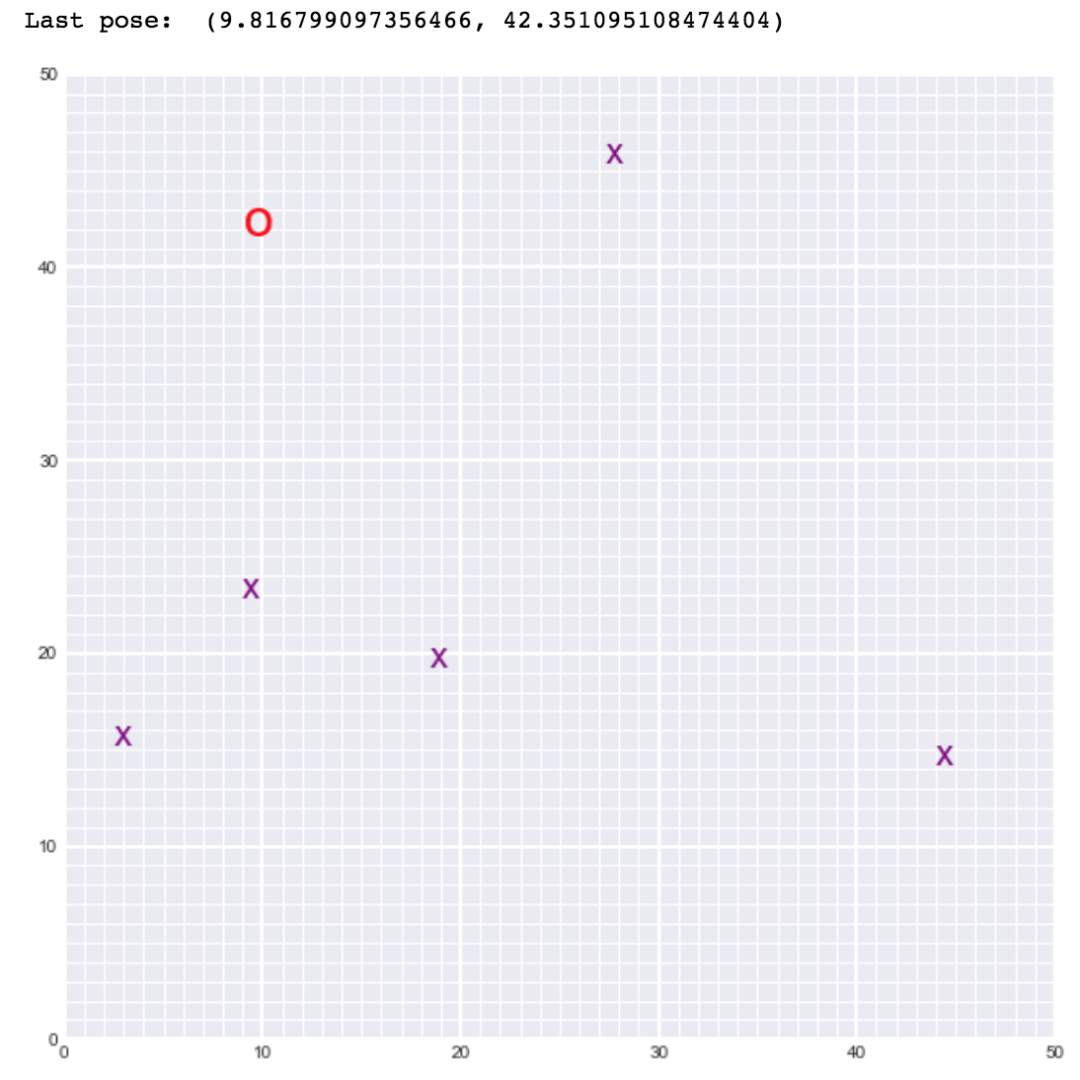

 # 显示最终世界！

 # 定义图形大小plt.rcParams["figure.figsize"] = (20,20)

 # 检查姿势是否已创建if 'poses' in locals():    # 打印出最后一个姿势    print('Last pose: ', poses[-1])    # 显示机器人的最后位置和地标位置    display_world(int(world_size), poses[-1], landmarks)
