机器学习：基于心脏病数据集的XGBoost分类预测

 import requests




 url = 'https://tianchi-media.oss-cn-beijing.aliyuncs.com/DSW/7XGBoost/train.csv'

 response = requests.get(url)

 with open('train.csv', 'wb') as f:

     f.write(response.content)

 ##  基础函数库


 import numpy as np

 import pandas as pd



 ## 绘图函数库

 import matplotlib.pyplot as plt

 import seaborn as sns

 ## 我们利用Pandas自带的read_csv函数读取并转化为DataFrame格式

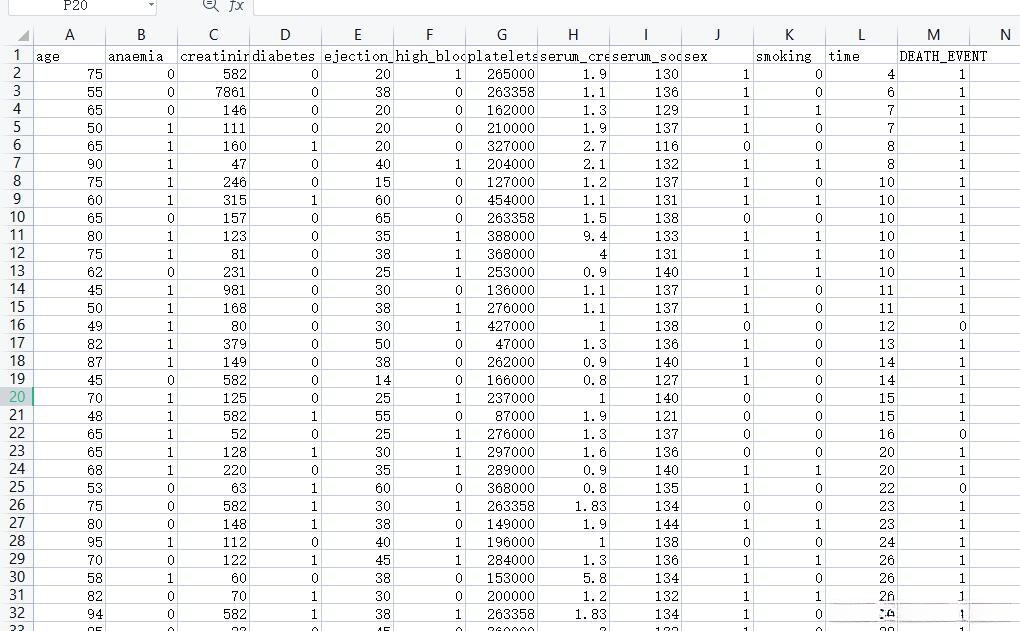

 data = pd.read_csv('heart.csv')

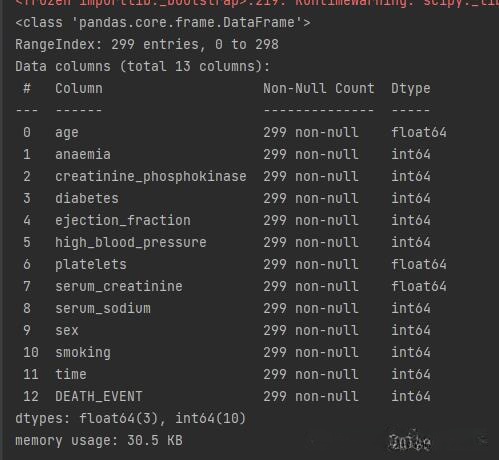

 ## 利用.info()查看数据的整体信息


 data.info()

 ## 进行简单的数据查看，我们可以利用 .head() 头部.tail()尾部


 data.head()



 data = data.fillna(-1)

 data.tail()

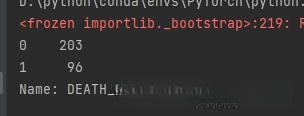

    print(pd.Series(data['DEATH_EVENT']).value_counts())

 ## 对于特征进行一些统计描述


 data.describe()

    numerical_features = [x for x in data.columns if data[x].dtype == np.float]

    category_features = [x for x in data.columns if data[x].dtype != np.float and x != 'DEATH_EVENT']

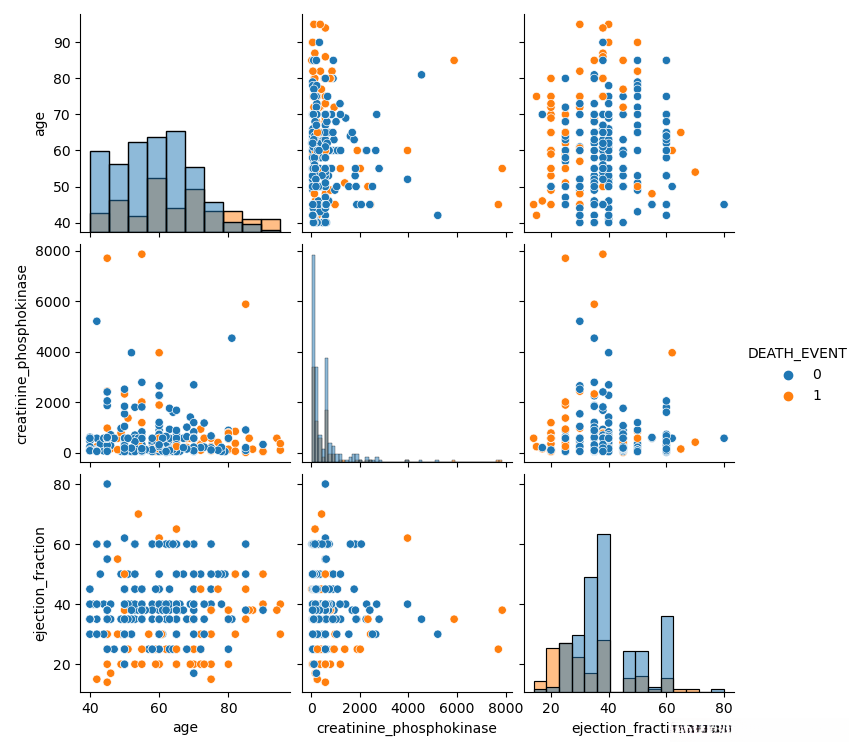

 ## 选取三个特征与标签组合的散点可视化


 sns.pairplot(data=data[['age',

 'creatinine_phosphokinase',

 'ejection_fraction'] + ['DEATH_EVENT']], diag_kind='hist', hue= 'DEATH_EVENT')

 plt.show()

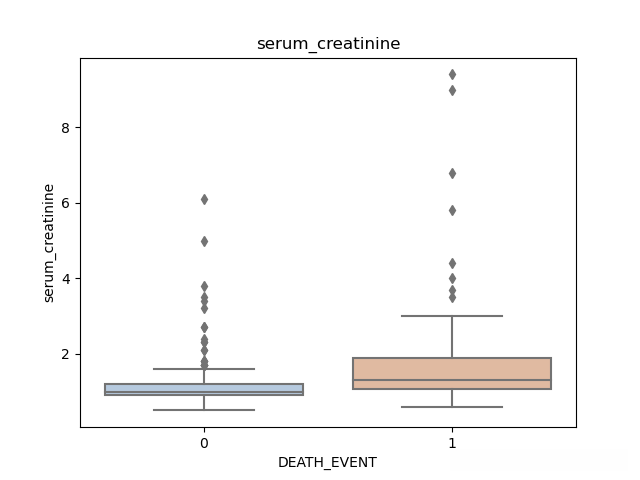

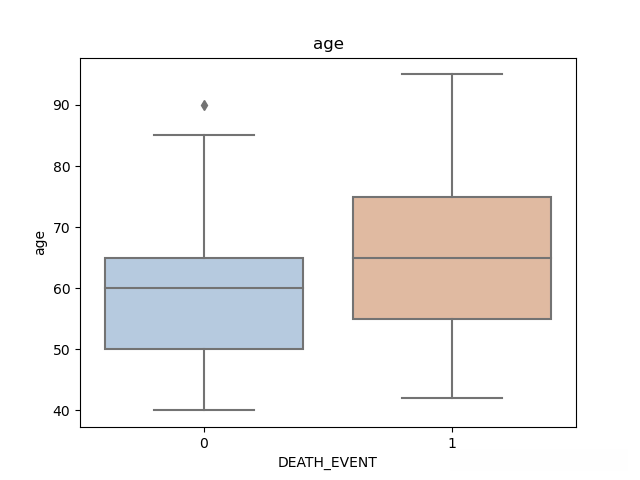

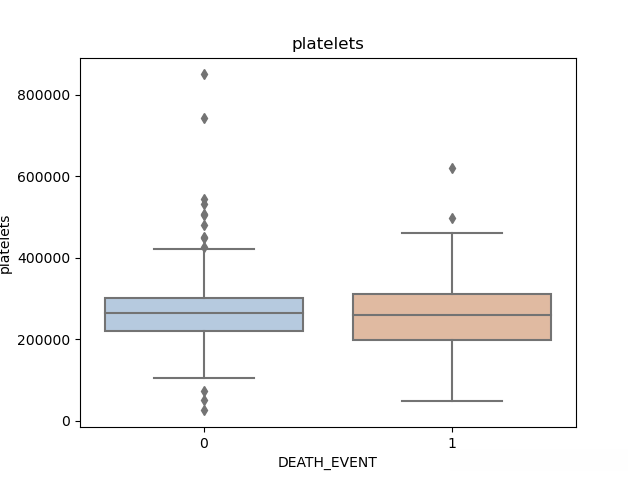

 for col in data[numerical_features].columns:


     if col != 'DEATH_EVENT':

     sns.boxplot(x='DEATH_EVENT', y=col, saturation=0.5, palette='pastel', data=data)

     plt.title(col)

     plt.show()

 tlog = {}


 for i in category_features:

     tlog[i] = data[data['DEATH_EVENT'] == 1][i].dropna().value_counts()



 flog = {}

 for i in category_features:

     flog[i] = data[data['DEATH_EVENT'] == 0][i].dropna().value_counts()

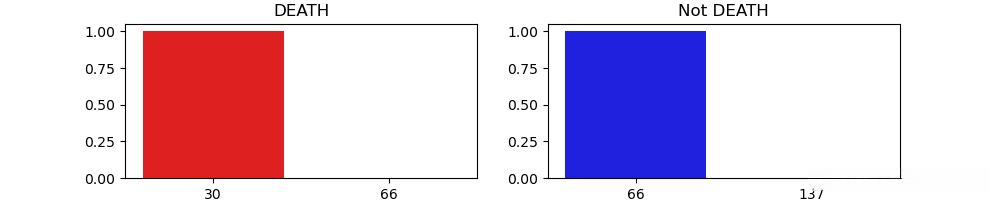

 plt.figure(figsize=(10,2))

 plt.subplot(1,2,1)

 plt.title('DEATH')

 sns.barplot(x = pd.DataFrame(tlog['smoking'][:2]).sort_index()['smoking'], y = pd.DataFrame(tlog['smoking'][:2]).sort_index().index, color = "red")

 plt.subplot(1,2,2)

 plt.title('Not DEATH')

 sns.barplot(x = pd.DataFrame(flog['smoking'][:2]).sort_index()['smoking'], y = pd.DataFrame(flog['smoking'][:2]).sort_index().index, color = "blue")

 plt.show()

 ## 把所有的相同类别的特征编码为同一个值


 def get_mapfunction(x):

     mapp = dict(zip(x.unique().tolist(),

      range(len(x.unique().tolist()))))

     def mapfunction(y):

     if y in mapp:

         return mapp[y]

     else:

         return -1

     return mapfunction

 for i in category_features:

     data[i] = data[i].apply(get_mapfunction(data[i]))

 ## 为了正确评估模型性能，将数据划分为训练集和测试集，并在训练集上训练模型，在测试集上验证模型性能。


 from sklearn.model_selection import train_test_split



 ## 选择其类别为0和1的样本 （不包括类别为2的样本）

 data_target_part = data['RainTomorrow']

 data_features_part = data[[x for x in data.columns if x != 'RainTomorrow']]



 ## 测试集大小为20%， 80%/20%分

 x_train, x_test, y_train, y_test = train_test_split(data_features_part, data_target_part, test_size = 0.2, random_state = 2020)

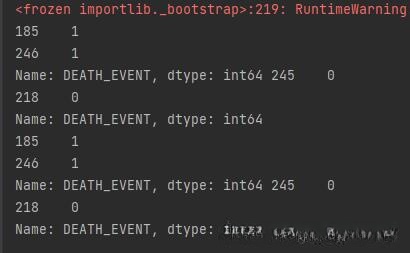

 #查看标签数据


 print(y_train[0:2],y_test[0:2])



 # 打印修改后的结果

 print(y_train[0:2],y_test[0:2])

 ## 导入XGBoost模型


 from xgboost.sklearn import XGBClassifier

 ## 定义 XGBoost模型

 clf = XGBClassifier(use_label_encoder=False)

 # 在训练集上训练XGBoost模型

 clf.fit(x_train, y_train)

 ## 在训练集和测试集上分布利用训练好的模型进行预测


 train_predict = clf.predict(x_train)

 test_predict = clf.predict(x_test)

 from sklearn import metrics

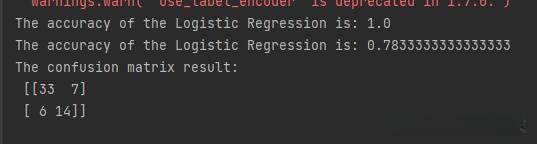

 ## 利用accuracy（准确度）【预测正确的样本数目占总预测样本数目的比例】评估模型效果

 print('The accuracy of the Logistic Regression is:',metrics.accuracy_score(y_train,train_predict))

 print('The accuracy of the Logistic Regression is:',metrics.accuracy_score(y_test,test_predict))



 ## 查看混淆矩阵 (预测值和真实值的各类情况统计矩阵)

 confusion_matrix_result = metrics.confusion_matrix(test_predict,y_test)

 print('The confusion matrix result:\n',confusion_matrix_result)

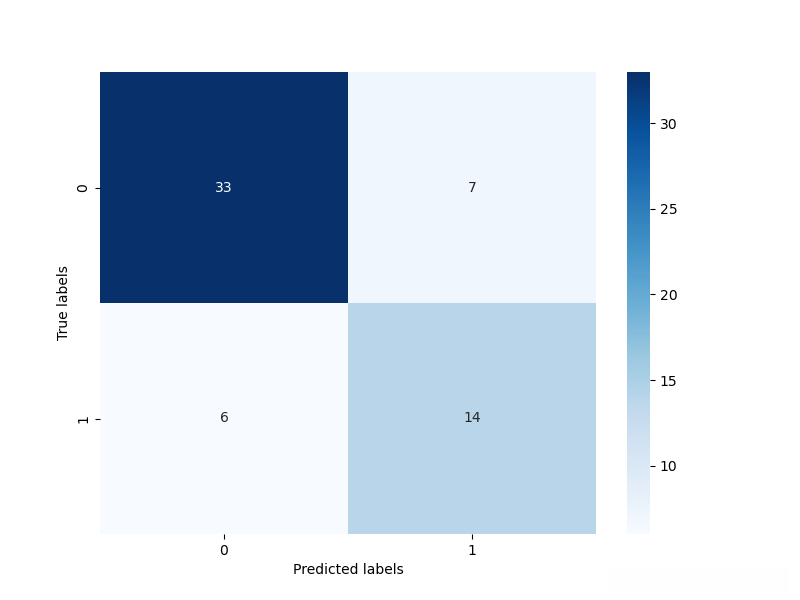

 # 利用热力图对于结果进行可视化

 plt.figure(figsize=(8, 6))

 sns.heatmap(confusion_matrix_result, annot=True, cmap='Blues')

 plt.xlabel('Predicted labels')

 plt.ylabel('True labels')

 plt.show()

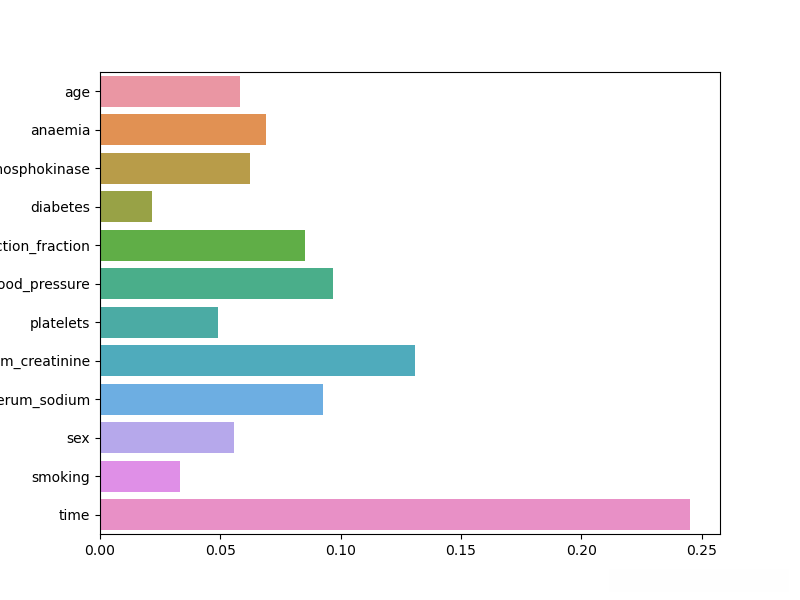

 plt.figure(figsize=(8, 6))


 sns.barplot(y=data_features_part.columns, x=clf.feature_importances_)

 plt.show()

 ## 从sklearn库中导入网格调参函数


 from sklearn.model_selection import GridSearchCV



 ## 定义参数取值范围

 learning_rate = [0.1, 0.3,]

 subsample = [0.8]

 colsample_bytree = [0.6, 0.8]

 max_depth = [3,5]



 parameters = { 'learning_rate': learning_rate,

           'subsample': subsample,

           'colsample_bytree':colsample_bytree,

           'max_depth': max_depth}

 model = XGBClassifier(n_estimators = 20)



 ## 进行网格搜索

 clf = GridSearchCV(model, parameters, cv=3, scoring='accuracy',verbose=1,n_jobs=-1)



 clf = clf.fit(x_train, y_train)

 ## 在训练集和测试集上分布利用最好的模型参数进行预测




 ## 定义带参数的 XGBoost模型

 clf = XGBClassifier(colsample_bytree = 0.6, learning_rate = 0.3, max_depth= 8, subsample = 0.9)

 # 在训练集上训练XGBoost模型

 clf.fit(x_train, y_train)



 train_predict = clf.predict(x_train)

 test_predict = clf.predict(x_test)

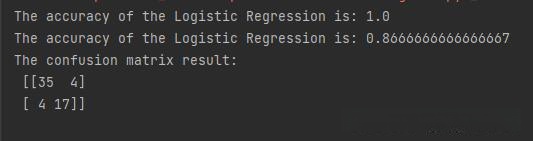

 ## 利用accuracy（准确度）【预测正确的样本数目占总预测样本数目的比例】评估模型效果

 print('The accuracy of the Logistic Regression is:',metrics.accuracy_score(y_train,train_predict))

 print('The accuracy of the Logistic Regression is:',metrics.accuracy_score(y_test,test_predict))



 ## 查看混淆矩阵 (预测值和真实值的各类情况统计矩阵)

 confusion_matrix_result = metrics.confusion_matrix(test_predict,y_test)

 print('The confusion matrix result:\n',confusion_matrix_result)

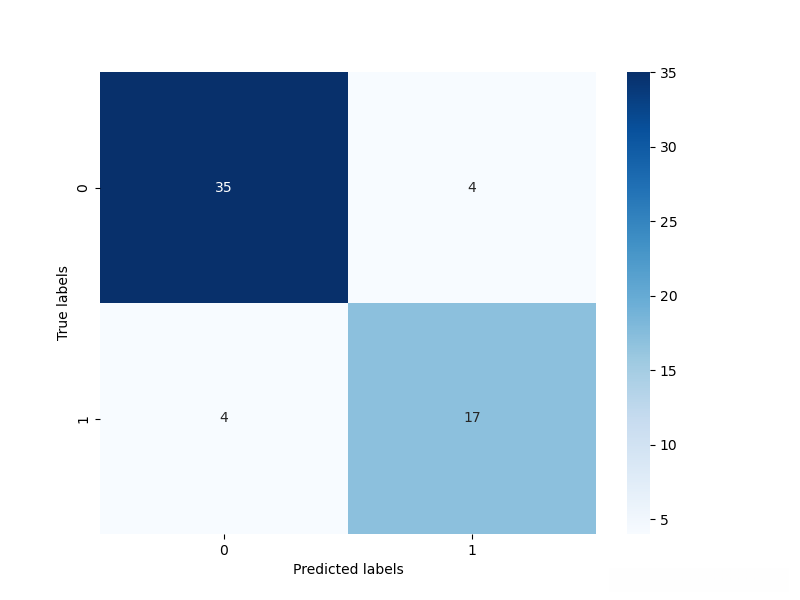

 # 利用热力图对于结果进行可视化

 plt.figure(figsize=(8, 6))

 sns.heatmap(confusion_matrix_result, annot=True, cmap='Blues')

 plt.xlabel('Predicted labels')

 plt.ylabel('True labels')

 plt.show()
