yolov5 DeepSort跟踪(5): Deepsort 多目标跟踪--行人/车辆ReID训练

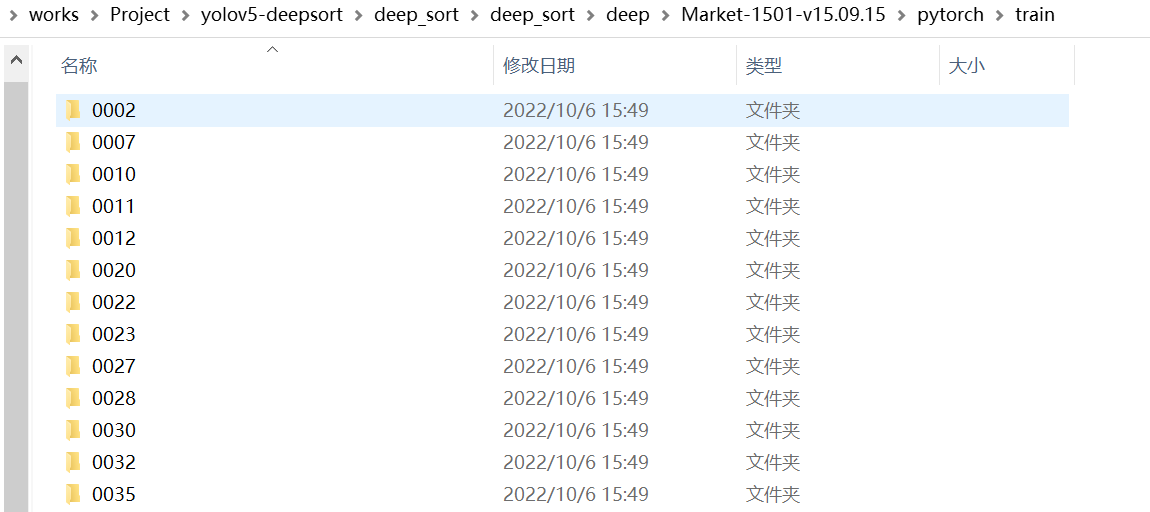

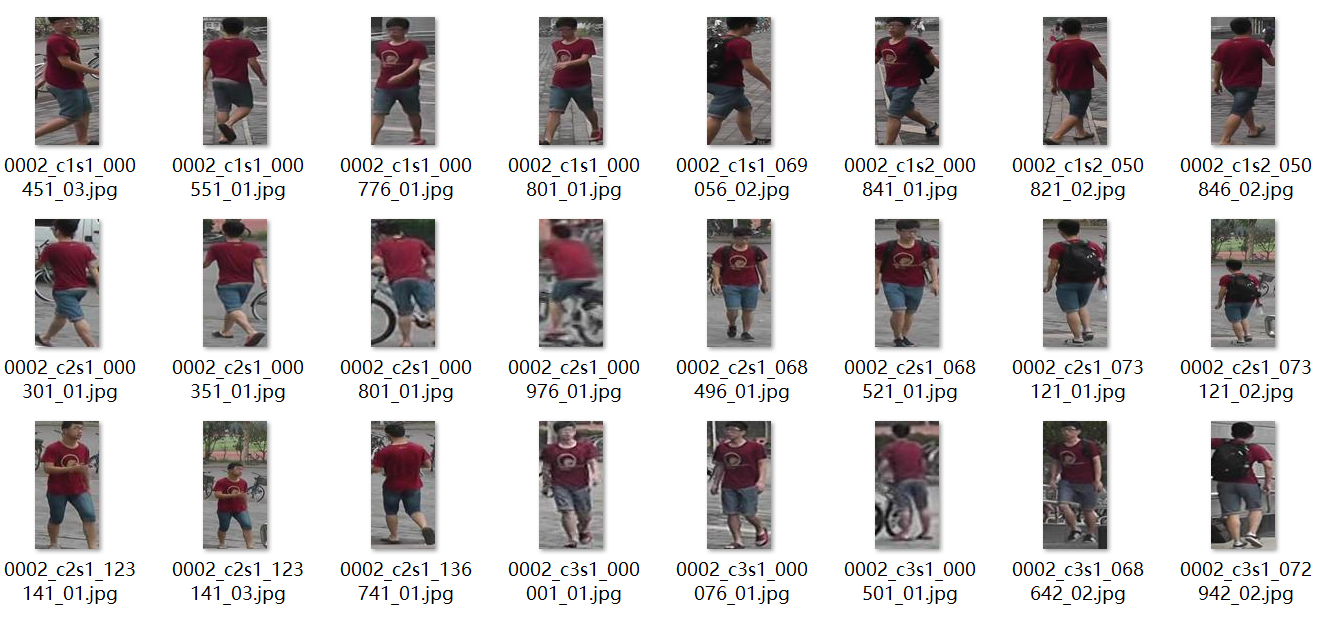

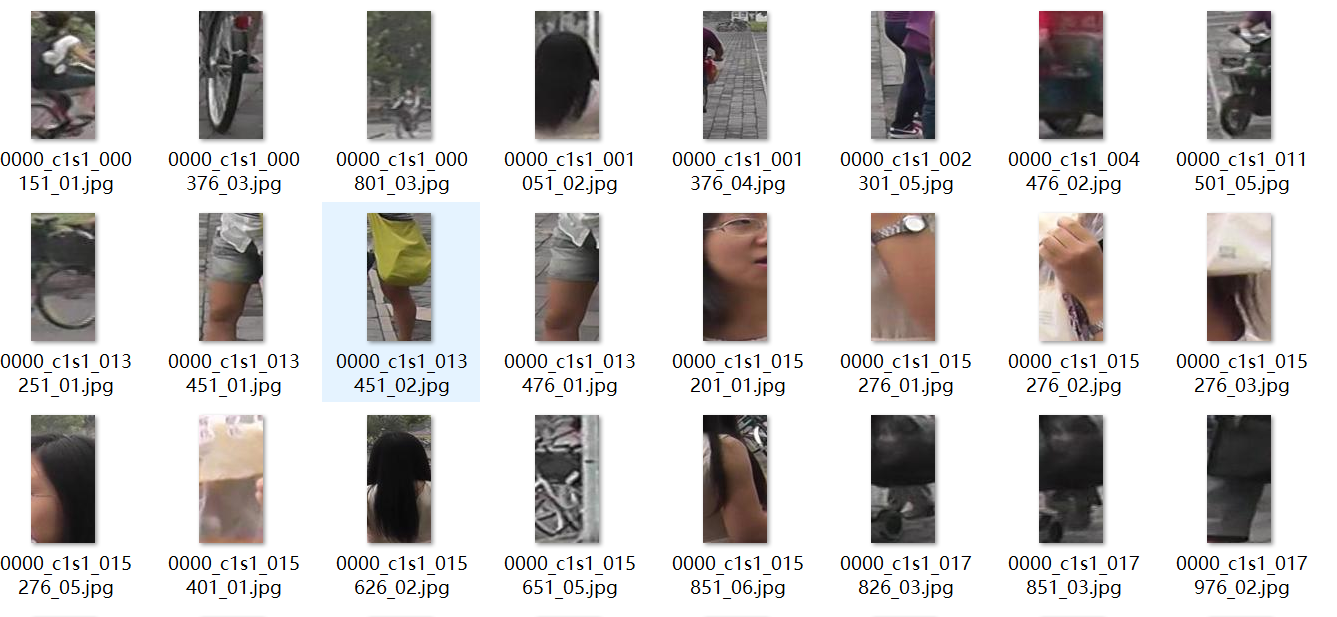

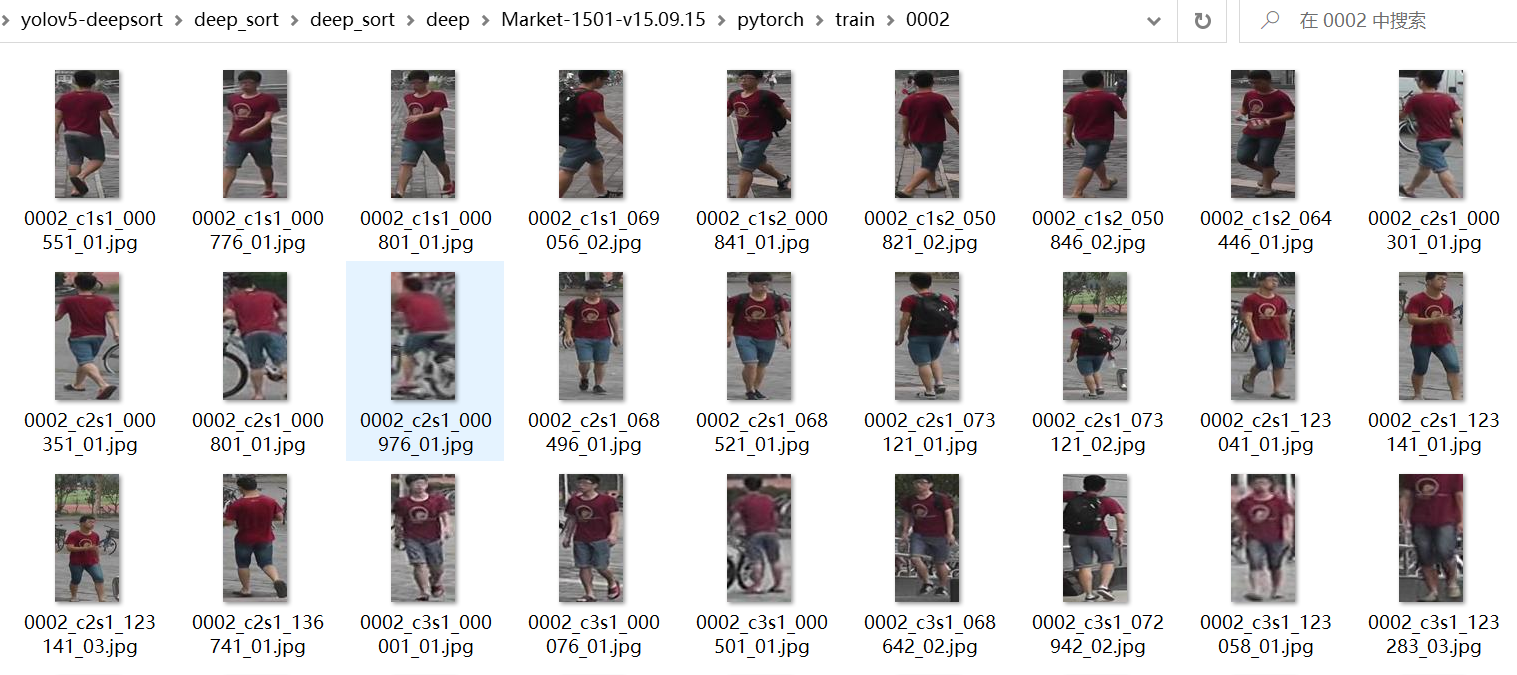

    python prepare_person.py

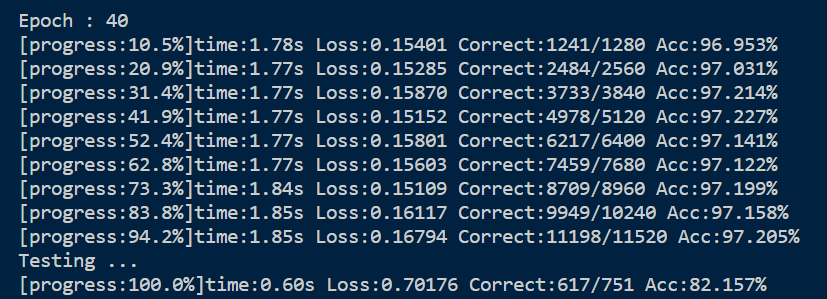

    python train.py --data-dir ./Market-1501

    import argparse
    import os
    import time

    import numpy as np
    import matplotlib.pyplot as plt
    import torch
    import torch.backends.cudnn as cudnn
    import torchvision


    from model import Net

    parser = argparse.ArgumentParser(description="Train on market1501")
    parser.add_argument("--data-dir",default='/hy-tmp/yolov5-deepsort/deep_sort/deep_sort/deep/Market-1501',type=str)
    parser.add_argument("--no-cuda",action="store_true")
    parser.add_argument("--gpu-id",default=0,type=int)
    parser.add_argument("--lr",default=0.1, type=float)
    parser.add_argument("--interval",'-i',default=20,type=int)
    parser.add_argument('--resume', '-r',action='store_true')
    args = parser.parse_args()

    # device
    device = "cuda:{}".format(args.gpu_id) if torch.cuda.is_available() and not args.no_cuda else "cpu"
    if torch.cuda.is_available() and not args.no_cuda:
    cudnn.benchmark = True

    # data loading
    root = args.data_dir
    train_dir = os.path.join(root,"train")
    test_dir = os.path.join(root,"test")

    transform_train = torchvision.transforms.Compose([
    torchvision.transforms.RandomCrop((128,64),padding=4),
    torchvision.transforms.RandomHorizontalFlip(),
    torchvision.transforms.ToTensor(),
    torchvision.transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
    ])
    transform_test = torchvision.transforms.Compose([
    torchvision.transforms.Resize((128,64)),
    torchvision.transforms.ToTensor(),
    torchvision.transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
    ])
    trainloader = torch.utils.data.DataLoader(
    torchvision.datasets.ImageFolder(train_dir, transform=transform_train),
    batch_size=64,shuffle=True
    )
    testloader = torch.utils.data.DataLoader(
    torchvision.datasets.ImageFolder(test_dir, transform=transform_test),
    batch_size=64,shuffle=True
    )
    num_classes = max(len(trainloader.dataset.classes), len(testloader.dataset.classes))
    print("num_classes = %s" %num_classes)

    # net definition
    start_epoch = 0
    net = Net(num_classes=num_classes)
    if args.resume:
    assert os.path.isfile("./checkpoint/ckpt.t7"), "Error: no checkpoint file found!"
    print('Loading from checkpoint/ckpt.t7')
    checkpoint = torch.load("./checkpoint/ckpt.t7")
    # import ipdb; ipdb.set_trace()
    net_dict = checkpoint['net_dict']
    net.load_state_dict(net_dict)
    best_acc = checkpoint['acc']
    start_epoch = checkpoint['epoch']
    net.to(device)

    # loss and optimizer
    criterion = torch.nn.CrossEntropyLoss()
    optimizer = torch.optim.SGD(net.parameters(), args.lr, momentum=0.9, weight_decay=5e-4)
    best_acc = 0.

    # train function for each epoch
    def train(epoch):
    print("\nEpoch : %d"%(epoch+1))
    net.train()
    training_loss = 0.
    train_loss = 0.
    correct = 0
    total = 0
    interval = args.interval
    start = time.time()
    for idx, (inputs, labels) in enumerate(trainloader):
        # forward
        inputs,labels = inputs.to(device),labels.to(device)
        outputs = net(inputs)
        loss = criterion(outputs, labels)

        # backward
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        # accumurating
        training_loss += loss.item()
        train_loss += loss.item()
        correct += outputs.max(dim=1)[1].eq(labels).sum().item()
        total += labels.size(0)

        # print
        if (idx+1)%interval == 0:
            end = time.time()
            print("[progress:{:.1f}%]time:{:.2f}s Loss:{:.5f} Correct:{}/{} Acc:{:.3f}%".format(
                100.*(idx+1)/len(trainloader), end-start, training_loss/interval, correct, total, 100.*correct/total
            ))
            training_loss = 0.
            start = time.time()

    return train_loss/len(trainloader), 1.- correct/total

    def test(epoch):
    global best_acc
    net.eval()
    test_loss = 0.
    correct = 0
    total = 0
    start = time.time()
    with torch.no_grad():
        for idx, (inputs, labels) in enumerate(testloader):
            inputs, labels = inputs.to(device), labels.to(device)
            outputs = net(inputs)
            loss = criterion(outputs, labels)

            test_loss += loss.item()
            correct += outputs.max(dim=1)[1].eq(labels).sum().item()
            total += labels.size(0)

        print("Testing ...")
        end = time.time()
        print("[progress:{:.1f}%]time:{:.2f}s Loss:{:.5f} Correct:{}/{} Acc:{:.3f}%".format(
                100.*(idx+1)/len(testloader), end-start, test_loss/len(testloader), correct, total, 100.*correct/total
            ))

    # saving checkpoint
    acc = 100.*correct/total
    if acc > best_acc:
        best_acc = acc
        print("Saving parameters to checkpoint/ckpt.t7")
        checkpoint = {
            'net_dict':net.state_dict(),
            'acc':acc,
            'epoch':epoch,
        }
        if not os.path.isdir('checkpoint'):
            os.mkdir('checkpoint')
        torch.save(checkpoint, './checkpoint/ckpt.t7')

    return test_loss/len(testloader), 1.- correct/total

    # plot figure
    x_epoch = []
    record = {'train_loss':[], 'train_err':[], 'test_loss':[], 'test_err':[]}
    fig = plt.figure()
    ax0 = fig.add_subplot(121, title="loss")
    ax1 = fig.add_subplot(122, title="top1err")
    def draw_curve(epoch, train_loss, train_err, test_loss, test_err):
    global record
    record['train_loss'].append(train_loss)
    record['train_err'].append(train_err)
    record['test_loss'].append(test_loss)
    record['test_err'].append(test_err)

    x_epoch.append(epoch)
    ax0.plot(x_epoch, record['train_loss'], 'bo-', label='train')
    ax0.plot(x_epoch, record['test_loss'], 'ro-', label='val')
    ax1.plot(x_epoch, record['train_err'], 'bo-', label='train')
    ax1.plot(x_epoch, record['test_err'], 'ro-', label='val')
    if epoch == 0:
        ax0.legend()
        ax1.legend()
    fig.savefig("train.jpg")

    # lr decay
    def lr_decay():
    global optimizer
    for params in optimizer.param_groups:
        params['lr'] *= 0.1
        lr = params['lr']
        print("Learning rate adjusted to {}".format(lr))

    def main():
    total_epoches = 40
    for epoch in range(start_epoch, start_epoch+total_epoches):
        train_loss, train_err = train(epoch)
        test_loss, test_err = test(epoch)
        draw_curve(epoch, train_loss, train_err, test_loss, test_err)
        if (epoch+1)%(total_epoches//2)==0:
            lr_decay()


    if __name__ == '__main__':
    main()

    import torch
    import torch.nn as nn
    import torch.nn.functional as F

    class BasicBlock(nn.Module):
    def __init__(self, c_in, c_out,is_downsample=False):
        super(BasicBlock,self).__init__()
        self.is_downsample = is_downsample
        if is_downsample:
            self.conv1 = nn.Conv2d(c_in, c_out, 3, stride=2, padding=1, bias=False)
        else:
            self.conv1 = nn.Conv2d(c_in, c_out, 3, stride=1, padding=1, bias=False)
        self.bn1 = nn.BatchNorm2d(c_out)
        self.relu = nn.ReLU(True)
        self.conv2 = nn.Conv2d(c_out,c_out,3,stride=1,padding=1, bias=False)
        self.bn2 = nn.BatchNorm2d(c_out)
        if is_downsample:
            self.downsample = nn.Sequential(
                nn.Conv2d(c_in, c_out, 1, stride=2, bias=False),
                nn.BatchNorm2d(c_out)
            )
        elif c_in != c_out:
            self.downsample = nn.Sequential(
                nn.Conv2d(c_in, c_out, 1, stride=1, bias=False),
                nn.BatchNorm2d(c_out)
            )
            self.is_downsample = True

    def forward(self,x):
        y = self.conv1(x)
        y = self.bn1(y)
        y = self.relu(y)
        y = self.conv2(y)
        y = self.bn2(y)
        if self.is_downsample:
            x = self.downsample(x)
        return F.relu(x.add(y),True)

    def make_layers(c_in,c_out,repeat_times, is_downsample=False):
    blocks = []
    for i in range(repeat_times):
        if i ==0:
            blocks += [BasicBlock(c_in,c_out, is_downsample=is_downsample),]
        else:
            blocks += [BasicBlock(c_out,c_out),]
    return nn.Sequential(*blocks)

    class Net(nn.Module):
    def __init__(self, num_classes=751, reid=False):
        super(Net,self).__init__()
        # 3 128 64
        self.conv = nn.Sequential(
            nn.Conv2d(3,64,3,stride=1,padding=1),
            nn.BatchNorm2d(64),
            nn.ReLU(inplace=True),
            # nn.Conv2d(32,32,3,stride=1,padding=1),
            # nn.BatchNorm2d(32),
            # nn.ReLU(inplace=True),
            nn.MaxPool2d(3,2,padding=1),
        )
        # 32 64 32
        self.layer1 = make_layers(64,64,2,False)
        # 32 64 32
        self.layer2 = make_layers(64,128,2,True)
        # 64 32 16
        self.layer3 = make_layers(128,256,2,True)
        # 128 16 8
        self.layer4 = make_layers(256,512,2,True)
        # 256 8 4
        self.avgpool = nn.AvgPool2d((8,4),1)
        # 256 1 1
        self.reid = reid

        self.classifier = nn.Sequential(
            nn.Linear(512, 256),
            nn.BatchNorm1d(256),
            nn.ReLU(inplace=True),
            nn.Dropout(),
            nn.Linear(256, num_classes),
        )

    def forward(self, x):
        x = self.conv(x)
        x = self.layer1(x)
        x = self.layer2(x)
        x = self.layer3(x)
        x = self.layer4(x)
        x = self.avgpool(x)
        x = x.view(x.size(0),-1)
        # B x 256
        if self.reid:
            x = x.div(x.norm(p=2,dim=1,keepdim=True))
            return x
        # classifier
        x = self.classifier(x)
        return x

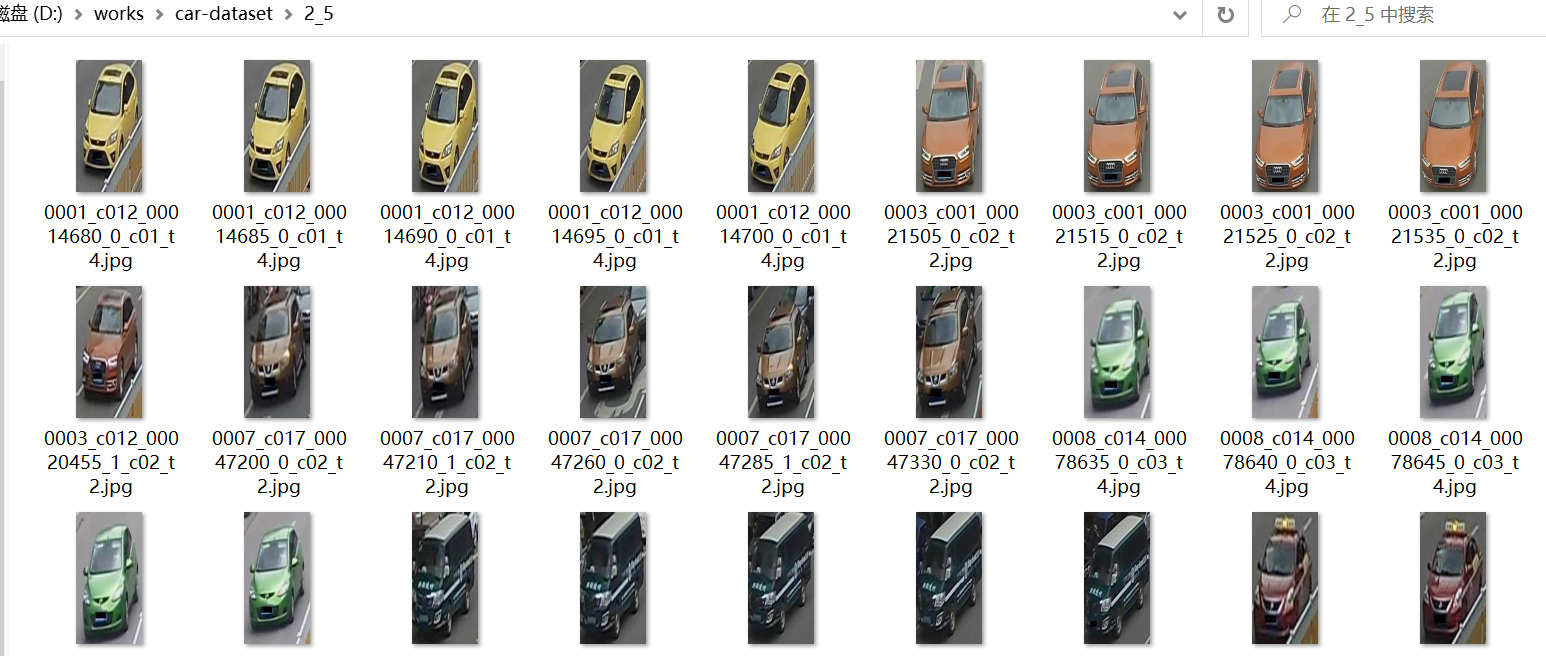

    python prepare_car.py

    class Net(nn.Module):
       def __init__(self, num_classes=751 ,reid=False):

    class Net(nn.Module):
       def __init__(self, num_classes=576 ,reid=False):

    python train.py --data-dir ./car-reid-dataset

    python count_car.py
