基于transformer的心脑血管心脏病疾病预测

 # pip install openpyxl -i https://pypi.tuna.tsinghua.edu.cn/simple/


 # pip install optuna -i https://pypi.tuna.tsinghua.edu.cn/simple/

 import numpy as np

 import pandas as pd

 from tqdm import tqdm

 import torch

 from torch import nn

 import torch.nn.functional as F

 from torch import tensor

 import torch.utils.data as Data

 import math

 from matplotlib import pyplot

 from datetime import datetime, timedelta

 from sklearn.model_selection import train_test_split

 import matplotlib.pyplot as plt

 import seaborn as sns

 import torch

 import torch.nn as nn

 import math

 import warnings



 warnings.filterwarnings("ignore")

 plt.rcParams['font.sans-serif'] = ['SimHei'] #用来正常显示中文标签

 plt.rcParams['axes.unicode_minus'] = False #用来正常显示负号



 # 设置随机参数：保证实验结果可以重复

 SEED = 1234

 import random



 random.seed(SEED)

 np.random.seed(SEED)

 torch.manual_seed(SEED)

 torch.cuda.manual_seed(SEED)  # 适用于显卡训练

 torch.cuda.manual_seed_all(SEED)  # 适用于多显卡训练

 from torch.backends import cudnn



 cudnn.benchmark = False

 cudnn.deterministic = True



 # 用30天的数据(包括这30天所有的因子和log_ret)预测下一天的log_ret

 device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

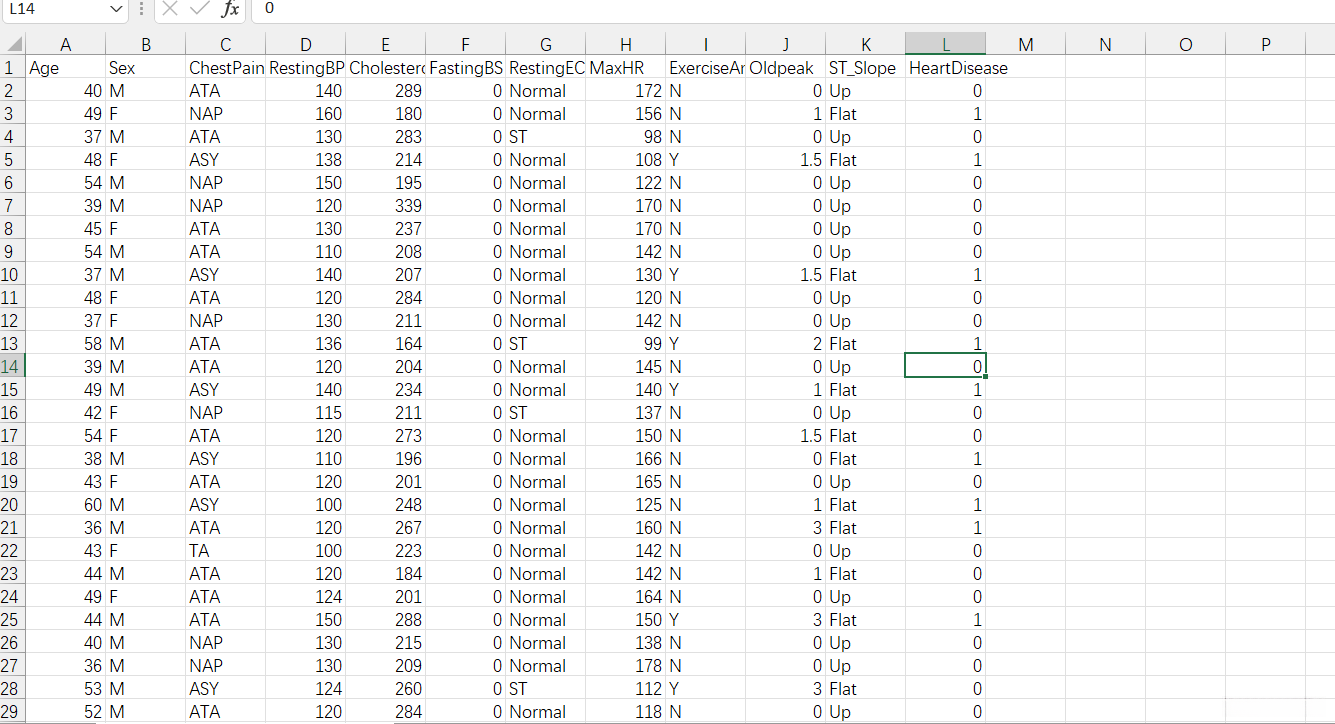

 date=pd.read_csv("Heart Disease Dataset（12 attributes）(1).csv")

 print(date.columns)

 print(date.head())

 data = date.fillna(-1)

 data_x=data[['Age', 'RestingBP', 'Cholesterol', 'FastingBS', 'MaxHR', 'Oldpeak',

    'HeartDisease']].values

 data_x=np.array(data_x,dtype=np.float16)

 print(data_x)



 data_31_x = []

 data_31_y = []



 for i in range(0, len(data_x) - 5,1):

     data_31_x.append(data_x[i:i+1])

     data_31_y.append(data_x[i+1][-1])

 print(len(data_31_x), len(data_31_y))



 class DataSet(Data.Dataset):

     def __init__(self, data_inputs, data_targets):

     self.inputs = torch.FloatTensor(data_inputs)

     self.label = torch.FloatTensor(data_targets)

     def __getitem__(self, index):

     return self.inputs[index], self.label[index]

     def __len__(self):

     return len(self.inputs)





 Batch_Size = 32  #

 DataSet = DataSet(np.array(data_31_x), list(data_31_y))

 train_size = int(len(data_31_y) * 0.8)

 test_size = len(data_31_y) - train_size

 train_dataset, test_dataset = torch.utils.data.random_split(DataSet, [train_size, test_size])

 TrainDataLoader = Data.DataLoader(train_dataset, batch_size=Batch_Size, shuffle=True, drop_last=True)

 TestDataLoader = Data.DataLoader(test_dataset, batch_size=Batch_Size, shuffle=True, drop_last=True)

 print("TestDataLoader 的batch个数", TestDataLoader.__len__())

 print("TrainDataLoader 的batch个数", TrainDataLoader.__len__())





 class PositionalEncoding(nn.Module):

     def __init__(self, d_model, max_len=5000):

     super(PositionalEncoding, self).__init__()

     pe = torch.zeros(max_len, d_model)

     position = torch.arange(0, max_len, dtype=torch.float).unsqueeze(1)

     div_term = torch.exp(torch.arange(0, d_model, 2).float() * (-math.log(10000.0) / d_model))

     pe[:, 0::2] = torch.sin(position * div_term)

     pe[:, 1::2] = torch.cos(position * div_term)

     pe = pe.unsqueeze(0).transpose(0,1)

     self.register_buffer('pe', pe)



     def forward(self, x: torch.Tensor):

     chunk = x.chunk(x.size(-1), dim=2)

     out = torch.Tensor([]).to(x.device)

     for i in range(len(chunk)):

         out = torch.cat((out, chunk[i] + self.pe[:chunk[i].size(0), ...]), dim=2)

     return out





 def transformer_generate_tgt_mask(length, device):

     mask = torch.tril(torch.ones(length, length, device=device)) == 1

     mask = (

     mask.float()

     .masked_fill(mask == 0, float("-inf"))

     .masked_fill(mask == 1, float(0.0))

     )

     return mask





 class Transformer(nn.Module):

     """标准的Transformer编码器-解码器结构"""



     def __init__(self, n_encoder_inputs, n_decoder_inputs, Sequence_length, d_model=512, dropout=0.1, num_layer=8):

     """

     初始化

     :param n_encoder_inputs:    输入数据的特征维度

     :param n_decoder_inputs:    编码器输入的特征维度，其实等于编码器输出的特征维度

     :param d_model:             词嵌入特征维度

     :param dropout:             dropout

     :param num_layer:           Transformer块的个数

      Sequence_length:           transformer 输入数据 序列的长度

     """

     super(Transformer, self).__init__()



     self.input_pos_embedding = torch.nn.Embedding(500, embedding_dim=d_model)

     self.target_pos_embedding = torch.nn.Embedding(500, embedding_dim=d_model)

     encoder_layer = torch.nn.TransformerEncoderLayer(d_model=d_model, nhead=num_layer, dropout=dropout,

                                                      dim_feedforward=4 * d_model)

     decoder_layer = torch.nn.TransformerDecoderLayer(d_model=d_model, nhead=num_layer, dropout=dropout,

                                                      dim_feedforward=4 * d_model)

     self.encoder = torch.nn.TransformerEncoder(encoder_layer, num_layers=2)

     self.decoder = torch.nn.TransformerDecoder(decoder_layer, num_layers=4)



     self.input_projection = torch.nn.Linear(n_encoder_inputs, d_model)

     self.output_projection = torch.nn.Linear(n_decoder_inputs, d_model)



     self.linear = torch.nn.Linear(d_model, 1)

     self.ziji_add_linear = torch.nn.Linear(Sequence_length, 2)



     def encode_in(self, src):

     src_start = self.input_projection(src).permute(1, 0, 2)

     in_sequence_len, batch_size = src_start.size(0), src_start.size(1)

     pos_encoder = (torch.arange(0, in_sequence_len, device=src.device).unsqueeze(0).repeat(batch_size, 1))

     pos_encoder = self.input_pos_embedding(pos_encoder).permute(1, 0, 2)

     src = src_start + pos_encoder

     src = self.encoder(src) + src_start

     return src



     def decode_out(self, tgt, memory):

     tgt_start = self.output_projection(tgt).permute(1, 0, 2)

     out_sequence_len, batch_size = tgt_start.size(0), tgt_start.size(1)

     pos_decoder = (torch.arange(0, out_sequence_len, device=tgt.device).unsqueeze(0).repeat(batch_size, 1))

     pos_decoder = self.target_pos_embedding(pos_decoder).permute(1, 0, 2)

     tgt = tgt_start + pos_decoder

     tgt_mask = transformer_generate_tgt_mask(out_sequence_len, tgt.device)

     out = self.decoder(tgt=tgt, memory=memory, tgt_mask=tgt_mask) + tgt_start

     out = out.permute(1, 0, 2)  # [batch_size, seq_len, d_model]

     out = self.linear(out)

     return out



     def forward(self, src, target_in):

     # print("src.shape", src.shape)

     src = self.encode_in(src)

     # print("src.shape",src.shape)#src.shape torch.Size([9, 8, 512])

     out = self.decode_out(tgt=target_in, memory=src)

     # print("out.shape",out.shape)

     # print("out.shape:",out.shape)# torch.Size([batch, 3, 1]) # 原本代码中的输出

     # 上边的这个输入可以用于很多任务的输出 可以根据任务进行自由的变换

     # 下面是自己修改的

     # 使用全连接变成 [batch,1] 构成了基于transformer的回归单值预测

     out = out.squeeze(2)

     out = self.ziji_add_linear(out)

     return out





 model = Transformer(n_encoder_inputs=7, n_decoder_inputs=7, Sequence_length=1).to(device)  # 3 表示Sequence_length  transformer 输入数据 序列的长度

 def test_main(model):

     val_epoch_loss = []

     with torch.no_grad():

     for index, (inputs, targets) in enumerate(TestDataLoader):

         inputs = torch.tensor(inputs).to(device)

         targets = torch.tensor(targets).to(device)

         inputs = inputs.float()

         targets = targets.float()

         tgt_in = torch.rand((Batch_Size,1,7))

         outputs = model(inputs, tgt_in)

         # print(outputs.float(), targets.float())

         outputs = torch.tensor(outputs, dtype=torch.float)

         targets = torch.tensor(targets, dtype=torch.long)

         loss = criterion(outputs, targets)

         val_epoch_loss.append(loss.item())

     return np.mean(val_epoch_loss)





 epochs = 50 #

 optimizer = torch.optim.Adamax(model.parameters(), lr=0.01) #

 criterion = torch.nn.CrossEntropyLoss().to(device)



 val_loss = []

 train_loss = []

 best_test_loss = 10000000

 for epoch in tqdm(range(epochs)):

     train_epoch_loss = []

     for index, (inputs, targets) in enumerate(TrainDataLoader):

     inputs = torch.tensor(inputs).to(device)

     targets = torch.tensor(targets).to(device)

     inputs = inputs.float()

     targets = targets.float()

     # print("inputs",inputs.shape) # [batch,3，16]

     # print("targets",targets.shape) # targets torch.Size([batch])

     tgt_in = torch.rand((Batch_Size,1,7))  # 输入数据的维度是[batch,序列长度，每个单元的维度]

     outputs = model(inputs, tgt_in)

     # print("outputs.shape:",outputs.shape) # outputs.shape [batch, 3, 1]

     outputs = torch.tensor(outputs, dtype=torch.float)

     targets = torch.tensor(targets, dtype=torch.long)

     loss = criterion(outputs, targets)

     loss.requires_grad_(True)

     print("loss:", loss)

     loss.backward()

     optimizer.step()

     train_epoch_loss.append(loss.item())

     train_loss.append(np.mean(train_epoch_loss))

     val_epoch_loss = test_main(model)

     val_loss.append(val_epoch_loss)

     print("epoch:", epoch, "train_epoch_loss:", np.mean(train_epoch_loss), "val_epoch_loss:", val_epoch_loss)

     # 保存下来最好的模型：

     if val_epoch_loss < best_test_loss:

     best_test_loss = val_epoch_loss

     best_model = model

     print("best_test_loss -------------------------------------------------", best_test_loss)

     torch.save(best_model.state_dict(), 'best_Transformer_trainModel.pth')



 # 画一下loss图

 fig = plt.figure(facecolor='white', figsize=(10, 7))

 plt.xlabel('X')

 plt.ylabel('Y')

 plt.xlim(xmax=len(val_loss), xmin=0)

 plt.ylim(ymax=max(max(train_loss), max(val_loss)), ymin=0)

 # 画两条（0-9）的坐标轴并设置轴标签x，y

 x1 = [i for i in range(0, len(train_loss), 1)]  # 随机产生300个平均值为2，方差为1.2的浮点数，即第一簇点的x轴坐标

 y1 = val_loss  # 随机产生300个平均值为2，方差为1.2的浮点数，即第一簇点的y轴坐标

 x2 = [i for i in range(0, len(train_loss), 1)]

 y2 = train_loss

 colors1 = '#00CED4'  # 点的颜色

 colors2 = '#DC143C'

 area = np.pi * 4 ** 1  # 点面积

 # 画散点图

 plt.scatter(x1, y1, s=area, c=colors1, alpha=0.4, label='val_loss')

 plt.scatter(x2, y2, s=area, c=colors2, alpha=0.4, label='train_loss')

 plt.legend()

 plt.savefig('transformer_loss图.png')

 plt.show()



 # 加载模型预测------

 model = Transformer(n_encoder_inputs=7, n_decoder_inputs=7, Sequence_length=1).to(device)

 model.load_state_dict(torch.load('best_Transformer_trainModel.pth'))

 model.to(device)

 model.eval()

 # 在对模型进行评估时，应该配合使用with torch.no_grad() 与 model.eval()：



 y_pred = []

 y_true = []

 with torch.no_grad():

     with torch.no_grad():

     val_epoch_loss = []

     for index, (inputs, targets) in enumerate(TestDataLoader):

         inputs = torch.tensor(inputs).to(device)

         targets = torch.tensor(targets).to(device)

         inputs = inputs.float()

         targets = targets.float()

         tgt_in = torch.rand((Batch_Size,1,7))

         outputs = model(inputs, tgt_in)

         print("outputs",outputs)

         print("targets",targets)

         outputs = outputs.cpu().numpy()

         for t in np.array(outputs):

             t = np.argmax(t)

             y_pred.append(t)

         for ii in targets:

             y_true.append(ii)

 from sklearn.metrics import f1_score

 from sklearn.metrics import accuracy_score

 Acc = accuracy_score(y_true, y_pred)

 print("Acc",Acc)

 Fa = f1_score(y_true, y_pred, average='macro')

 print("Fa", Fa)



 # xgboost
