【python】利用哈希直方图截取图像相似度&FFmpeg截取视频

 import os


 import cv2

 import subprocess



 os.chdir('/Users/liruiying/Documents/pythonclass2021')

 v_path='vm1.mp4'

 image_save='/Users/liruiying/Documents/pythonclass2021/vm_pic'



 cap=cv2.VideoCapture(v_path)

 frame_count=cap.get(cv2.CAP_PROP_FRAME_COUNT)

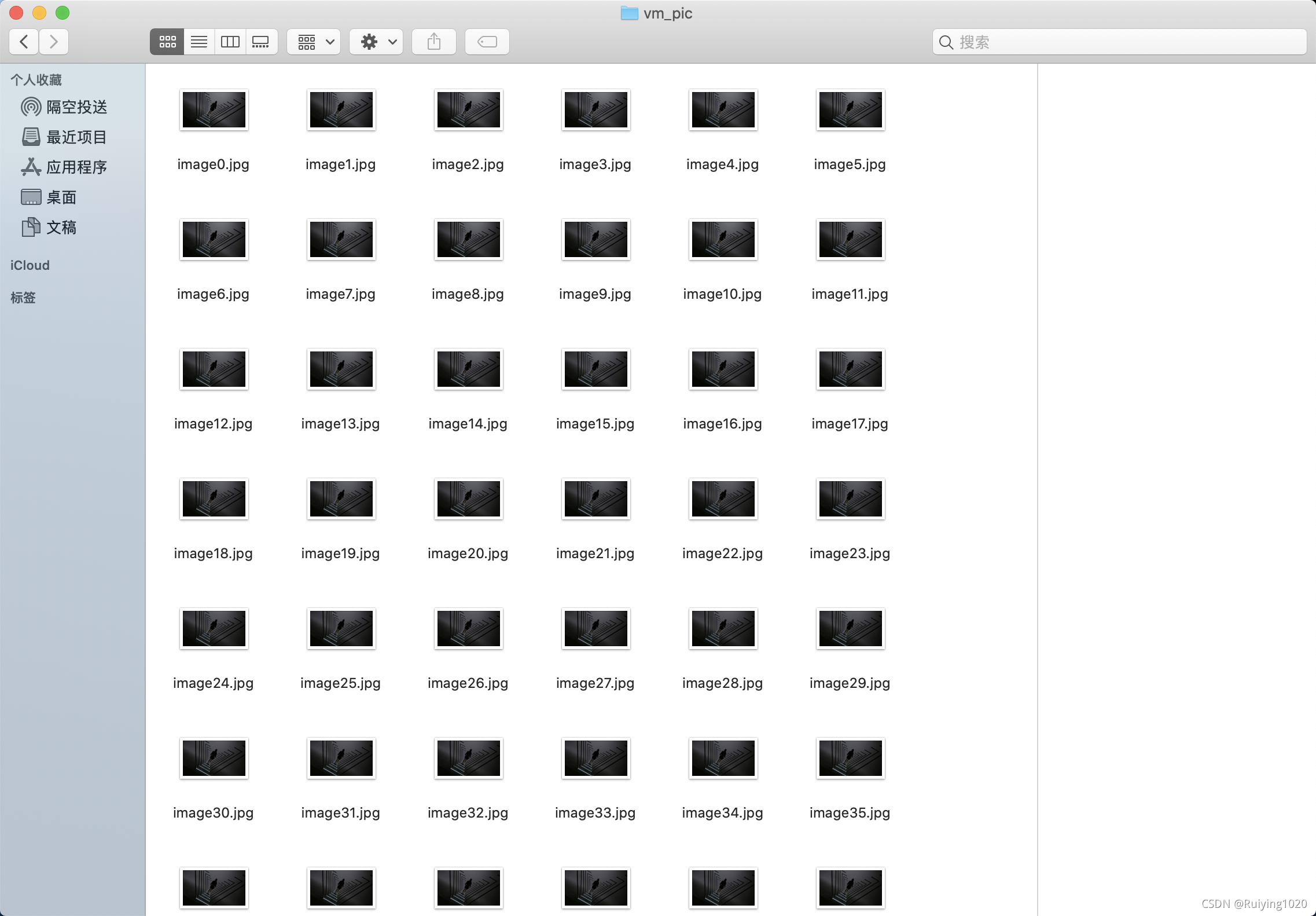

 for i in range(int(frame_count)):

     _,img=cap.read()

     cv2.imwrite('/Users/liruiying/Documents/pythonclass2021/vm_pic/image{}.jpg'.format(i),img)

 import cv2


 import numpy as np

 import matplotlib.pyplot as plt

 import os

 os.chdir(r'/Users/liruiying/Documents/pythonclass2021')





 # 均值哈希算法

 def aHash(img):

     # 缩放为8*8

     plt.imshow(img)

     plt.axis('off')  #去掉坐标轴

     plt.show()

     img = cv2.resize(img, (8, 8))

     plt.imshow(img)

     plt.axis('off')  #去掉坐标轴

     plt.show()



     # 转换为灰度图

     gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)

     # s为像素和初值为0，hash_str为hash值初值为''

     s = 0

     hash_str = ''

     # 遍历累加求像素和

     for i in range(8):

     for j in range(8):

         s = s + gray[i, j]

     # 求平均灰度

     avg = s / 64

     # 灰度大于平均值为1相反为0生成图片的hash值

     for i in range(8):

     for j in range(8):

         if gray[i, j] > avg:

             hash_str = hash_str + '1'

         else:

             hash_str = hash_str + '0'

     return hash_str







 # 通过得到RGB每个通道的直方图来计算相似度

 def classify_hist_with_split(image1, image2, size=(256, 256)):

     # 将图像resize后，分离为RGB三个通道，再计算每个通道的相似值

     image1 = cv2.resize(image1, size)

     image2 = cv2.resize(image2, size)

     plt.imshow(image1)

     plt.show()

     plt.axis('off')



     plt.imshow(image2)

     plt.show()

     plt.axis('off')



     sub_image1 = cv2.split(image1)

     sub_image2 = cv2.split(image2)

     sub_data = 0



     for im1, im2 in zip(sub_image1, sub_image2):

     sub_data += calculate(im1, im2)

     sub_data = sub_data / 3

     return sub_data





 # 计算单通道的直方图的相似值

 def calculate(image1, image2):

     hist1 = cv2.calcHist([image1], [0], None, [256], [0.0, 255.0])

     hist2 = cv2.calcHist([image2], [0], None, [256], [0.0, 255.0])

     plt.plot(hist1, color="r")

     plt.plot(hist2, color="g")

     plt.show()

     # 计算直方图的重合度

     degree = 0

     for i in range(len(hist1)):

     if hist1[i] != hist2[i]:

         degree = degree + (1 - abs(hist1[i] - hist2[i]) / max(hist1[i], hist2[i]))

     else:

         degree = degree + 1    #统计相似

     degree = degree / len(hist1)

     return degree





 # Hash值对比

 def cmpHash(hash1, hash2):

     n = 0

     print(hash1)

     print(hash2)

     # hash长度不同则返回-1代表传参出错

     if len(hash1)!=len(hash2):

     return -1

     # 遍历判断

     for i in range(len(hash1)):

     # 不相等则n计数+1，n最终为相似度

     if hash1[i] != hash2[i]:

         n = n + 1

     return n

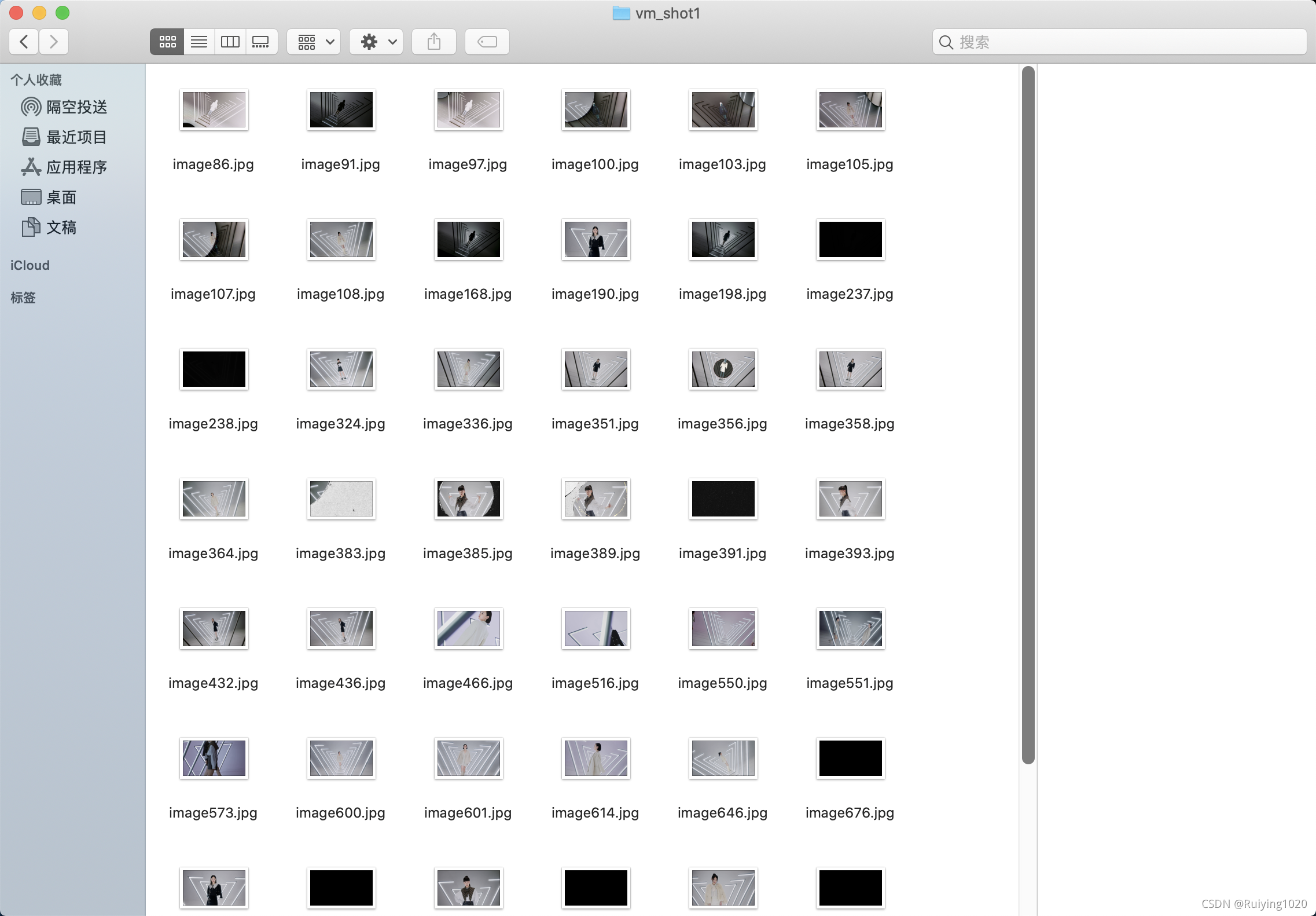

 for i in range(825):

     img1=cv2.imread('./vm_pic/image{}.jpg'.format(i))

     img2=cv2.imread('./vm_pic/image{}.jpg'.format(i+1))

     hash1=aHash(img1)

     hash2=aHash(img2)

     n=cmpHash(hash1,hash2)

     if(n>15):

     print('均值哈希算法相似度：',n/64)

     cv2.imwrite('./vm_shot1/image{}.jpg'.format(i+1),img2)





 n = classify_hist_with_split(img1, img2)

 print('三直方图算法相似度：', n)
