AIoT人工智能物联网之deepstream

 import gi


 gi.require_version('Gst','1.0')

 gi.require_version('GstRtspServer','1.0')

 from gi.repository import Gst, GObject, GstRtspServer



 Gst.init(None)

 mainloop = GObject.MainLoop()          # 产生循环

 server = GstRtspServer.RTSPServer()    # 服务

 factory = GstRtspServer.RTSPMediaFactory() # 工程产生管道

 factory.set_launch(

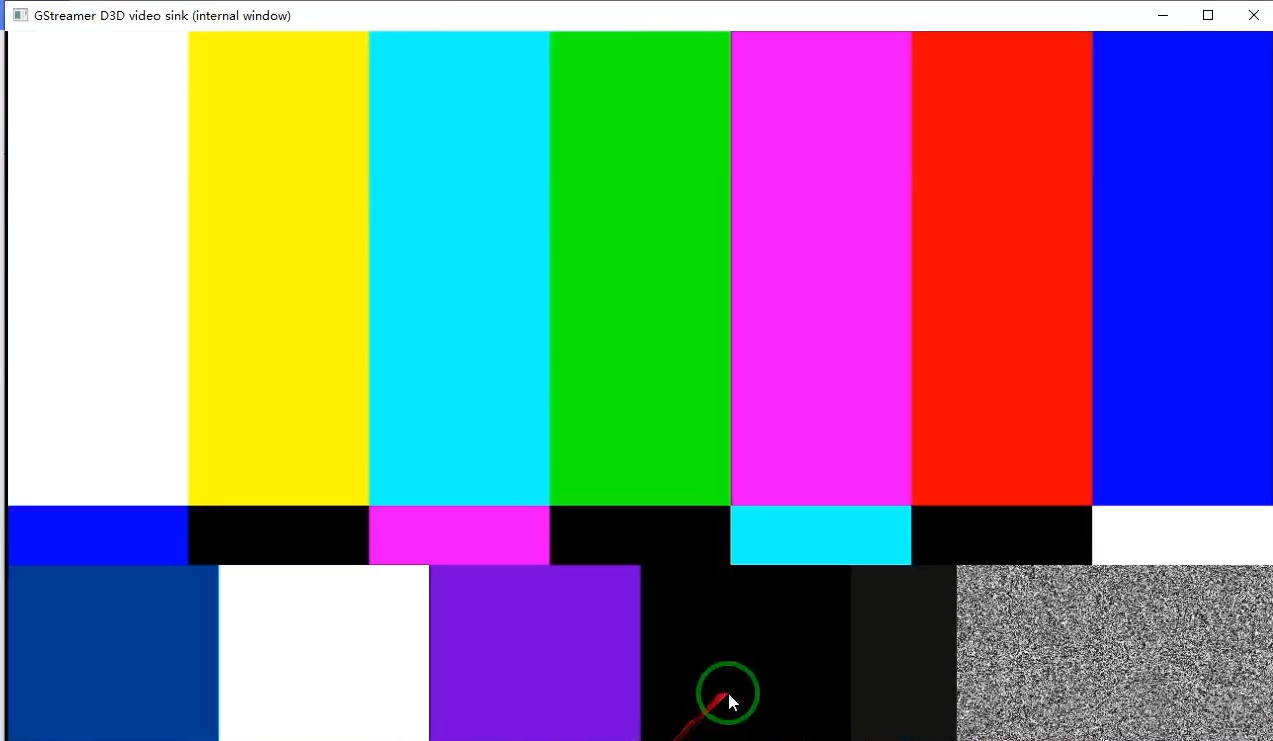

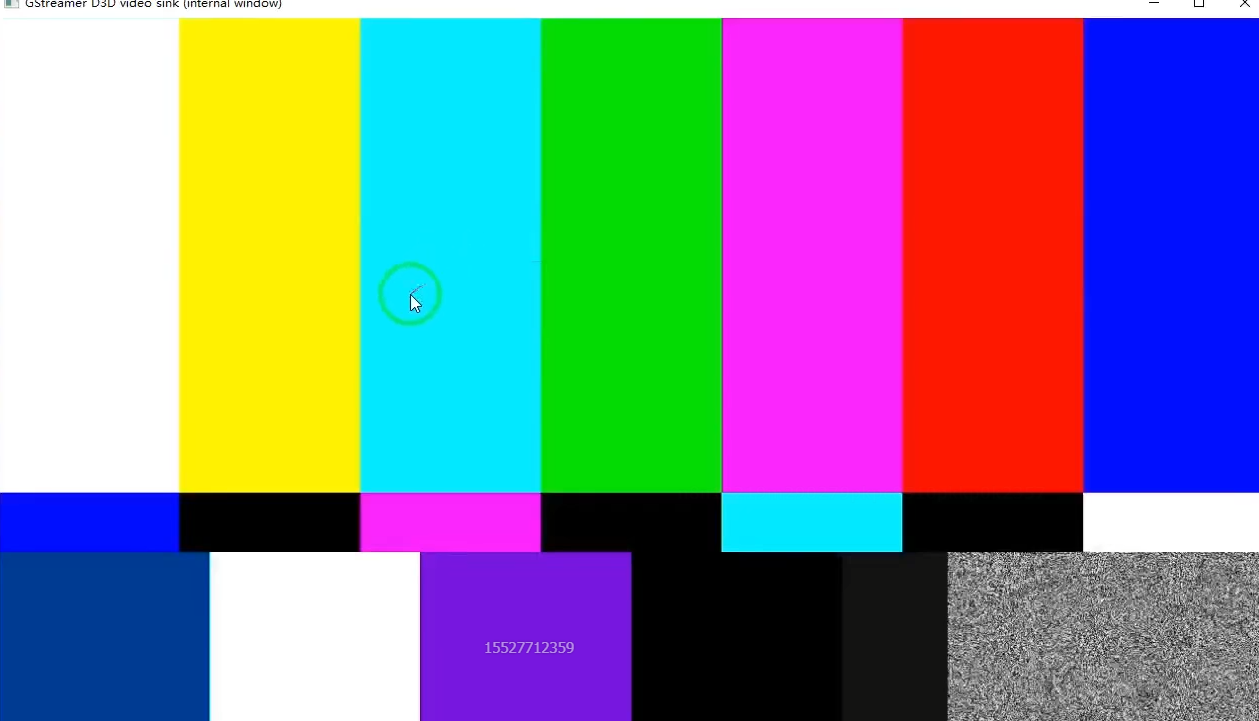

     ' ( videotestsrc is-live=1 '

     '! video/x-raw,format=(string)NV12,width=(int)320,height=(int)180,framerate=20/1 '

     '! nvvidconv ! nvv4l2h264enc ! h264parse ! rtph264pay name=pay0 bitrate=40000 pt=96 ) '

 )

 # allow multiple connections

 factory.set_shared(True)     # 设置共享，可以多个连接

 mounts = server.get_mount_points()  # 产生挂载点

 mounts.add_factory('/live', factory) # 工程挂载上去

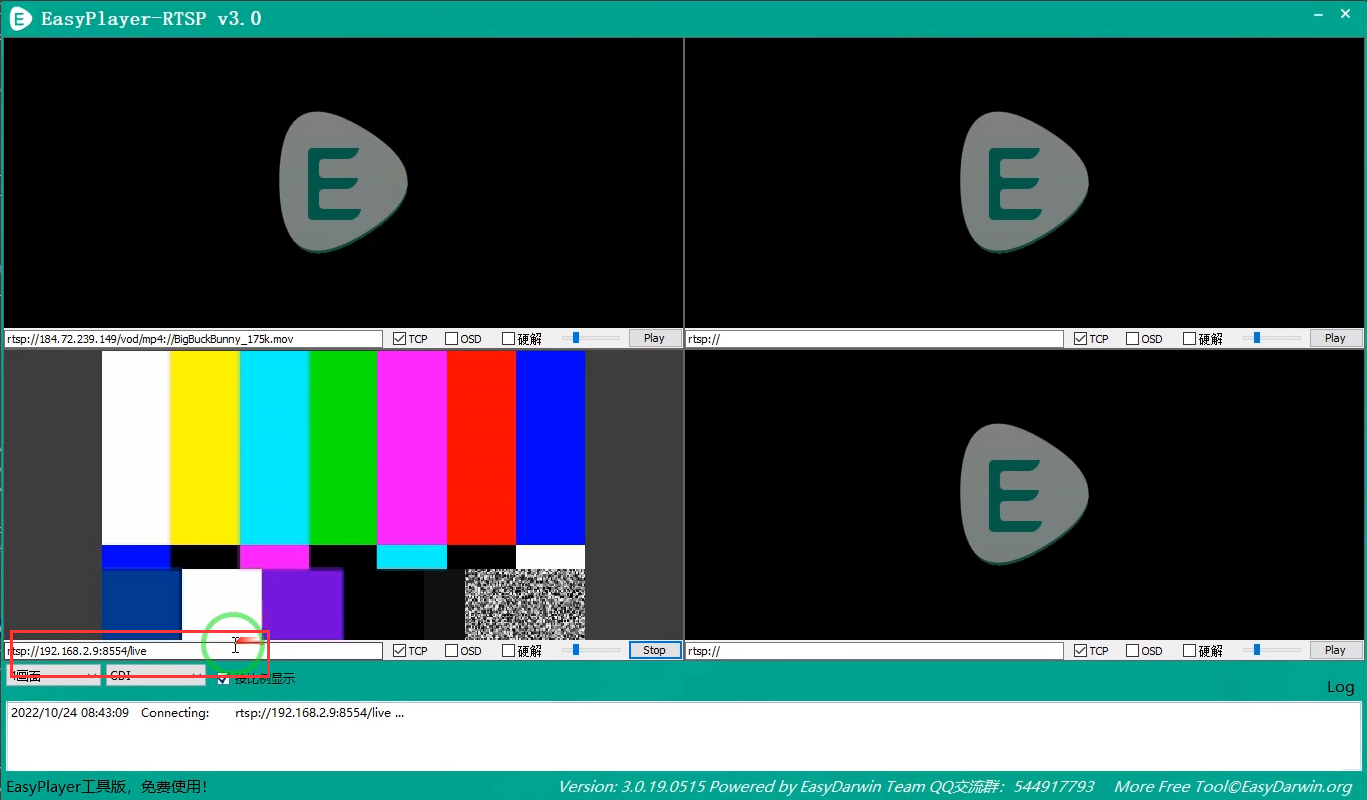

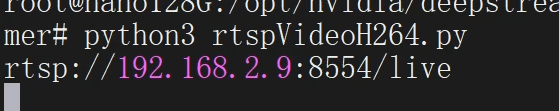

 print('rtsp://192.168.2.9:8554/live')

 server.attach(None)

 mainloop.run()




    AI助手

 import gi


 gi.require_version('Gst','1.0')

 gi.require_version('GstRtspServer','1.0')

 from gi.repository import Gst, GObject, GstRtspServer



 Gst.init(None)

 mainloop = GObject.MainLoop()

 server = GstRtspServer.RTSPServer()

 factory = GstRtspServer.RTSPMediaFactory()

 factory.set_launch(

     ' ( nvarguscamerasrc '  # 内存运到显存

     '! video/x-raw(memory:NVMM),width=(int)1280,height=(int)720,format=(string)NV12,framerate=(fraction)30/1 '

     '! nvv4l2h264enc ! h264parse ! rtph264pay name=pay0 bitrate=40000 pt=96 ) '

 )



 # allow multiple connections

 factory.set_shared(True)

 mounts = server.get_mount_points()

 mounts.add_factory('/live', factory)

 print('rtsp://192.168.2.9:8554/live')

 server.attach(None)

 mainloop.run()




    AI助手

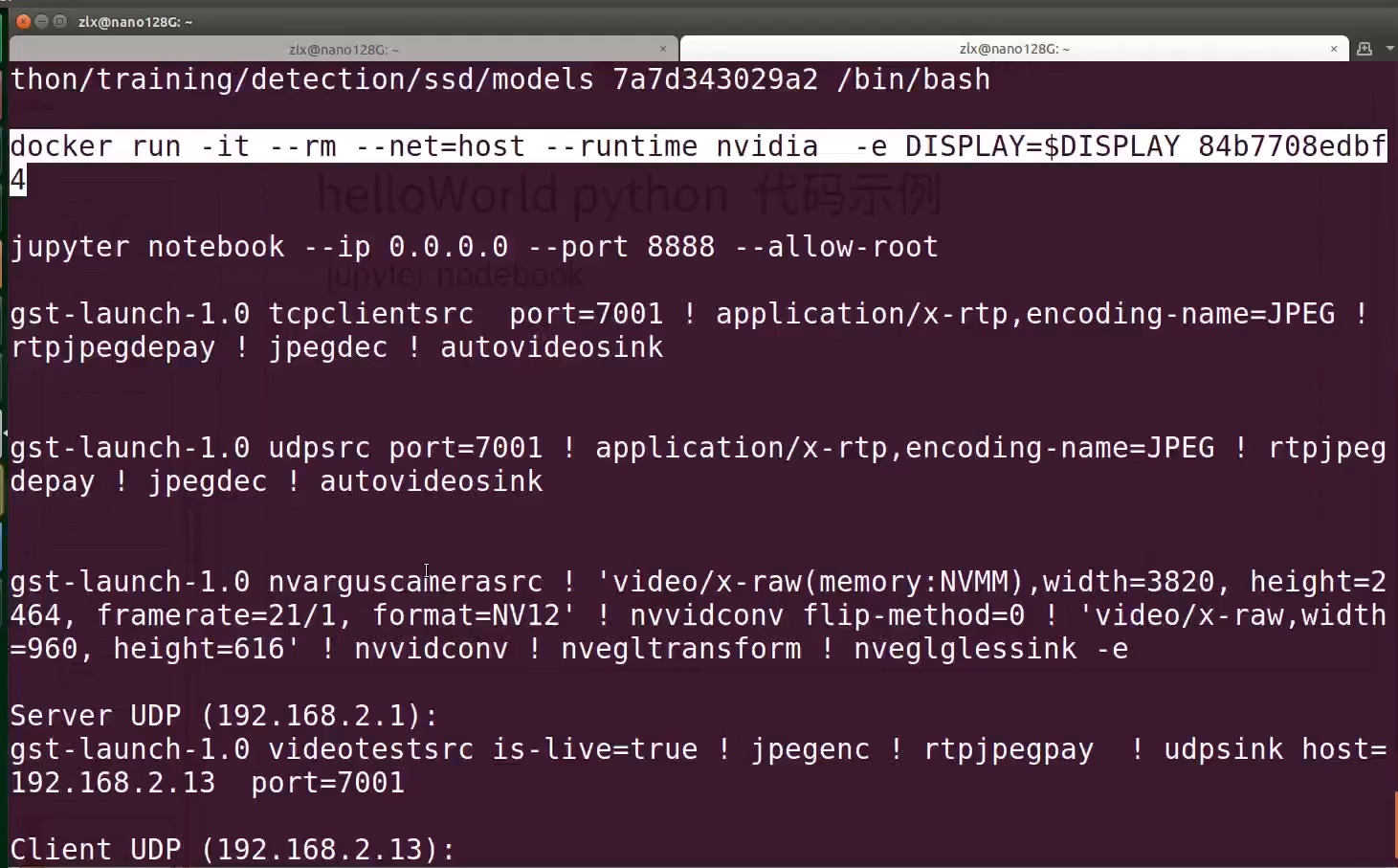

 gst-launch-1.0 udpsrc port=5004 name=pay0 buffer-size=524288


 caps="application/x-rtp, media=video, clock-rate=90000,

 encoding-name=(string)H264, payload=96 " ! rtph264depay !

 h264parse ! nvh264dec ! videoconvert ! autovideosink -e




    AI助手

 gst-launch-1.0 -v nvarguscamerasrc bufapi-version=1 ! 'video/xraw(memory:NVMM),width=(int)1280,height=(int)720,format=(stri


 ng)NV12,framerate=(fraction)30/1' ! nvv4l2h264enc presetlevel=1 insert-sps-pps=1 bufapi-version=1 ! h264parse !

 rtph264pay pt=96 ! udpsink host=192.168.2.7 port=5004

 async=False sync=1




    AI助手

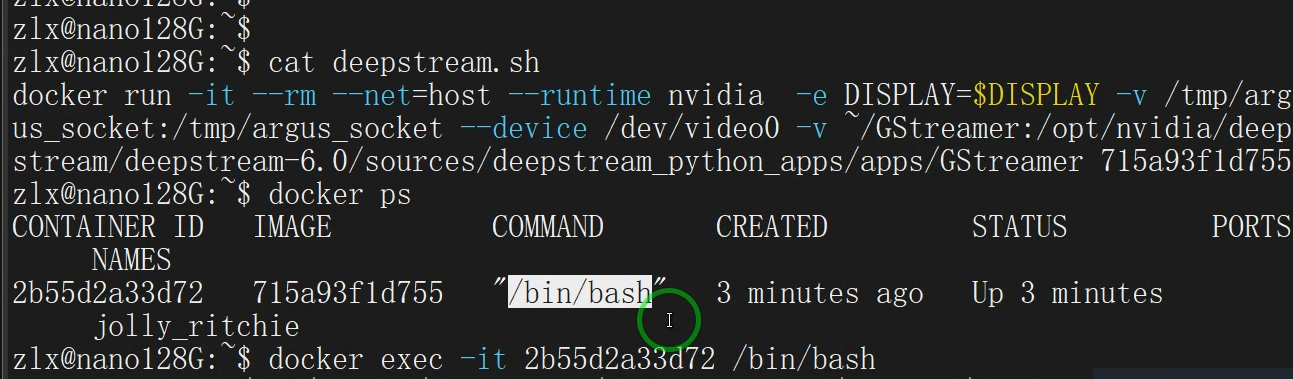

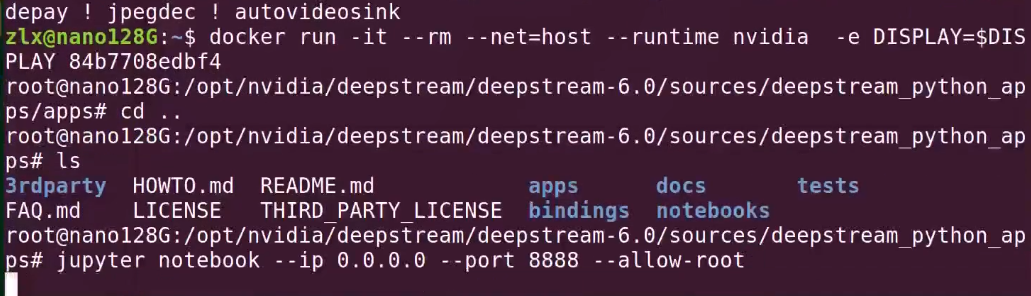

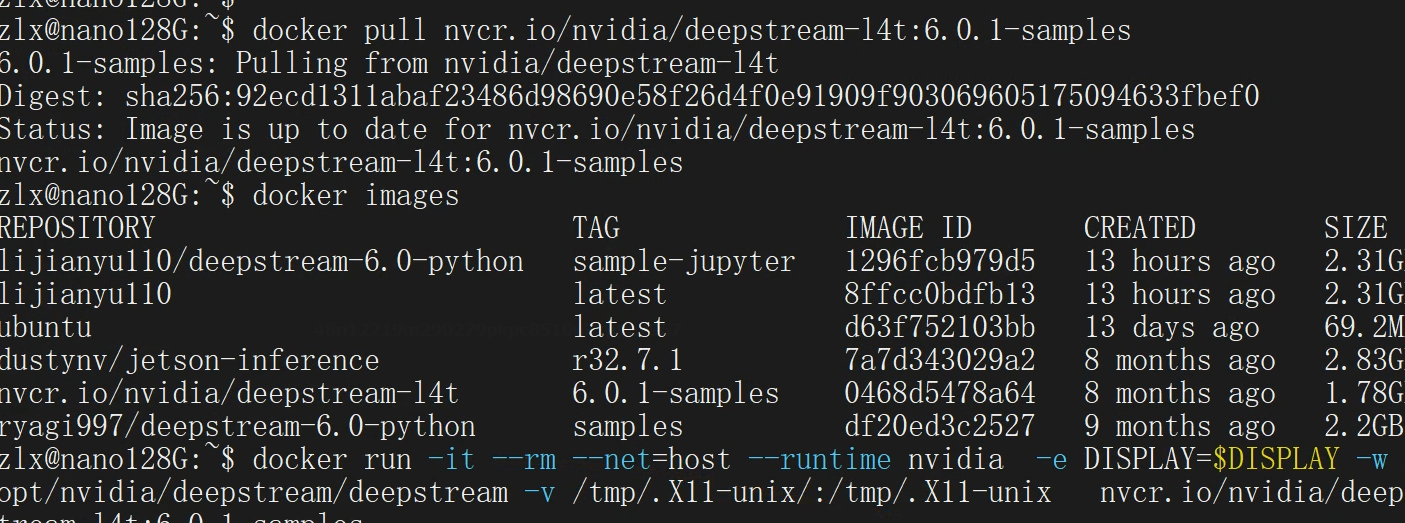

 在宿主机上执行，避免无法获取到图形界面的一些问题，

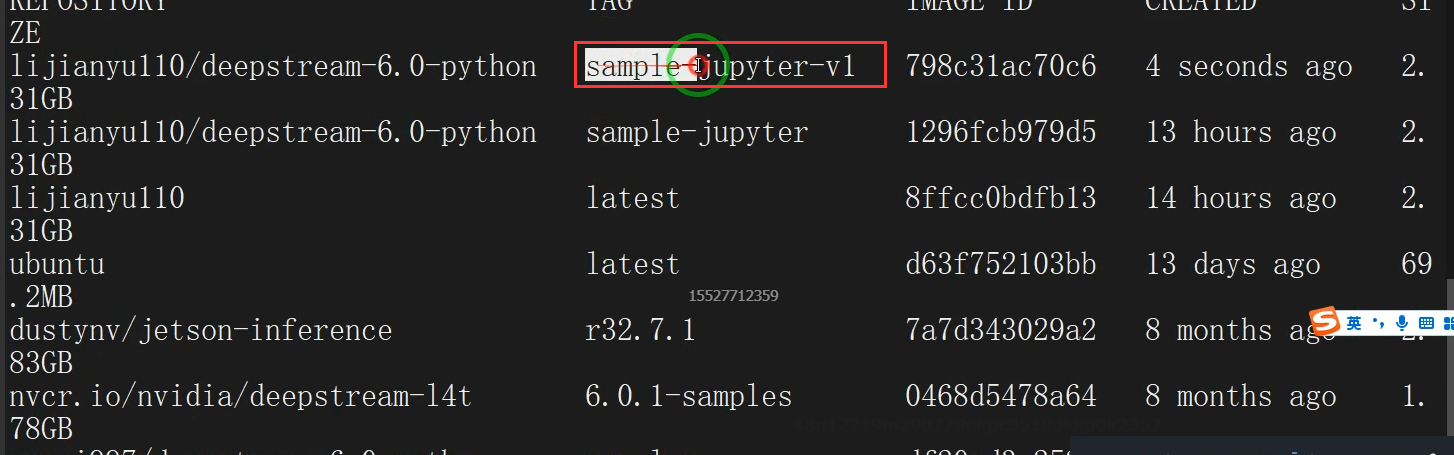

 715a93f1d755是ImageId 改为你自己的，注意GStreamer目录映

 射

 docker run -it --rm --net=host --runtime nvidia -e

 DISPLAY=$DISPLAY -v /tmp/argus_socket:/tmp/argus_socket -- device /dev/video0 -v

 ~/GStreamer:/opt/nvidia/deepstream/deepstream- 6.0/sources/deepstream_python_apps/apps/GStreamer

 715a93f1d755




    AI助手

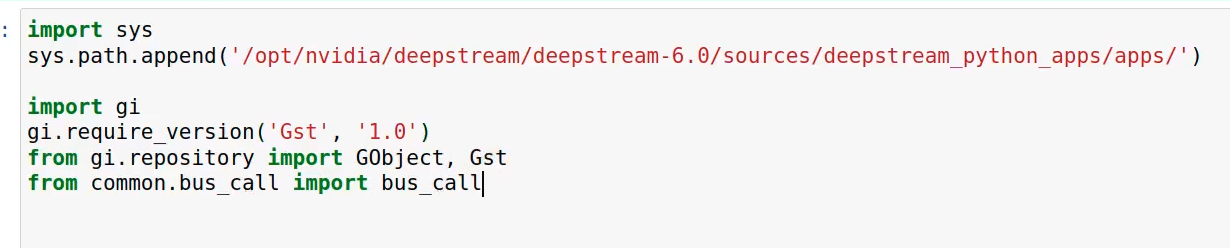

 import sys


 sys.path.append('../')

 import gi

 gi.require_version('Gst', '1.0')

 from gi.repository import GObject, Gst

 from common.bus_call import bus_call



 # 本程序等价于 下面的脚本, 自动使用时注意把192.168.2.7改为自己的客户端IP

 # gst-launch-1.0 -v nvarguscamerasrc

 # ! 'video/x-raw(memory:NVMM),width=(int)1280,height=(int)720,format=(string)NV12,framerate=(fraction)30/1'

 # ! nvv4l2h264enc ! h264parse ! rtph264pay pt=96

 # ! udpsink host=192.168.2.7 port=5004





 Gst.init(None)

 pipeline = Gst.Pipeline()

 camerasrc  = Gst.ElementFactory.make("nvarguscamerasrc", "nv-arguscamerasrc") # 创建element

 caps = Gst.ElementFactory.make("capsfilter", "filter") # 格式

 caps.set_property("caps", Gst.Caps.from_string("video/x-raw(memory:NVMM),width=(int)1280,height=(int)720,format=(string)NV12,framerate=(fraction)30/1"))

 encoder = Gst.ElementFactory.make("nvv4l2h264enc", "encoder") # 创建编码器

 h264parse = Gst.ElementFactory.make("h264parse", "h264parse")

 rtppay = Gst.ElementFactory.make("rtph264pay", "rtppay")

 sink = Gst.ElementFactory.make("udpsink", "udpsink")

 camerasrc.set_property('bufapi-version', 1)

 encoder.set_property('preset-level', 1)

 encoder.set_property('insert-sps-pps', 1)

 encoder.set_property('bufapi-version', 1)

 rtppay.set_property("pt", 96)

 sink.set_property('host', '192.168.2.7')

 sink.set_property('port', 5004)

 sink.set_property('async', False)

 sink.set_property('sync', 1)

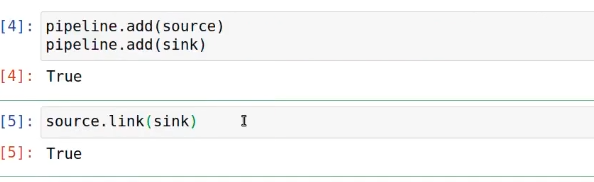

 pipeline.add(camerasrc ) # 加入到管道中

 pipeline.add(caps)

 pipeline.add(encoder)

 pipeline.add(h264parse)

 pipeline.add(rtppay)

 pipeline.add(sink)



 camerasrc.link(caps)  # 连接起来

 caps.link(encoder)

 encoder.link(h264parse)

 h264parse.link(rtppay)

 rtppay.link(sink)

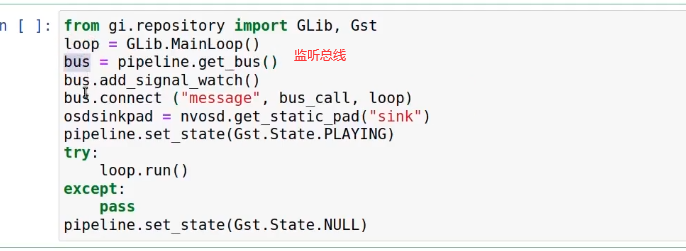

 loop = GObject.MainLoop() # 循环

 bus = pipeline.get_bus()  # 总线

 bus.add_signal_watch()    # 信号连接器

 bus.connect("message", bus_call, loop)

 pipeline.set_state(Gst.State.PLAYING)

 try:

     loop.run()

 except:

     pass

 pipeline.set_state(Gst.State.NULL)



 # 摄像头RTP客户端Windows

 # gst-launch-1.0 udpsrc port=5004 name=pay0 buffer-size=524288 caps="application/x-rtp, media=video, clock-rate=90000, encoding-name=(string)H264, payload=96 " ! rtph264depay ! h264parse ! nvh264dec ! videoconvert ! autovideosink -e






    AI助手

 import sys


 sys.path.append('../')

 import gi

 gi.require_version('Gst', '1.0')

 gi.require_version('GstRtspServer', '1.0')  # 注册一个rtsp server

 from gi.repository import GObject, Gst, GstRtspServer

 from common.bus_call import bus_call



 GObject.threads_init()

 Gst.init(None)



 pipeline = Gst.Pipeline()

 camerasrc  = Gst.ElementFactory.make("nvarguscamerasrc", "nv-arguscamerasrc")

 caps = Gst.ElementFactory.make("capsfilter", "filter")

 caps.set_property("caps", Gst.Caps.from_string("video/x-raw(memory:NVMM),width=(int)1280,height=(int)720,format=(string)NV12,framerate=(fraction)30/1"))

 encoder = Gst.ElementFactory.make("nvv4l2h264enc", "encoder")

 h264parse = Gst.ElementFactory.make("h264parse", "h264parse")

 rtppay = Gst.ElementFactory.make("rtph264pay", "rtppay")

 sink = Gst.ElementFactory.make("udpsink", "udpsink")

 camerasrc.set_property('bufapi-version', 1)

 encoder.set_property('preset-level', 1)

 encoder.set_property('insert-sps-pps', 1)

 encoder.set_property('bufapi-version', 1)

 rtppay.set_property("pt", 96)

 sink.set_property('host', '192.168.2.9') # 本机IP

 sink.set_property('port', 5004)

 sink.set_property('async', False)

 sink.set_property('sync', 1)



 pipeline.add(camerasrc )

 pipeline.add(caps)

 pipeline.add(encoder)

 pipeline.add(h264parse)

 pipeline.add(rtppay)

 pipeline.add(sink)



 camerasrc .link(caps)

 caps.link(encoder)

 encoder.link(h264parse)

 h264parse.link(rtppay)

 rtppay.link(sink)



 server = GstRtspServer.RTSPServer.new()  # 产生一个设置实例

 server.props.service = "%d" % 8554   # 整型，设置端口号

 server.attach(None)

 factory = GstRtspServer.RTSPMediaFactory.new() # 产生工厂,提供多媒体数据

 factory.set_launch(

     "( udpsrc name=pay0 port=%d buffer-size=524288 caps=\"application/x-rtp, media=video, clock-rate=90000, encoding-name=(string)H264, payload=96 \" )" % (

     5004))

 factory.set_shared(True) # 共享

 server.get_mount_points().add_factory("/live", factory) # 挂载



 loop = GObject.MainLoop()

 bus = pipeline.get_bus()

 bus.add_signal_watch()

 bus.connect("message", bus_call, loop)

 pipeline.set_state(Gst.State.PLAYING)

 print("rtsp://192.168.2.9:8554/live")

 try:

     loop.run()

 except:

     pass

 pipeline.set_state(Gst.State.NULL)




    AI助手

 import sys


 sys.path.append('../')



 import gi

 gi.require_version('Gst', '1.0')

 gi.require_version('GstRtspServer', '1.0')



 from gi.repository import GObject, Gst, GstRtspServer

 from common.bus_call import bus_call



 GObject.threads_init()

 Gst.init(None)



 pipeline = Gst.Pipeline()

 camerasrc = Gst.ElementFactory.make("nvarguscamerasrc", "nv-arguscamerasrc")

 caps = Gst.ElementFactory.make("capsfilter", "filter")

 caps.set_property("caps", Gst.Caps.from_string("video/x-raw(memory:NVMM),width=(int)1280,height=(int)720,format=(string)NV12,framerate=(fraction)30/1"))



 # Create nvstreammux instance to form batches from one or more sources.

 streammux = Gst.ElementFactory.make("nvstreammux", "Stream-muxer")

 streammux.set_property('width', 1280)

 streammux.set_property('height', 720)

 streammux.set_property('batch-size', 1)

 streammux.set_property('batched-push-timeout', 4000000)

 # Use nvinfer to run inferencing on decoder's output,

 # behaviour of inferencing is set through config file

 pgie = Gst.ElementFactory.make("nvinfer", "primary-inference")       # 主推理

 pgie.set_property('config-file-path', "pgie_yolov4_tiny_tao_config.txt") # 设置配置文件

 # Use convertor to convert from NV12 to RGBA as required by nvosd

 nvvidconv = Gst.ElementFactory.make("nvvideoconvert", "convertor")   # 转换

 # Create OSD to draw on the converted RGBA buffer

 nvosd = Gst.ElementFactory.make("nvdsosd", "onscreendisplay")   # 元数据写入图片

 nvvidconv_postosd = Gst.ElementFactory.make("nvvideoconvert", "convertor_postosd") # 转换回来

 # Create a caps filter

 caps_postosd = Gst.ElementFactory.make("capsfilter", "caps_postosd_filter")

 caps_postosd.set_property("caps", Gst.Caps.from_string("video/x-raw(memory:NVMM), format=I420"))



 encoder = Gst.ElementFactory.make("nvv4l2h264enc", "encoder")

 h264parse = Gst.ElementFactory.make("h264parse", "h264parse")

 rtppay = Gst.ElementFactory.make("rtph264pay", "rtppay")

 sink = Gst.ElementFactory.make("udpsink", "udpsink")

 camerasrc.set_property('bufapi-version', 1)

 encoder.set_property('preset-level', 1)

 encoder.set_property('insert-sps-pps', 1)

 encoder.set_property('bufapi-version', 1)

 rtppay.set_property("pt", 96)

 sink.set_property('host', '192.168.2.9') # 本机IP

 sink.set_property('port', 5004)

 sink.set_property('async', False)

 sink.set_property('sync', 1)



 pipeline.add(camerasrc)

 pipeline.add(caps)



 # 新增

 pipeline.add(streammux)

 pipeline.add(pgie)

 pipeline.add(nvvidconv)

 pipeline.add(nvosd)

 pipeline.add(nvvidconv_postosd)

 pipeline.add(caps_postosd)



 pipeline.add(encoder)

 pipeline.add(h264parse)

 pipeline.add(rtppay)

 pipeline.add(sink)

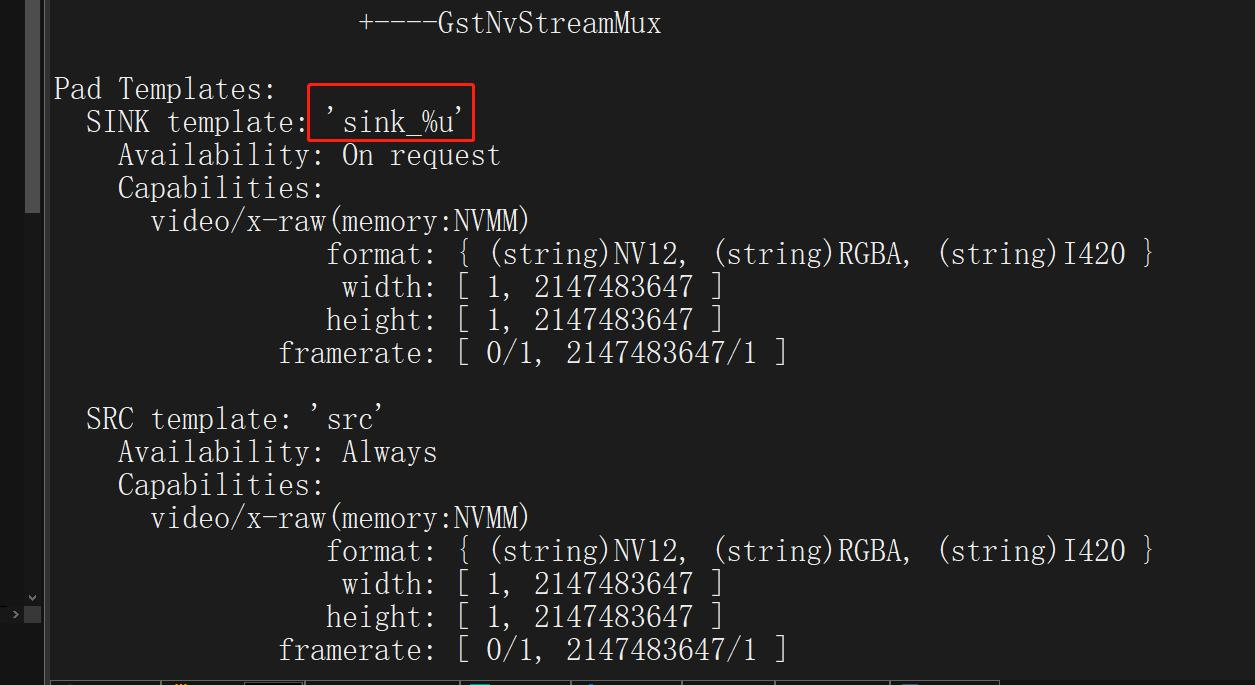

 sinkpad = streammux.get_request_pad("sink_0") # 可以有多个数据源，选择一个数据源

 srcpad = caps.get_static_pad("src")           # 获取src源



 camerasrc .link(caps)

 srcpad.link(sinkpad)

 streammux.link(pgie)



 pgie.link(nvvidconv)

 nvvidconv.link(nvosd)

 nvosd.link(nvvidconv_postosd)

 nvvidconv_postosd.link(caps_postosd)



 caps_postosd.link(encoder)

 encoder.link(h264parse)

 h264parse.link(rtppay)

 rtppay.link(sink)



 server = GstRtspServer.RTSPServer.new()

 server.props.service = "%d" % 8554

 server.attach(None)

 factory = GstRtspServer.RTSPMediaFactory.new()

 factory.set_launch(

     "( udpsrc name=pay0 port=%d buffer-size=524288 caps=\"application/x-rtp, media=video, clock-rate=90000, encoding-name=(string)H264, payload=96 \" )" % (

     5004))

 factory.set_shared(True)

 server.get_mount_points().add_factory("/live", factory)



 loop = GObject.MainLoop()

 bus = pipeline.get_bus()

 bus.add_signal_watch()

 bus.connect("message", bus_call, loop)

 pipeline.set_state(Gst.State.PLAYING)

 print("rtsp://192.168.2.9:8554/live")

 try:

     loop.run()

 except:

     pass

 pipeline.set_state(Gst.State.NULL)




    AI助手

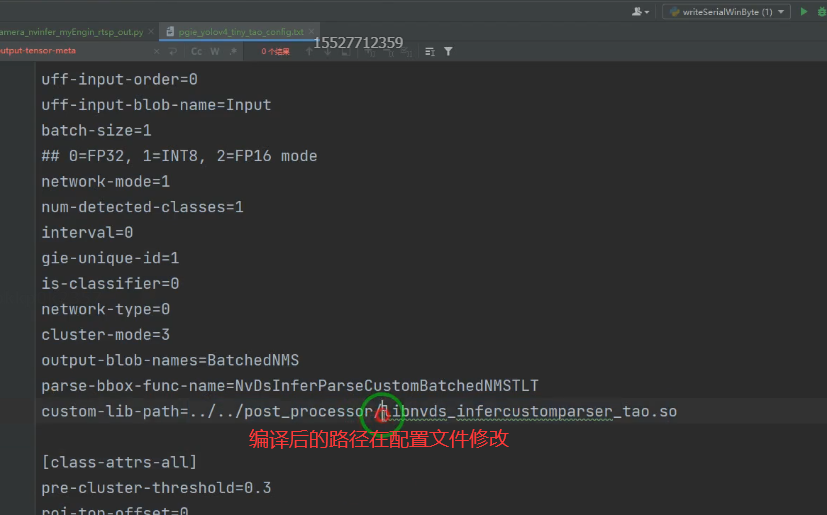

 # Following properties are mandatory when engine files are not specified:


 #   int8-calib-file(Only in INT8)

 #   Caffemodel mandatory properties: model-file, proto-file, output-blob-names

 #

 # Mandatory properties for detectors:

 #   num-detected-classes

 #

 # Following properties are always recommended:

 #   batch-size(Default=1)

 #

 # Other optional properties:

 #   net-scale-factor(Default=1), network-mode(Default=0 i.e FP32),

 #   model-color-format(Default=0 i.e. RGB) model-engine-file, labelfile-path,

 #   mean-file, gie-unique-id(Default=0), offsets, process-mode (Default=1 i.e. primary),

 #   custom-lib-path, network-mode(Default=0 i.e FP32)

 #

 # The values in the config file are overridden by values set through GObject

 # properties.



 # Gst-nvinfer 插件根据网络要求对输入帧执行转换（格式转换和缩放），并将转换后的数据传递给低级库。

 # 低级库对转换后的帧进行预处理（执行归一化和均值减法）并生成最终的浮点 RGB/BGR/GRAY 平面数据，该数据传递给 TensorRT 引擎进行推理。低级库生成的输出类型取决于网络类型

 # y=net-scale-factor*(x-mean)



 [property]

 # 多个GPU的情况下，元件所使用的GPU设备ID

 gpu-id=0

 # 低级库对转换后的帧进行预处理（执行归一化和均值减法）并生成最终的浮点 RGB/BGR/GRAY 平面数据，该数据传递给 TensorRT 引擎进行推理。低级库生成的输出类型取决于网络类型

 # y=net-scale-factor*(x-mean)

 net-scale-factor=0.0039215697906911373

 # caffe 模型文件路径

 model-file=../../../../samples/models/Primary_Detector/resnet10.caffemodel

 proto-file=../../../../samples/models/Primary_Detector/resnet10.prototxt

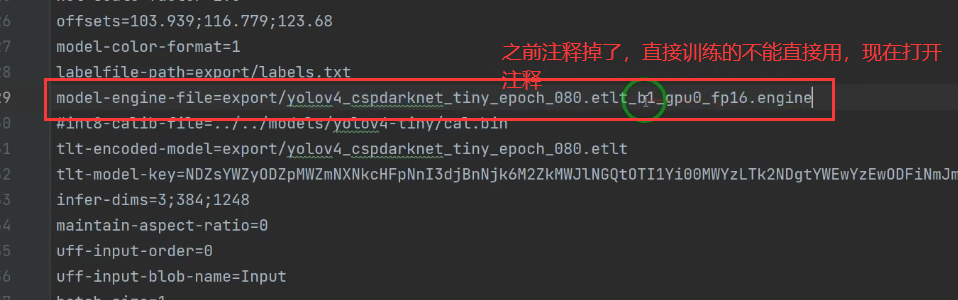

 # 模型预先生成的序列化引擎文件的绝对路径，如果有这个就不在看 model文件

 model-engine-file=../../../../samples/models/Primary_Detector/resnet10.caffemodel_b1_gpu0_int8.engine

 labelfile-path=../../../../samples/models/Primary_Detector/labels.txt

 # 当模型降低到8位时，验证的库

 int8-calib-file=../../../../samples/models/Primary_Detector/cal_trt.bin

 force-implicit-batch-dim=1

 batch-size=1



 # Integer

 # 0: FP32

 # 1: INT8

 # 2: FP16

 network-mode=1

 num-detected-classes=4  # 目标检测类别

 # 推理时要跳过的连续批数

 interval=0

 # 要分配给 nvinfer 实例的唯一组件 ID。用于标识由实例生成的元数据

 gie-unique-id=1

 # 输出检测内容的元数据名字

 output-blob-names=conv2d_bbox;conv2d_cov/Sigmoid



 [class-attrs-all]

 # 目标检测阈值

 pre-cluster-threshold=0.2

 # DBSCAN algorithm 聚和算法参数

 eps=0.2

 # 矩形合并的阈值

 group-threshold=1




    AI助手

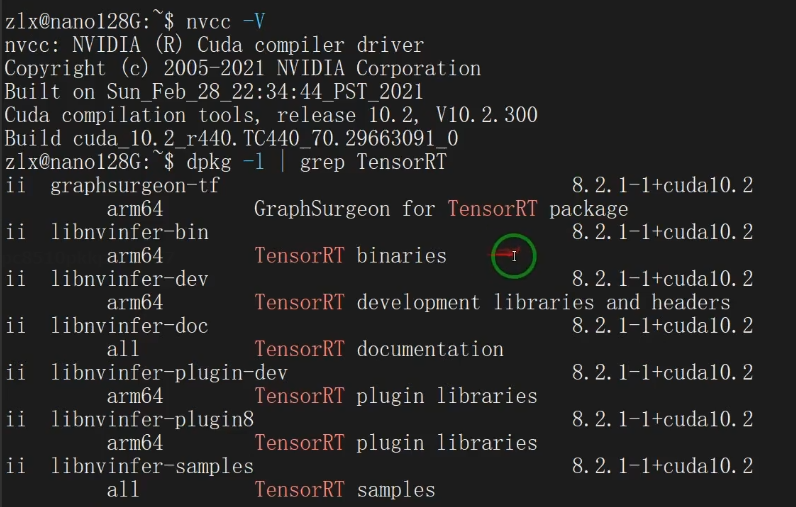

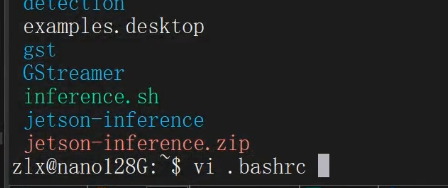

 export CUDA_HOME=/usr/local/cuda


 export PATH=/usr/local/cuda/bin:$PATH

 export LD_LIBRARY_PATH=/usr/local/cuda/lib64/:$LD_LIBRARY_PATH




    AI助手

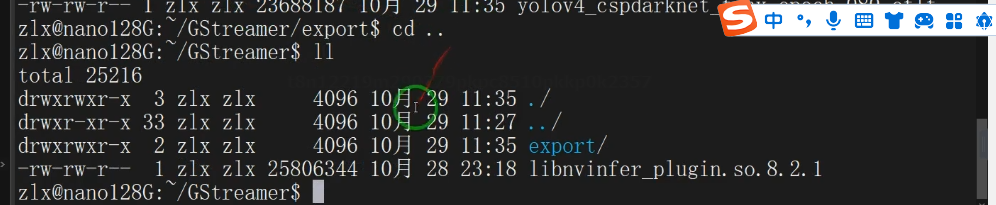

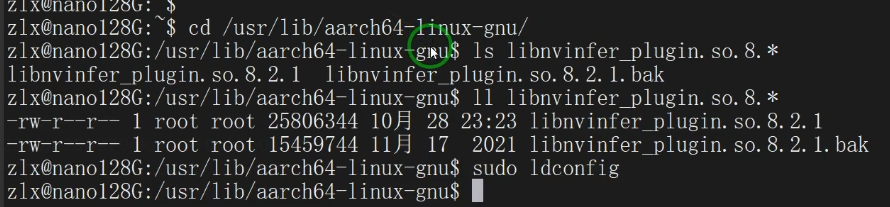

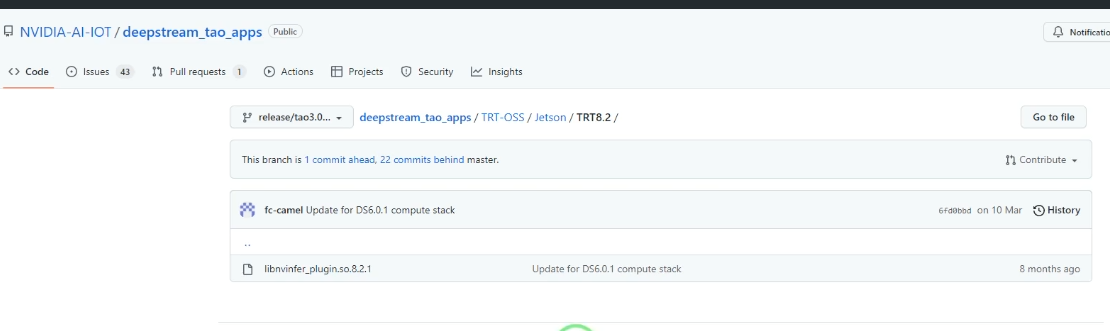

 sudo mv /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.8.x.y ${HOME}/libnvinfer_plugin.so.8.x.y.bak // backup original libnvinfer_plugin.so.x.y


 sudo cp $TRT_SOURCE/build/libnvinfer_plugin.so.8.m.n /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.8.x.y

 sudo ldconfig




    AI助手

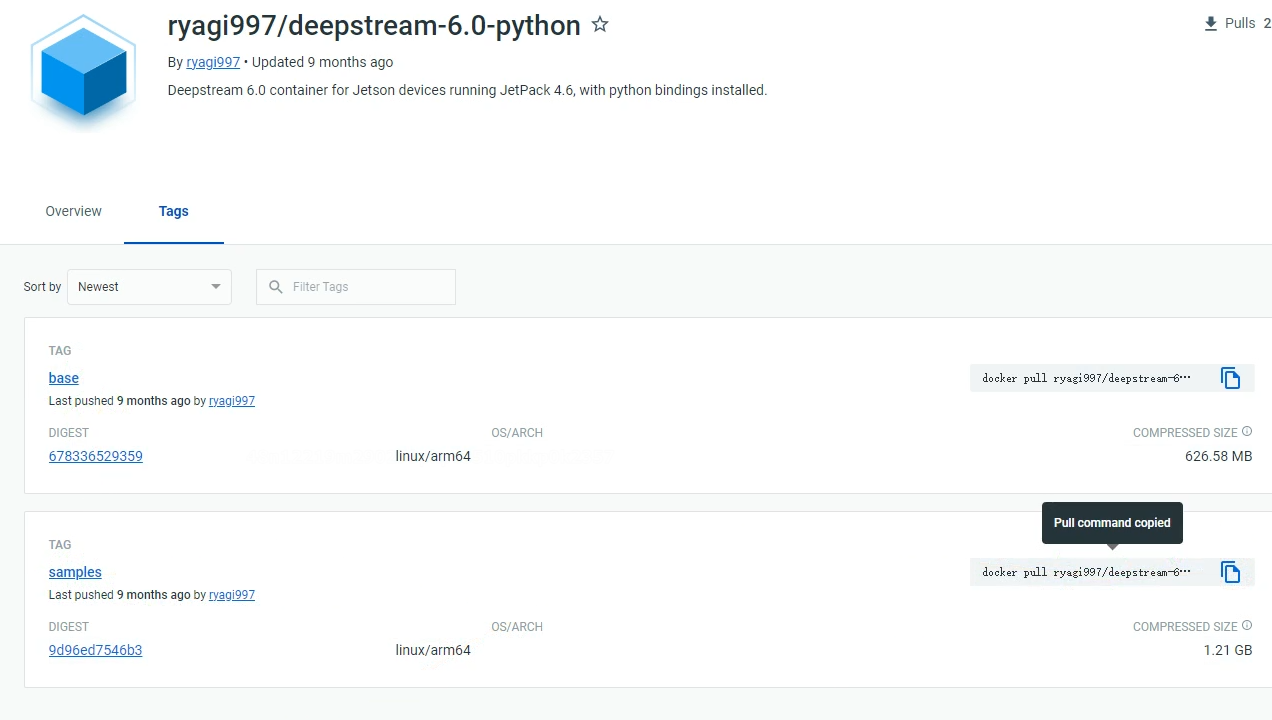

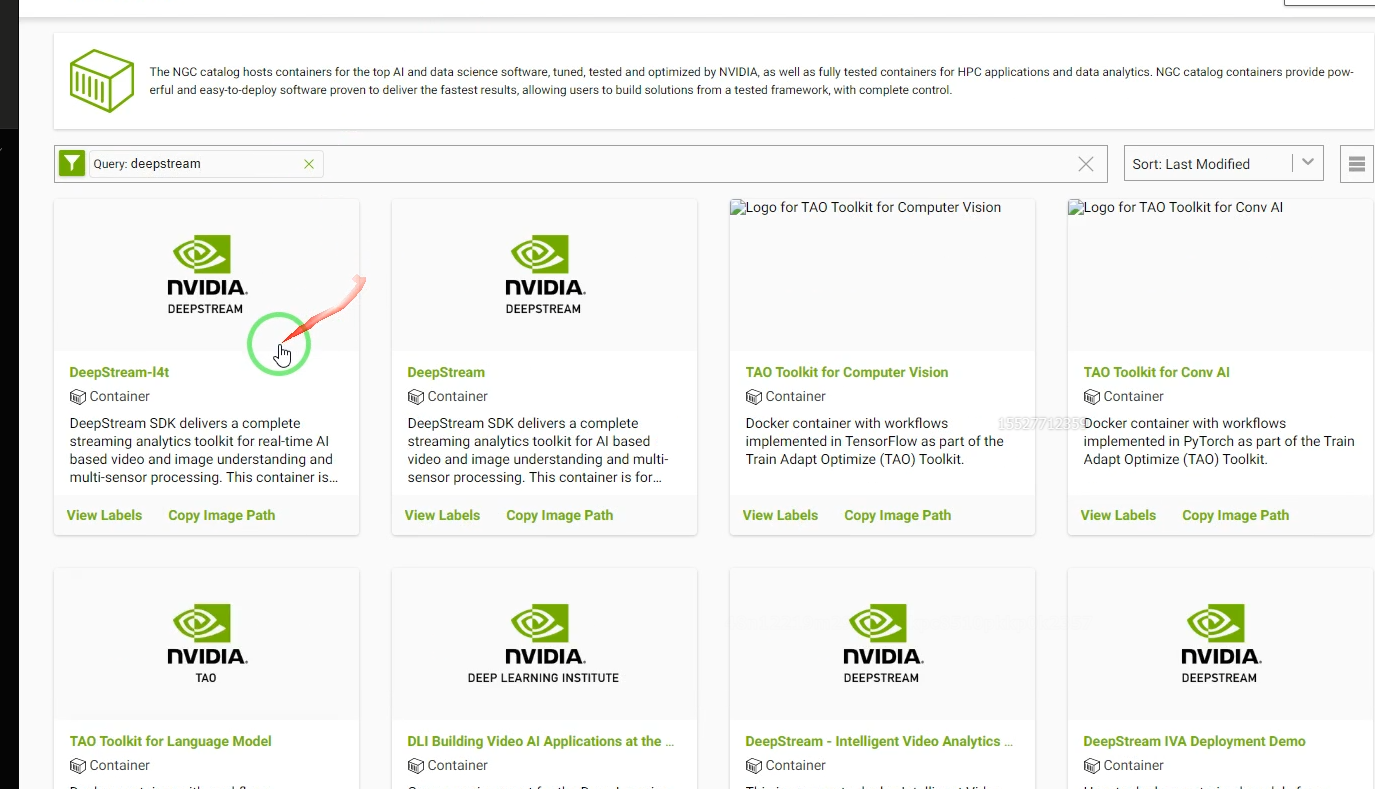

 docker run -it --rm --net=host --runtime nvidia -e


 DISPLAY=$DISPLAY -v /tmp/argus_socket:/tmp/argus_socket -- device /dev/video0 -v

 ~/GStreamer:/opt/nvidia/deepstream/deepstream- 6.0/sources/deepstream_python_apps/apps/GStreamer

 715a93f1d755




    AI助手

 net-scale-factor=1.0


 offsets=103.939;116.779;123.68

 infer-dims=3;384;1248

 tlt-model-key=NDZsYWZyODZpMWZmNXNkcHFpNnI3djBnNjk6M2ZkMWJlNGQtOTI1Yi00MWYzLTk2NDgtYWEwYzEwODFiNmJm

 network-type=0

 num-detected-classes=1

 model-color-format=1

 maintain-aspect-ratio=0

 output-tensor-meta=0




    AI助手

 [property]


 gpu-id=0

 net-scale-factor=1.0

 offsets=103.939;116.779;123.68

 model-color-format=1

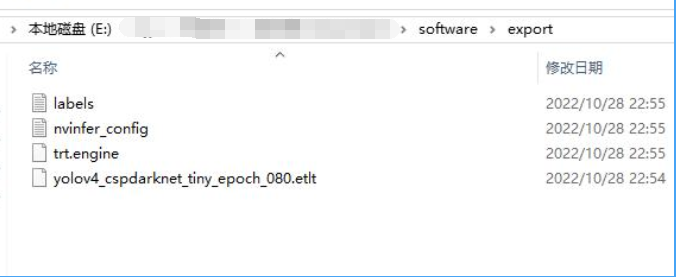

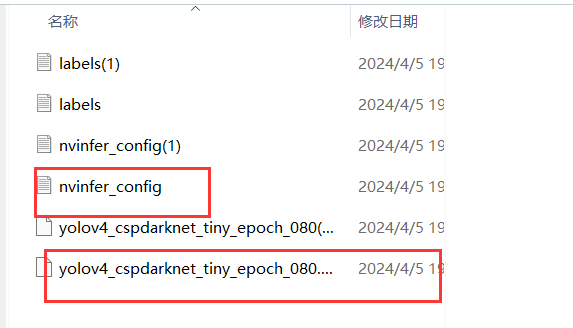

 labelfile-path=./export/labels.txt

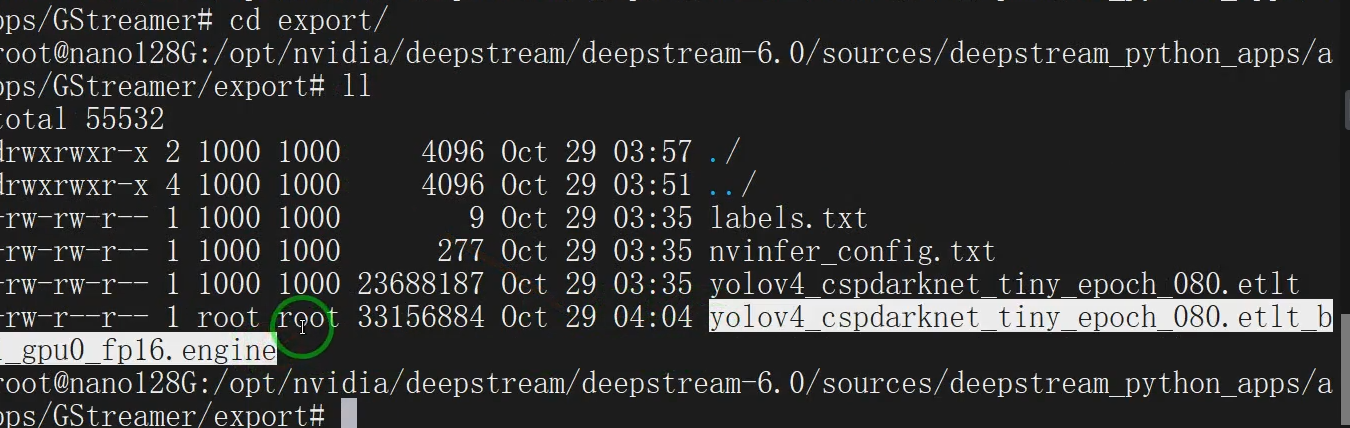

 model-engine-file=./export/trt.engine

 #int8-calib-file=../../models/yolov4-tiny/cal.bin

 tlt-encoded-model=./export/yolov4_cspdarknet_tiny_epoch_080.etlt

 tlt-model-key=NDZsYWZyODZpMWZmNXNkcHFpNnI3djBnNjk6M2ZkMWJlNGQtOTI1Yi00MWYzLTk2NDgtYWEwYzEwODFiNmJm

 infer-dims=3;384;1248

 maintain-aspect-ratio=0

 uff-input-order=0

 uff-input-blob-name=Input

 batch-size=1

 ## 0=FP32, 1=INT8, 2=FP16 mode

 network-mode=1

 num-detected-classes=1

 interval=0

 gie-unique-id=1

 is-classifier=0

 #network-type=0

 cluster-mode=3

 output-blob-names=BatchedNMS

 parse-bbox-func-name=NvDsInferParseCustomBatchedNMSTLT

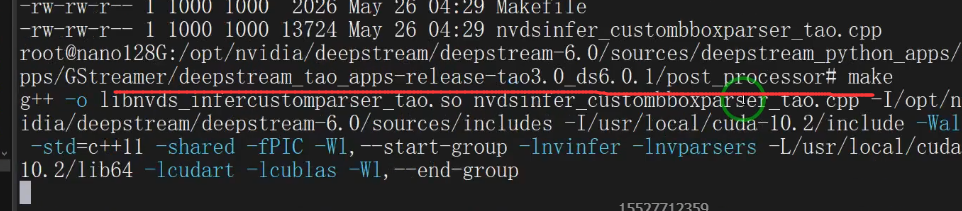

 custom-lib-path=./export/libnvds_infercustomparser_tao.so



 [class-attrs-all]

 pre-cluster-threshold=0.3

 roi-top-offset=0

 roi-bottom-offset=0

 detected-min-w=0

 detected-min-h=0

 detected-max-w=0

 detected-max-h=0




    AI助手

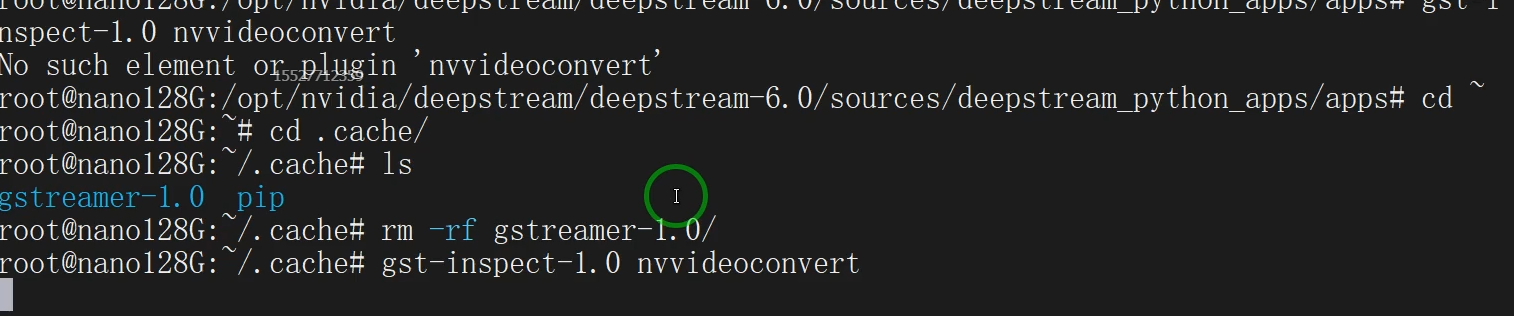

    rm -rf ~/.cache/gstreamer-1.0/

    AI助手

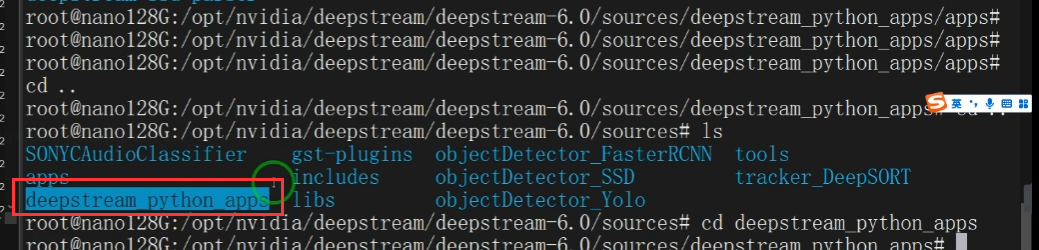

 cd /opt/nvidia/deepstream/deepstream-6.0/sources/deepstream_python_apps/a


 pps/GStreamer




    AI助手

 import sys


 sys.path.append('../')



 import gi

 gi.require_version('Gst', '1.0')

 gi.require_version('GstRtspServer', '1.0')



 from gi.repository import GObject, Gst, GstRtspServer

 from common.bus_call import bus_call



 GObject.threads_init()

 Gst.init(None)



 pipeline = Gst.Pipeline()

 camerasrc = Gst.ElementFactory.make("nvarguscamerasrc", "nv-arguscamerasrc")

 caps = Gst.ElementFactory.make("capsfilter", "filter")

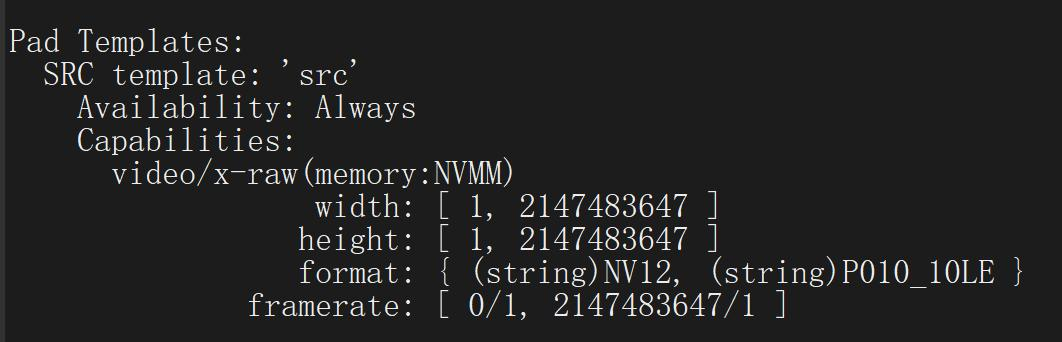

 caps.set_property("caps", Gst.Caps.from_string("video/x-raw(memory:NVMM),width=(int)1280,height=(int)720,format=(string)NV12,framerate=(fraction)30/1"))



 # Create nvstreammux instance to form batches from one or more sources.

 streammux = Gst.ElementFactory.make("nvstreammux", "Stream-muxer")

 streammux.set_property('width', 1280)

 streammux.set_property('height', 720)

 streammux.set_property('batch-size', 1)

 streammux.set_property('batched-push-timeout', 4000000)

 # Use nvinfer to run inferencing on decoder's output,

 # behaviour of inferencing is set through config file

 pgie = Gst.ElementFactory.make("nvinfer", "primary-inference")       # 主推理

 pgie.set_property('config-file-path', "pgie_yolov4_tiny_tao_config.txt") # 设置配置文件

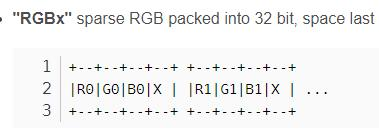

 # Use convertor to convert from NV12 to RGBA as required by nvosd

 nvvidconv = Gst.ElementFactory.make("nvvideoconvert", "convertor")   # 转换

 # Create OSD to draw on the converted RGBA buffer

 nvosd = Gst.ElementFactory.make("nvdsosd", "onscreendisplay")   # 元数据写入图片

 nvvidconv_postosd = Gst.ElementFactory.make("nvvideoconvert", "convertor_postosd") # 转换回来

 # Create a caps filter

 caps_postosd = Gst.ElementFactory.make("capsfilter", "caps_postosd_filter")

 caps_postosd.set_property("caps", Gst.Caps.from_string("video/x-raw(memory:NVMM), format=I420"))



 encoder = Gst.ElementFactory.make("nvv4l2h264enc", "encoder")

 h264parse = Gst.ElementFactory.make("h264parse", "h264parse")

 rtppay = Gst.ElementFactory.make("rtph264pay", "rtppay")

 sink = Gst.ElementFactory.make("udpsink", "udpsink")

 camerasrc.set_property('bufapi-version', 1)

 encoder.set_property('preset-level', 1)

 encoder.set_property('insert-sps-pps', 1)

 encoder.set_property('bufapi-version', 1)

 rtppay.set_property("pt", 96)

 sink.set_property('host', '192.168.2.9') # 本机IP

 sink.set_property('port', 5004)

 sink.set_property('async', False)

 sink.set_property('sync', 1)



 pipeline.add(camerasrc)

 pipeline.add(caps)



 # 新增

 pipeline.add(streammux)

 pipeline.add(pgie)

 pipeline.add(nvvidconv)

 pipeline.add(nvosd)

 pipeline.add(nvvidconv_postosd)

 pipeline.add(caps_postosd)



 pipeline.add(encoder)

 pipeline.add(h264parse)

 pipeline.add(rtppay)

 pipeline.add(sink)



 sinkpad = streammux.get_request_pad("sink_0") # 可以有多个数据源，选择一个数据源

 srcpad = caps.get_static_pad("src")           # 获取src源



 camerasrc .link(caps)

 srcpad.link(sinkpad)

 streammux.link(pgie)



 pgie.link(nvvidconv)

 nvvidconv.link(nvosd)

 nvosd.link(nvvidconv_postosd)

 nvvidconv_postosd.link(caps_postosd)



 caps_postosd.link(encoder)

 encoder.link(h264parse)

 h264parse.link(rtppay)

 rtppay.link(sink)



 server = GstRtspServer.RTSPServer.new()

 server.props.service = "%d" % 8554

 server.attach(None)

 factory = GstRtspServer.RTSPMediaFactory.new()

 factory.set_launch(

     "( udpsrc name=pay0 port=%d buffer-size=524288 caps=\"application/x-rtp, media=video, clock-rate=90000, encoding-name=(string)H264, payload=96 \" )" % (

     5004))

 factory.set_shared(True)

 server.get_mount_points().add_factory("/live", factory)



 loop = GObject.MainLoop()

 bus = pipeline.get_bus()

 bus.add_signal_watch()

 bus.connect("message", bus_call, loop)

 pipeline.set_state(Gst.State.PLAYING)

 print("rtsp://192.168.2.9:8554/live")

 try:

     loop.run()

 except:

     pass

 pipeline.set_state(Gst.State.NULL)






    AI助手
