Introduction to Data Science in Python 第 3 周 Assignment
Assignment 3 - More Pandas

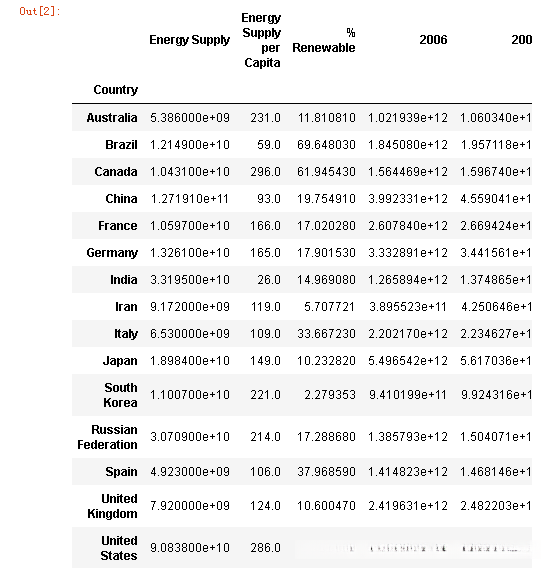

Question 1 (20%)
Import energy information from the specified file path: Energy%20Indicators.xls, which includes indicators related to energy supply and renewable electricity production. This dataset originates from the United Nations' official website (http://unstats.un.org/unsd/environment/excel_file_tables/2013/Energy Indicators.xls) for the year 2013. The data should then be assigned to a DataFrame with variable name energy.
Please note that this is an Excel file format, not a comma-separated values (CSV) file. You must ensure that the header and footer information are excluded from the dataset. The first two columns are unnecessary; therefore, they should be removed. Additionally, you should rename these columns to reflect their intended structure.
['Country', 'Energy Supply', 'Energy Supply per Capita', '% Renewable']
Express the Energy Supply variable in terms of gigajoules (note that one petawatt-hour equals one terawatt-hour). For all countries where there’s a lack of data (such as cases where the data includes “…”) ensure that this is represented as np.NaN values.
Rename the following list of countries (for use in later questions):
"Republic of Korea": "South Korea",
"United States of America": "United States",
"United Kingdom of Great Britain and Northern Ireland": "United Kingdom",
"China, Hong Kong Special Administrative Region": "Hong Kong"Additionally, there are multiple countries with numerical identifiers or parenthetical references in their names. Please ensure that these entries are removed.
e.g.
'Bolivia (Plurinational State of)' should be 'Bolivia',
'Switzerland17' should be 'Switzerland'.
Next, obtain the GDP dataset from the CSV file named world_bank.csv, which contains country-level GDP figures spanning from 1960 to 2015 sourced directly from the World Bank. Assign this dataset to a variable named GDP.
Make sure to skip the header, and rename the following list of countries:
"Korea, Rep.": "South Korea",
"Iran, Islamic Rep.": "Iran",
"Hong Kong SAR, China": "Hong Kong"Finally, load the Sciamgo Journal and Country Rank data for Energy Engineering and Power Technology (available at http://www.scimagojr.com/countryrank.php?category=2102) from the file scimagojr-3.xlsx, which is designed to rank countries based upon their journal contributions in that specific field. Assign this dataset to a DataFrame named ScimEn.
Aggregate three data sources: GDP, Energy, and ScimEn, into a unified dataset by leveraging common country identifiers. Only restrict to GDP statistics from the most recent decade (2006–2015), while selecting top nations based on Scimagojr ranking for inclusion.
The index of this DataFrame is designated as the country names, while the columns encapsulate a comprehensive set of metrics including ['排名', '文档数量', '可引用文档数量', '引用次数', '自引次数',
'平均每篇文档引用次数', 'H指数', '能源供给',
'人均能源供给', '可再生能源占比', '2006', '2007', '2008',
'2009', '2010', '2011', '2012', '2013', '2014', '2015'].
This function should return a DataFrame with 20 columns and 15 entries.
import pandas as pd
import numpy as np def get_energy():
###########################
# Part One
# Enery Indicators.xls
#
energy_df = pd.read_excel('Energy Indicators.xls', skiprows=16)
del energy_df['Unnamed: 0']
del energy_df['Unnamed: 1']
# Drop NA data in excel
energy_df.dropna(inplace=True)
# change the column labels ['Country', 'Energy Supply', 'Energy Supply per Capita', '% Renewable']
energy_df.rename(columns={"Unnamed: 2":"Country", "Renewable Electricity Production": "% Renewable", "Energy Supply per capita": "Energy Supply per Capita"}, inplace=True)
# Convert Energy Supply to gigajoules (there are 1,000,000 gigajoules in a petajoule).
energy_df.replace('...', np.NaN, inplace=True)
# For all countries which have missing data (e.g. data with "...") make sure this is reflected as np.NaN values
energy_df['Energy Supply'] = energy_df['Energy Supply']
# There are also several countries with numbers and/or parenthesis in their name
energy_df['Country'] = energy_df['Country'].str.replace(' \(.*\)', '')
energy_df['Country'] = energy_df['Country'].str.replace('[0-9]*', '')
# Rename the following list of countries
x = {
"Republic of Korea": "South Korea",
"United States of America": "United States",
"United Kingdom of Great Britain and Northern Ireland": "United Kingdom",
"China, Hong Kong Special Administrative Region": "Hong Kong"
}
for item in x:
energy_df['Country'].replace(item, x[item], inplace=True)
return energy_df
def get_gdp():
# Part TWO
# world_bank.csv
gdp_df = pd.read_csv('world_bank.csv', skiprows=4)
# rename the following list of countries
y = {
"Korea, Rep.": "South Korea",
"Iran, Islamic Rep.": "Iran",
"Hong Kong SAR, China": "Hong Kong"
}
for item in y:
gdp_df['Country Name'].replace(item, y[item], inplace=True)
gdp_df.rename(columns={'Country Name': 'Country'}, inplace=True)
return gdp_df
def get_rank():
###########################
# Part THREE
# scimagojr-3.xlsx
ScimEn = pd.read_excel('scimagojr-3.xlsx')
return ScimEn
def answer_one():
energy_df = get_energy()
gdp_df = get_gdp()
ScimEn = get_rank()
###########################
#
# Use only the last 10 years (2006-2015) of GDP data and only the top 15 countries by Scimagojr 'Rank' (Rank 1 through 15).
for i in range(1960, 2006):
gdp_df.drop([str(i)], axis=1, inplace=True)
ScimEn = ScimEn[0:15]
# Join the three datasets: GDP, Energy, and ScimEn into a new dataset (using the intersection of country names).
temp1 = pd.merge(energy_df, gdp_df, how="inner", left_on="Country", right_on="Country")
temp2 = pd.merge(temp1, ScimEn, how="inner")
# The index of this DataFrame should be the name of the country
temp2.set_index('Country', inplace=True)
# the columns should be ['Rank', 'Documents', 'Citable documents', 'Citations', 'Self-citations', 'Citations per document', 'H index', 'Energy Supply', 'Energy Supply per Capita', '% Renewable', '2006', '2007', '2008', '2009', '2010', '2011', '2012', '2013', '2014', '2015'].
list_to_be_drop = ['Country Code', 'Indicator Name', 'Indicator Code']
for item in list_to_be_drop:
temp2.drop(item, axis=1, inplace=True)
# Check
# real = temp2.columns.tolist()
# shouldbe = ['Rank', 'Documents', 'Citable documents', 'Citations', 'Self-citations', 'Citations per document', 'H index', 'Energy Supply', 'Energy Supply per Capita', '% Renewable', '2006', '2007', '2008', '2009', '2010', '2011', '2012', '2013', '2014', '2015']
# print(real.sort() == shouldbe.sort())
# for item in real:
# if item in shouldbe:
# print('YES: {} in'.format(item))
# else:
# print('NO: {} not in'.format(item))
return temp2
answer_one()
Question 2 (6.6%)
The previous question combined three datasets and then condensed these to just the top 15 entries. When joining the datasets before reducing them to the top 15 items, how many entries were lost?
This function should return a single number.
# 三个集合的并集： A + B + C - AB - AC - BC + ABC
# 本题要求的是“lose after merging”，也就是 三者并集 减去 三者交集，即
# A + B + C - AB - AC - BC
def answer_two():
energy_df = get_energy()
gdp_df = get_gdp()
rank_df = get_rank()
energy_len = len(energy_df)
# print(energy_len)
gdp_len = len(gdp_df)
# print(gdp_len)
rank_len = len(rank_df)
# print(rank_len)
tempAB = pd.merge(energy_df, gdp_df, how="inner")
merge_AB_len = len(tempAB)
# print(merge_AB_len)
tempAC = pd.merge(energy_df, rank_df, how="inner")
merge_AC_len = len(tempAC)
# print(merge_AC_len)
tempBC = pd.merge(rank_df, gdp_df, how="inner")
merge_BC_len = len(tempBC)
# print(merge_BC_len)
result = energy_len + gdp_len + rank_len - merge_AB_len - merge_AC_len - merge_BC_len
# print(result)
return result
answer_two()

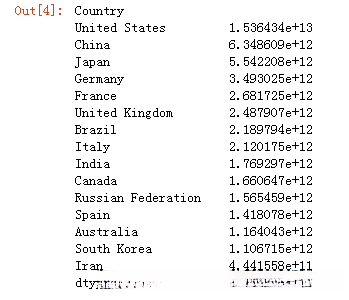

Question 3 (6.6%)
What does the mean GDP over a decade typically reveal across all nations, omitting any incomplete data?
This function should generate a collection or dataset named avgGDP that contains data for 15 countries, whose average GDP is arranged from highest to lowest.
def answer_three():
Top15 = answer_one()
gdp_list = Top15[[str(i) for i in range(2006, 2016)]]
# 默认是按列进行统计，这里要标记axis=1（按行统计）
avgGDP = gdp_list.mean(axis=1).sort_values(ascending=False)
return avgGDP
answer_three()
Question 4 (6.6%)
What percentage change in GDP did that country experience over a 10-year period among those with an average GDP ranking of sixth?
This function should return a single number.
def answer_four():
Top15 = answer_one()
_6th = answer_three().index[5]
gdp_list = Top15[[str(i) for i in range(2006, 2016)]]
result = gdp_list.loc[_6th]
return result[-1] - result[0]
answer_four()
Question 5 (6.6%)
What is the mean Energy Supply per Capita?
This function should return a single number.
def answer_five():
Top15 = answer_one()
return Top15['Energy Supply per Capita'].mean(axis=0)
answer_five()
Question 6 (6.6%)
What country has the maximum % Renewable and what is the percentage?
The function should be returned as a data structure containing the country name and the percentage.
def answer_six():
Top15 = answer_one()
max = Top15['% Renewable'].max()
result = Top15[Top15['% Renewable'] == max]
return (result.index[0], max)
answer_six()
Question 7 (6.6%)
Construct a new column expressing the ratio of Self-Citations to Total Citations. What is the highest value of this new column, and which country exhibits the highest ratio?
This function is expected to output a tuple containing both the country's name and its ratio.
def answer_seven():
Top15 = answer_one()
total_citations = Top15['Self-citations'].sum() # 万恶啊，不是算总数。。
Top15['Ratio'] = Top15['Self-citations'] / Top15['Citations']
max = Top15['Ratio'].max()
result = Top15[Top15['Ratio'] == max]
return (result.index[0], max)
answer_seven()
Question 8 (6.6%)
Generate a column to estimate the population by incorporating both Energy Supply and Energy Supply per capita. According to this estimation, which country holds the third position in terms of population?
This function should return a single string value.
def answer_eight():
Top15 = answer_one()
Top15['Population'] = Top15['Energy Supply'] / Top15['Energy Supply per Capita']
Top15.sort_values(by='Population', ascending=False, inplace=True)
return Top15.iloc[2].name
answer_eight()
Question 9 (6.6%)
Construct a column to calculate the number of citable documents on a per-person basis. What is the relationship between citable documents per capita and energy supply per capita? Use the .corr() method, which employs Pearson’s correlation.
This function should return a single number.
(Optional: Use the built-in functionplot9() to visualize the relationship between Energy Supply per Capita vs. Citable docs per Capita)
def answer_nine():
Top15 = answer_one()
Top15['PopEst'] = Top15['Energy Supply'] / Top15['Energy Supply per Capita']
Top15['Citable docs per Capita'] = Top15['Citable documents'] / Top15['PopEst']
result = Top15['Citable docs per Capita'].corr(Top15['Energy Supply per Capita'])
return result
answer_nine()

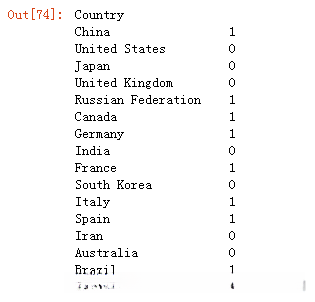

Question 10 (6.6%)
Generate a new column variable that assigns a value of 1 to countries whose percentage of renewable energy is equal to or higher than the median value among all countries in the top 15, and assigns a value of 0 to countries whose percentage of renewable energy is below this median.
This function should be returned as a series named HighRenew, with its index consisting of country names sorted by rank in ascending order.
def answer_ten():
Top15 = answer_one()
median = Top15['% Renewable'].median()
Top15['HighRenew'] = (Top15['% Renewable'] >= median)
return Top15.sort_values('Rank')['HighRenew']
answer_ten()
Question 11 (6.6%)
Refer to the provided dictionary to classify countries based on their Continent. Create a dataframe that displays for each country its estimated population, along with statistical measures such as sum, mean, and standard deviation.
ContinentDict = {'China':'Asia',
'United States':'North America',
'Japan':'Asia',
'United Kingdom':'Europe',
'Russian Federation':'Europe',
'Canada':'North America',
'Germany':'Europe',
'India':'Asia',
'France':'Europe',
'South Korea':'Asia',
'Italy':'Europe',
'Spain':'Europe',
'Iran':'Asia',
'Australia':'Australia',
'Brazil':'South America'}This function should produce a DataFrame with the index named Continent['Asia','Australia','Europe','North America','South America'] and whose columns are ['size','sum','mean','std'].
ContinentDict = {'China':'Asia',
'United States':'North America',
'Japan':'Asia',
'United Kingdom':'Europe',
'Russian Federation':'Europe',
'Canada':'North America',
'Germany':'Europe',
'India':'Asia',
'France':'Europe',
'South Korea':'Asia',
'Italy':'Europe',
'Spain':'Europe',
'Iran':'Asia',
'Australia':'Australia',
'Brazil':'South America'}
def answer_eleven():
Top15 = answer_one()
Top15['PopEst'] = Top15['Energy Supply'] / Top15['Energy Supply per Capita']
Top15_population = Top15['PopEst']
group = Top15_population.groupby(ContinentDict)
# size = pd.DataFrame(group.size(), columns=['size'])
# print(size)
# sum = pd.DataFrame(group.sum()).rename(columns={'PopEst': 'sum'})
# print(sum)
# mean = pd.DataFrame(group.mean()).rename(columns={'PopEst': 'mean'})
# print(mean)
# std = pd.DataFrame(group.std()).rename(columns={'PopEst': 'std'})
# print(std)
# result = pd.merge(size, sum, left_index=True, right_index=True).merge(mean, left_index=True, right_index=True).merge(std, left_index=True, right_index=True)
size = group.size().astype('float64')
sum = group.sum()
mean = group.mean()
std = group.std()
result = pd.DataFrame({
'size': size,
'sum': sum,
'mean': mean,
'std': std
})
return result
answer_eleven()

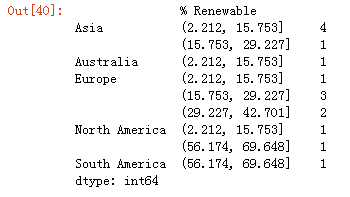

Question 12 (6.6%)
Divide the % Renewable data into five equal parts. Categorize the Top15 countries by continent and also include the new % Renewable groups. It is important to determine how many nations fall into each of these categories.
This function should generate aSeries with a MultiIndex organized by Continent, followed by the bins for % Renewable. Issues involving groups without any member nations should be excluded.
ContinentDict = {'China':'Asia',
'United States':'North America',
'Japan':'Asia',
'United Kingdom':'Europe',
'Russian Federation':'Europe',
'Canada':'North America',
'Germany':'Europe',
'India':'Asia',
'France':'Europe',
'South Korea':'Asia',
'Italy':'Europe',
'Spain':'Europe',
'Iran':'Asia',
'Australia':'Australia',
'Brazil':'South America'}
def answer_twelve():
Top15 = answer_one()
cut = pd.cut(Top15['% Renewable'], bins=5)
Top15['bin'] = cut
group = Top15.groupby(by=[ContinentDict, cut])
# for name, group in result:
# print(name)
# print(group)
result = group.size()
return result
answer_twelve()

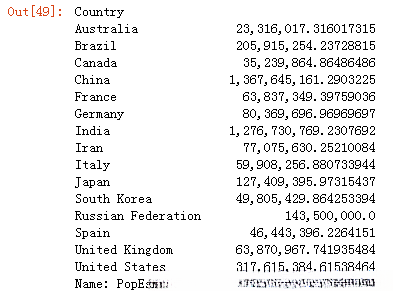

Question 13 (6.6%)
Transform the Population Estimate series into a string format that incorporates a thousand separator symbol, specifically using comma separators. Without rounding the figures, ensure precision in the output.
e.g. 317615384.61538464 -> 317,615,384.61538464
This function should return a Series named PopEst, with an index consisting of country names and their values being population estimate strings.
def answer_thirteen():
Top15 = answer_one()
Top15['PopEst'] = Top15['Energy Supply'] / Top15['Energy Supply per Capita']
Top15['PopEst'] = Top15['PopEst'].map(lambda x: format(x, ',')) # 来源：
result = Top15['PopEst']
return result
answer_thirteen()
