Spark-zeppelin-大数据可视化分析

官网介绍

Multi-purpose Notebook

The Notebook is the place for all your needs

• 数据吞噬/收集
• 数据挖掘/探索
• 数据分析
• 数据可视化与协作

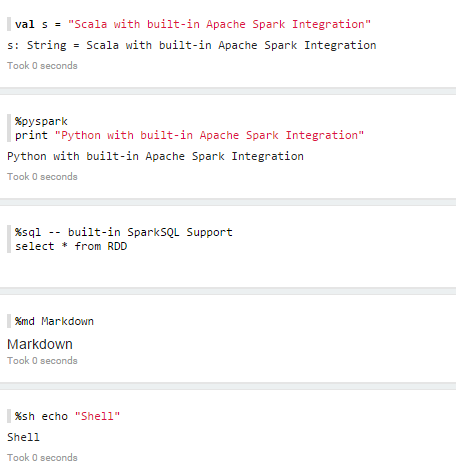

Multiple language backend

Zeppelin's interpreter concept enables a variety of language/data-processing backends to seamlessly integrate into the platform. Currently, Zeppelin supports a range of interpreters including Scala with Apache Spark, Python with Apache Spark, etc., along with other tools like SparkSQL, Hive, Markdown and Shell.

The task of developing a new language-backend is quite straightforward. It involves learning the methodology for writing a Zeppelin interpreter.

Apache Spark integration

Zeppelin offers pre-integrated Apache Spark support. It is not necessary to create an additional module, plugin, or library for this.

Zeppelin's Spark integration provides

• Automated injection of SparkContext and SQLContext.
  • The runtime jar dependency is loaded from the local filesystem or the Maven repository. For further details, refer to dependency loader.
  • Submitting a job for cancellation along with its progress tracking.

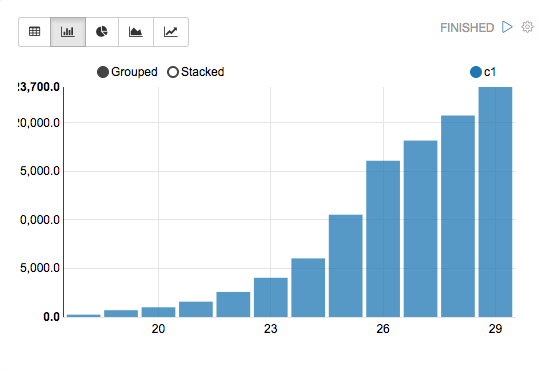

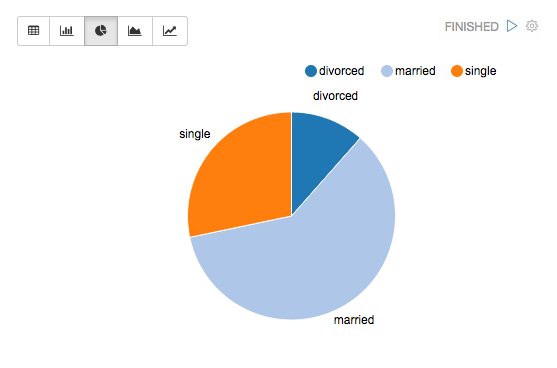

Data visualization

The following visualization types are natively supported: basic charts. Moreover, visualizations extend beyond SparkSQL queries, enabling the identification and representation of outputs across various language backends.

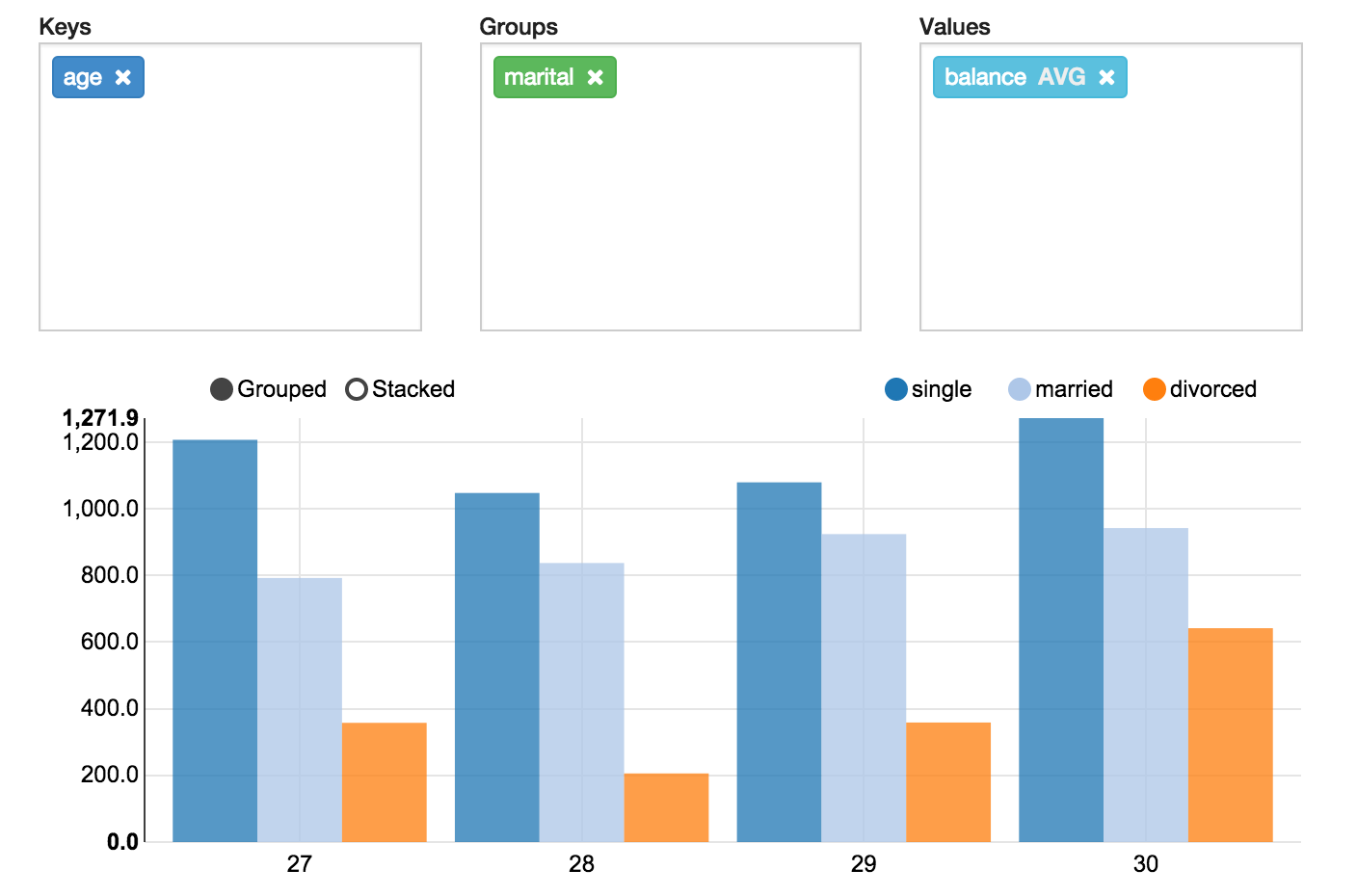

Pivot chart

A simple drag-and-drop interface allows Zeppelin to aggregate values and display them in a pivot chart. It is straightforward to create a chart that displays multiple aggregated values such as sum, count, average, minimum, and maximum.

Explore further into Zeppelin's Display engine. ( [ https://zeppelin.incubator.apache.org/docs/0.5.6-incubating/displaysystem/display.html ] , [ https://zeppelin.incubator.apache.org/docs/0.5.6-incubating/displaysystem-display.html#html ] , [ https://zeppelin.incubator.apache.org/docs/0.5.6-incubating/displaysystem-table.html ] , [ https://zeppelin.incubator.apache.org/docs/0.5.6-incubating/displaysystem-angular.html ] )

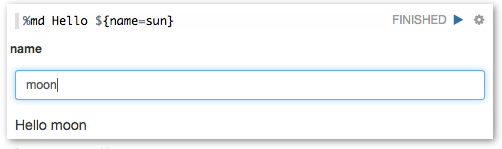

Dynamic forms

Zeppelin can dynamically create some input forms into your notebook.

Delve deeper into the world of Dynamic Forms for comprehensive insights and features.

Collaboration

The Notebook URL is accessible to multiple collaborators. Zeppelin therefore broadcasts any modifications in real-time, mirroring the collaborative approach employed by Google Docs.

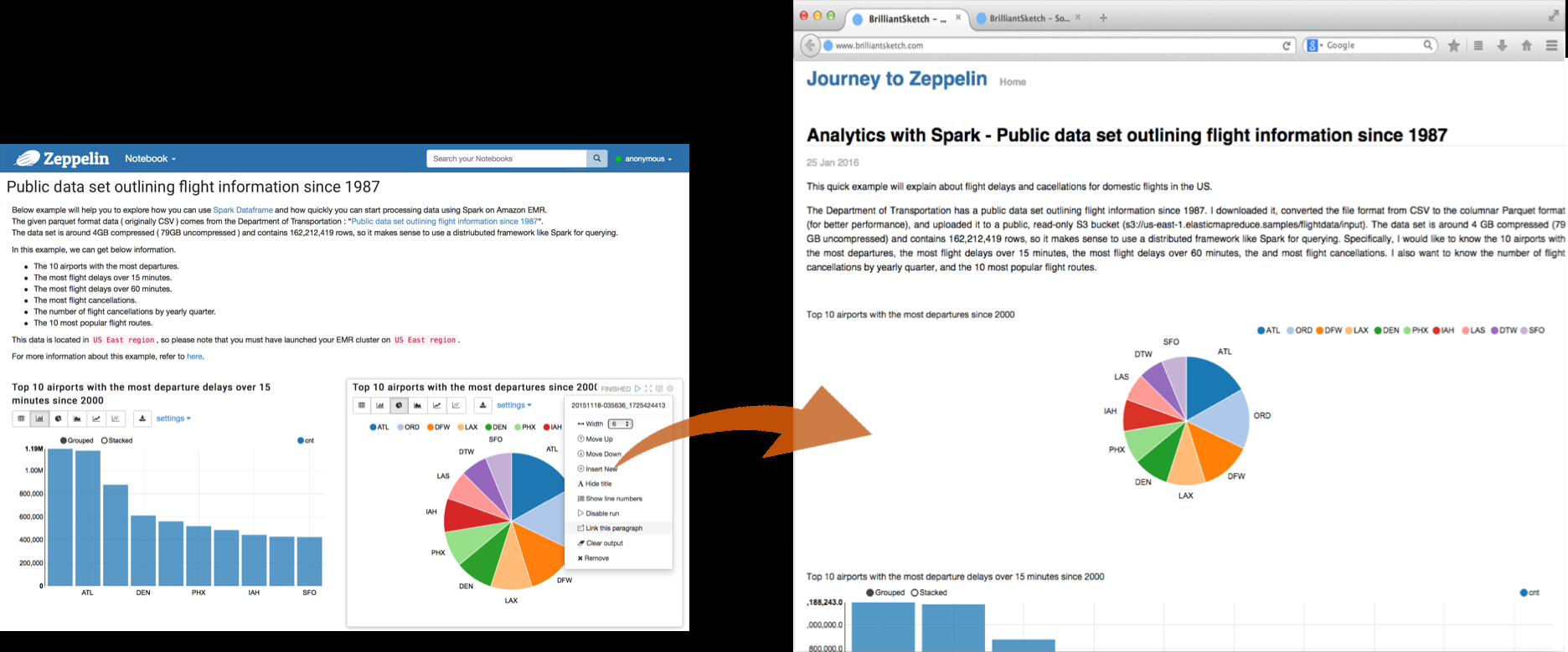

Publish

Zeppelin offers a link to display the result solely, and this page excludes Zeppelin’s menu and buttons. Through this method, one can seamlessly integrate it as an iframe within The website.

100% Opensource

Apache Zeppelin处于Beta阶段，并遵循Apache 2.0授权协议作为其软件基础。请访问以下链接获取源代码仓库以及详细的贡献指南：source repository 和 How to contribute

Zeppelin boasts a very lively and highly engaged development community. Subscribing to the mailing list at Mailing list allows you to submit bugs and stay updated on the project's progress.

Undergoing Incubation

Apache Zeppelin represents an ongoing incubation initiative within The Apache Software Foundation (ASF), which is supported by the Incubator program. This phase requires all new projects to undergo incubation until comprehensive evaluation confirms that their infrastructure, communication mechanisms, and decision-making processes align with those of established ASF initiatives. Although this incubation status does not necessarily reflect complete code maturity or system stability, it serves as evidence that these projects have not yet been officially recognized and endorsed by The Apache Software Foundation.

安装

From binary package

Get the latest binary package through the download link at Download.

解析

Build from source

Refer to the instructions in the [ README ] file for how to build from source.

Configure

Configuration can be achieved through either environment variables (conf/zeppelin-env.sh) or Java properties (conf/zeppelin-site.xml). If both are specified, the environment variable is utilized.

| ZEPPELIN_INTERPRETERS| zeppelin.interpreters| org.apache.zeppelin.spark.SparkInterpreter,
org.apache.zeppelin.spark.PySparkInterpreter,
org.apache.zeppelin.spark.SparkSqlInterpreter,
org.apache.zeppelin.spark.DepInterpreter,
org.apache.zeppelin.markdown.Markdown,
org.apache.zeppelin.shell.ShellInterpreter,
org.apache.zeppelin.hive.HiveInterpreter
...| Comma separated interpreter configurations [Class]. First interpreter become a default |
|ZEPPELIN_INTERPRETER_DIR|zeppelin.interpreter.dir|interpreter|Zeppelin interpreter directory|

You will also have to set up each interpreter individually. Detailed information is provided within the 'Interpreter' section of this documentation.

An example of Spark is the open-source distributed computing framework provided by 官网链接 for large-scale data processing.

Start/Stop

Start Zeppelin

    bin/zeppelin-daemon.sh start


    AI助手

After successful start, visit http://localhost:8080 with your web browser.

Stop Zeppelin

    bin/zeppelin-daemon.sh stop


    AI助手

实践例子：

Zeppelin Tutorial

We will require you to have Zeppelin installed already. If that is not the situation, please visit the installation guide at this link for detailed instructions.

Zeppelin's present core backend processing engine is the Apache Spark project. For newcomers, we could suggest starting with an understanding of its operation to maximize your use of Zeppelin.

Tutorial with Local File

Data Refine

Before you begin the Zeppelin tutorial, you will require downloading the bank.zip file from bank.zip.

Please refer to the following steps for data transformation: first, convert the CSV-formatted data into an RDD populated with Bank objects. Additionally, the header row will be excluded through the use of the filter method in the subsequent code snippet.

 val bankText = sc.textFile("yourPath/bank/bank-full.csv")




 case class Bank(age:Integer, job:String, marital : String, education : String, balance : Integer)



 // split each line, filter out header (starts with "age"), and map it into Bank case class

 val bank = bankText.map(s=>s.split(";")).filter(s=>s(0)!="\"age\"").map(

     s=>Bank(s(0).toInt,

         s(1).replaceAll("\"", ""),

         s(2).replaceAll("\"", ""),

         s(3).replaceAll("\"", ""),

         s(5).replaceAll("\"", "").toInt

     )

 )



 // convert to DataFrame and create temporal table

 bank.toDF().registerTempTable("bank")




    AI助手

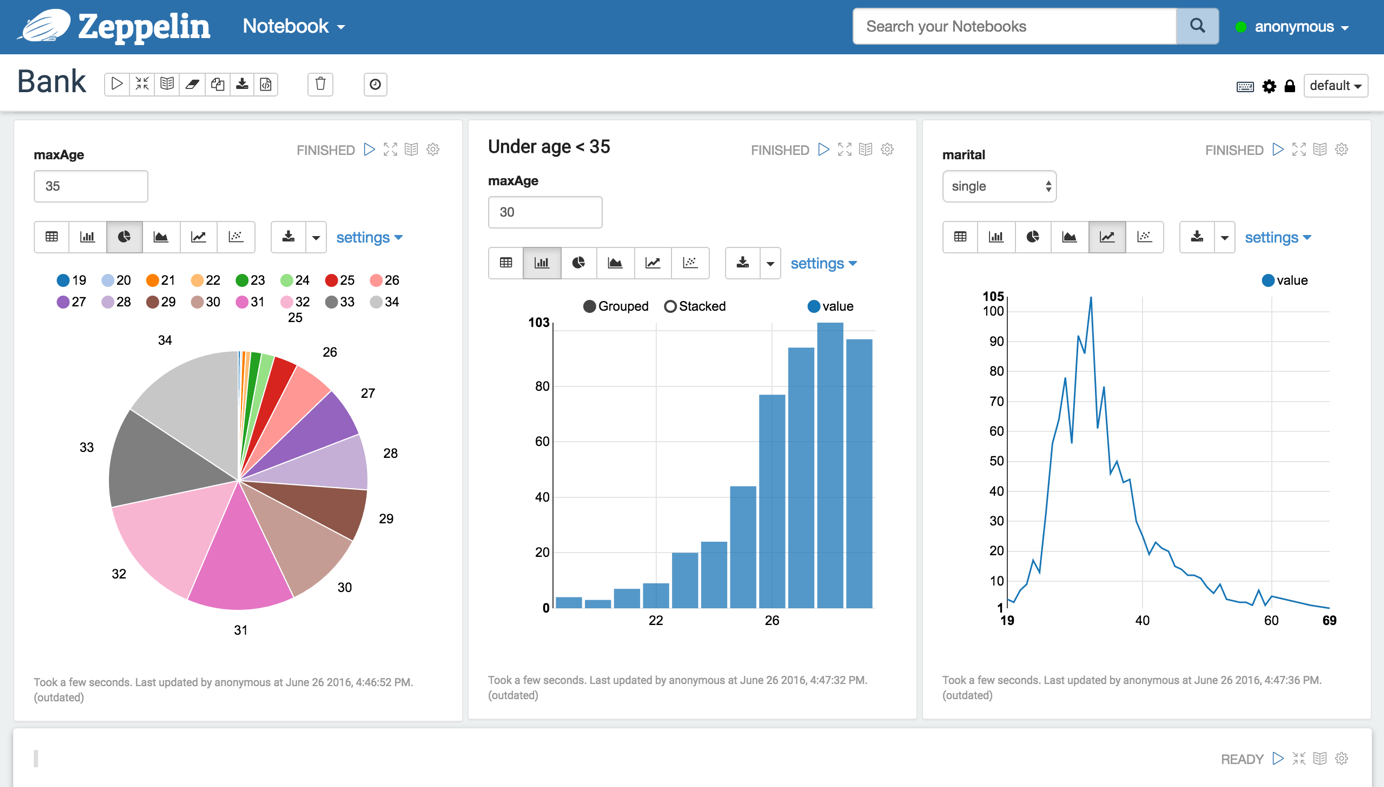

Data Retrieval

Suppose we want to see age distribution from bank. To do this, run:

    %sql select age, count(1) from bank where age < 30 group by age order by age


    AI助手

You can create an age constraint input field by replacing 30 with ${maxAge=30}.

    %sql select age, count(1) from bank where age < ${maxAge=30} group by age order by age


    AI助手

Now, we aim to analyze the age distribution across different marital statuses and incorporate a dropdown menu for selecting the specific marital status. Execute:

    %sql select age, count(1) from bank where marital="${marital=single,single|divorced|married}" group by age order by age


    AI助手

Tutorial with Streaming Data

Data Refine

Since this tutorial is drawn from Twitter's sample tweet stream, you must authenticate using a Twitter account. To proceed, visit the Twitter Credential Setup guide. Once you have obtained your API keys, you should enter the credential-related values (including apiKey, apiSecret, accessToken, and accessTokenSecret) into the following script to complete the setup.

A RDD of Tweet objects will be generated, and the stream data will be stored in a table.

 import org.apache.spark.streaming._


 import org.apache.spark.streaming.twitter._

 import org.apache.spark.storage.StorageLevel

 import scala.io.Source

 import scala.collection.mutable.HashMap

 import java.io.File

 import org.apache.log4j.Logger

 import org.apache.log4j.Level

 import sys.process.stringSeqToProcess



 /** Configures the Oauth Credentials for accessing Twitter */

 def configureTwitterCredentials(apiKey: String, apiSecret: String, accessToken: String, accessTokenSecret: String) {

   val configs = new HashMap[String, String] ++= Seq(

     "apiKey" -> apiKey, "apiSecret" -> apiSecret, "accessToken" -> accessToken, "accessTokenSecret" -> accessTokenSecret)

   println("Configuring Twitter OAuth")

   configs.foreach{ case(key, value) =>

     if (value.trim.isEmpty) {

       throw new Exception("Error setting authentication - value for " + key + " not set")

     }

     val fullKey = "twitter4j.oauth." + key.replace("api", "consumer")

     System.setProperty(fullKey, value.trim)

     println("\tProperty " + fullKey + " set as [" + value.trim + "]")

   }

   println()

 }



 // Configure Twitter credentials

 val apiKey = "xxxxxxxxxxxxxxxxxxxxxxxxx"

 val apiSecret = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

 val accessToken = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

 val accessTokenSecret = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

 configureTwitterCredentials(apiKey, apiSecret, accessToken, accessTokenSecret)



 import org.apache.spark.streaming.twitter._

 val ssc = new StreamingContext(sc, Seconds(2))

 val tweets = TwitterUtils.createStream(ssc, None)

 val twt = tweets.window(Seconds(60))



 case class Tweet(createdAt:Long, text:String)

 twt.map(status=>

   Tweet(status.getCreatedAt().getTime()/1000, status.getText())

 ).foreachRDD(rdd=>

   // Below line works only in spark 1.3.0.

   // For spark 1.1.x and spark 1.2.x,

   // use rdd.registerTempTable("tweets") instead.

   rdd.toDF().registerAsTable("tweets")

 )



 twt.print



 ssc.start()




    AI助手

Data Retrieval

Among the subsequent scripts, upon running each one, you will observe varying outcomes due to their reliance on real-time data.

Let's begin by extracting maximum 10 tweets which contain the word "girl".

    %sql select * from tweets where text like '%girl%' limit 10


    AI助手

This time, we aim to examine the number of tweets generated per second over the past 60 seconds. To achieve this, calculate:

    %sql select createdAt, count(1) from tweets group by createdAt order by createdAt


    AI助手

It is possible to create a user-defined function and integrate it into Spark SQL operations. We can attempt this by creating a sentiment analysis function named sentiment. The sentiment analysis function will determine the attitude (positive, negative, or neutral) of the input parameter.

 def sentiment(s:String) : String = {


     val positive = Array("like", "love", "good", "great", "happy", "cool", "the", "one", "that")

     val negative = Array("hate", "bad", "stupid", "is")



     var st = 0;



     val words = s.split(" ")

     positive.foreach(p =>

     words.foreach(w =>

         if(p==w) st = st+1

     )

     )



     negative.foreach(p=>

     words.foreach(w=>

         if(p==w) st = st-1

     )

     )

     if(st>0)

     "positivie"

     else if(st<0)

     "negative"

     else

     "neutral"

 }



 // Below line works only in spark 1.3.0.

 // For spark 1.1.x and spark 1.2.x,

 // use sqlc.registerFunction("sentiment", sentiment _) instead.

 sqlc.udf.register("sentiment", sentiment _)




    AI助手

To examine how people perceive girls using the sentiment analysis tool we implemented earlier, run this command:

    %sql select sentiment(text), count(1) from tweets where text like '%girl%' group by sentiment(text)
