每日Attention学习17——Multi-Kernel Inverted Residual
发布时间
阅读量：
阅读量
模块出处
[ICLR 25 Submission] [link] UltraLightUNet: Rethinking U-shaped Network with Multi-kernel Lightweight Convolutions for Medical Image Segmentation
模块名称
Multi-Kernel Inverted Residual (MKIR)
模块作用
超轻量编码器块

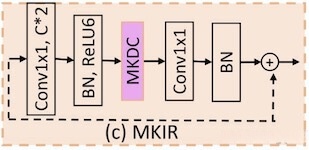

模块结构
模块特点
- 类Inverted Residual操作。在MKDC之前，使用一组Conv-BN-ReLU提升通道数。在MKDC之后，使用一组Conv-BN降低或维持通道数。该操作最早在mobilenet v2中实现。
- 使用不同kernel size的深度卷积以进行多尺度特征提取。深度卷积相比于标准卷积而言计算量更小。
- 使用ReLU6激活函数替代ReLU。相比于ReLU，ReLU6会将结果约束在0~6之间，更适用于轻量级的低精度(如int8)计算。
- 多个branch的特征使用add进行融合而非concat。concat会增大通道数带来更大的计算开销。
- 融合特征使用channel shuffle以鼓励不同branch特征间的进一步交互，类似于1×1卷积。
模块代码
import torch
import torch.nn as nn
import torch.nn.functional as F
def gcd(a, b):
while b:
a, b = b, a % b
return a
def channel_shuffle(x, groups):
batchsize, num_channels, height, width = x.data.size()
channels_per_group = num_channels // groups
x = x.view(batchsize, groups,
channels_per_group, height, width)
x = torch.transpose(x, 1, 2).contiguous()
x = x.view(batchsize, -1, height, width)
return x
class MultiKernelDepthwiseConv(nn.Module):
def __init__(self, in_channels, kernel_sizes, stride, dw_parallel=True):
super(MultiKernelDepthwiseConv, self).__init__()
self.in_channels = in_channels
self.dw_parallel = dw_parallel
self.dwconvs = nn.ModuleList([
nn.Sequential(
nn.Conv2d(self.in_channels, self.in_channels, kernel_size, stride, kernel_size // 2, groups=self.in_channels, bias=False),
nn.BatchNorm2d(self.in_channels),
nn.ReLU6(inplace=True)
)
for kernel_size in kernel_sizes
])
def forward(self, x):
outputs = []
for dwconv in self.dwconvs:
dw_out = dwconv(x)
outputs.append(dw_out)
if self.dw_parallel == False:
x = x + dw_out
return outputs
class MKIR(nn.Module):
def __init__(self, in_c, out_c, stride=1, expansion_factor=2, dw_parallel=True, add=True, kernel_sizes=[1,3,5]):
super(MKIR, self).__init__()
self.stride = stride
self.in_c = in_c
self.out_c = out_c
self.kernel_sizes = kernel_sizes
self.add = add
self.n_scales = len(kernel_sizes)
self.use_skip_connection = True if self.stride == 1 else False
self.ex_c = int(self.in_c * expansion_factor)
self.pconv1 = nn.Sequential(
nn.Conv2d(self.in_c, self.ex_c, 1, 1, 0, bias=False),
nn.BatchNorm2d(self.ex_c),
nn.ReLU6(inplace=True)
)
self.multi_scale_dwconv = MultiKernelDepthwiseConv(self.ex_c, self.kernel_sizes, self.stride, dw_parallel=dw_parallel)
if self.add == True:
self.combined_channels = self.ex_c*1
else:
self.combined_channels = self.ex_c*self.n_scales
self.pconv2 = nn.Sequential(
nn.Conv2d(self.combined_channels, self.out_c, 1, 1, 0, bias=False), #
nn.BatchNorm2d(self.out_c),
)
if self.use_skip_connection and (self.in_c != self.out_c):
self.conv1x1 = nn.Conv2d(self.in_c, self.out_c, 1, 1, 0, bias=False)
def forward(self, x):
pout1 = self.pconv1(x)
dwconv_outs = self.multi_scale_dwconv(pout1)
if self.add == True:
dout = 0
for dwout in dwconv_outs:
dout = dout + dwout
else:
dout = torch.cat(dwconv_outs, dim=1)
dout = channel_shuffle(dout, gcd(self.combined_channels,self.out_c))
out = self.pconv2(dout)
if self.use_skip_connection:
if self.in_c != self.out_c:
x = self.conv1x1(x)
return x + out
else:
return out
if __name__ == '__main__':
x = torch.randn([1, 64, 44, 44])
mkir = MKIR(in_c=64, out_c=128)
out = mkir(x)
print(out.shape) # [1, 128, 44, 44]
