计算机视觉————基础矩阵

    # -*- coding: utf-8 -*-
    from PIL import Image
    from numpy import *
    from pylab import *
    import numpy as np
    from PCV.geometry import camera
    from PCV.geometry import homography
    from PCV.geometry import sfm
    from PCV.localdescriptors import sift
    # -*- coding: utf-8 -*-

    # Read features
    # 载入图像，并计算特征
    im1 = array(Image.open('E:/picture/02/1.jpg'))
    sift.process_image('E:/picture/02/1.jpg', 'im1.sift')
    l1, d1 = sift.read_features_from_file('im1.sift')

    im2 = array(Image.open('E:/picture/02/2.jpg'))
    sift.process_image('E:/picture/02/2.jpg', 'im2.sift')
    l2, d2 = sift.read_features_from_file('im2.sift')

    # 匹配特征
    matches = sift.match_twosided(d1, d2)
    ndx = matches.nonzero()[0]

    # 使用齐次坐标表示，并使用 inv(K) 归一化
    x1 = homography.make_homog(l1[ndx, :2].T)
    ndx2 = [int(matches[i]) for i in ndx]
    x2 = homography.make_homog(l2[ndx2, :2].T)

    x1n = x1.copy()
    x2n = x2.copy()
    print(len(ndx))

    figure(figsize=(16,16))

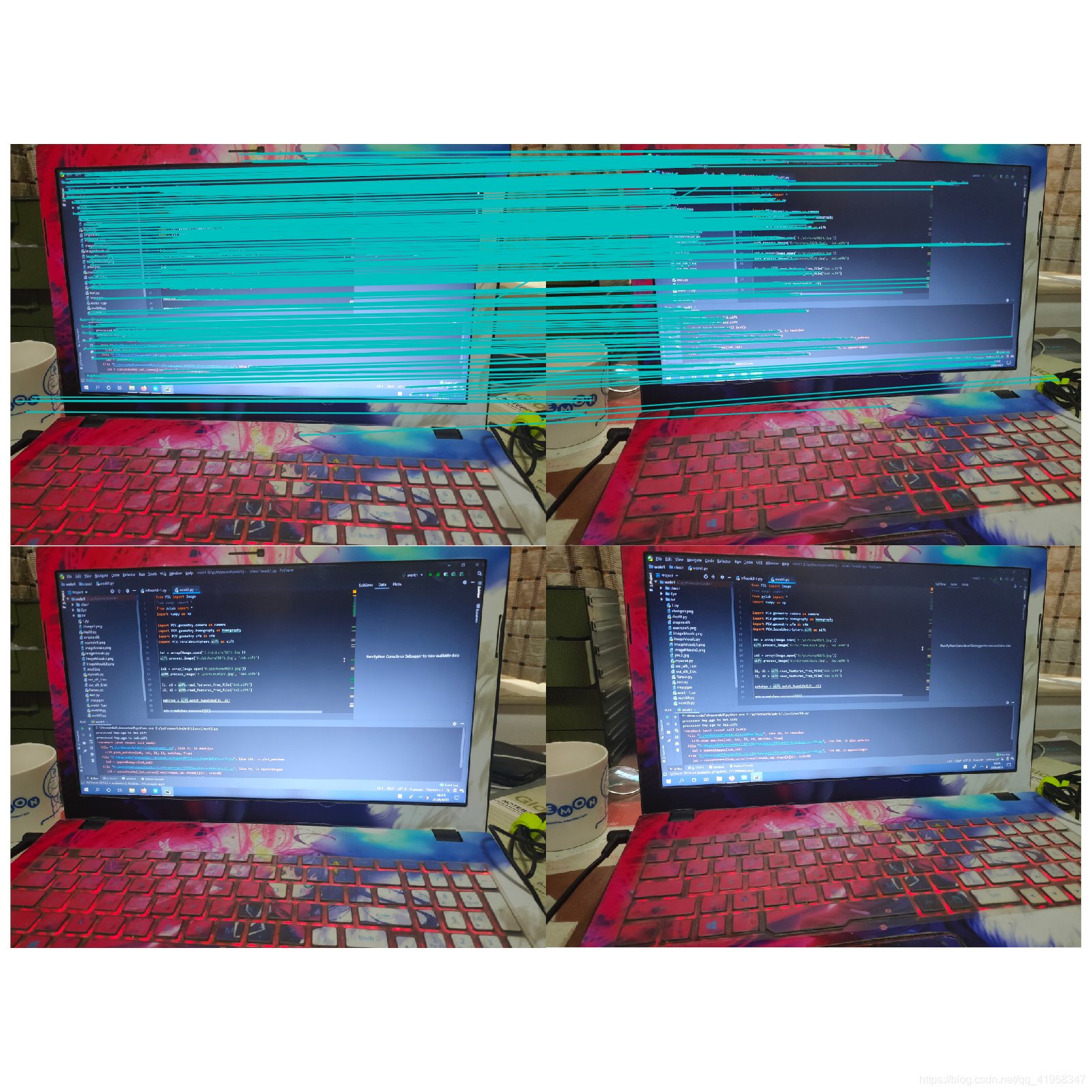

    sift.plot_matches(im1, im2, l1, l2, matches, True)
    show()

    # Don't use K1, and K2

    #def F_from_ransac(x1, x2, model, maxiter=5000, match_threshold=1e-6):
    def F_from_ransac(x1, x2, model, maxiter=5000, match_threshold=1e-6):
    """ Robust estimation of a fundamental matrix F from point
    correspondences using RANSAC (ransac.py from
    http://www.scipy.org/Cookbook/RANSAC).

    input: x1, x2 (3*n arrays) points in hom. coordinates. """

    from PCV.tools import ransac
    data = np.vstack((x1, x2))
    d = 20 # 20 is the original
    # compute F and return with inlier index
    F, ransac_data = ransac.ransac(data.T, model,
                                   8, maxiter, match_threshold, d, return_all=True)
    return F, ransac_data['inliers']

    # find E through RANSAC
    # 使用 RANSAC 方法估计 E
    model = sfm.RansacModel()
    F, inliers = F_from_ransac(x1n, x2n, model, maxiter=5000, match_threshold=1e-4)

    print(len(x1n[0]))
    print(len(inliers))

    # 计算照相机矩阵（P2 是 4 个解的列表）
    P1 = array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0]])
    P2 = sfm.compute_P_from_fundamental(F)

    # triangulate inliers and remove points not in front of both cameras
    X = sfm.triangulate(x1n[:, inliers], x2n[:, inliers], P1, P2)

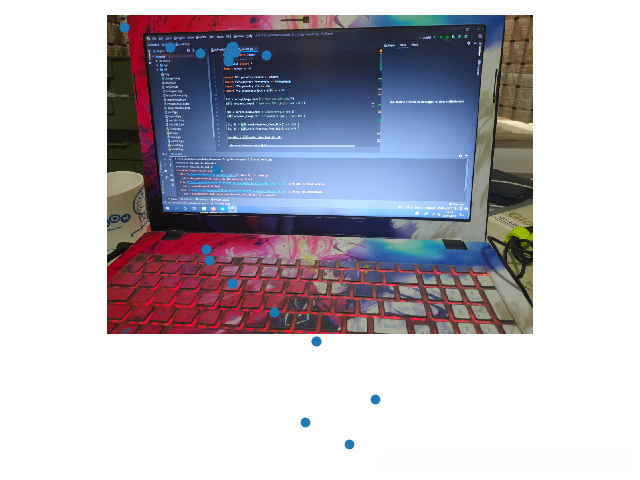

    # plot the projection of X
    cam1 = camera.Camera(P1)
    cam2 = camera.Camera(P2)
    x1p = cam1.project(X)
    x2p = cam2.project(X)

    figure()
    imshow(im1)
    gray()
    plot(x1p[0], x1p[1], 'o')
    #plot(x1[0], x1[1], 'r.')
    axis('off')

    figure()
    imshow(im2)
    gray()
    plot(x2p[0], x2p[1], 'o')
    #plot(x2[0], x2[1], 'r.')
    axis('off')
    show()

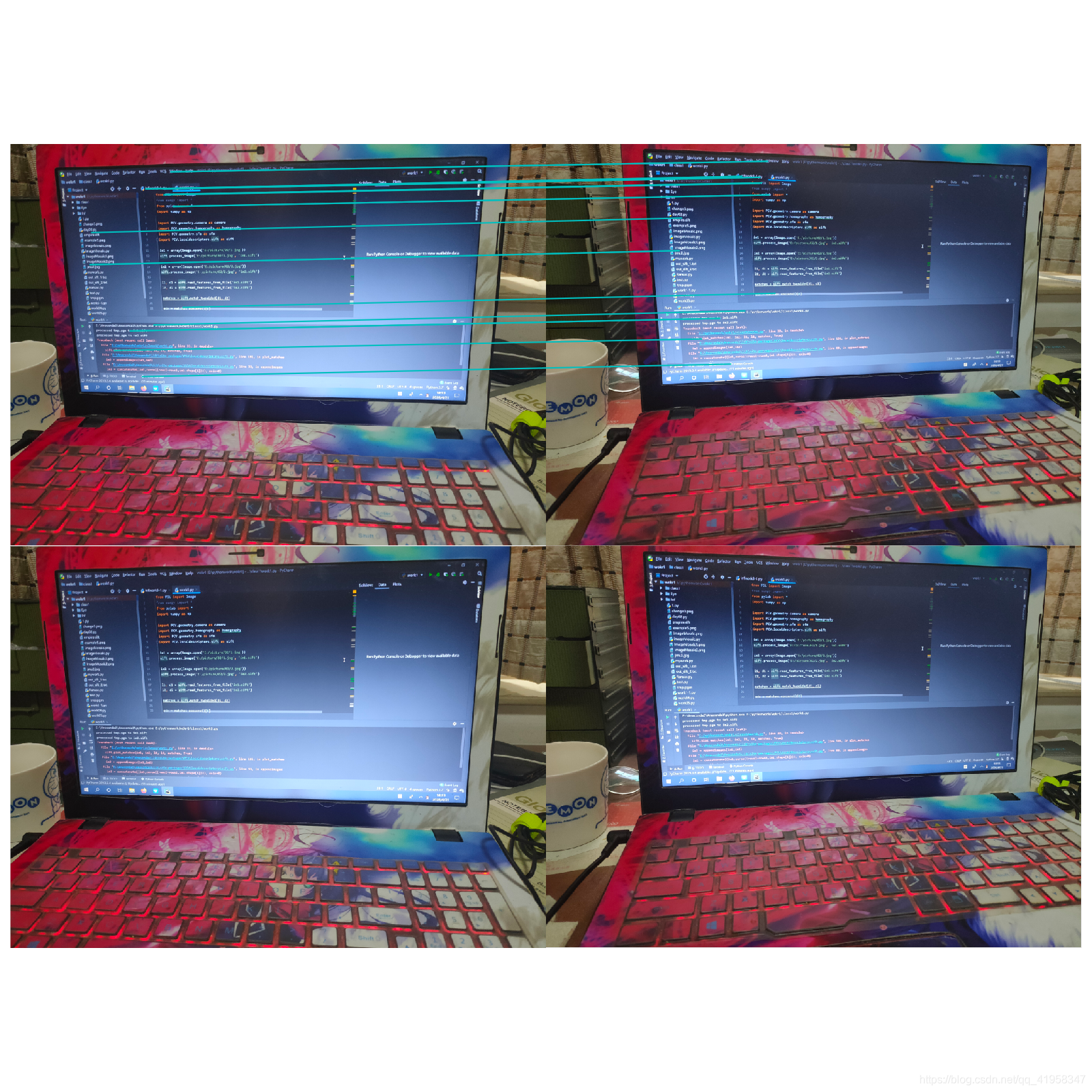

    figure(figsize=(16, 16))
    im3 = sift.appendimages(im1, im2)
    im3 = vstack((im3, im3))

    imshow(im3)

    cols1 = im1.shape[1]
    rows1 = im1.shape[0]
    for i in range(len(x1p[0])):
    if (0<= x1p[0][i]<cols1) and (0<= x2p[0][i]<cols1) and (0<=x1p[1][i]<rows1) and (0<=x2p[1][i]<rows1):
        plot([x1p[0][i], x2p[0][i]+cols1],[x1p[1][i], x2p[1][i]],'c')
    axis('off')
    show()

    print(F)

    x1e = []
    x2e = []
    ers = []
    for i,m in enumerate(matches):
    if m>0: #plot([locs1[i][0],locs2[m][0]+cols1],[locs1[i][1],locs2[m][1]],'c')
        x1=int(l1[i][0])
        y1=int(l1[i][1])
        x2=int(l2[int(m)][0])
        y2=int(l2[int(m)][1])
        # p1 = array([l1[i][0], l1[i][1], 1])
        # p2 = array([l2[m][0], l2[m][1], 1])
        p1 = array([x1, y1, 1])
        p2 = array([x2, y2, 1])
        # Use Sampson distance as error
        Fx1 = dot(F, p1)
        Fx2 = dot(F, p2)
        denom = Fx1[0]**2 + Fx1[1]**2 + Fx2[0]**2 + Fx2[1]**2
        e = (dot(p1.T, dot(F, p2)))**2 / denom
        x1e.append([p1[0], p1[1]])
        x2e.append([p2[0], p2[1]])
        ers.append(e)
    x1e = array(x1e)
    x2e = array(x2e)
    ers = array(ers)

    indices = np.argsort(ers)
    x1s = x1e[indices]
    x2s = x2e[indices]
    ers = ers[indices]
    x1s = x1s[:20]
    x2s = x2s[:20]

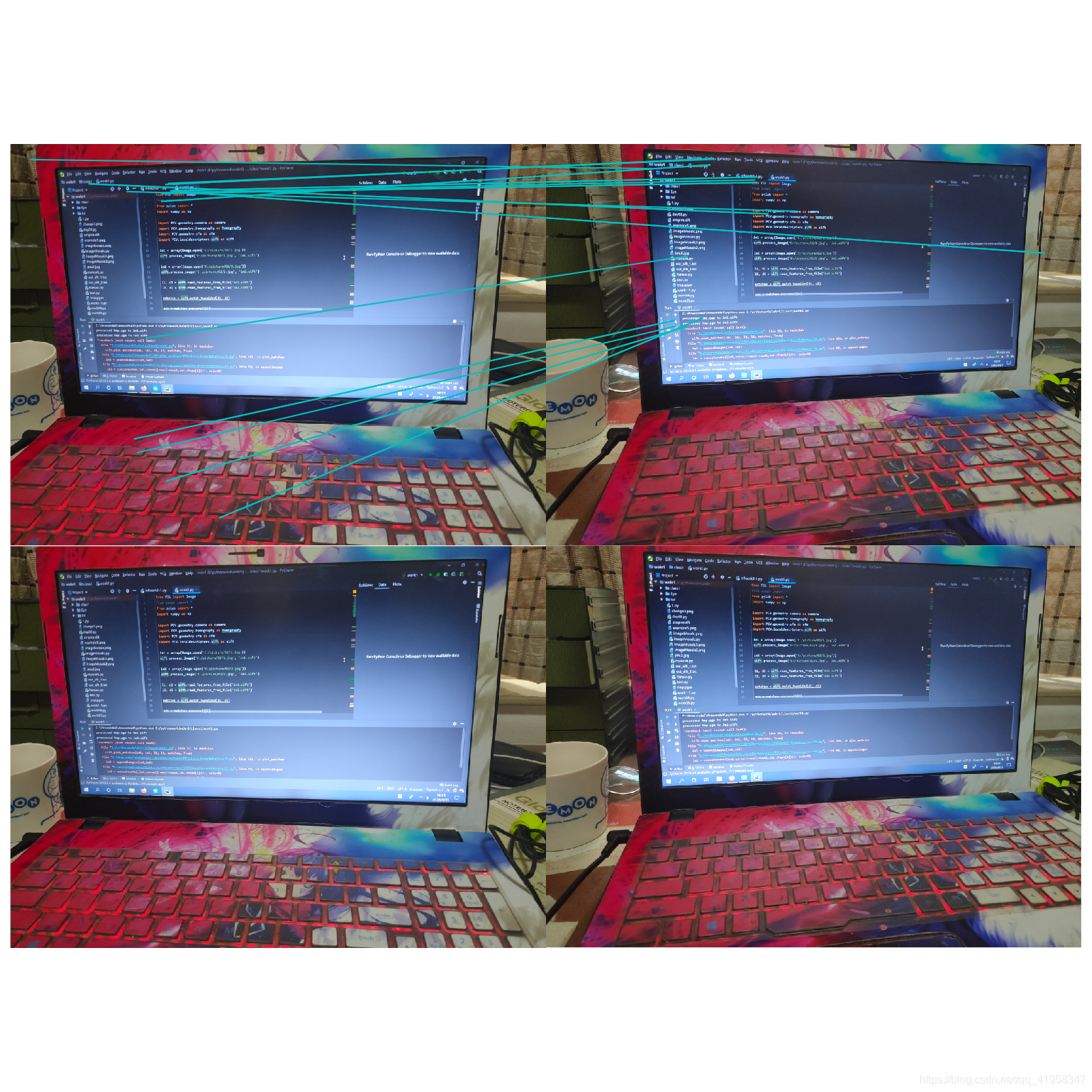

    figure(figsize=(16, 16))
    im3 = sift.appendimages(im1, im2)
    im3 = vstack((im3, im3))

    imshow(im3)

    cols1 = im1.shape[1]
    rows1 = im1.shape[0]
    for i in range(len(x1s)):
    if (0<= x1s[i][0]<cols1) and (0<= x2s[i][0]<cols1) and (0<=x1s[i][1]<rows1) and (0<=x2s[i][1]<rows1):
        plot([x1s[i][0], x2s[i][0]+cols1],[x1s[i][1], x2s[i][1]],'c')
    axis('off')
    show()
