目标检测光流法（三）：opencv下光流Farneback法

    #include <opencv2/highgui/highgui.hpp>
    #include <opencv2/imgproc/imgproc.hpp>
    #include <opencv2/video/video.hpp>
    #include <opencv2/core/core.hpp>
    #include <opencv2/imgproc/types_c.h>
    #include <iostream>
    #include <cstdio>

    using namespace std;
    using namespace cv;
    #define UNKNOWN_FLOW_THRESH 1e9

    void makecolorwheel(vector<Scalar> &colorwheel)
    {
    int RY = 15;
    int YG = 6;
    int GC = 4;
    int CB = 11;
    int BM = 13;
    int MR = 6;

    int i;

    for (i = 0; i < RY; i++) colorwheel.push_back(Scalar(255,       255*i/RY,     0));
    for (i = 0; i < YG; i++) colorwheel.push_back(Scalar(255-255*i/YG, 255,       0));
    for (i = 0; i < GC; i++) colorwheel.push_back(Scalar(0,         255,      255*i/GC));
    for (i = 0; i < CB; i++) colorwheel.push_back(Scalar(0,         255-255*i/CB, 255));
    for (i = 0; i < BM; i++) colorwheel.push_back(Scalar(255*i/BM,      0,        255));
    for (i = 0; i < MR; i++) colorwheel.push_back(Scalar(255,       0,        255-255*i/MR));
    }

    void motionToColor(Mat flow, Mat &color)
    {
    if (color.empty())
        color.create(flow.rows, flow.cols, CV_8UC3);

    static vector<Scalar> colorwheel; //Scalar r,g,b
    if (colorwheel.empty())
        makecolorwheel(colorwheel);

    // determine motion range:
    float maxrad = -1;

    // Find max flow to normalize fx and fy
    for (int i= 0; i < flow.rows; ++i)
    {
        for (int j = 0; j < flow.cols; ++j)
        {
            Vec2f flow_at_point = flow.at<Vec2f>(i, j);
            float fx = flow_at_point[0];
            float fy = flow_at_point[1];
            if ((fabs(fx) >  UNKNOWN_FLOW_THRESH) || (fabs(fy) >  UNKNOWN_FLOW_THRESH))
                continue;
            float rad = sqrt(fx * fx + fy * fy);
            maxrad = maxrad > rad ? maxrad : rad;
        }
    }

    for (int i= 0; i < flow.rows; ++i)
    {
        for (int j = 0; j < flow.cols; ++j)
        {
            uchar *data = color.data + color.step[0] * i + color.step[1] * j;
            Vec2f flow_at_point = flow.at<Vec2f>(i, j);

            float fx = flow_at_point[0] / maxrad;
            float fy = flow_at_point[1] / maxrad;
            if ((fabs(fx) >  UNKNOWN_FLOW_THRESH) || (fabs(fy) >  UNKNOWN_FLOW_THRESH))
            {
                data[0] = data[1] = data[2] = 0;
                continue;
            }
            float rad = sqrt(fx * fx + fy * fy);

            float angle = atan2(-fy, -fx) / CV_PI;
            float fk = (angle + 1.0) / 2.0 * (colorwheel.size()-1);
            int k0 = (int)fk;
            int k1 = (k0 + 1) % colorwheel.size();
            float f = fk - k0;
            //f = 0; // uncomment to see original color wheel

            for (int b = 0; b < 3; b++)
            {
                float col0 = colorwheel[k0][b] / 255.0;
                float col1 = colorwheel[k1][b] / 255.0;
                float col = (1 - f) * col0 + f * col1;
                if (rad <= 1)
                    col = 1 - rad * (1 - col); // increase saturation with radius
                else
                    col *= .75; // out of range
                data[2 - b] = (int)(255.0 * col);
            }
        }
    }
    }


    int main()
    {
    Mat I1;
    Mat I2;
    Mat flow;
    //读取两个图像---相邻帧
    I1 = imread("I1.jpg",0);//读取为灰度图像
    I2 = imread("I2.jpg",0);
    calcOpticalFlowFarneback(I1,I2,flow,0.5,3,20,3,5,1.2,0);
    //cout<<I1.size()<<flow.size()<<flow.at<Vec2f>(10,10)<<endl;
    //flow = abs(flow);
    Mat motion2color;
    motionToColor(flow, motion2color);

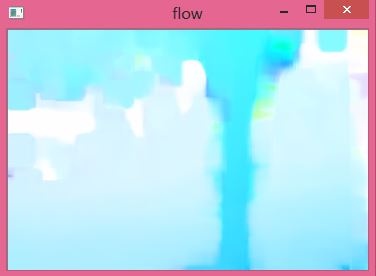

    imshow("flow",motion2color);
    waitKey(0);
    return 0;
    }
